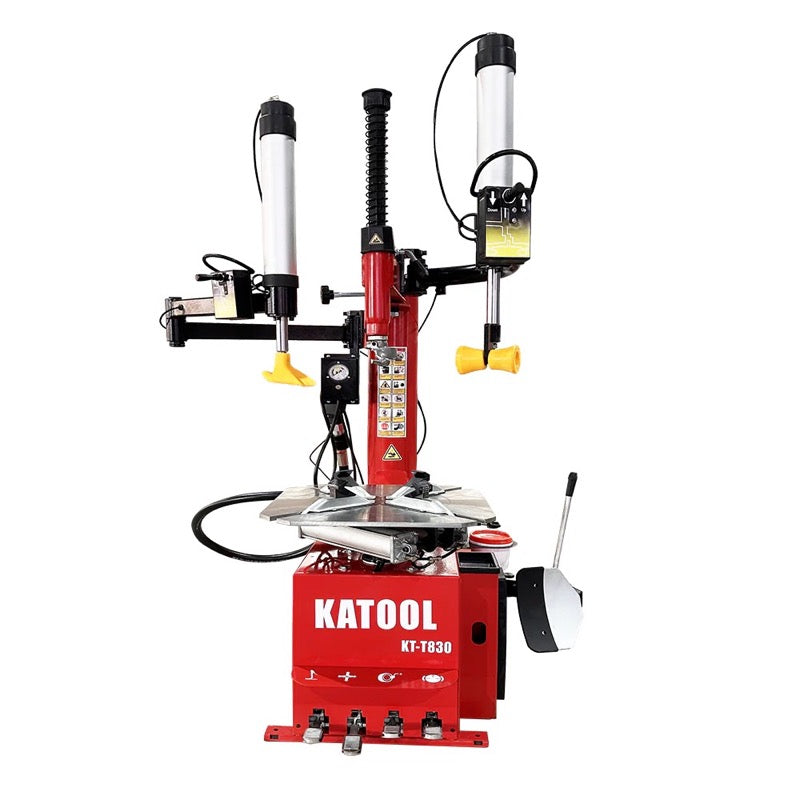

Katool KT-T830 Wheel Clamp Tire Changer – 41" Capacity, 120V
Struggling with stiff sidewalls and slow manual tire changes? The Katool KT-T830 Wheel Clamp Tire Changer is built to make tire mounting and removal fast, safe, and efficient. Designed for professional auto shops and serious home garages, this high-performance tire changer handles wheels up to 41 inches in diameter with precision and power.
Powered by a reliable 2.0HP motor and smooth 6.8 r/min rotation speed, the KT-T830 delivers consistent torque for quick tire service without damaging rims. Its adjustable wheel clamping system securely grips both steel and alloy wheels, making it a versatile solution for modern tire applications.
If you're looking for a durable, 120V automotive tire changer for sale, the KT-T830 is built to perform.
Built for Professional Tire Service
The KT-T830 combines heavy-duty construction with rim-protection technology to reduce the risk of wheel damage.
• Handles wheels up to 41” (1040mm) diameter
• Supports wheel widths up to 15” (380mm)
• Adjustable outside clamp: 12”–22”
• Adjustable inside clamp: 14”–24”
• Powerful 2.0HP / 1.5KW motor
• Operates on 120V single phase power
• Smooth 6.8 r/min rotation speed
• Operating air pressure: 116–145 PSI
Advanced Rim Protection & Durability
The KT-T830 tire changer is engineered with premium components to maximize longevity and protect expensive wheels.
• Hardened alloy steel jaws with carburized treatment
• Stainless steel mounting head with polished interface
• Protective jaw covers to prevent rim damage
• Heavy-duty 186mm stainless bead breaker cylinder
• Bead blast seater head with integrated post tank
• High-quality lubricator for extended pneumatic system life
• Closed body design to protect internal components
This makes it ideal for handling aluminum and alloy wheels without scratching or scarring.

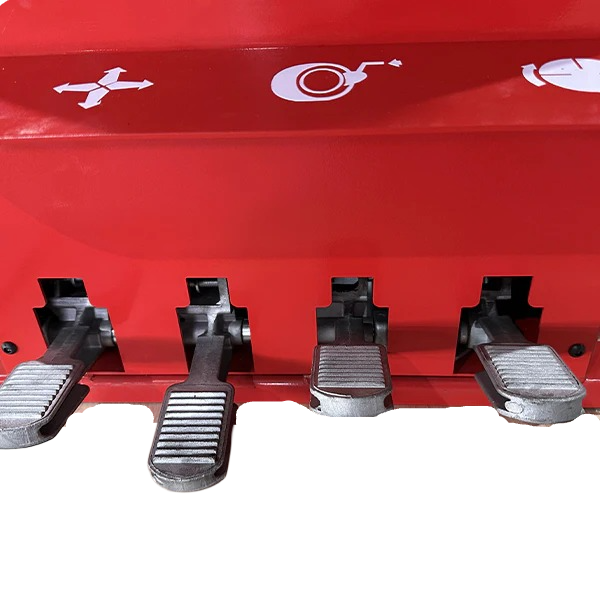

Efficient Pedal Control System
The pull-type pedal control system allows smooth, controlled tire mounting and removal. Integrated inflation gauge with foot pedal control increases speed and accuracy during tire seating and inflation.
Top-level copper-wound motor ensures:
• Faster heat dissipation
• Lower defect rate
• Longer operational lifespan

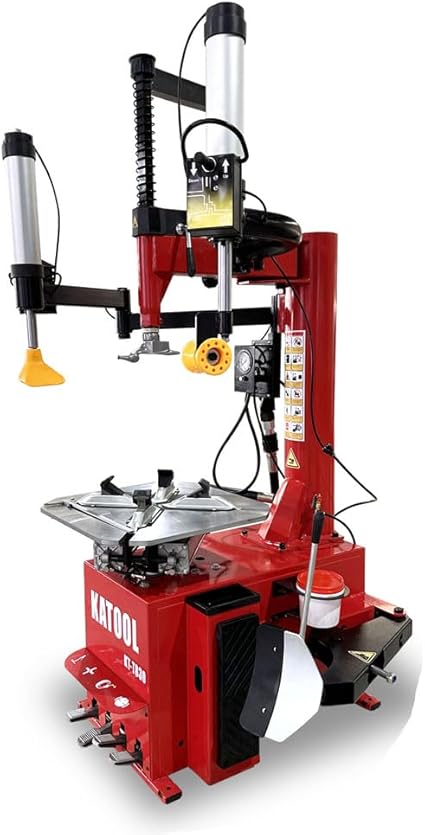

Double Side Assist Arm Included
The double side assist arm provides additional leverage for:
• Low-profile tires
• Stiff sidewalls
• Performance tires
Perfect for modern automotive applications.
Ideal For
• Auto repair shops
• Tire service centers
• Dealership service bays
• Performance garages
• Home workshops
Whether you're upgrading your shop equipment or starting a tire service business, the Katool KT-T830 tire changer offers professional-level performance at an accessible price point.
Specifications
Max Wheel Diameter: 41" / 1040mm
Max Wheel Width: 15" / 380mm
Outside Clamp: 12"–22"
Inside Clamp: 14"–24"
Power Supply: 120V 1PH
Motor Power: 2.0HP / 1.5KW
Rotation Speed: 6.8 r/min
Air Pressure: 0.8–1.0 Mpa (116–145 PSI)
Net Weight: 529 lbs / 240kg
Katool Warranty
All Katool equipment includes a 12-month warranty covering parts and manufacturing defects — giving you peace of mind with every purchase.
