Katool KT-H100 Two Post Vehicle Lift 10,000lbs

Katool KT-H100 Two Post Vehicle Lift 10,000lbs

$2,399.00

Key Features

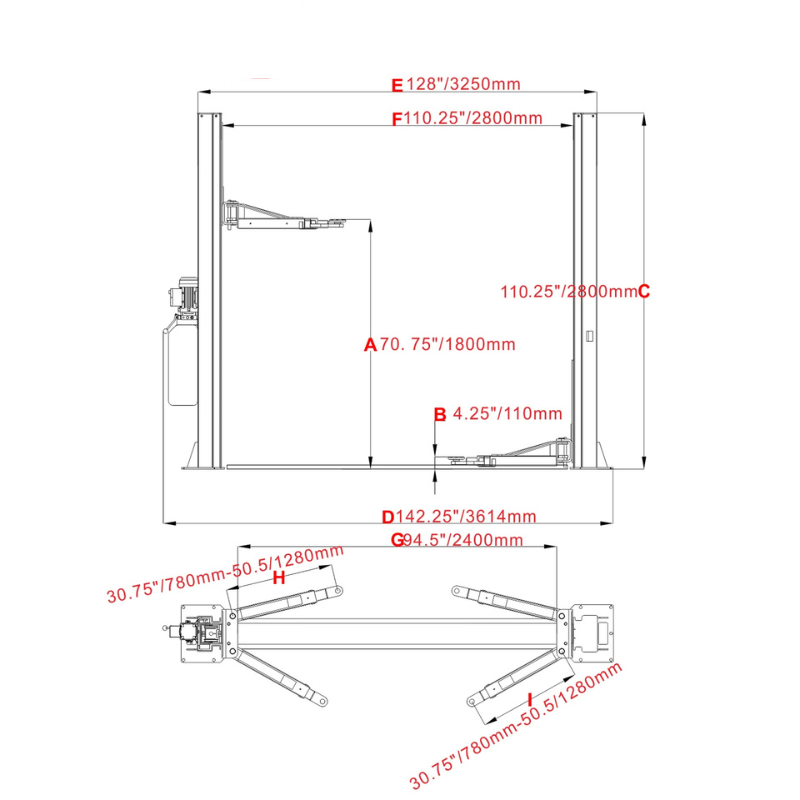

  • Lifting Capacity: 10,000 lbs (4,500 KG) – built for cars, SUVs, and light-duty trucks

  • Maximum Lifting Height: 70.75" (1,800 mm) – full underbody access

  • Minimum Height: 4.25" (110 mm) – works with low-clearance vehicles

  • Overall Height: 110.25" (2,800 mm) – compact design for shops with lower ceilings

  • Overall Width: 142.25" (3,614 mm) – accommodates a wide range of vehicles

  • Outside Column Width: 128" (3,250 mm)

  • Inside Column Width: 110.25" (2,800 mm)

  • Drive-Thru Clearance: 94.5" (2,400 mm) – easy entry/exit for vehicles

  • Front Arm Reach: 30.75" – 50.5" (780–1,280 mm, 2-stage) – versatile positioning

  • Rear Arm Reach: 30.75" – 50.5" (780–1,280 mm, 2-stage) – stable and secure lift points

  • Motor: 220V AC / 60Hz / 1PH / 2.2KW – dependable hydraulic power

  • Net Weight: 1,256 lbs (570 KG) – heavy-duty build for long-lasting performance
Description

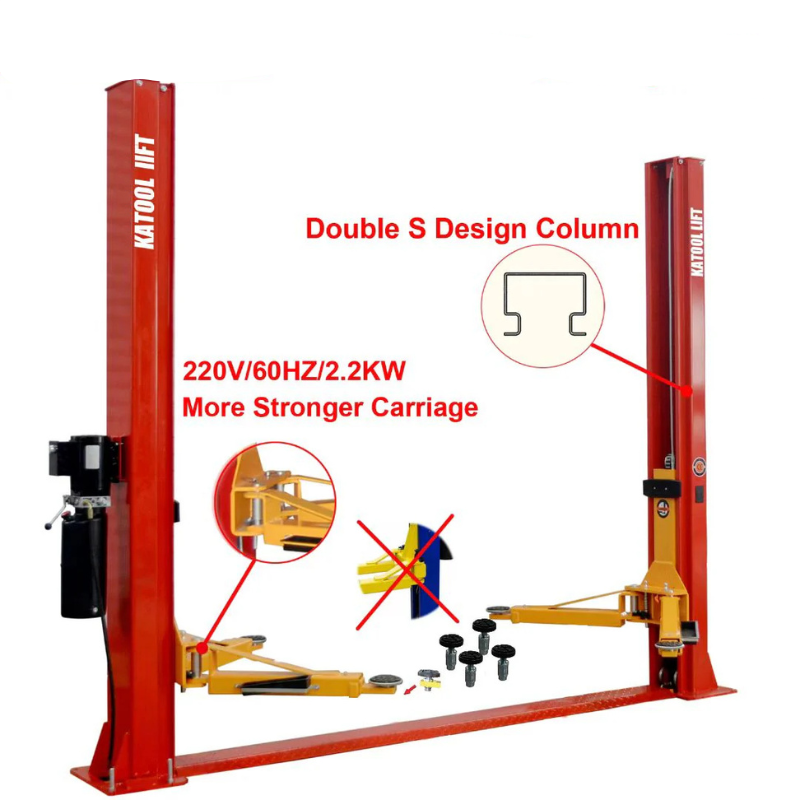

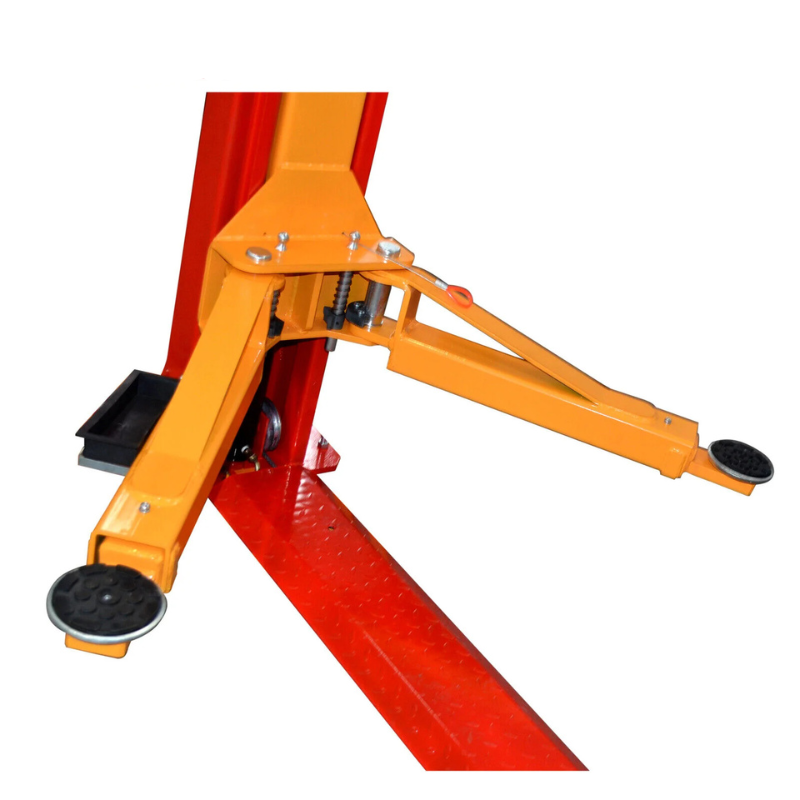

The Katool KT-H100 Two Post Vehicle Lift has a robust lifting capacity of 10,000lbs. CE Approved and Certified, it meets stringent safety standards, having undergone dynamic and static loading capacity tests. The lift features a manual safety release from two sides, a symmetric arm design, and a reliable base plate design. With dual hydraulic chain-drive cylinders, it ensures efficient and secure lifting. The rubber pad door opening protection adds an extra layer of safety. The lift comes complete with extension support adaptor sets of +30mm and +120mm, providing versatility for different vehicle types. The inclusion of feet-protection safety guardrails with a tools box enhances user safety. Powered by a top-level hydraulic system, it offers flexibility with optional 220V/60HZ/1PH and 110V/60HZ/1PH configurations.



Warranty

-

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.

All of the products that they offer to clients are tried and tested within the industry and are proven to be the most reliable equipment on the market.
