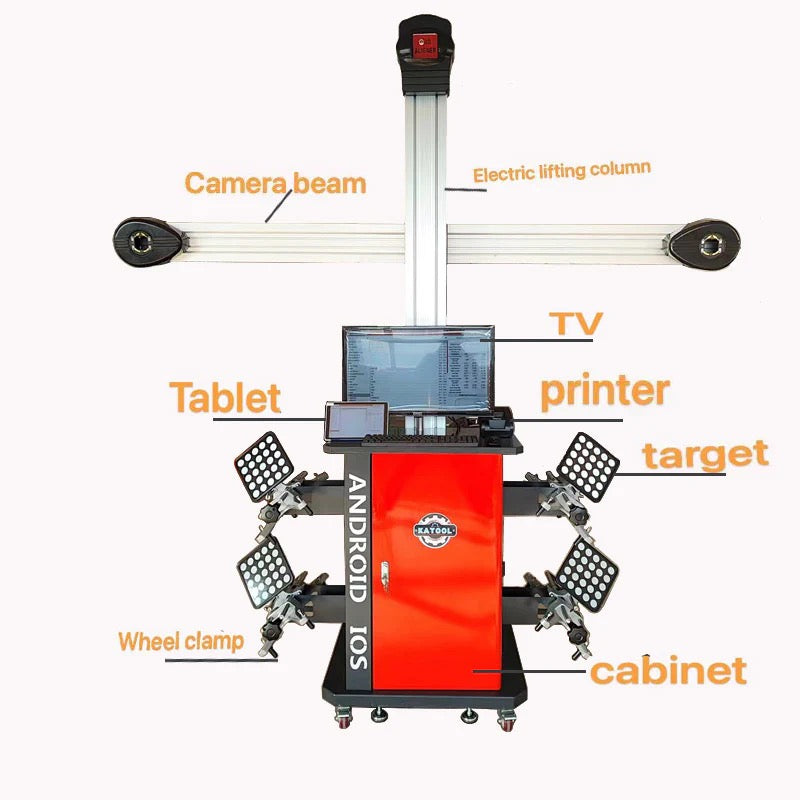

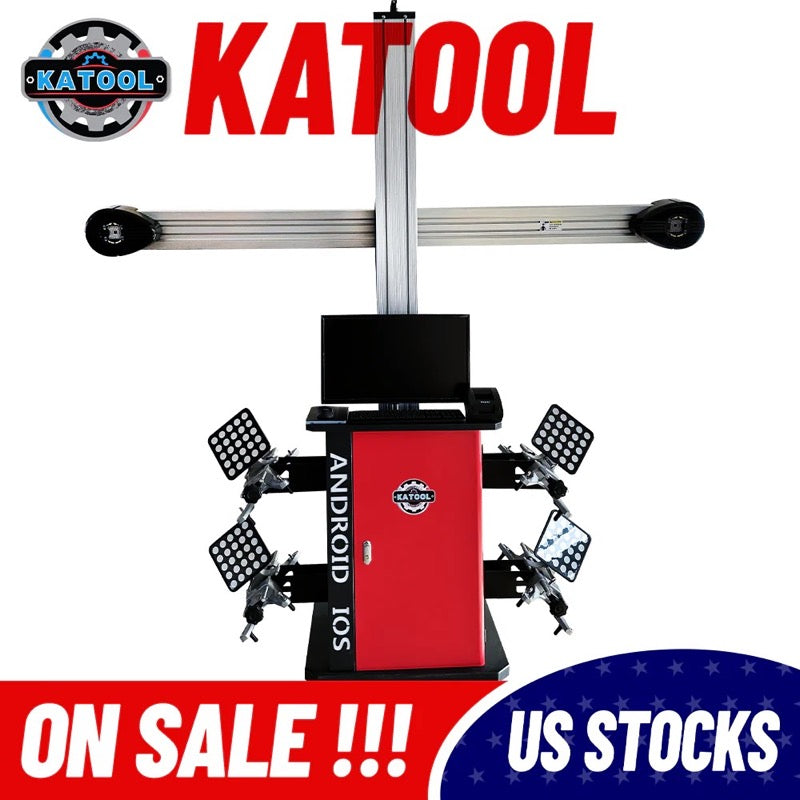

Katool KT-AV9 3D Wheel Alignment Machine – Advanced Mobile Alignment System
The Katool KT-AV9 Wheel Alignment Machine is a professional-grade 3D alignment system engineered for accuracy, speed, and modern shop efficiency. Designed to eliminate guesswork, the KT-AV9 delivers precise alignment diagnostics that help reduce premature tire wear, improve fuel efficiency, and enhance overall vehicle handling.
Equipped with high-resolution dual cameras and fast data processing, the KT-AV9 ensures accurate measurements across a wide range of vehicles. Its intelligent system adapts to varying lighting conditions, allowing reliable performance even in challenging shop environments.
With plug-and-play setup, unlimited vehicle memory, and built-in self-diagnostics, this alignment machine is ready to work right out of the box. If you're searching for a 3D wheel alignment machine for professional lifts, the KT-AV9 offers advanced capability with user-friendly operation.
Built for Modern Automotive Shops
The KT-AV9 is designed to integrate seamlessly with common shop lift setups.
• Mobile 3D wheel aligner for lift applications
• Ideal for 2-post lifts and scissor lifts
• No calibration required during installation
• Unlimited vehicle specification memory
• Free yearly database updates
• Self-diagnostic system for easy troubleshooting
Its remote-controlled movable post allows effortless height tracking and positioning during service.
Smart Connectivity & Complete Package

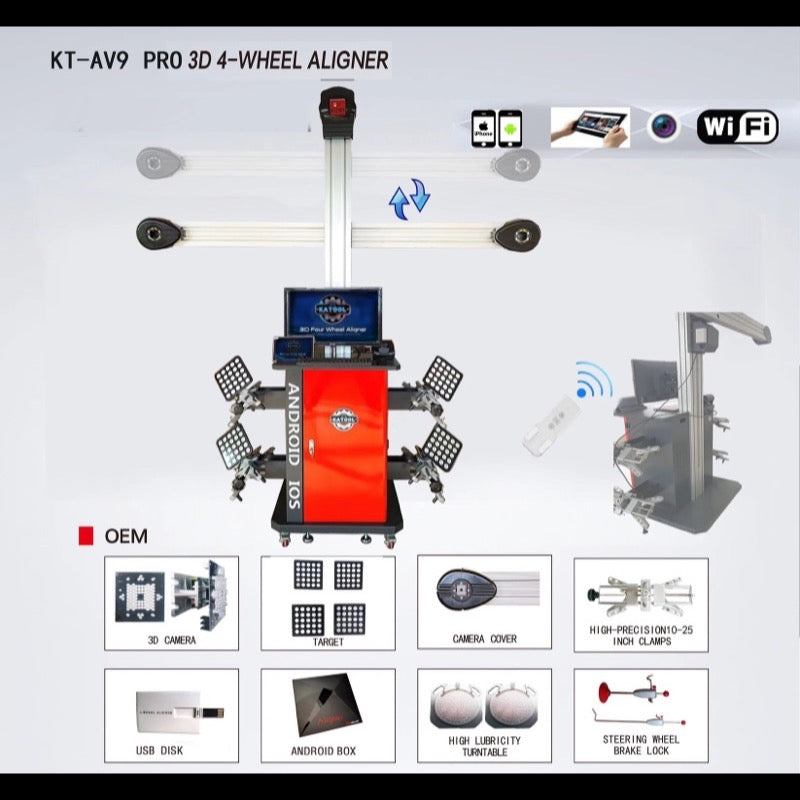

The KT-AV9 includes everything needed for professional alignment work:
• Tablet
• 30-inch display screen
• Mouse and keypad
• Printer
• Complimentary Wi-Fi device
• USB drive

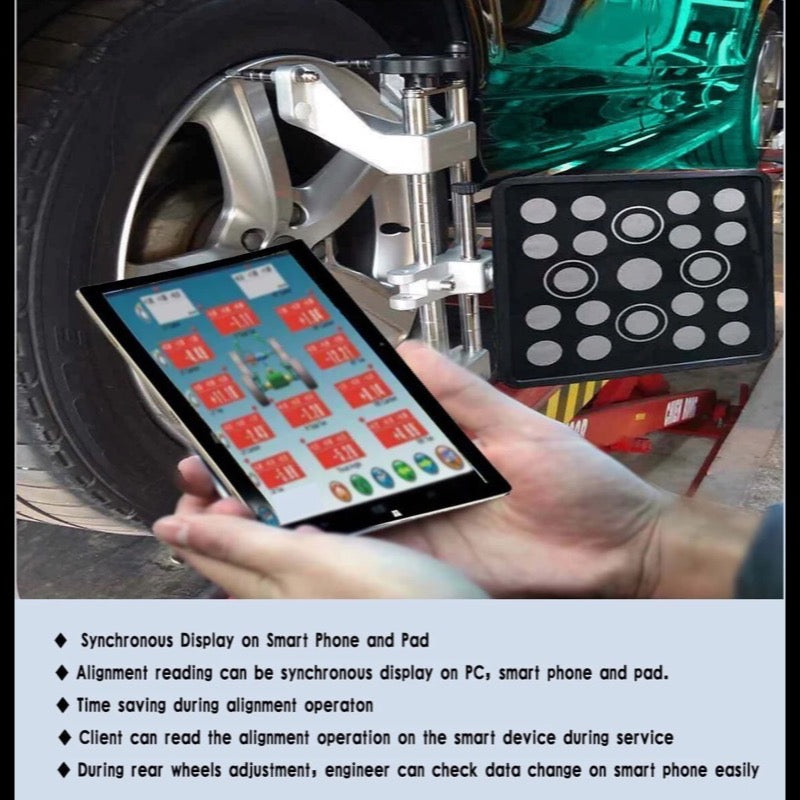

The system supports Android and iOS software, with live alignment data viewable on smartphones and tablets for improved workflow during rear wheel adjustments.
Technical Specifications
Power Supply: 100–240V / 50–60Hz / 1PH
Working Temperature: 41°F–104°F (+5°C–+40°C)
Cameras: 2
Tire Diameter: 250–800 mm (9 27/32”–31 1/2”)
Wheelbase: 1.6–2.1 m (62 63/64”–82 43/64”)
Track Width: 1.8–4.5 m (70 55/64”–177 11/64”)
Product Weight: 440.92 lbs (200 kg)
Shipping Weight: 529.11 lbs (240 kg)
Warranty: 1-Year Limited
