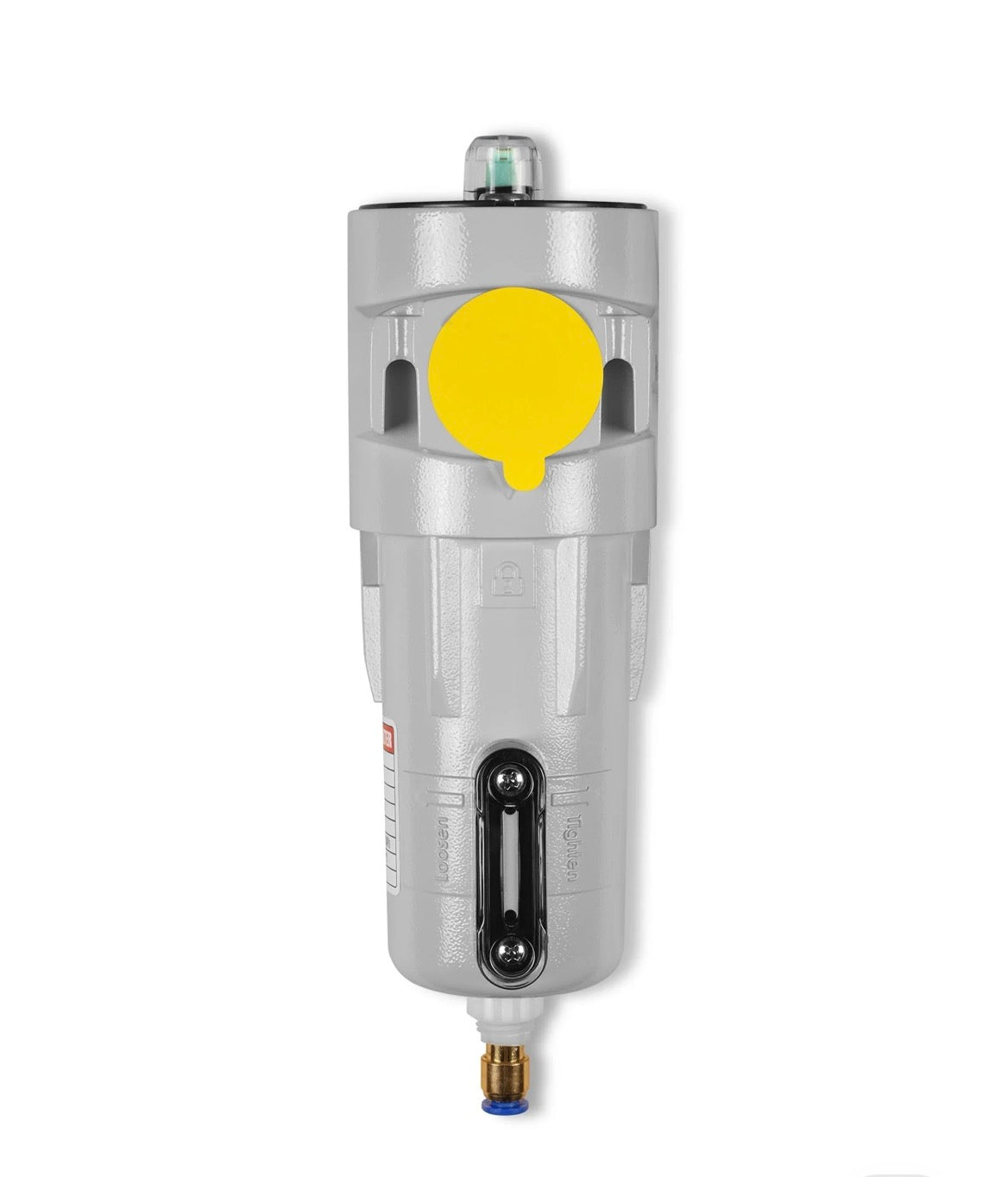

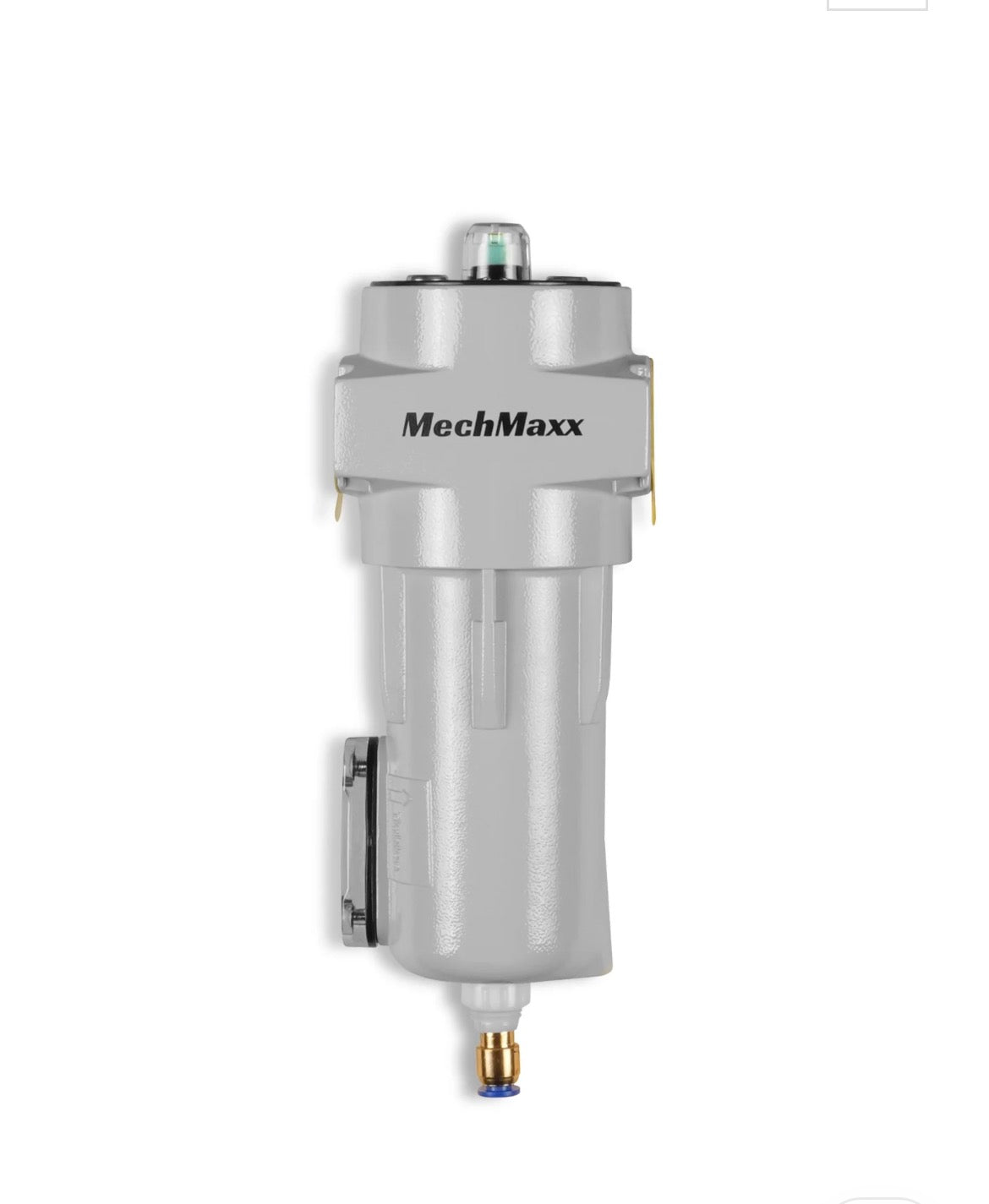

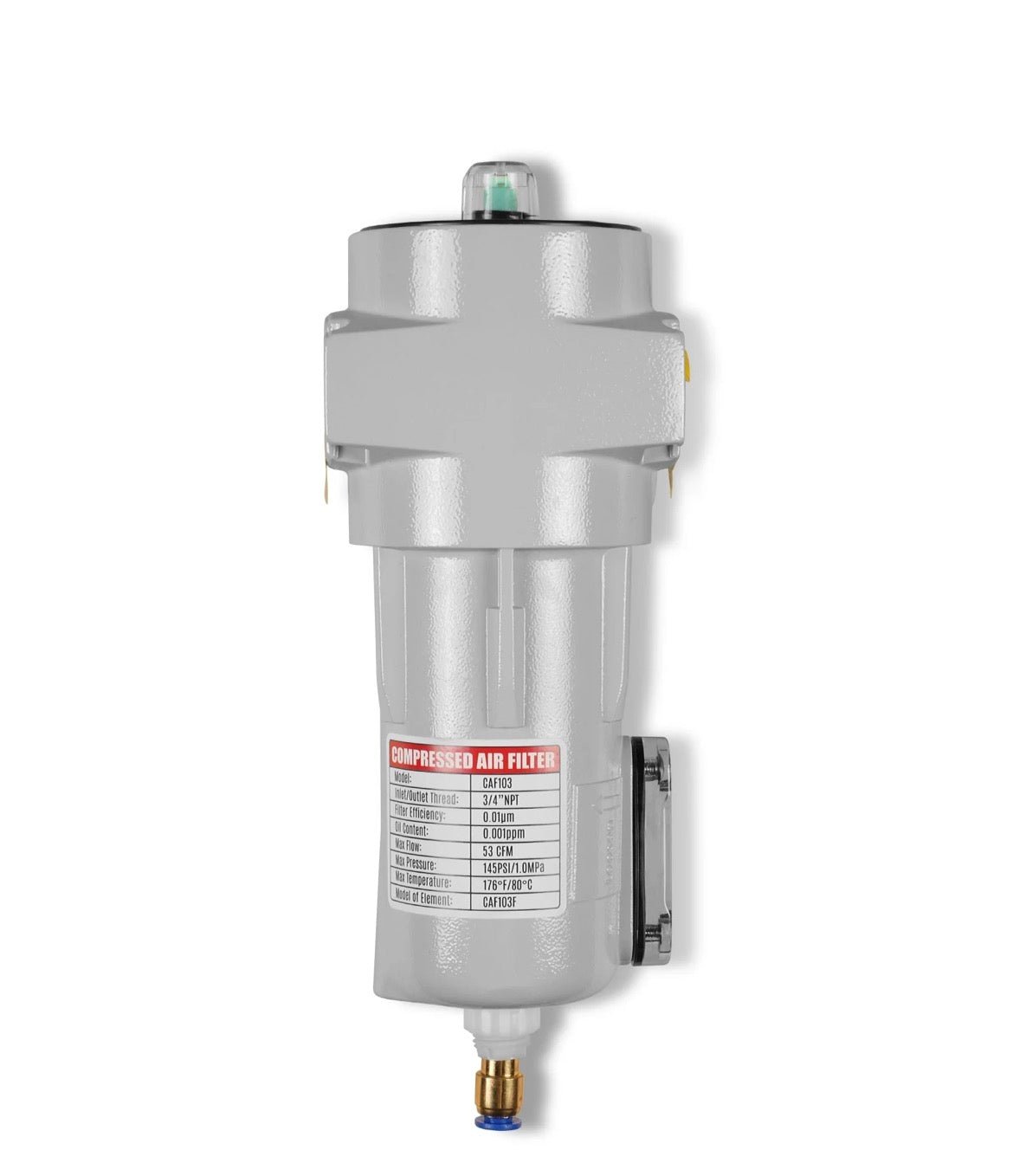

Mechmaxx 53 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.001ppm, With Auto Drain, Pressure Indicator
Mechmaxx 53 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.001ppm, With Auto Drain, Pressure Indicator
Couldn't load pickup availability
Shipping
Shipping
Shipping Information
Processing & Delivery
Orders are processed within 1–5 business days. Most deliveries arrive within 6–12 business days, depending on the product and shipping method. Freight carriers typically contact customers by phone to schedule delivery.
Shipping Costs
We offer free shipping on select products within the continental United States. Shipping options and any applicable delivery charges are shown at checkout before purchase.
Freight Shipping
Large equipment, such as vehicle lifts and heavy machinery, ships via freight carriers due to size and weight.
Delivery Requirements
Some items require a commercial delivery location with a forklift or loading dock for unloading. Residential deliveries may require lift gate service and may incur additional fees depending on the product and location.
Pickup Option
Customers may choose to have their order delivered to a nearby freight terminal for pickup.
More Information
For full details on shipping procedures, delivery requirements, and freight options, please view our full Shipping Policy.
Warranty
Warranty
There is a 5 year guarantee on the material and construction of our products, subject to correct use, as outlined in the operating and maintenance instructions. Unauthorized alterations within the warranty period causes the guarantee to lapse unless we have granted written permission prior to the alteration taking place. The guarantee does not apply to parts that are simply worn during use. The only exception to this warranty is in regard to our ROBOT systems, which has a 2 year guarantee under the same conditions that are outlined previously in this warranty.

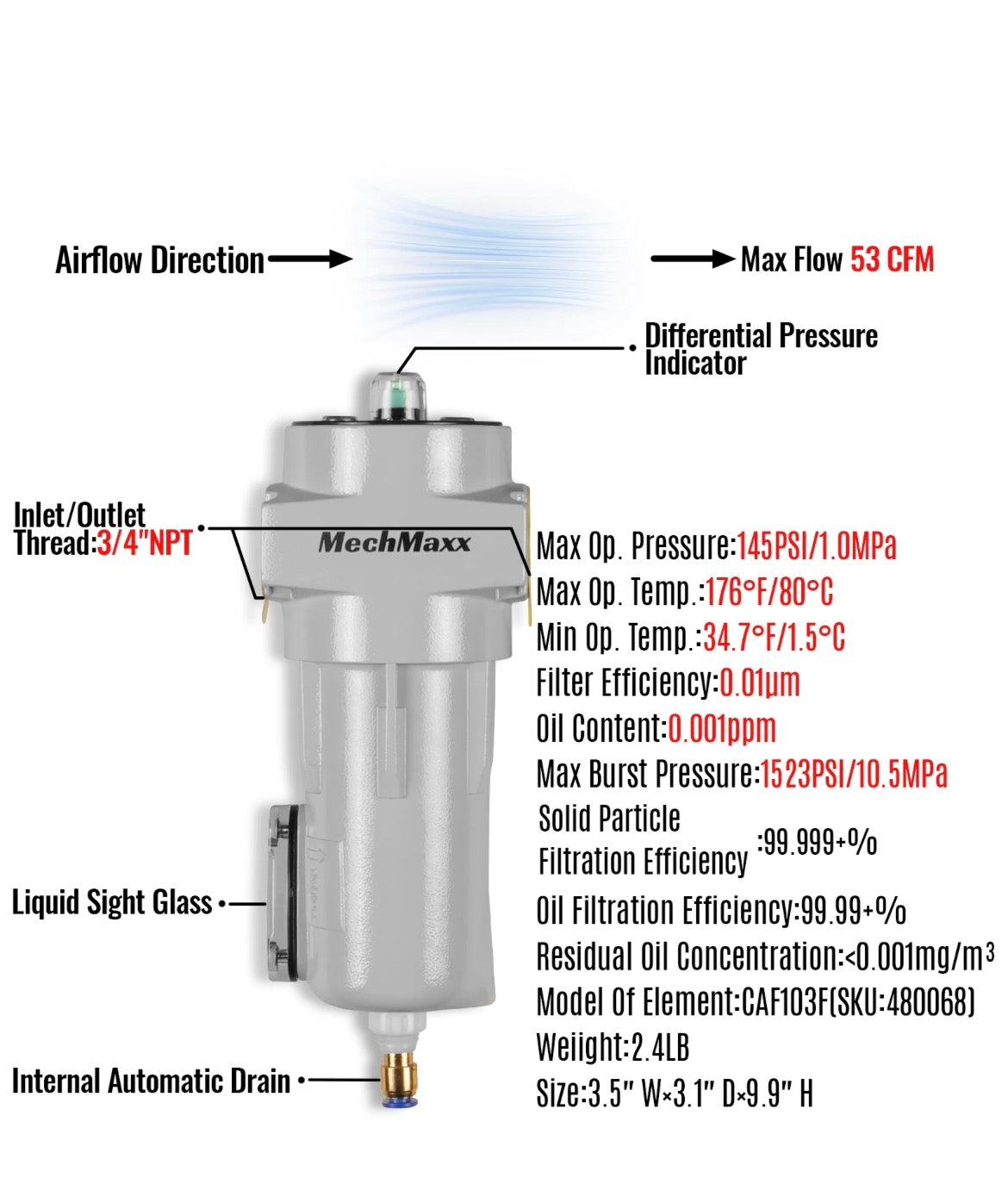

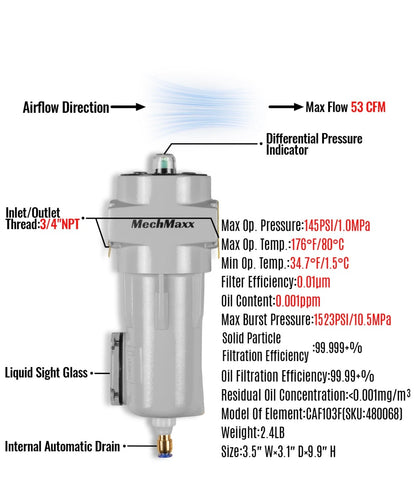

- Max Flow:53 CFM ,Recommended for use with Mechmaxx 10HP air compressors or other air compressor brands with matching airflow capacity.
- The housing is made of die-cast aluminum alloy with a compact structure to ensure safe use, capable of withstanding 464 PSI(3.2 MPa) for 96 hours and a maximum burst pressure of 1,523 PSI (10.5 MPa).
- The housings undergo cleaning, degreasing, and special anti-corrosion treatment before coating to enhance durability, making them suitable for offshore platform operations.
- Under operating conditions of 35–176°F (1.5~80℃)and pressure not exceeding 232 PSI(1.6MPa), the housing has a service life of up to 15 years, and the filter element lasts 6,000–8,000 hours.
- The differential pressure gauge or indicator can easily measure differential pressure and indicate when the filter element is clogging prematurely, thereby preventing excessive pressure or abnormal clogging. If the indicator needle points to the green area, this means that the filter element does not need to be replaced.
- Liquid sight glass made from unique materials is used to check if the drain is blocked.
- The arrow markings clearly show the users the direction of the airflow.
