50" Foot Clamp Pan and Box Brake – Light Duty Sheet Metal Folding Machine (Model PBA5014) Product Description

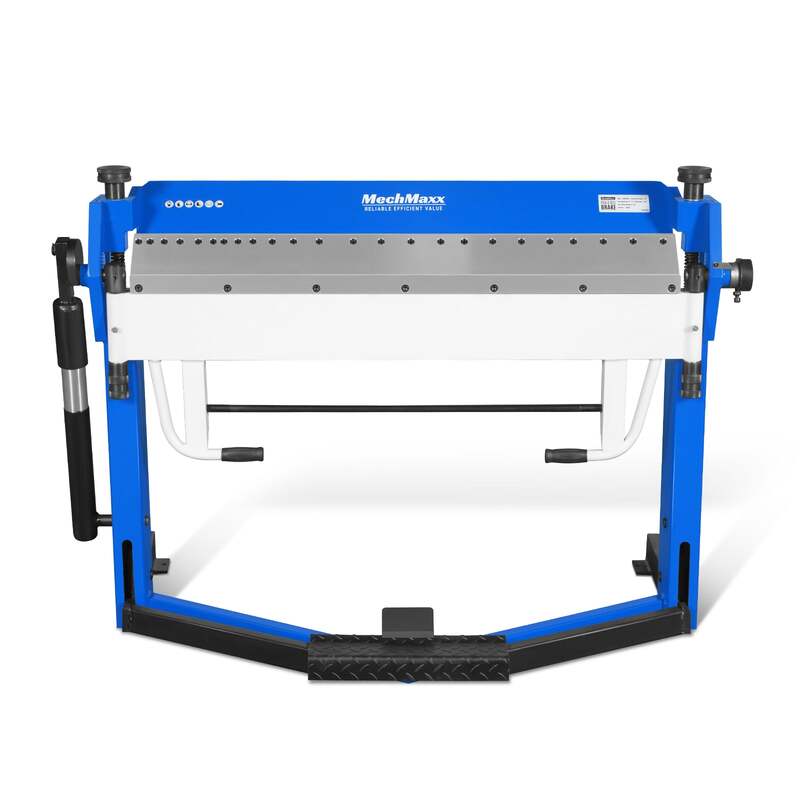

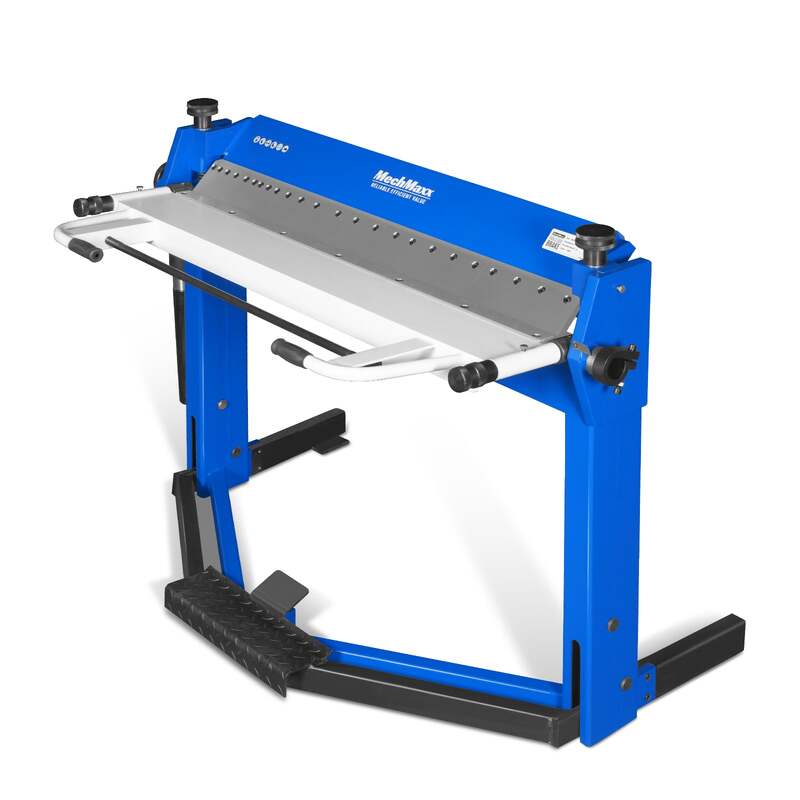

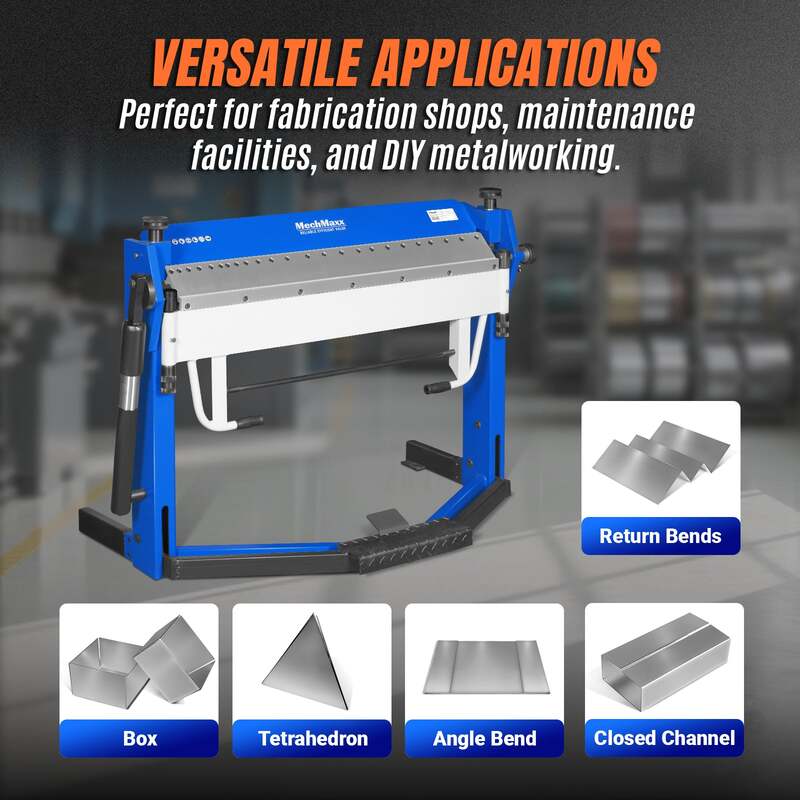

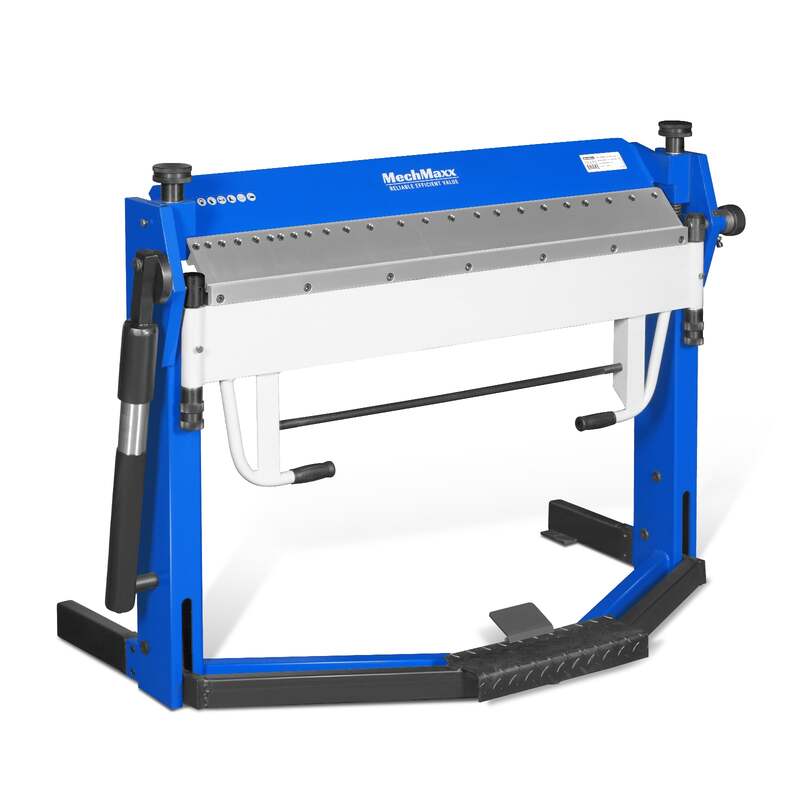

The MechMaxx PBA5014 50-Inch Foot Clamp Pan and Box Brake is a precision sheet metal folding machine designed for fabrication shops, HVAC technicians, metalworking professionals, and serious DIY fabricators. With a full 50-inch working width and the ability to bend up to 14-gauge mild steel, this machine delivers reliable bending performance for forming boxes, pans, trays, and custom sheet metal components.

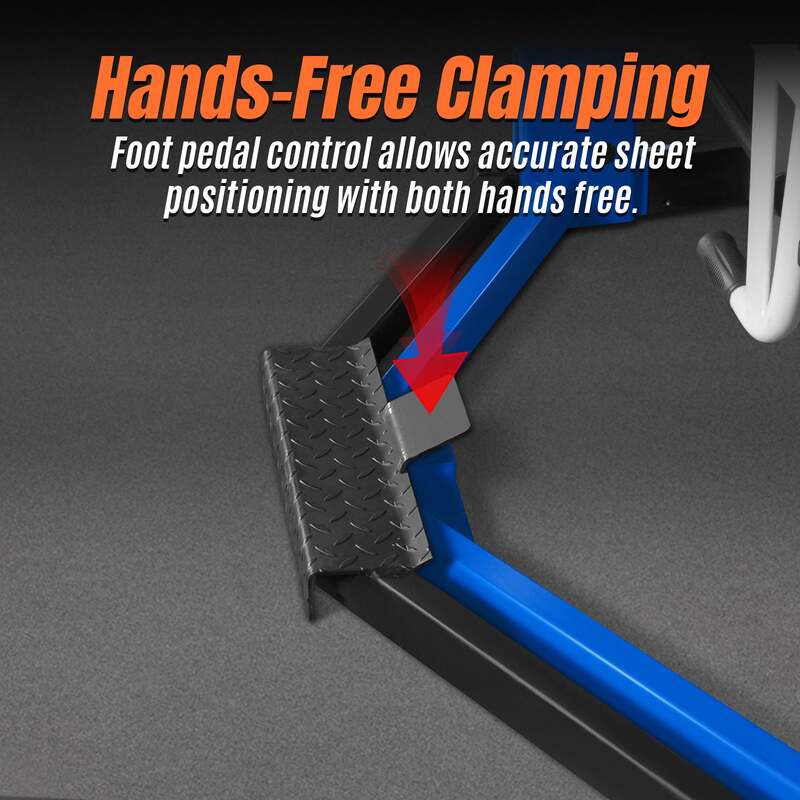

Featuring a hands-free foot pedal clamping system, the PBA5014 allows operators to secure the workpiece using their foot while keeping both hands free for precise material positioning. This improves bending accuracy and efficiency during fabrication tasks.

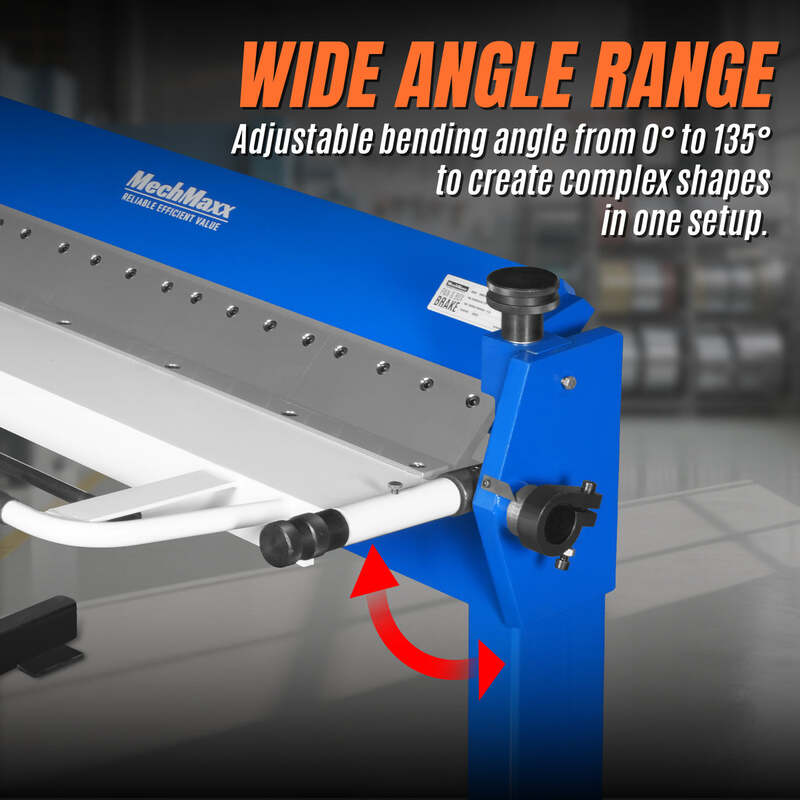

The machine supports a bending angle of up to 135°, making it ideal for producing a wide range of sheet metal shapes. Removable segmented blades allow users to create box and pan configurations, while the reinforced welded steel frame ensures durability and long-term stability during operation.

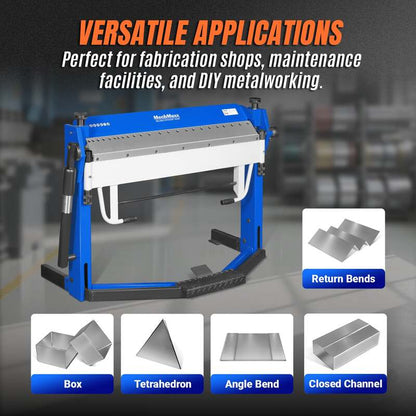

Designed for Efficient Sheet Metal Fabrication
The PBA5014 combines ergonomic operation with flexible bending capabilities, making it suitable for professional fabrication environments and workshops.

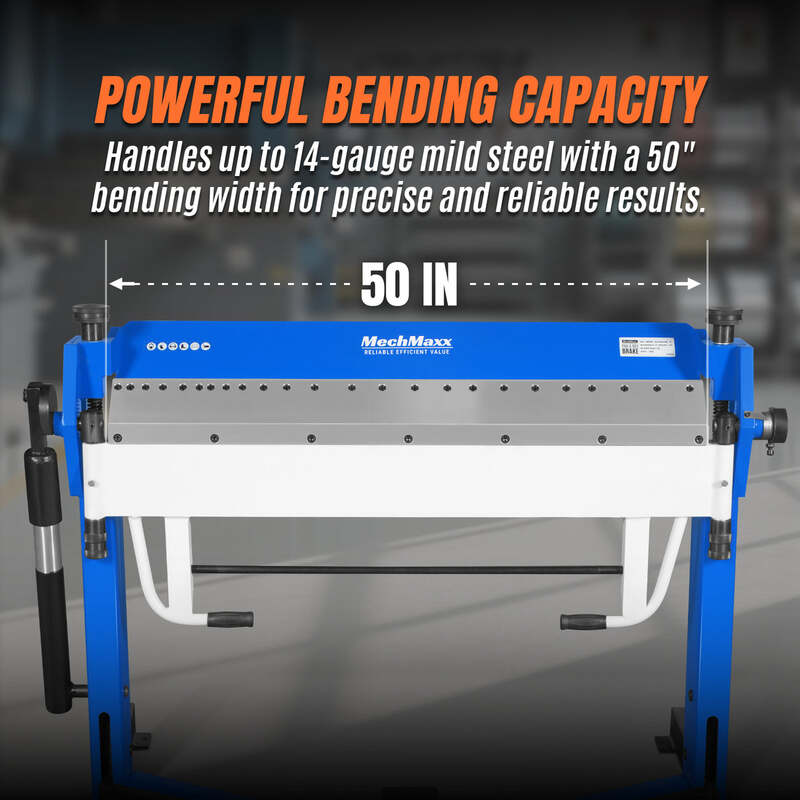

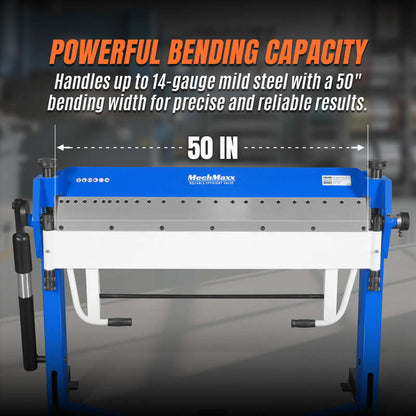

• 50" working width for large sheet metal panels
• Handles up to 14 gauge mild steel material
• Adjustable bending angle from 0° to 135°
• Foot pedal clamping for hands-free operation

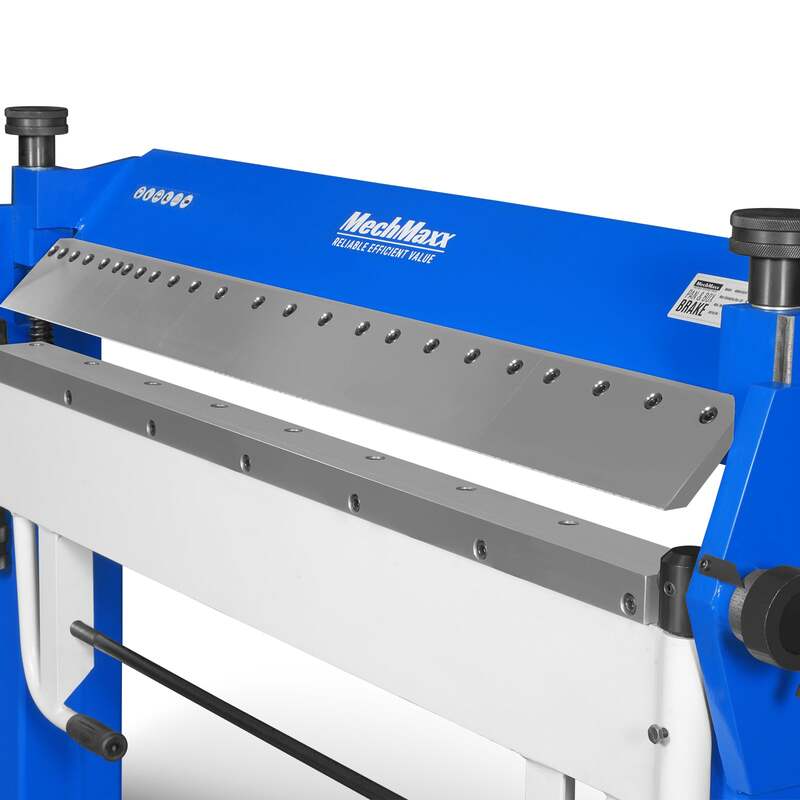

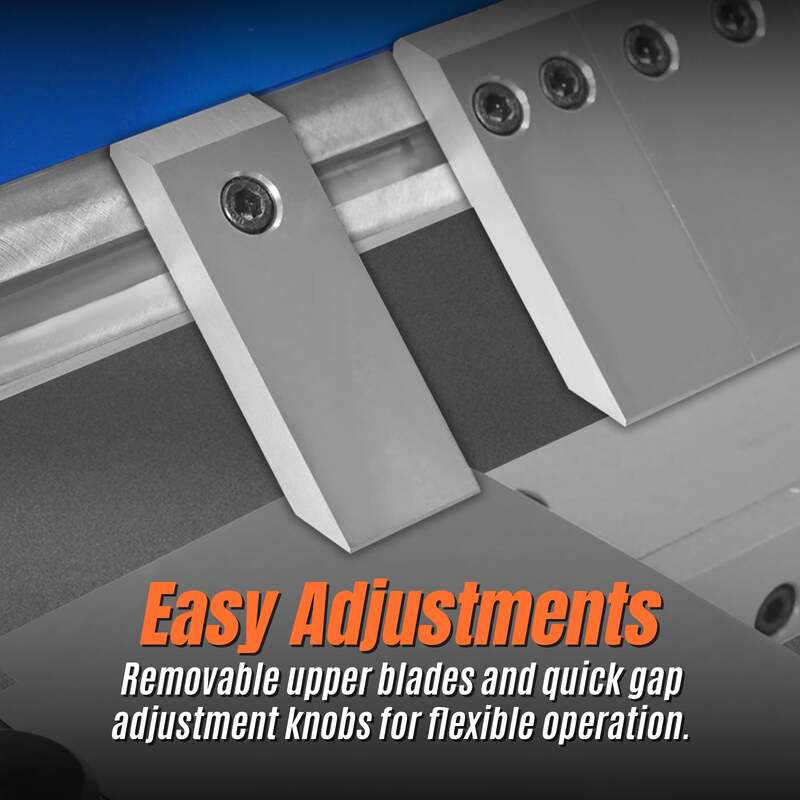

• Removable segmented blades for box and pan forming

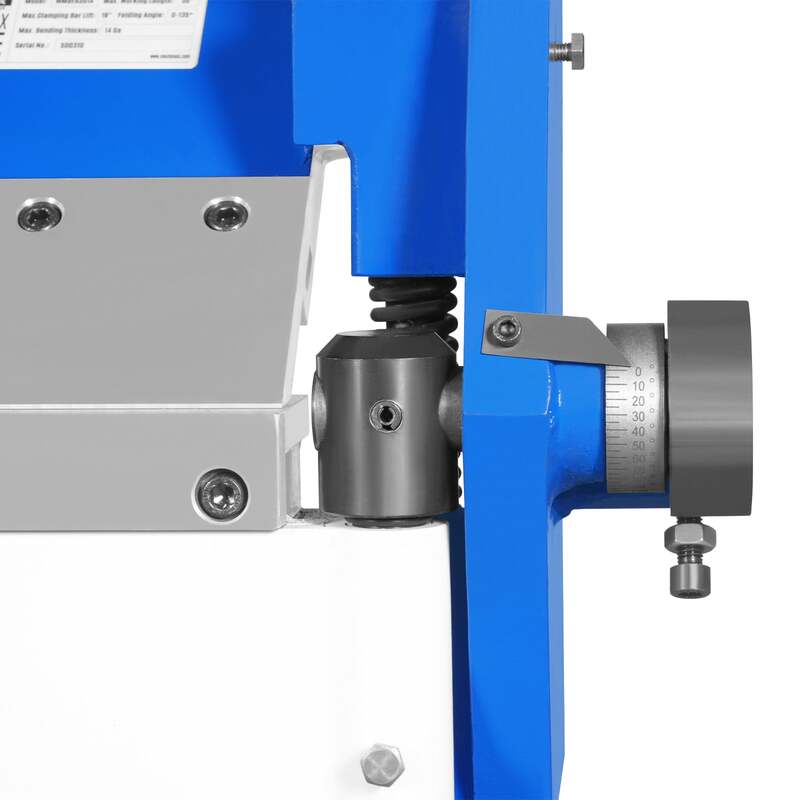

• Quick-adjust blade gap knobs for different material thicknesses
These features provide fabricators with the flexibility needed to produce a wide variety of sheet metal components.

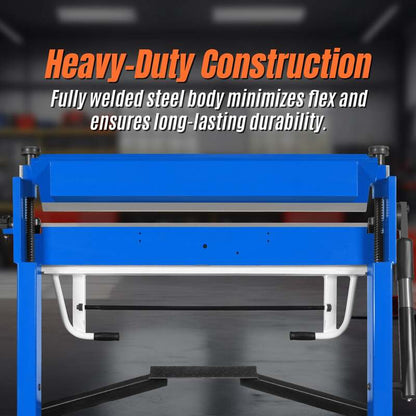

Durable & Stable Construction

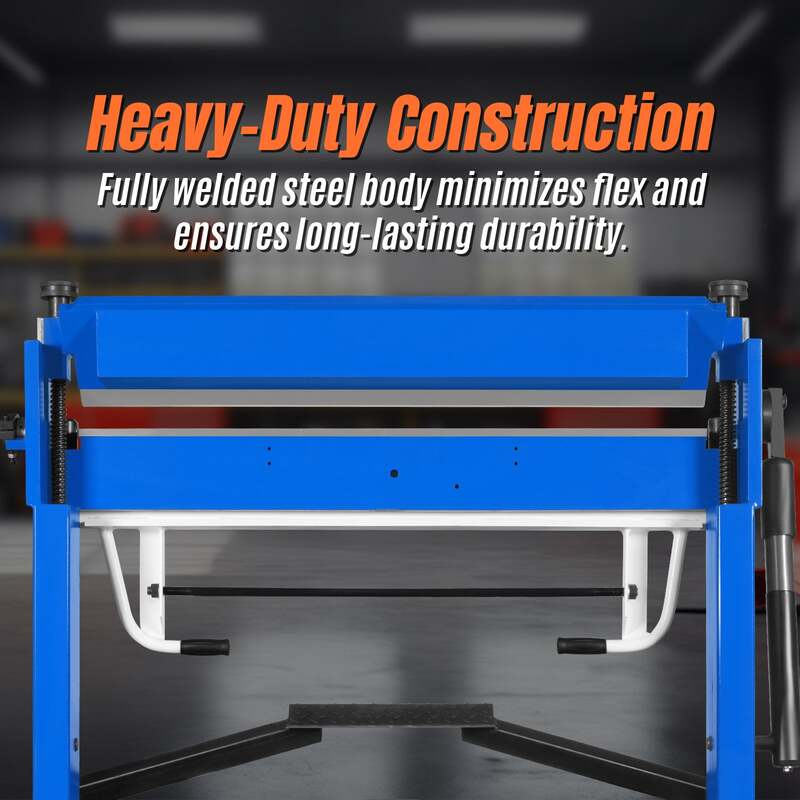

Built for dependable workshop use, the PBA5014 features a rigid welded frame and reinforced structure designed to maintain precision while minimizing flex during bending operations.
• Fully welded heavy-duty steel frame construction
• Reinforced design for improved stability during bending
• Spring-loaded cylinders reduce operator effort
• Smooth and controlled bending operation
• Optional back gauge for repeatable production bends
This robust construction ensures consistent performance for both professional fabrication shops and workshop environments.

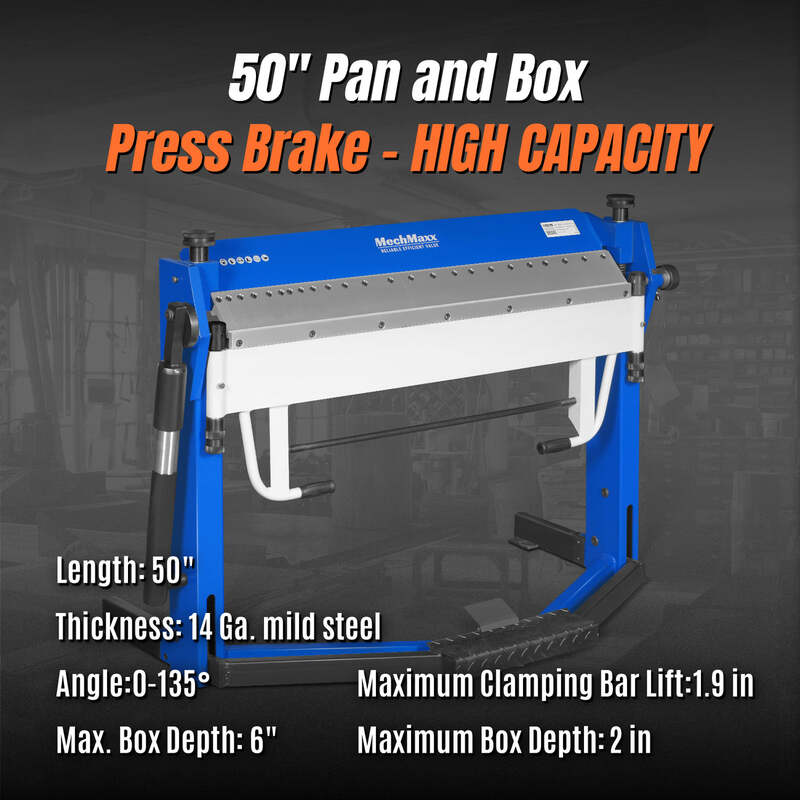

Technical Specifications
Maximum Working Length: 50 in (1270 mm)
Maximum Sheet Thickness: 14 Gauge Mild Steel (≈2.0 mm)
Maximum Clamping Bar Lift: 1.9 in (48 mm)
Maximum Box Depth: 2 in (50 mm)
Folding Angle Range: 0° – 135°
Upper Blade: Removable segmented blades for box & pan forming
Adjustment: Quick-adjust blade gap knobs
Assist Mechanism: Spring-loaded cylinders for reduced effort
Control System: Foot pedal clamp for hands-free operation
Frame Construction: Fully welded reinforced steel body
Back Gauge: Optional (pre-drilled mounting points)
Packing Size: 66.9 × 28 × 50 in
Net / Gross Weight: 794 / 924 lbs
