8-1/4" × 33" Benchtop Mill Drill Machine with 3-Axis DRO – 2 HP Brushless Motor, Variable Speed, R8 Spindle (VM32LD)

Product Description

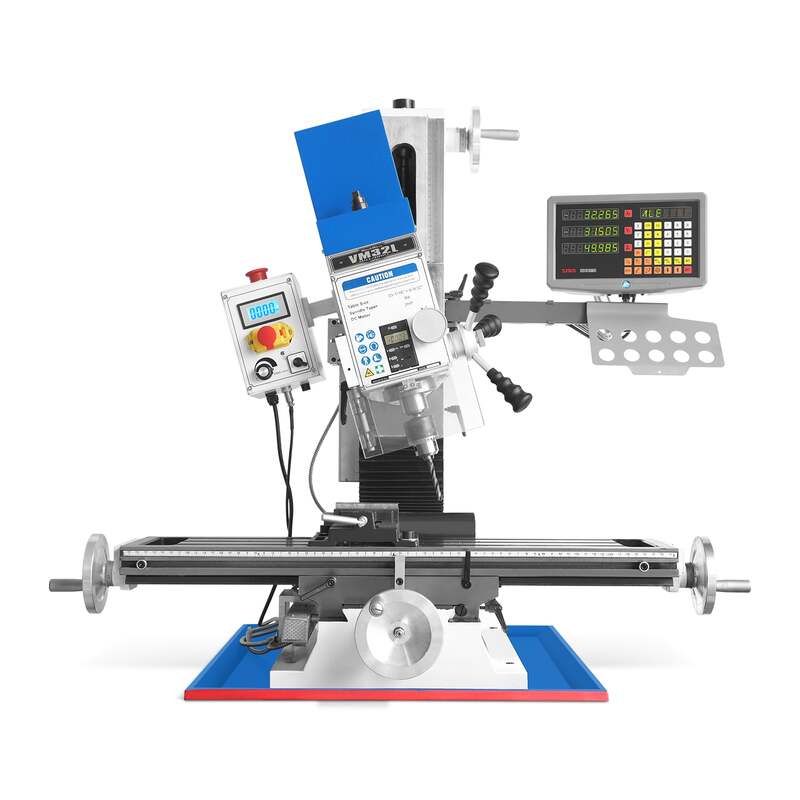

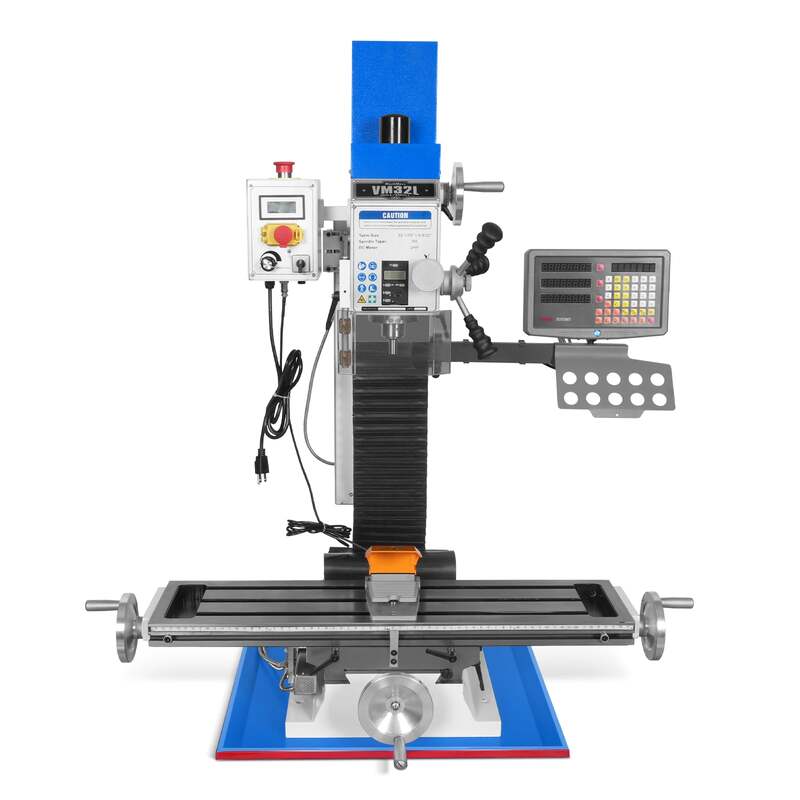

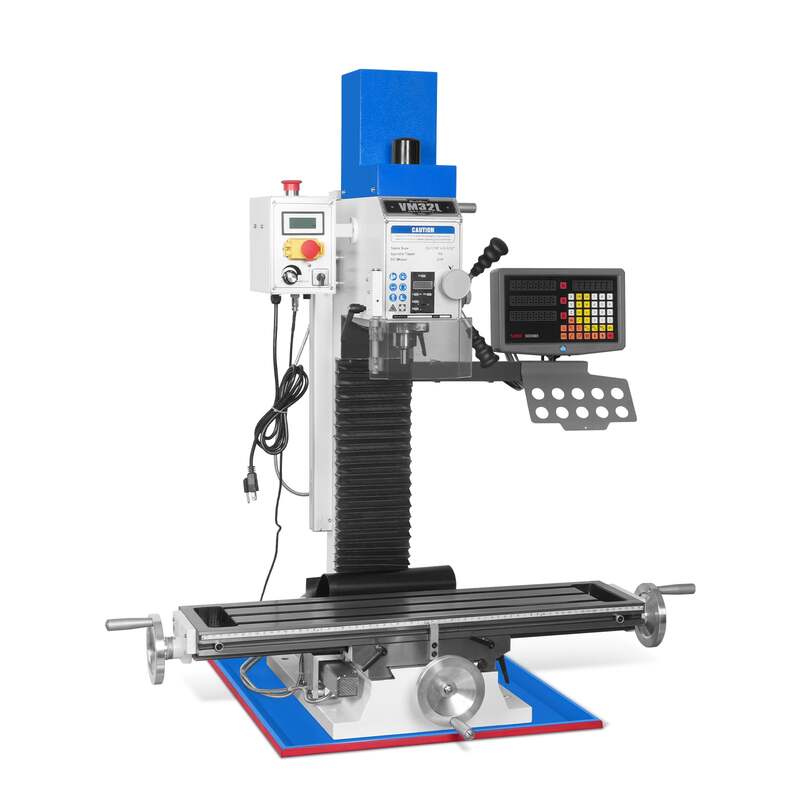

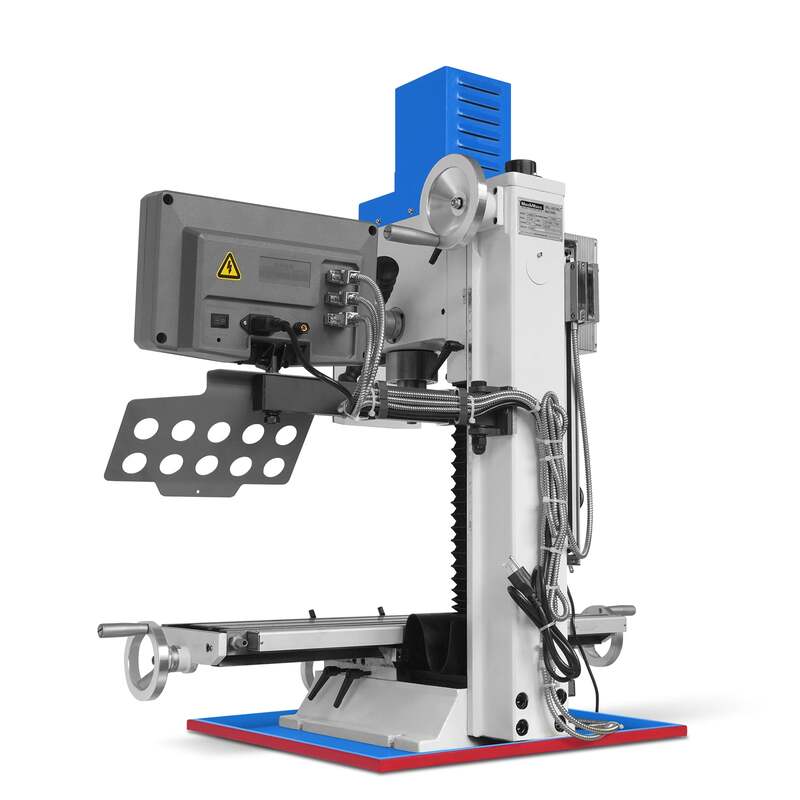

The VM32LD Benchtop Mill Drill Machine is a powerful and compact metalworking solution designed for precision machining in home workshops, fabrication shops, repair facilities, and small manufacturing environments. Equipped with a 2 HP brushless motor and variable speed control up to 2500 RPM, this machine provides smooth, quiet performance while delivering the power required for demanding milling and drilling operations.

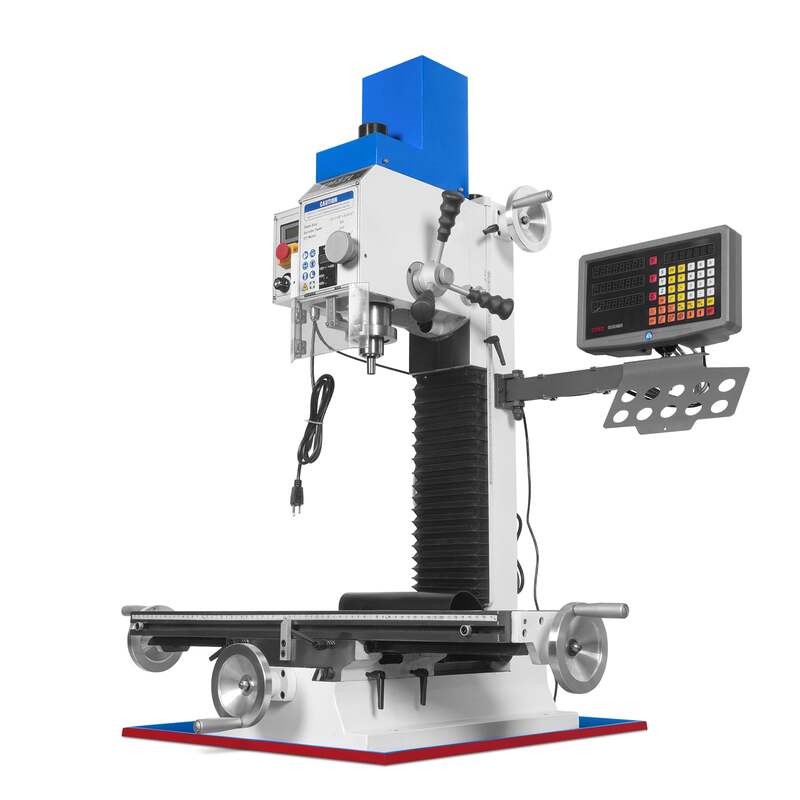

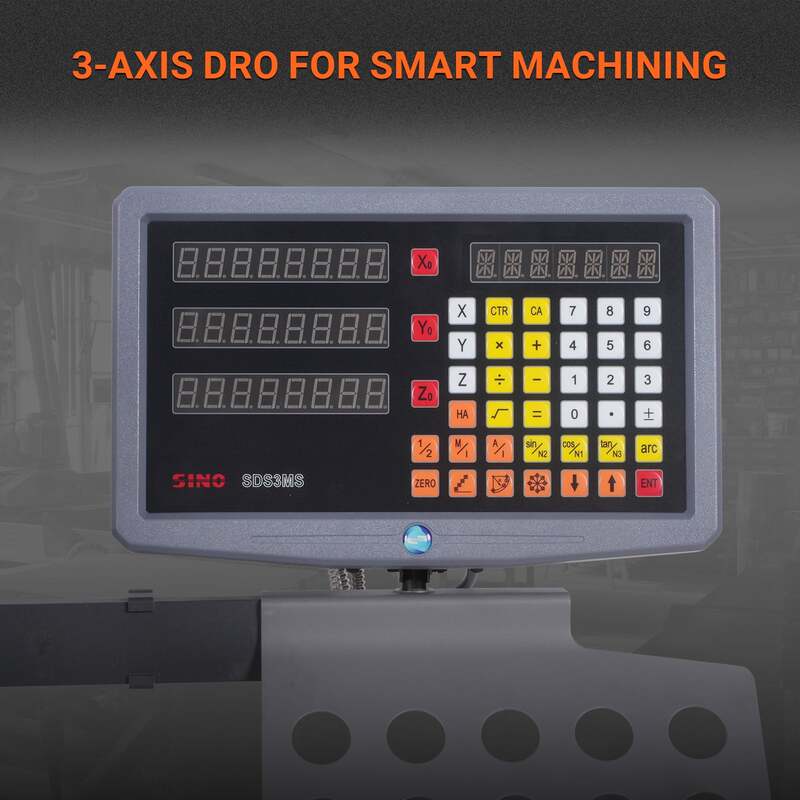

Featuring a 3-axis digital readout (DRO) system for the X, Y, and Z axes, the VM32LD allows operators to monitor and adjust positioning with exceptional accuracy. The DRO supports both inch and metric measurements, making it easy to switch units depending on the job. Combined with a rigid square column, precision-ground dovetail ways, and a large 8-1/4" × 33" work table, this machine delivers stable machining performance and consistent results.

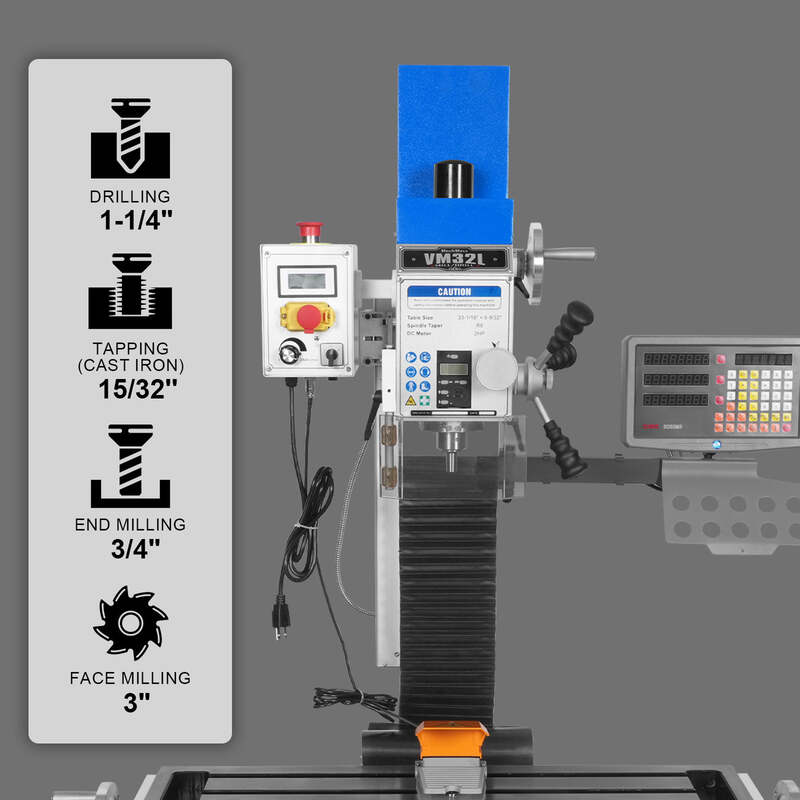

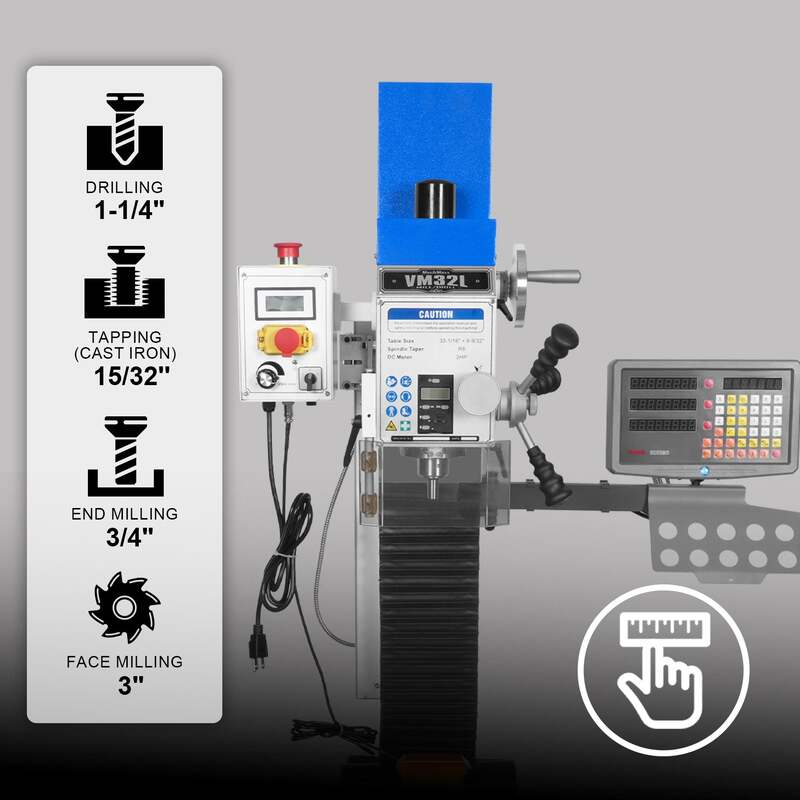

Designed with versatility in mind, the R8 spindle supports a wide range of tooling and cutting operations including drilling, end milling, and face milling. With its tilting head, generous travel distances, and durable construction, the VM32LD provides professional-level capability in a compact benchtop milling machine.

Built for Precision Machining

This milling and drilling machine is engineered to provide accurate positioning, smooth cutting performance, and excellent versatility for a wide range of metalworking tasks.

• 3-axis digital readout (DRO) for precise X, Y, and Z positioning
• Variable spindle speed 0–2500 RPM for flexible machining
• R8 spindle taper compatible with standard milling tooling

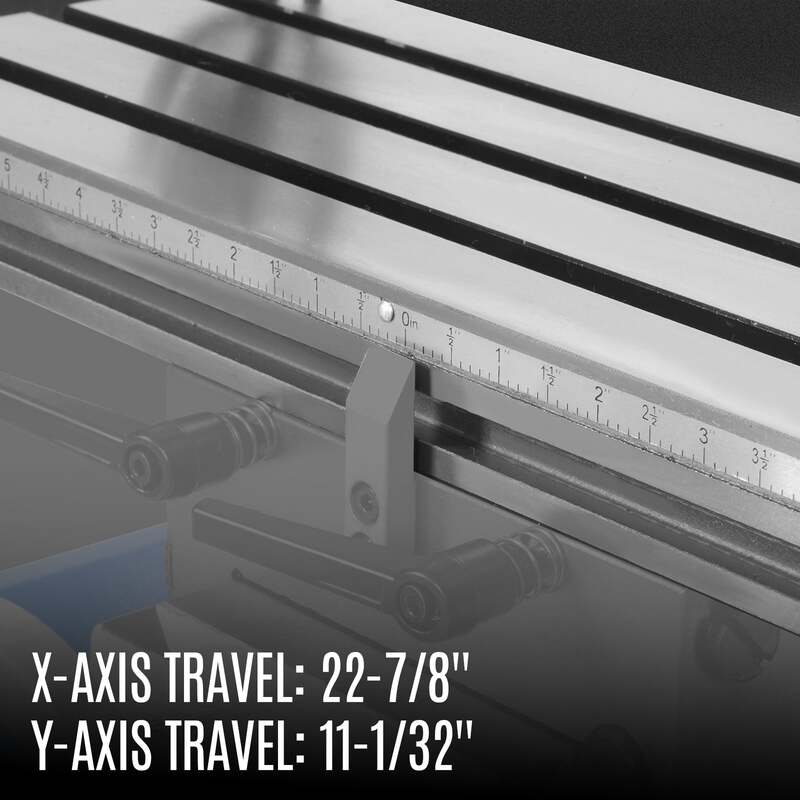

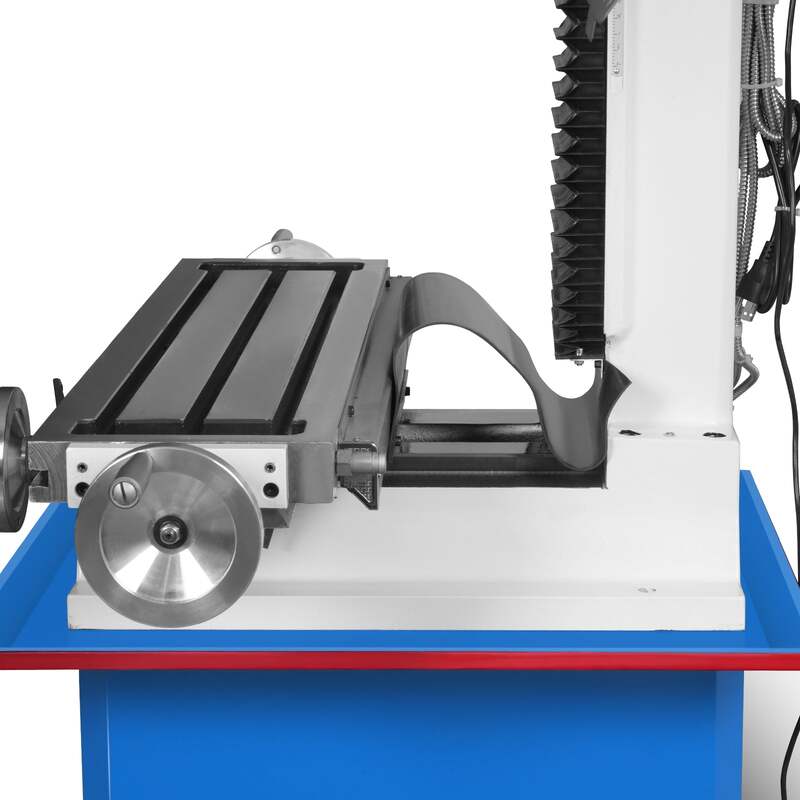

• Large 8-1/4" × 33" precision-ground table with T-slots

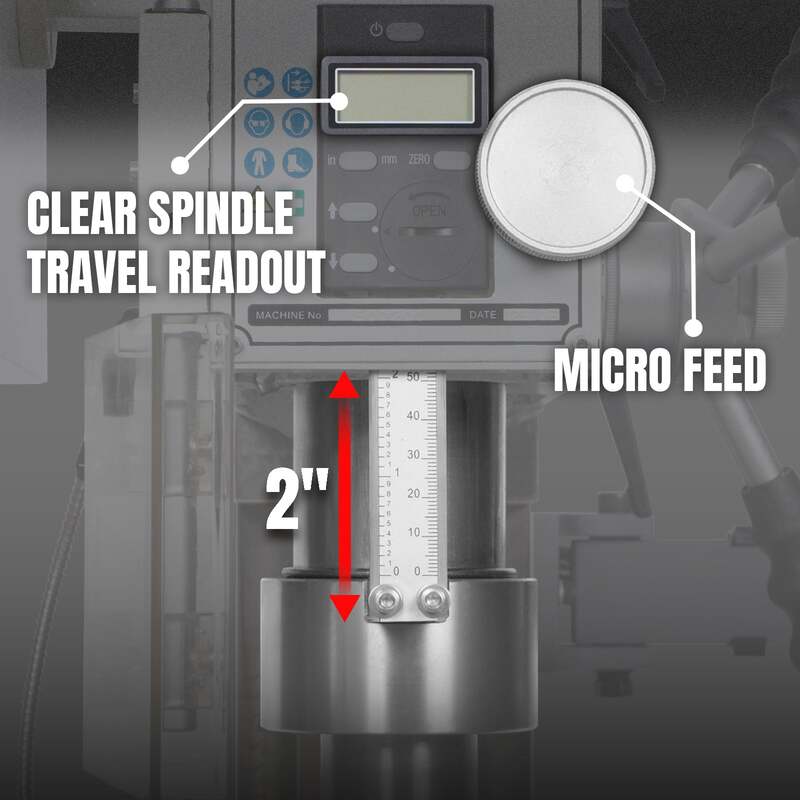

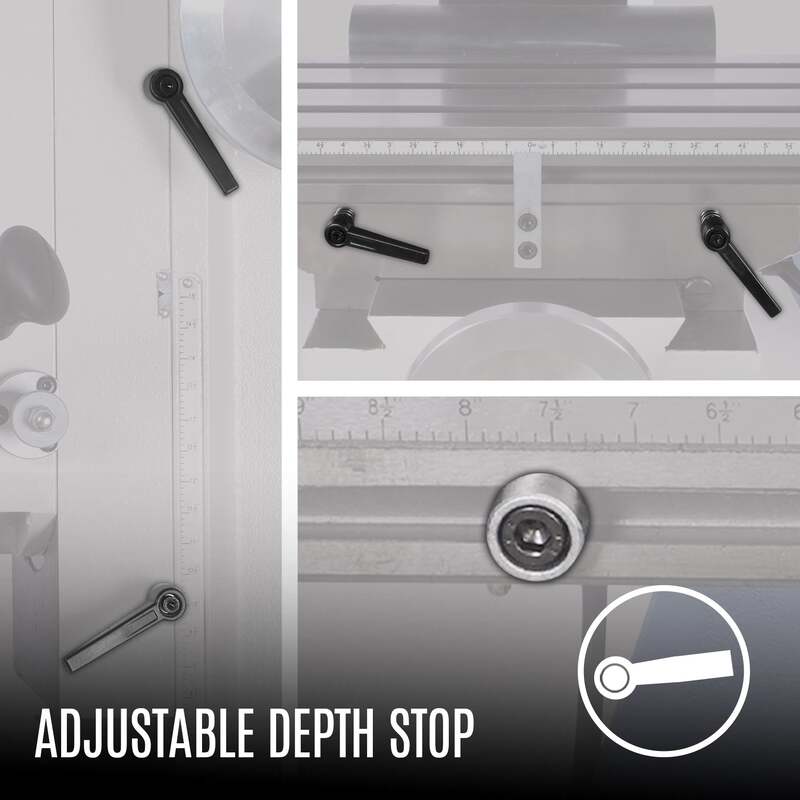

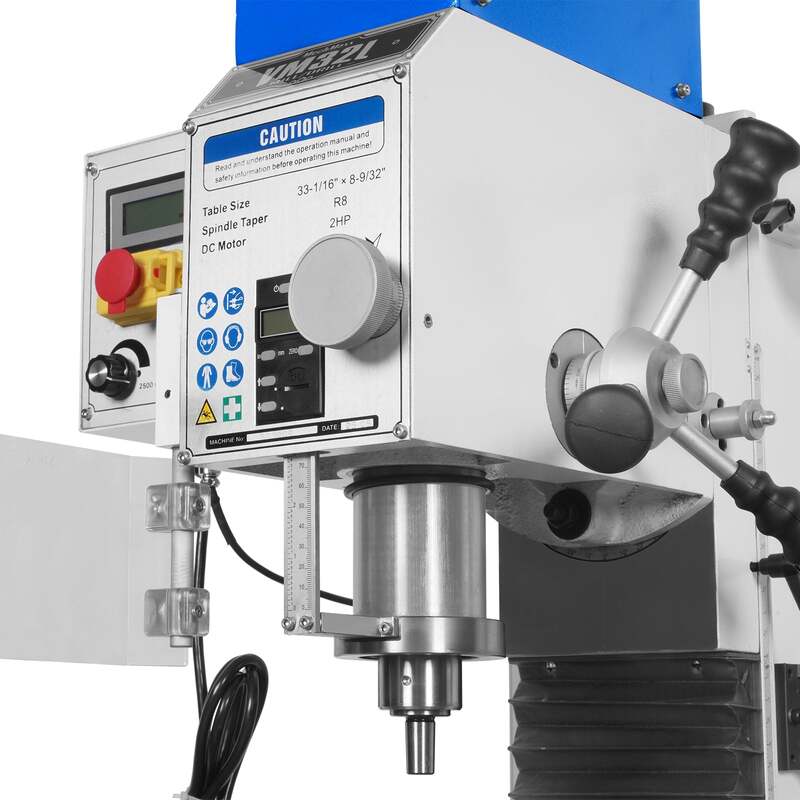

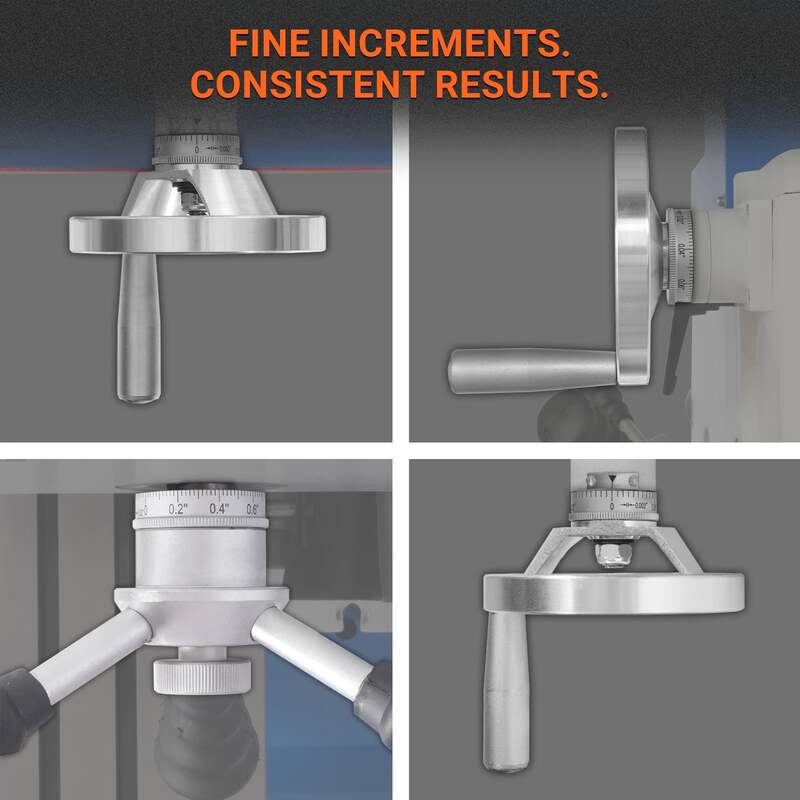

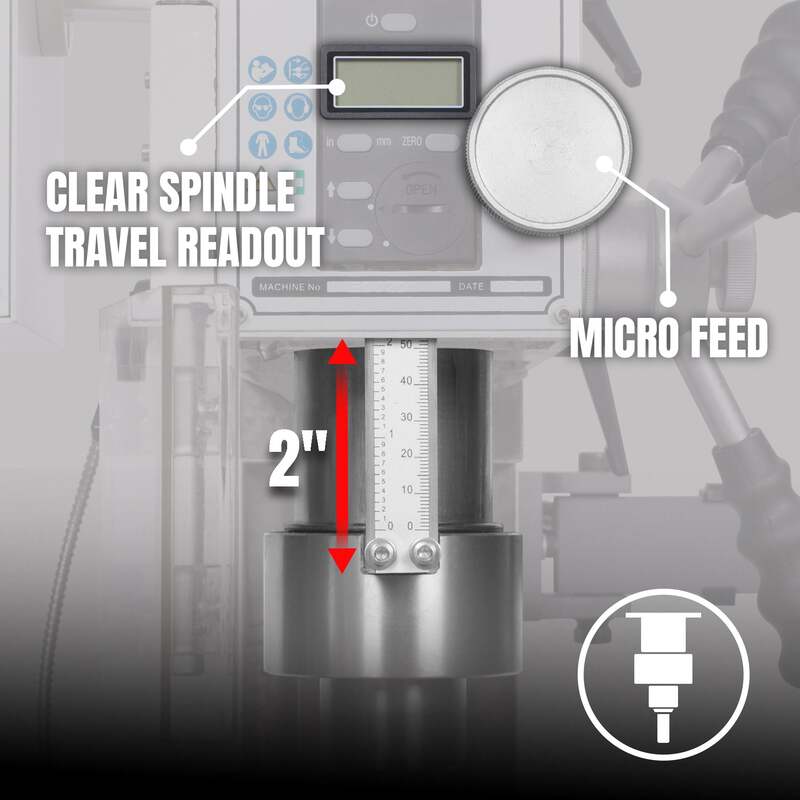

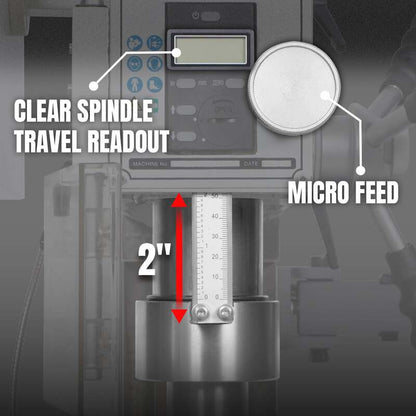

• Fine micro-feed spindle control for precise drilling operations

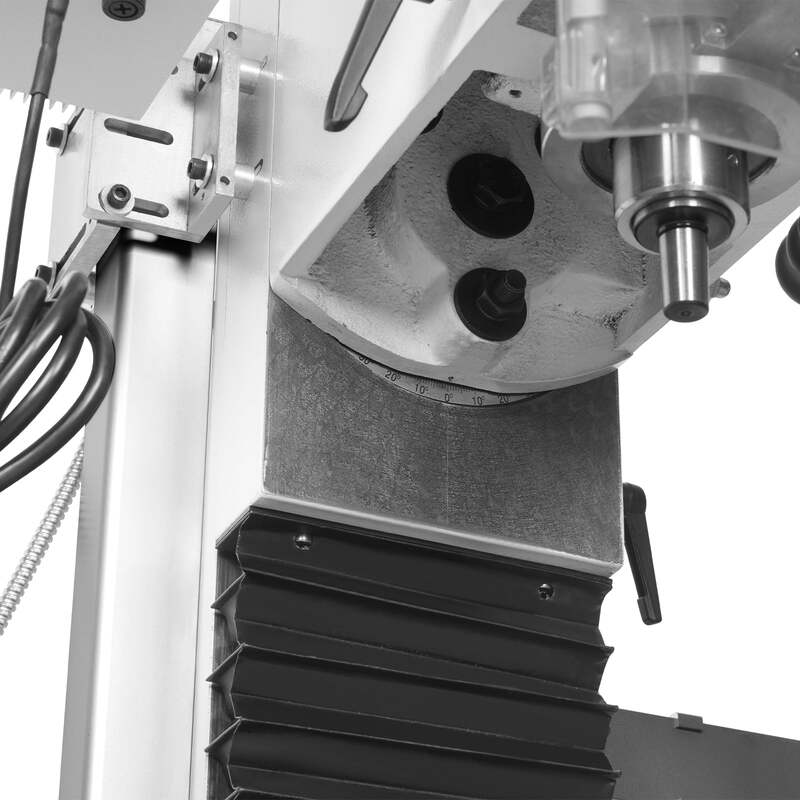

• Adjustable ±90° tilting head for angled milling and drilling

These features allow machinists to complete detailed and complex machining operations with accuracy and confidence.

Durable & Reliable Construction

The VM32LD is built for long-term durability and stable operation, making it ideal for workshops handling frequent machining tasks.

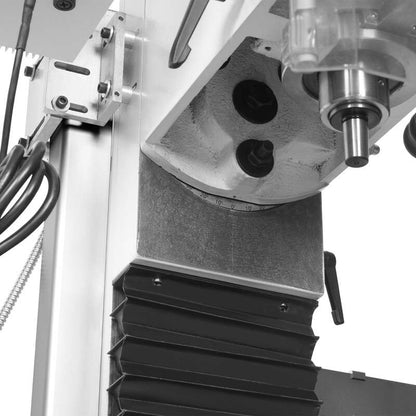

• Rigid square column design for improved stability

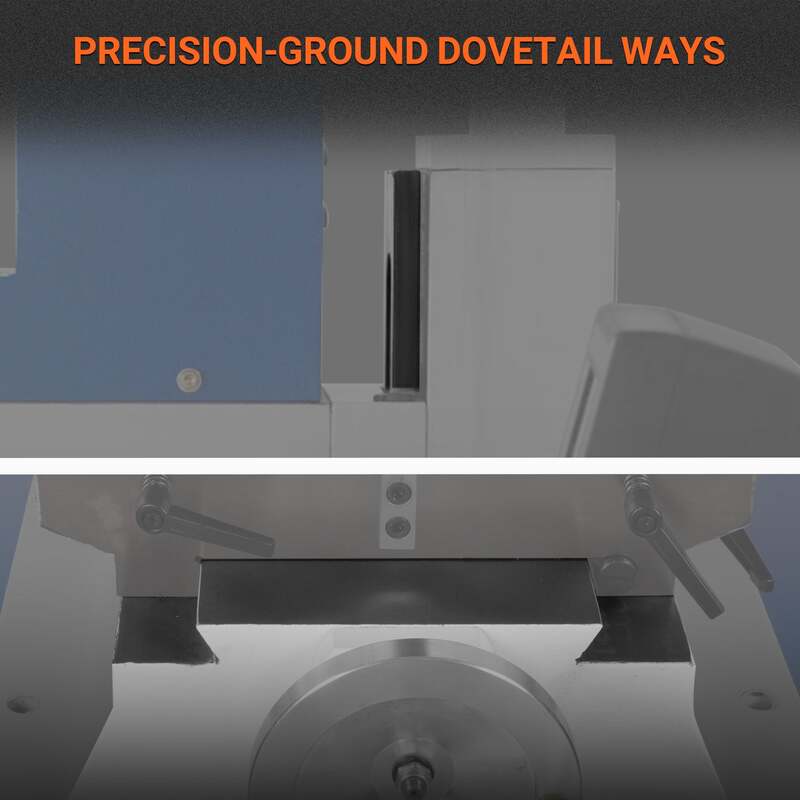

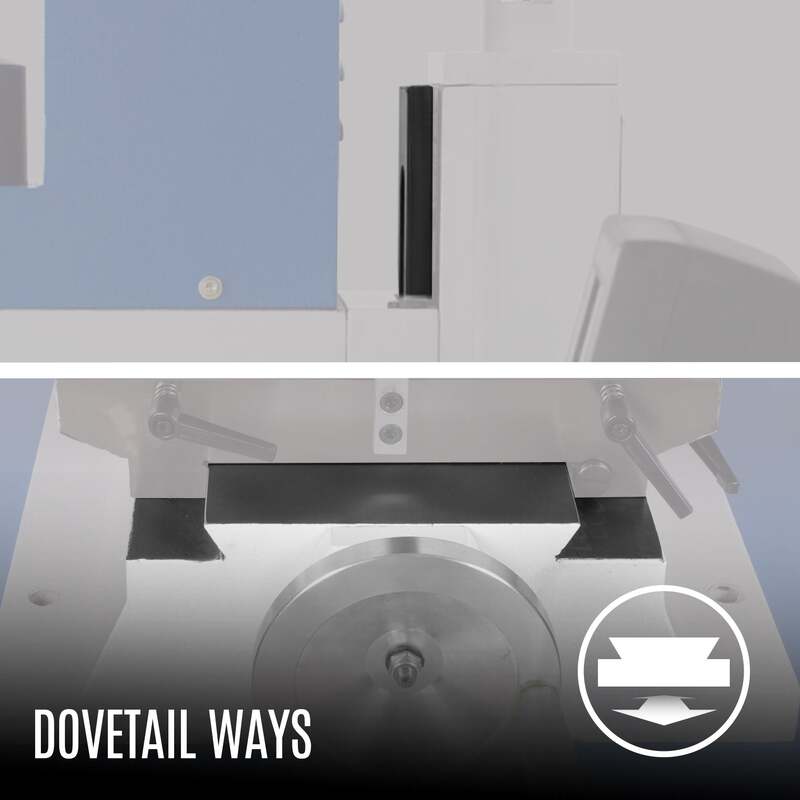

• Precision-ground dovetail slide ways with adjustable gibs
• Heavy-duty construction designed for continuous shop use

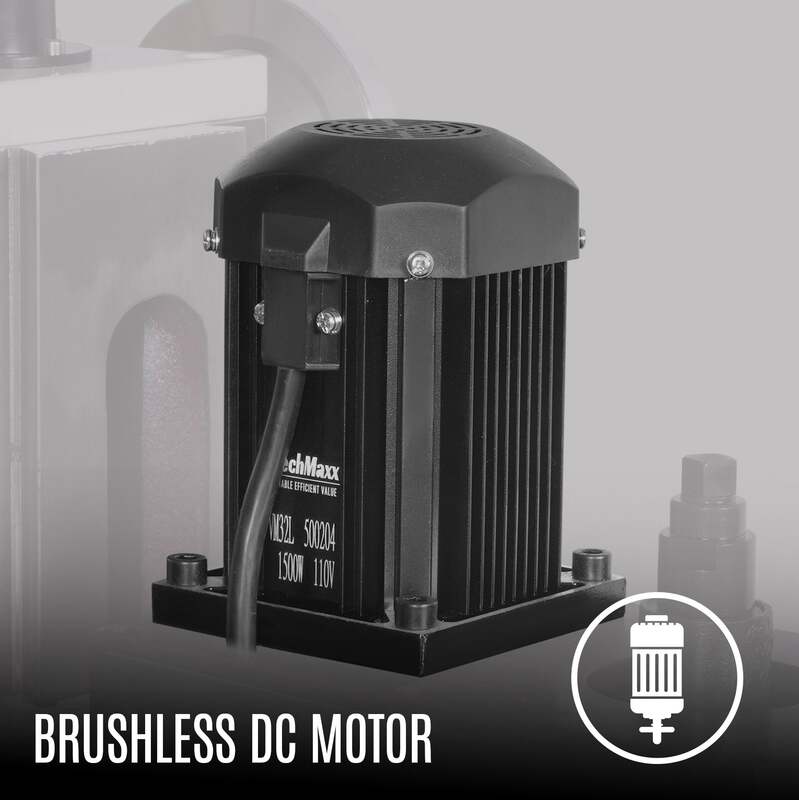

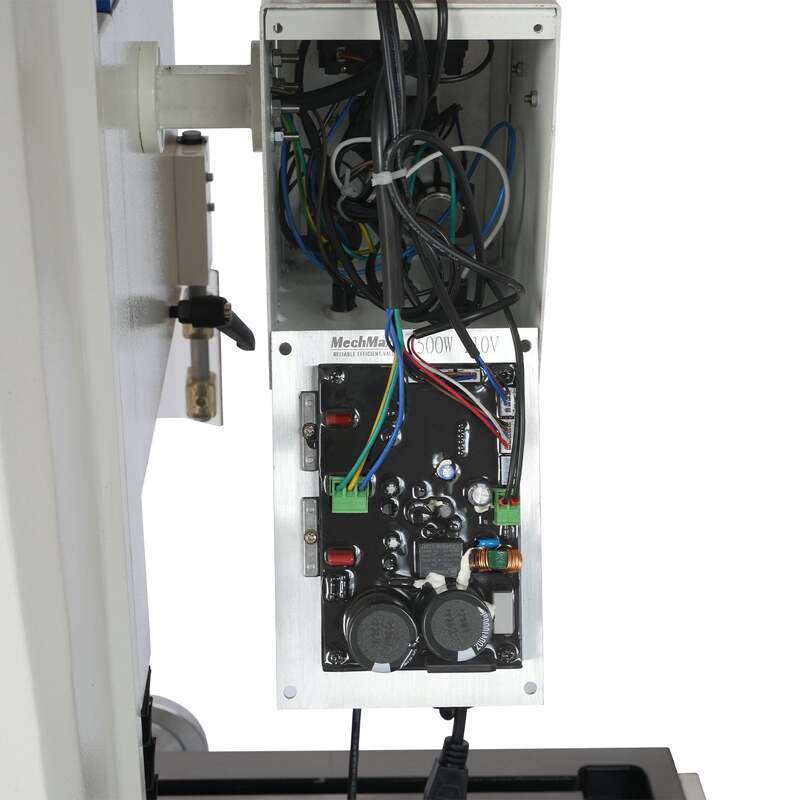

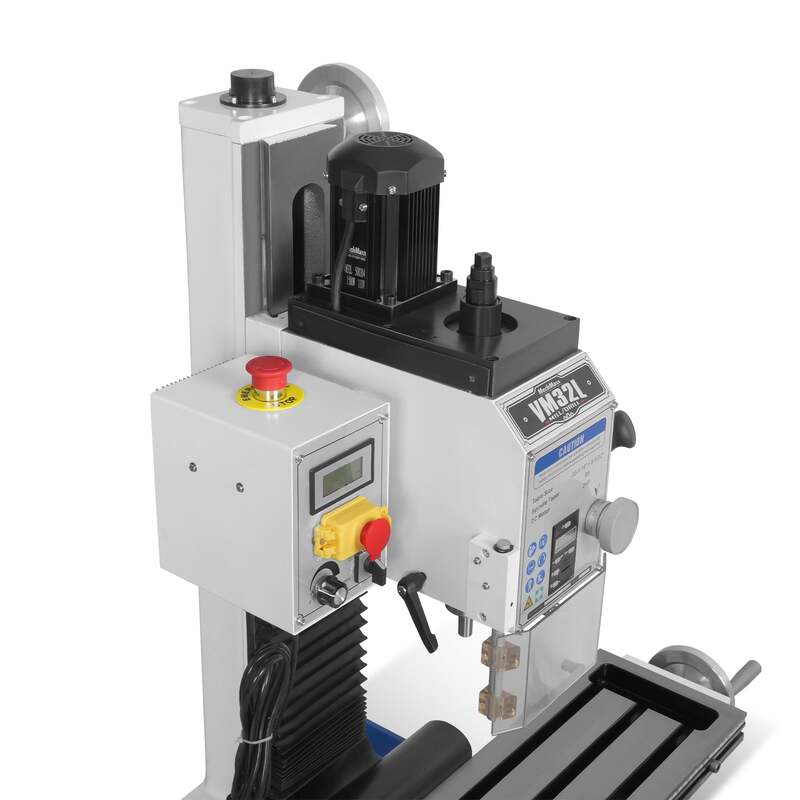

• Brushless DC motor provides quiet, low-maintenance operation
• Stable machine weight reduces vibration during cutting

The strong frame and precision-machined components ensure reliable performance and consistent machining accuracy.

Technical Specifications

Spindle Specifications

Spindle Taper: R8
Spindle Travel: 2" (50 mm)
Quill Diameter: 2-3/4" (70 mm)
Spindle Speed Range: 0–2500 RPM
Speed Control: Variable
Drawbar Thread Size: 7/16"-20
Head Tilt Angle: ±90°

Spindle to Table Distance: 18-1/2" (470 mm)
Spindle to Column Distance: 8-1/4" (210 mm)
