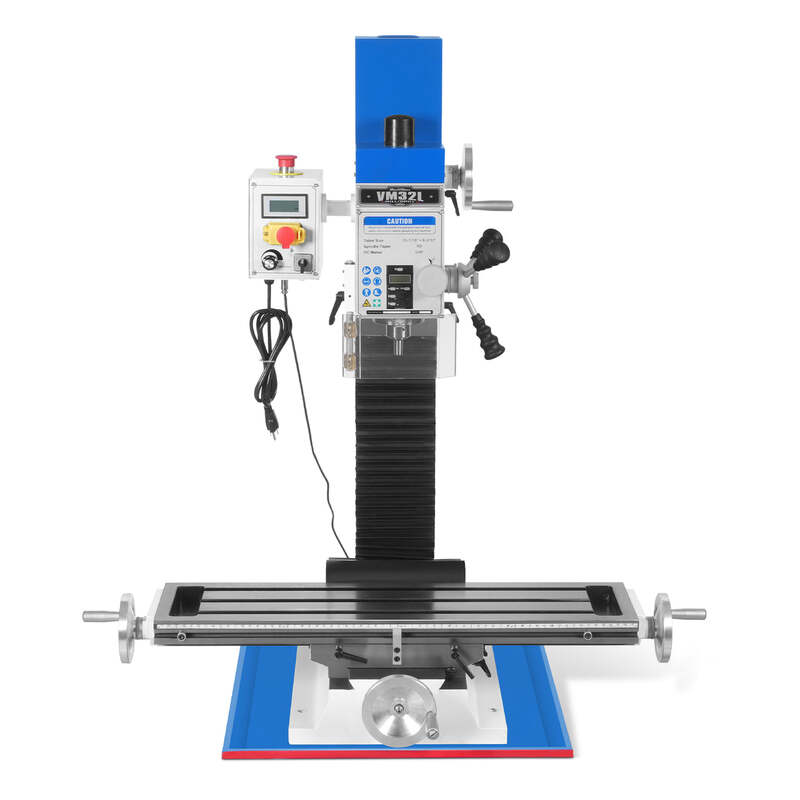

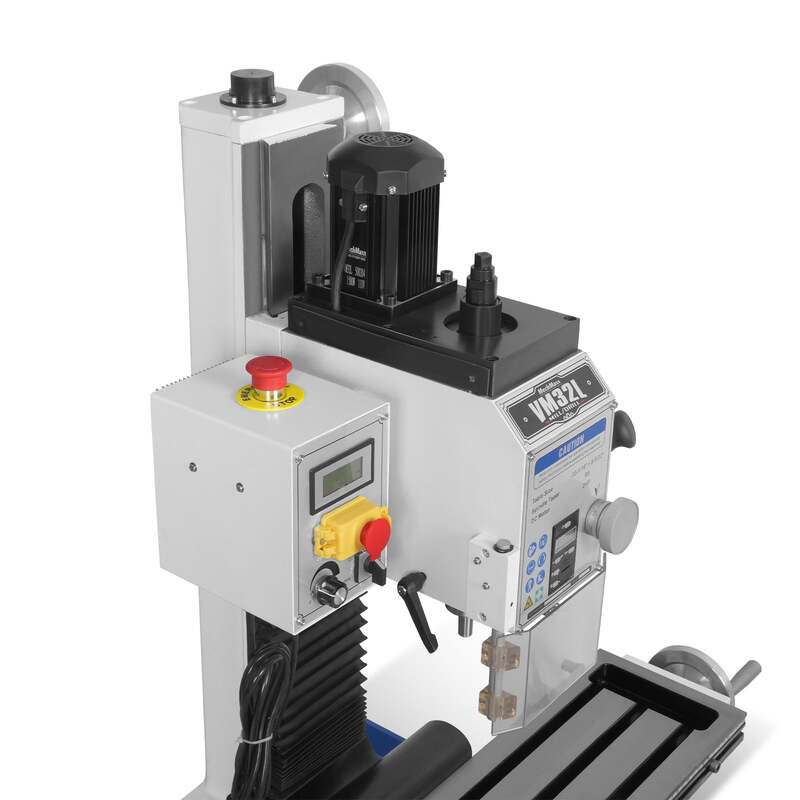

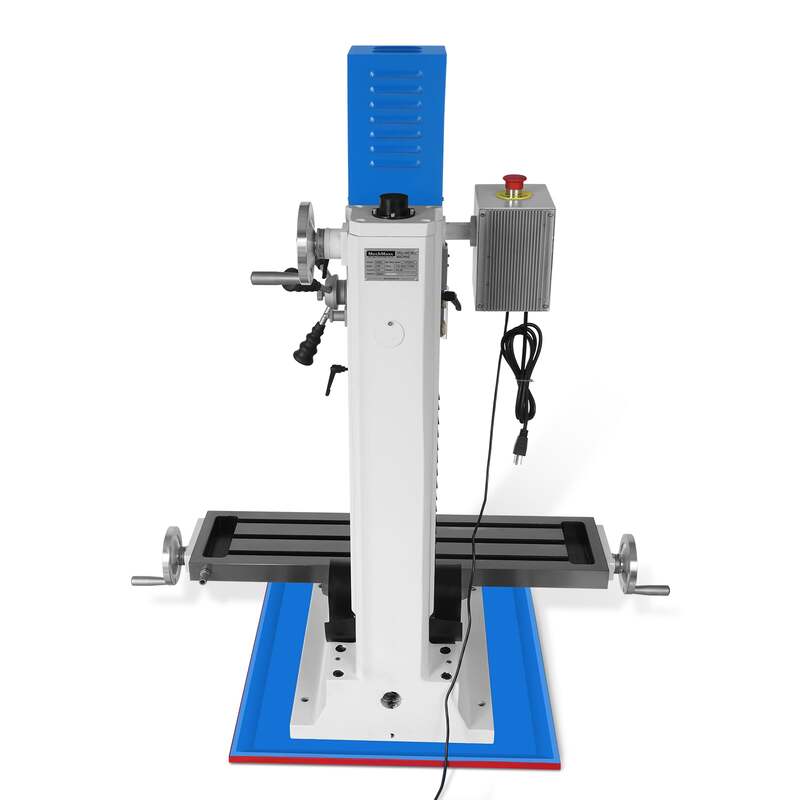

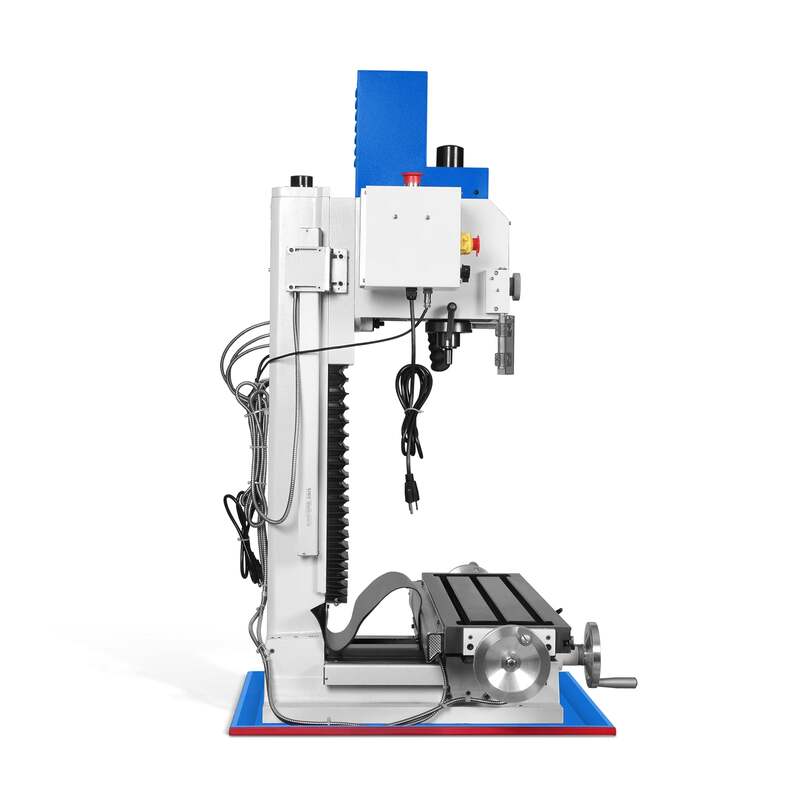

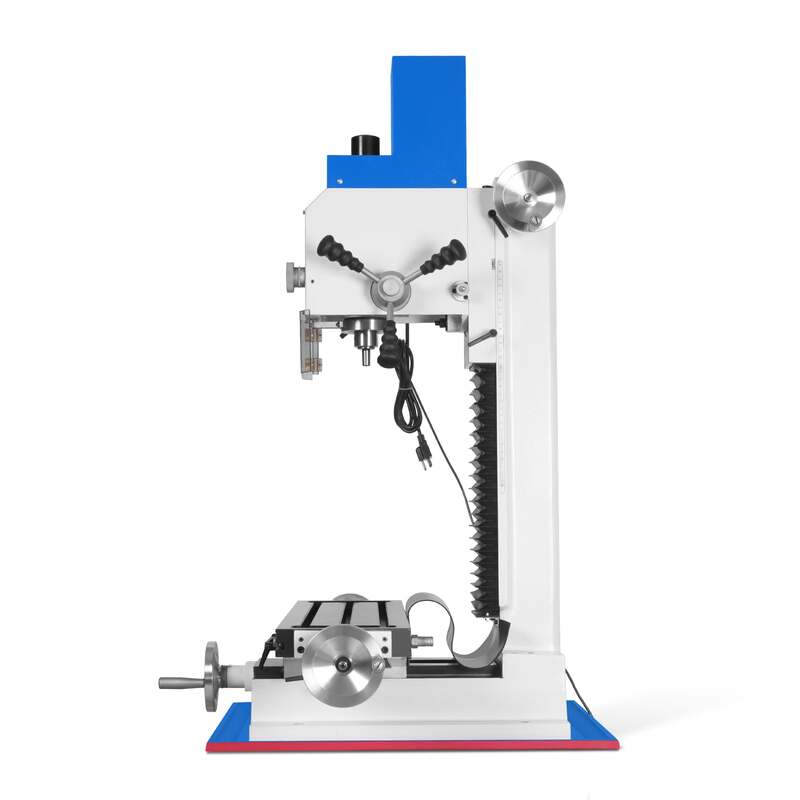

8-1/4" x 33" Industrial Benchtop Mill Drill Machine – Variable Speed Brushless Milling Machine (Model VM32L)
Product Description

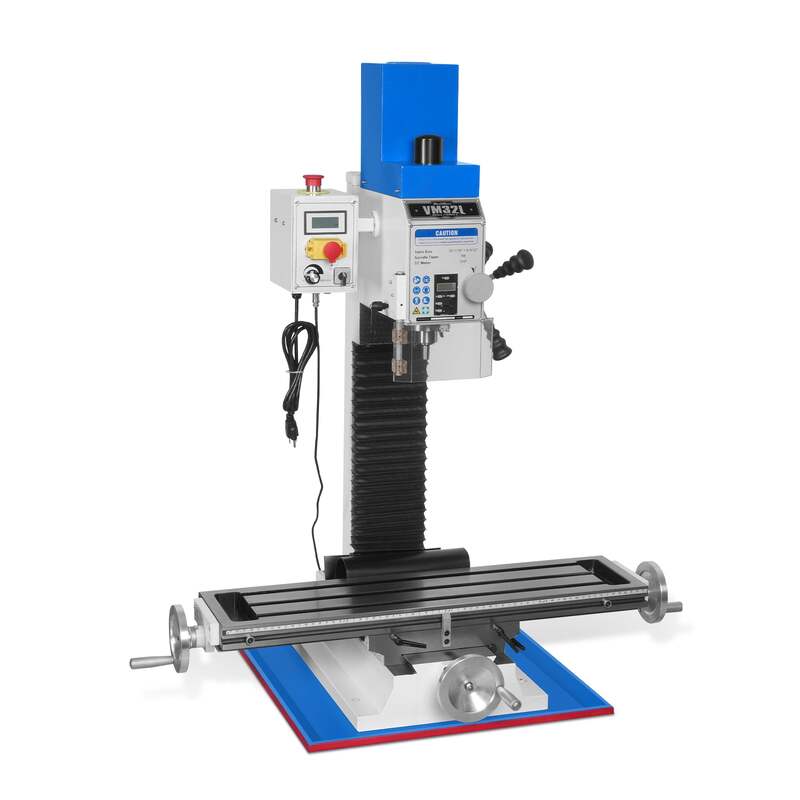

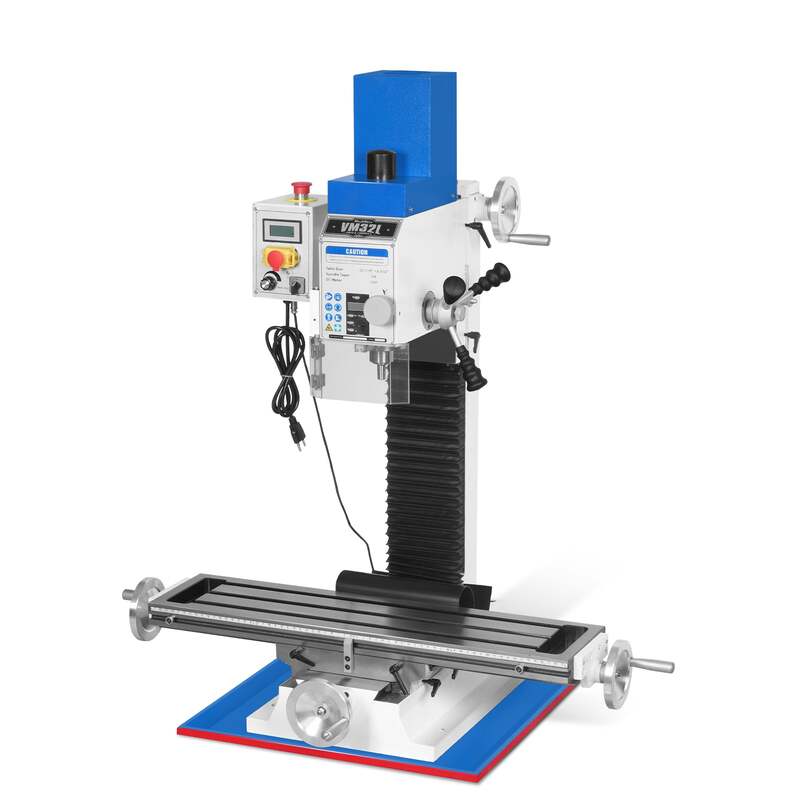

The MechMaxx VM32L Benchtop Mill Drill Machine is a powerful and precise milling and drilling solution designed for home workshops, fabrication shops, and professional machinists. Featuring a 2 HP brushless DC motor and variable spindle speeds up to 2500 RPM, this machine delivers smooth, quiet operation with the power required for demanding metalworking tasks.
Built with a rigid square column and precision-ground dovetail ways, the VM32L provides excellent stability and machining accuracy. The industry-standard R8 spindle taper supports a wide variety of milling tools, collets, and accessories, giving machinists the flexibility needed for drilling, milling, and tapping operations.
With a large 8-1/4" x 33" worktable, generous axis travel, and a tilting milling head, this machine allows users to perform angled cuts, drilling operations, and precision milling on aluminum, steel, brass, and other materials.
Built for Precision Milling & Drilling
The VM32L is engineered to deliver consistent machining performance for drilling, milling, tapping, and fabrication work.
• Powerful 2 HP brushless motor for smooth and reliable performance
• Variable spindle speed from 0–2500 RPM for different materials
• Industry-standard R8 spindle taper for wide tooling compatibility
• Large 8-1/4" x 33" precision worktable for larger workpieces

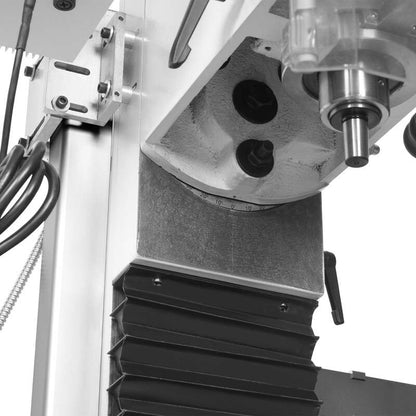

• Tilting head design for angled drilling and milling operations

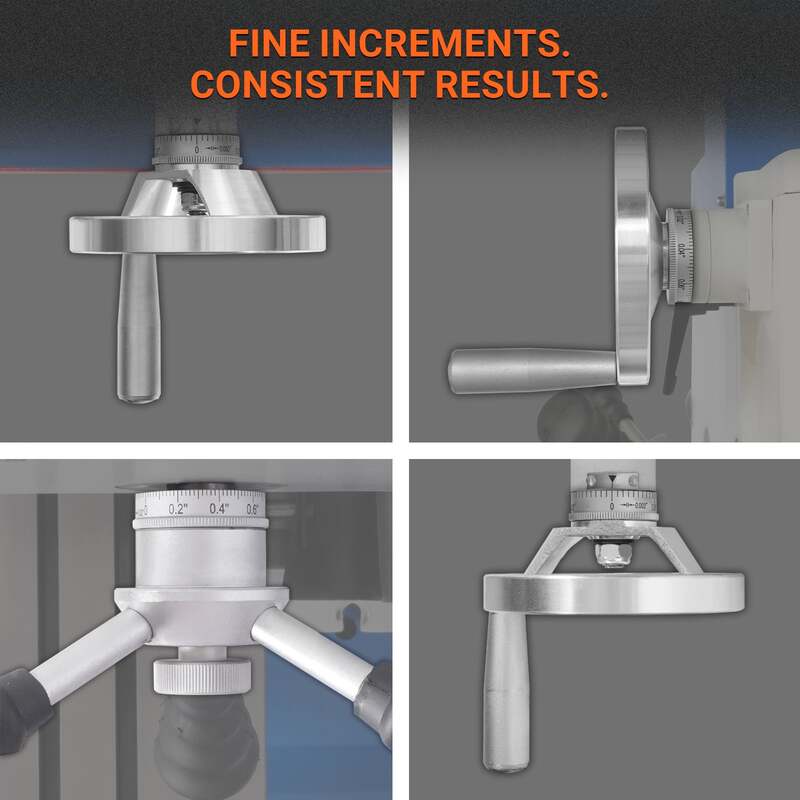

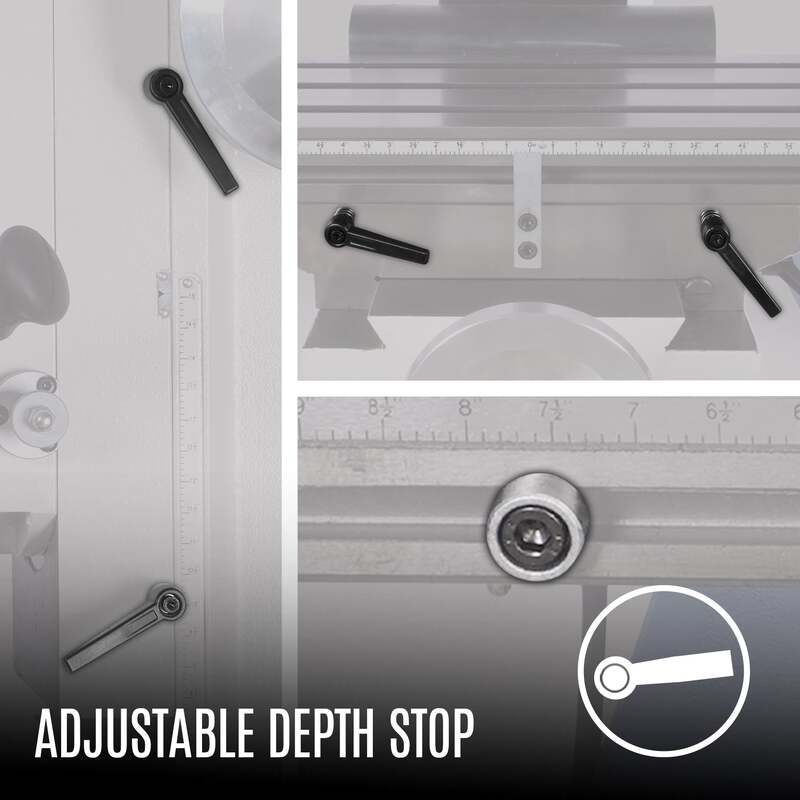

• Adjustable depth stop and feed locks for consistent machining
These features allow machinists to perform a wide variety of machining operations while maintaining excellent precision and control.
Durable & Reliable Construction
Designed for long-term reliability, the VM32L features a rigid cast construction with precision-ground sliding components to ensure smooth movement and reduced vibration during machining.

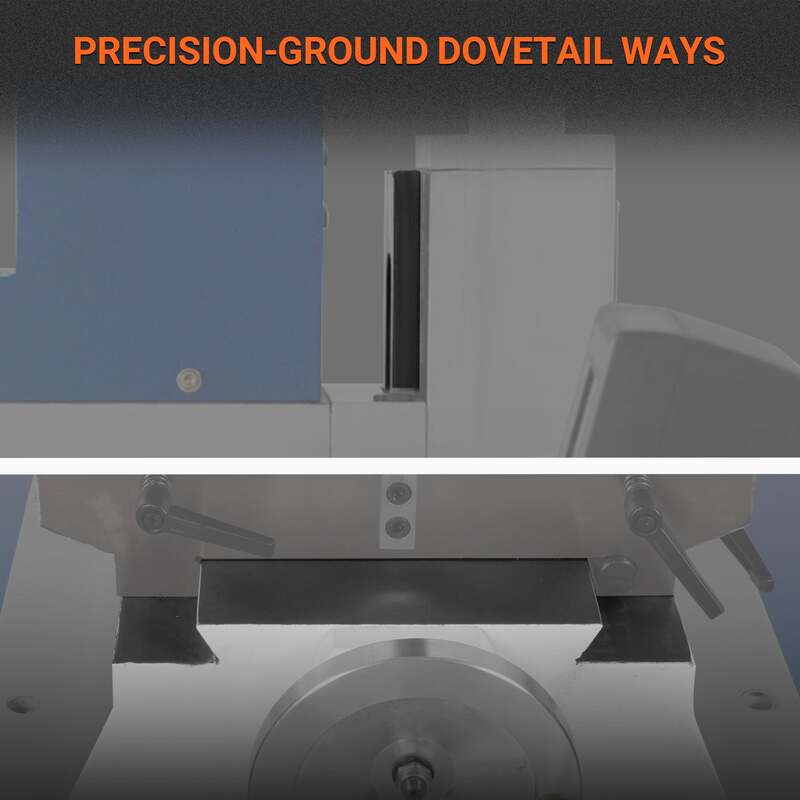

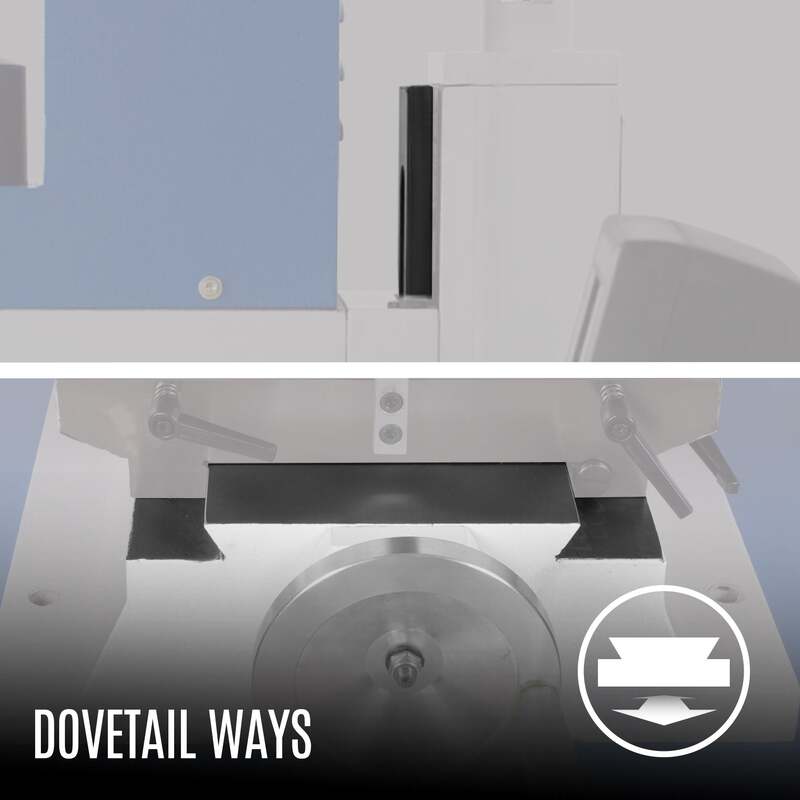

• Precision-ground dovetail ways for improved rigidity and accuracy
• Square column design for stable vertical travel
• Heavy-duty construction for durability and long service life
• Belt-driven system for smooth and quiet operation
• Built for workshops, fabrication shops, and garage machining
This durable construction ensures dependable performance and consistent machining results in both hobby and professional environments.
Technical Specifications
Spindle & Head
Spindle Taper: R8

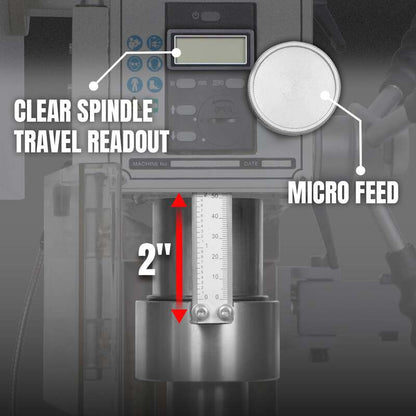

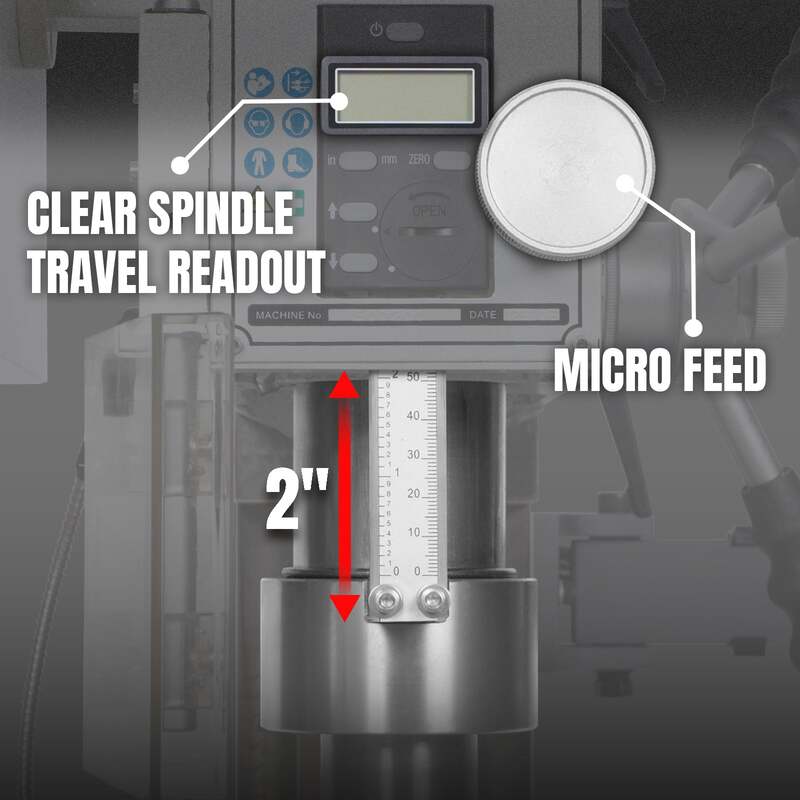

Spindle Travel: 2" (50 mm)
Quill Diameter: 2-3/4" (70 mm)
Spindle Speed Range: 0–2500 RPM
Drawbar Thread Size: 7/16"-20

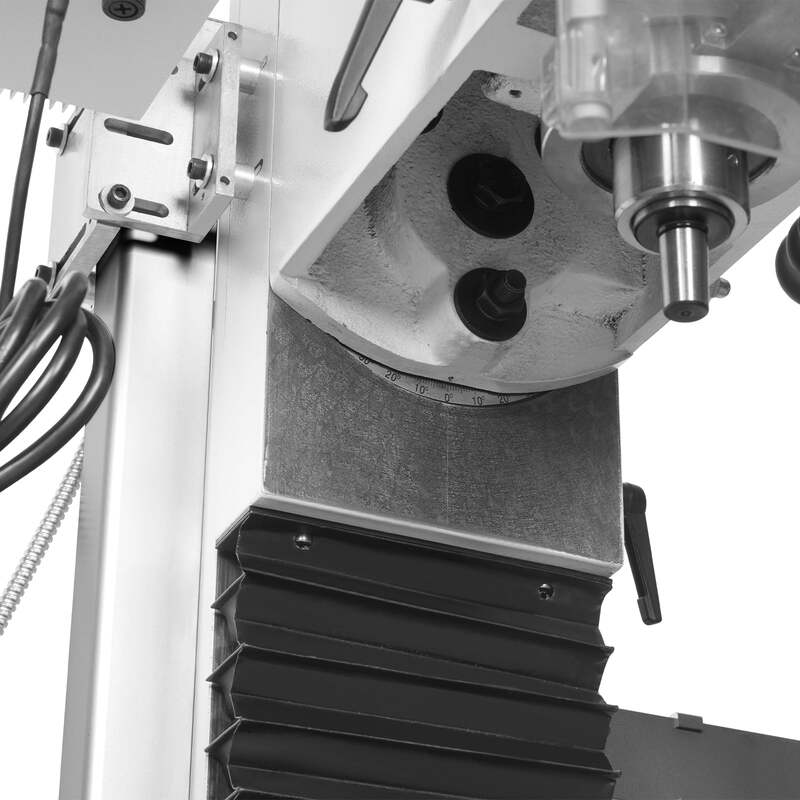

Head Tilt Angle: ±90°

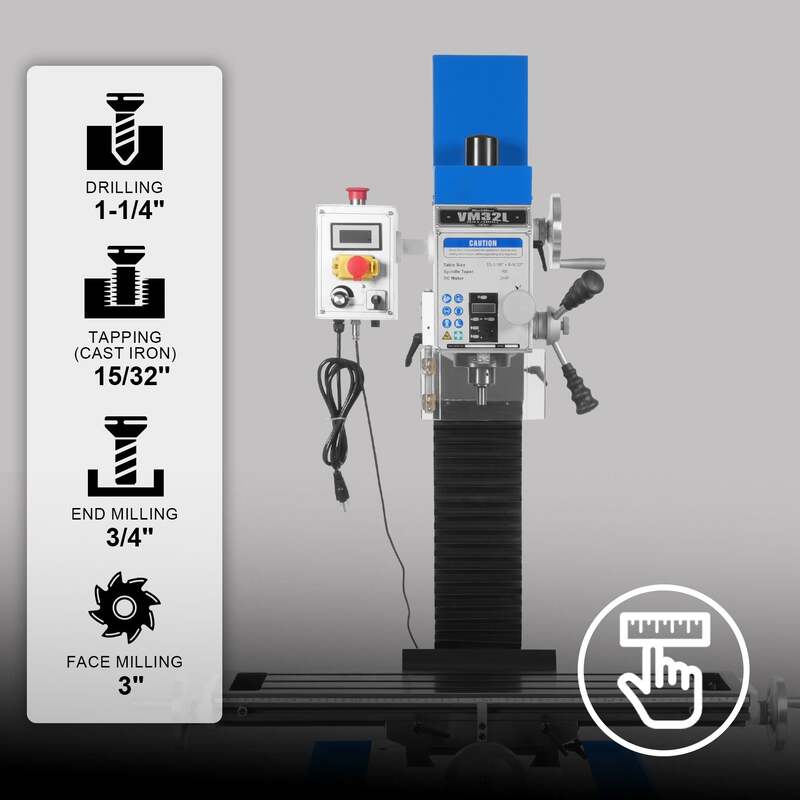

Cutting Capacity
Drilling Capacity: 1-1/4" (32 mm)
End Milling Capacity: 3/4" (20 mm)
Face Milling Capacity: 3" (76 mm)
Table & Travel

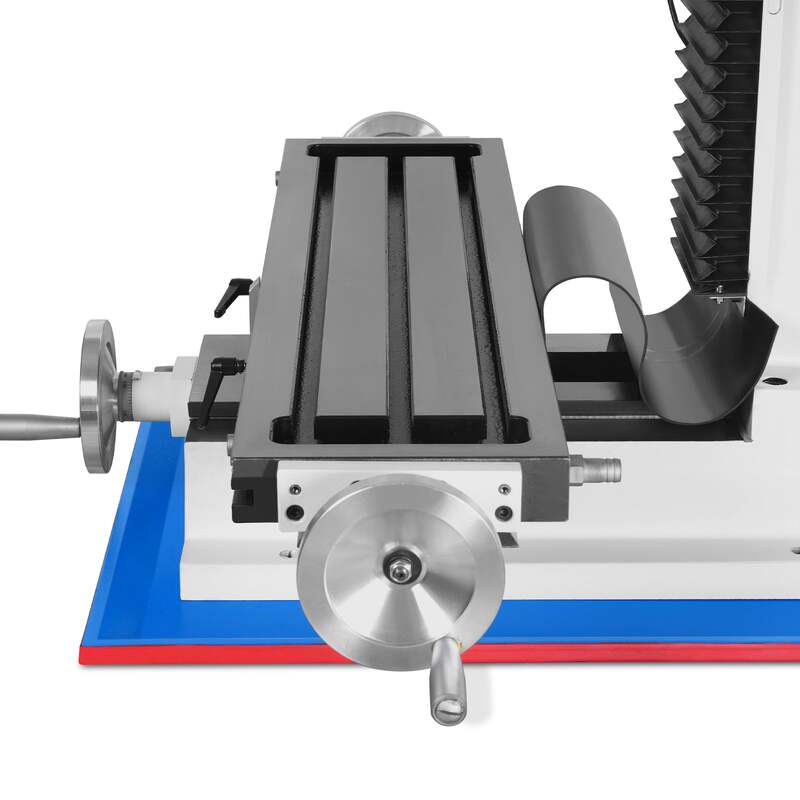

Table Size: 8-1/4" × 33" (210 × 840 mm)
T-Slots: 3 × 9/16" (14 mm)

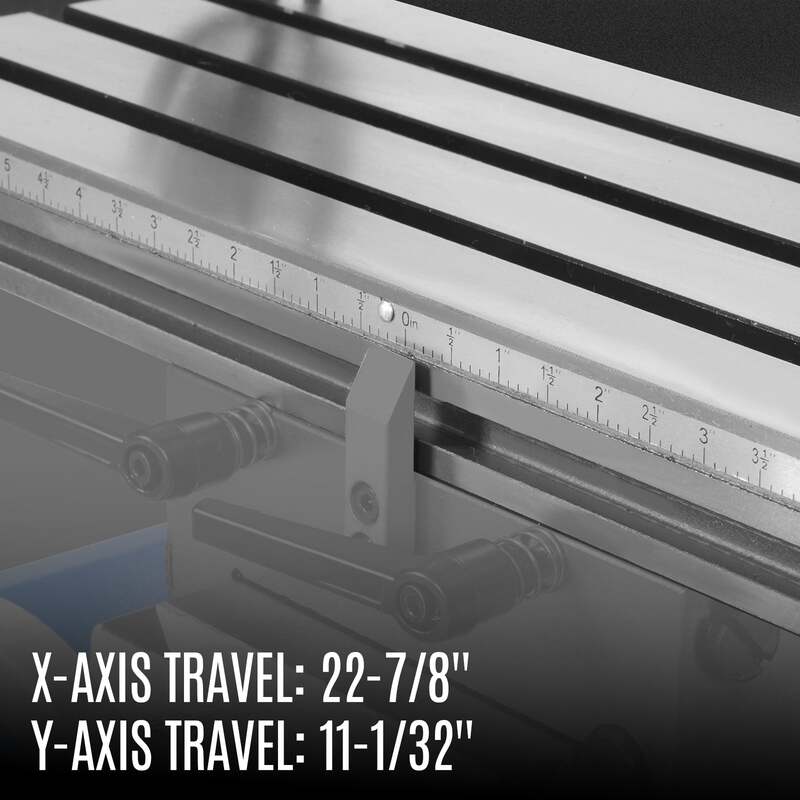

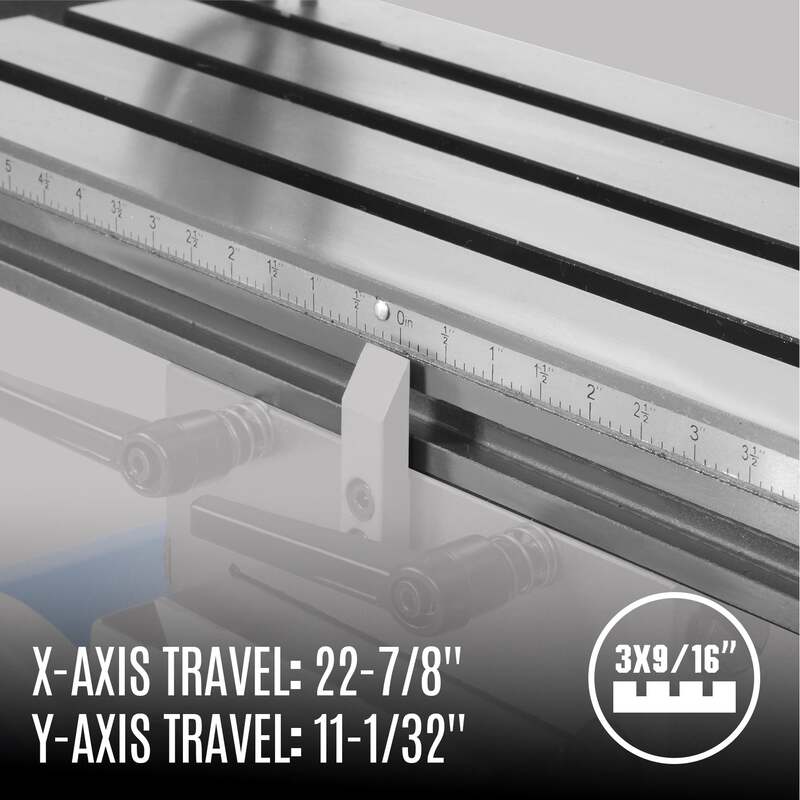

X-Axis Travel: 22-7/8" (580 mm)
Y-Axis Travel: 11-1/32" (280 mm)
Z-Axis Travel: 18-1/2" (470 mm)
Motor & Drive

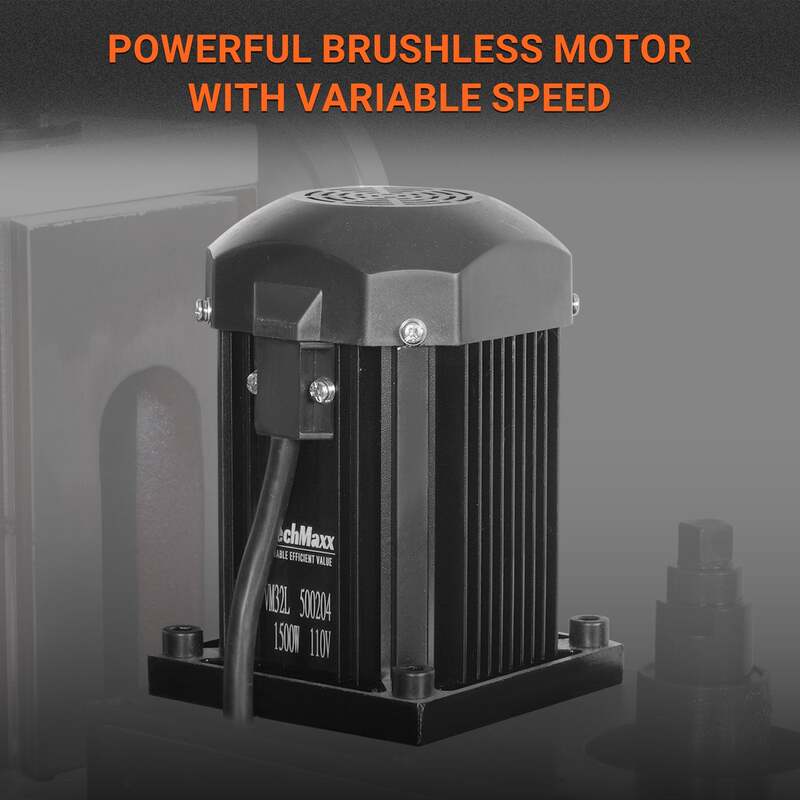

Motor Power: 2 HP, 110V Single Phase

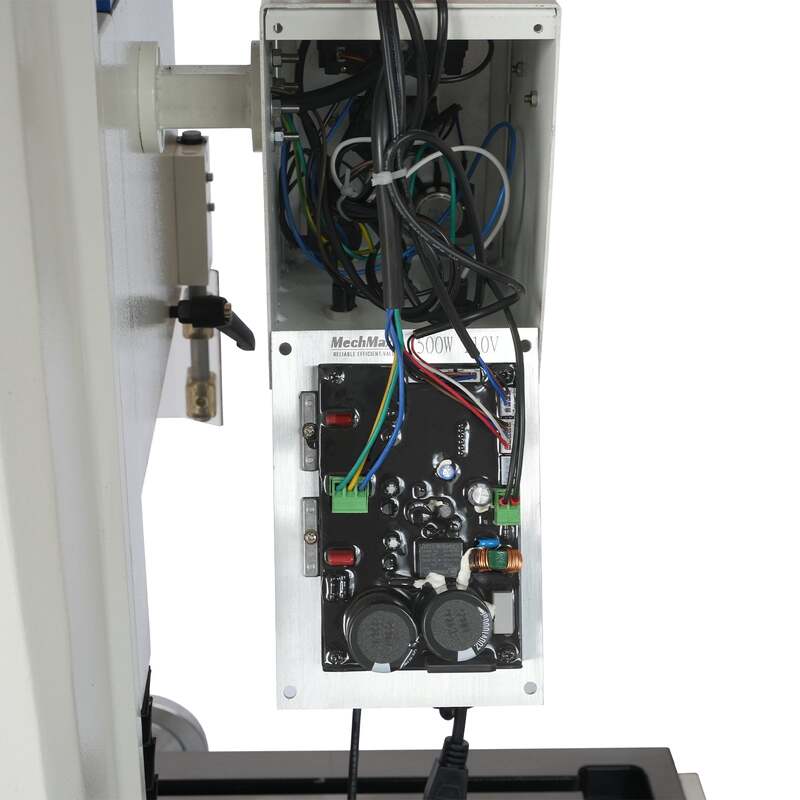

Motor Type: DC Brushless
Drive Type: Belt Drive
Dimensions & Weight
Overall Dimensions: 45" × 28" × 47"
Net Weight: 462 lbs
Gross Weight: 528 lbs
