7" x 27-1/2" Benchtop Mini Mill Drill Machine with 3-Axis DRO (Model VM25LD) Product Description

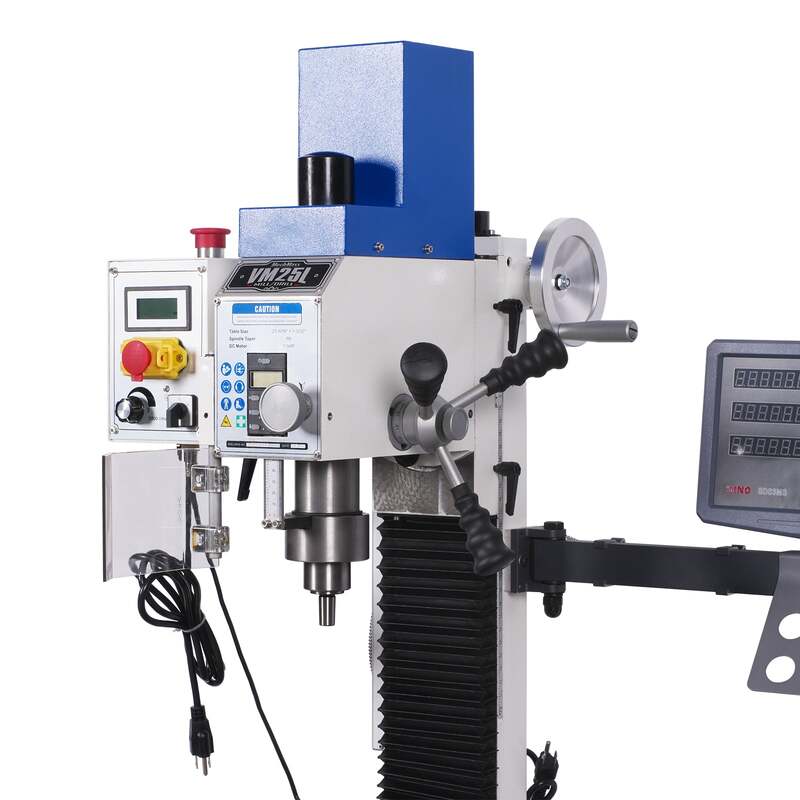

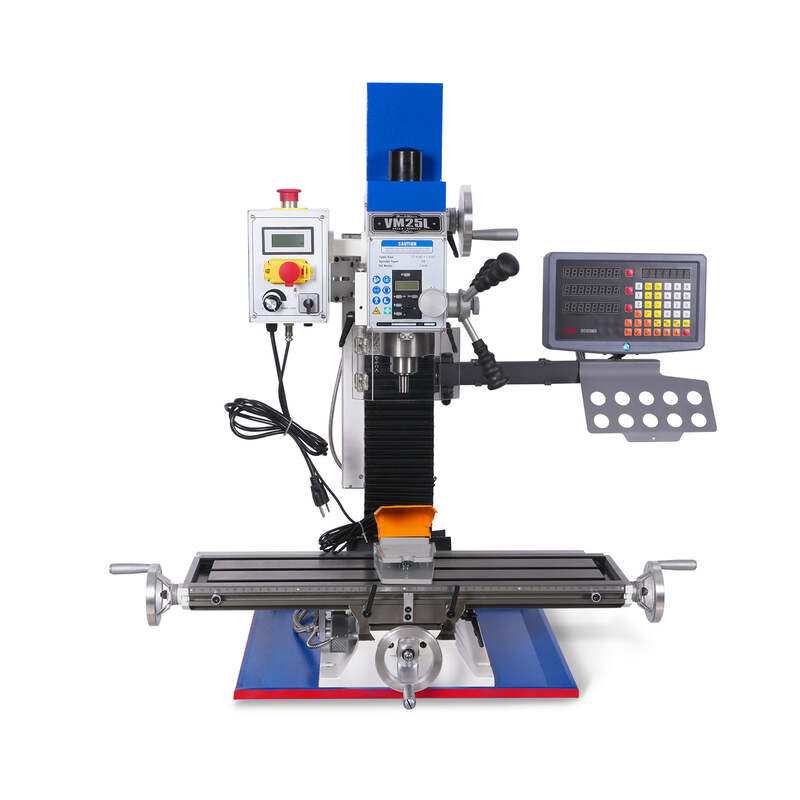

The MechMaxx VM25LD Benchtop Milling and Drilling Machine is a compact yet powerful milling solution designed for garage workshops, fabrication shops, maintenance facilities, and serious DIY machinists. Featuring a 7" × 27-1/2" precision worktable and a powerful 1.5 HP brushless motor, this machine delivers reliable performance for drilling, milling, and light machining applications.
The VM25LD operates with a variable spindle speed range from 0–2500 RPM, allowing machinists to precisely match spindle speed to the material being machined. Whether working with aluminum, steel, brass, or plastics, the adjustable speed control ensures smooth cutting and optimal tool performance.

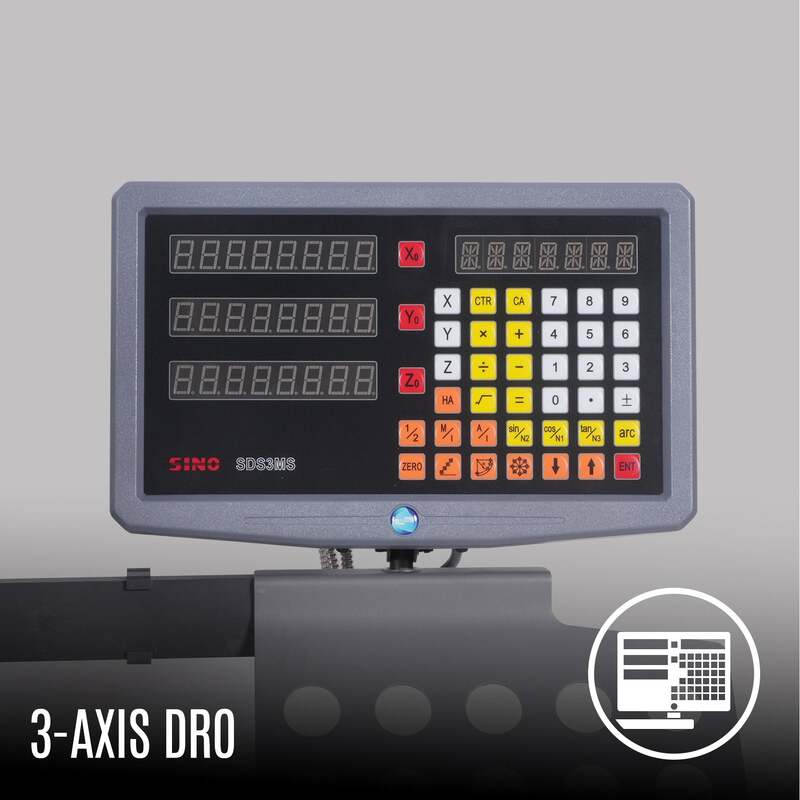

This model also includes a 3-axis digital readout (DRO) system that provides accurate real-time positioning on the X, Y, and Z axes. The DRO improves machining accuracy, simplifies setup, and helps operators complete complex machining tasks faster and with fewer errors.
Designed for Precision Milling
The VM25LD is engineered to deliver smooth operation and precise control for a wide range of metalworking tasks.
• Variable spindle speed from 0–2500 RPM
• R8 spindle taper for broad tooling compatibility
• Large 7" × 27-1/2" worktable for larger workpieces

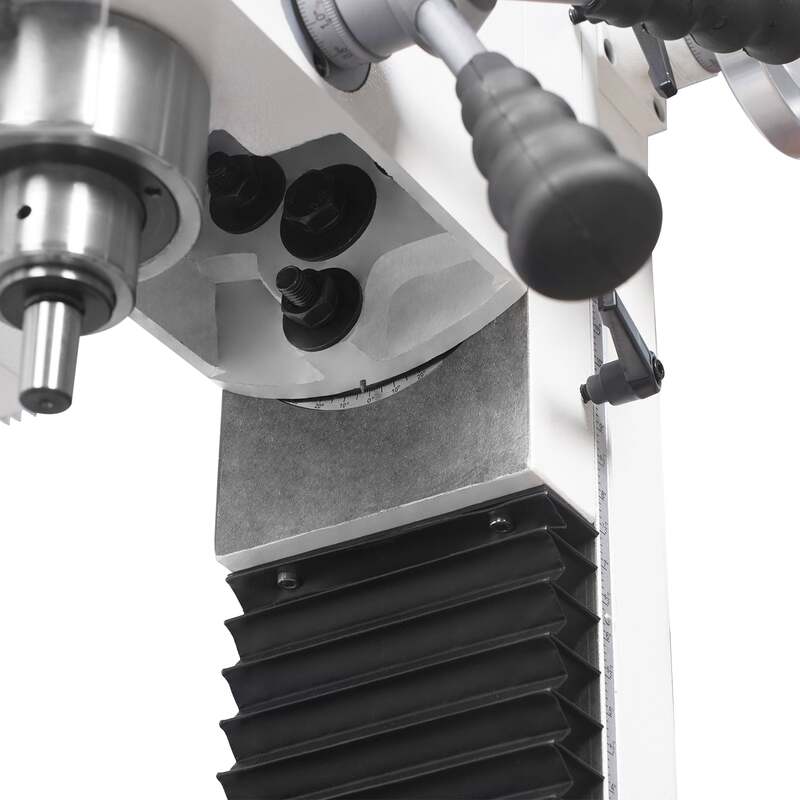

• ±90° tilting head for angled drilling and milling
• 3-axis DRO system for accurate positioning
• Precision-ground ways for smooth axis movement
These features provide machinists with the flexibility needed for drilling, milling slots, surface machining, and detailed metalworking projects.
Durable & Stable Construction
The VM25LD is built with a rigid square column and precision dovetail slideways to ensure stability and accuracy during operation. Its heavy-duty construction minimizes vibration and improves cutting quality.
• Heavy-duty square column design for rigidity

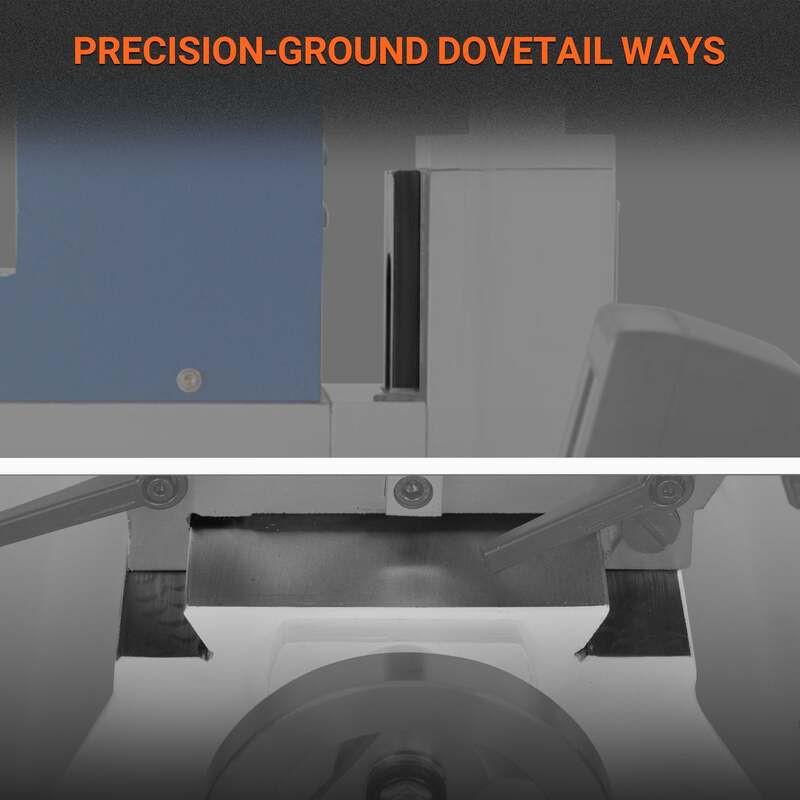

• Precision-ground dovetail slideways for accuracy

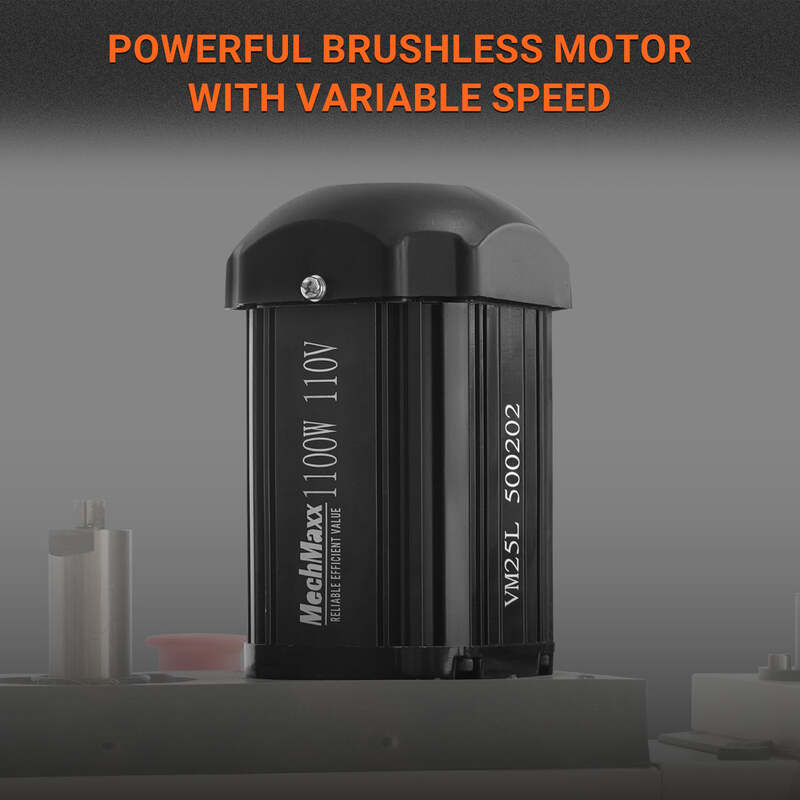

• Brushless motor for low maintenance and quiet operation
• Chip guard and safety switch for operator protection
• Built for workshop, garage, and light industrial applications
This durable design ensures long-lasting performance for machining tasks ranging from small repairs to precision fabrication work.
Technical Specifications
Spindle Specifications
Spindle Taper: R8

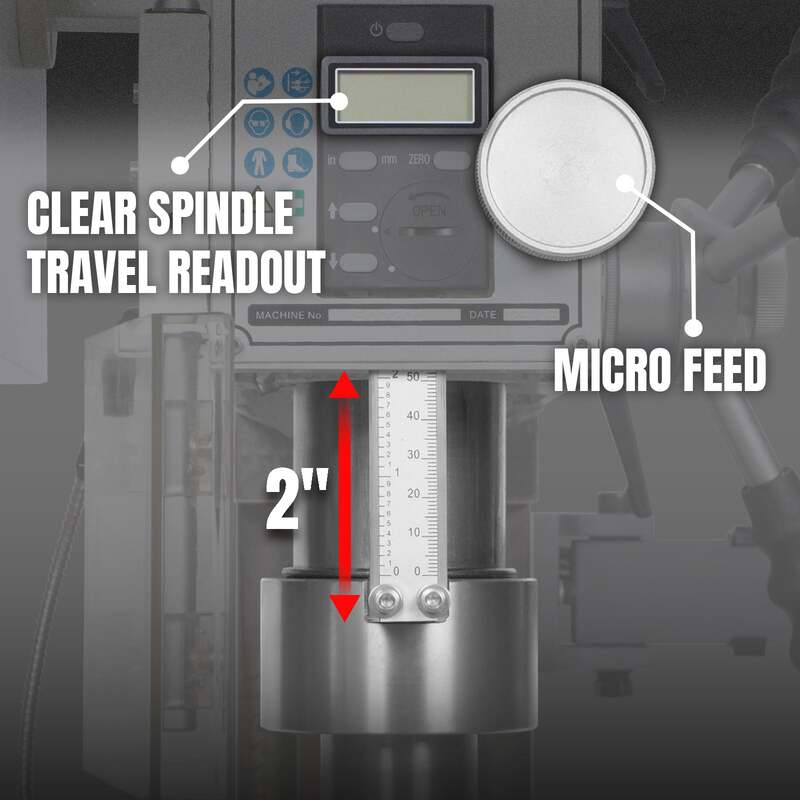

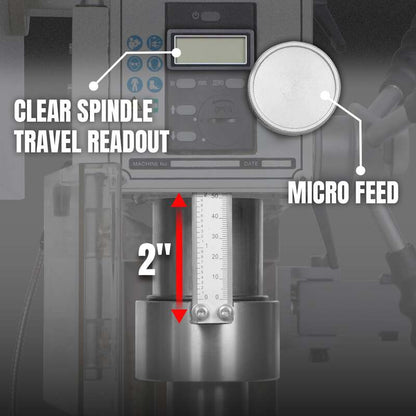

Spindle Travel: 2" (50 mm)
Quill Diameter: Ø2-3/8" (60 mm)
Spindle Speed Range: 0–2500 RPM
Number of Speed Steps: Variable
Drawbar Thread Size: 7/16"-20
Head Tilt Angle: ±90°
Spindle to Table Distance: 14-1/2" (370 mm)
Spindle to Column Distance: 7-1/2" (190 mm)

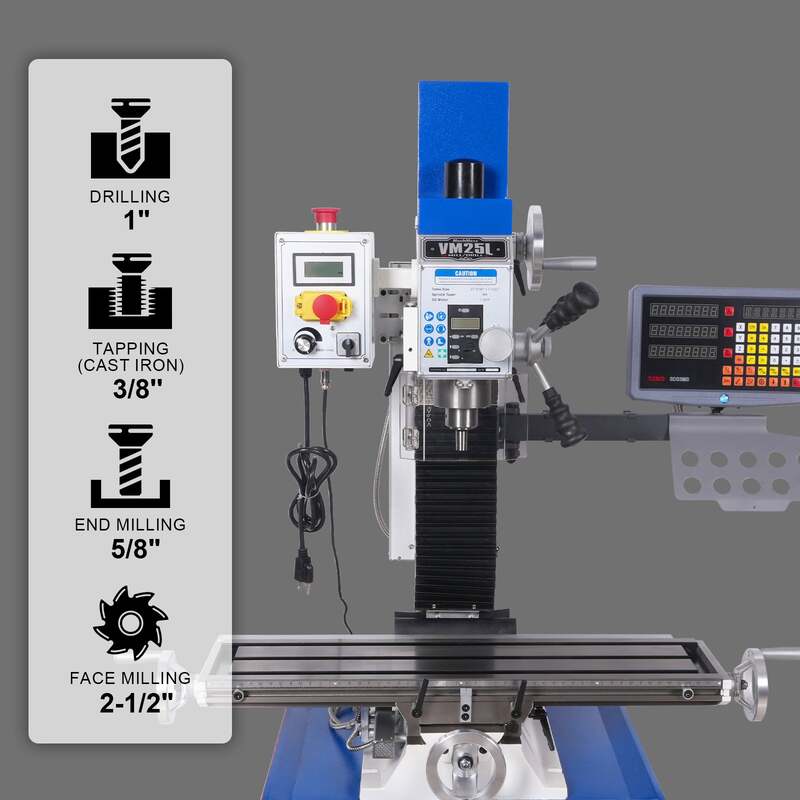

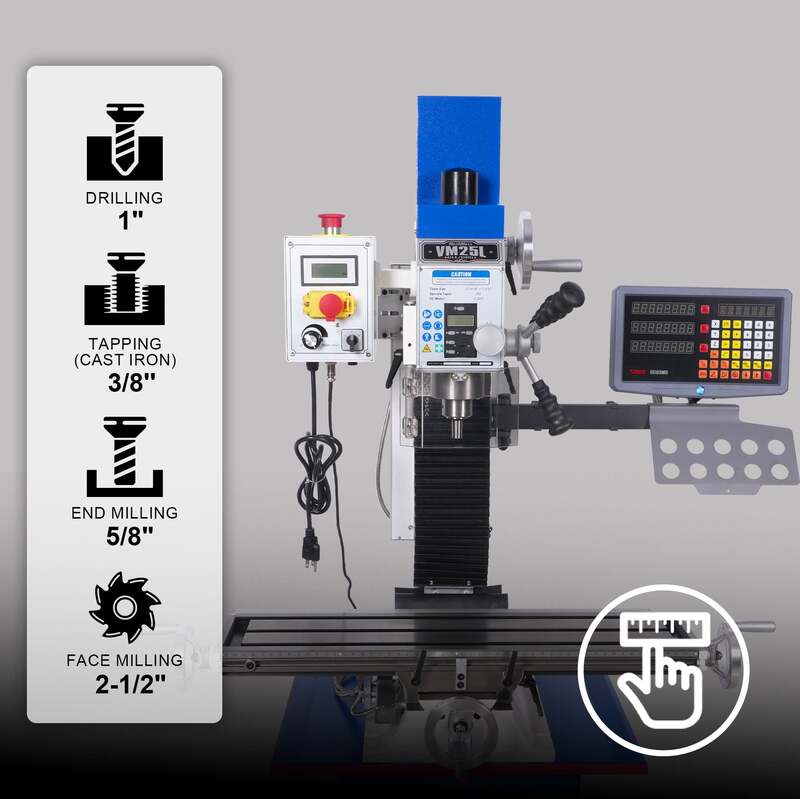

Cutting Capacity
Drilling Capacity: 1" (25 mm)
End Milling Capacity: 5/8" (16 mm)
Face Milling Capacity: 2-1/2" (63 mm)
Table & Travel

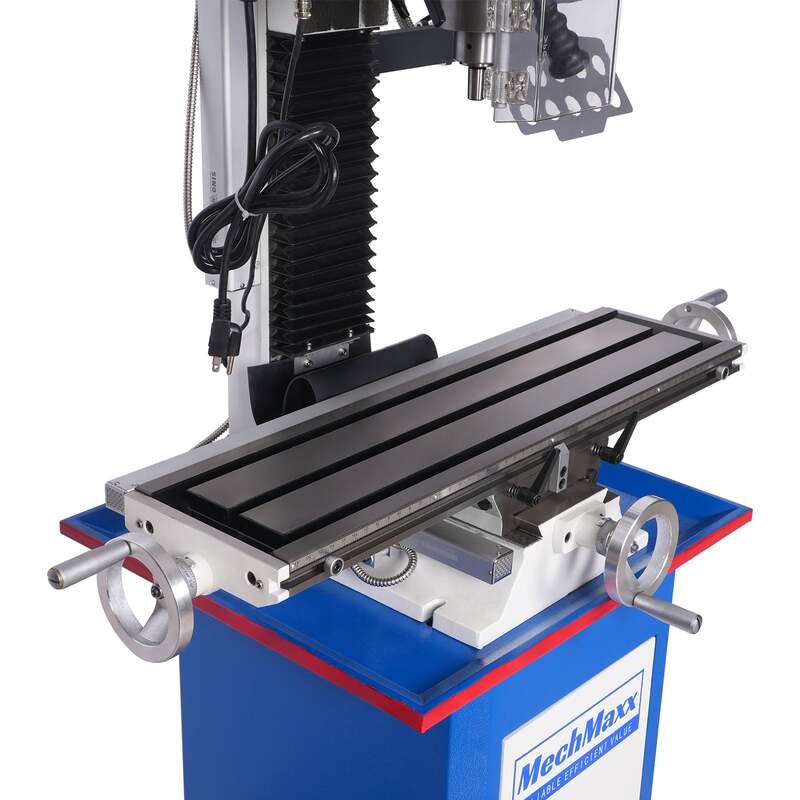

Table Size: 7" × 27-1/2" (180 × 700 mm)
T-Slot Size / Number: 3 × 1/2" (12 mm)

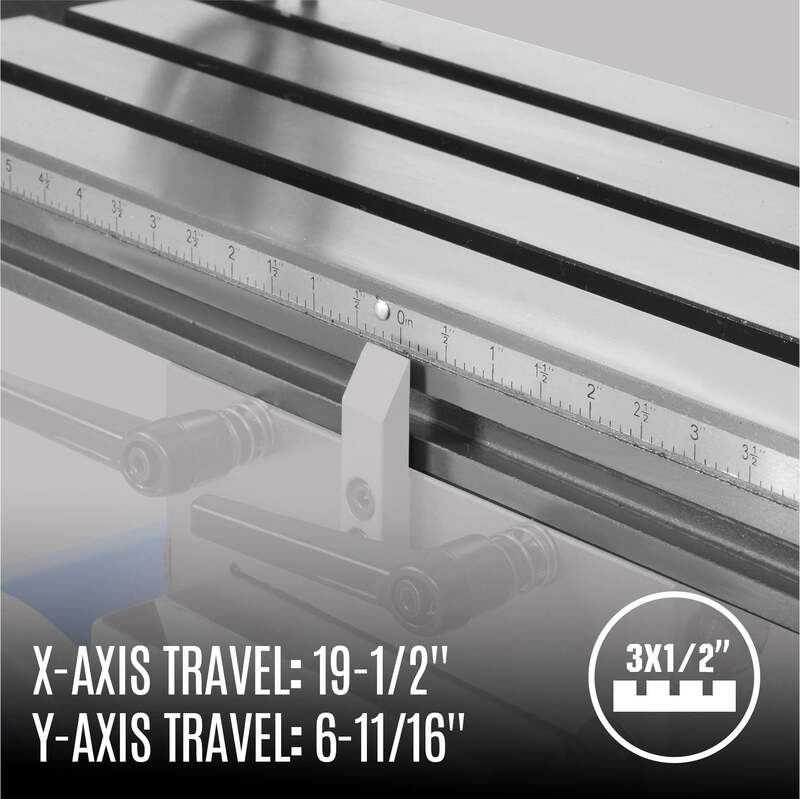

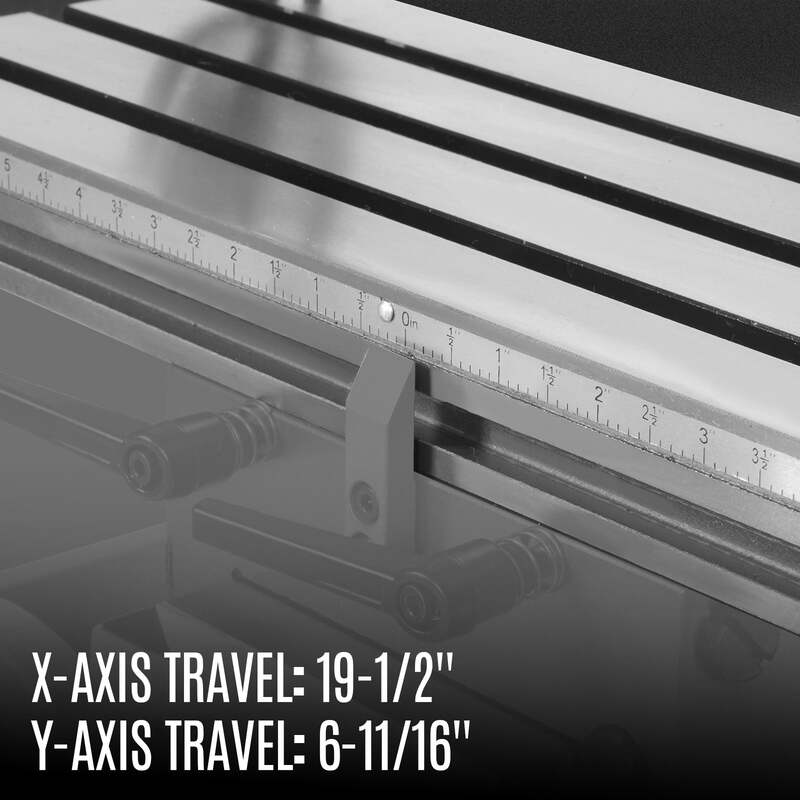

X-Axis Travel: 19-1/2" (495 mm)
Y-Axis Travel: 6-11/16" (170 mm)
Z-Axis Travel: 12-5/8" (320 mm)
Construction & Drive
Column Type: Square Column, Dovetail Slide
Drive Type: Belt Drive

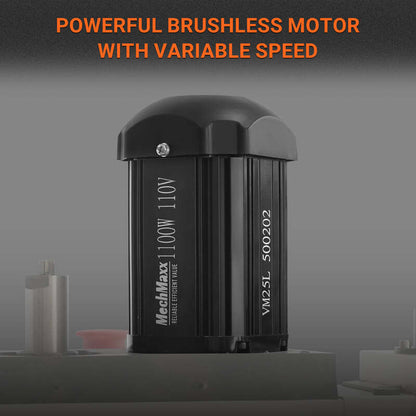

Motor Power: 1.5 HP, 110V, Single Phase Brushless
Motor Type: DC Brushless
Dimensions & Weight
Overall Dimensions: 36" × 22" × 37" (922 × 549 × 935 mm)
Base Size: 14" × 11" (340 × 275 mm)
Shipping Dimensions: 28" × 29" × 37" (710 × 730 × 920 mm)
Net / Gross Weight: 260 / 286 lbs (118 / 130 kg)
