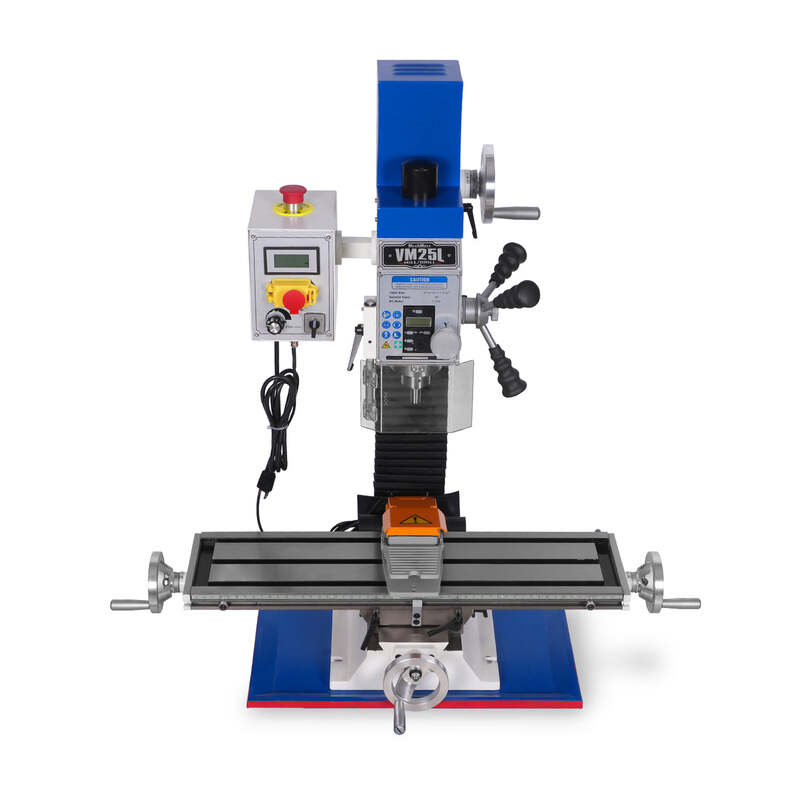

7" x 27-1/2" Benchtop Mini Mill Drill Machine – Variable Speed Brushless Motor Milling Machine (Model VM25L)
Product Description

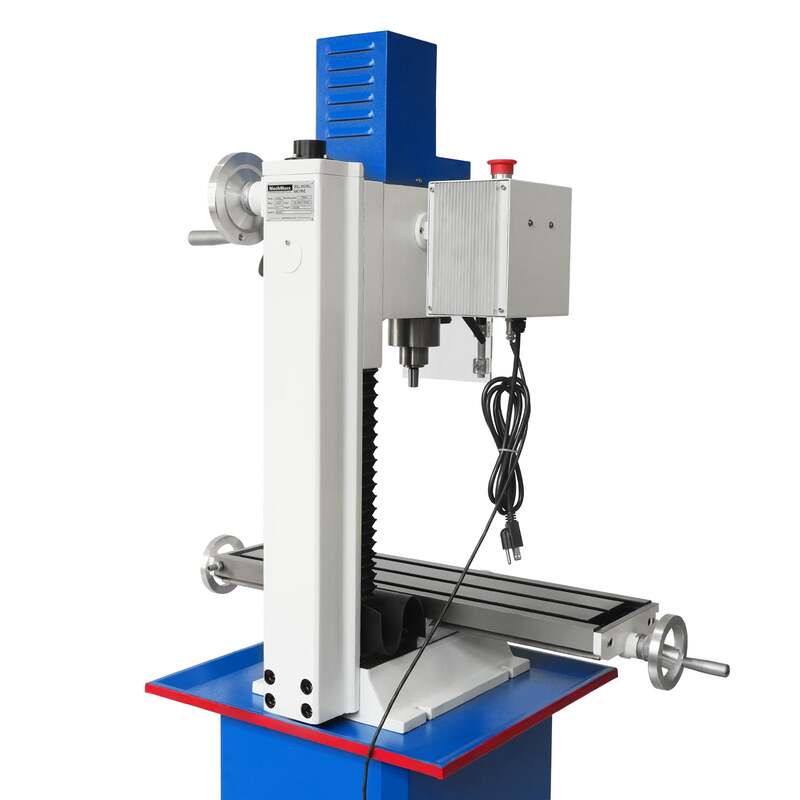

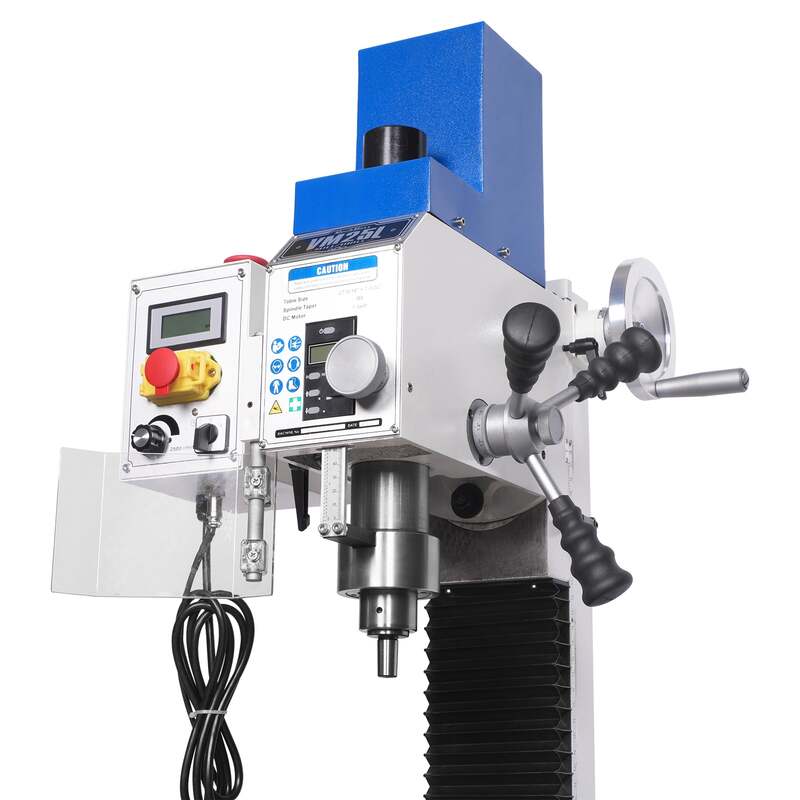

The MechMaxx VM25L Benchtop Mini Mill Drill Machine is a compact yet powerful milling and drilling solution designed for home workshops, fabrication shops, and serious DIY machinists. Featuring a 1.5 HP brushless DC motor and variable spindle speeds up to 2500 RPM, this milling machine delivers smooth, quiet operation with precise speed control for a wide range of machining tasks.
Built with a rigid square column and precision-ground dovetail ways, the VM25L provides excellent stability and accuracy during milling and drilling operations. The industry-standard R8 spindle taper supports a wide variety of tooling and accessories, giving machinists the flexibility needed for different metalworking projects.
With a large 7" x 27-1/2" worktable, generous axis travel, and a ±90° tilting head, this machine is capable of angled cuts, drilling operations, and precision milling on aluminum, steel, brass, and other materials.
Built for Precision Milling & Drilling
The VM25L is engineered to provide smooth, controlled machining performance for drilling, milling, tapping, and light fabrication work.

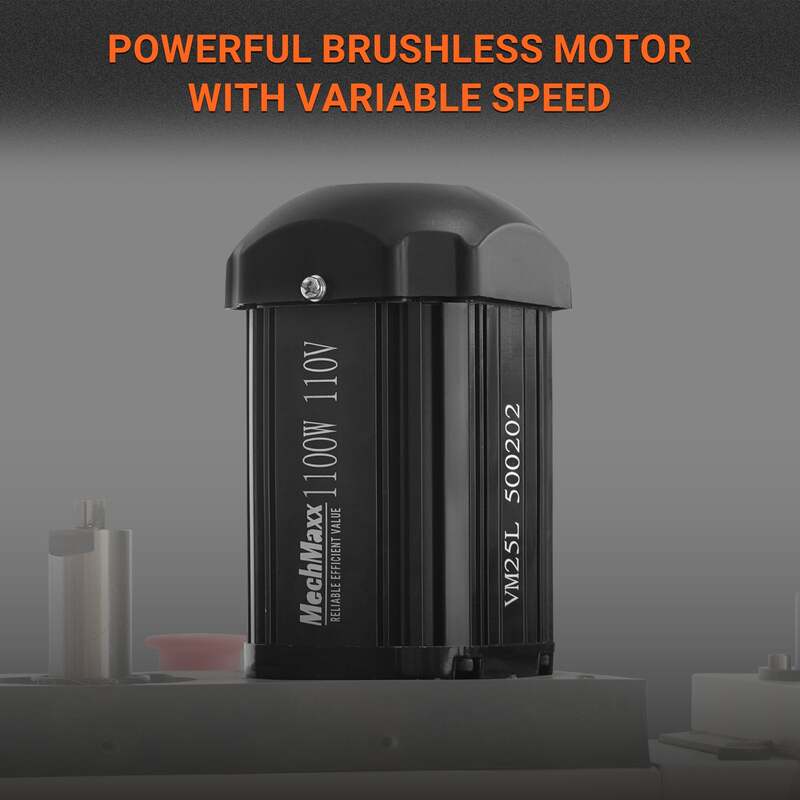

• 1.5 HP brushless motor for powerful and quiet operation
• Variable spindle speed from 0–2500 RPM for different materials
• Industry-standard R8 spindle taper for wide tooling compatibility

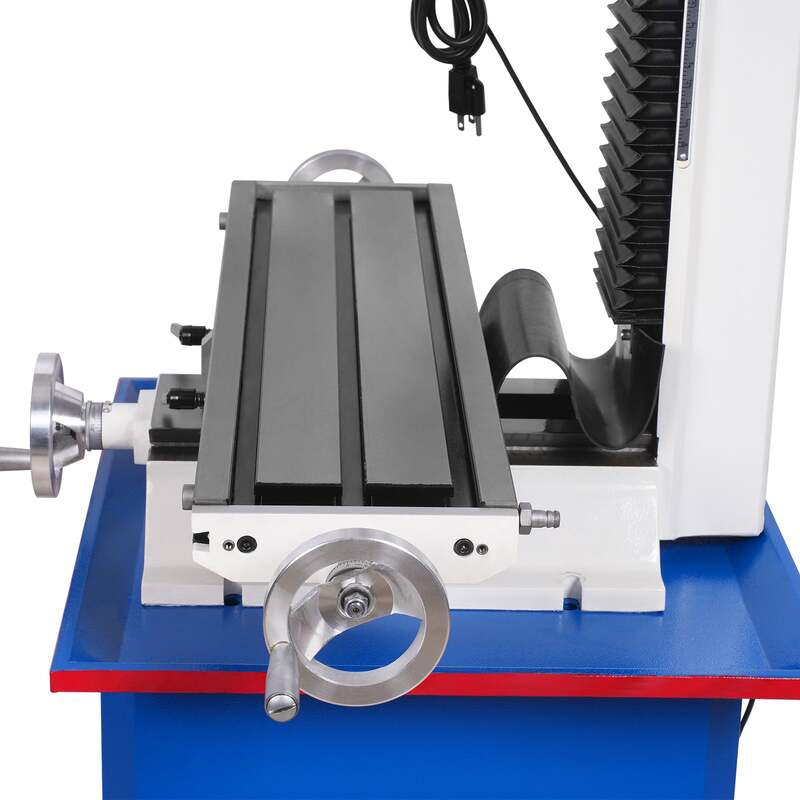

• Large 7" x 27-1/2" precision worktable
• ±90° tilting head for angled drilling and milling operations

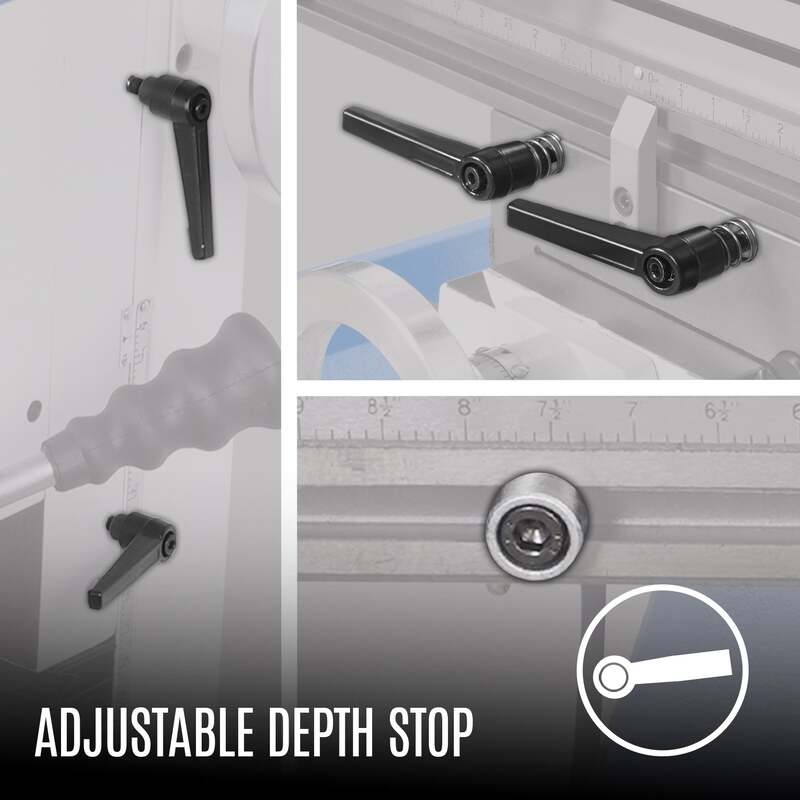

• Adjustable depth stop and feed locks for consistent machining
These features give machinists excellent control, precision, and versatility for a variety of metalworking projects.
Durable & Reliable Construction
Designed for long-term reliability, the VM25L features rigid construction and precision-ground sliding components to ensure smooth movement and reduced vibration during cutting operations.

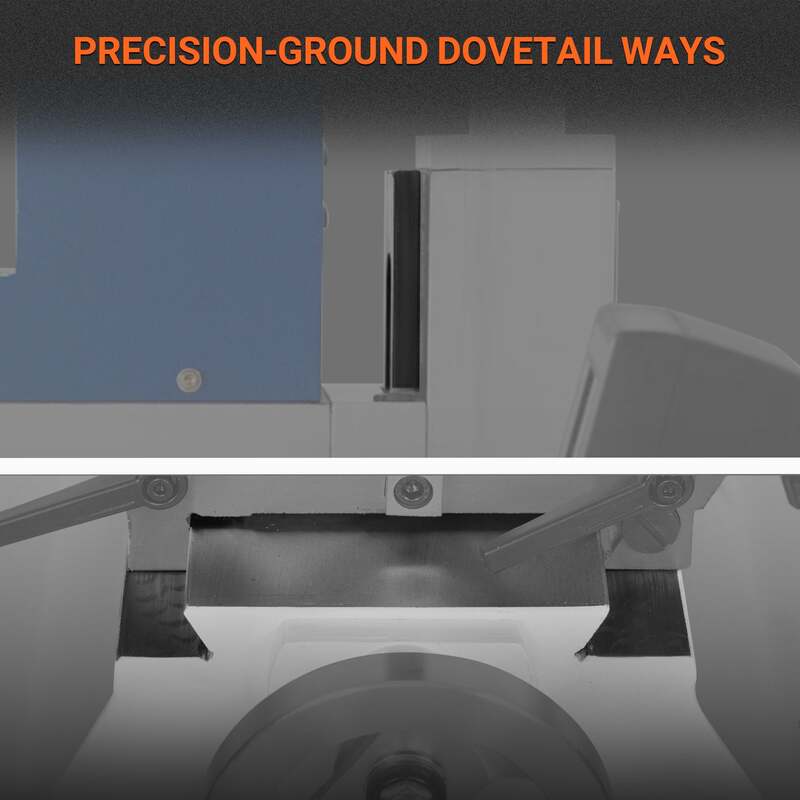

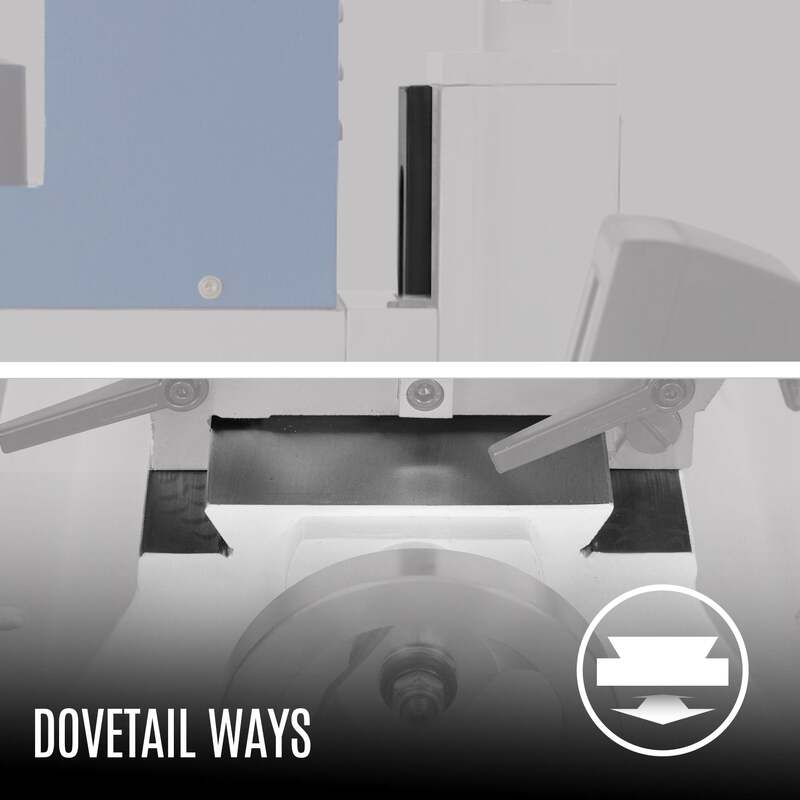

• Precision-ground dovetail ways for improved rigidity and accuracy
• Square column design for stable vertical travel
• Heavy-duty construction for durability
• Built-in chip guard and safety switch for operator protection
• Belt-driven system for smooth and quiet operation
This durable construction ensures consistent machining results and dependable performance in both home and professional workshops.
Technical Specifications
Spindle & Head
Spindle Taper: R8

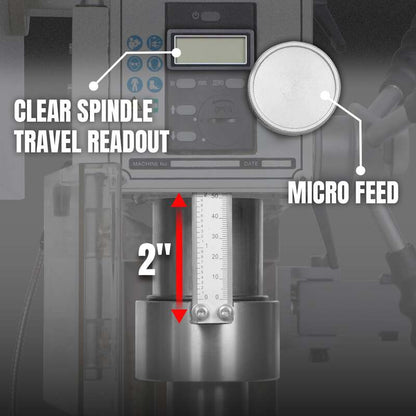

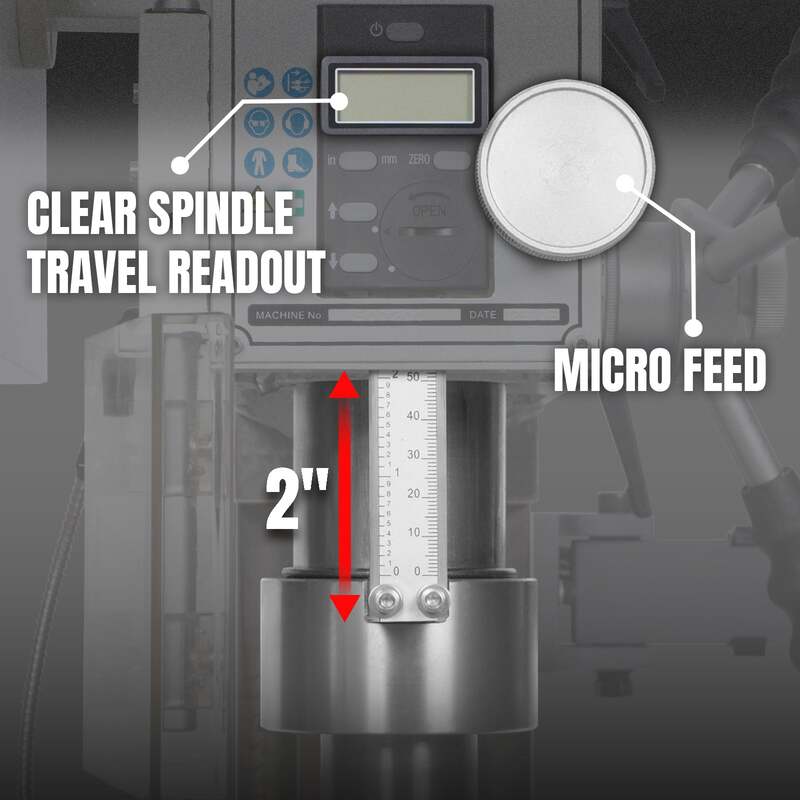

Spindle Travel: 2" (50 mm)
Quill Diameter: 2-3/8" (60 mm)
Spindle Speed Range: 0–2500 RPM
Drawbar Thread Size: 7/16"-20
Head Tilt Angle: ±90°

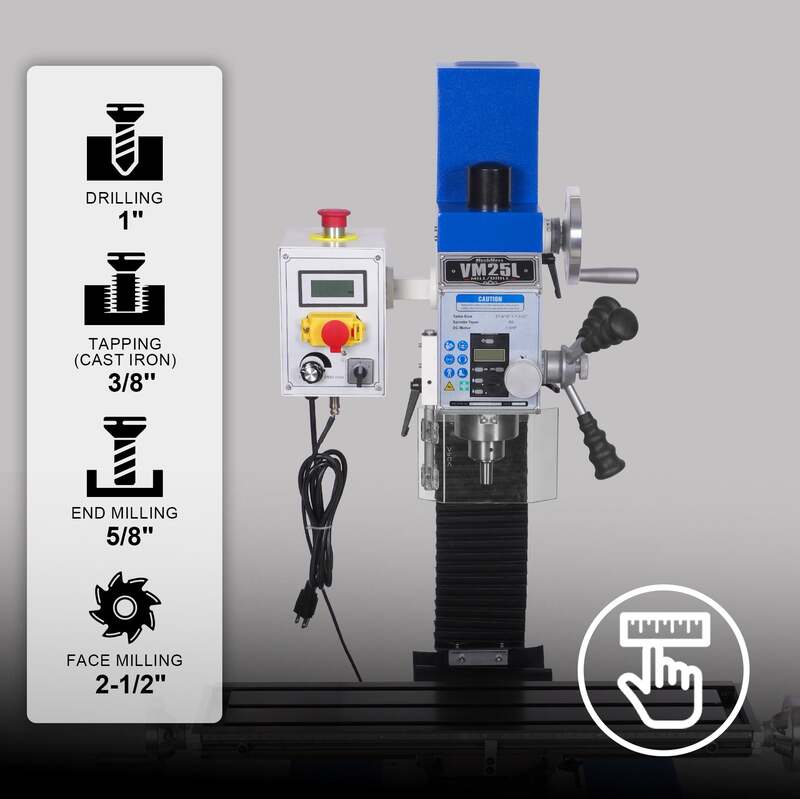

Cutting Capacity
Drilling Capacity: 1" (25 mm)
End Milling Capacity: 5/8" (16 mm)
Face Milling Capacity: 2-1/2" (63 mm)
Table & Travel
Table Size: 7" × 27-1/2" (180 × 700 mm)

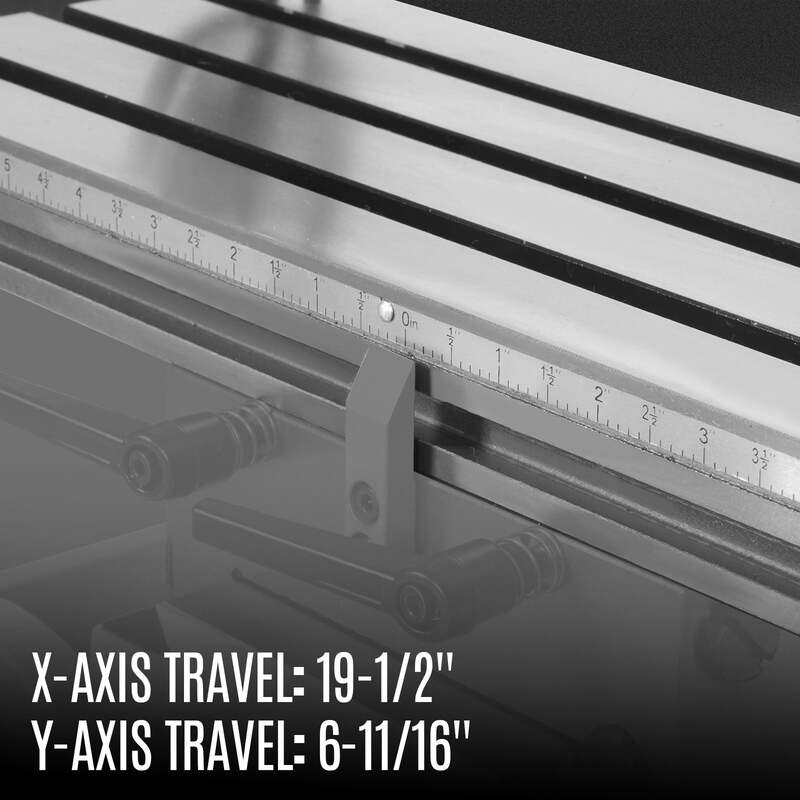

X-Axis Travel: 19-1/2" (495 mm)
Y-Axis Travel: 6-11/16" (170 mm)
Z-Axis Travel: 12-5/8" (320 mm)
Motor & Drive
Motor Power: 1.5 HP, 110V, Single Phase
Motor Type: DC Brushless
Drive Type: Belt
Dimensions & Weight
Overall Dimensions: 36" × 22" × 37"
Net / Gross Weight: 260 / 286 lbs
