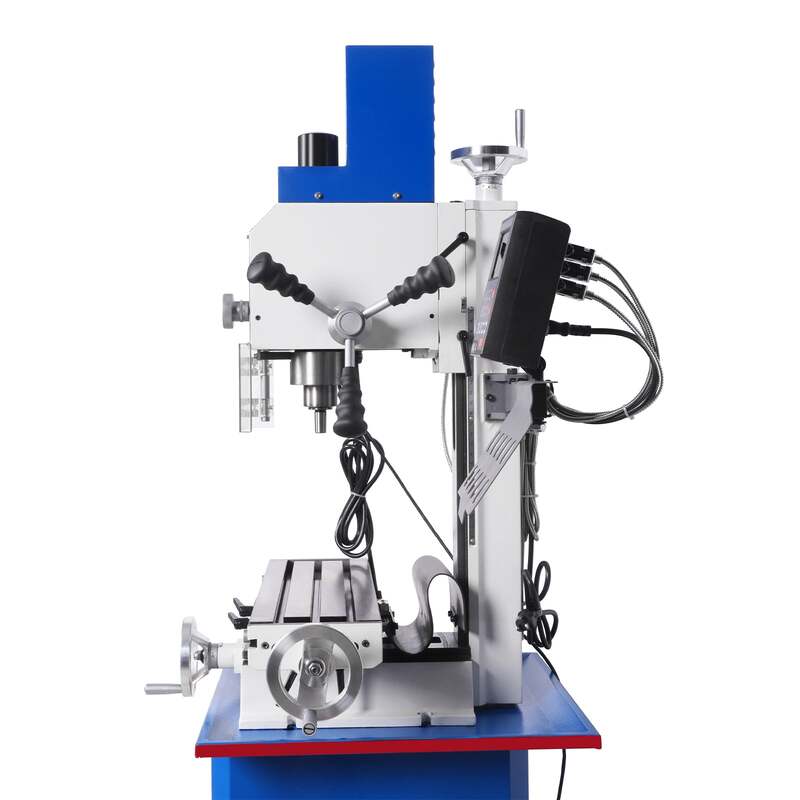

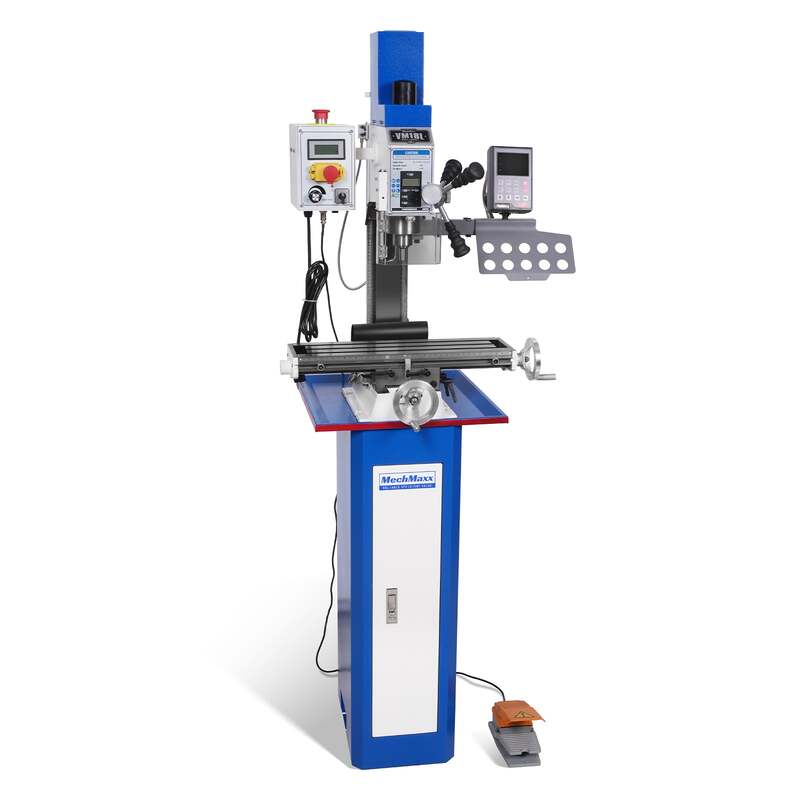

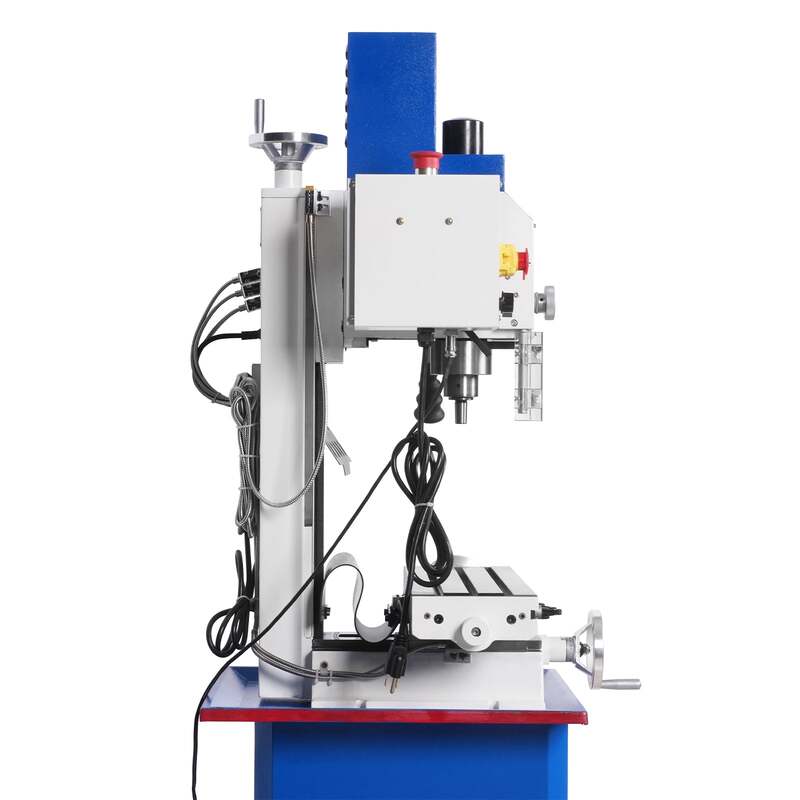

6" x 20" Benchtop Mill Drill Machine with 3-Axis Digital Readout (Model VM18LD) Product Description

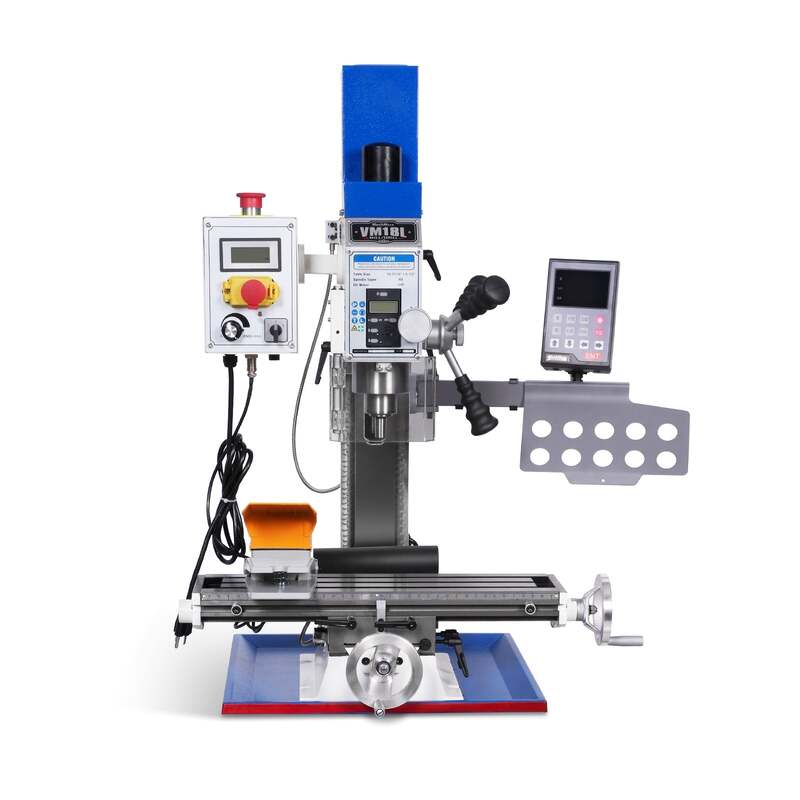

The MechMaxx VM18LD Benchtop Milling and Drilling Machine is a compact precision machining solution designed for garage workshops, fabrication shops, maintenance facilities, and serious DIY machinists. Featuring a 6" × 20" precision worktable, a reliable 1 HP brushless motor, and a 3-axis digital readout (DRO), this machine provides excellent control and accuracy for drilling, milling, and light machining operations.
The VM18LD operates with a variable spindle speed range from 0–2500 RPM, allowing machinists to easily match spindle speed to different materials and cutting tools. This ensures smooth cutting performance when working with aluminum, brass, steel, and other metals.
Equipped with a widely used R8 spindle taper, the machine supports a large range of standard milling tooling. Combined with precision-ground slideways and a rigid square column design, the VM18LD delivers stable machining performance and improved accuracy for precision metalworking tasks.
Designed for Precision Milling
The VM18LD provides the control and flexibility needed for a wide variety of milling and drilling applications.
• Variable spindle speed from 0–2500 RPM
• R8 spindle taper for wide tooling compatibility
• 6" × 20" precision worktable for detailed machining

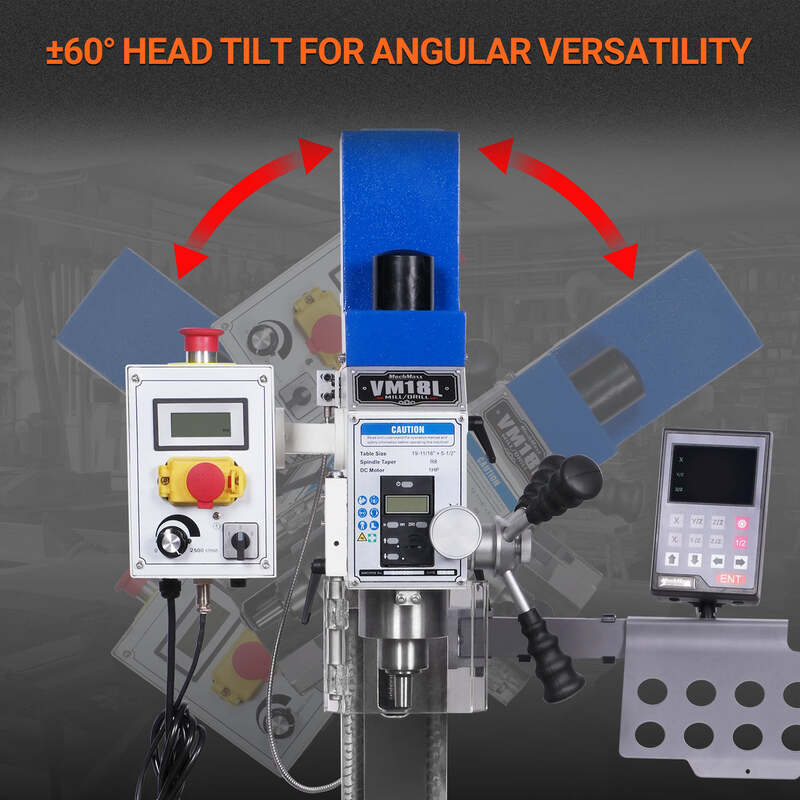

• ±60° tilting head for angled drilling and milling

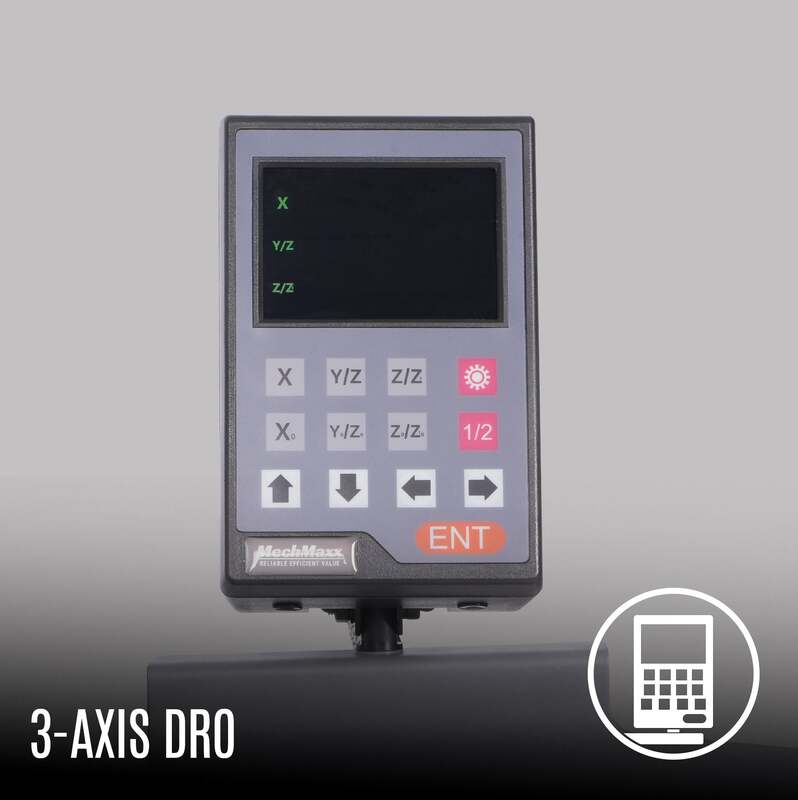

• 3-axis DRO system for accurate positioning
• Precision X, Y, and Z axis travel for detailed workpieces
These features allow machinists to perform slot milling, drilling, facing, and precision fabrication tasks with improved accuracy and control.
Durable & Stable Construction

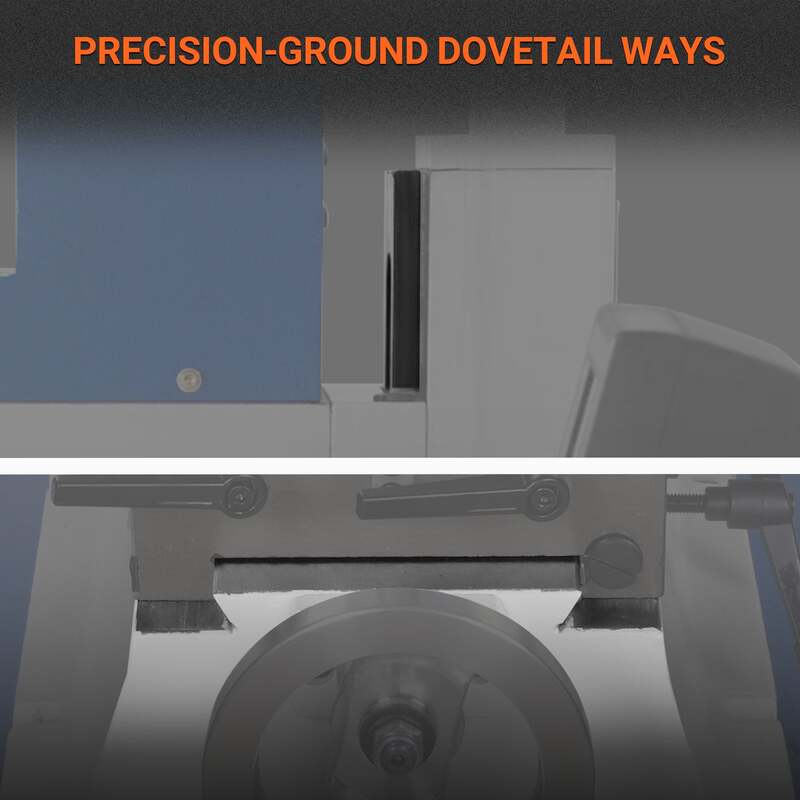

The VM18LD is built with a rigid square column structure and precision-ground dovetail slideways to provide smooth axis movement and minimize vibration during machining.
• Heavy-duty square column design for rigidity
• Precision-ground dovetail slideways for accuracy

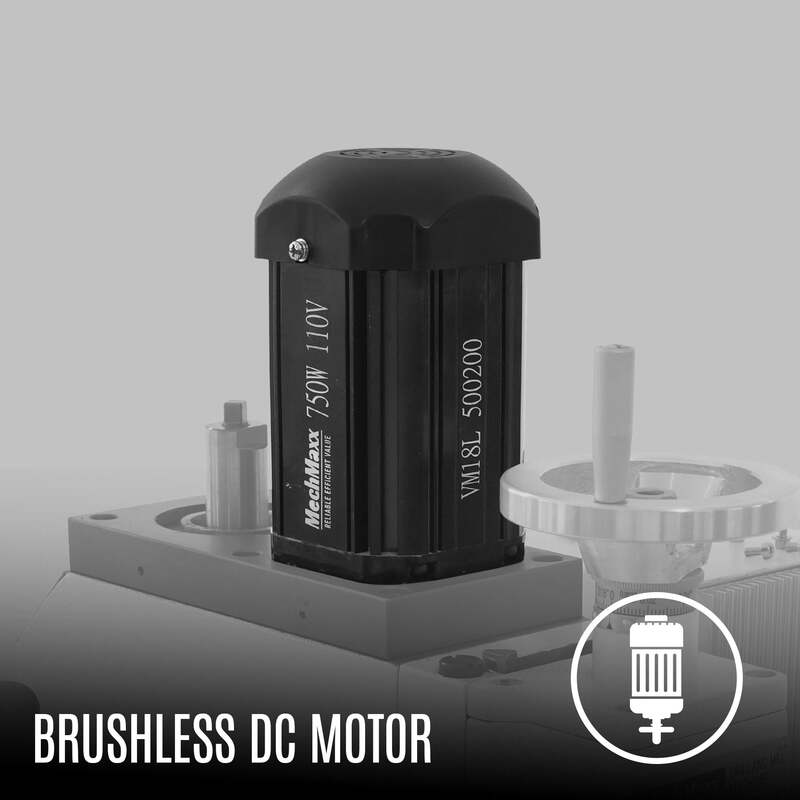

• Brushless DC motor for smooth and low-maintenance operation
• Compact design ideal for small workshops and garages
• Stable construction for improved machining precision
This durable design ensures dependable performance for hobby machining, fabrication work, and small production tasks.
Technical Specifications
Spindle Specifications
Spindle Taper: R8

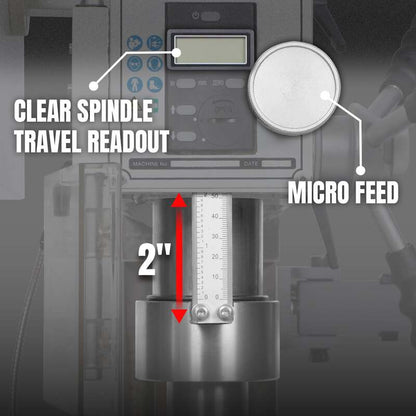

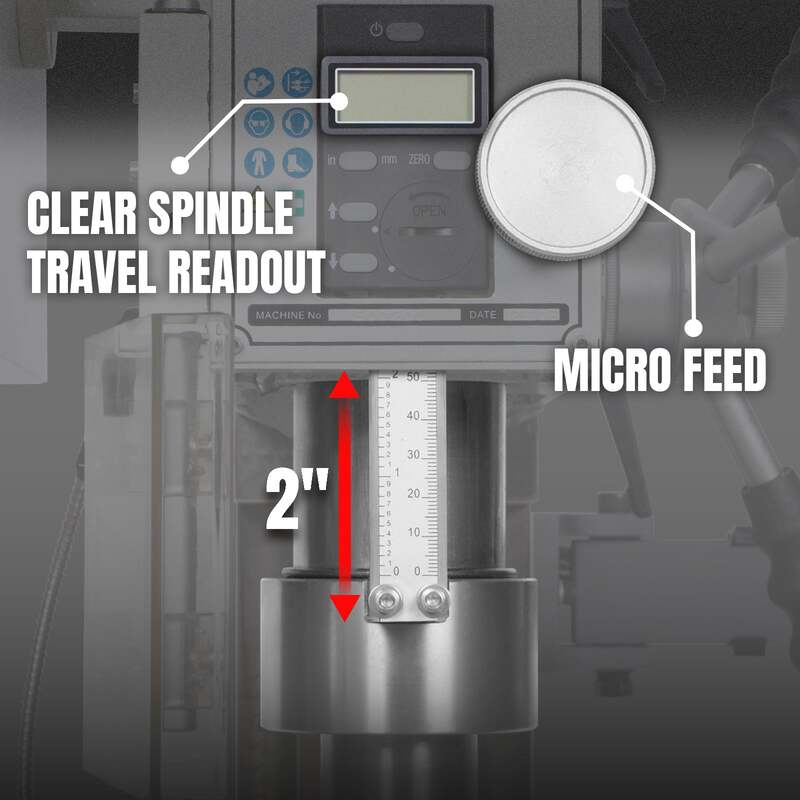

Spindle Travel: 2" (50 mm)

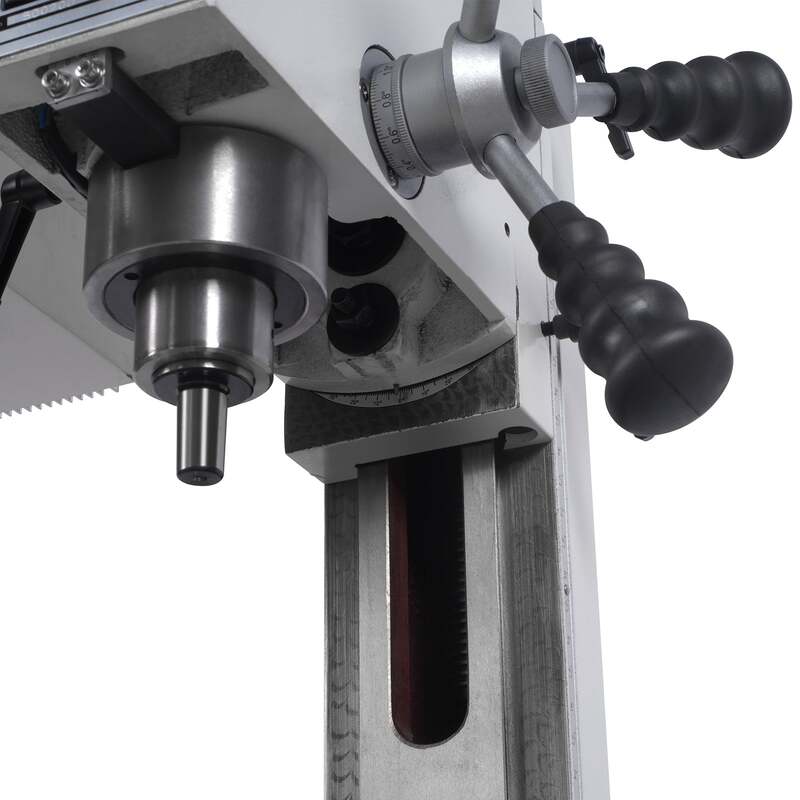

Quill Diameter: Ø2-3/8" (60 mm)
Spindle Speed Range: 0–2500 RPM
Number of Speed Steps: Variable
Drawbar Thread Size: 7/16"-20
Head Tilt Angle: ±90°
Spindle to Table Distance: 10-7/8" (275 mm)
Spindle to Column Distance: 6-5/8" (170 mm)

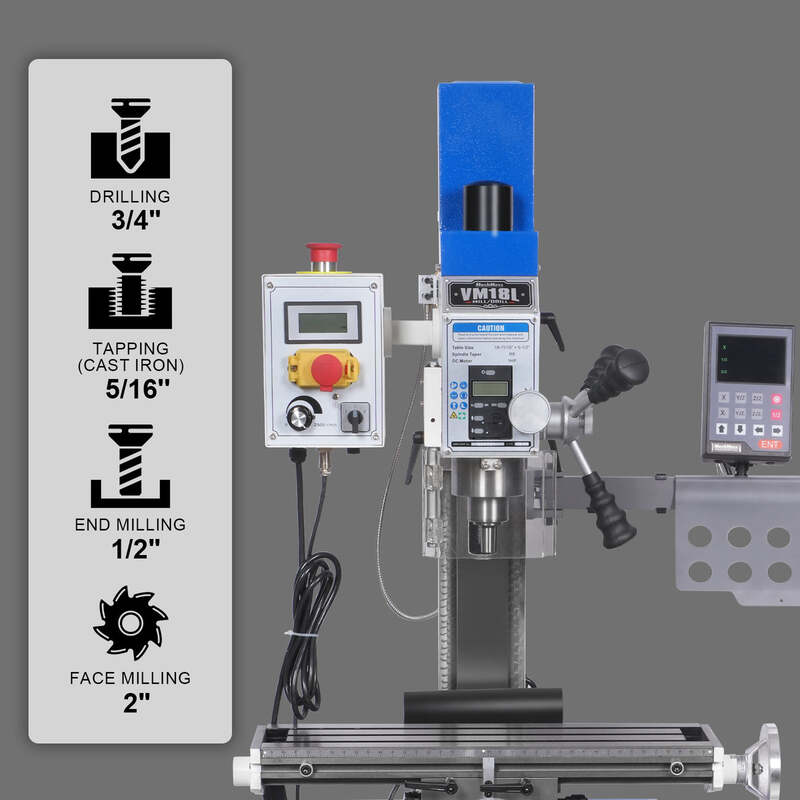

Cutting Capacity
Drilling Capacity: 3/4" (18 mm)
End Milling Capacity: 1/2" (12 mm)
Face Milling Capacity: 2" (50 mm)
Table & Travel
Table Size: 5-1/2" × 19-5/8" (140 × 500 mm)
T-Slot Size / Number: 3 × 3/8" (10 mm)

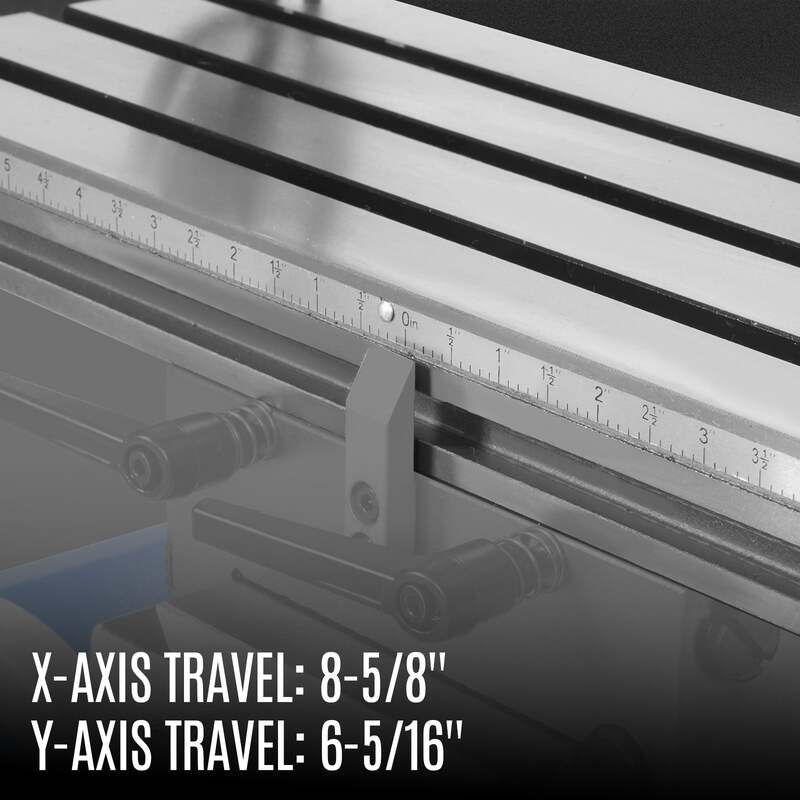

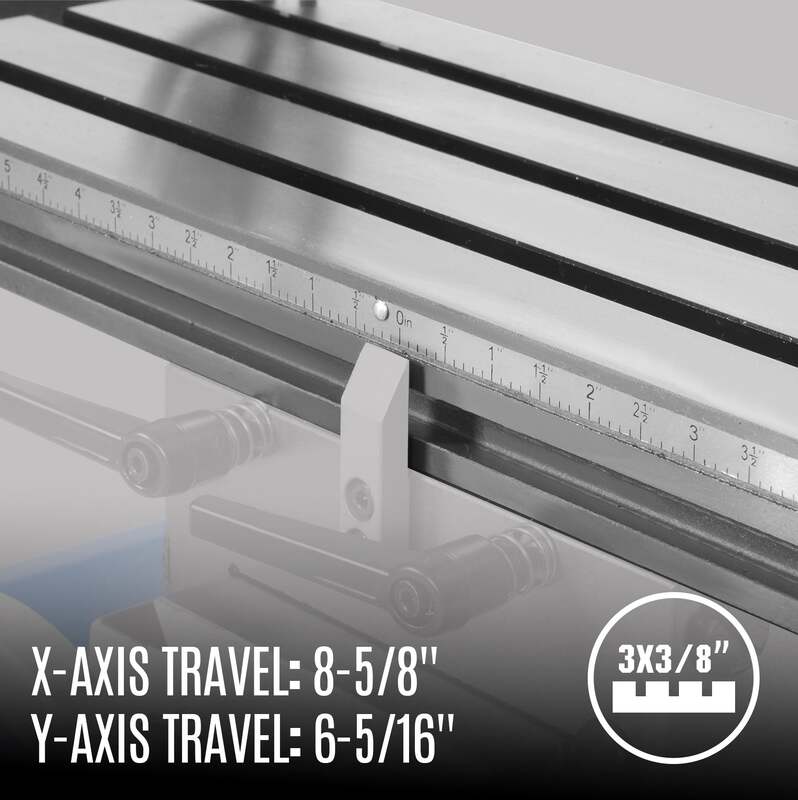

X-Axis Travel: 8-5/8" (220 mm)
Y-Axis Travel: 6-5/16" (160 mm)
Z-Axis Travel: 10-27/32" (275 mm)
Construction & Drive
Column Type: Square Column, Dovetail Slide
Drive Type: Belt Drive
Motor Power: 1 HP, 110V, Single Phase Brushless
Motor Type: DC Brushless
Dimensions & Weight
Overall Dimensions: 20" × 19" × 31" (506 × 476 × 788 mm)
Base Size: 11" × 9" (280 × 220 mm)
Shipping Dimensions: 24" × 22" × 34" (610 × 560 × 860 mm)
Net / Gross Weight: 180 / 203 lbs (82 / 92.5 kg)
