6" x 20" Benchtop Mill Drill Machine – Variable Speed R8 Milling Machine (Model VM18L) Product Description

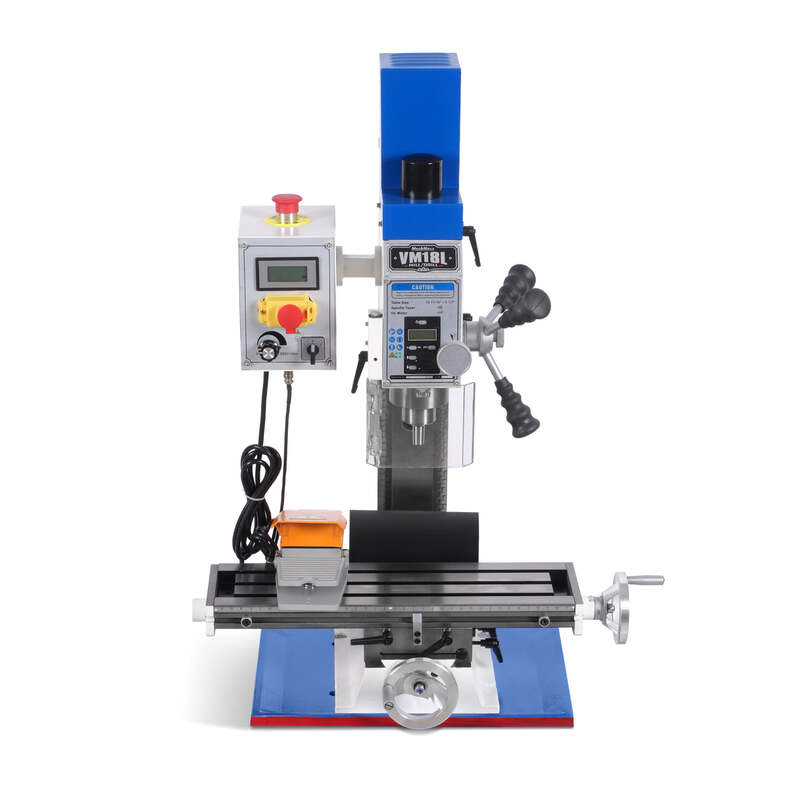

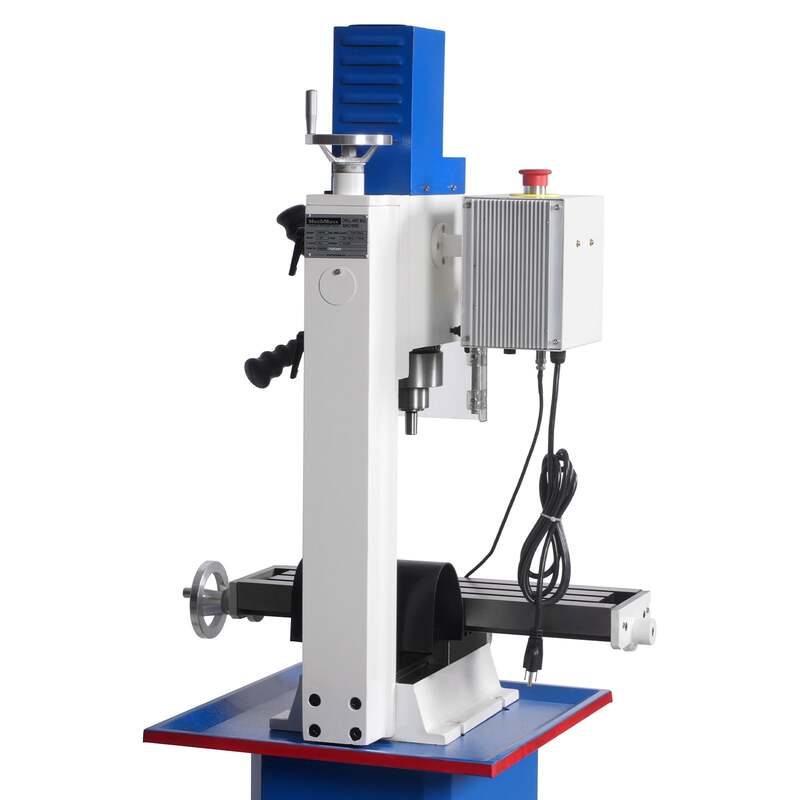

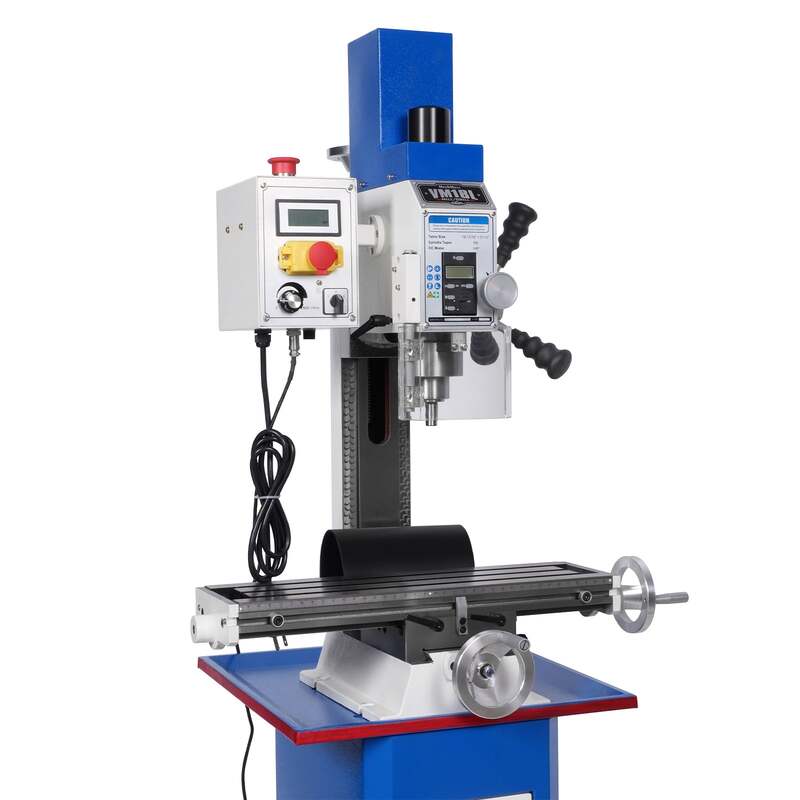

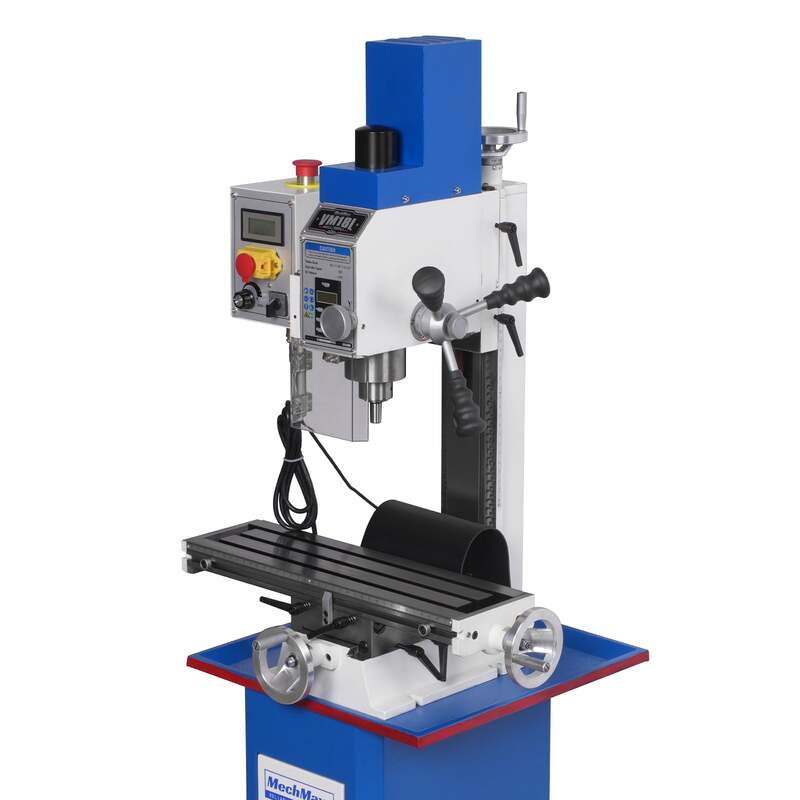

The MechMaxx VM18L Benchtop Milling and Drilling Machine is a compact and versatile machining solution designed for home workshops, garages, fabrication shops, and maintenance facilities. Featuring a 6" × 20" precision worktable and a reliable 1 HP brushless motor, this machine provides smooth and accurate performance for drilling, milling, and light machining applications.
With a variable spindle speed range from 0–2500 RPM, the VM18L allows machinists to easily adjust spindle speed for different materials and cutting conditions. This flexibility ensures optimal cutting performance whether working with aluminum, steel, brass, or plastics.
The machine utilizes a widely compatible R8 spindle taper, making it easy to use a large range of standard milling tooling. Combined with precision-ground slideways and a rigid square column design, the VM18L provides excellent stability and accuracy for precision machining tasks.
Designed for Precision Milling
The VM18L is engineered to deliver precise control and reliable performance for a wide variety of drilling and milling operations.
• Variable spindle speed from 0–2500 RPM
• R8 spindle taper for wide tooling compatibility
• 6" × 20" precision worktable for detailed machining

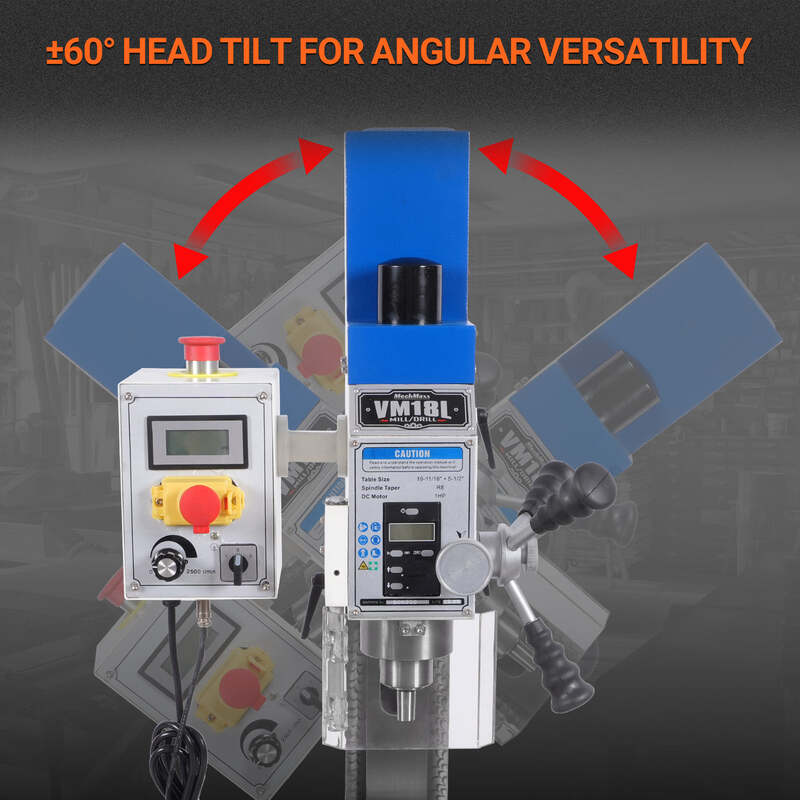

• ±60° tilting head for angled drilling and milling

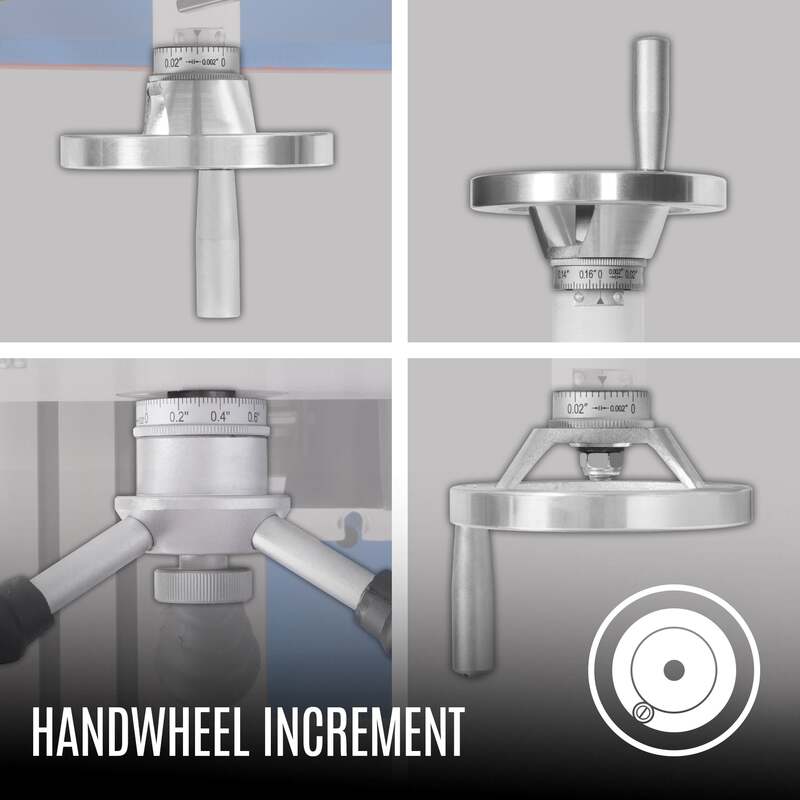

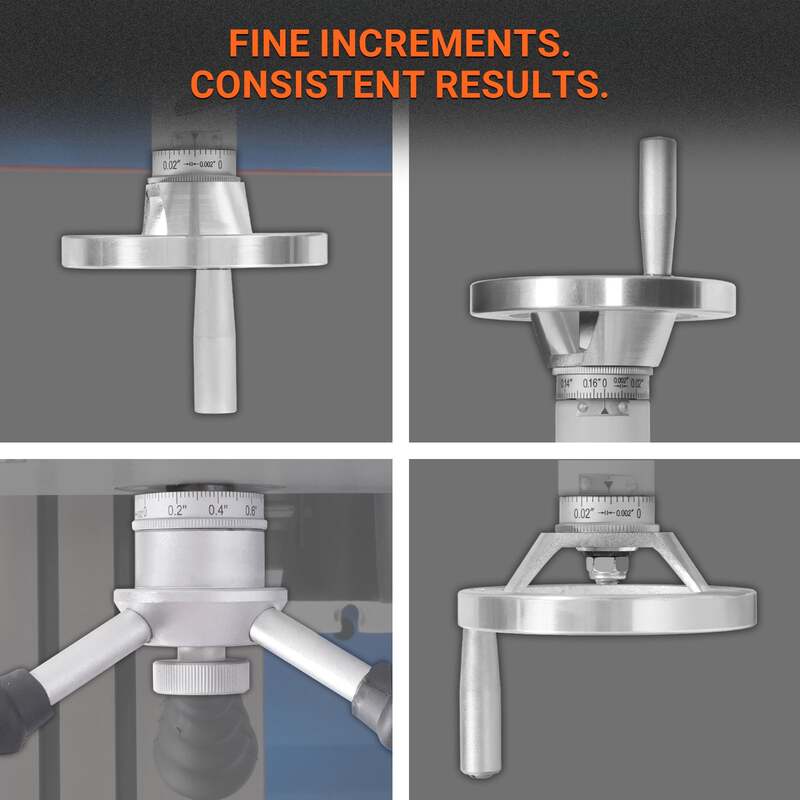

• Precision X, Y, and Z axis travel for accurate positioning
• Smooth dovetail slideways for stable cutting performance
These features make the VM18L ideal for drilling, slot milling, surface machining, and precision fabrication tasks.
Durable & Stable Construction

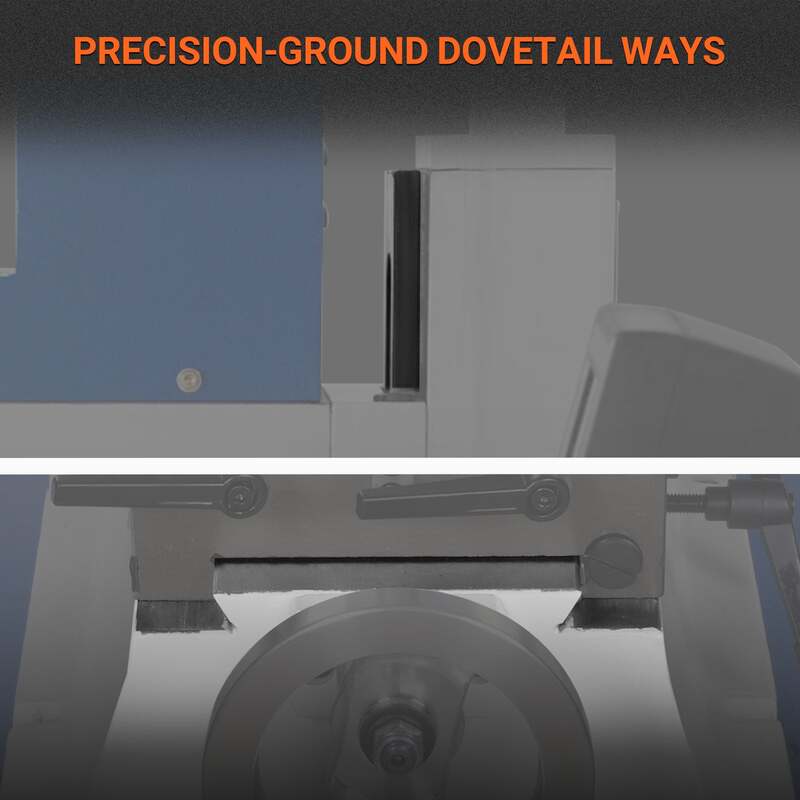

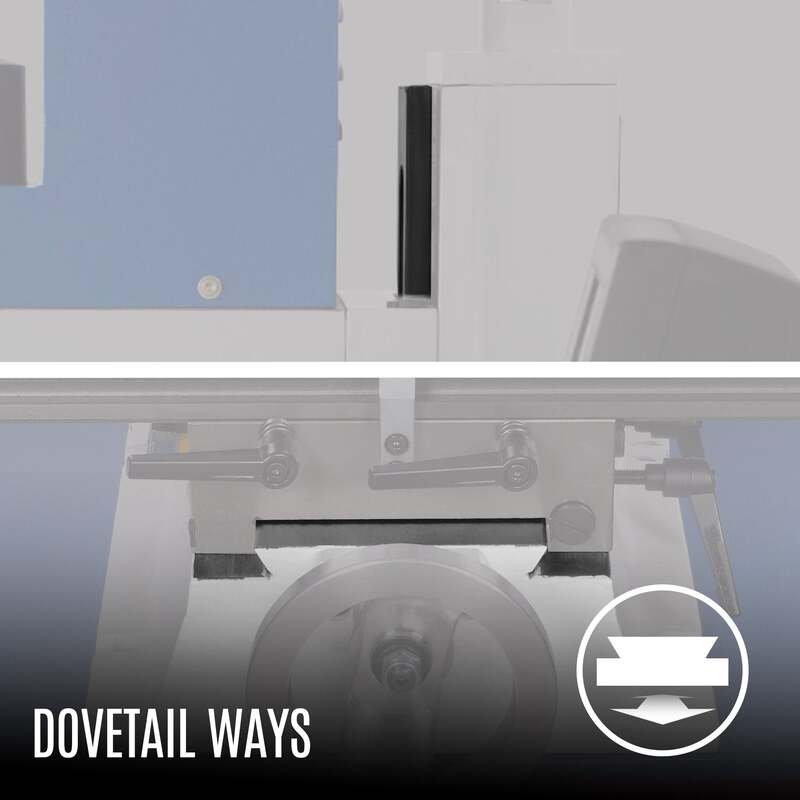

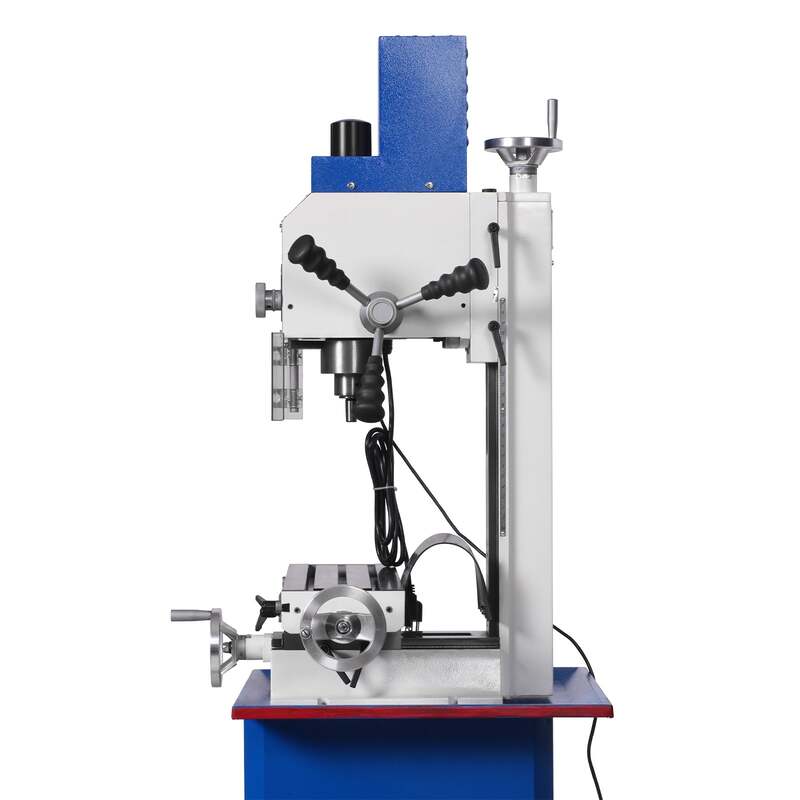

The VM18L is built with a rigid square column structure and precision-ground dovetail ways to ensure smooth axis movement and minimal vibration during machining operations.
• Heavy-duty square column design for increased rigidity
• Precision-ground dovetail slideways for accurate movement

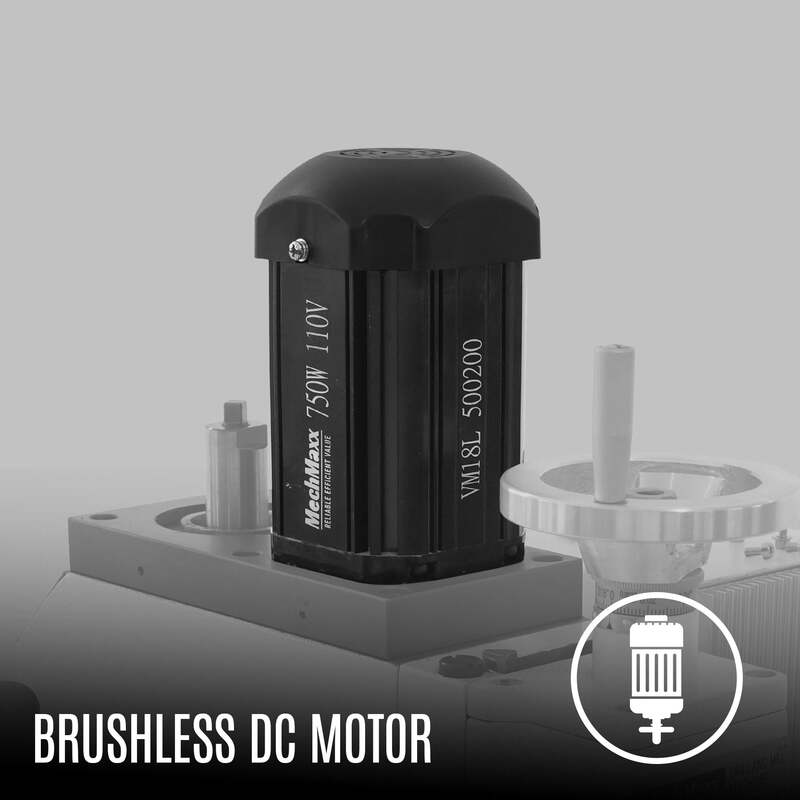

• Brushless DC motor for smooth and low-maintenance operation
• Compact footprint ideal for smaller workshops
• Stable construction for improved machining accuracy
This durable design ensures reliable performance for hobby machinists, fabrication work, and light industrial metalworking applications.
Technical Specifications

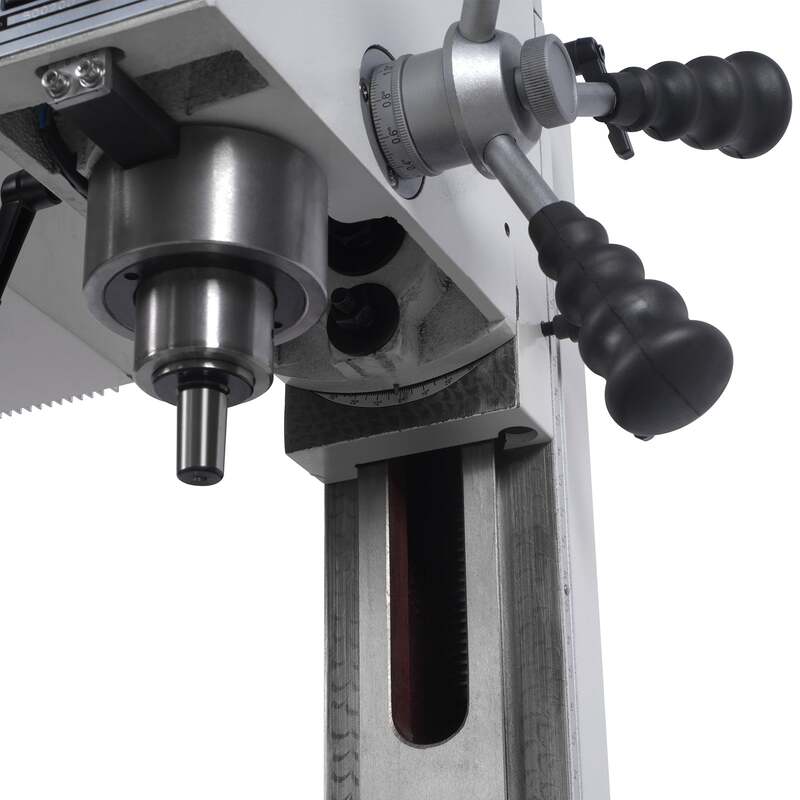

Spindle Specifications
Spindle Taper: R8

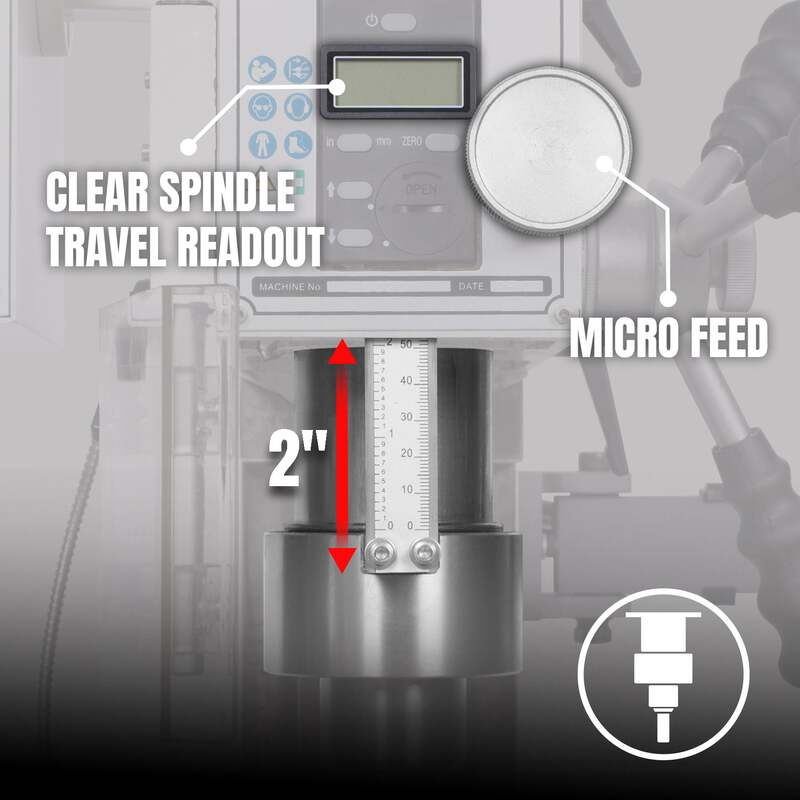

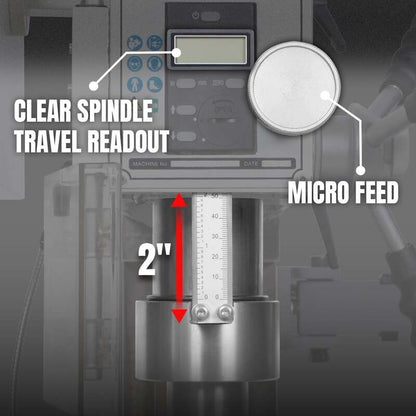

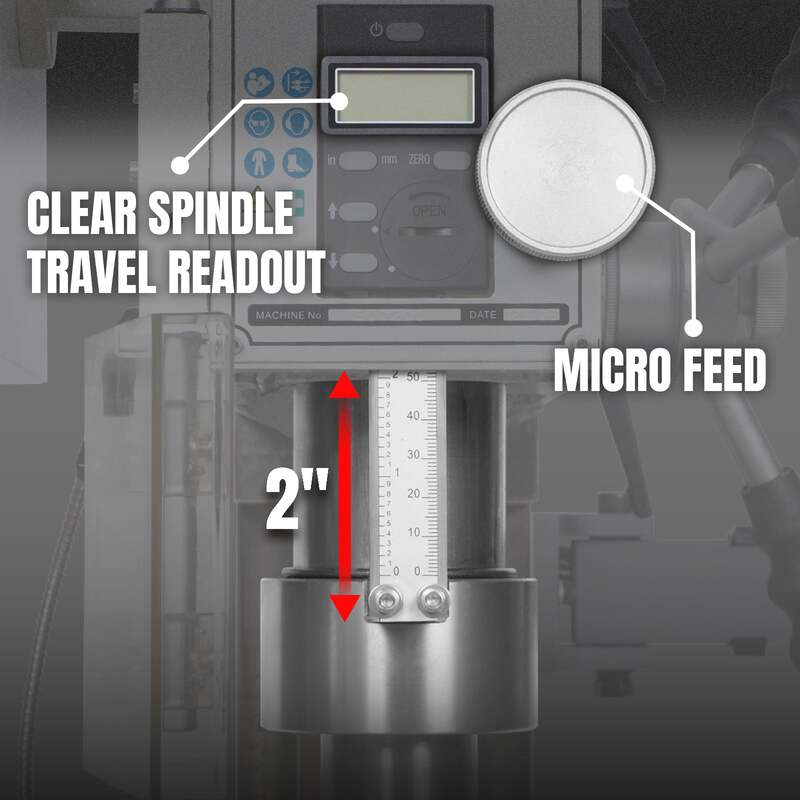

Spindle Travel: 2" (50 mm)
Quill Diameter: Ø2-3/8" (60 mm)
Spindle Speed Range: 0–2500 RPM
Number of Speed Steps: Variable
Drawbar Thread Size: 7/16"-20
Head Tilt Angle: ±90°
Spindle to Table Distance: 10-7/8" (275 mm)
Spindle to Column Distance: 6-5/8" (170 mm)

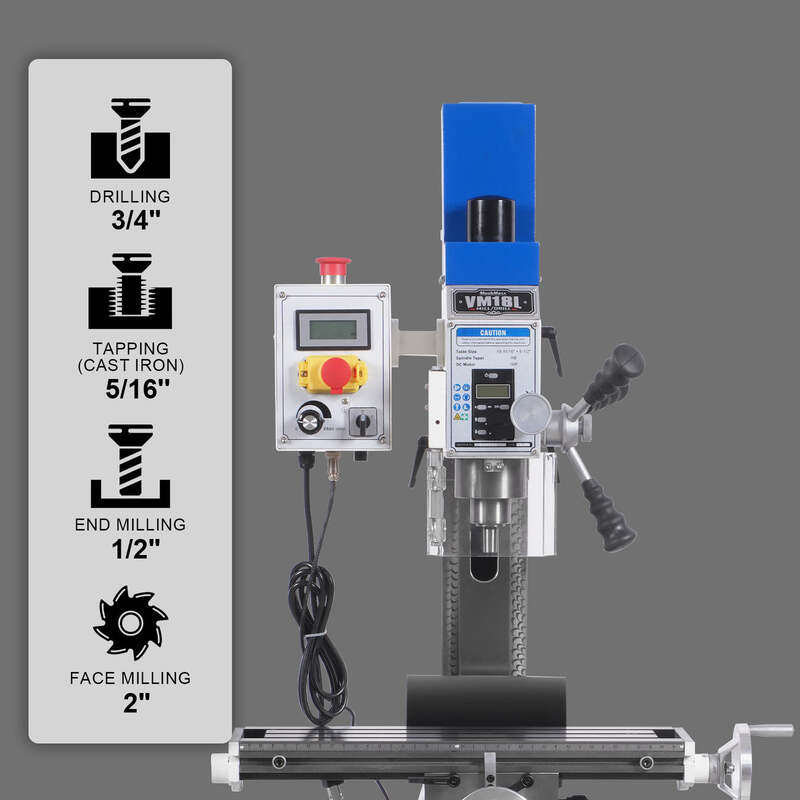

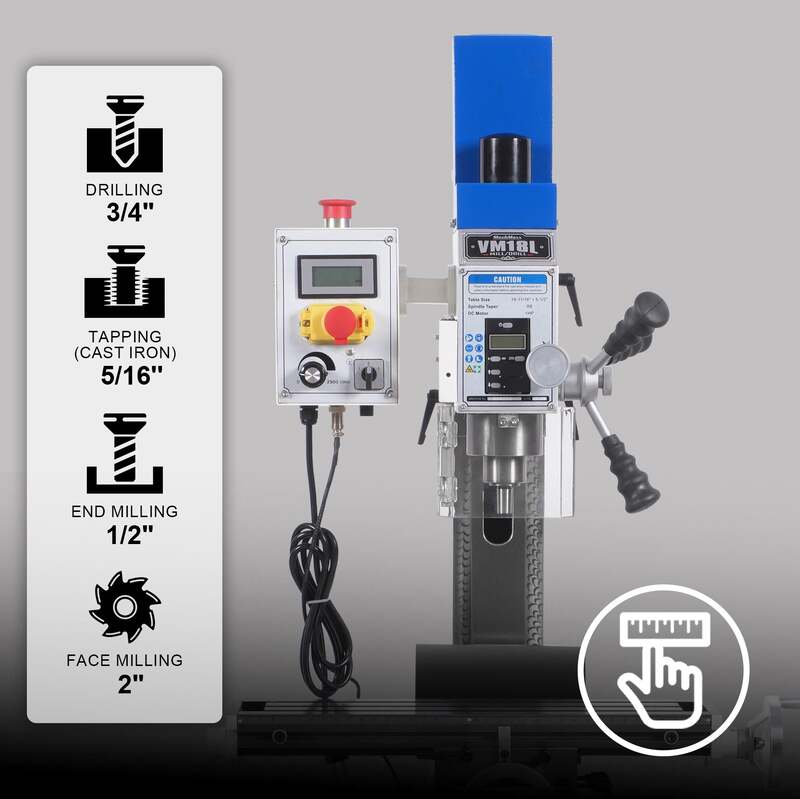

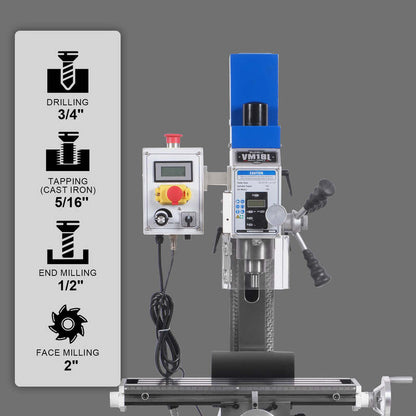

Cutting Capacity
Drilling Capacity: 3/4" (18 mm)
End Milling Capacity: 1/2" (12 mm)
Face Milling Capacity: 2" (50 mm)

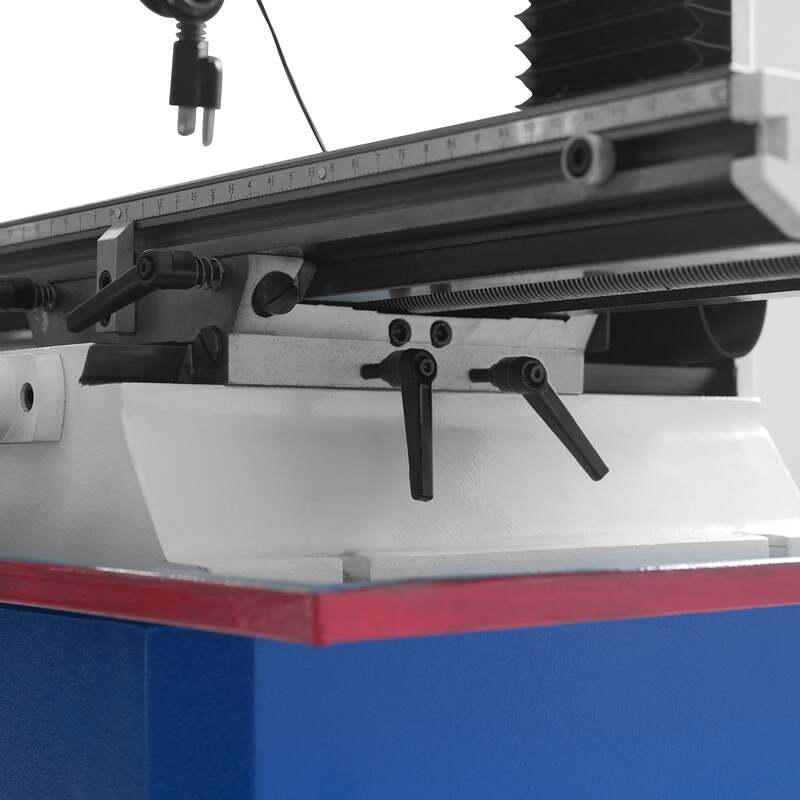

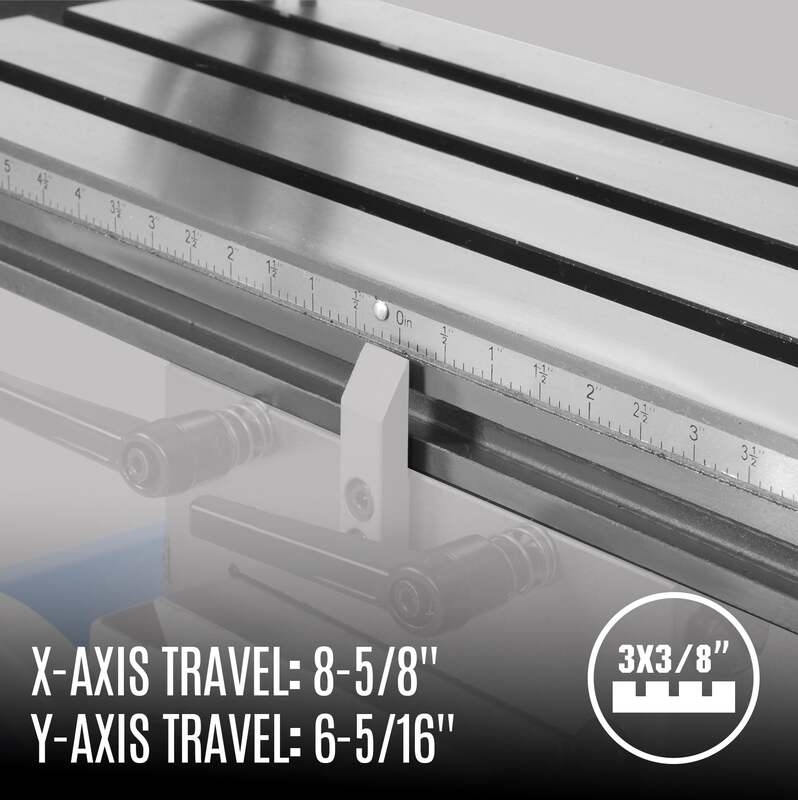

Table & Travel
Table Size: 5-1/2" × 19-5/8" (140 × 500 mm)
T-Slot Size / Number: 3 × 3/8" (10 mm)
X-Axis Travel: 8-5/8" (220 mm)
Y-Axis Travel: 6-5/16" (160 mm)
Z-Axis Travel: 10-27/32" (275 mm)
Construction & Drive
Column Type: Square Column, Dovetail Slide
Drive Type: Belt Drive
Motor Power: 1 HP, 110V, Single Phase Brushless
Motor Type: DC Brushless
Dimensions & Weight
Overall Dimensions: 20" × 19" × 31" (506 × 476 × 788 mm)
Base Size: 11" × 9" (280 × 220 mm)
Shipping Dimensions: 24" × 22" × 34" (610 × 560 × 860 mm)
Net / Gross Weight: 180 / 203 lbs (82 / 92.5 kg)
