MechMaxx 500103 16" x 16" Combo Lathe Mill Drill – 1HP Multi-Function Metalworking Machine

MechMaxx 500103 16" x 16" Combo Lathe Mill Drill – 1HP Multi-Function Metalworking Machine

Regular price $2,299.00 USD
Regular price Sale price $2,299.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Secure Payments
  • Simple Returns
  • Free Lift Gate

Shipping

Shipping Information

Processing & Delivery
Orders are processed within 1–5 business days. Most deliveries arrive within 6–12 business days, depending on the product and shipping method. Freight carriers typically contact customers by phone to schedule delivery.

Shipping Costs
We offer free shipping on select products within the continental United States. Shipping options and any applicable delivery charges are shown at checkout before purchase.

Freight Shipping
Large equipment, such as vehicle lifts and heavy machinery, ships via freight carriers due to size and weight.

Delivery Requirements
Some items require a commercial delivery location with a forklift or loading dock for unloading. Residential deliveries may require liftgate service and may incur additional fees depending on the product and location.

Pickup Option
Customers may choose to have their order delivered to a nearby freight terminal for pickup.

More Information
For full details on shipping procedures, delivery requirements, and freight options, please view our full Shipping Policy.

Warranty

one-year warranty for machine.

Mechmaxx products stand up to extreme testing and come with a one-year warranty for machine.

We will repair or replace, at our discretion, any part returned to us and found to be defective through manufacturing within the first year of the original purchaser’s ownership (except consumable items like belts, blades, bearings and clutch). The engine is covered under warranty directly with the engine manufacturer.

warranty does not apply to normal wear, commercial or rental use, after-market modification or damages that occur from negligence, misuse, or use not in accordance with the operating and maintenance instructions, or the products intended uses. MechMaxx disclaims liability for any accidents, injury or damages to the equipment or personal property caused by the equipment when equipped with unauthorized parts, equipped with parts for unapproved purposes or modified in any other way. MechMaxx will at its discretion make the final decision regarding warranty eligibility.

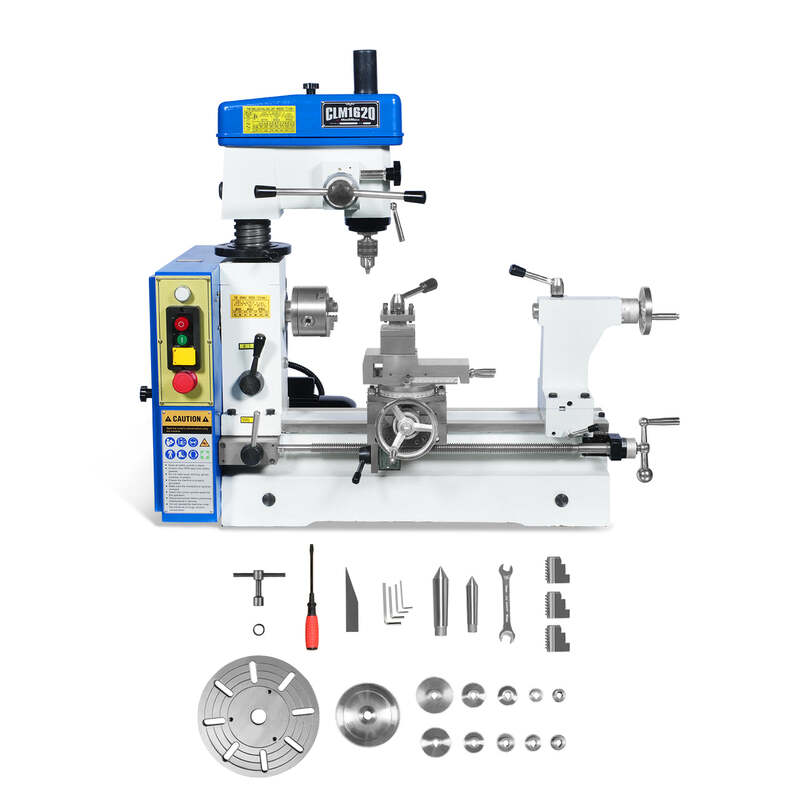

16" x 16" Multi-Function Lathe Milling Drilling Machine – Compact Metalworking Combo Machine (Model CLM1620)

Product Description

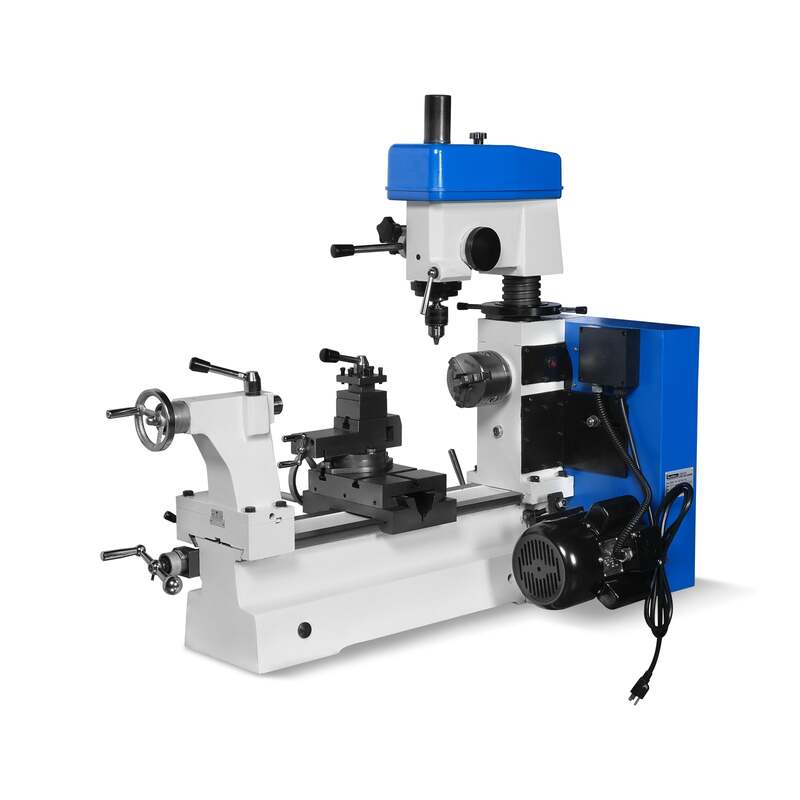

The MechMaxx 16" x 16" Combo Lathe Mill Drill (Model CLM1620) is a versatile multi-function metalworking machine designed for workshops, DIY machinists, repair shops, and small fabrication environments. Combining turning, drilling, and milling operations in a single compact unit, this machine provides excellent functionality while saving valuable shop space.

Powered by a 1 HP (750W) motor, the machine delivers reliable performance for turning, drilling, and milling tasks. The lathe offers a 16-8/15" swing over bed and 15-3/4" distance between centers, allowing machinists to handle a variety of workpiece sizes while maintaining excellent control and precision.

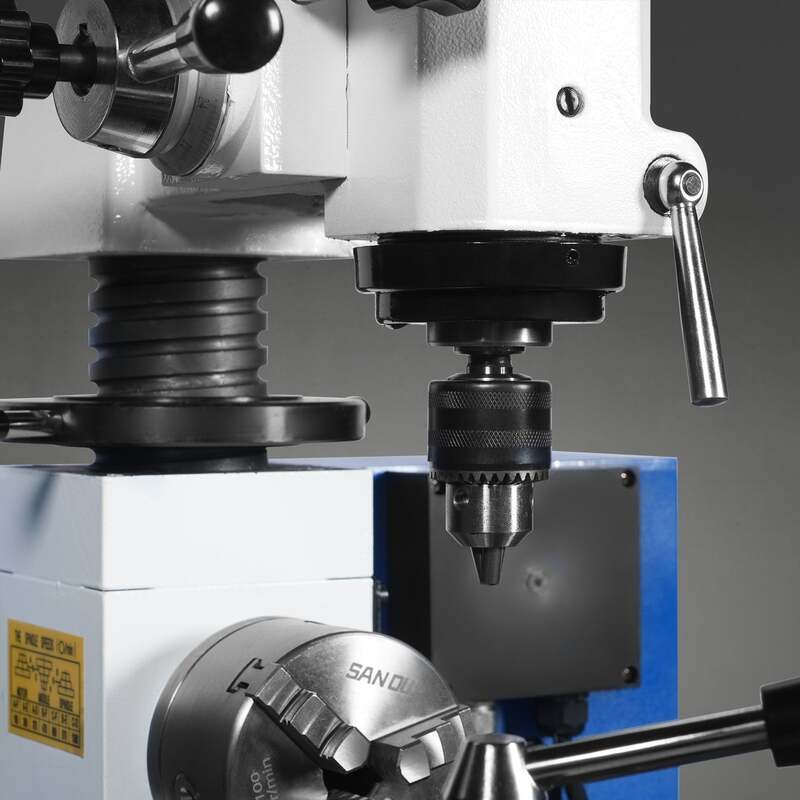

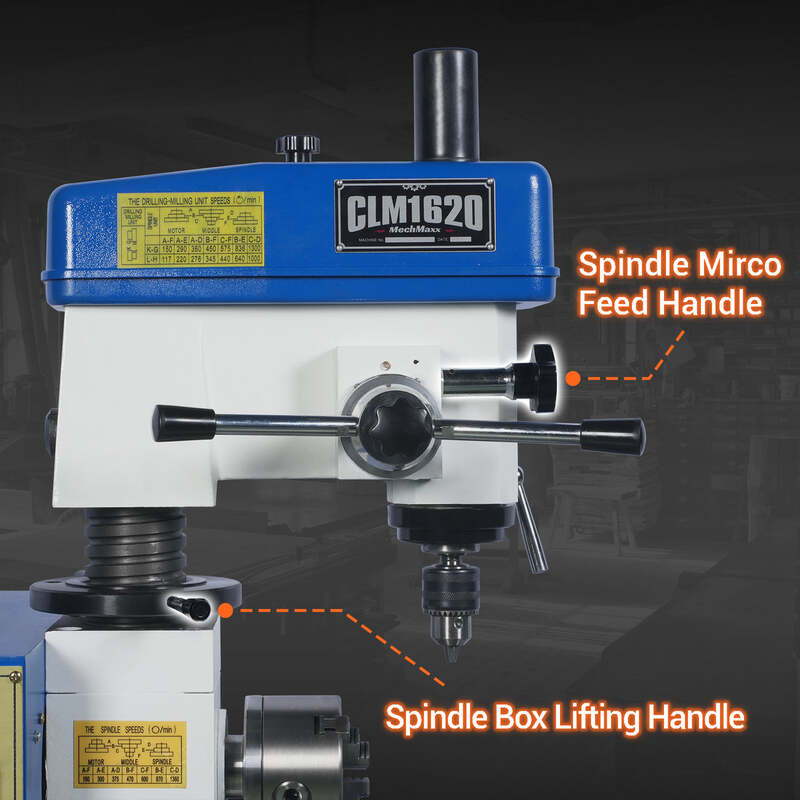

The integrated drill/mill head expands the machine’s capabilities by enabling accurate drilling, slotting, and milling operations. With a 360° swivel head, 14 selectable milling speeds, and precision slide movements, the CLM1620 offers the flexibility needed for complex metalworking projects in a compact footprint.


Built for Multi-Function Machining

This combination metalworking machine is engineered to deliver versatility and precision for a wide range of machining tasks.

  • 3-in-1 machine combining turning, drilling, and milling functions
  • 1 HP motor providing reliable power for metalworking operations
  • Large 16" swing capacity for machining larger workpieces
  • 360° swivel milling head for flexible machining angles
  • 14 selectable milling spindle speeds for various materials

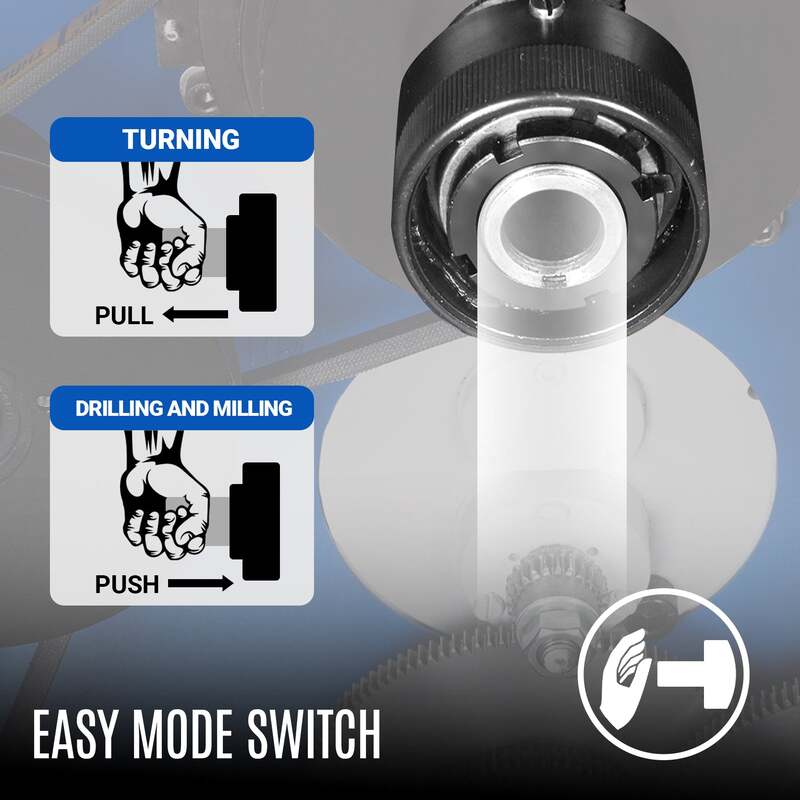

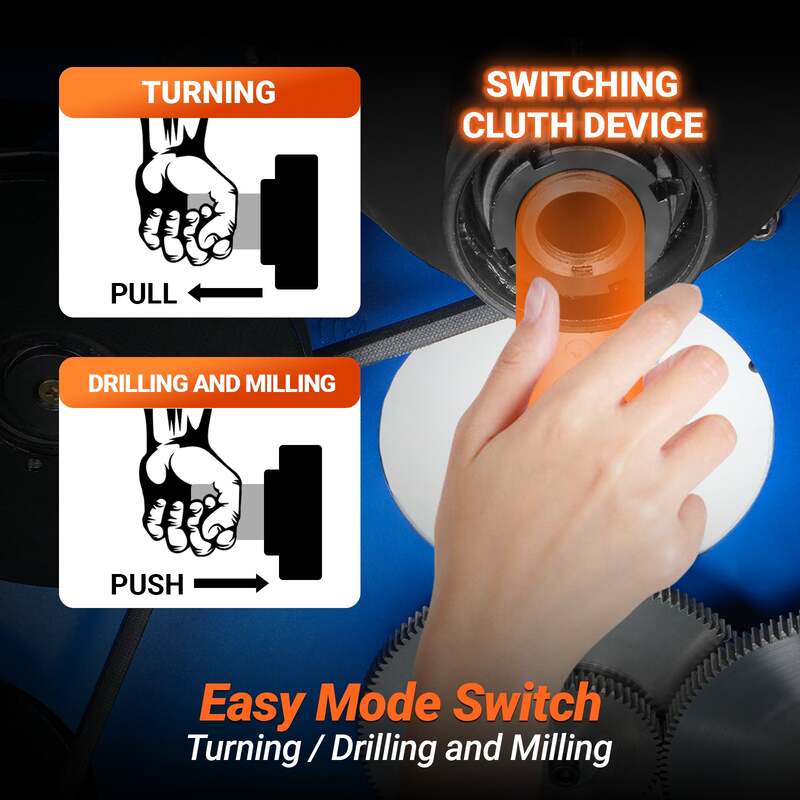

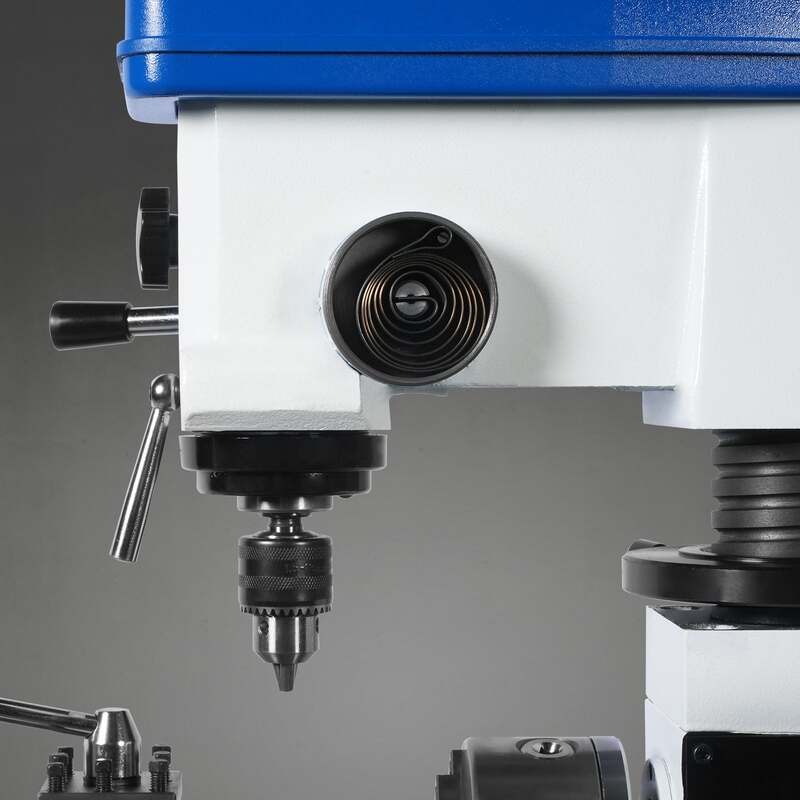

  • Integrated drill/mill head powered by the lathe motor

These features allow machinists to perform multiple machining operations using a single compact machine, increasing efficiency in small workshops and garages.


Durable & Reliable Construction

The CLM1620 combo machine is built with a rigid cast construction and precision sliding components designed to deliver stable cutting performance. Its compact footprint allows it to fit comfortably in smaller workspaces while still providing the strength needed for demanding machining tasks.

  • Heavy-duty cast construction for improved rigidity

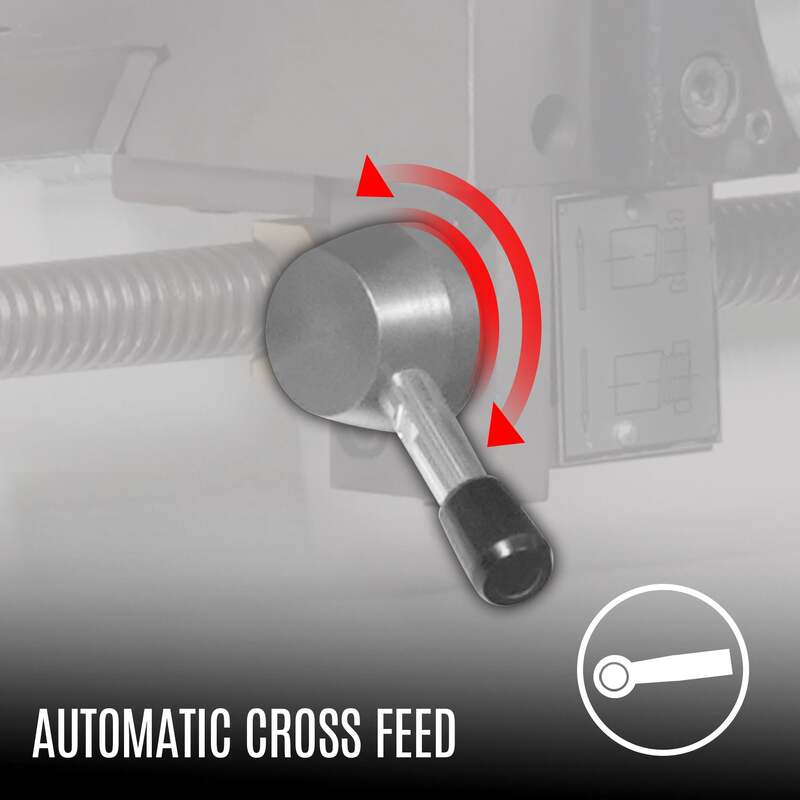

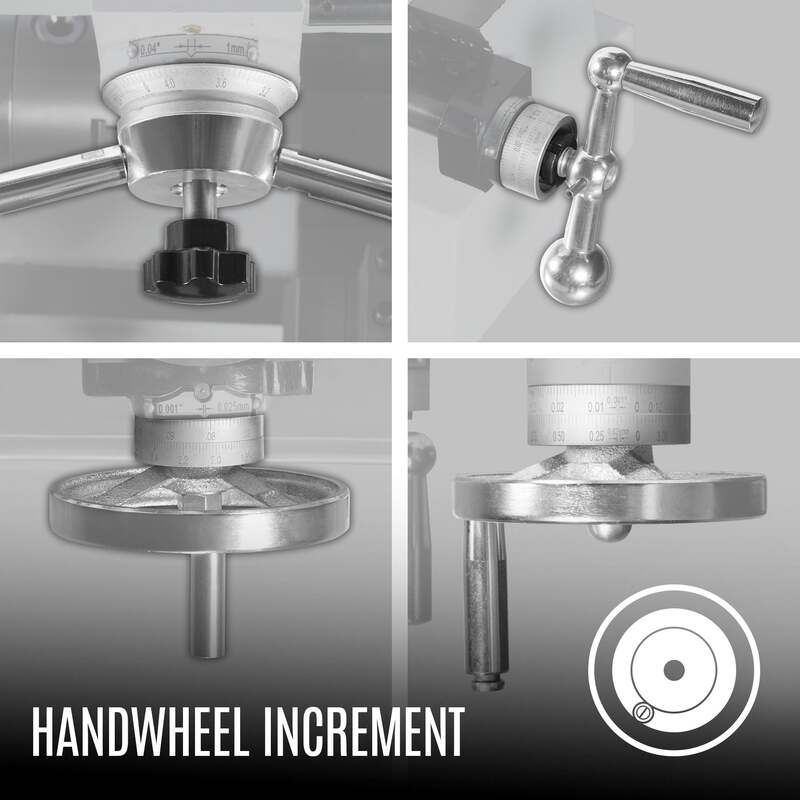

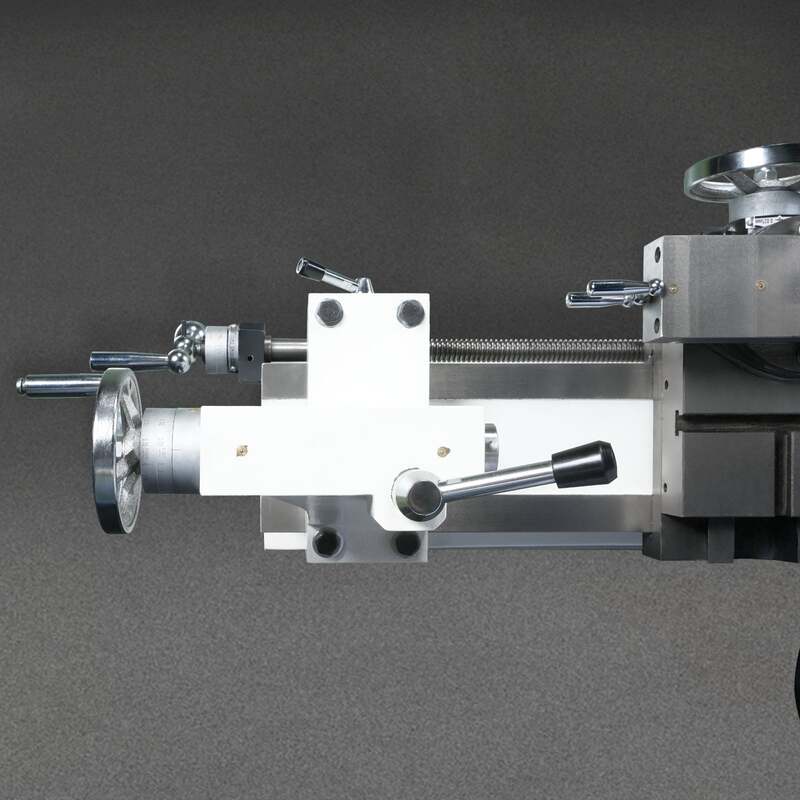

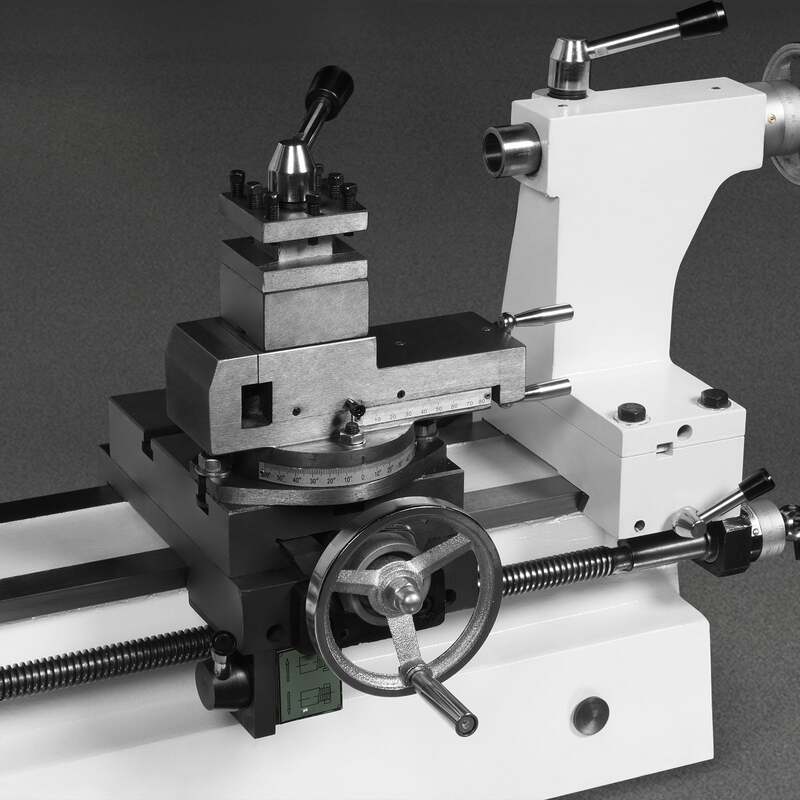

  • Precision cross and compound slides for accurate machining

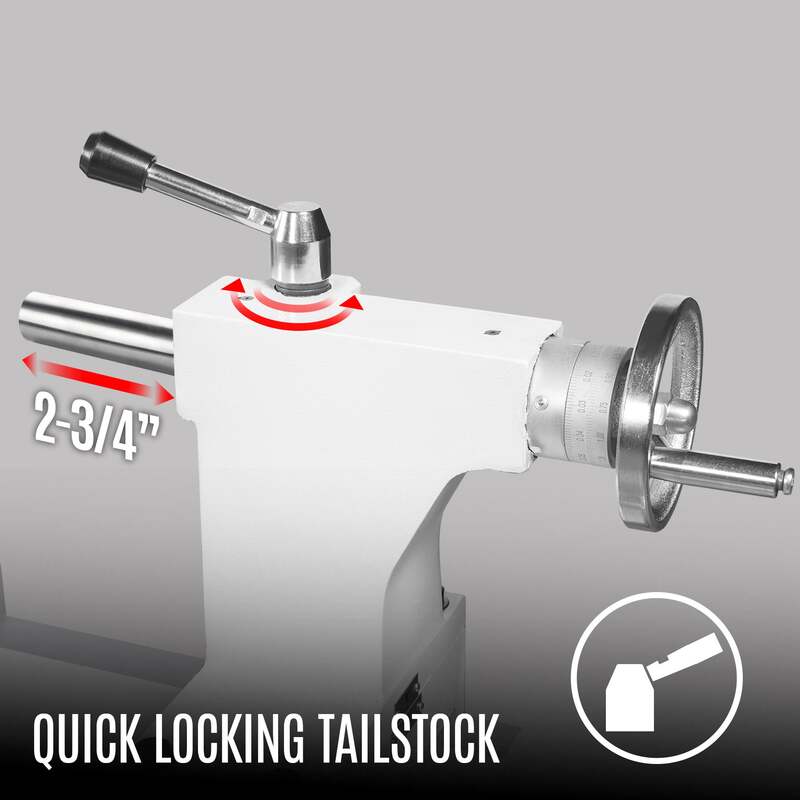

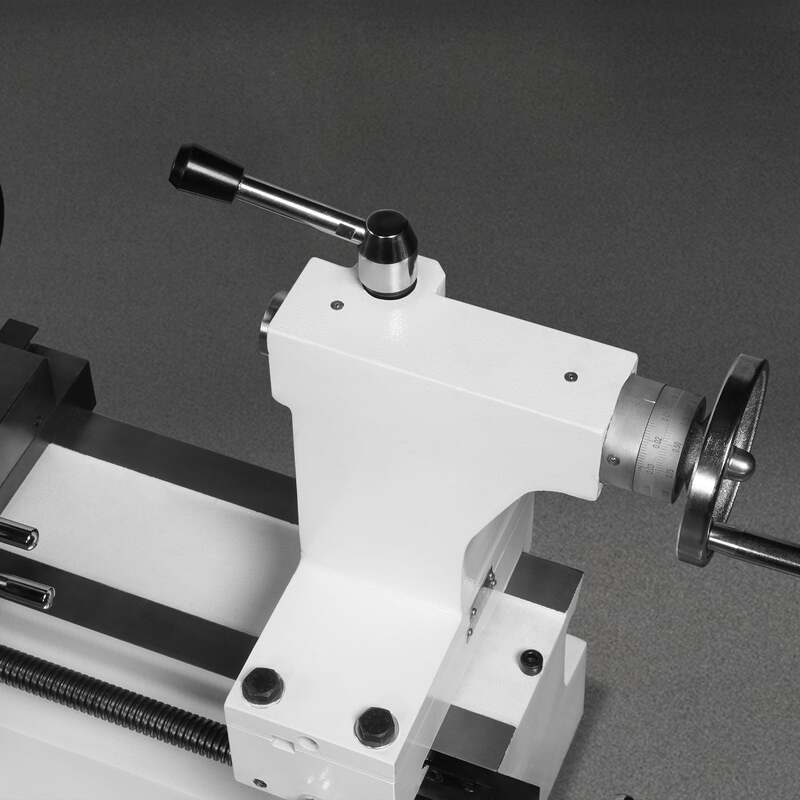

  • Quick-lock tailstock with MT3 taper

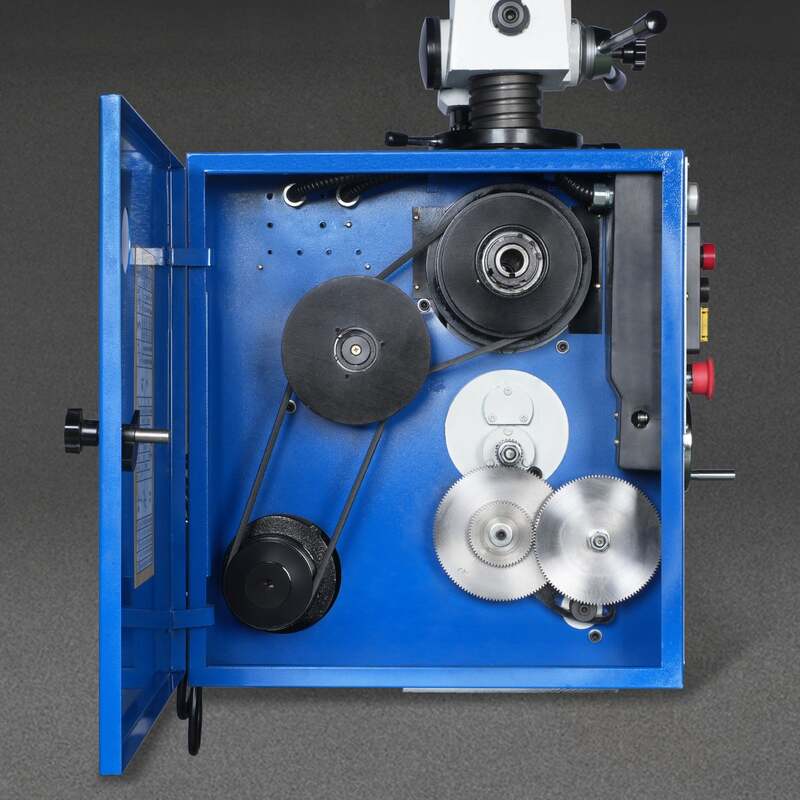

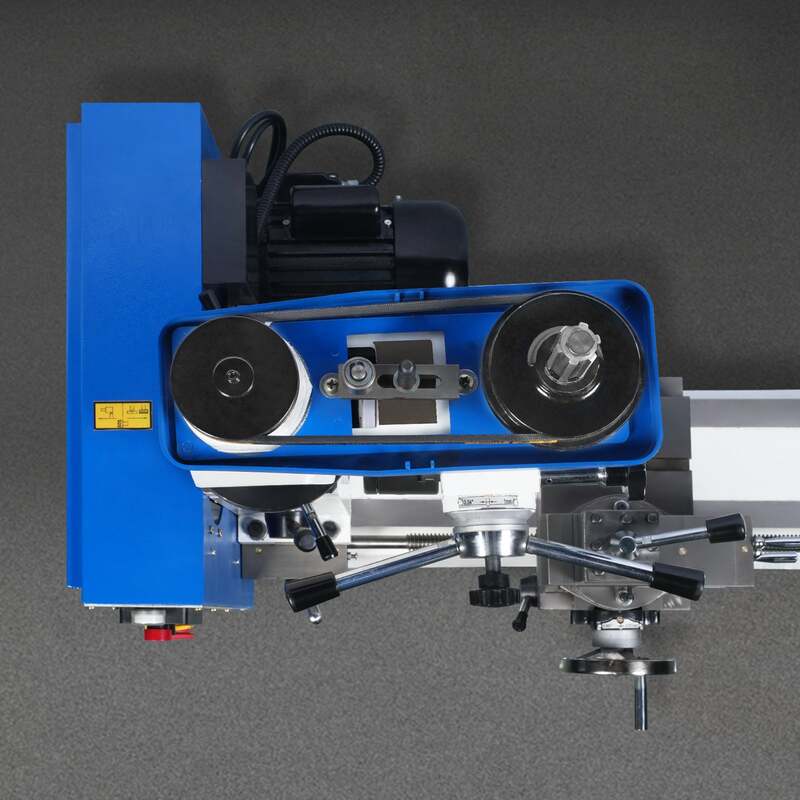

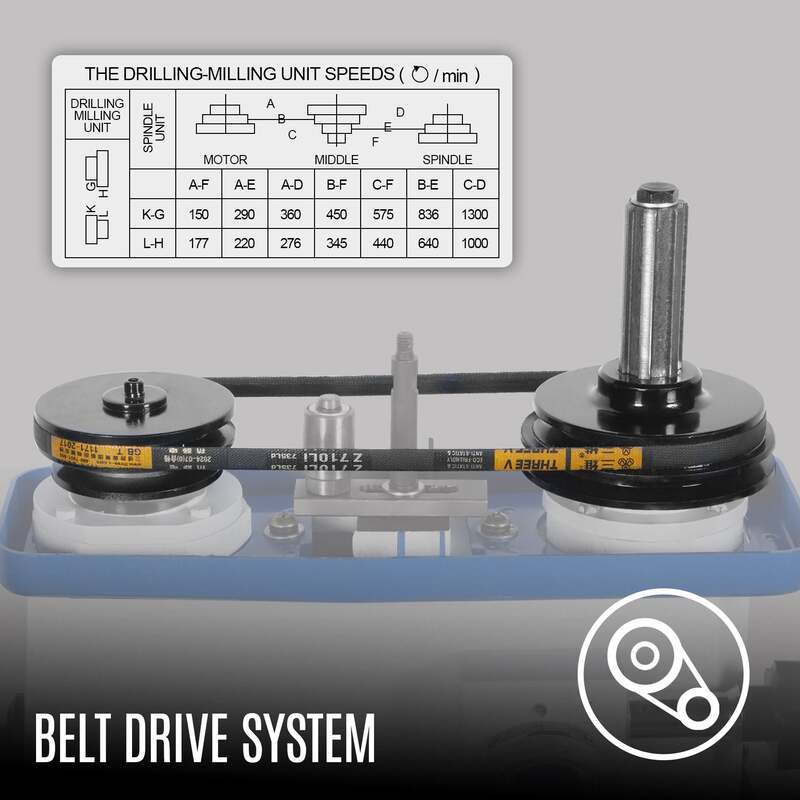

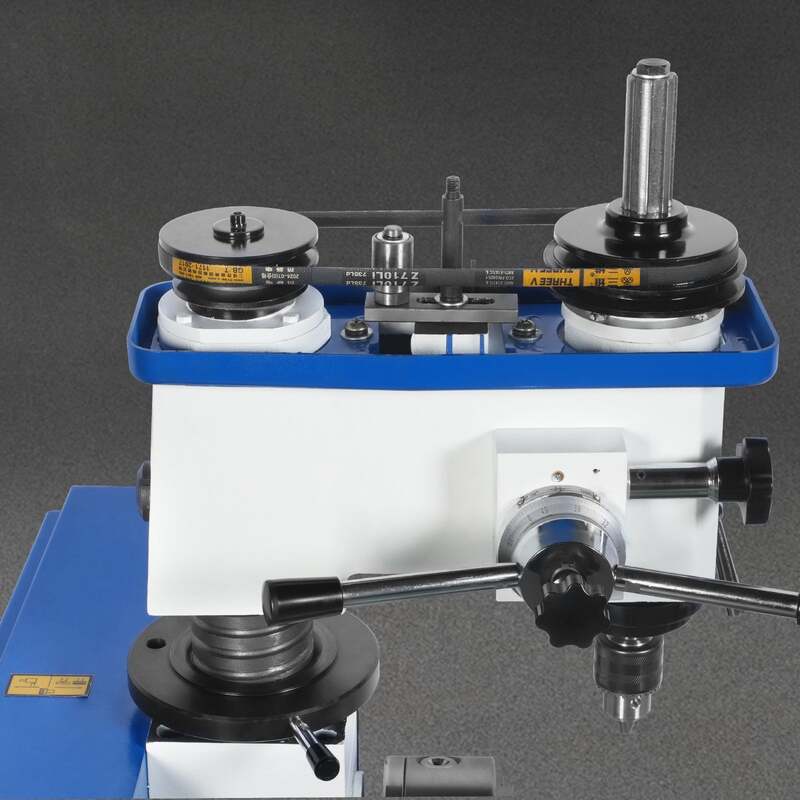

  • Belt-driven milling head for smooth operation
  • Compact footprint ideal for workshops and garage setups

This durable design ensures reliable performance for hobby machinists, small fabrication shops, and professional repair work.


Technical Specifications

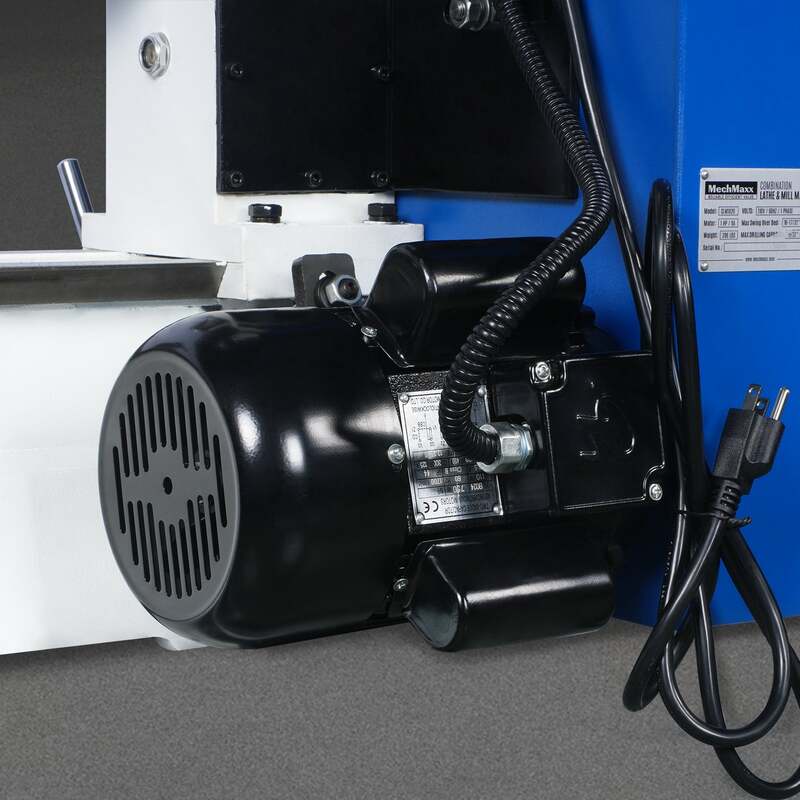

  • Lathe Motor: 1 HP (750W), 110V, Single Phase
  • Swing Over Bed: 16-8/15" (420 mm)
  • Swing Over Cross Slide: 11-1/2"
  • Distance Between Centers: 15-3/4" (400 mm)
  • Spindle Bore: 20 mm
  • Spindle Taper: MT3
  • Chuck Diameter: 4"
  • Carriage Travel: 15"

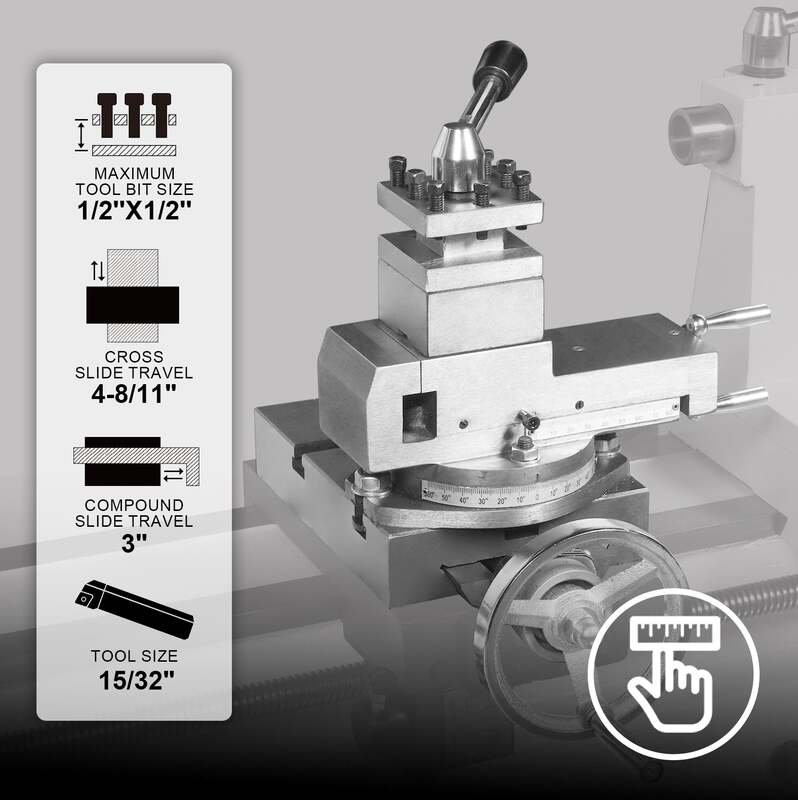

  • Cross Slide Travel: 120 mm
  • Compound Slide Travel: 3"

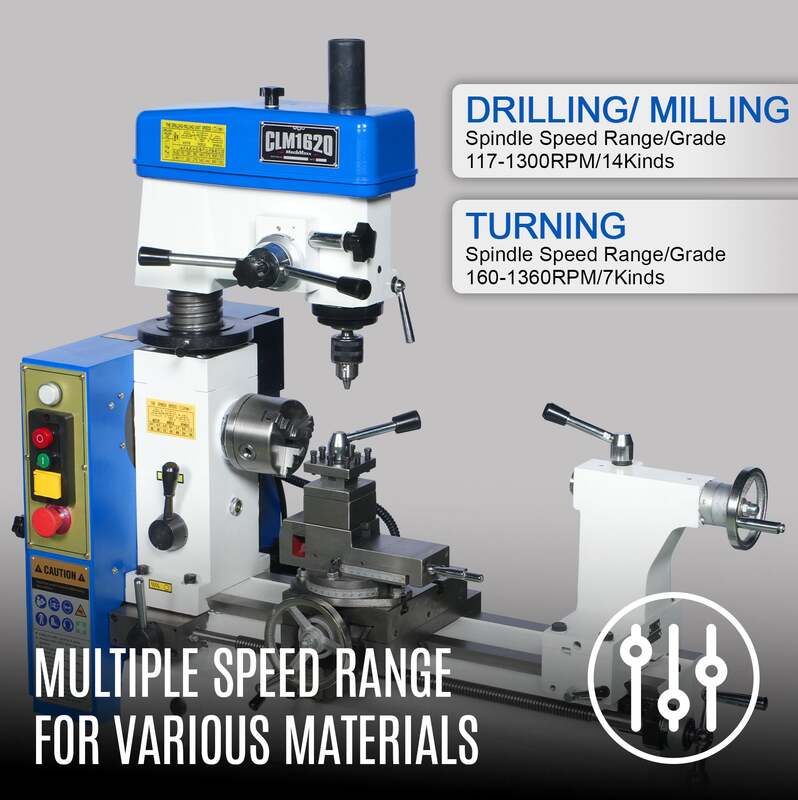

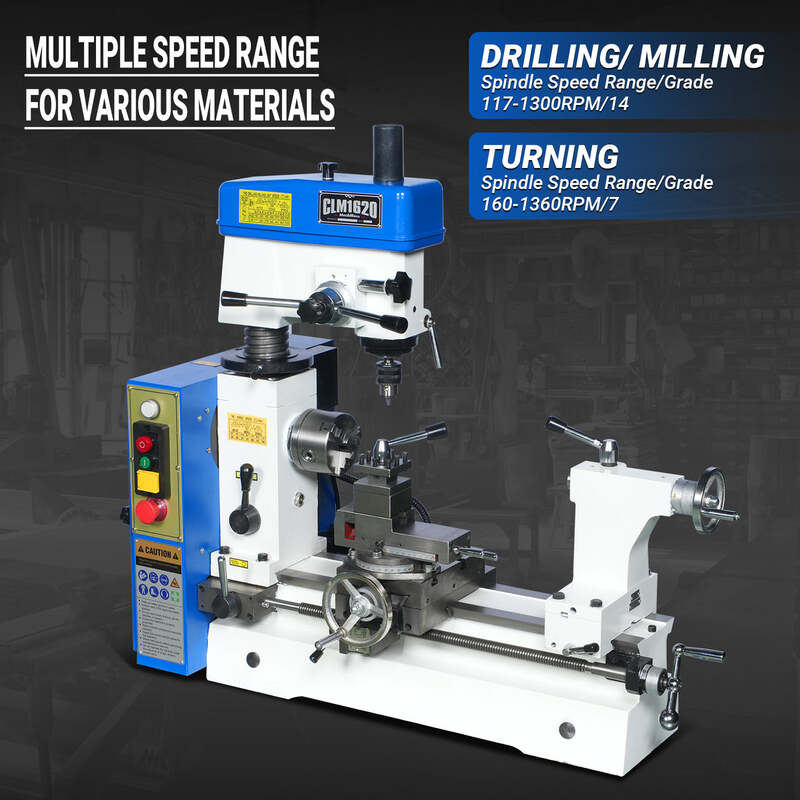

  • Spindle Speed Range (Lathe): 160 – 1360 RPM
  • Number of Lathe Speeds: 7
  • Threading Range: 8 – 120 TPI / 0.2 – 3 mm
  • Milling Spindle Speeds: 117 – 1300 RPM (14 steps)

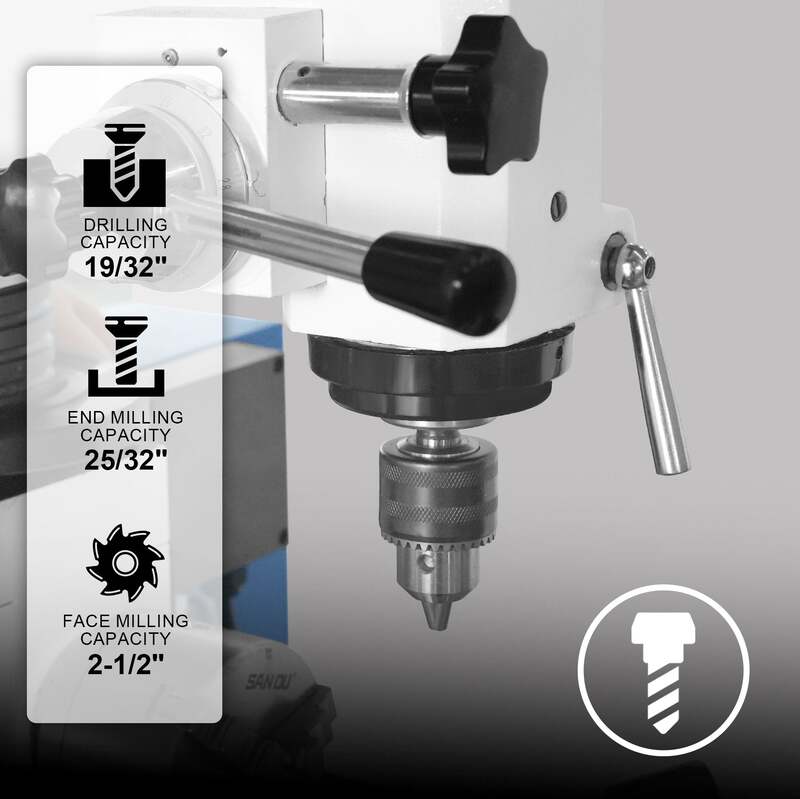

  • Drilling Capacity: 15 mm
  • End Milling Capacity: 20 mm
  • Face Milling Capacity: 63 mm
  • Head Swivel: 360°
  • Vertical Travel (Z-Axis): 80 mm
  • Machine Dimensions: 41" × 23" × 43"
  • Shipping Weight: 463 lbs
