11" x 30" Combination Lathe, Milling & Drilling Machine – Variable Speed Benchtop Metalworking System (Model 1130VC) Product Description

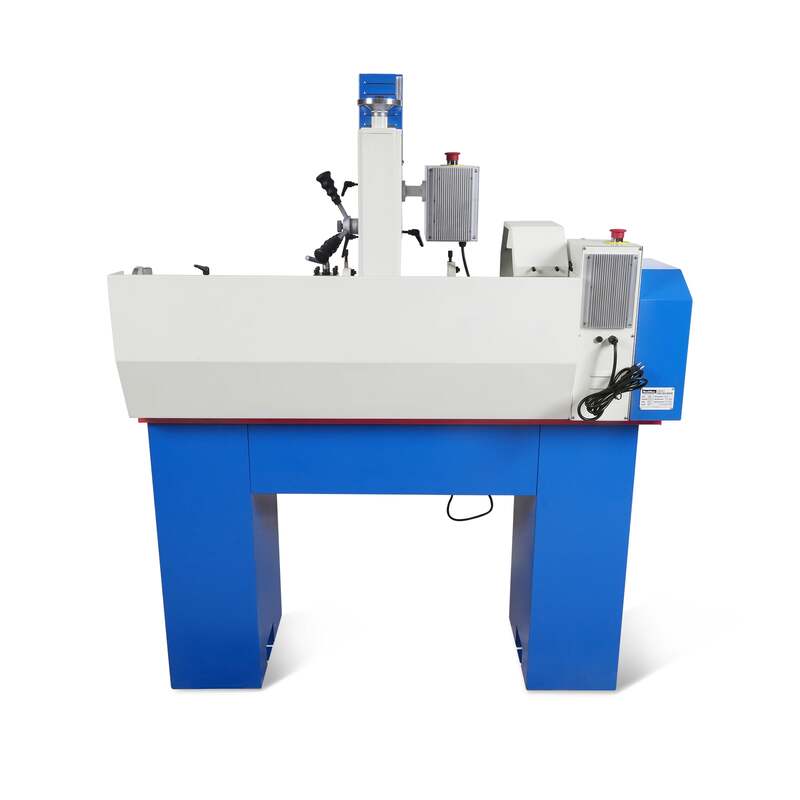

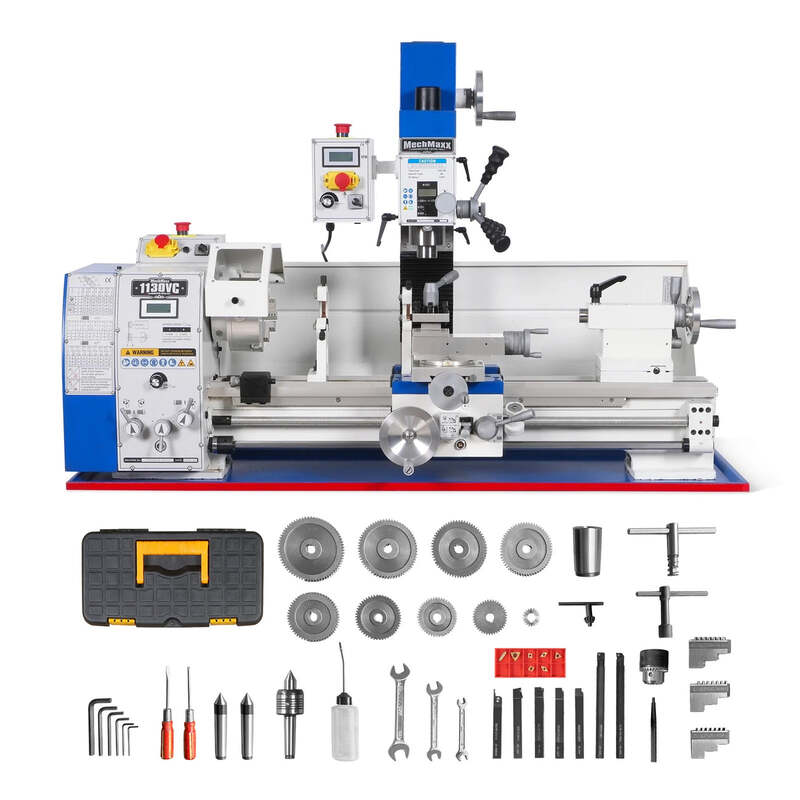

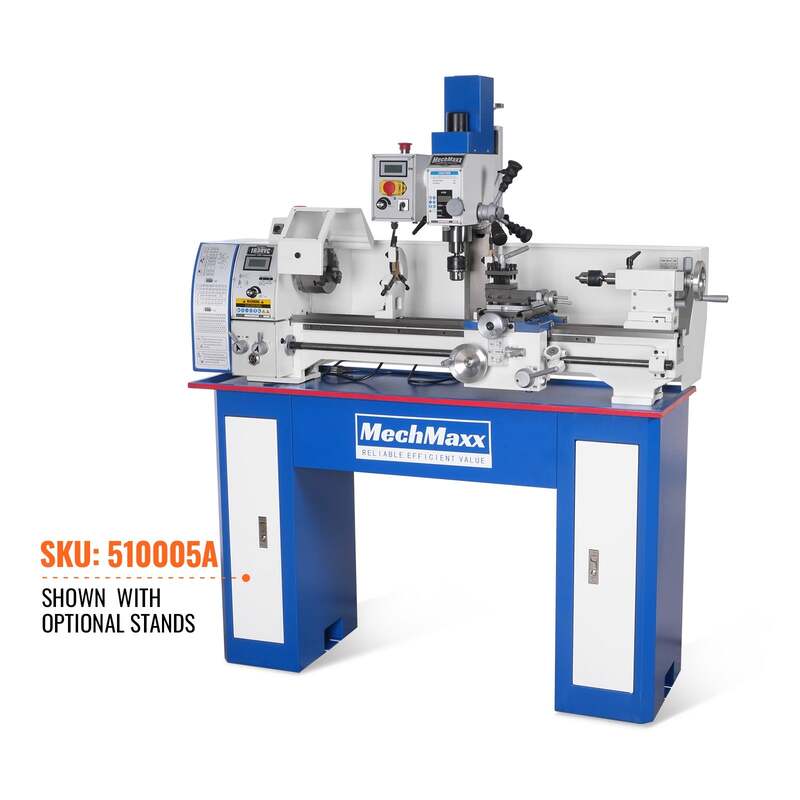

The MechMaxx 1130VC Combination Lathe Milling Drilling Machine is a powerful multi-function metalworking solution designed for workshops that require both turning and milling capabilities in a single compact machine. Combining a precision metal lathe with a versatile milling and drilling head, the 1130VC allows machinists to perform multiple machining operations without needing separate equipment.
Powered by a 2 HP brushless motor for the lathe and a 1.5 HP milling motor, this machine provides excellent power and precision for a wide range of metalworking tasks. The variable spindle speed range of 0–2000 RPM for the lathe and 0–2500 RPM for the milling head allows operators to adjust cutting speeds for different materials including steel, aluminum, brass, and plastics.

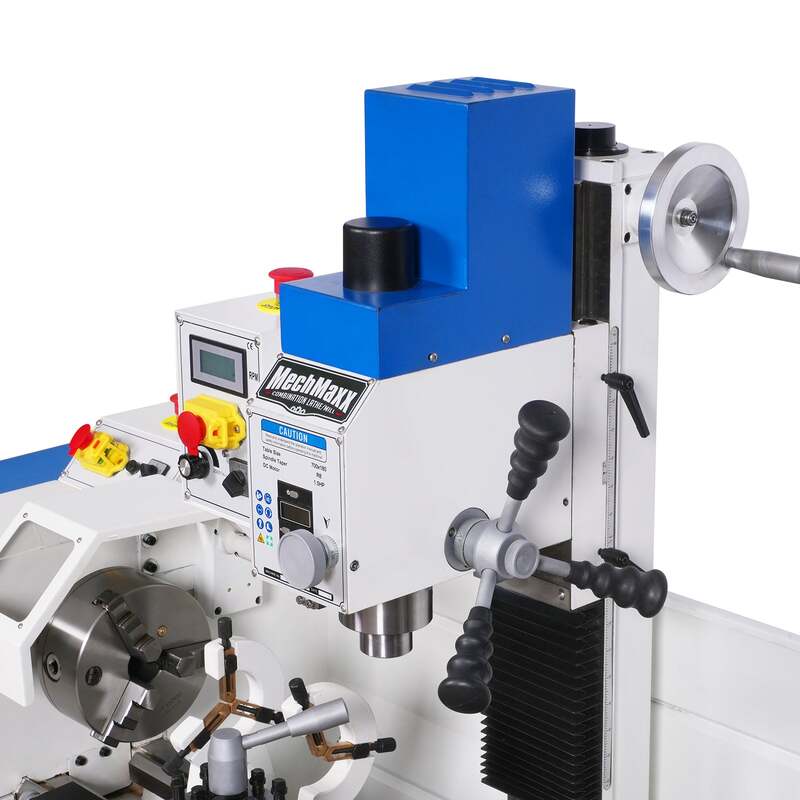

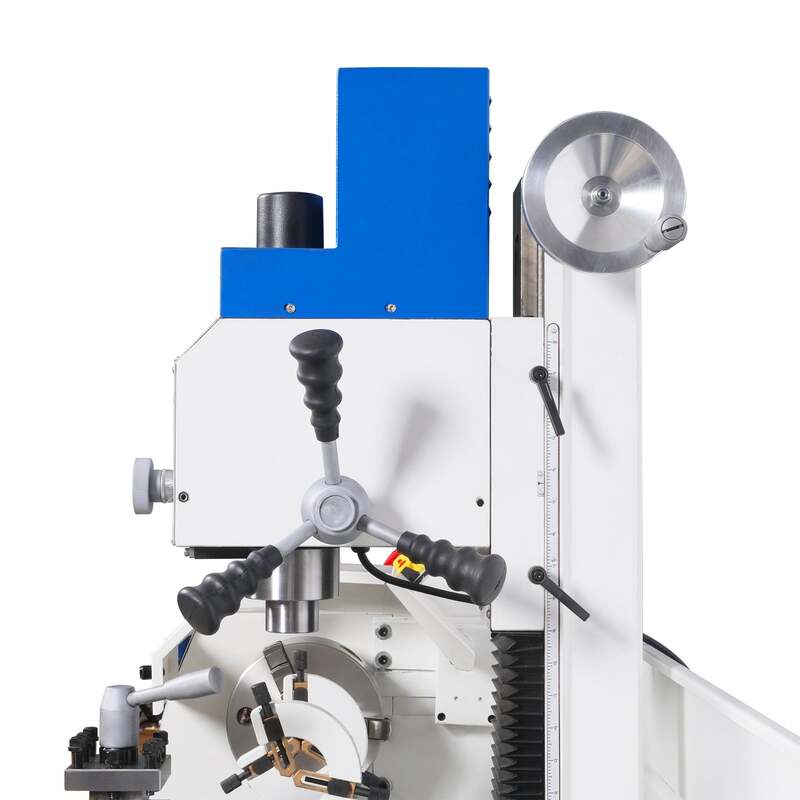

With a large 1.5" spindle bore, MT5 spindle taper, and 29-1/2" distance between centers, the 1130VC provides excellent versatility for turning larger workpieces while maintaining the compact footprint of a benchtop machine. The integrated mill head with R8 spindle taper expands the machine’s capabilities to include drilling, end milling, and face milling operations.
Multi-Function Machining Capability
The 1130VC combines multiple machining operations into one efficient metalworking platform.
• Precision metal lathe for turning, facing, and threading
• Integrated milling and drilling head for additional machining operations
• Large 1.5" spindle bore for handling larger bar stock
• MT5 spindle taper and D1-4 spindle mount for secure tooling
• Variable spindle speeds for optimal cutting control

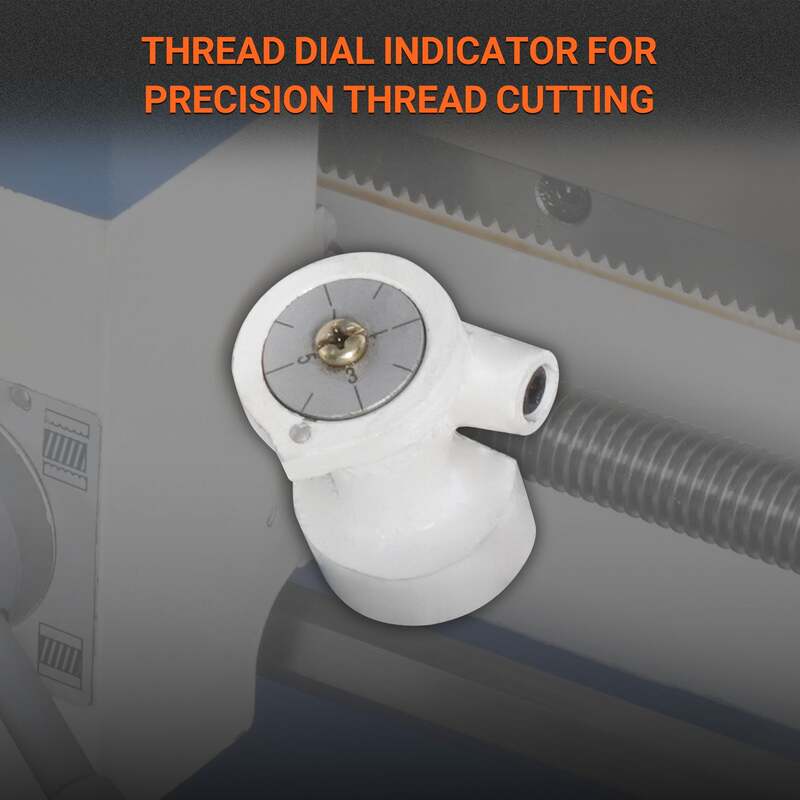

• Thread dial indicator for accurate thread cutting
This versatile configuration makes the machine ideal for repair shops, fabrication shops, and advanced hobby machinists.
Precision Engineering & Reliable Operation
The 1130VC is designed with precision components and durable construction to ensure stable machining performance and long service life.

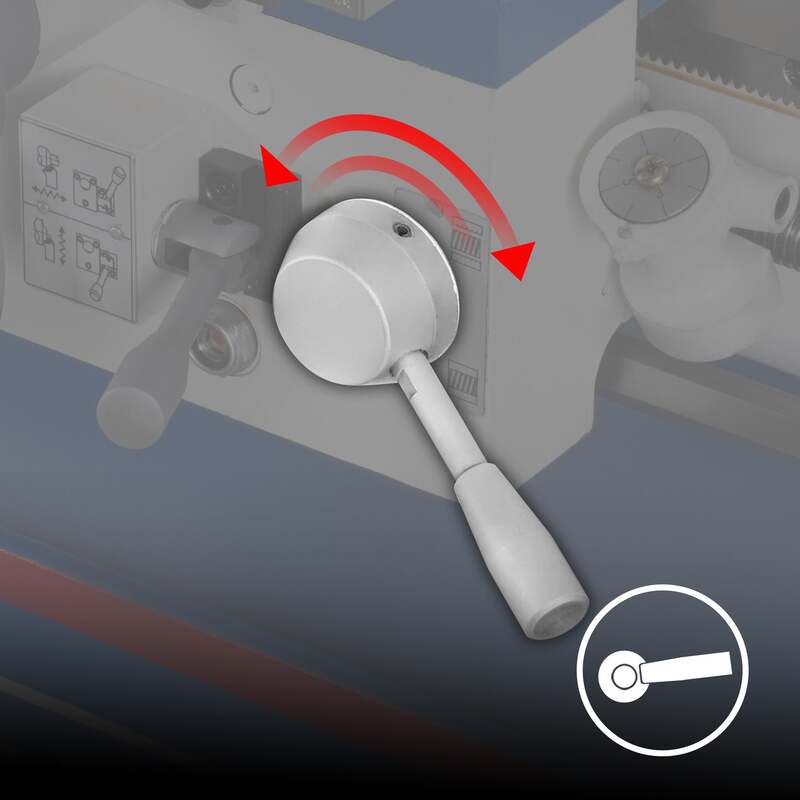

• Automatic longitudinal and cross feed for smooth cutting

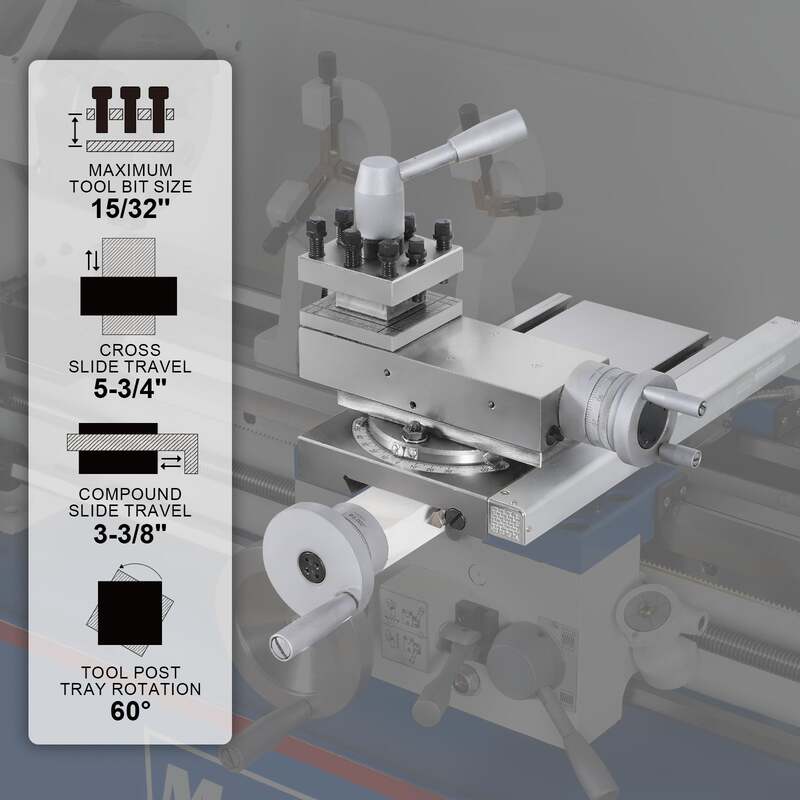

• Adjustable tool post with 60° rotation for flexible machining angles

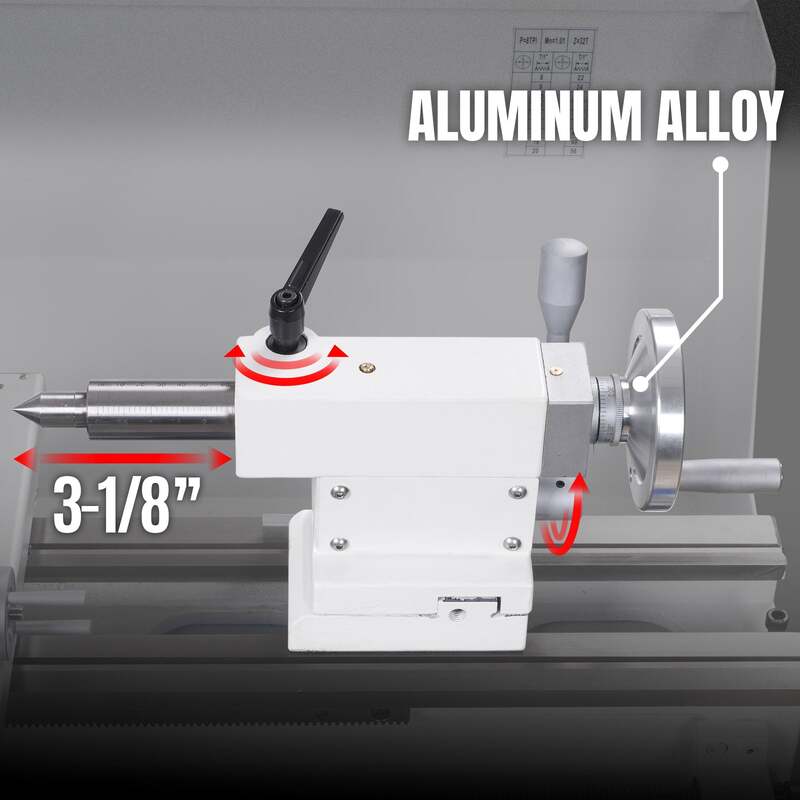

• Quick-lock aluminum alloy tailstock for fast adjustments
• Electronic control system with stepless speed adjustment

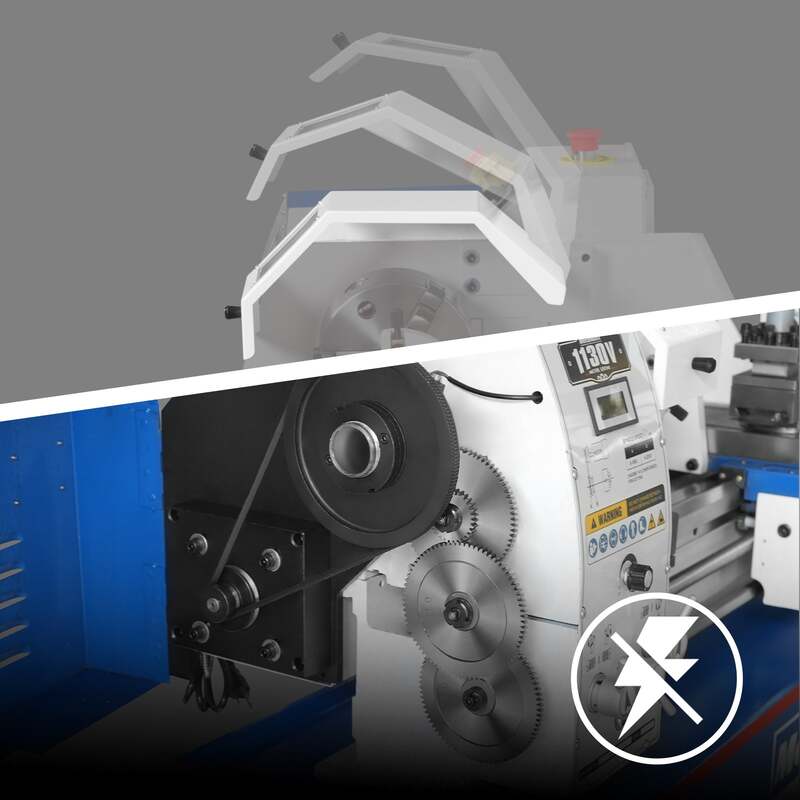

• Integrated safety mechanisms with automatic power disconnect
• Compact benchtop design ideal for workshops with limited space
These features ensure consistent results for precision turning, drilling, milling, and threading operations.
Technical Specifications
Lathe Specifications
Motor Power: 2 HP, 110V, Single Phase, 20A
Swing Over Bed: 11-2/5" (290 mm)
Swing Over Cross Slide: 7-1/4" (185 mm)
Swing Over Saddle: 5-3/4" (147 mm)
Distance Between Centers: 29-1/2" (750 mm)

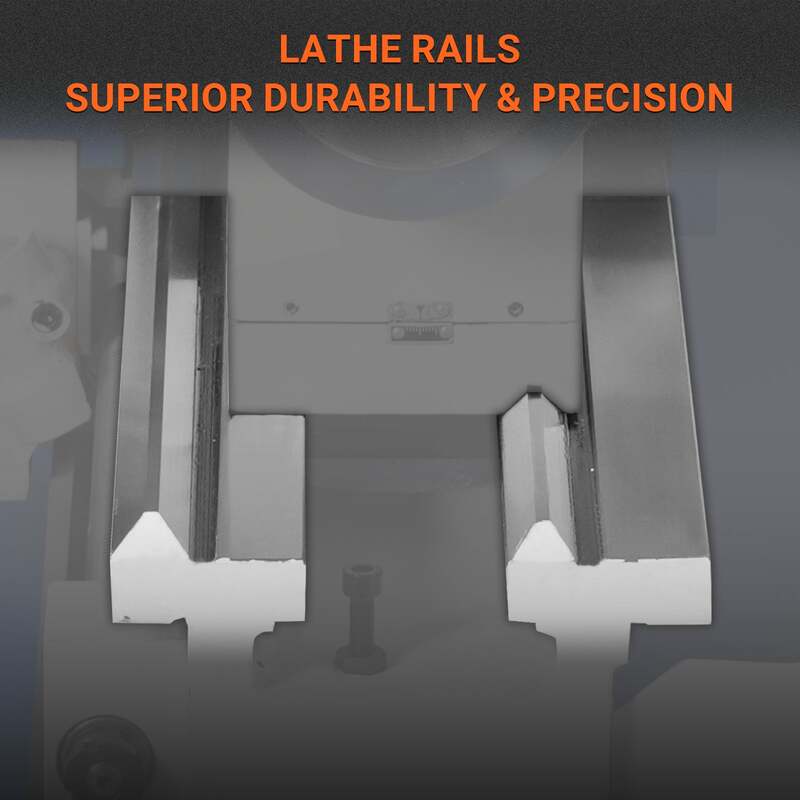

Bed Width: 7" (180 mm)

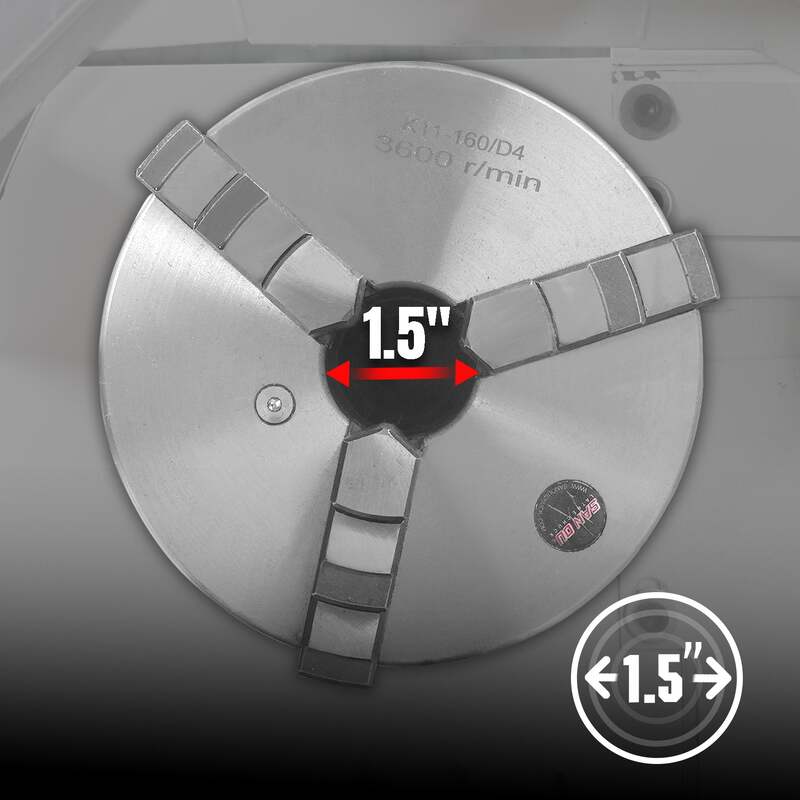

Spindle Bore: 1-1/2" (38 mm)
Spindle Mount: D1-4
Spindle Taper: MT#5
Tailstock Taper: MT#3
Tailstock Quill Travel: 3-1/8" (85 mm)
Carriage Travel: 27-1/2" (700 mm)
Cross Slide Travel: 5-3/4" (147 mm)
Compound Slide Travel: 3-3/8"

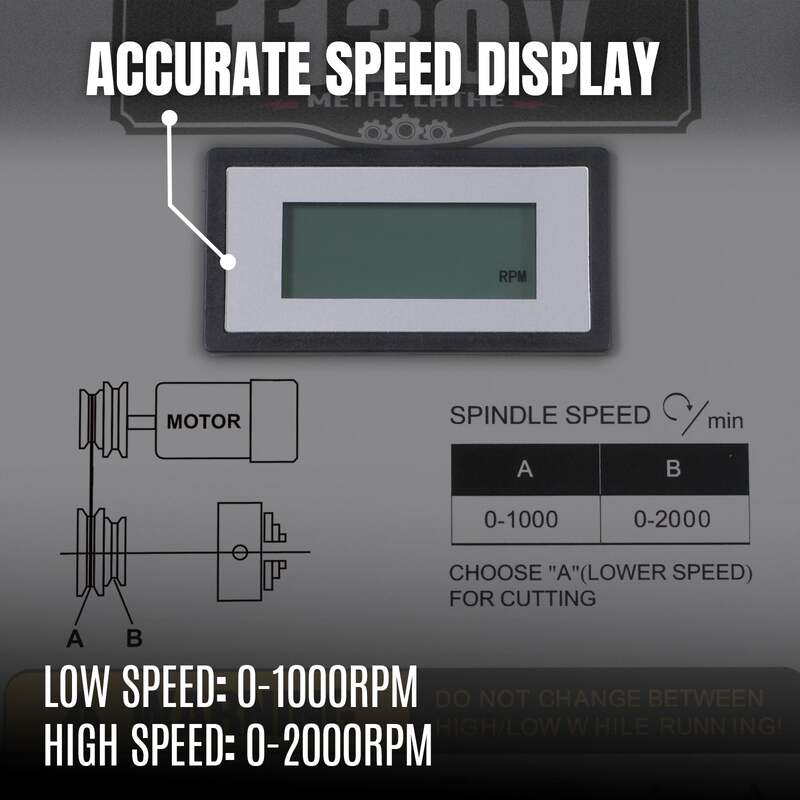

Spindle Speed Range: 0–2000 RPM
Number of Speed Ranges: Variable
Longitudinal Feed Rate: 0.0007 – 0.0098 in./rev
Transverse Feed Rate: 0.0027 – 0.02 in./rev
Leadscrew Size & Pitch: 20 mm (8 TPI)
Threading Capacity – Inch: 8–56 TPI (21 kinds)
Threading Capacity – Metric: 0.4–3.5 mm (12 kinds)
Thread Dial Indicator: Yes
Tool Post Type: 4-way
Maximum Tool Bit Size: 15/32" (12 mm)
Mill / Drill Specifications
Motor Power: 1.5 HP (1100W)
Spindle Taper: R8
Spindle Speed Range: 0–2500 RPM
Spindle Travel (Quill Stroke): 2" (50 mm)
Quill Diameter: Ø60 mm
Drawbar Thread Size: 7/16"-20

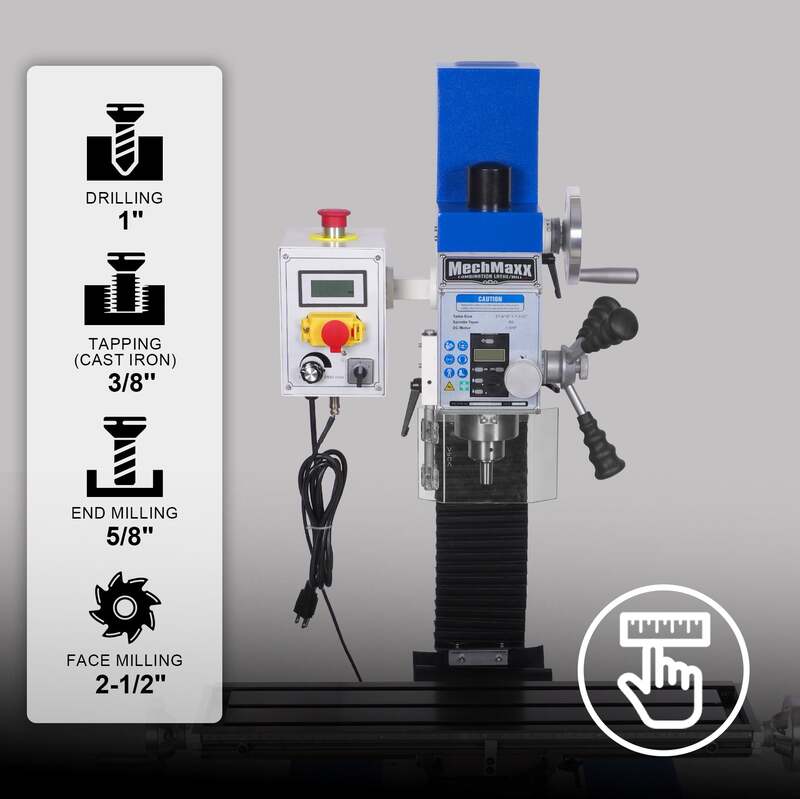

Drilling Capacity: 1" (25 mm)
End Milling Capacity: 5/8" (16 mm)
Face Milling Capacity: 2-1/2" (63 mm)
Vertical Travel (Z-Axis): 14-1/2" (370 mm)
Head Tilt Angle: ±90°
Distance: Spindle to Table: 14-1/2" (370 mm)
Distance: Spindle to Column: 7-1/2" (190 mm)
Column Type: Dovetail Slot
Drive Type: Belt Drive Brushless
Machine Dimensions
Electrical Requirements: 110V Single Phase
Overall Dimensions: 55" × 29" × 42" (1400 × 720 × 1050 mm)
Net / Gross Weight: 638 / 726 lbs (290 / 330 kg)
Shipping Dimensions: 59" × 30" × 42" (1500 × 750 × 1050 mm)
