10" x 30" Combination Lathe Milling Drilling Machine – Variable Speed Benchtop Metalworking Machine (Model 1030VC)
Product Description

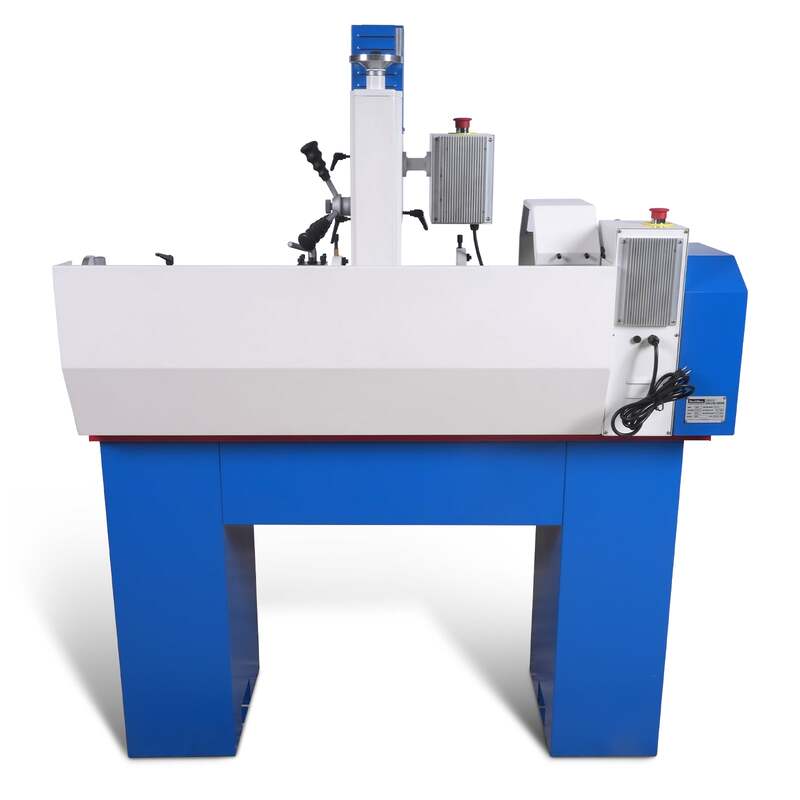

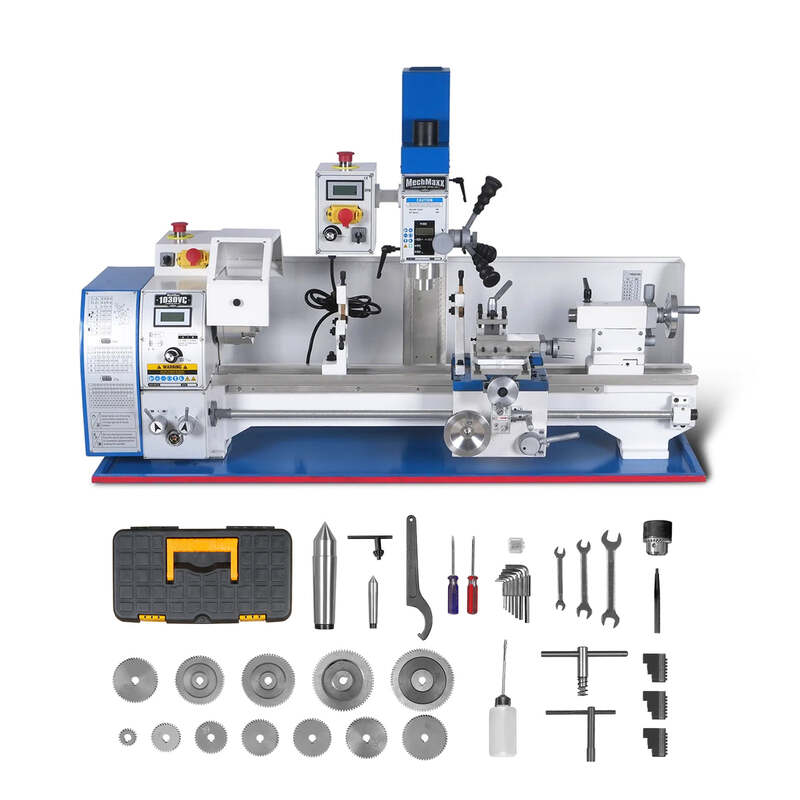

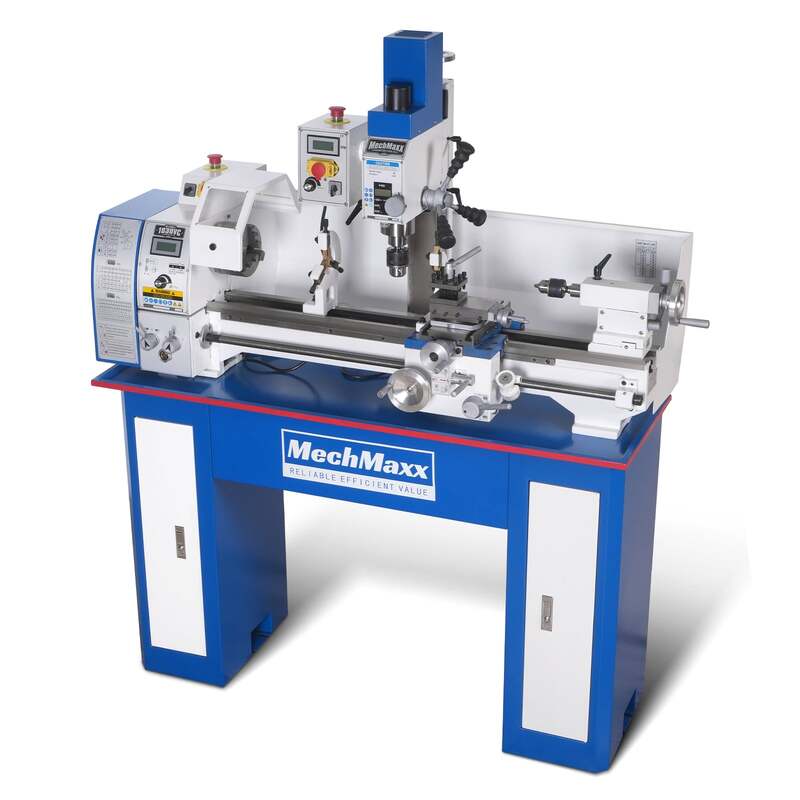

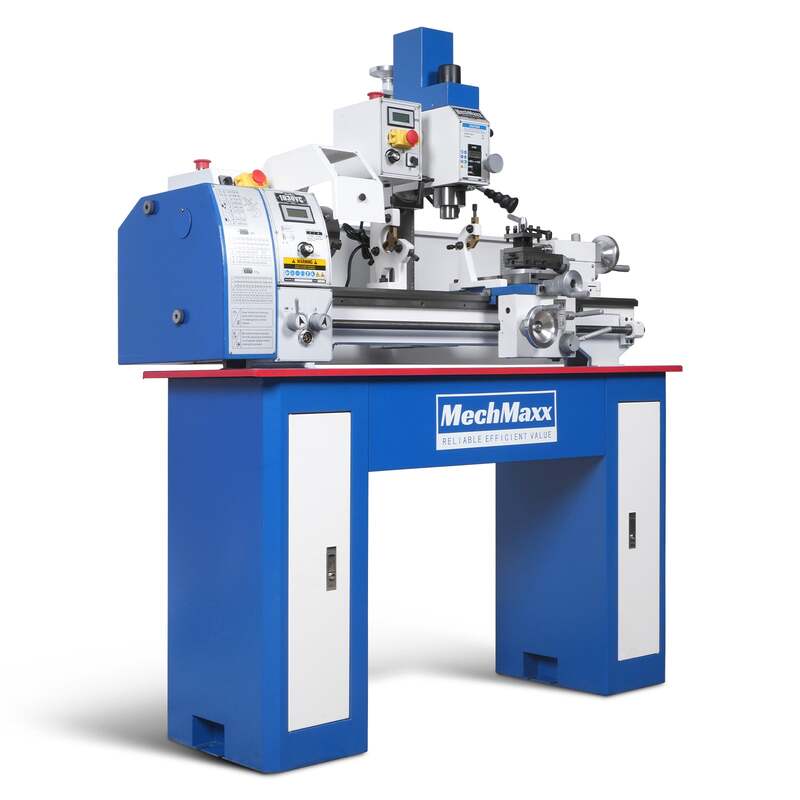

The MechMaxx 10" x 30" Combination Lathe Mill Drill (Model 1030VC) is a versatile metalworking solution designed for workshops, fabrication shops, and serious hobby machinists who need multiple machining capabilities in one compact machine. Combining turning, milling, and drilling functions, this machine allows operators to complete complex machining tasks without switching between separate machines.

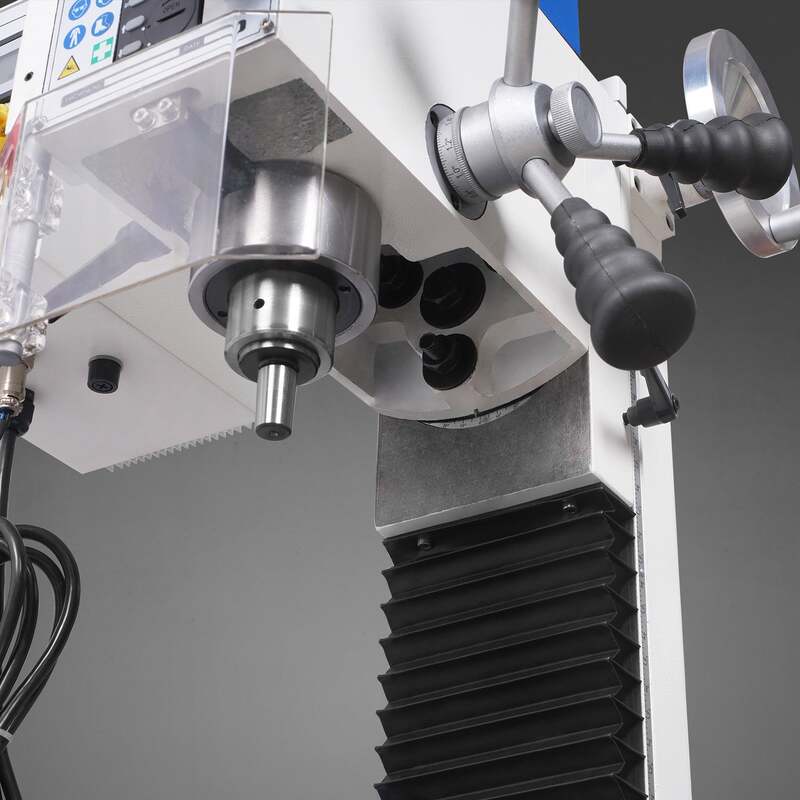

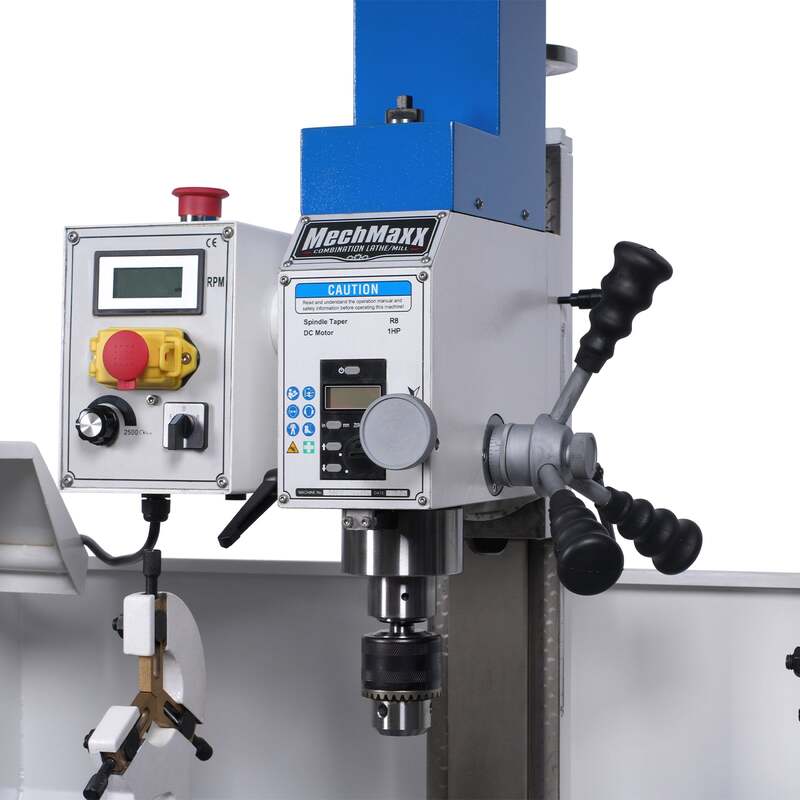

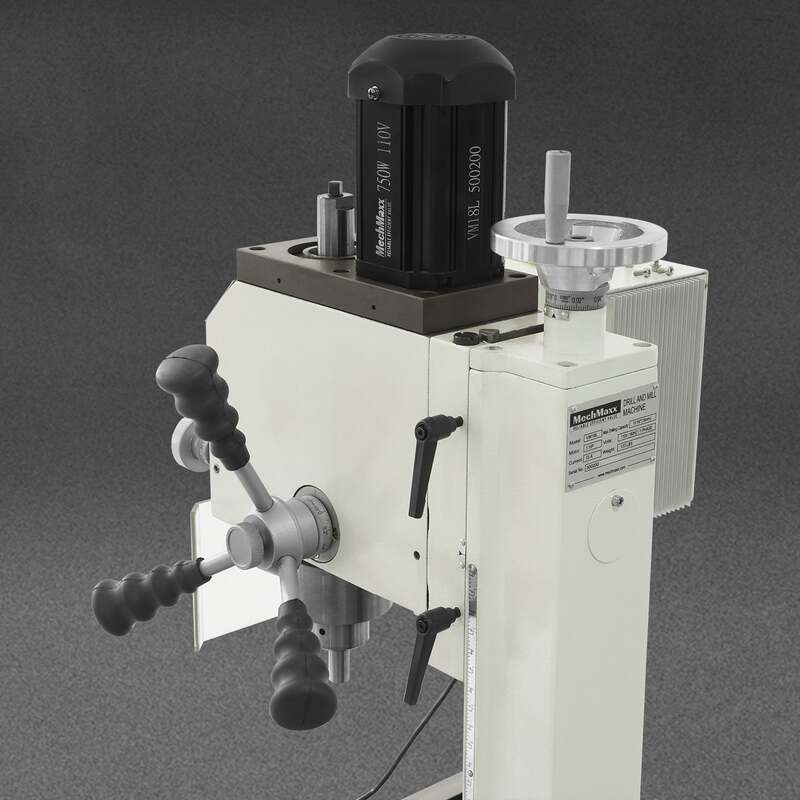

Powered by a 1.5 HP brushless motor, the lathe provides smooth and consistent cutting performance with a variable spindle speed range of 0–2000 RPM. The integrated milling head features an R8 spindle taper, making it compatible with a wide range of standard milling and drilling tooling.
With a large 1.5" spindle bore, MT5 lathe spindle taper, and ±90° tilting mill head, the 1030VC provides excellent flexibility for machining operations. Its rigid cast iron construction and precision-ground bed ensure stability, reduced vibration, and accurate machining results across turning, drilling, and milling applications.
Built for Multi-Function Machining
This combination lathe mill drill machine is engineered to provide versatility and precision for a wide range of metalworking projects.
- Combination lathe, milling, and drilling machine
- Powerful 1.5 HP brushless motor for reliable machining

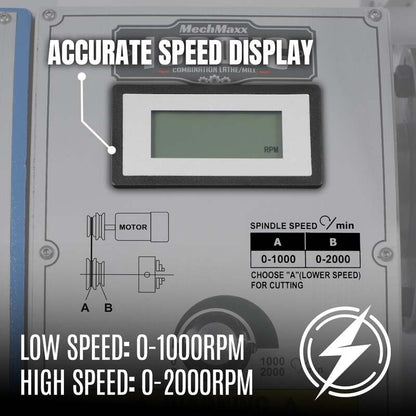

- Variable spindle speed control from 0–2000 RPM
- Large 1.5" spindle bore for machining thicker materials
- R8 milling spindle for wide tooling compatibility
- ±90° tilting milling head for angled machining
These features allow machinists to perform turning, drilling, milling, threading, and finishing operations using a single compact machine.
Durable & Reliable Construction
The 1030VC is built with a rigid cast iron frame and precision-ground bed to ensure stable machining performance. Its compact footprint makes it ideal for workshops where space is limited while still providing the strength needed for demanding machining operations.
- Heavy-duty cast iron construction for rigidity

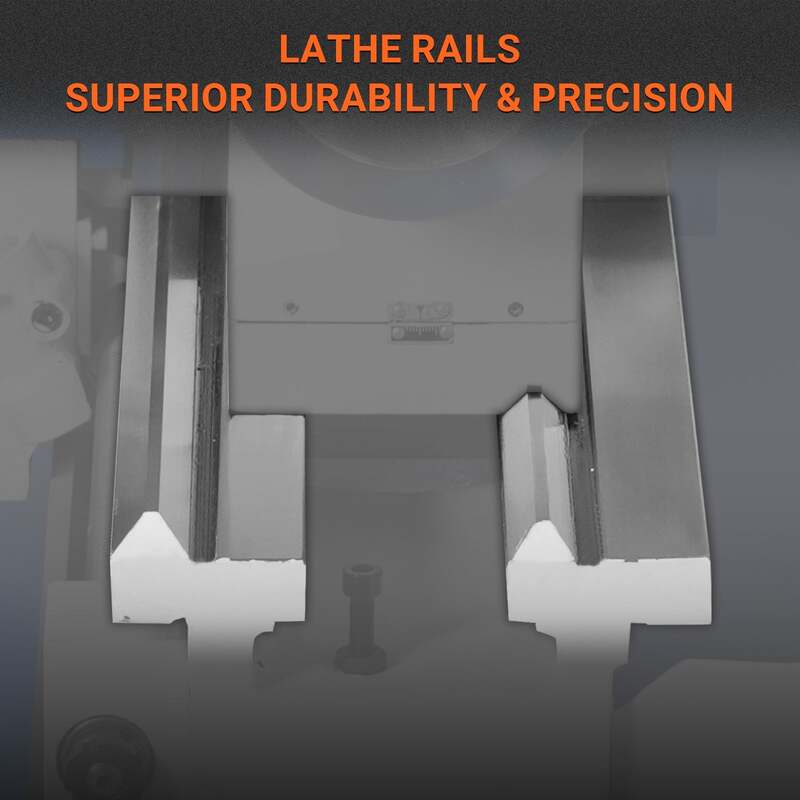

- Precision-ground bed for smooth carriage movement

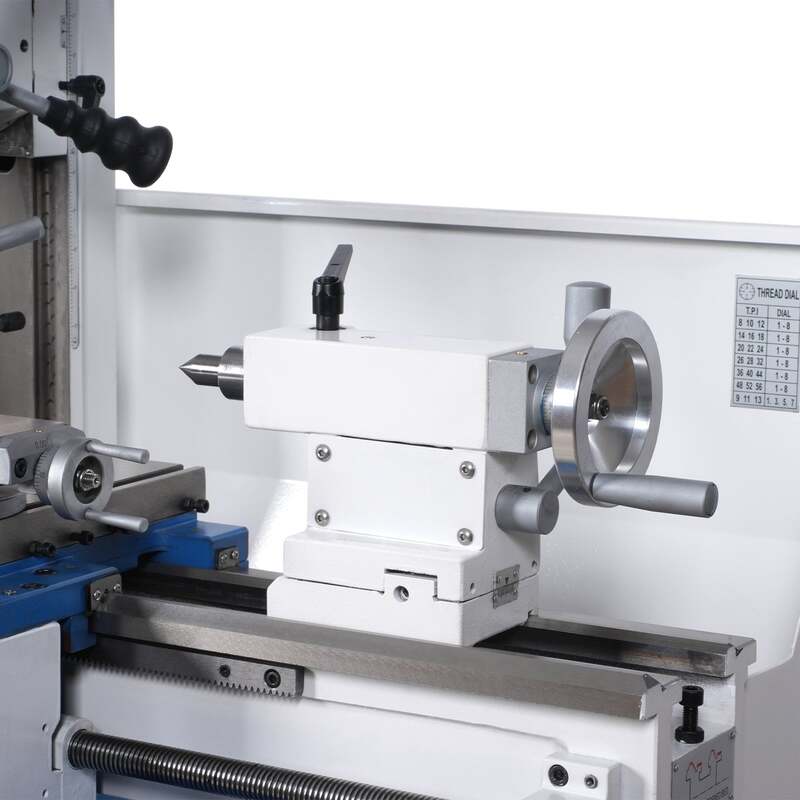

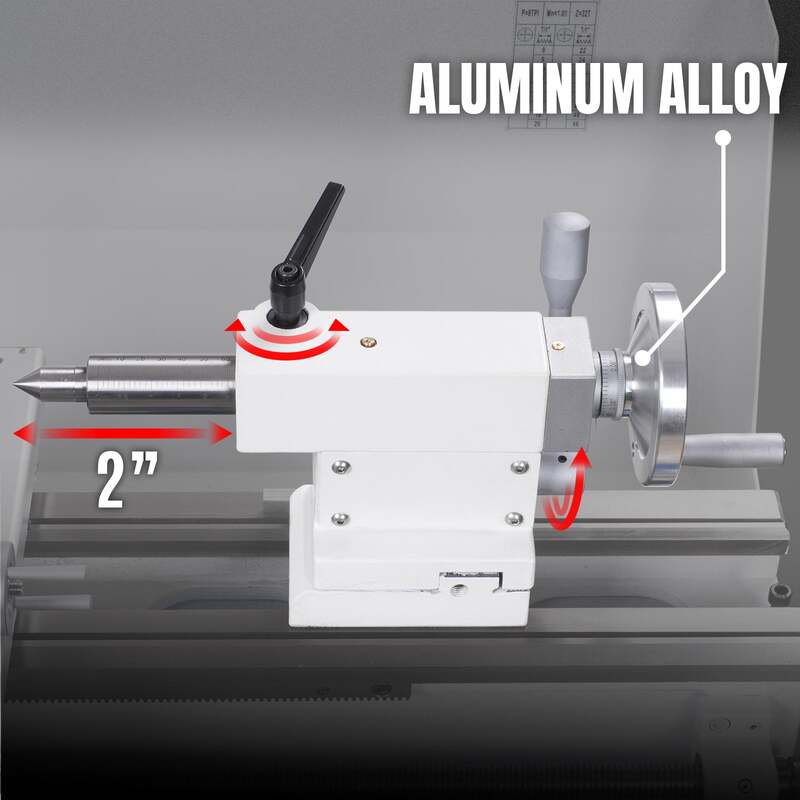

- Quick-lock tailstock with MT2 taper

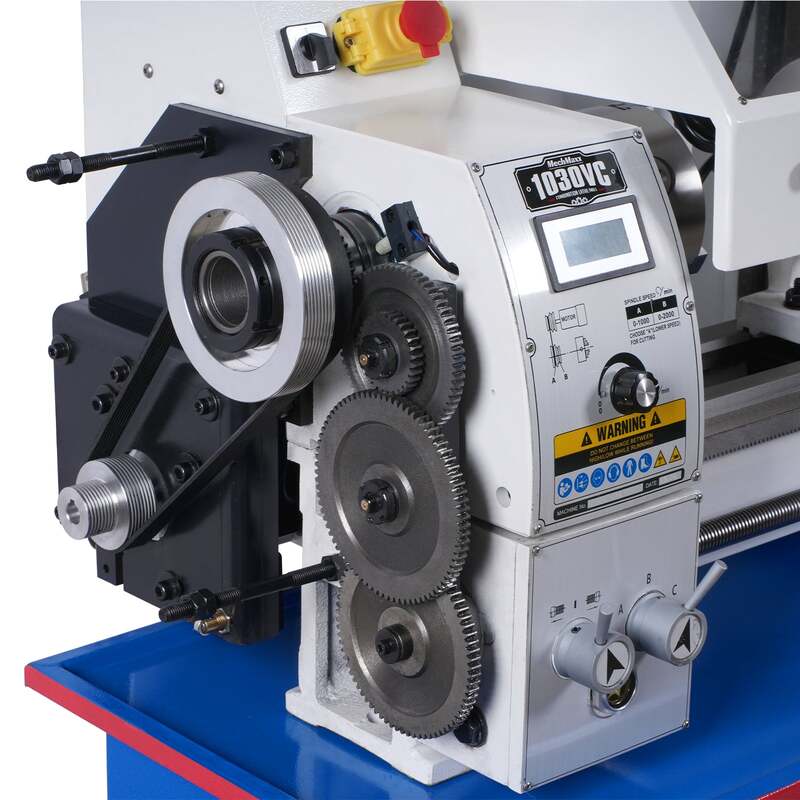

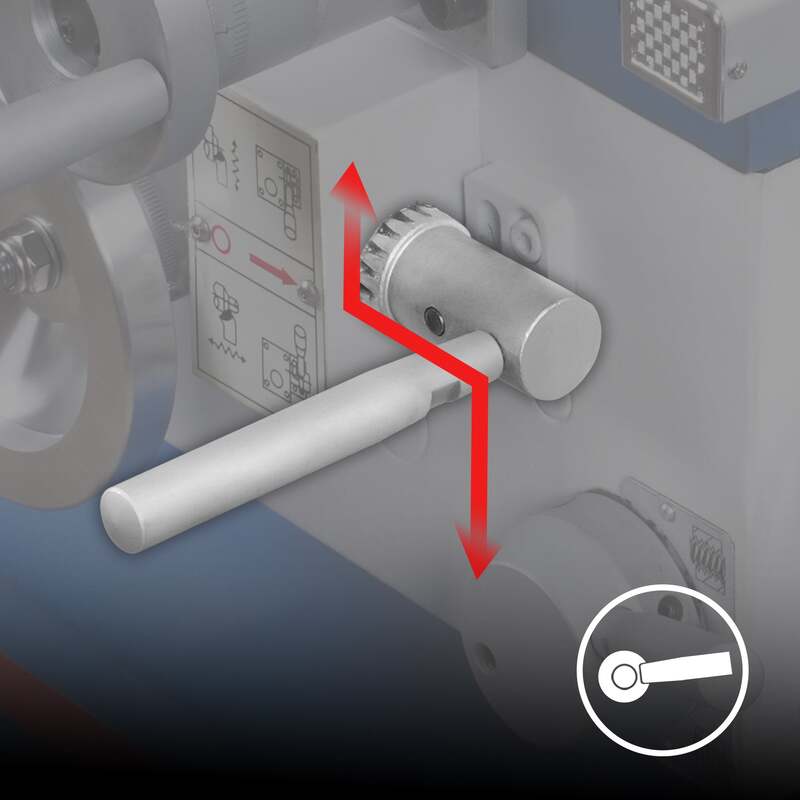

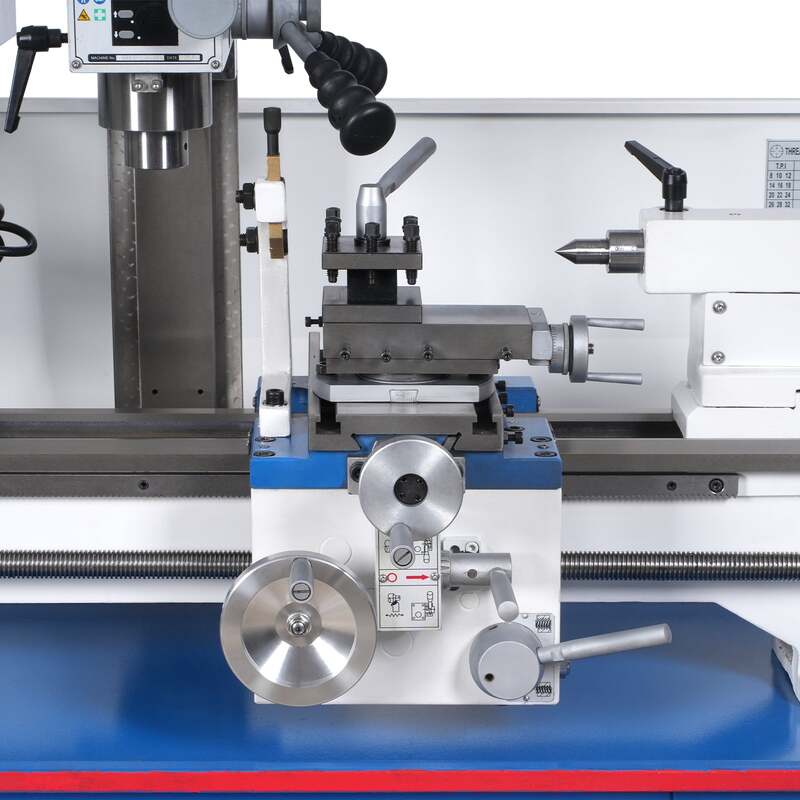

- Automatic longitudinal and cross feed for consistent cutting

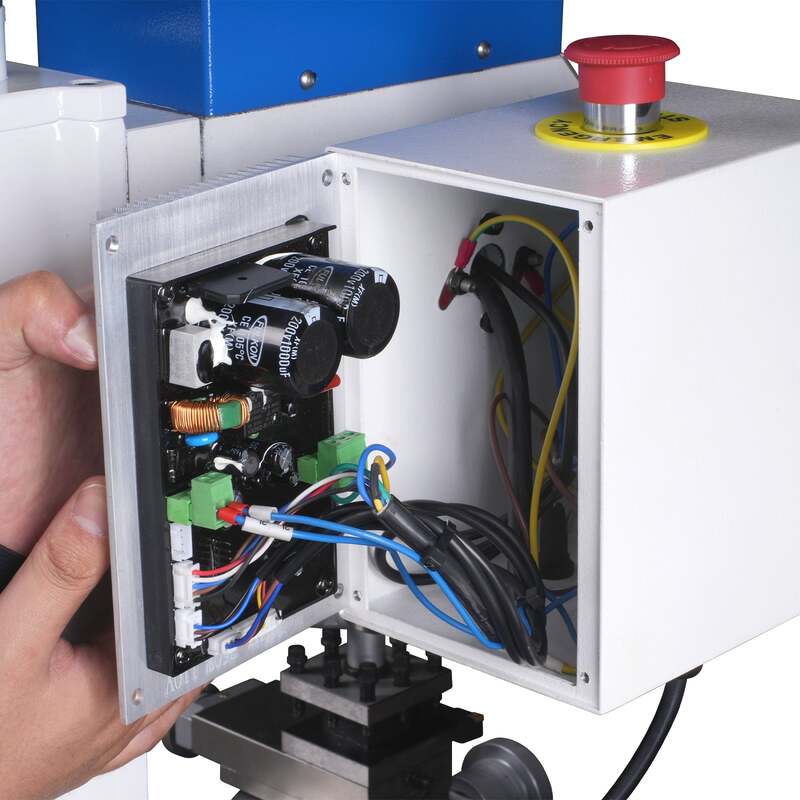

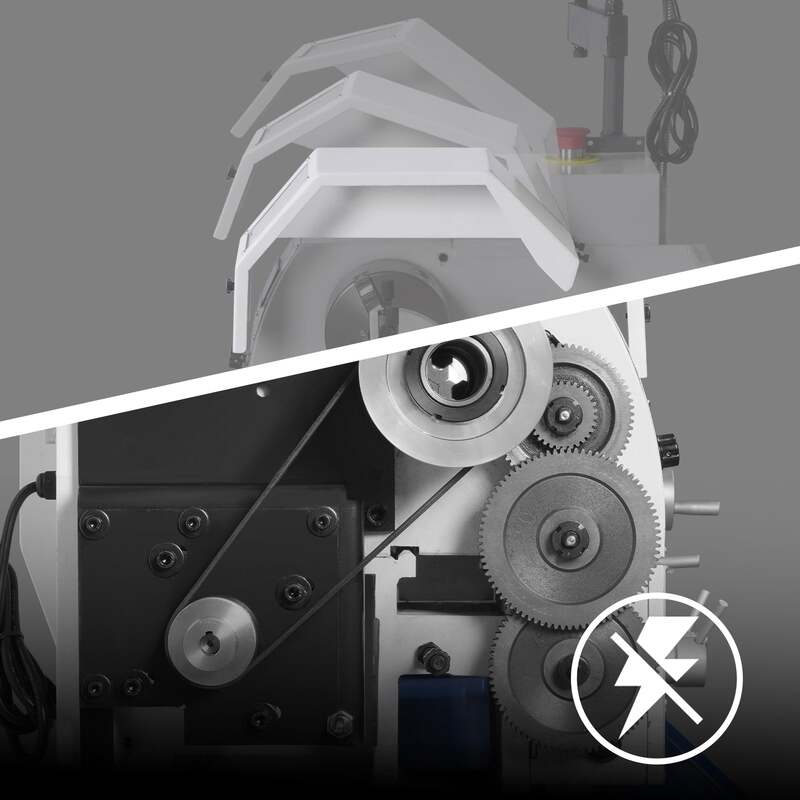

- Integrated safety system with power disconnect protection
This robust design ensures dependable performance for professional workshops, machine shops, and advanced hobby machining environments.
Technical Specifications
- Lathe Motor: 1.5 HP, 110V, Single Phase
- Swing Over Bed: 9-7/8" (250 mm)
- Distance Between Centers: 29-1/2" (750 mm)

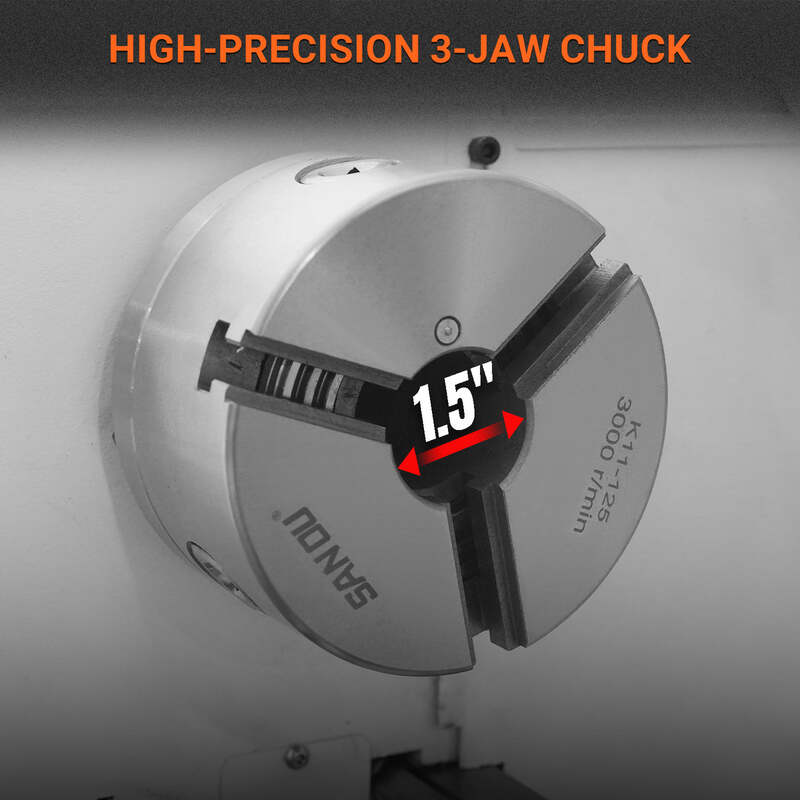

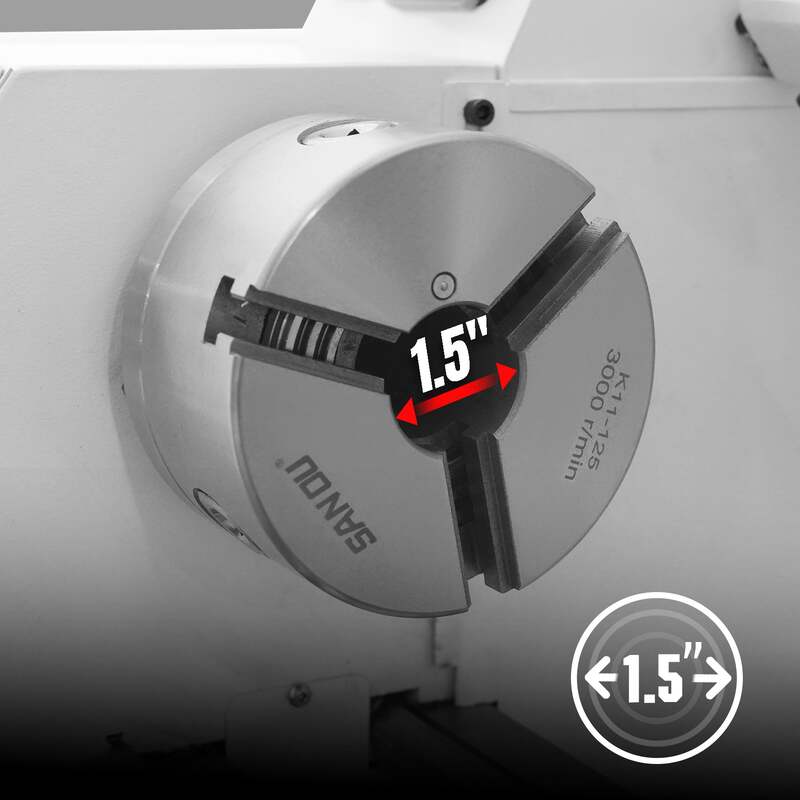

- Spindle Bore: 1-1/2" (38 mm)
- Spindle Taper (Lathe): MT5
- Tailstock Taper: MT2

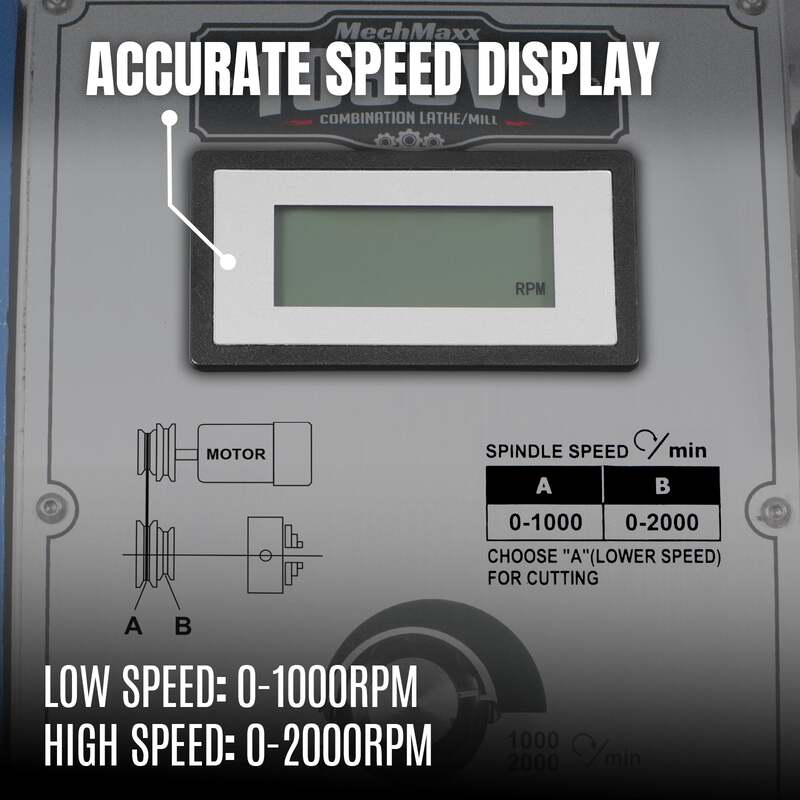

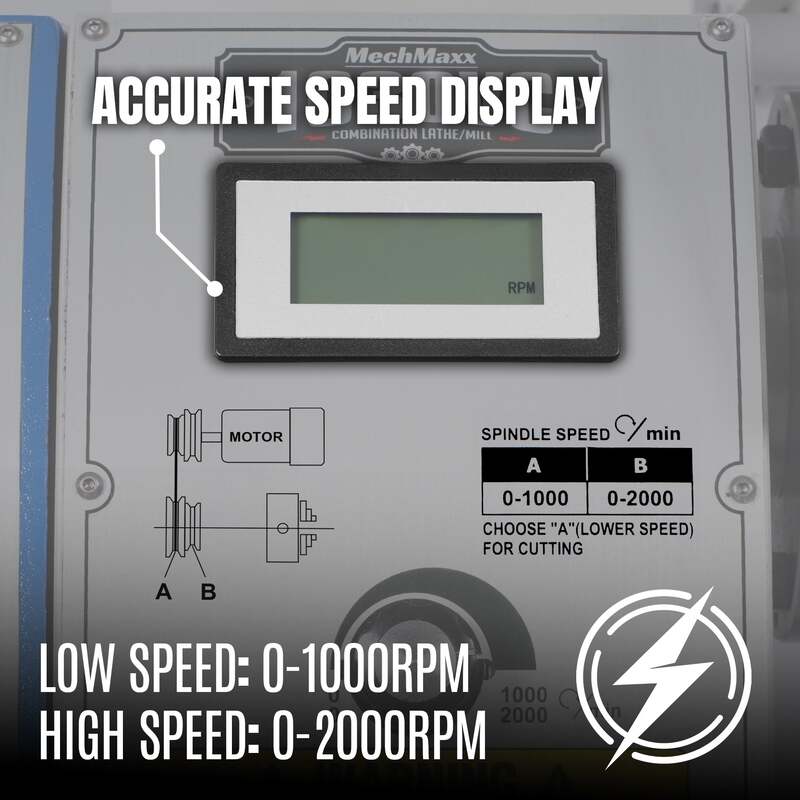

- Spindle Speed Range: 0–2000 RPM

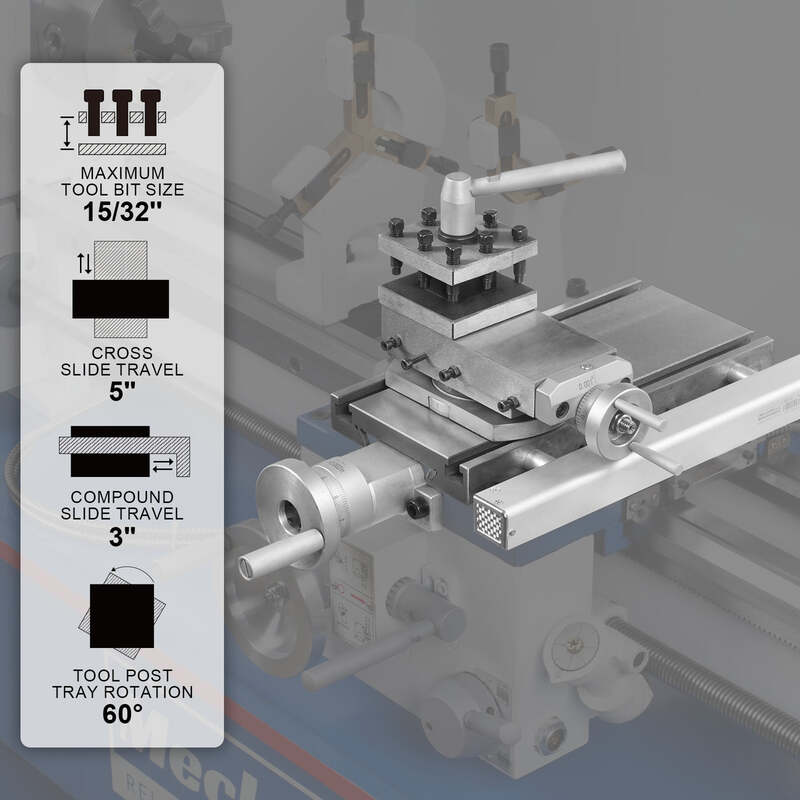

- Cross Slide Travel: 5" (127 mm)
- Compound Slide Travel: 3" (75 mm)
- Carriage Travel: 27-1/2" (700 mm)

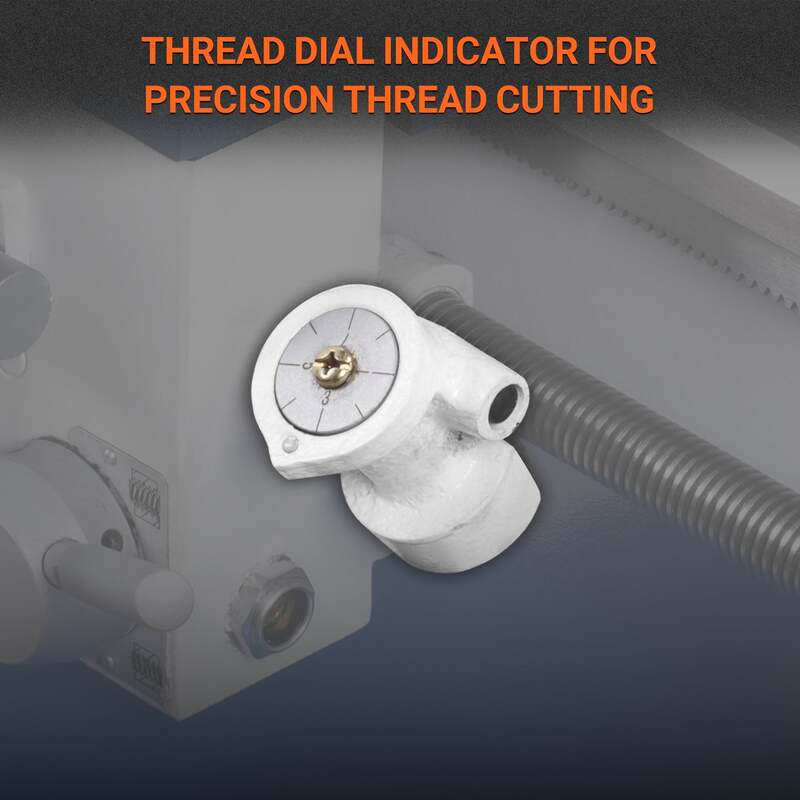

- Threading Range: 8–80 TPI / 0.35–3.0 mm
- Mill Motor: 1 HP (750W)

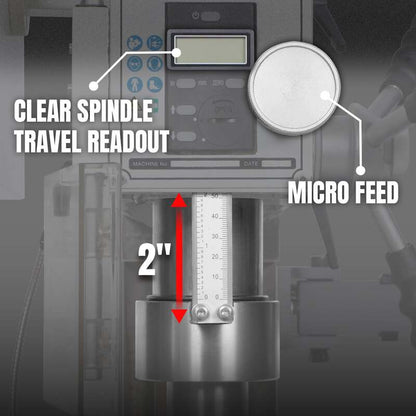

- Mill Spindle Taper: R8
- Mill Spindle Speed: 0–2500 RPM
- Drilling Capacity: 5/8" (16 mm)
- End Milling Capacity: 1/2" (12 mm)
- Face Milling Capacity: 2" (50 mm)
- Head Tilt: ±90°
- Machine Dimensions: 52" × 26" × 38"
- Shipping Weight: 517 lbs
