MechMaxx 500015 1022VD 10" x 22" Benchtop Metal Lathe with DRO – 1.5HP Variable Speed Precision Lathe
MechMaxx 500015 1022VD 10" x 22" Benchtop Metal Lathe with DRO – 1.5HP Variable Speed Precision Lathe
Couldn't load pickup availability
- Secure Payments
- Simple Returns
- Free Lift Gate
Shipping
Shipping
Shipping Information
Processing & Delivery
Orders are processed within 1–5 business days. Most deliveries arrive within 6–12 business days, depending on the product and shipping method. Freight carriers typically contact customers by phone to schedule delivery.
Shipping Costs
We offer free shipping on select products within the continental United States. Shipping options and any applicable delivery charges are shown at checkout before purchase.
Freight Shipping
Large equipment, such as vehicle lifts and heavy machinery, ships via freight carriers due to size and weight.
Delivery Requirements
Some items require a commercial delivery location with a forklift or loading dock for unloading. Residential deliveries may require liftgate service and may incur additional fees depending on the product and location.
Pickup Option
Customers may choose to have their order delivered to a nearby freight terminal for pickup.
More Information
For full details on shipping procedures, delivery requirements, and freight options, please view our full Shipping Policy.
Warranty
Warranty
one-year warranty for machine.
Mechmaxx products stand up to extreme testing and come with a one-year warranty for machine.
We will repair or replace, at our discretion, any part returned to us and found to be defective through manufacturing within the first year of the original purchaser’s ownership (except consumable items like belts, blades, bearings and clutch). The engine is covered under warranty directly with the engine manufacturer.
warranty does not apply to normal wear, commercial or rental use, after-market modification or damages that occur from negligence, misuse, or use not in accordance with the operating and maintenance instructions, or the products intended uses. MechMaxx disclaims liability for any accidents, injury or damages to the equipment or personal property caused by the equipment when equipped with unauthorized parts, equipped with parts for unapproved purposes or modified in any other way. MechMaxx will at its discretion make the final decision regarding warranty eligibility.
10" x 22" Industrial Benchtop Metal Lathe with Digital Readout (Model 1022VD) Product Description
The MechMaxx 1022VD Benchtop Metal Lathe is a compact yet powerful precision machining solution designed for workshops, fabrication shops, repair facilities, and serious hobby machinists. With a 10" swing over bed and 22" distance between centers, this high-precision lathe is ideal for machining small to medium-sized metal components with accuracy and reliability.
Powered by a 1.5 HP brushless motor, the 1022VD delivers smooth and consistent performance with variable spindle speeds ranging from 0–2000 RPM. This wide speed range allows machinists to adjust cutting speeds for different materials including aluminum, brass, steel, and other metals.

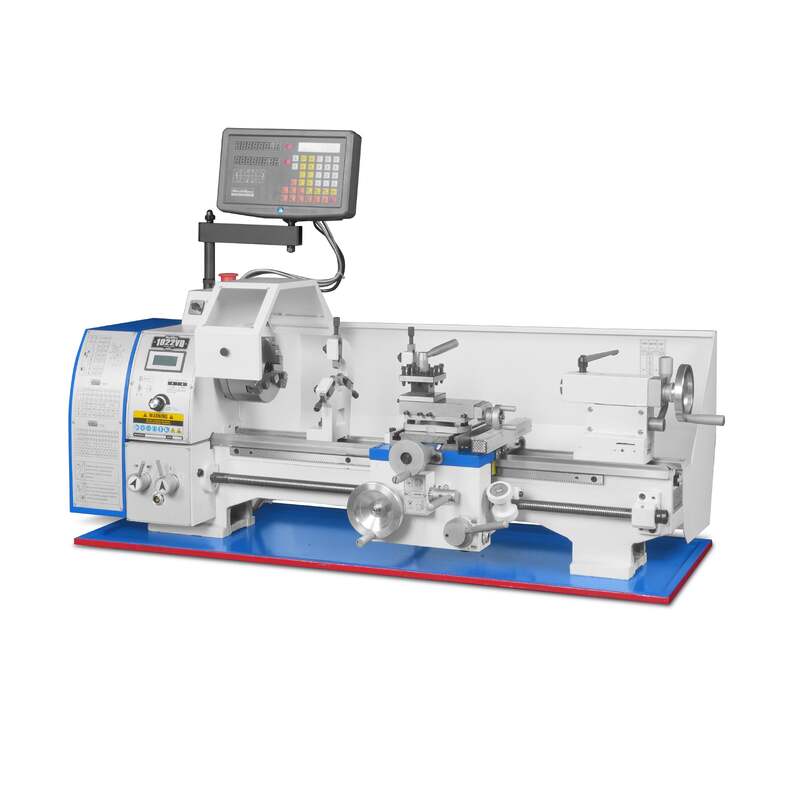

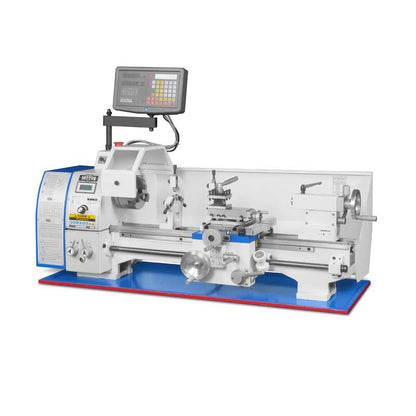

The machine also features a dual-axis Digital Readout (DRO) system that provides real-time positioning information, improving accuracy and reducing setup time. Combined with a large 1-1/2" spindle bore and MT#5 spindle taper, the 1022VD offers excellent versatility for a wide range of turning, facing, threading, and precision machining operations.
Built for Precision Machining
Designed for accurate and smooth machining performance, the 1022VD offers the control and flexibility required for detailed metalworking projects.
• Variable spindle speeds from 0–2000 RPM
• Large 1-1/2" spindle bore for larger workpieces
• Digital Readout (DRO) system for precise positioning
• 10" swing over bed and 22" distance between centers
• Smooth cross slide and compound slide travel for accurate cutting

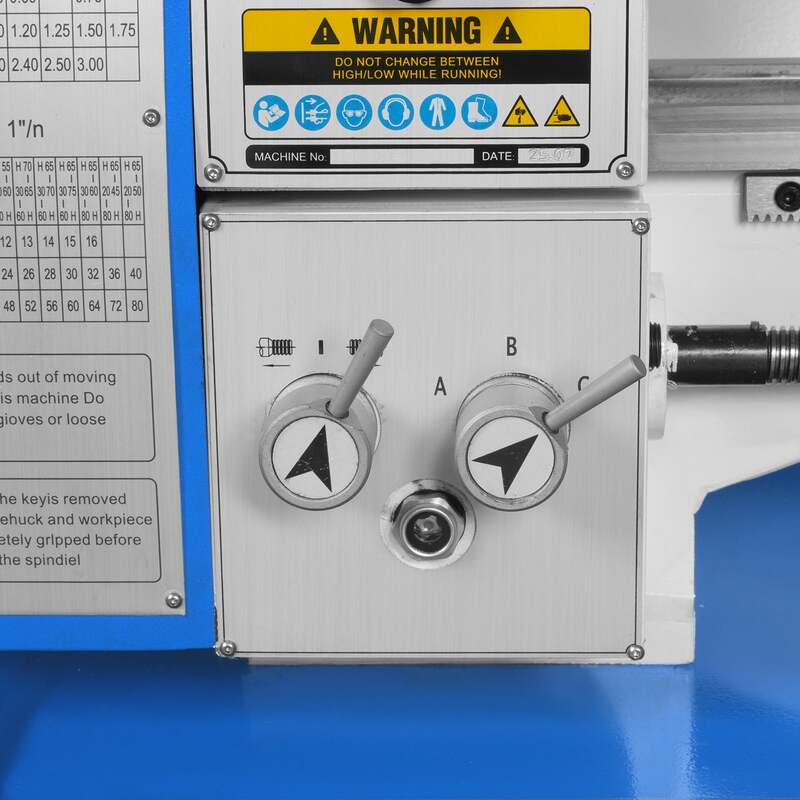

• Thread dial indicator for precise threading operations
These features make the 1022VD ideal for turning, facing, boring, beveling, and threading metal components.
Durable & Reliable Construction
The machine is constructed from high-quality cast iron that has been hardened for increased rigidity and durability. Its stable bed design reduces vibration during machining, improving surface finish and cutting accuracy.
• Heavy-duty cast iron construction
• Hardened bedways for long service life
• One-piece precision spindle design
• Stable benchtop configuration for workshop environments
• Built for professional and hobby machining applications
This solid construction ensures dependable performance for daily workshop use and precision metalworking tasks.
Technical Specifications
Motor: 1.5 HP, 110V, Single Phase, 10A
Swing Over Bed: 9-7/8" (250 mm)
Swing Over Cross Slide: 5-1/2" (140 mm)
Swing Over Saddle: 5" (127 mm)
Distance Between Centers: 21-5/8" (550 mm)
Bed Width: 5-3/8" (135 mm)
Spindle Bore: 1-1/2" (38 mm)
Spindle Type: One-piece spindle
Spindle Mount: Intrinsic back plate
Spindle Taper: MT#5
Tailstock Taper: MT#2
Tailstock Quill Travel: 3" (75 mm)
Cross Slide Travel: 5" (127 mm)
Compound Slide Travel: 3" (75 mm)
Carriage Travel: 19-5/8" (500 mm)

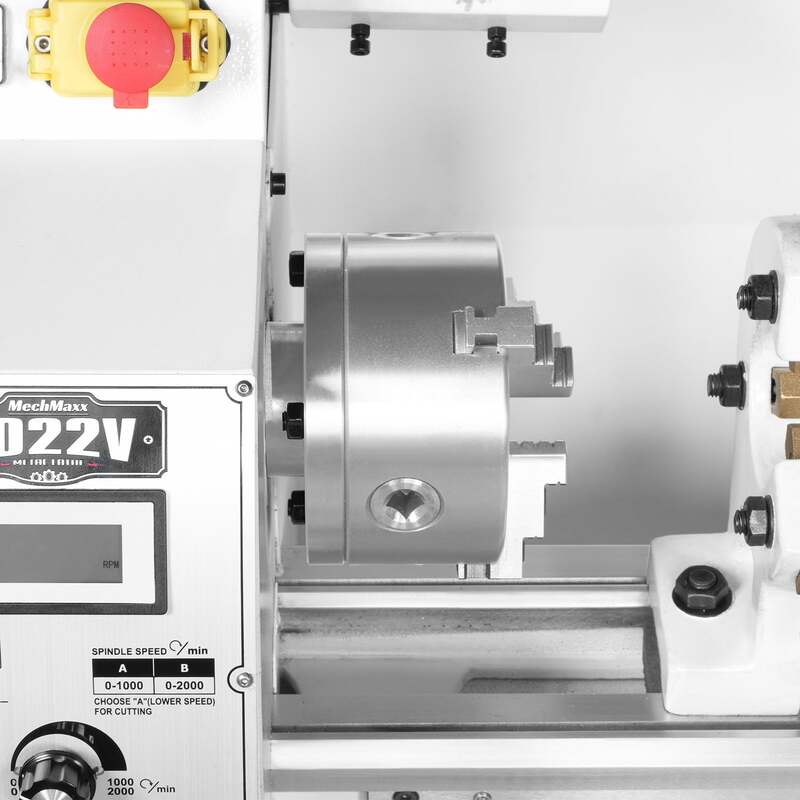

Spindle Speed Range: 0–2000 RPM
Number of Speed Ranges: Variable
Longitudinal Feed Rate: 0.0025 – 0.014 in./rev.
Transverse Feed Rate: 0.0014 – 0.004 in./rev.
Leadscrew Size & Pitch: 20 mm (8 TPI)
Threading Capacity – Inch: 8–80 TPI (37 kinds)
Threading Capacity – Metric: 0.35 – 3.0 mm (21 kinds)
Maximum Tool Bit Size: 15/32" (12 mm)
Thread Dial Indicator: Yes
Coolant System: Optional
Machine Dimensions: 44" × 25" × 19" (1220 × 635 × 480 mm)
Shipping Weight: 308 / 352 lbs (140 / 160 kg)
