10" x 22" Variable Speed Benchtop Metal Lathe – Precision Metalworking Machine (Model 1022V)
Product Description

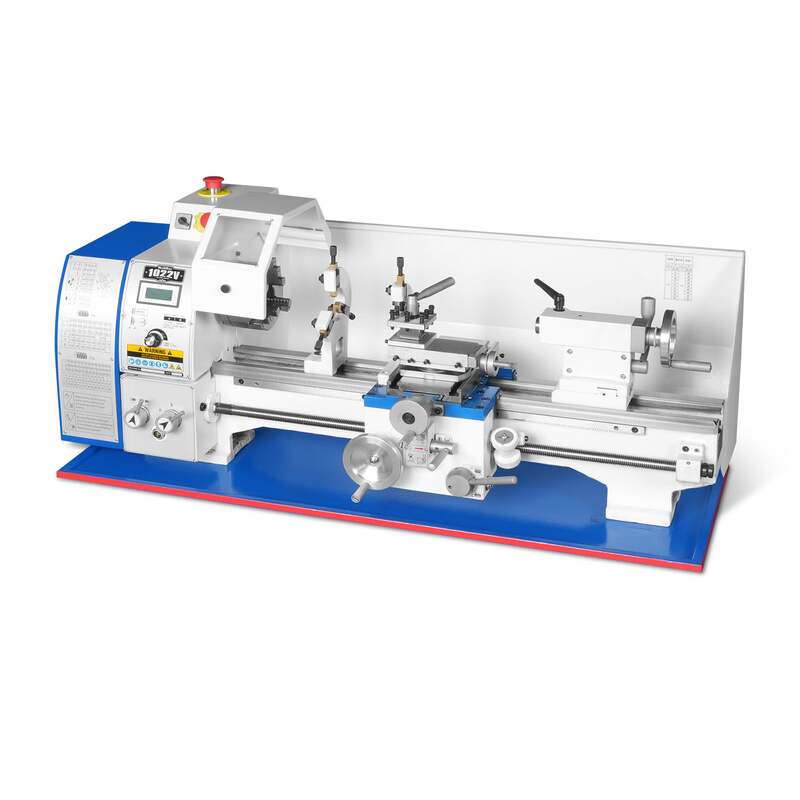

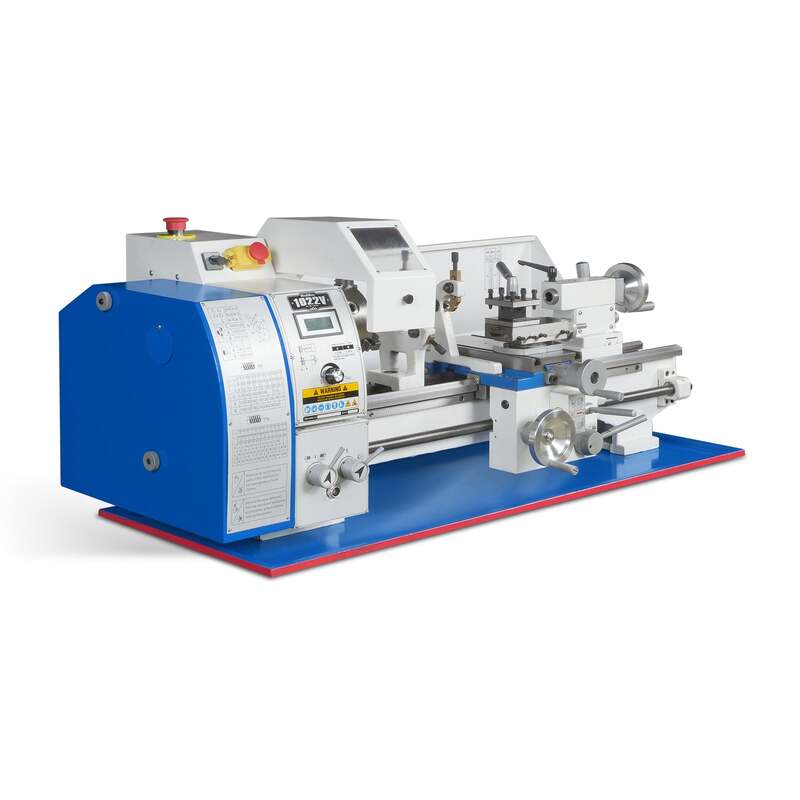

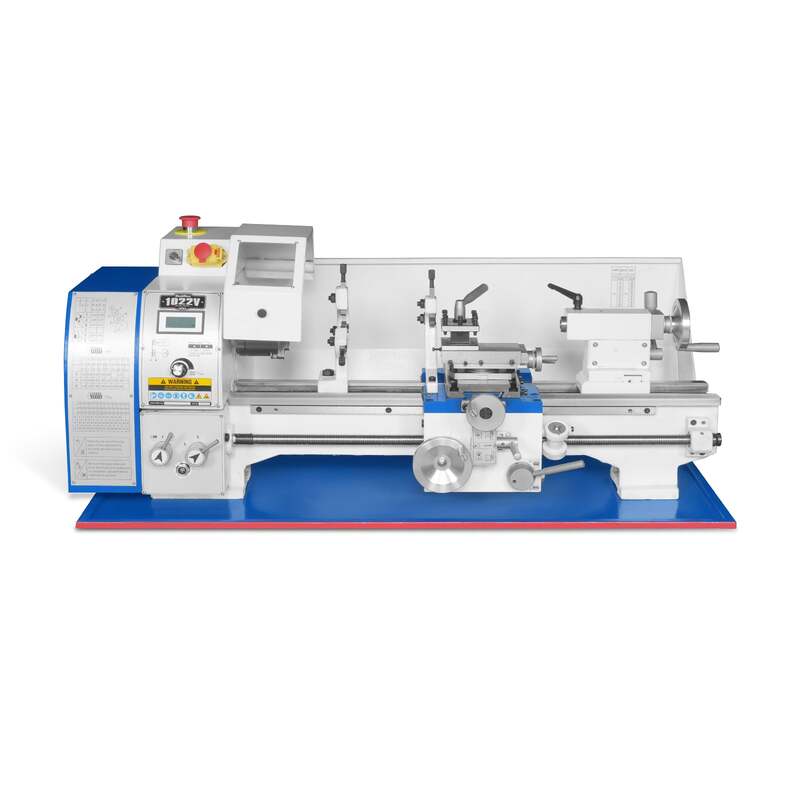

The MechMaxx 10" x 22" Metal Lathe (Model 1022V) is a compact yet powerful benchtop machining solution designed for workshops, fabrication shops, and serious hobby machinists. Powered by a 1.5 HP brushless motor and featuring a variable spindle speed range of 0–2000 RPM, this lathe provides smooth, consistent cutting performance for a wide range of metalworking tasks.
With a 1-1/2" spindle bore and MT5 spindle taper, the 1022V supports a wide variety of tooling while allowing machinists to work with thicker bar stock than many lathes in its class. The machine’s rigid cast iron construction and precision bed design help minimize vibration, ensuring accurate machining results.
The lathe provides a 9-7/8" swing over bed and 21-5/8" distance between centers, making it ideal for machining small to medium-sized components. Combined with automatic feed options and precision slide travel, the 1022V is well suited for turning, threading, facing, and detailed machining operations.
Built for Precision Machining
This compact metal lathe is engineered to deliver accuracy, flexibility, and reliable performance for a wide range of machining tasks.
- Powerful 1.5 HP brushless motor for smooth cutting performance
- Variable spindle speed control from 0–2000 RPM
- Large 1.5" spindle bore for machining thicker materials
- MT5 spindle taper for versatile tooling compatibility

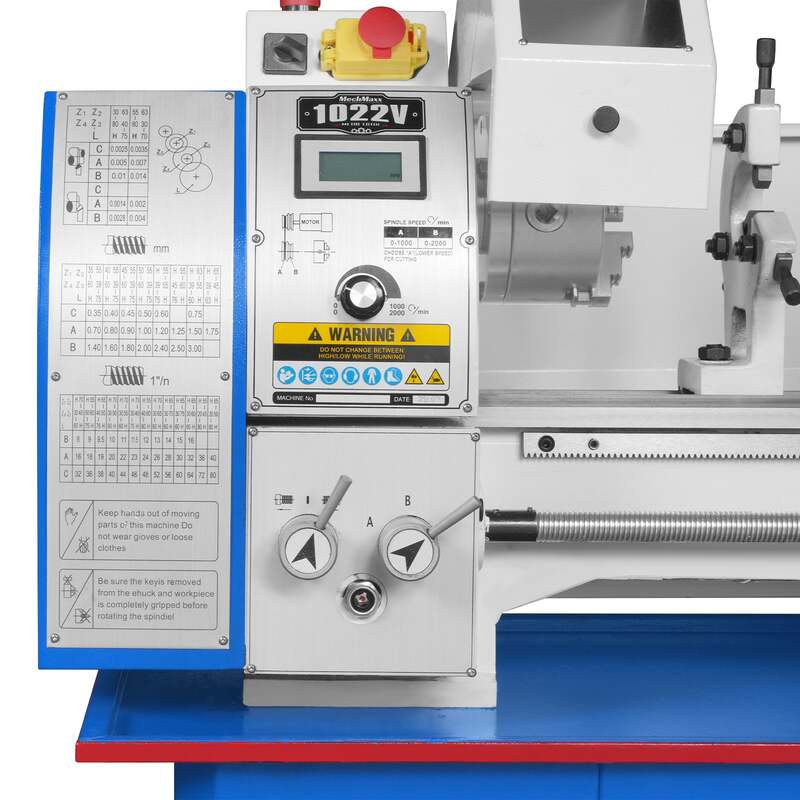

- Thread dial indicator for accurate thread cutting
- Precision cross slide and compound slide movement
These features provide machinists with precise control when performing turning, threading, and finishing operations.
Durable & Reliable Construction
The 1022V metal lathe is built with a rigid cast iron frame and precision components designed to provide stable operation and long-term durability. The heavy bed construction helps reduce vibration and ensures consistent machining accuracy.
- Heavy-duty cast iron construction for improved rigidity
- One-piece spindle design for enhanced precision
- Quick-adjust tailstock with MT2 taper
- Precision handwheels for accurate positioning
- Optional coolant system support
This robust design ensures dependable performance for workshops, small fabrication shops, and professional machining environments.
Technical Specifications
- Motor: 1.5 HP, 110V, Single Phase
- Swing Over Bed: 9-7/8" (250 mm)
- Swing Over Cross Slide: 5-1/2" (140 mm)
- Swing Over Saddle: 5" (127 mm)
- Distance Between Centers: 21-5/8" (550 mm)
- Bed Width: 5-3/8" (135 mm)
- Spindle Bore: 1-1/2" (38 mm)
- Spindle Taper: MT5
- Tailstock Taper: MT2
- Tailstock Travel: 3" (75 mm)
- Cross Slide Travel: 5" (127 mm)
- Compound Slide Travel: 3" (75 mm)
- Carriage Travel: 19-5/8" (500 mm)
- Spindle Speed Range: 0–2000 RPM
- Leadscrew Pitch: 20 mm (8 TPI)
- Inch Threading: 8–80 TPI
- Metric Threading: 0.35–3.0 mm
- Maximum Tool Bit Size: 15/32" (12 mm)
- Coolant System: Optional
- Machine Dimensions: 44" × 25" × 19"
- Shipping Weight: 308 / 352 lbs
