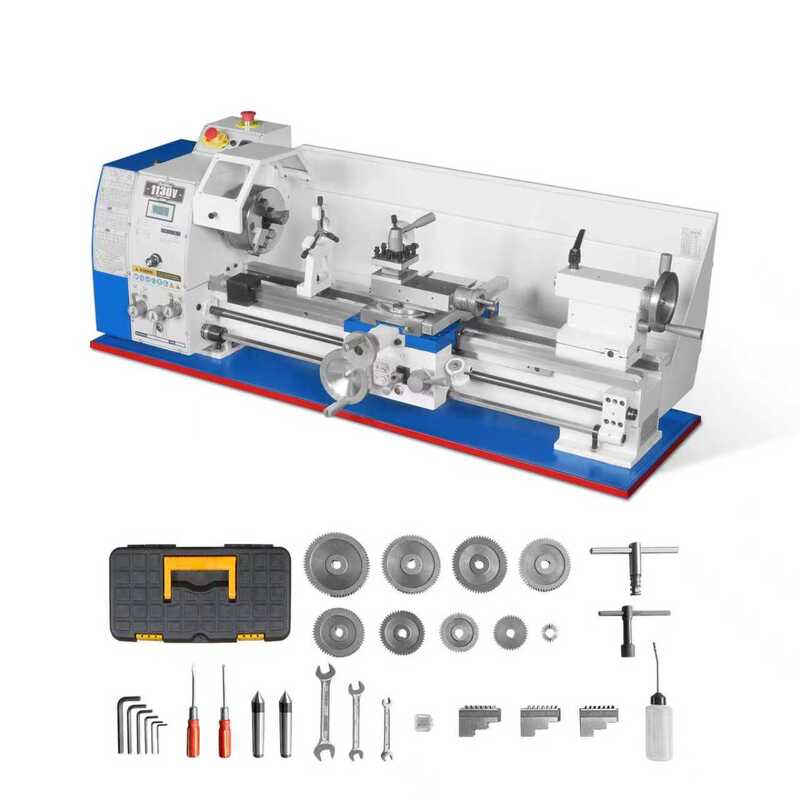

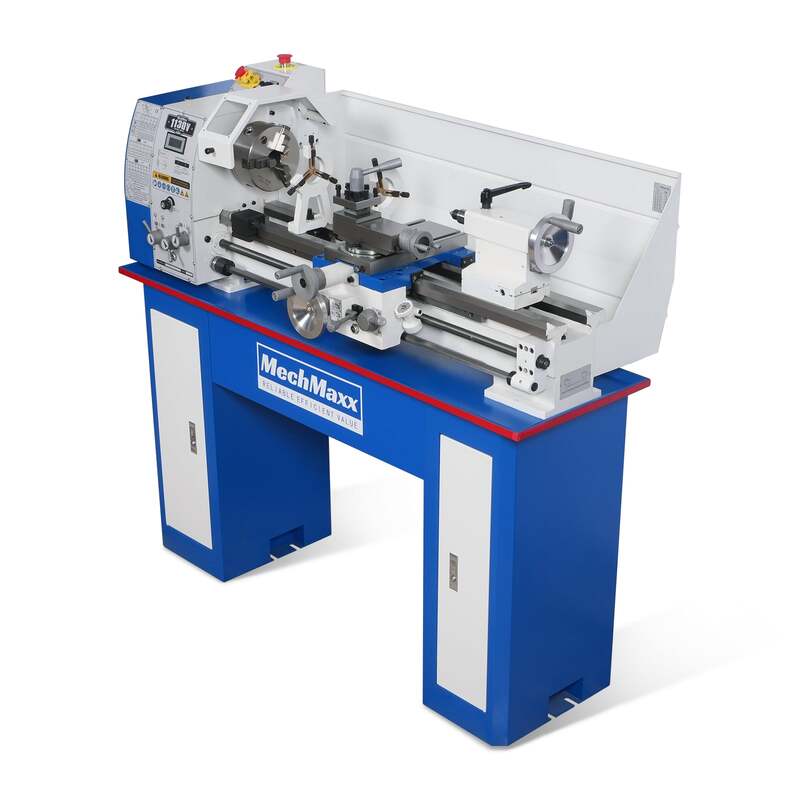

11" x 30" Variable Speed Metal Lathe – High Precision Benchtop Metalworking Machine (Model 1130V)
Product Description
The MechMaxx 11" x 30" Metal Lathe (Model 1130V) is a powerful benchtop machining solution designed for fabrication shops, repair facilities, and serious workshop environments. Equipped with a 2 HP brushless motor and a variable spindle speed range of 0–2000 RPM, this machine delivers smooth and reliable performance for a wide range of metalworking operations.
The lathe features a large 1.5" spindle bore and a rigid one-piece spindle design, providing increased stability and improved machining accuracy compared to traditional two-piece spindle systems. With a swing over bed of 11-2/5" and 29-1/2" distance between centers, the machine offers the capacity required for small-to-medium machining projects.
Built with a heavy-duty cast iron frame and a wide 7" bed, the 1130V provides excellent rigidity and vibration resistance during operation. Automatic longitudinal and cross feed systems help produce consistent surface finishes, making this lathe ideal for turning, threading, facing, and precision machining applications.
Built for Precision Machining
This precision metal lathe is engineered to provide accuracy, stability, and versatility for demanding metalworking applications.

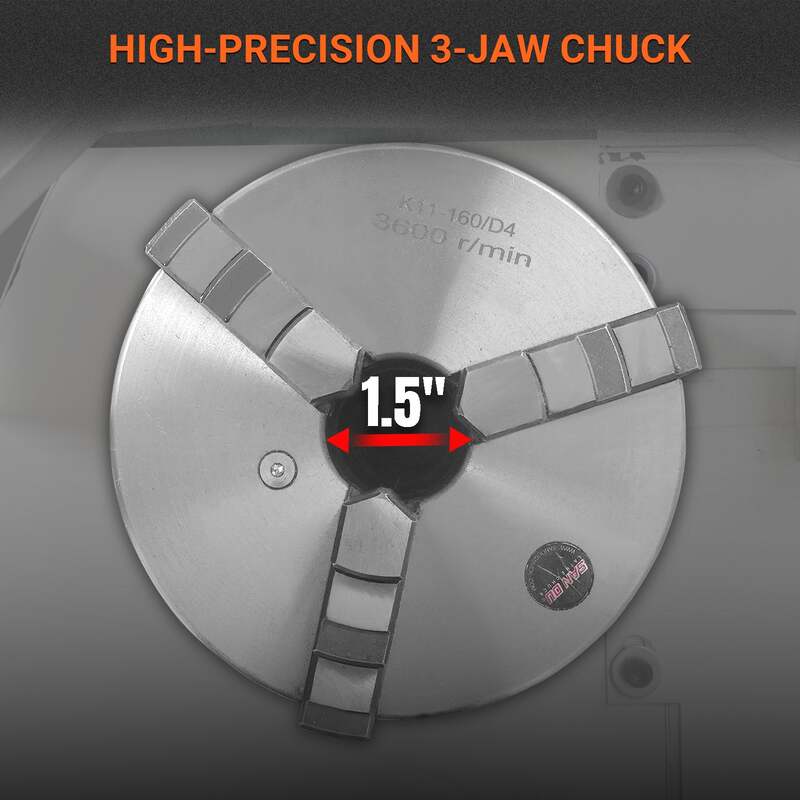

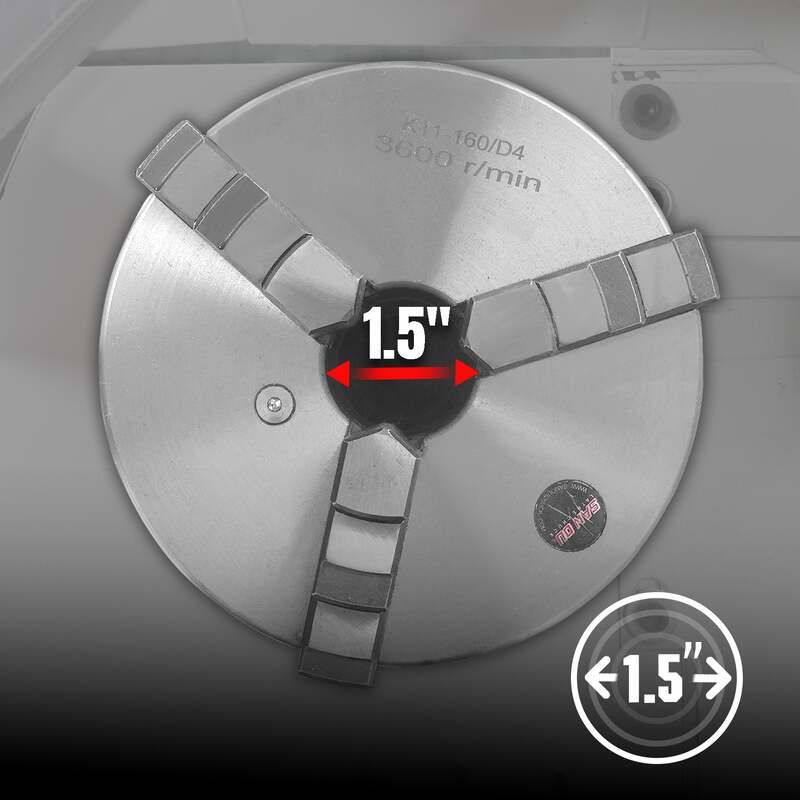

- Large 1.5" spindle bore for increased machining capacity
- Powerful 2 HP motor for consistent cutting performance

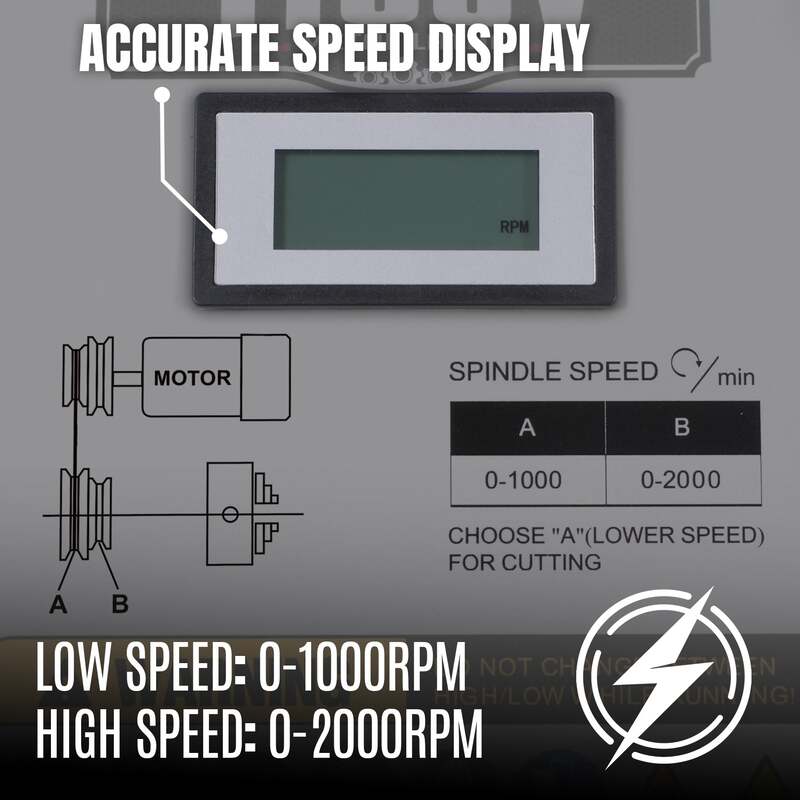

- Variable spindle speed control from 0–2000 RPM
- MT5 spindle taper for wide tooling compatibility

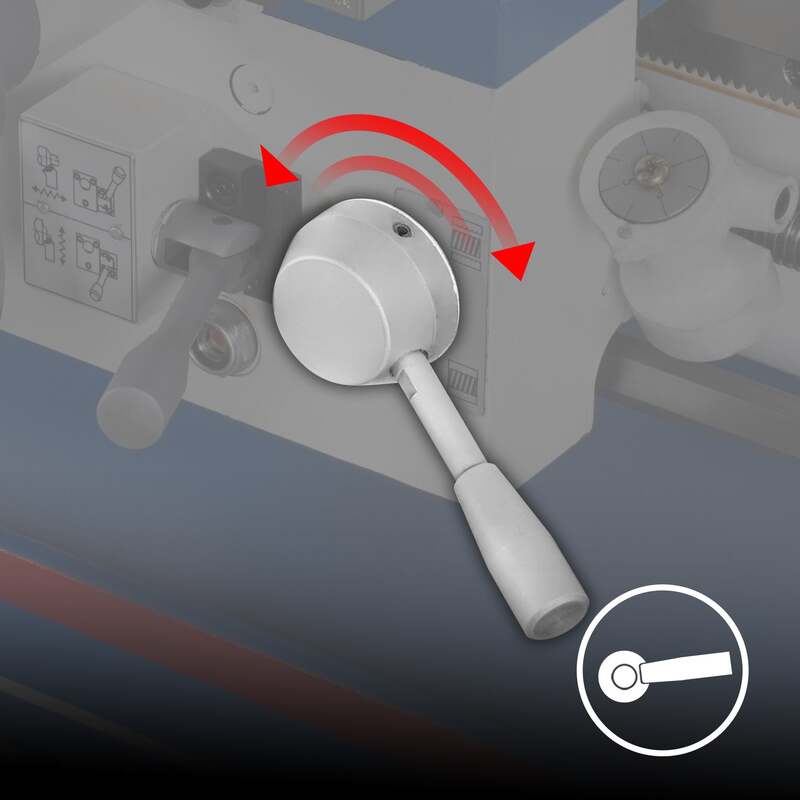

- Automatic longitudinal and cross feed for smooth cutting

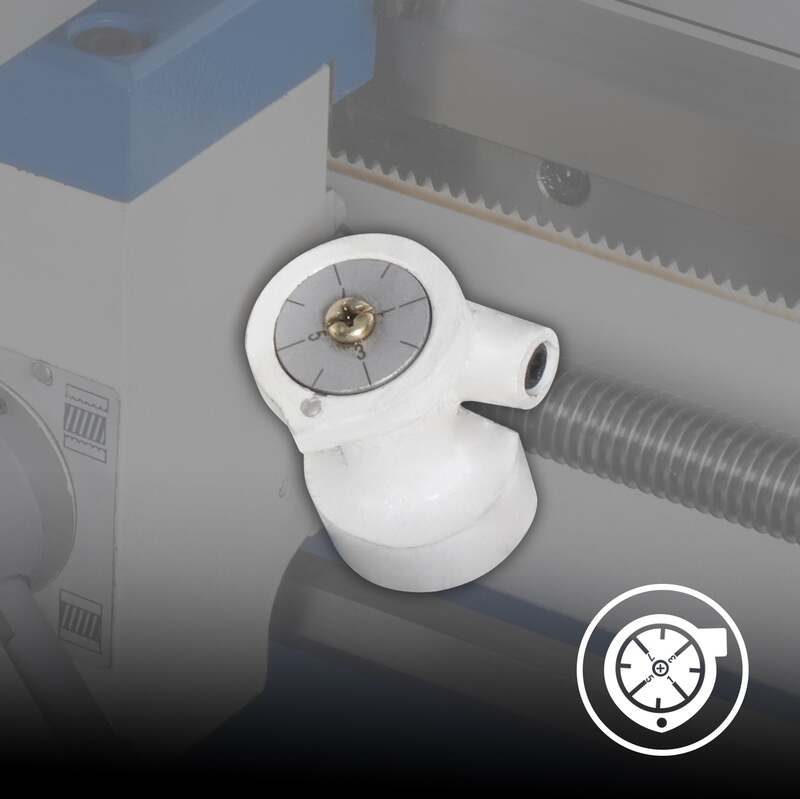

- Thread dial indicator for accurate threading operations

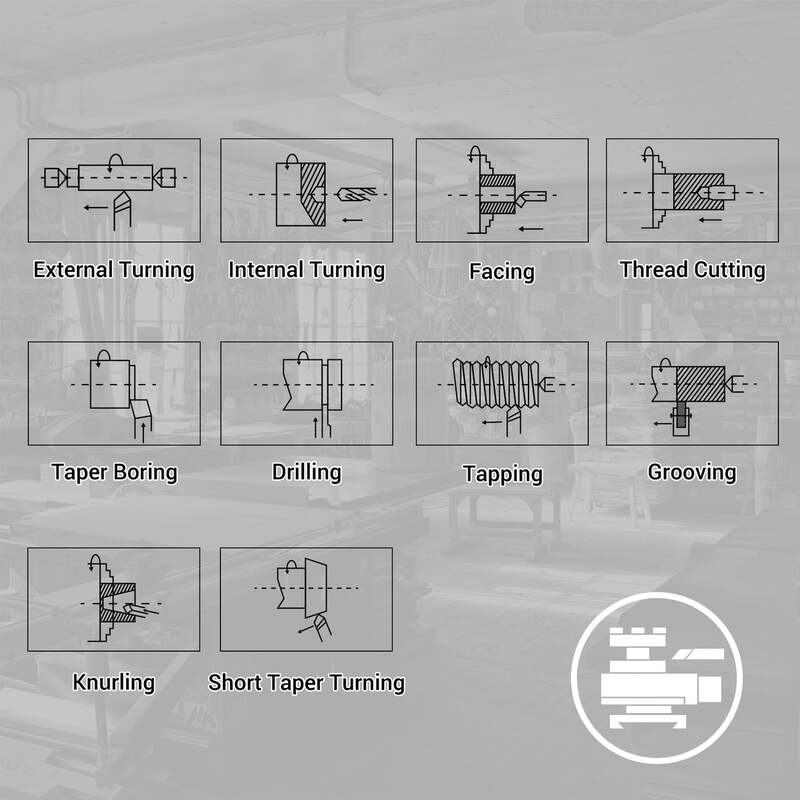

These features allow machinists to perform a wide range of turning, threading, and finishing operations with improved accuracy and repeatability.
Durable & Reliable Construction
The 1130V metal lathe is constructed with a heavy-duty cast iron bed and precision components designed to withstand demanding machining operations. The rigid structure minimizes vibration while maintaining cutting accuracy.
- Heavy-duty cast iron construction for rigidity

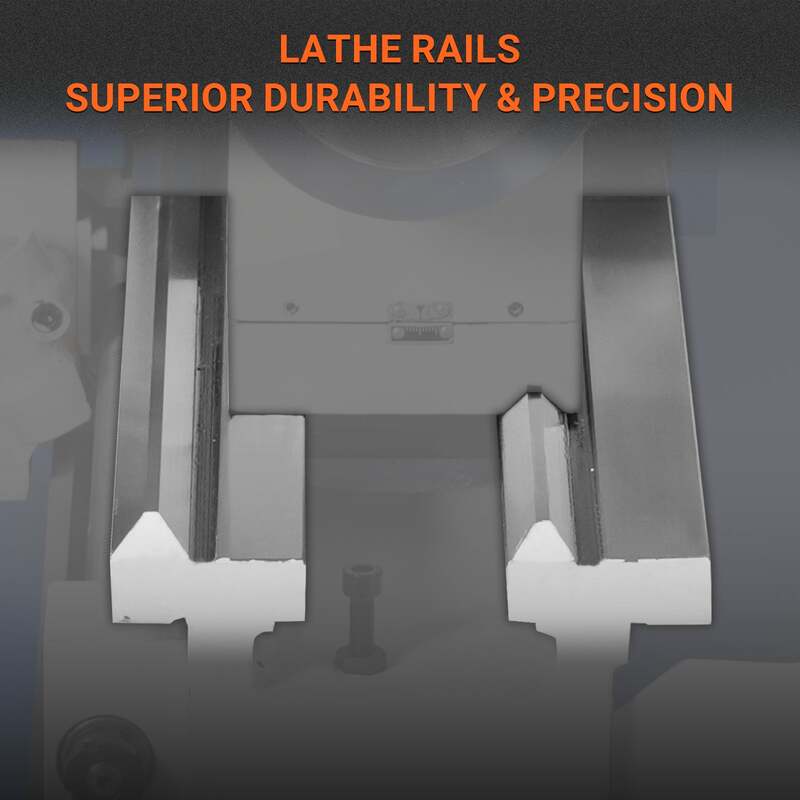

- Wide 7" bed for improved stability
- One-piece spindle design for higher precision

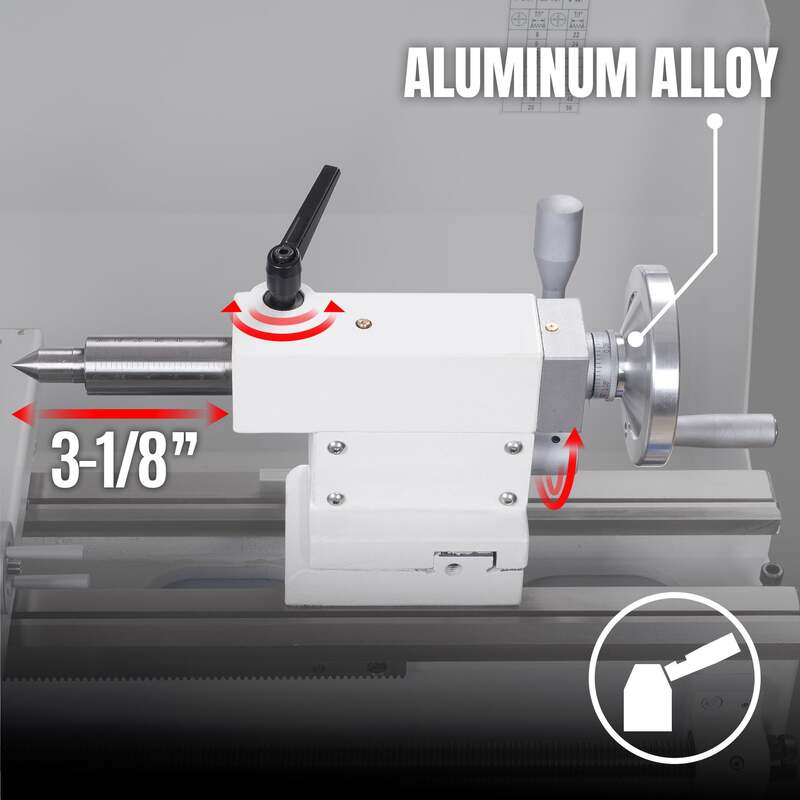

- Quick-lock tailstock for fast adjustments

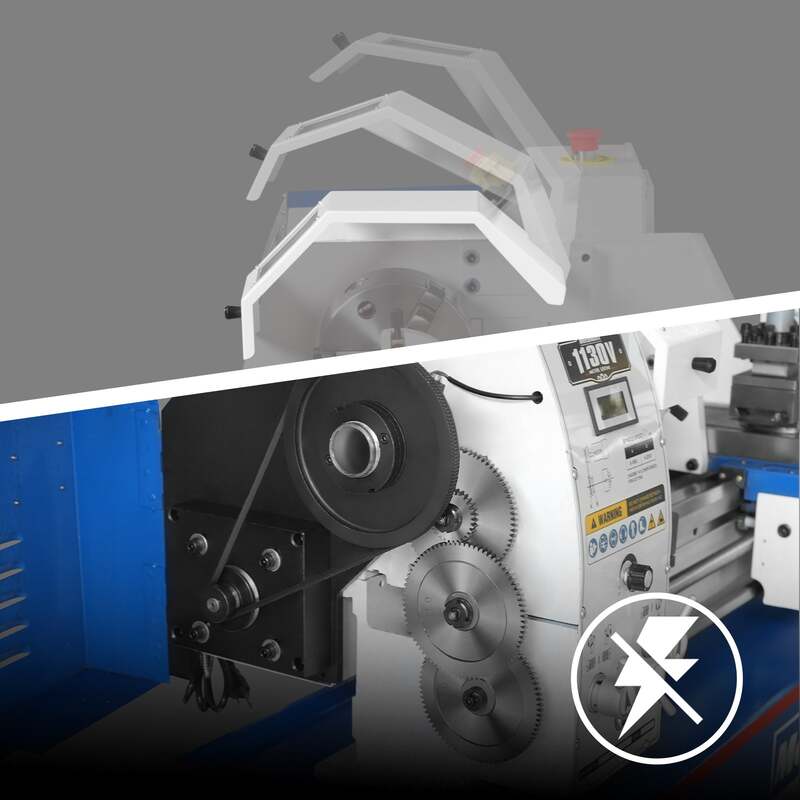

- Integrated safety system with automatic power disconnect
This robust design ensures long-term durability and reliable performance in professional workshops and fabrication environments.
Technical Specifications
- Motor: 2 HP, 110V, Single Phase
- Swing Over Bed: 11-2/5" (290 mm)
- Swing Over Cross Slide: 7-1/4" (185 mm)
- Swing Over Saddle: 5-3/4" (147 mm)
- Distance Between Centers: 29-1/2" (750 mm)
- Bed Width: 7" (180 mm)
- Spindle Bore: 1-1/2" (38 mm)
- Spindle Taper: MT5
- Spindle Mount: D1-4
- Tailstock Taper: MT3
- Tailstock Travel: 3-1/8" (85 mm)

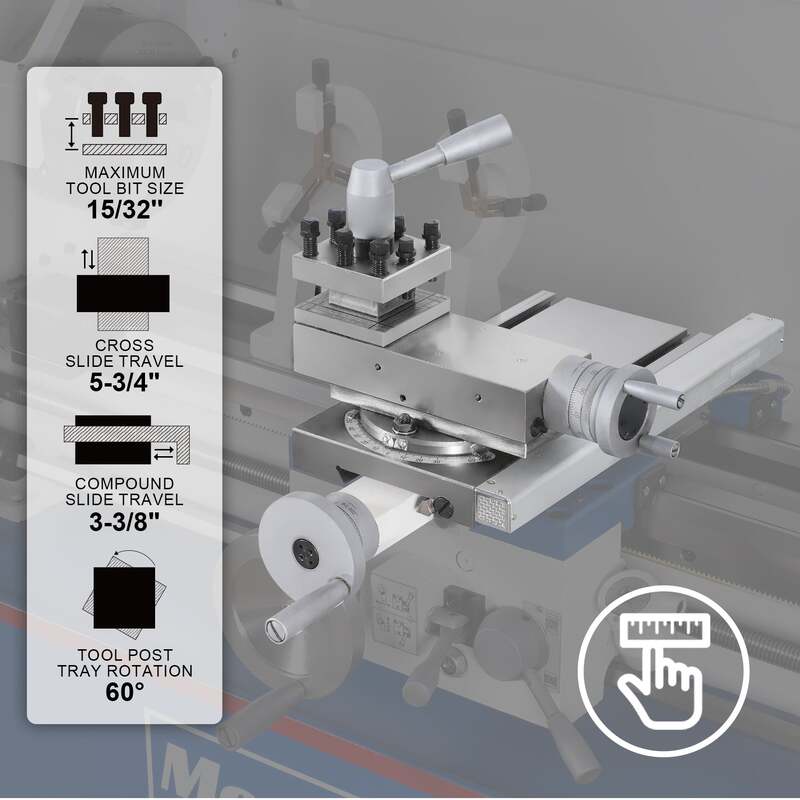

- Cross Slide Travel: 5-3/4" (147 mm)
- Compound Slide Travel: 3-3/8" (86 mm)
- Carriage Travel: 27-1/2" (700 mm)

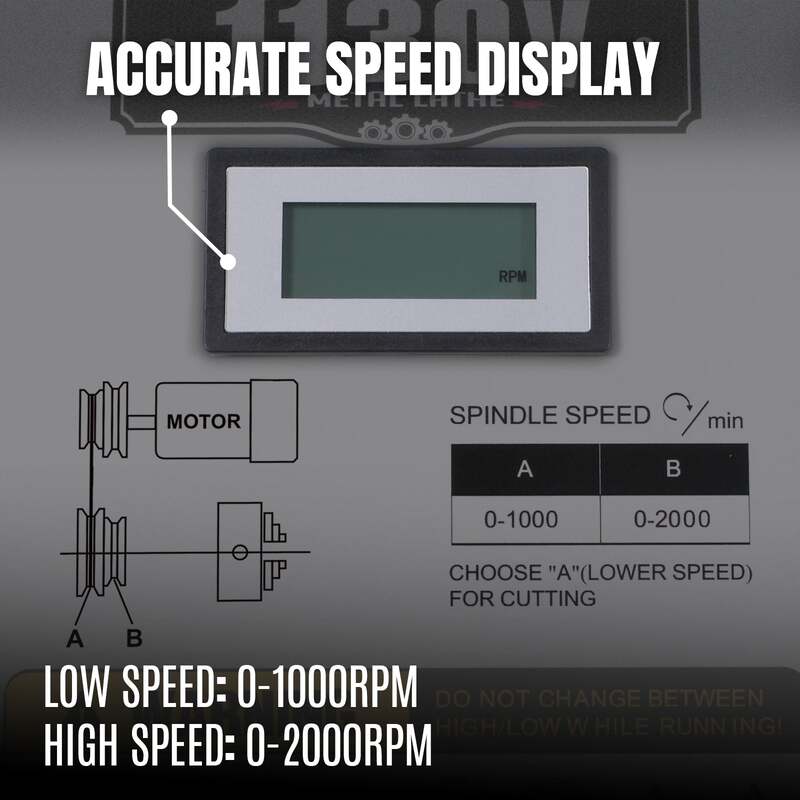

- Spindle Speed Range: 0–2000 RPM
- Leadscrew Pitch: 20 mm (8 TPI)
- Inch Threading: 8–56 TPI
- Metric Threading: 0.4–3.5 mm
- Maximum Tool Bit Size: 15/32"
- Machine Dimensions: 59" × 31" × 30"
- Net Weight: 517 lbs
- Gross Weight: 572 lbs
