10" × 30" Variable Speed Metal Lathe with DRO – 1.5 HP Precision Benchtop Lathe (Model 1030VD)
Product Description

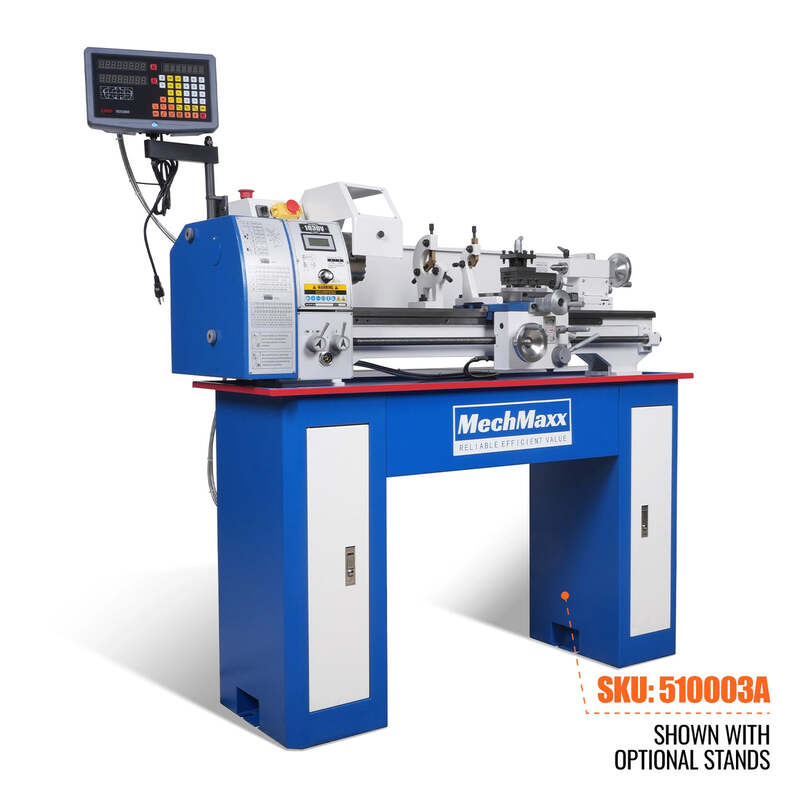

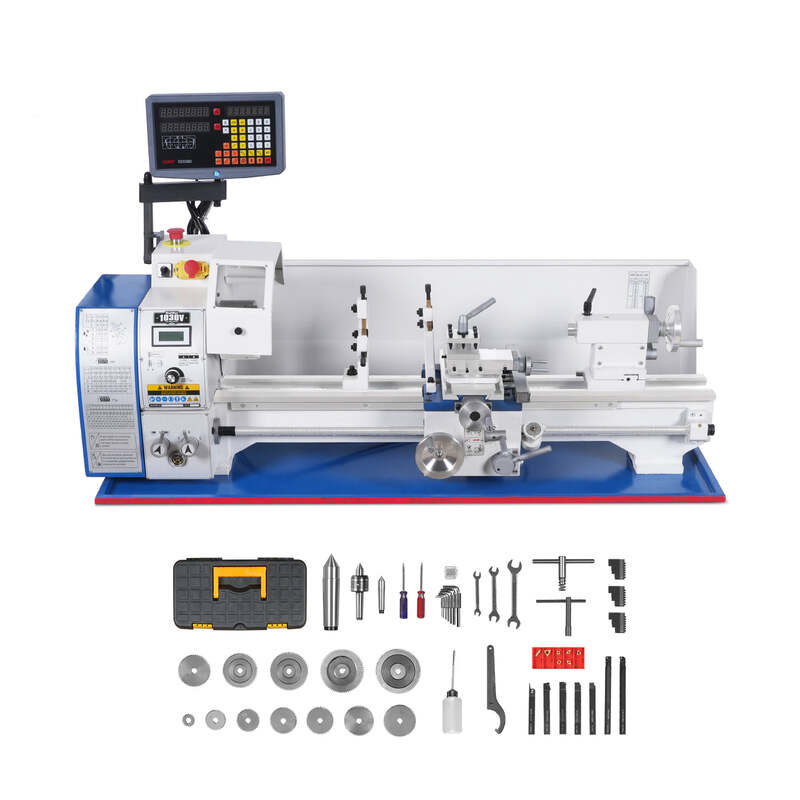

The 10" × 30" Variable Speed Metal Lathe with DRO (Model 1030VD) is a powerful and versatile benchtop metalworking machine designed for precision machining in fabrication shops, repair facilities, garages, and professional workshops. With a 1.5 HP motor and variable spindle speed control from 0–2000 RPM, this lathe delivers smooth cutting performance across a wide range of materials.

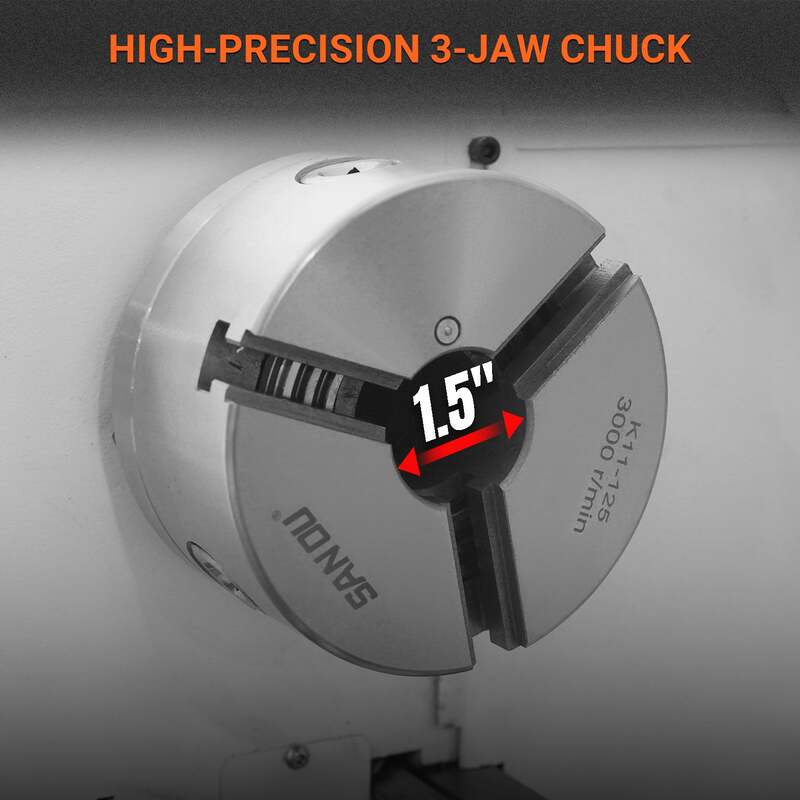

One of the standout features of this machine is its large 1.5" spindle bore, allowing it to handle thicker bar stock and larger workpieces than many lathes in its class. Combined with a precision MT5 spindle taper and high-quality 5" three-jaw chuck, the machine provides excellent concentricity and stable workholding for demanding machining tasks.
The integrated dual-axis digital readout (DRO) allows operators to monitor longitudinal and cross slide movements with real-time position feedback, improving accuracy and reducing setup time. With automatic feed in both longitudinal and cross directions, hardened components, and rigid cast iron construction, the 1030VD metal lathe delivers consistent performance for turning, threading, facing, and detailed metalworking operations.
Built for Precision Machining
This lathe is designed to provide excellent control and accuracy for a wide range of metalworking operations.
• Large 1.5" spindle bore for handling thicker bar stock

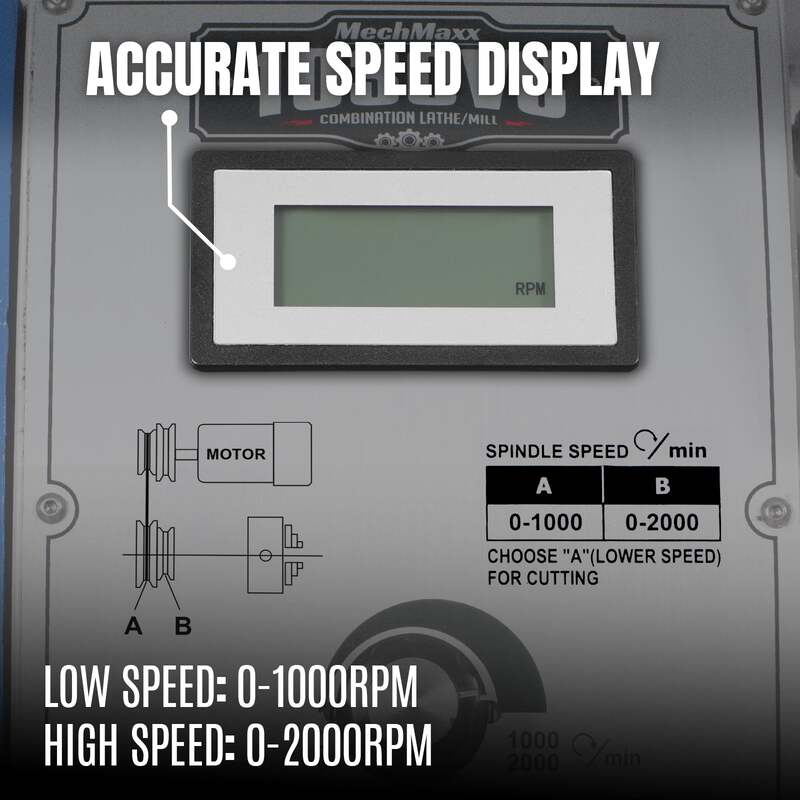

• Variable spindle speed 0–2000 RPM for flexible machining

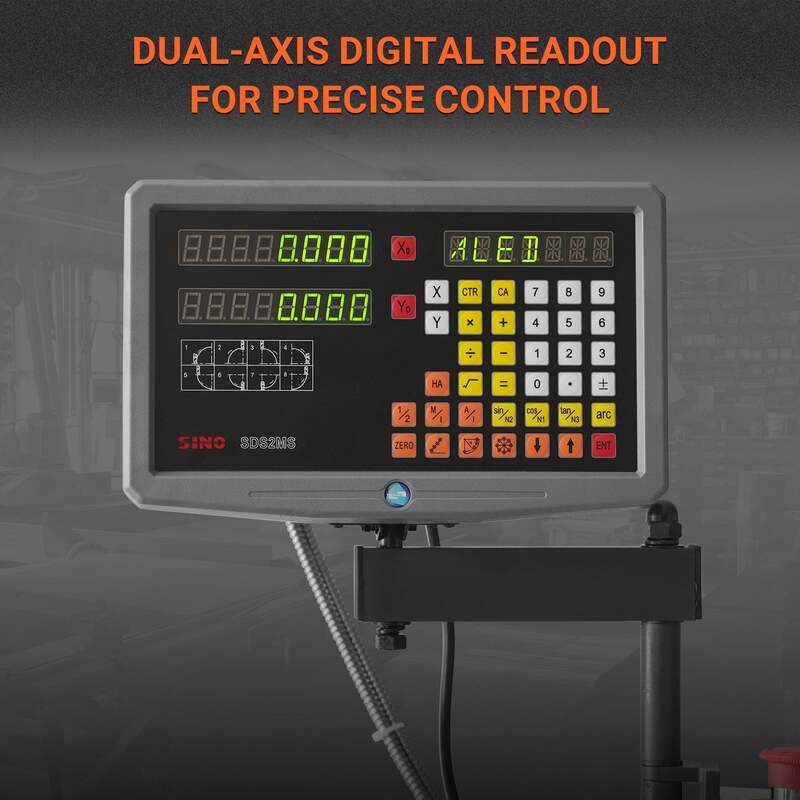

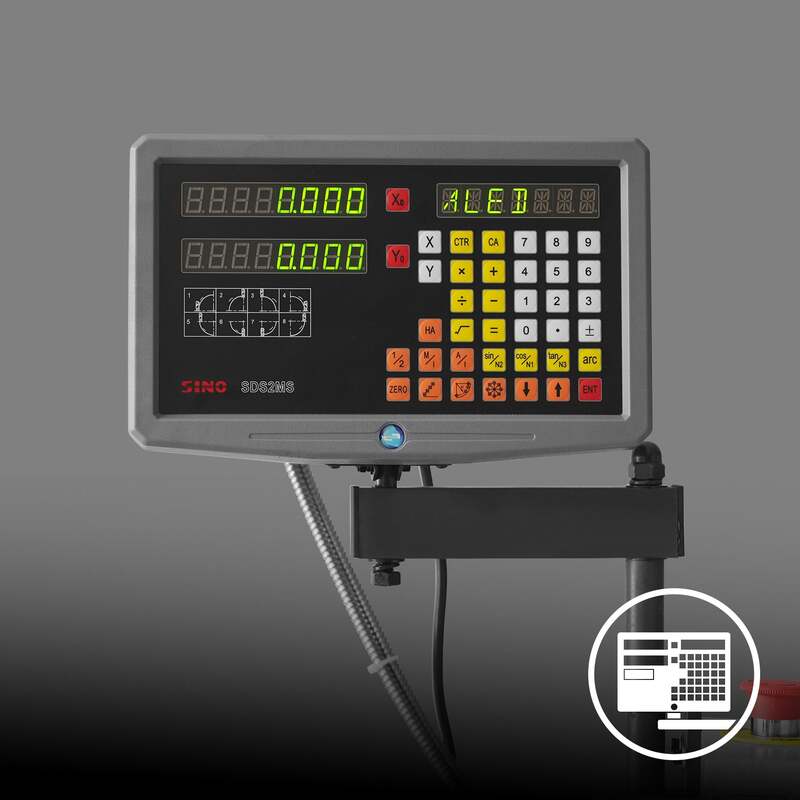

• Dual-axis Digital Readout (DRO) for precise positioning

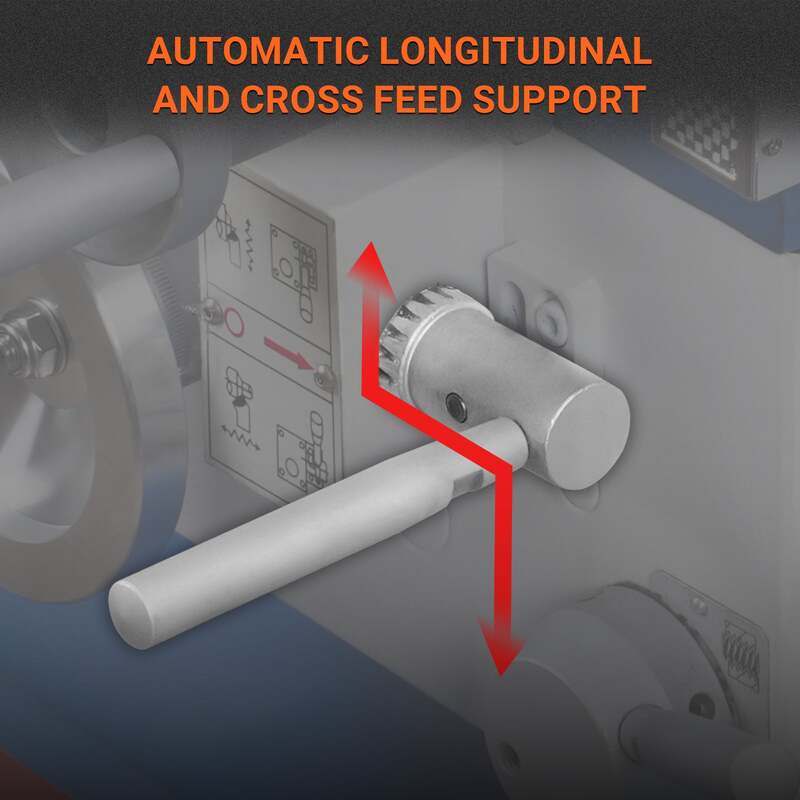

• Automatic longitudinal and cross feed for smooth cutting operations

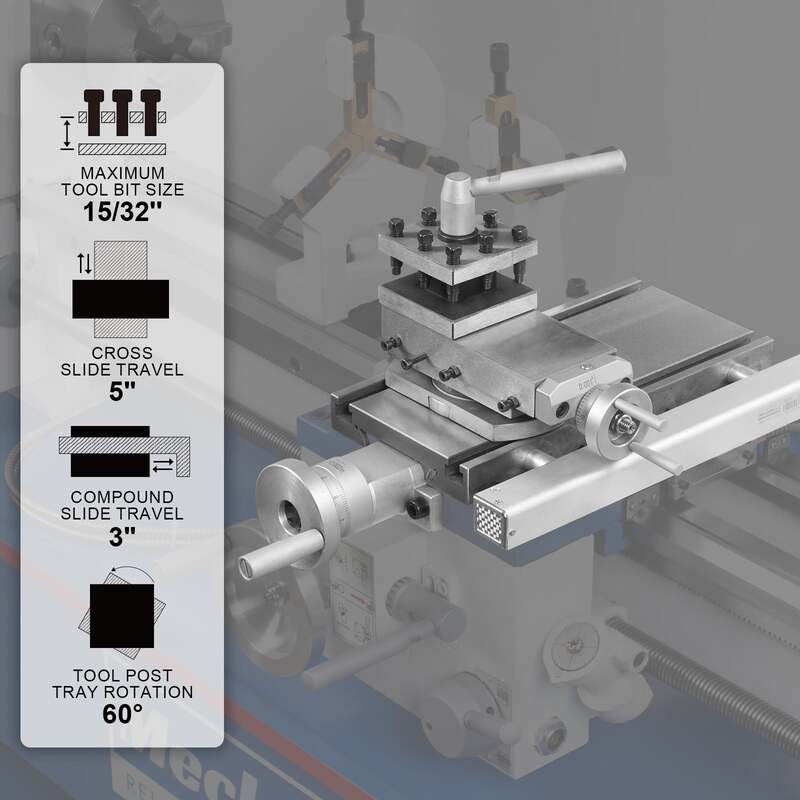

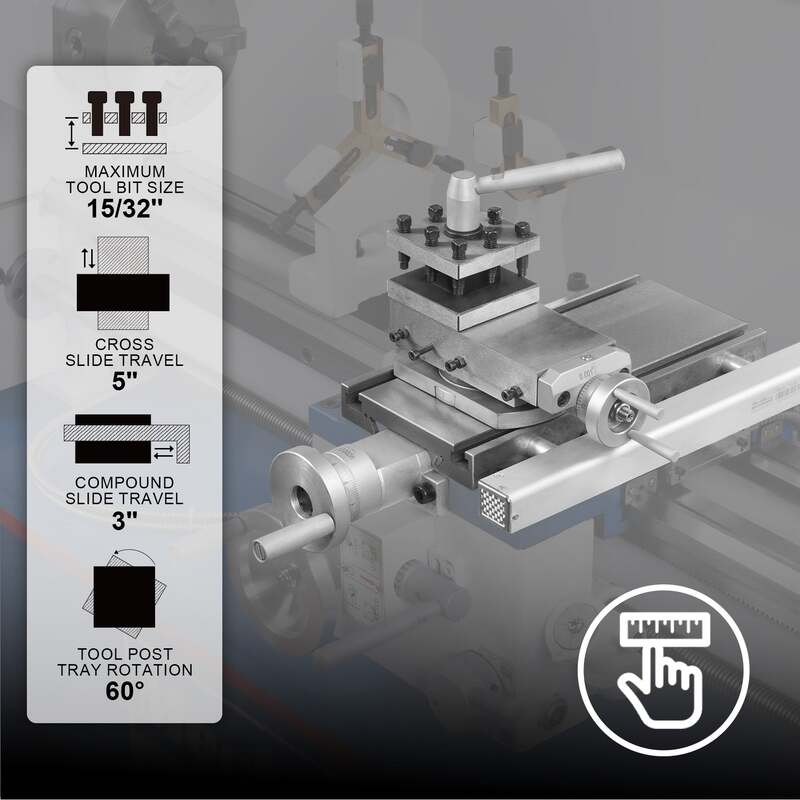

• Precision tool post with 60° rotation capability

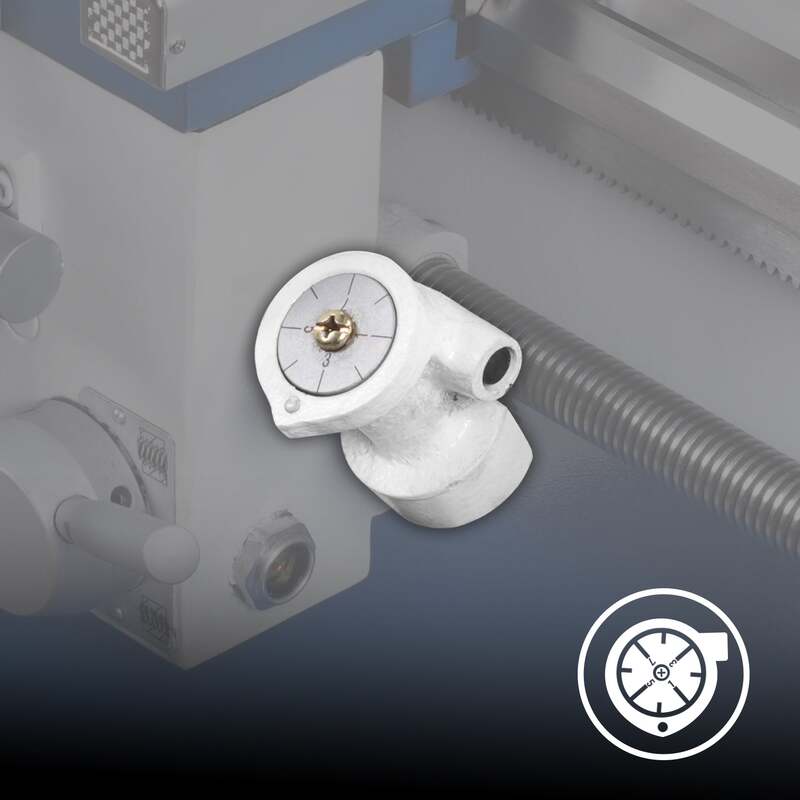

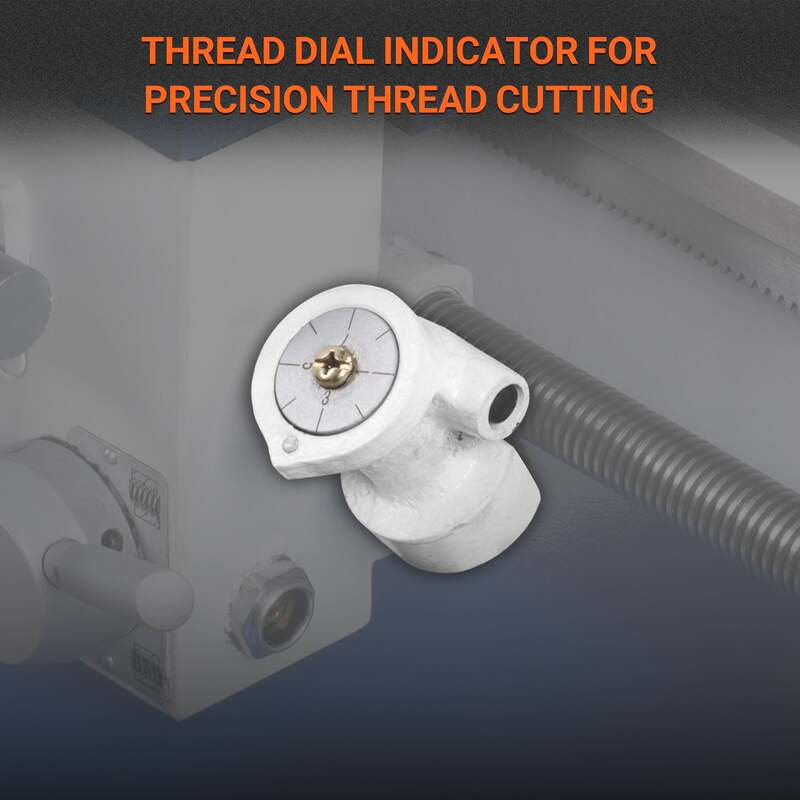

• Thread dial indicator for accurate thread cutting
These features allow machinists to achieve consistent surface finishes and precise machining results.
Durable & Reliable Construction
The machine is built with a rigid cast iron structure designed to minimize vibration and maintain accuracy over time.

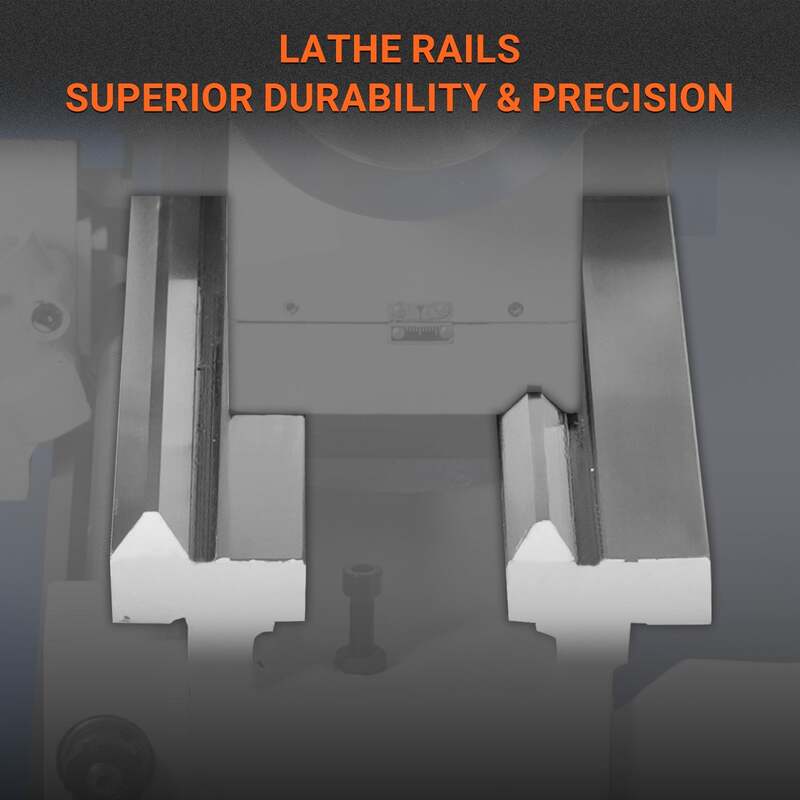

• Heavy-duty quench-hardened cast iron bed for strength and rigidity
• Stable machine weight for improved cutting stability

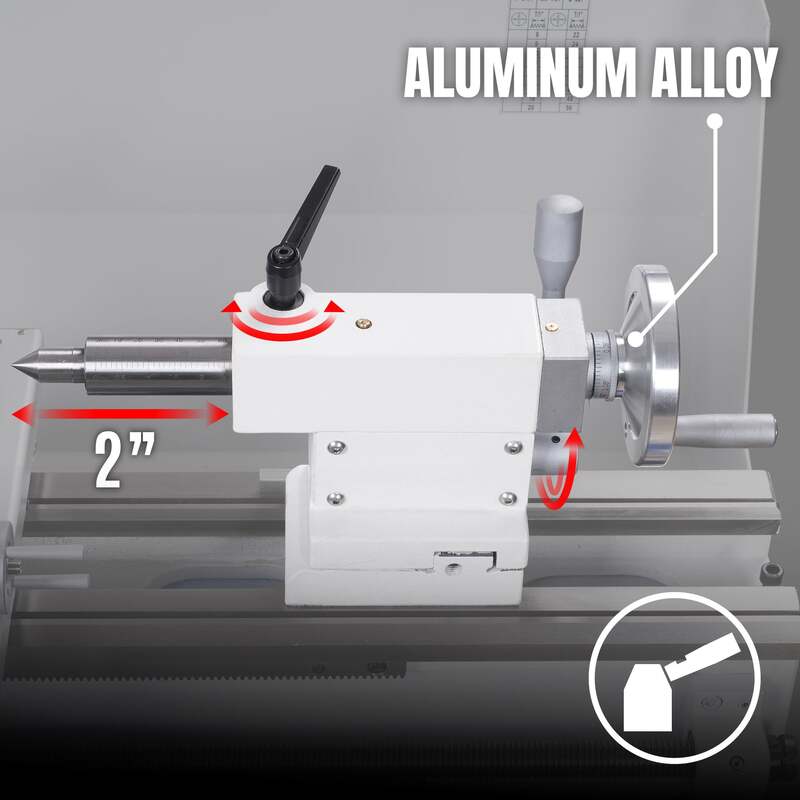

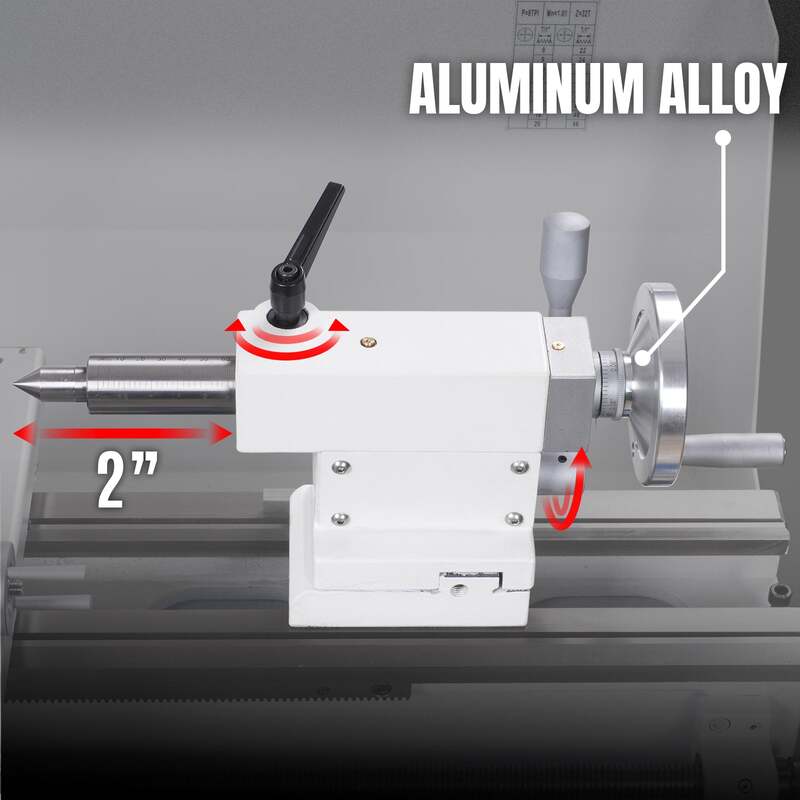

• Quick-lock tailstock for fast adjustments

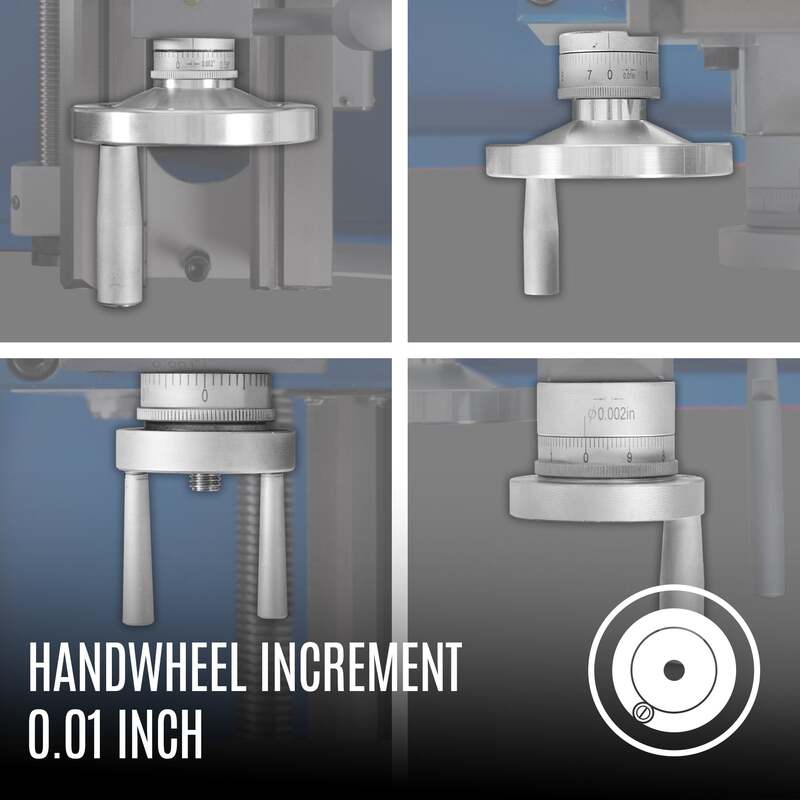

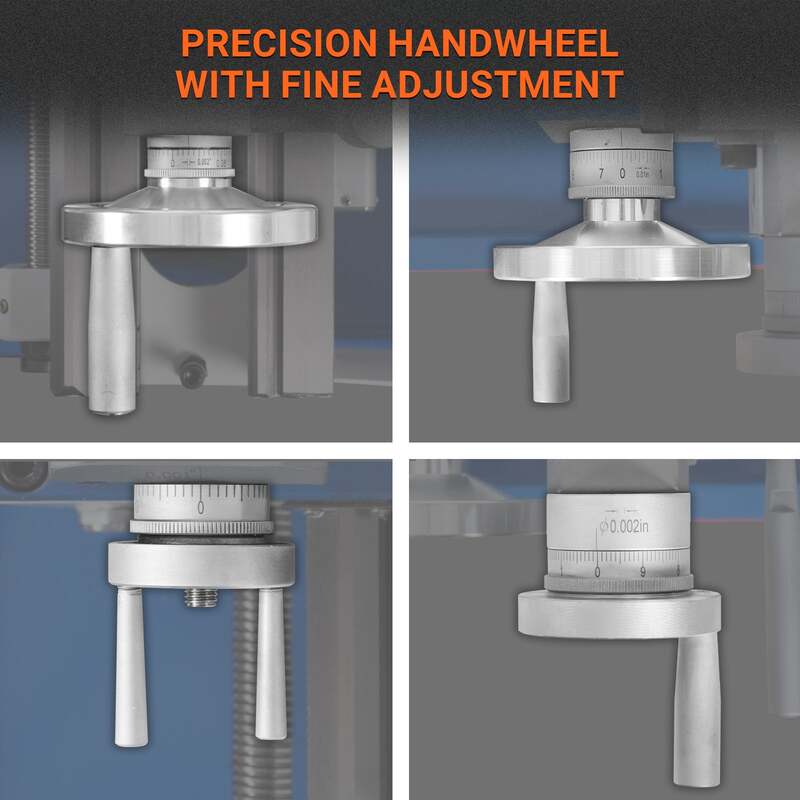

• Precision handwheels for accurate feed control

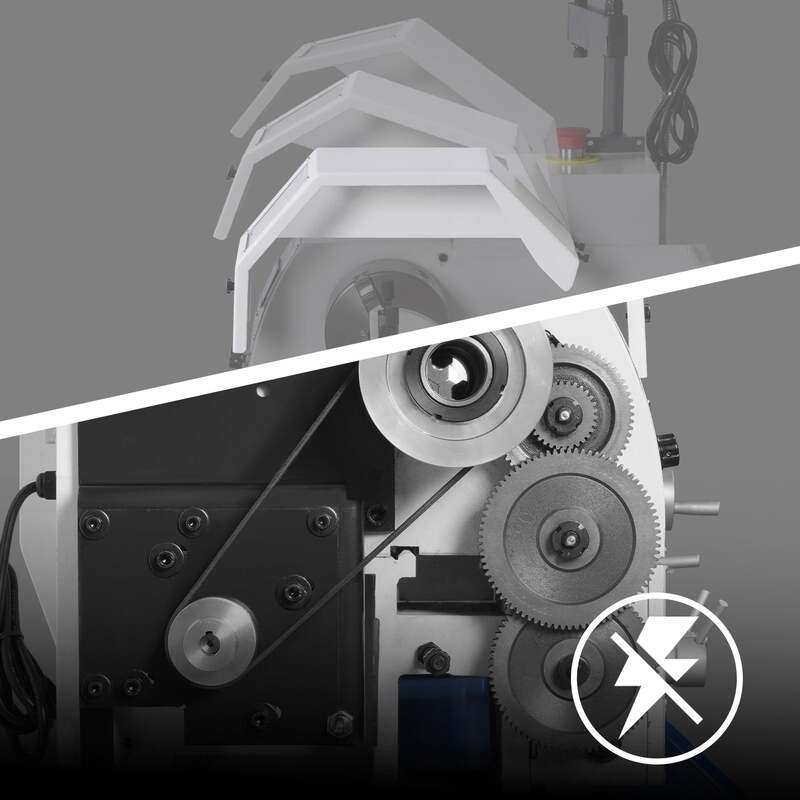

• Built-in safety system with automatic power cut-off when guards are opened
This robust construction ensures reliable operation even during demanding machining tasks.
Technical Specifications
Motor & Power
Motor: 1.5 HP
Voltage: 110V Single Phase
Current: 10A
Frequency: 60Hz
Machine Capacity
Swing Over Bed: 9-7/8" (250 mm)
Swing Over Cross Slide: 5-1/2" (140 mm)
Swing Over Saddle: 5" (127 mm)
Distance Between Centers: 29-1/2" (750 mm)
Bed Width: 5-1/2" (140 mm)
Spindle & Tailstock
Spindle Bore: 1-1/2" (38 mm)
Spindle Type: One-Piece Spindle
Spindle Mount: Intrinsic Back Plate
Spindle Taper: MT5
Tailstock Taper: MT2
Tailstock Quill Travel: 3" (75 mm)
Travel
Cross Slide Travel: 5" (127 mm)
Compound Slide Travel: 3" (75 mm)
Carriage Travel: 27-1/2" (700 mm)
Speed & Feed

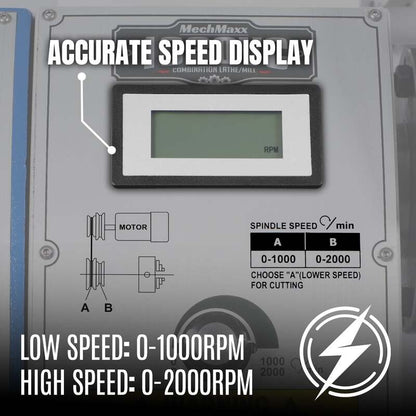

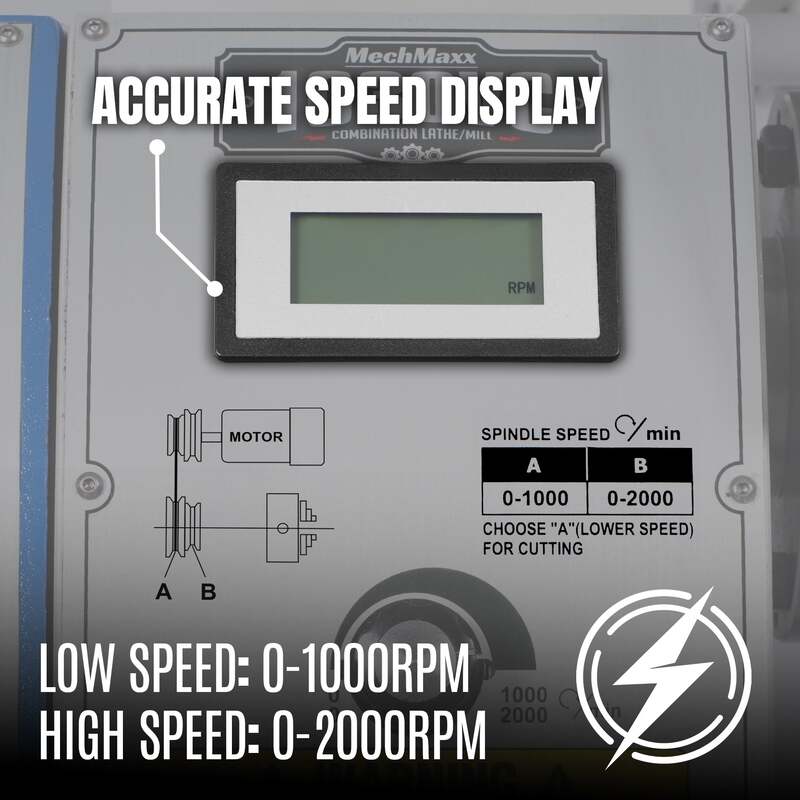

Spindle Speed Range: 0–2000 RPM
Speed Control: Variable
Longitudinal Feed: 0.0025 – 0.014 in./rev
Transverse Feed: 0.0014 – 0.004 in./rev
Threading Capacity
Leadscrew Size & Pitch: 20 mm (8 TPI)
Inch Threading: 8–80 TPI (37 kinds)
Metric Threading: 0.35 – 3.0 mm (21 kinds)
Additional Specifications

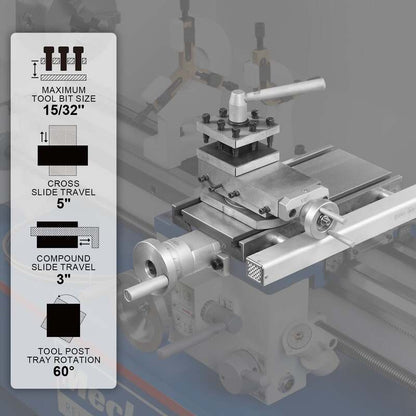

Maximum Tool Bit Size: 15/32" (12 mm)
Thread Dial Indicator: Yes
Overall Dimensions:
52" × 25" × 19" (1320 × 635 × 480 mm)
Approximate Shipping Weight:
399 lbs (181 kg)
