MechMaxx 500005 10" x 30" Variable Speed Metal Lathe – 1.5HP Brushless Motor, 1.5" Spindle Bore

MechMaxx 500005 10" x 30" Variable Speed Metal Lathe – 1.5HP Brushless Motor, 1.5" Spindle Bore

$2,799.00 USD
$2,799.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Secure Payments
  • Simple Returns
  • Free Lift Gate

Shipping

Shipping Information

Processing & Delivery
Orders are processed within 1–5 business days. Most deliveries arrive within 6–12 business days, depending on the product and shipping method. Freight carriers typically contact customers by phone to schedule delivery.

Shipping Costs
We offer free shipping on select products within the continental United States. Shipping options and any applicable delivery charges are shown at checkout before purchase.

Freight Shipping
Large equipment, such as vehicle lifts and heavy machinery, ships via freight carriers due to size and weight.

Delivery Requirements
Some items require a commercial delivery location with a forklift or loading dock for unloading. Residential deliveries may require liftgate service and may incur additional fees depending on the product and location.

Pickup Option
Customers may choose to have their order delivered to a nearby freight terminal for pickup.

More Information
For full details on shipping procedures, delivery requirements, and freight options, please view our full Shipping Policy.

Warranty

one-year warranty for machine.

Mechmaxx products stand up to extreme testing and come with a one-year warranty for machine.

We will repair or replace, at our discretion, any part returned to us and found to be defective through manufacturing within the first year of the original purchaser’s ownership (except consumable items like belts, blades, bearings and clutch). The engine is covered under warranty directly with the engine manufacturer.

warranty does not apply to normal wear, commercial or rental use, after-market modification or damages that occur from negligence, misuse, or use not in accordance with the operating and maintenance instructions, or the products intended uses. MechMaxx disclaims liability for any accidents, injury or damages to the equipment or personal property caused by the equipment when equipped with unauthorized parts, equipped with parts for unapproved purposes or modified in any other way. MechMaxx will at its discretion make the final decision regarding warranty eligibility.

10" x 30" Variable Speed Metal Lathe – High Precision Benchtop Metalworking Machine (Model 1030V)

Product Description

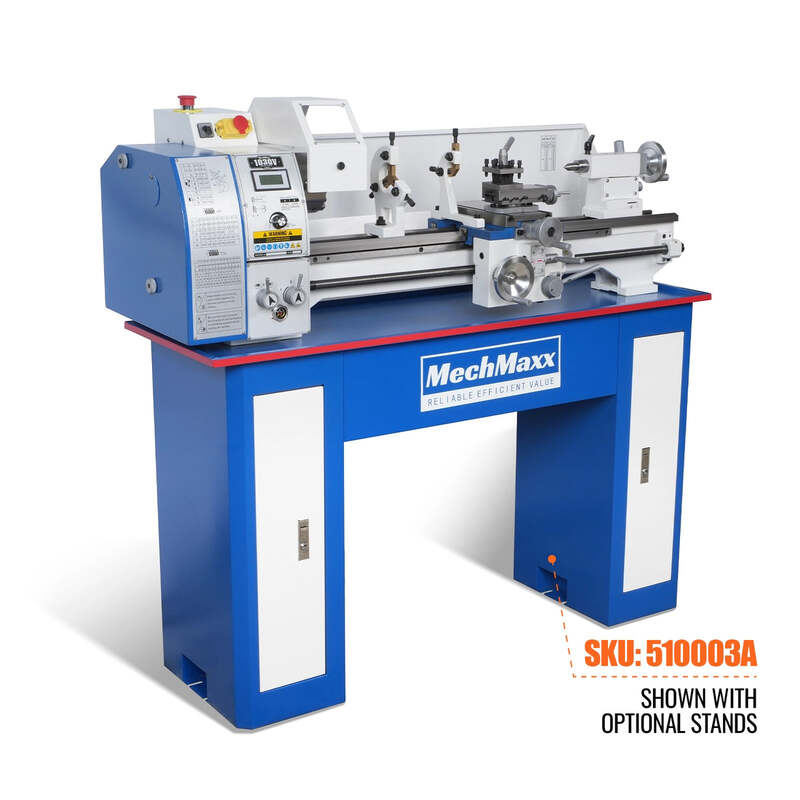

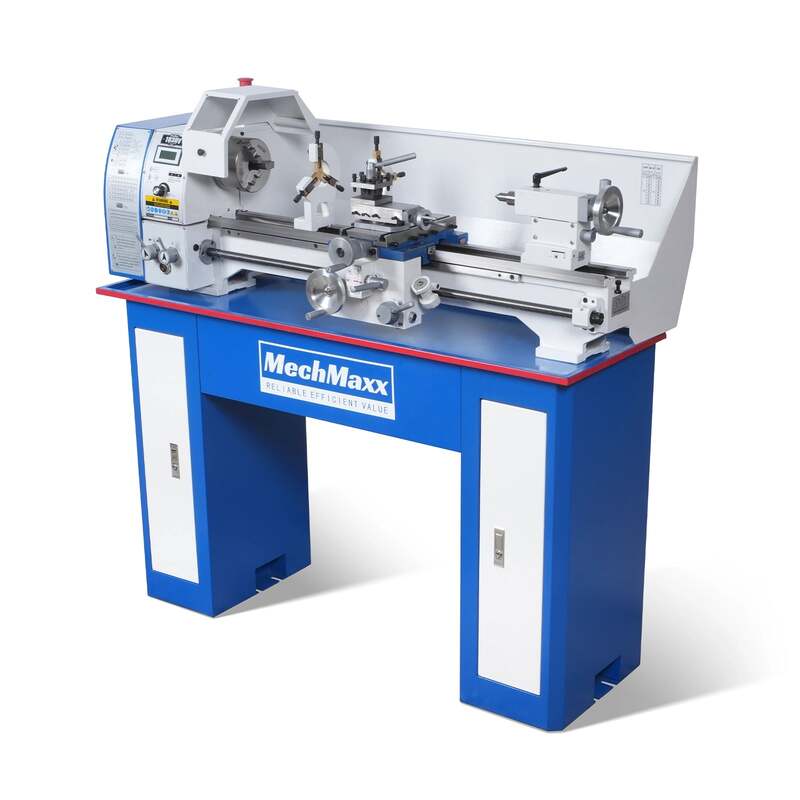

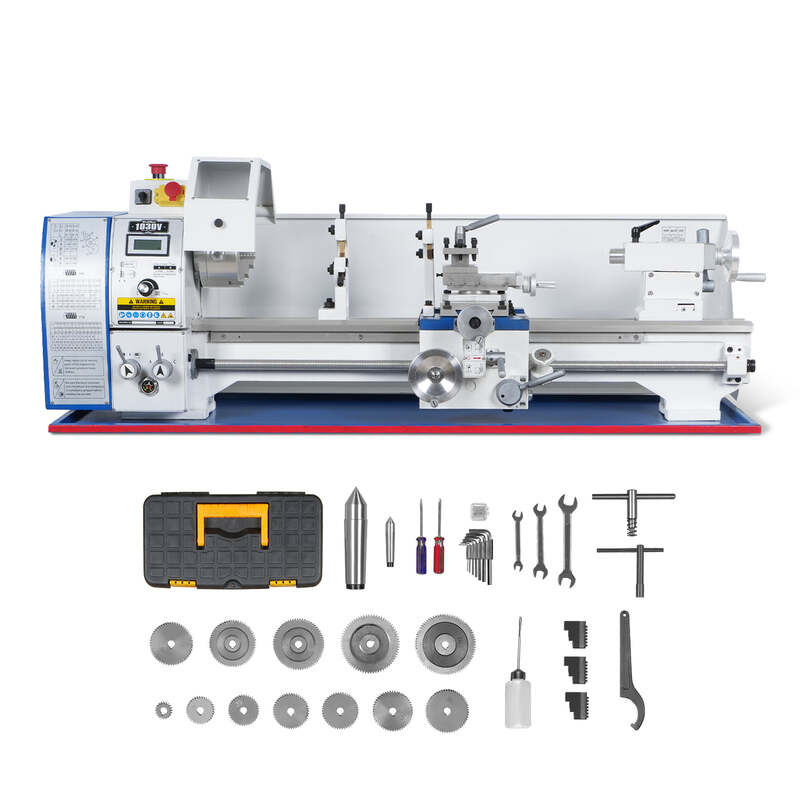

The MechMaxx 10" x 30" Metal Lathe (Model 1030V) is a powerful and precise benchtop metalworking machine designed for fabrication shops, repair facilities, and professional workshops. Featuring a 1.5 HP brushless motor and a variable spindle speed range of 0–2000 RPM, this lathe delivers smooth and reliable cutting performance across a wide range of materials.

The large 1.5" spindle bore allows operators to work with thicker bar stock than typical lathes in its class, while the MT5 spindle taper supports a wide variety of tooling options. With a swing over bed of 9-7/8" and 29-1/2" distance between centers, the machine provides the flexibility needed for small to medium-sized machining projects.

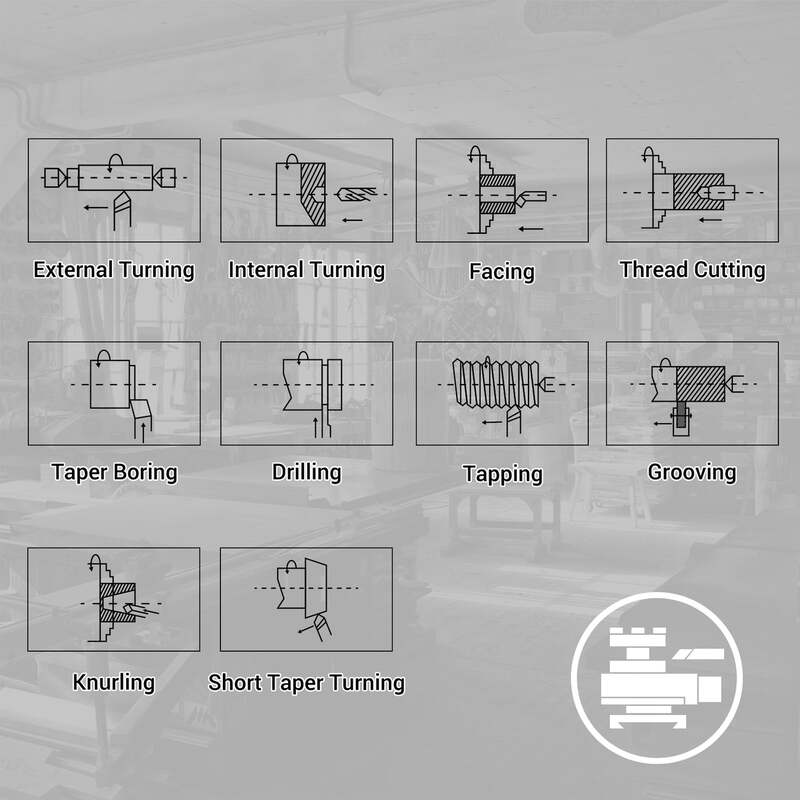

Constructed from heavy-duty cast iron with hardened V-guide rails, the 1030V provides excellent rigidity and vibration resistance during operation. Automatic longitudinal and cross feed systems help produce consistent surface finishes, making this lathe ideal for turning, threading, facing, and precision machining applications.

Built for Precision Machining

This precision metal lathe is designed to deliver accurate machining results and versatile performance for a wide range of metalworking tasks.

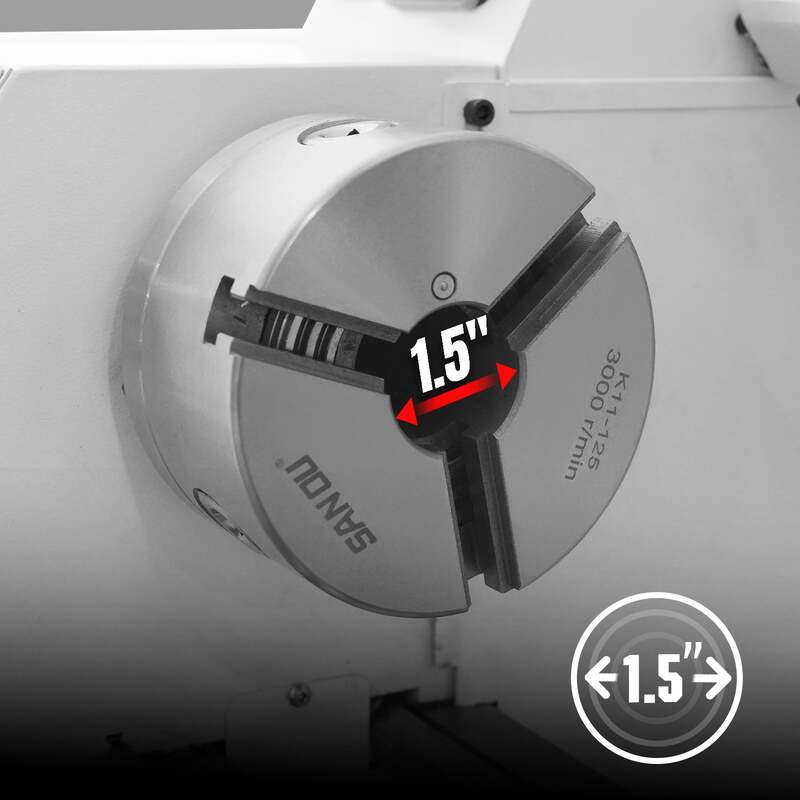

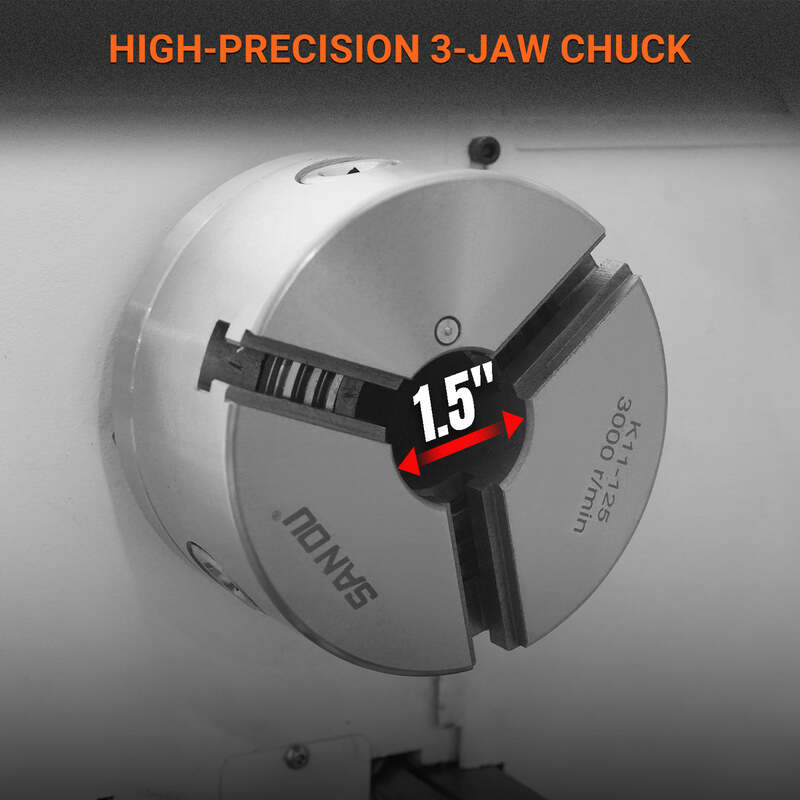

  • Large 1.5" spindle bore for handling thicker bar stock

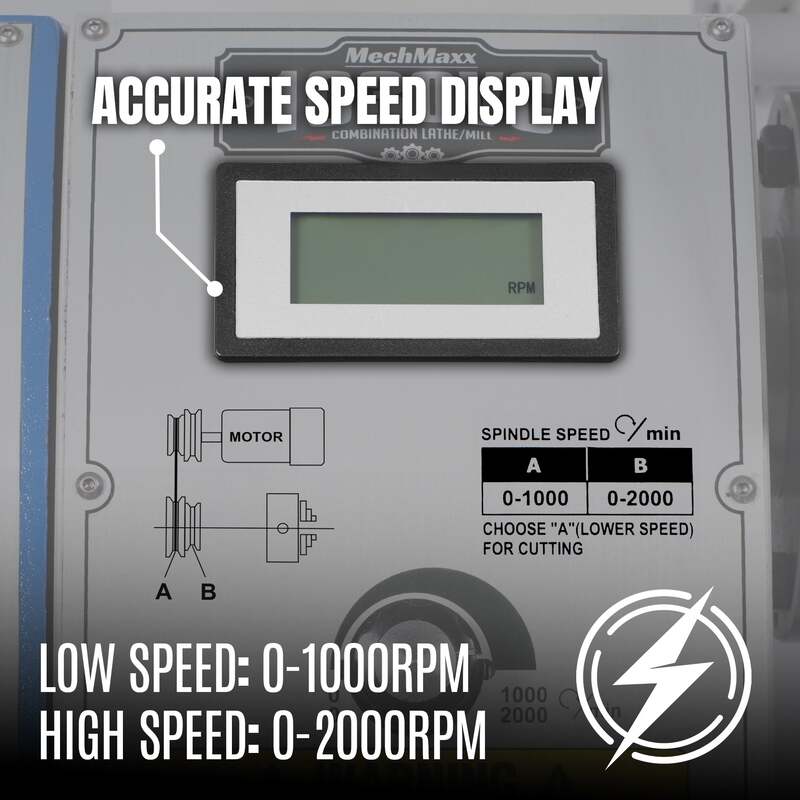

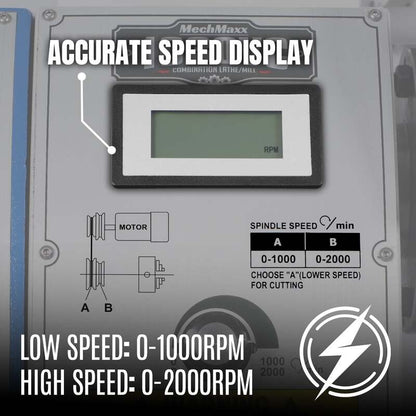

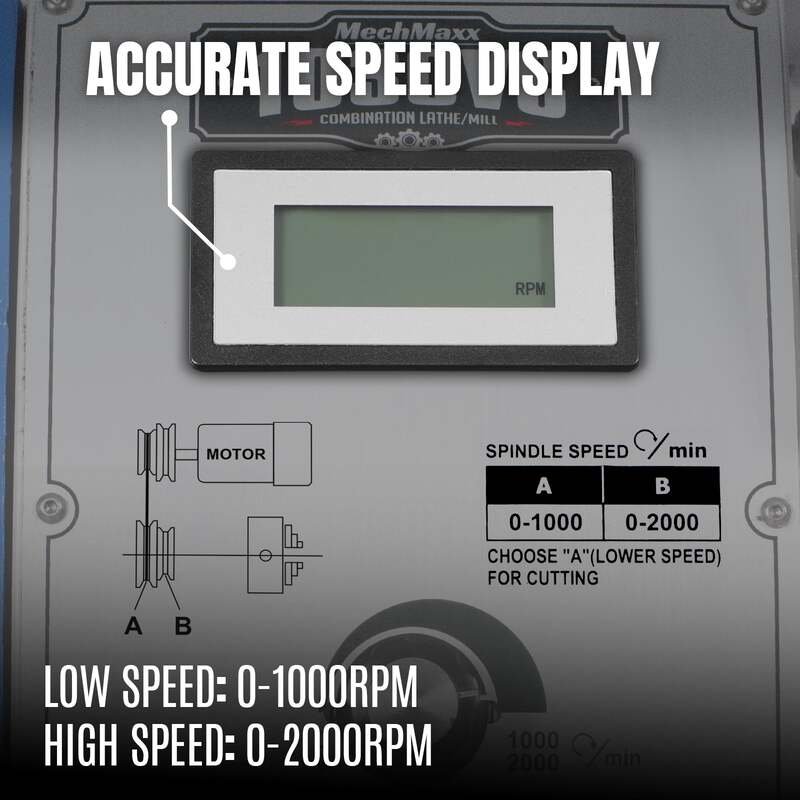

  • Variable spindle speed control from 0–2000 RPM
  • MT5 spindle taper for wide tooling compatibility

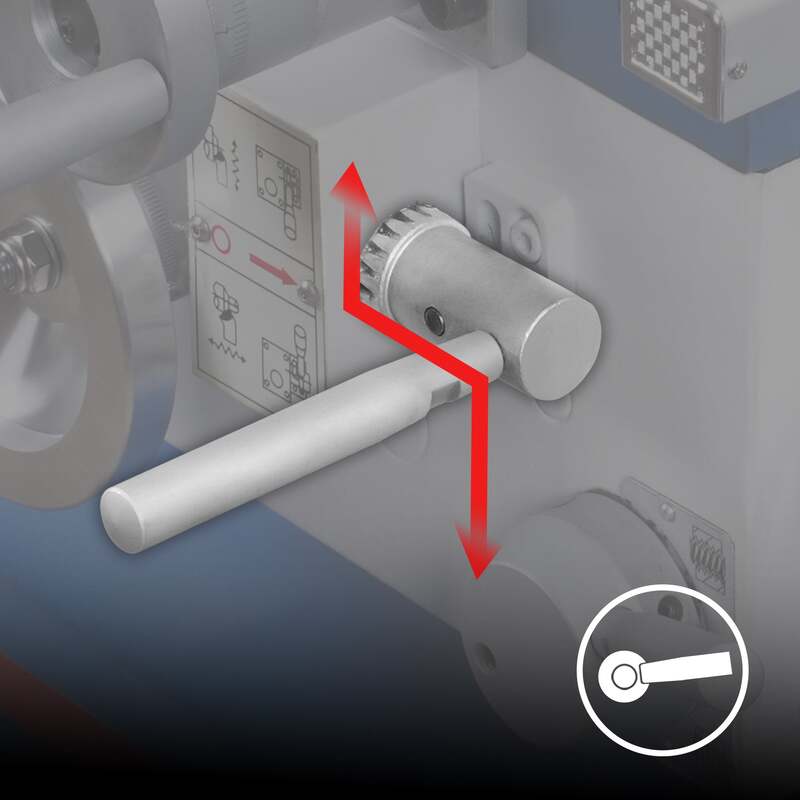

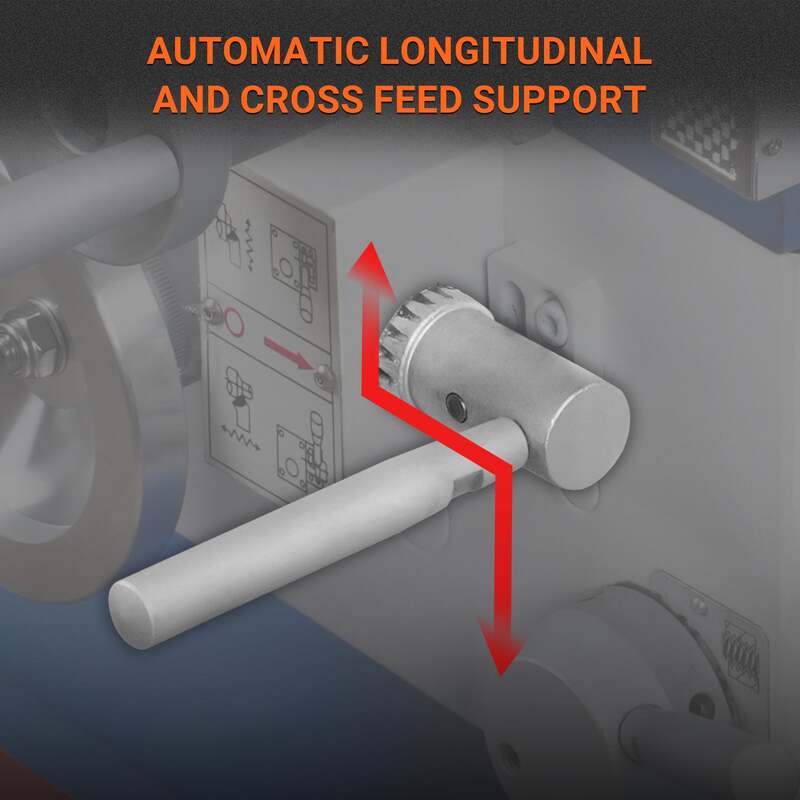

  • Automatic longitudinal and cross feed for smooth cutting

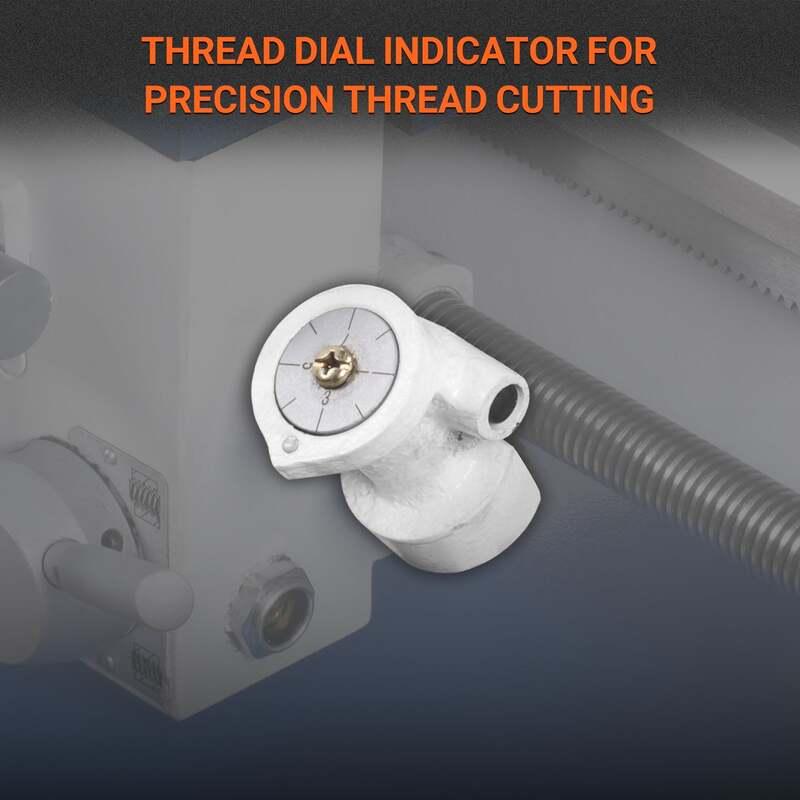

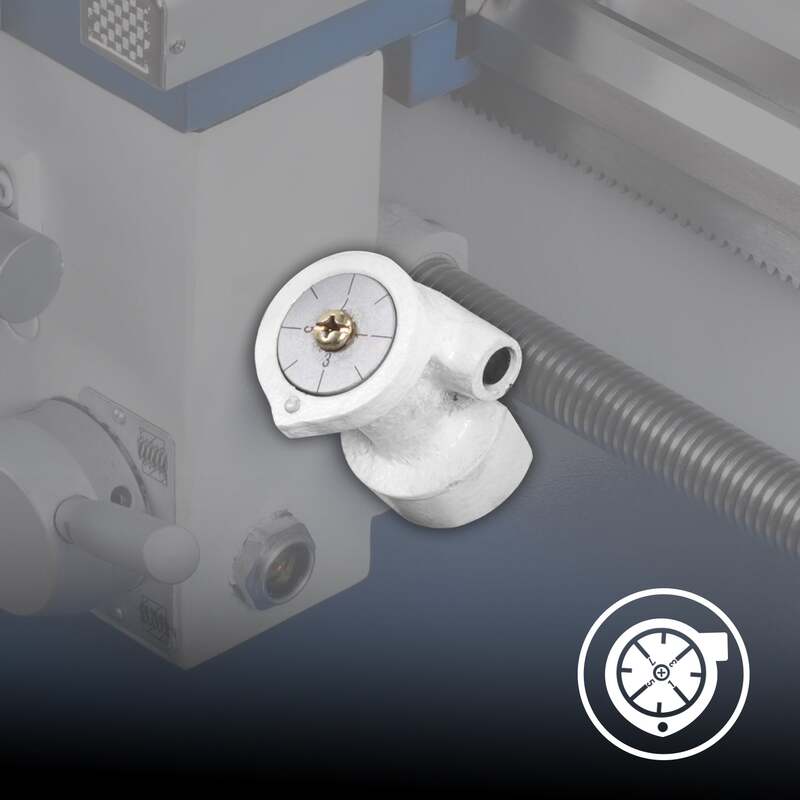

  • Thread dial indicator for accurate threading operations

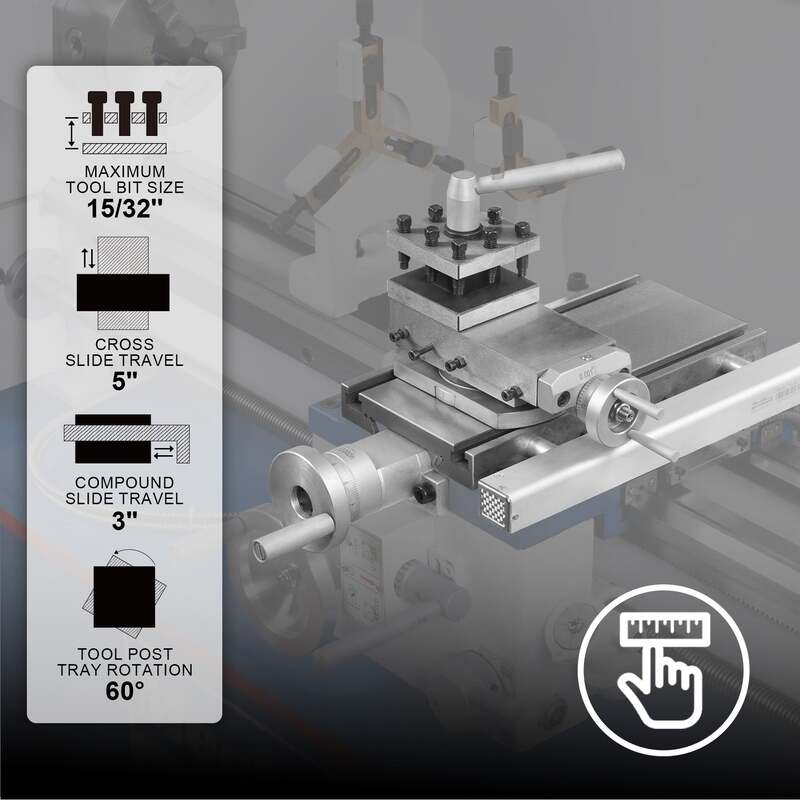

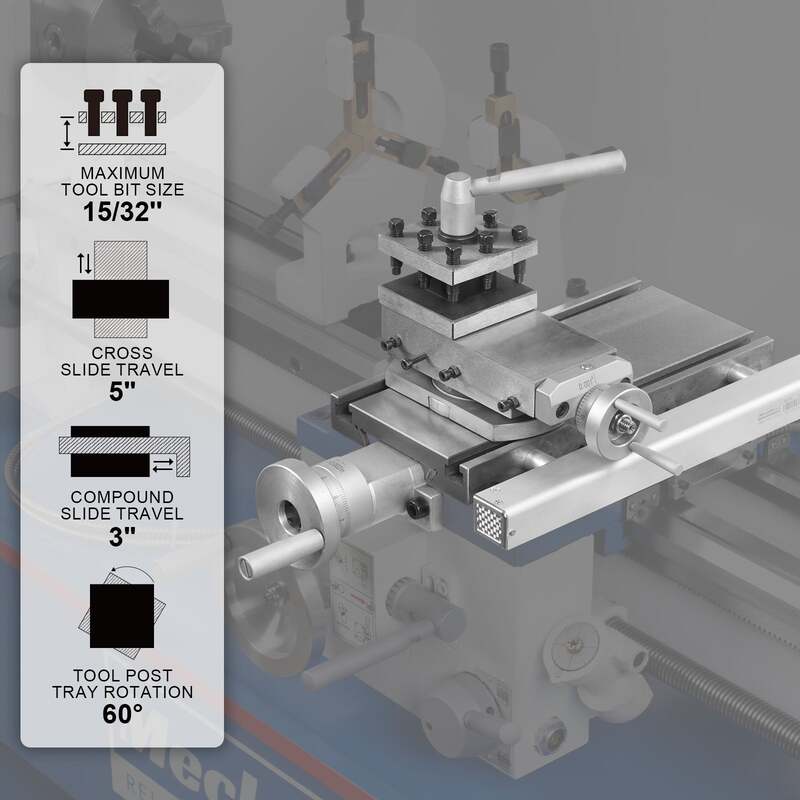

  • Precision adjustable tool post with 60° rotation

These features allow machinists to perform detailed machining operations with improved accuracy and repeatability.

Durable & Reliable Construction

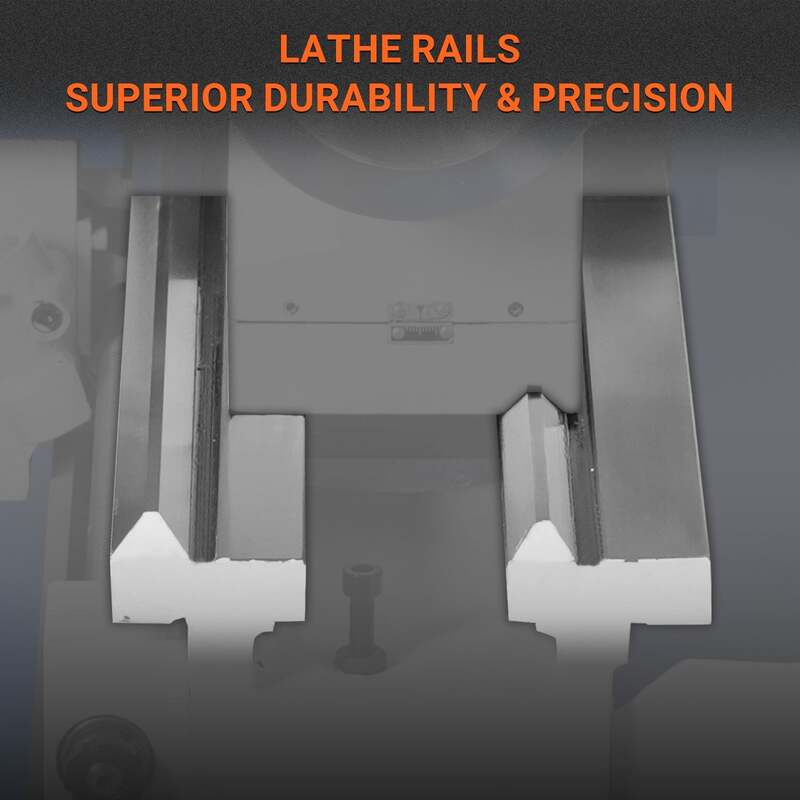

The 1030V metal lathe is built with a heavy-duty cast iron bed and high-frequency hardened V-guide rails to ensure long-term durability and stability. The rigid construction reduces vibration during cutting operations while maintaining machining accuracy.

  • Heavy-duty cast iron construction for rigidity

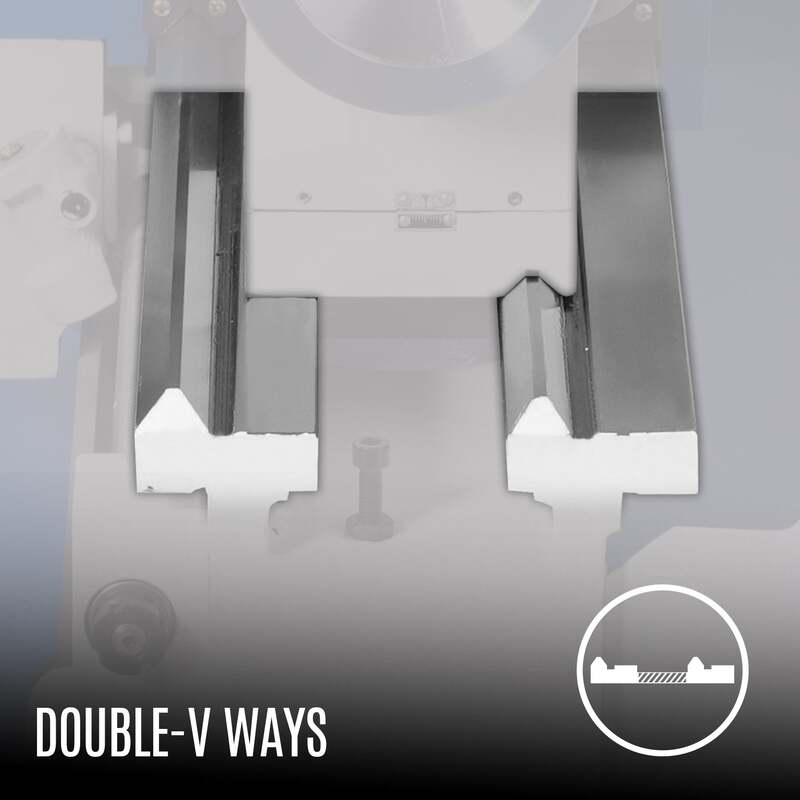

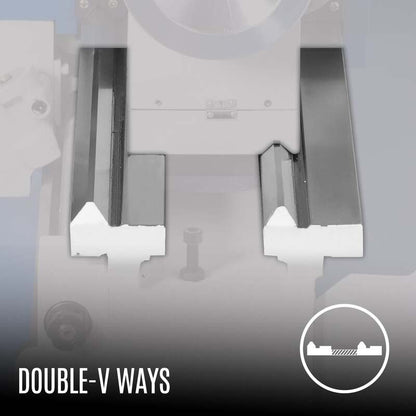

  • Hardened V-guide bedways for improved wear resistance

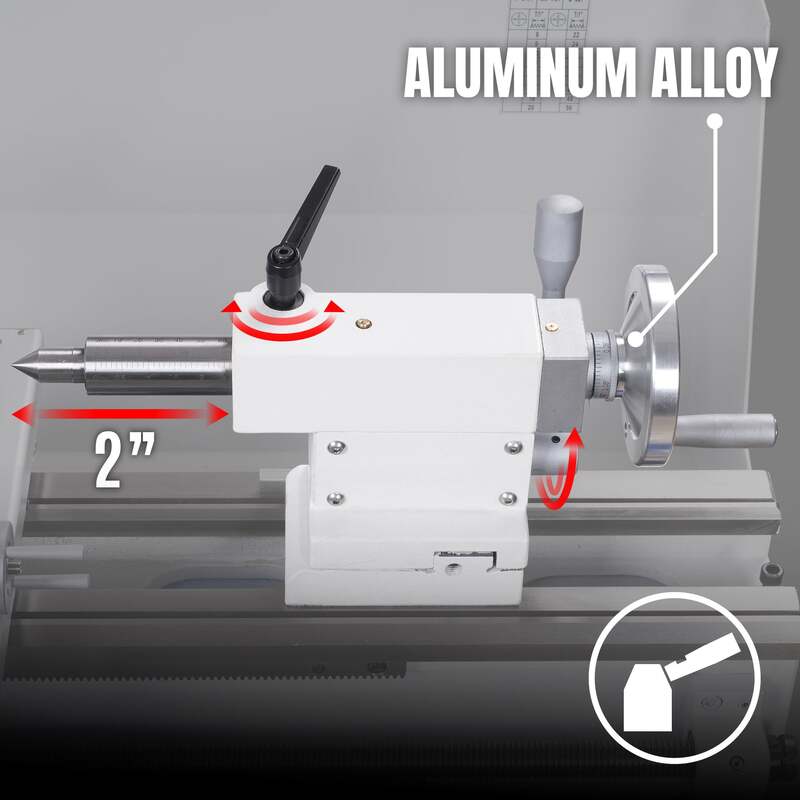

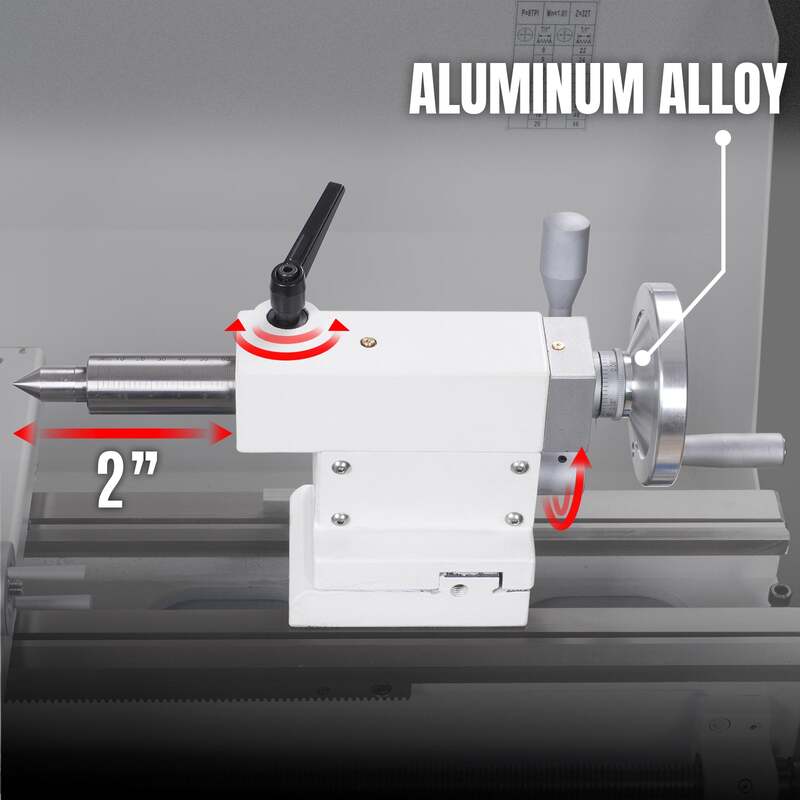

  • Quick-lock tailstock for fast adjustments

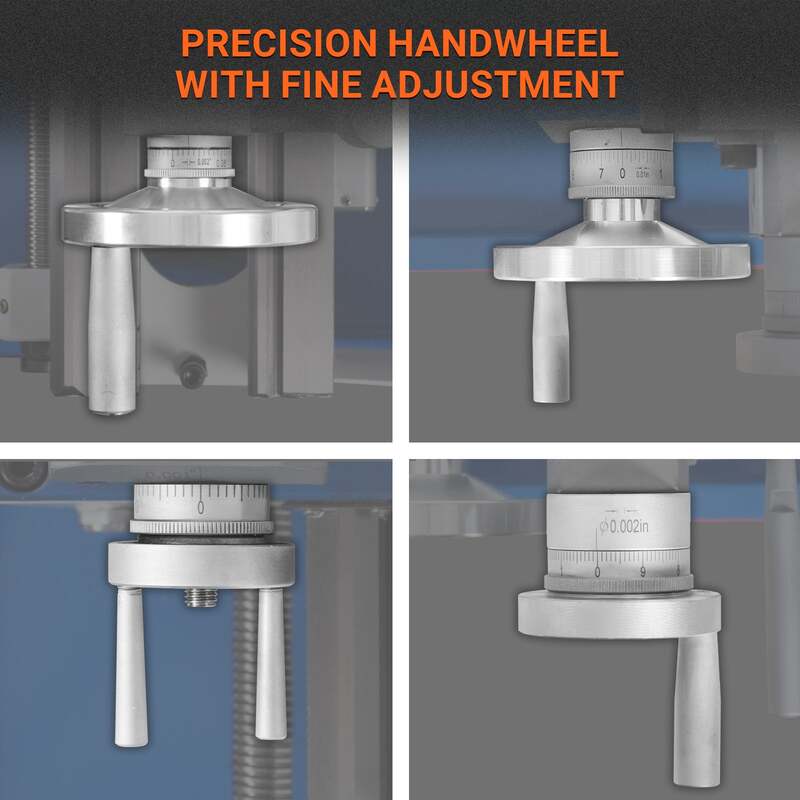

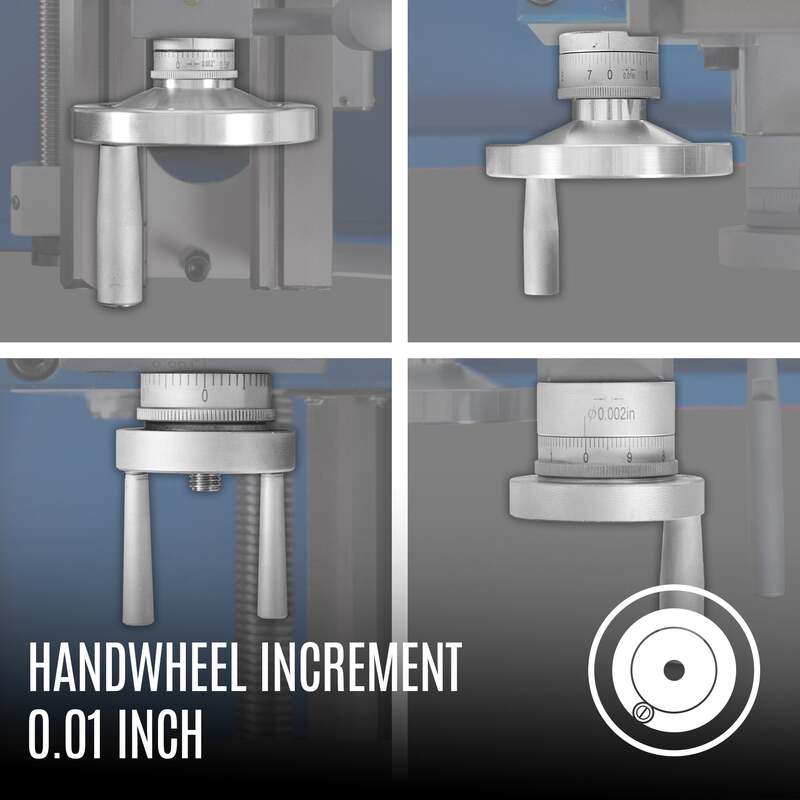

  • Precision handwheels for accurate control

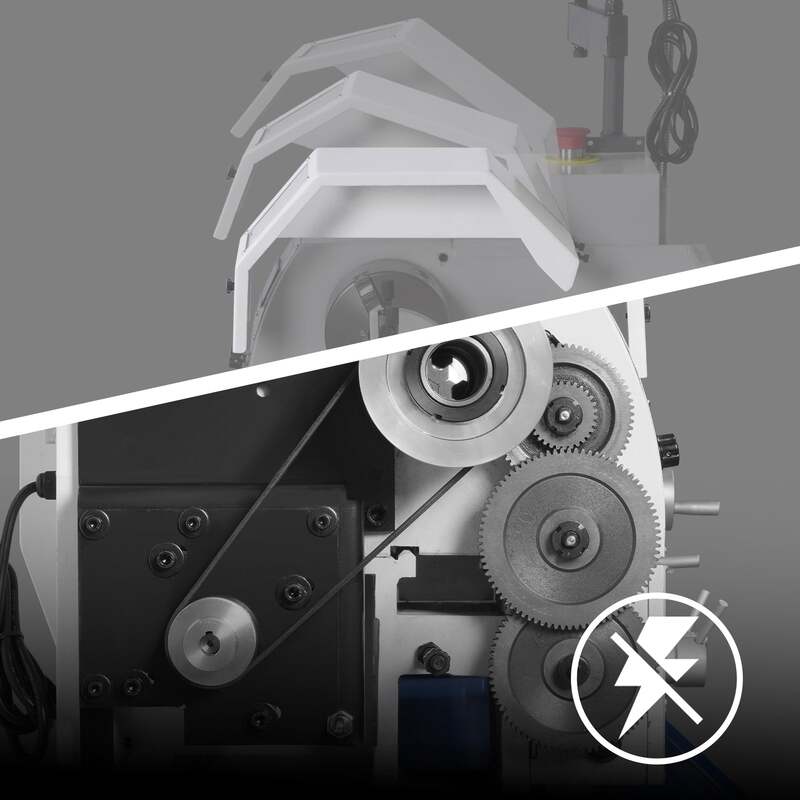

  • Integrated safety system with automatic power cut-off

This durable design ensures consistent performance in demanding metalworking environments.

Technical Specifications

  • Motor: 1.5 HP, 110V, Single Phase
  • Swing Over Bed: 9-7/8" (250 mm)
  • Swing Over Cross Slide: 5-1/2" (140 mm)
  • Swing Over Saddle: 5" (127 mm)
  • Distance Between Centers: 29-1/2" (750 mm)
  • Bed Width: 5-1/2" (140 mm)
  • Spindle Bore: 1-1/2" (38 mm)
  • Spindle Taper: MT5
  • Tailstock Taper: MT2
  • Tailstock Travel: 3" (75 mm)

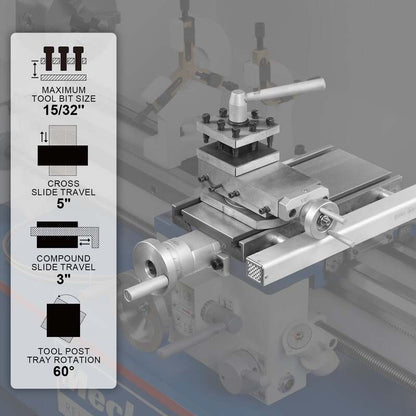

  • Cross Slide Travel: 5" (127 mm)
  • Compound Slide Travel: 3" (75 mm)
  • Carriage Travel: 27-1/2" (700 mm)
  • Spindle Speed Range: 0–2000 RPM
  • Leadscrew Pitch: 20 mm (8 TPI)
  • Inch Threading: 8–80 TPI
  • Metric Threading: 0.35–3.0 mm
  • Maximum Tool Bit Size: 15/32" (12 mm)
  • Machine Dimensions: 52" × 25" × 19"
  • Shipping Weight: 399 lbs
