Product Description

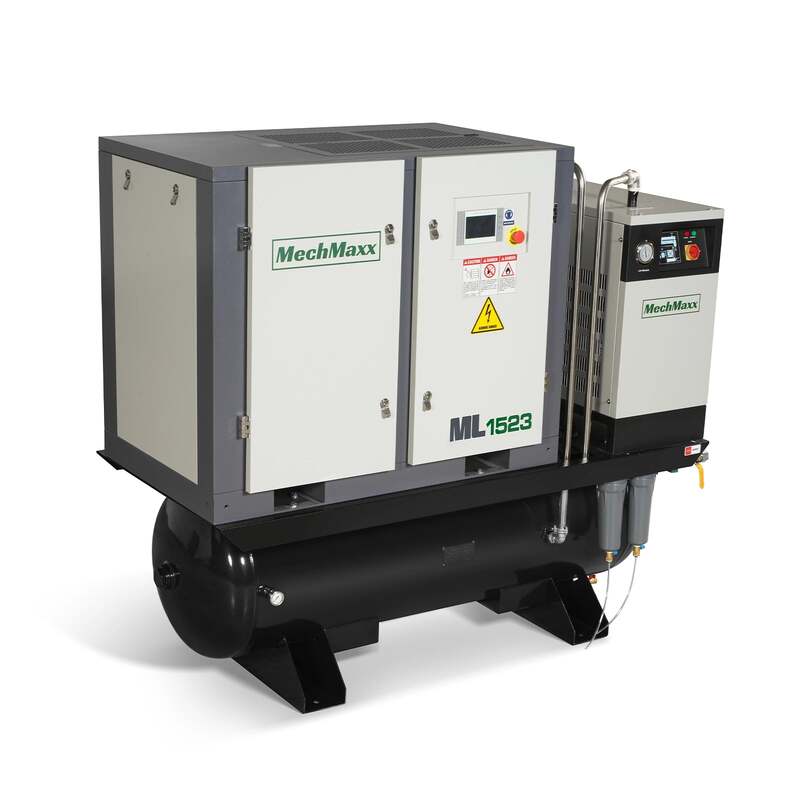

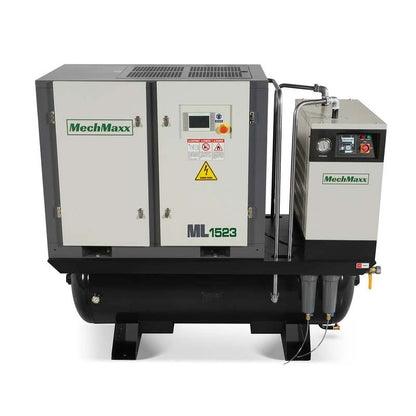

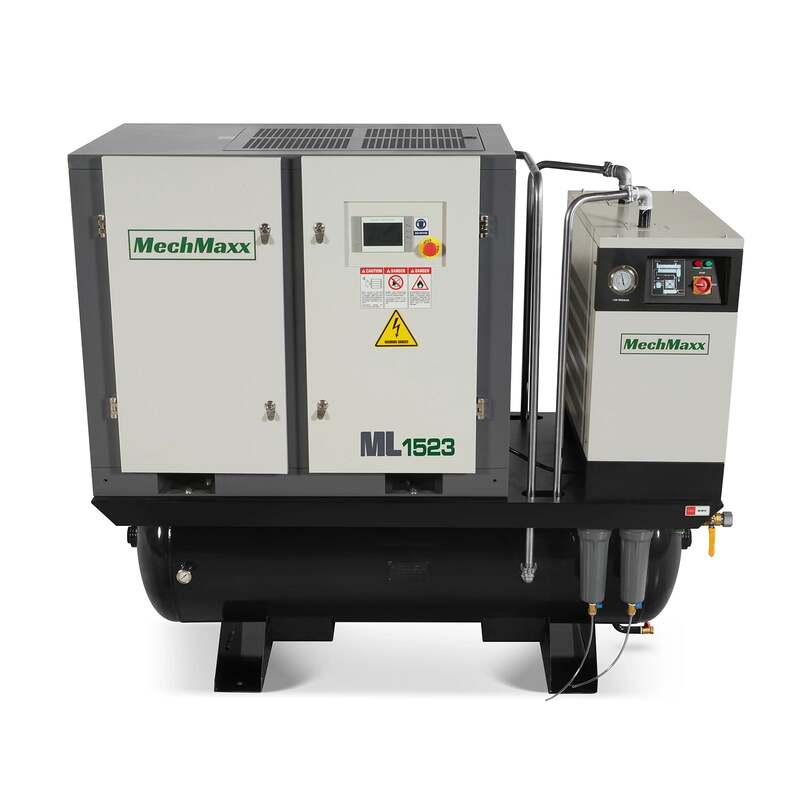

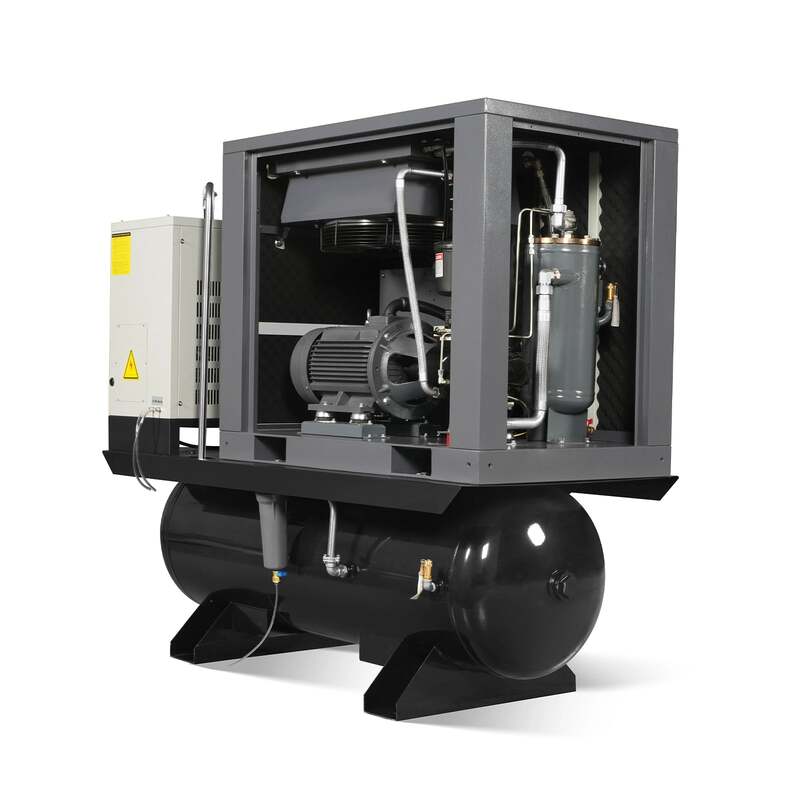

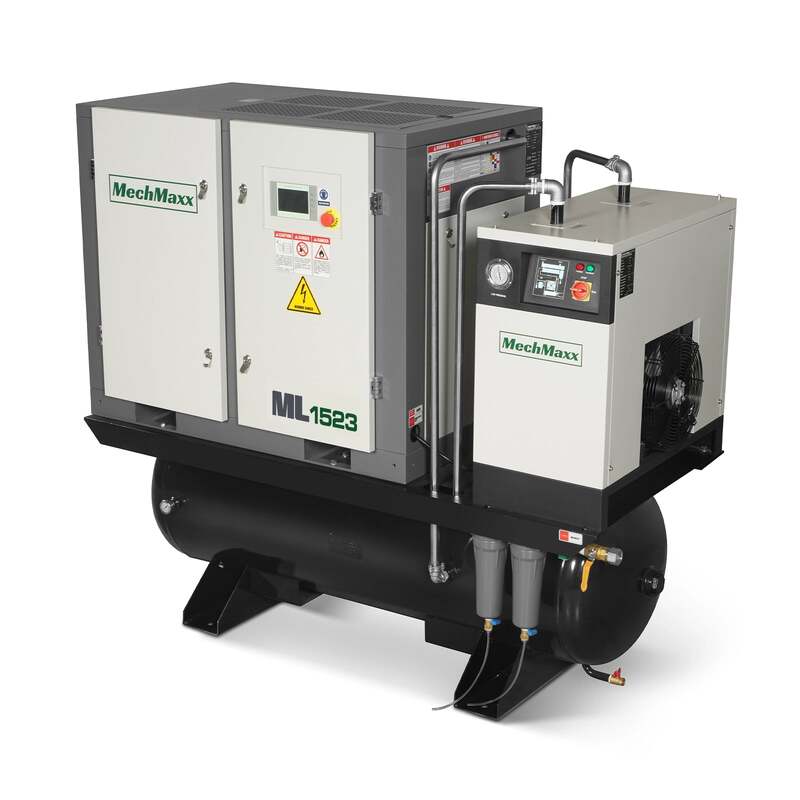

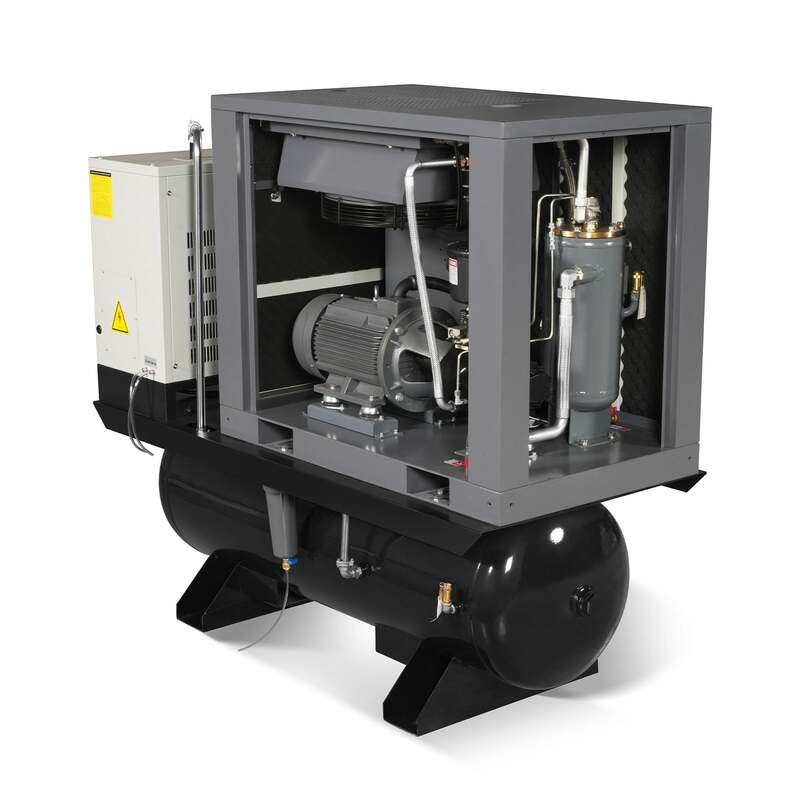

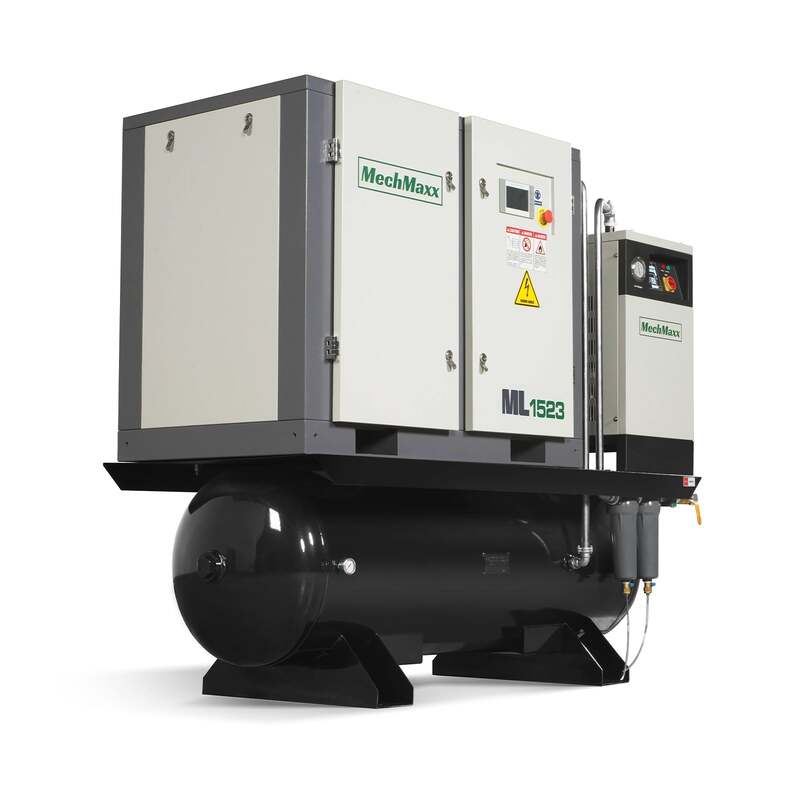

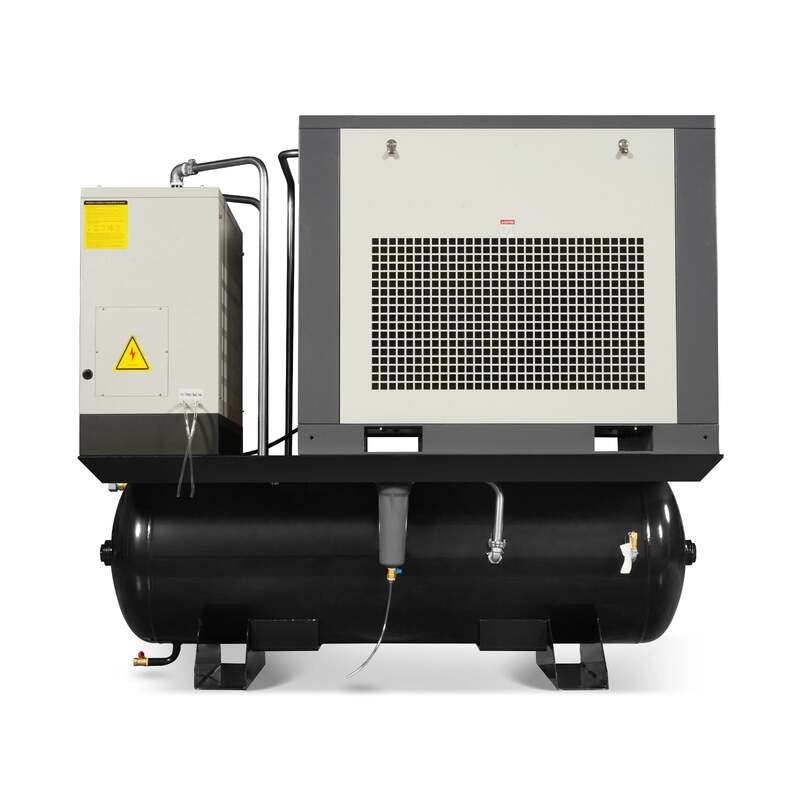

The MechMaxx ML1523 15HP Rotary Screw Air Compressor System combines a high-efficiency rotary screw compressor, refrigerated air dryer, and a large 105-gallon ASME air tank into one complete compressed air solution. Delivering up to 45.9 CFM at 116 PSI, this integrated system is ideal for fabrication shops, automotive repair facilities, manufacturing environments, and industrial workshops requiring clean, dry, and reliable compressed air.

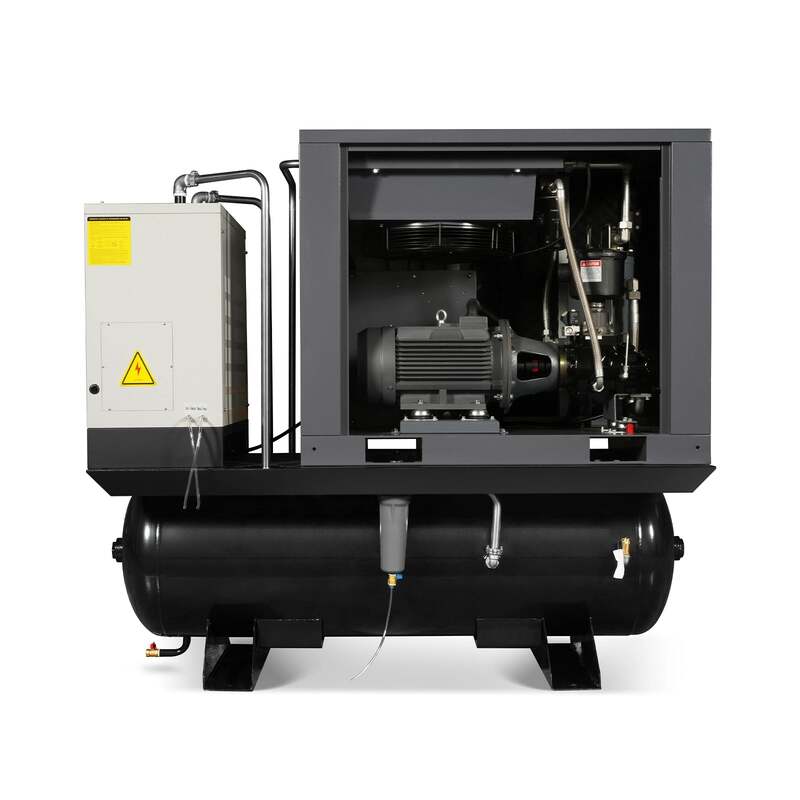

Powered by a 15HP industrial-grade motor, the system features IP54 protection, a fully enclosed dust-proof design, and Class F insulation. Combined with durable SKF heavy-duty bearings, the motor delivers strong starting torque, excellent heat resistance, and long service life even in demanding industrial applications.
The compressor utilizes a precision-engineered rotary screw airend designed to maintain tight manufacturing tolerances for outstanding reliability and efficient performance. The advanced oil-gas separation system ensures discharged compressed air maintains oil content below 3 ppm, helping protect downstream pneumatic tools and equipment.

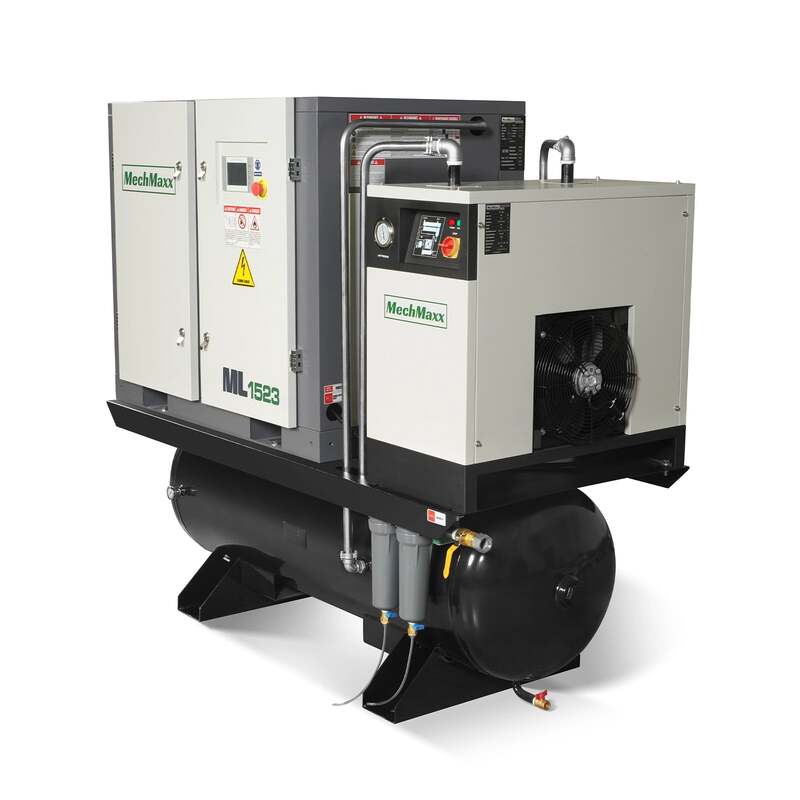

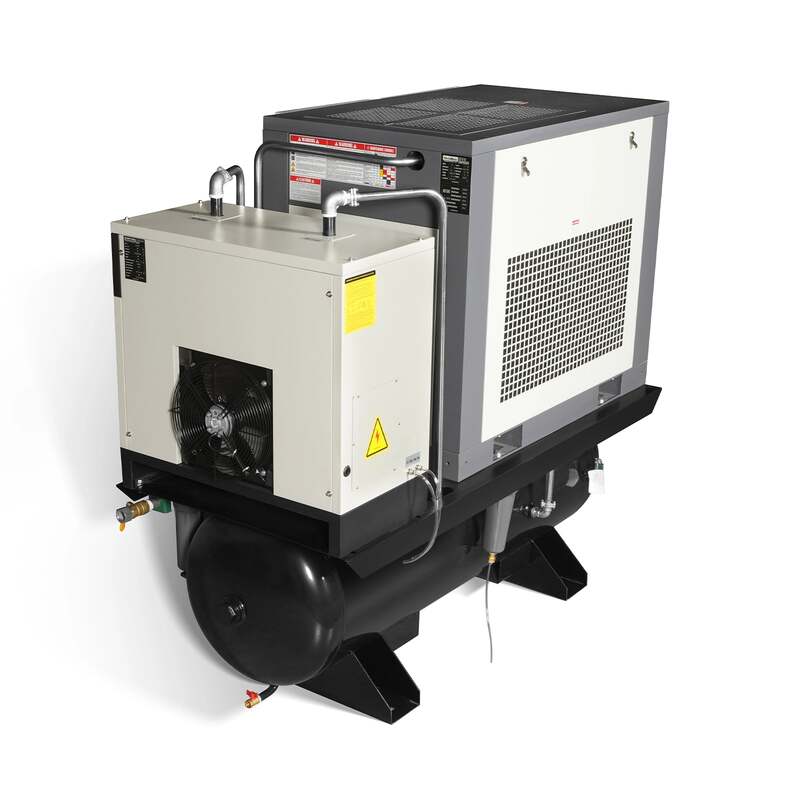

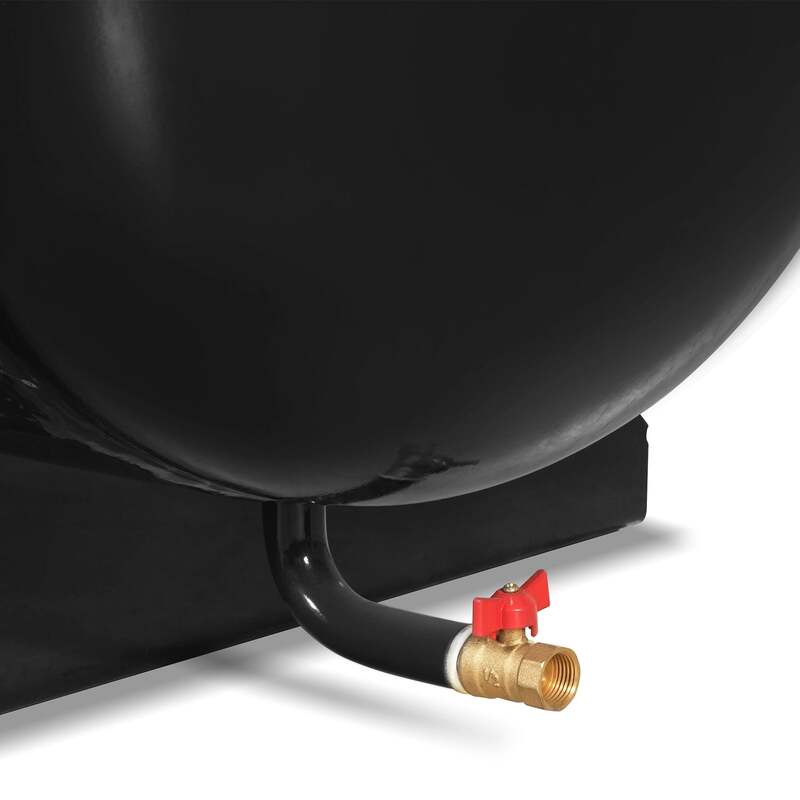

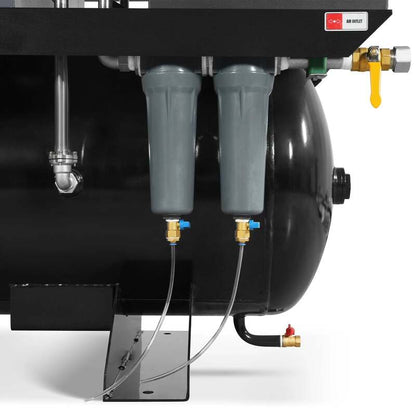

An integrated refrigerated air dryer removes moisture from the compressed air system while the large 105-gallon air tank provides stable air storage and improved airflow stability. This all-in-one configuration simplifies installation and reduces the need for additional external components.
Intelligent Control & Efficient Operation

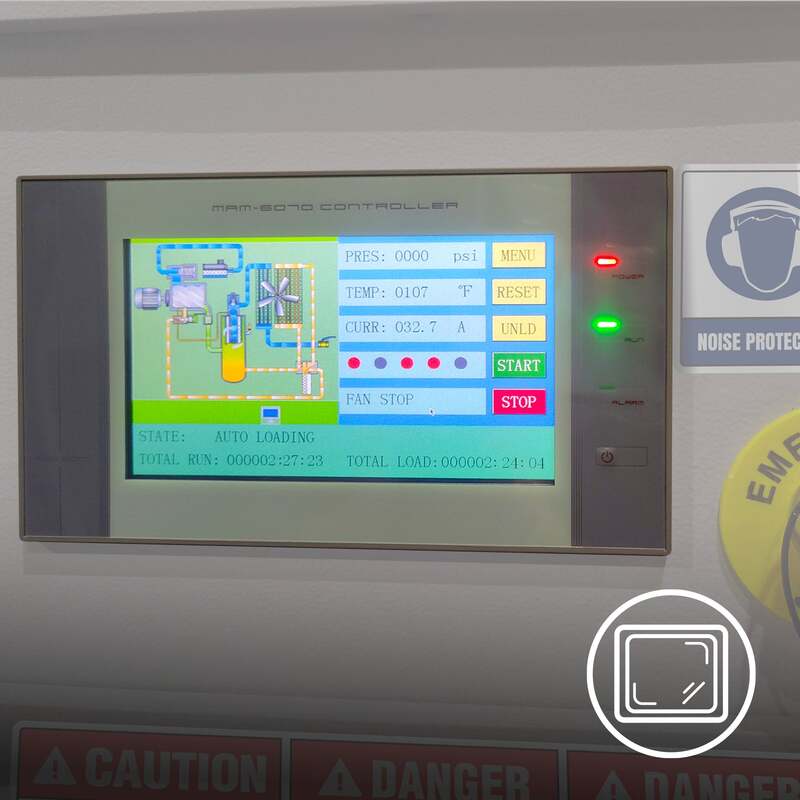

The ML1523 system includes an advanced PLC controller that allows operators to monitor system performance in real time. The interface displays temperature readings, pressure settings, oil levels, filtration status, operating hours, and maintenance reminders. Remote start and stop functions allow convenient system control.
The integrated EPC intelligent control system automatically adjusts compressor operation based on real-time air demand. When compressed air demand decreases, the system automatically unloads or shuts down to reduce energy consumption and lower operating costs.
- PLC controller for real-time system monitoring
- Automatic load/unload regulation based on air demand
- Quick fault diagnostics during operation
- Energy-saving EPC intelligent control system

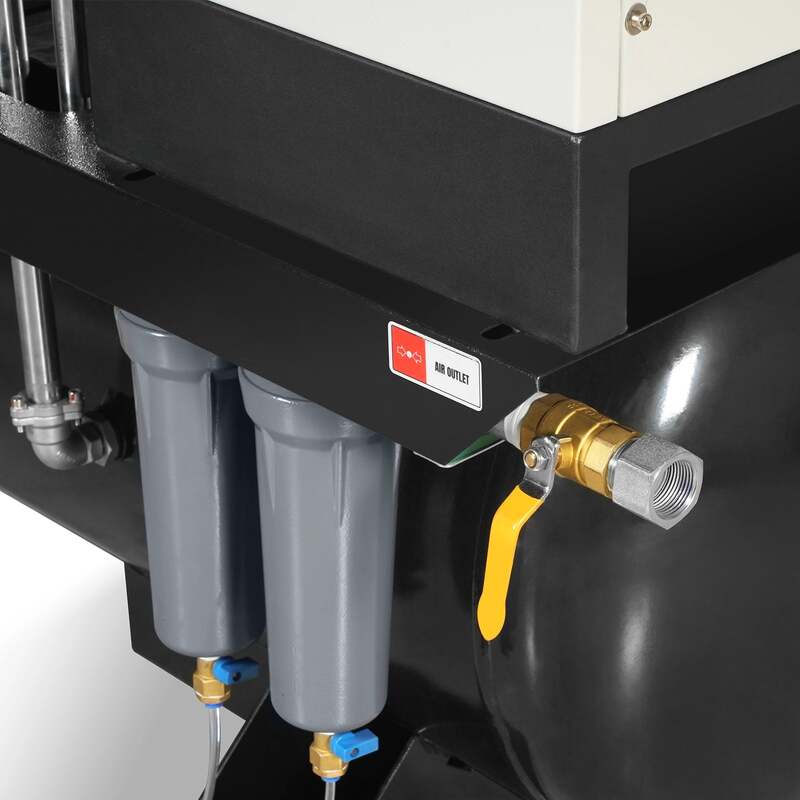

- Integrated air dryer and storage tank for clean compressed air
Durable Industrial Construction
The ML1523 compressor system is built with heavy-duty industrial components designed for long-term reliability and simplified maintenance. Efficient cooling and advanced filtration systems ensure stable operation even in demanding workshop environments.

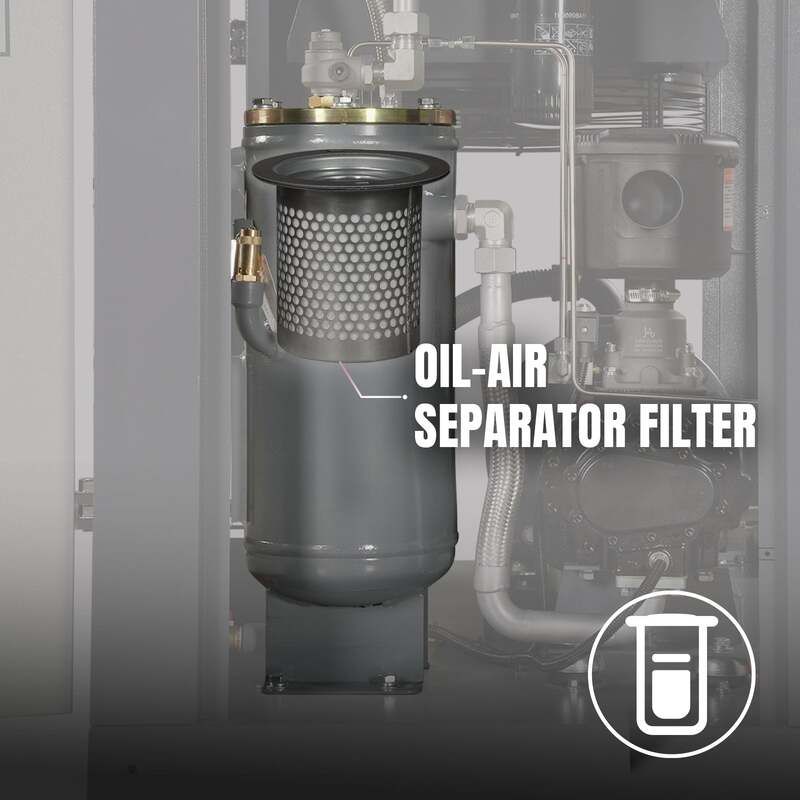

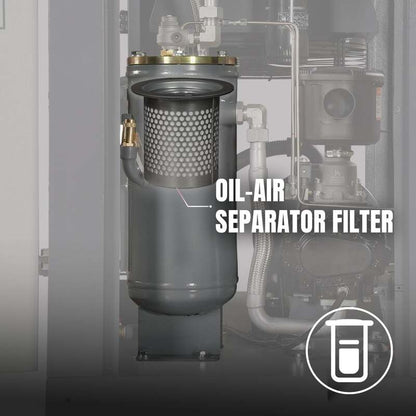

- High-efficiency oil-gas separation system with less than 3 ppm oil carryover

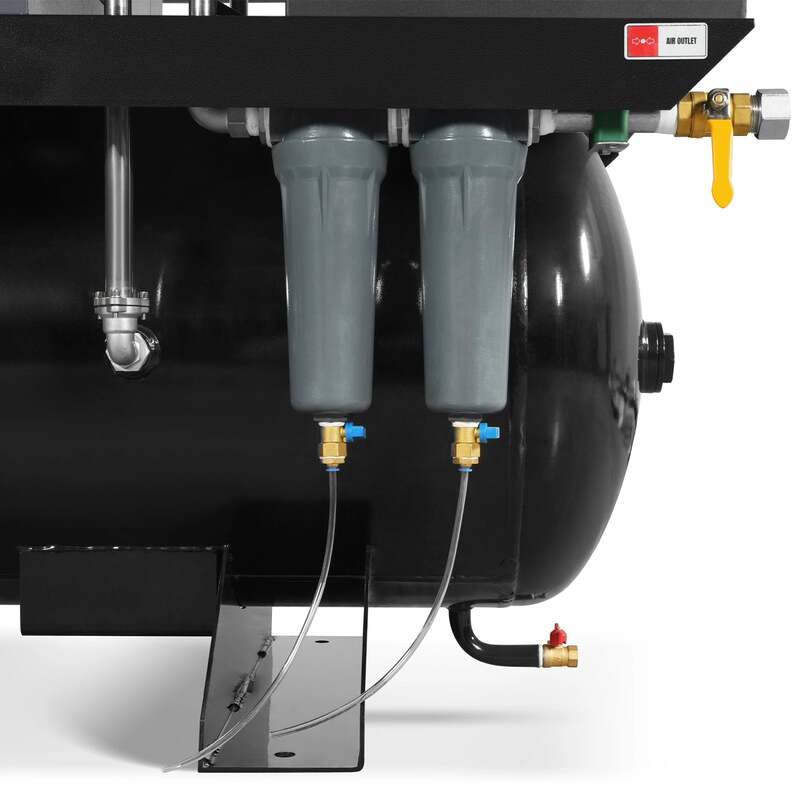

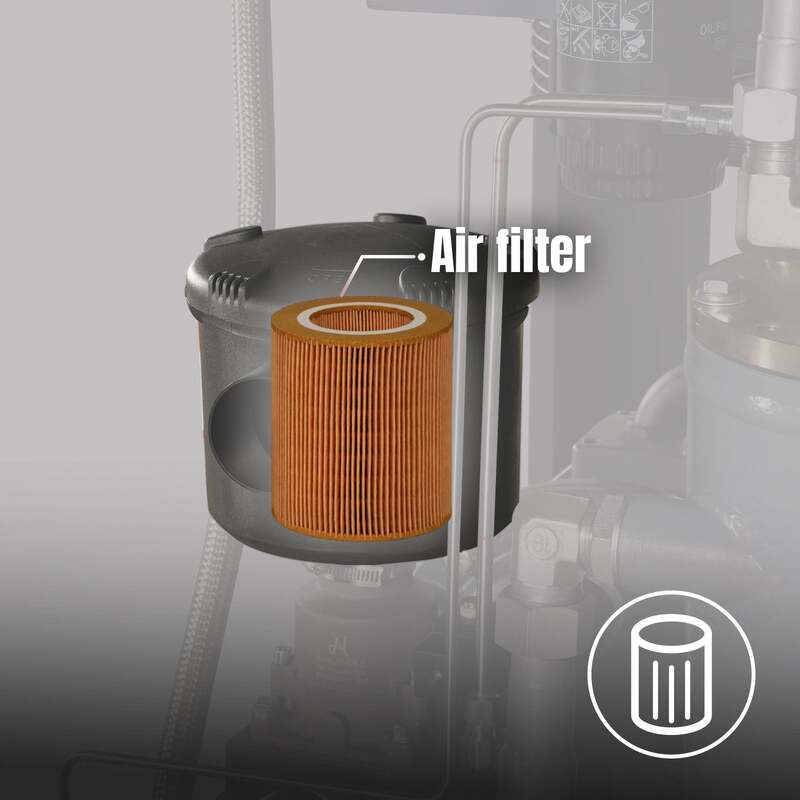

- Large-capacity air filter for improved dust removal

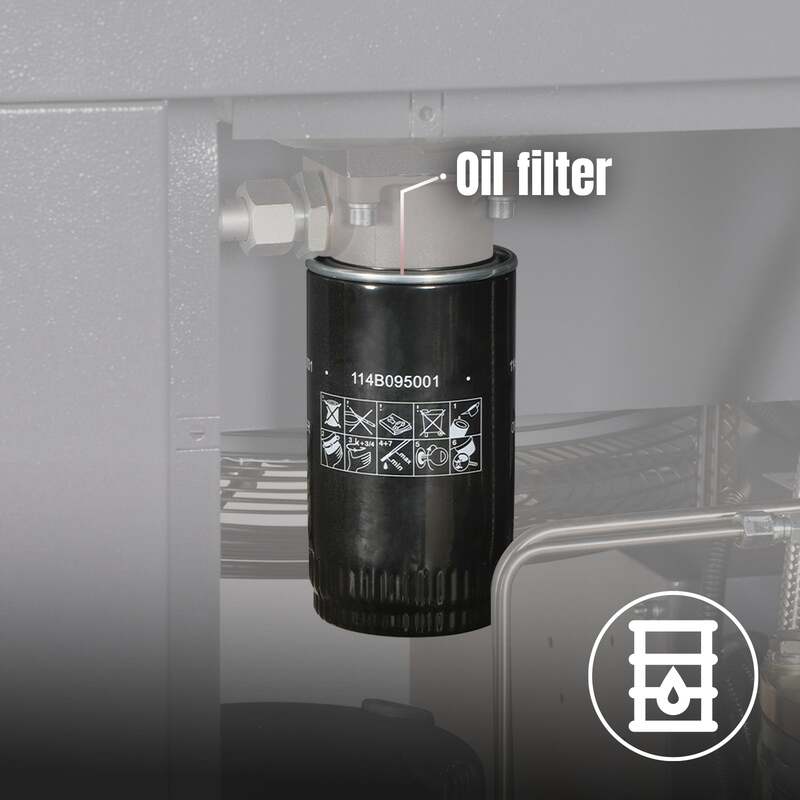

- High precision oil filter protecting the lubrication system

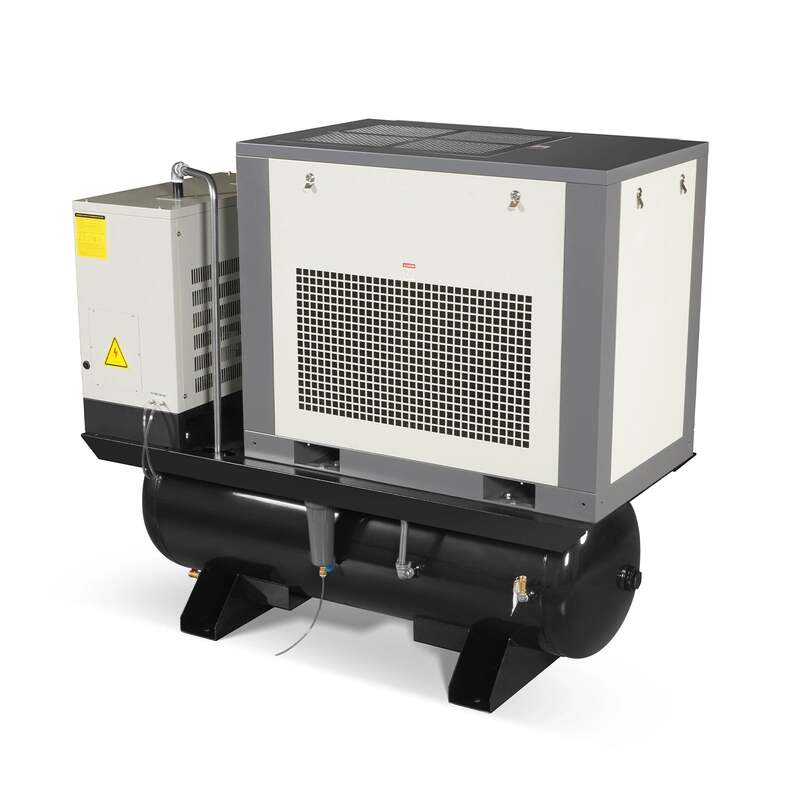

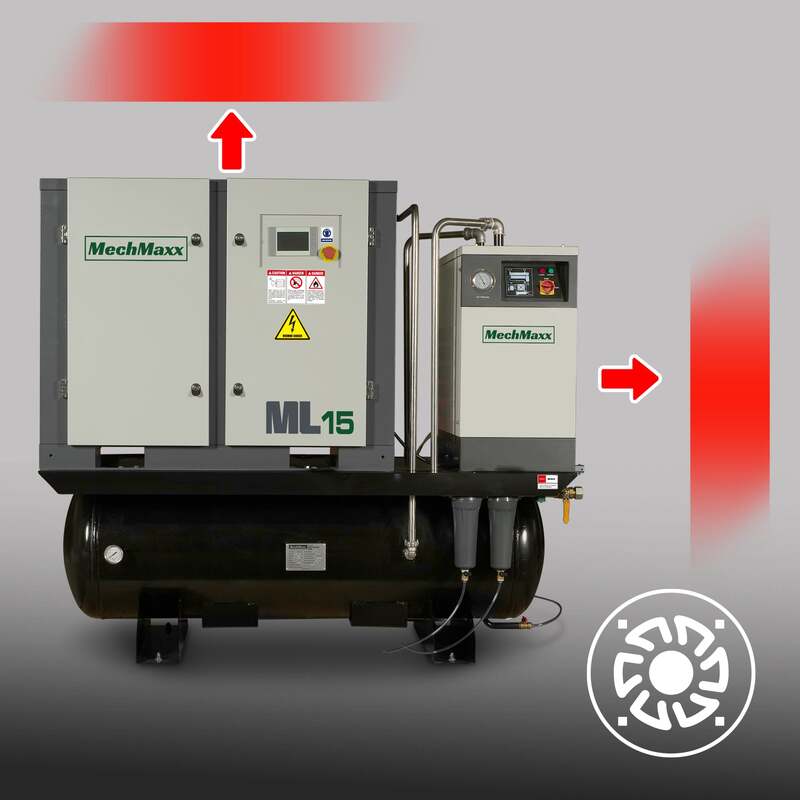

- Top and side ventilation design for efficient heat dissipation

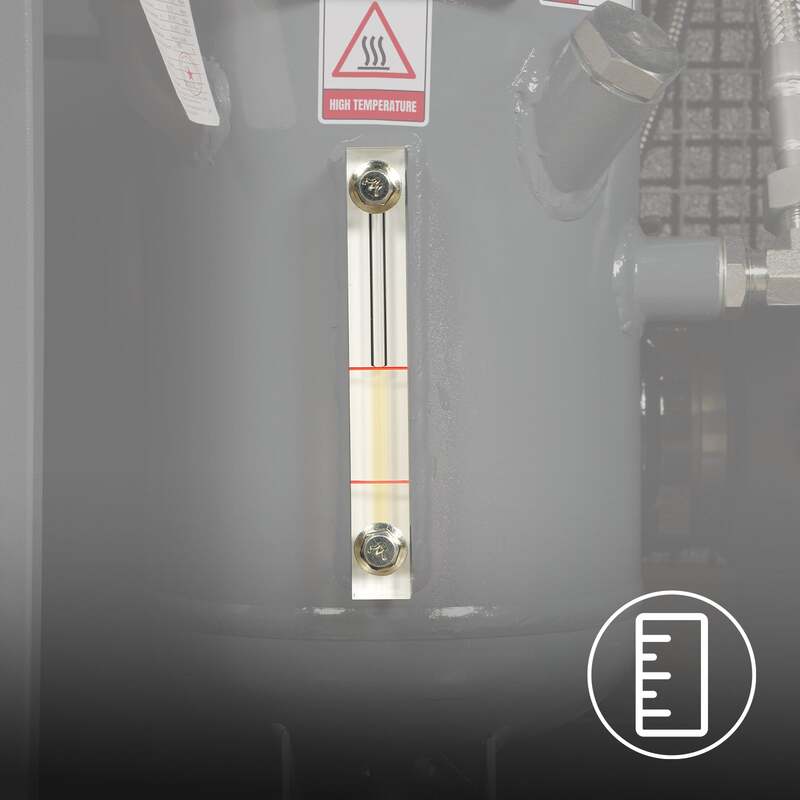

- Clear oil level indicator for easy monitoring

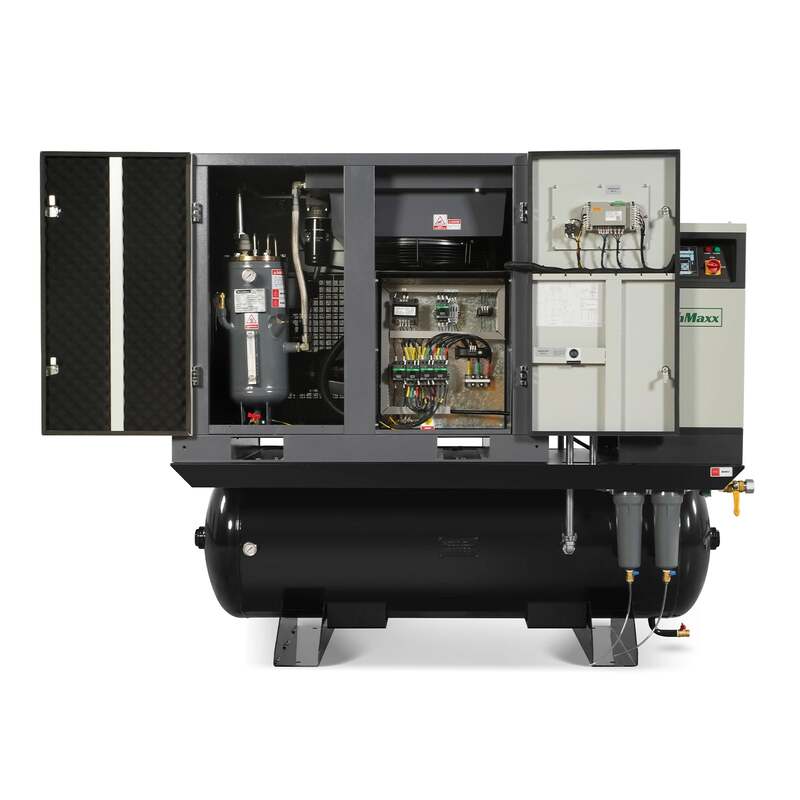

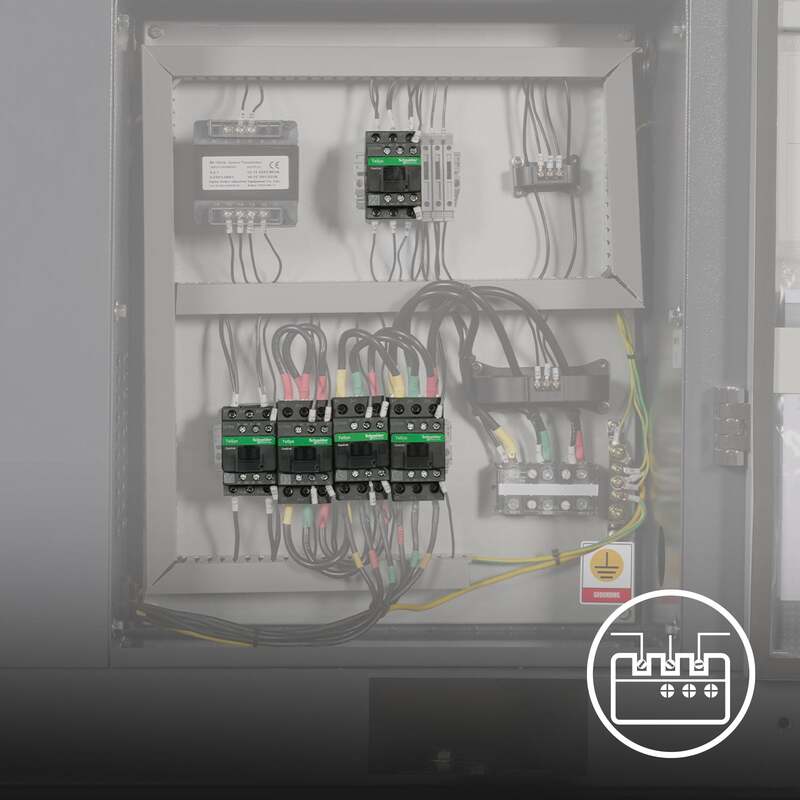

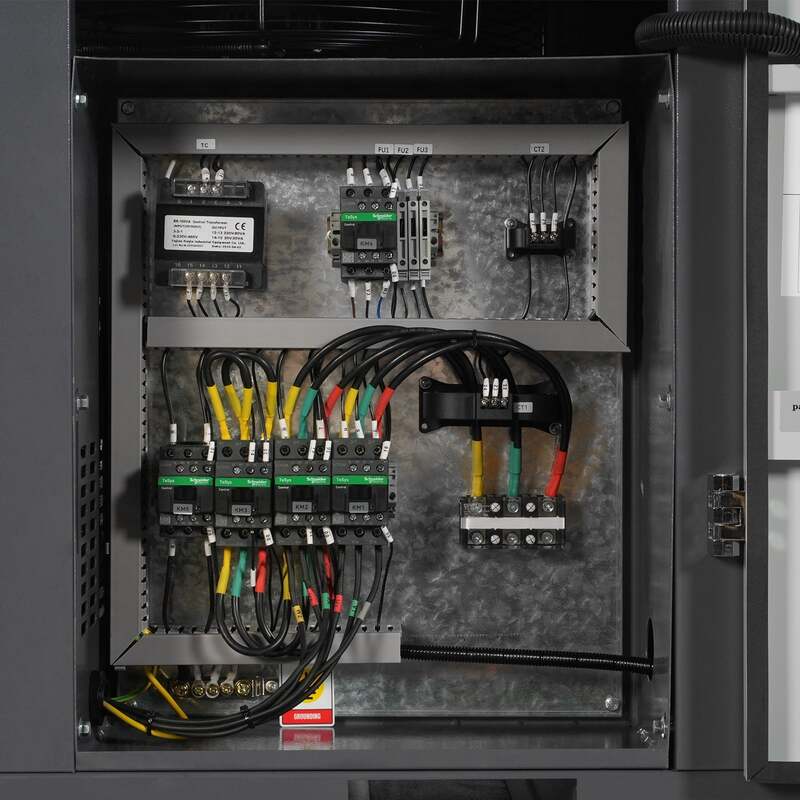

- Schneider electrical components for reliable electrical performance
Technical Specifications
- Model: ML1523
- Rated Power: 15 HP
- Voltage: 230V 3PH 60HZ
- Air Flow Capacity: 45.9 CFM
- Rated Pressure: 116 PSI (0.8 MPa)
- Starting Method: Star-Delta (Wye-Delta) Start
- Motor Speed: 3515 RPM
- Oil Tank Capacity: 2.64 Gal (10L)
- Oil Type: Oil Lubricated
- Recommended Oil Grade: S3R46

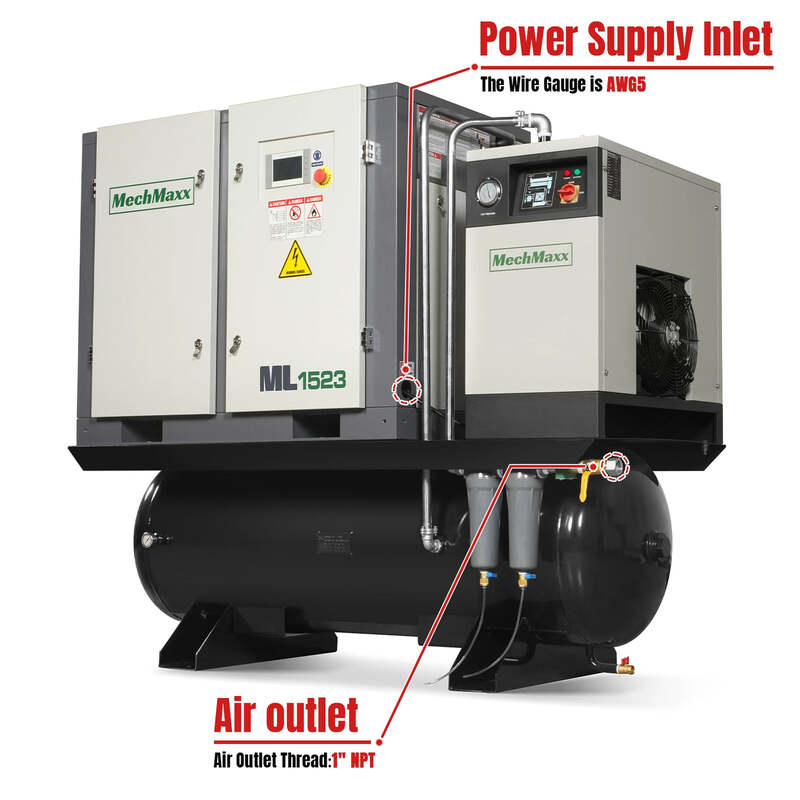

- Air Outlet Thread: 1" NPT
- Wire Gauge: AWG5
- Noise Level: 65 dBA
Air Tank & Refrigerated Dryer Specifications

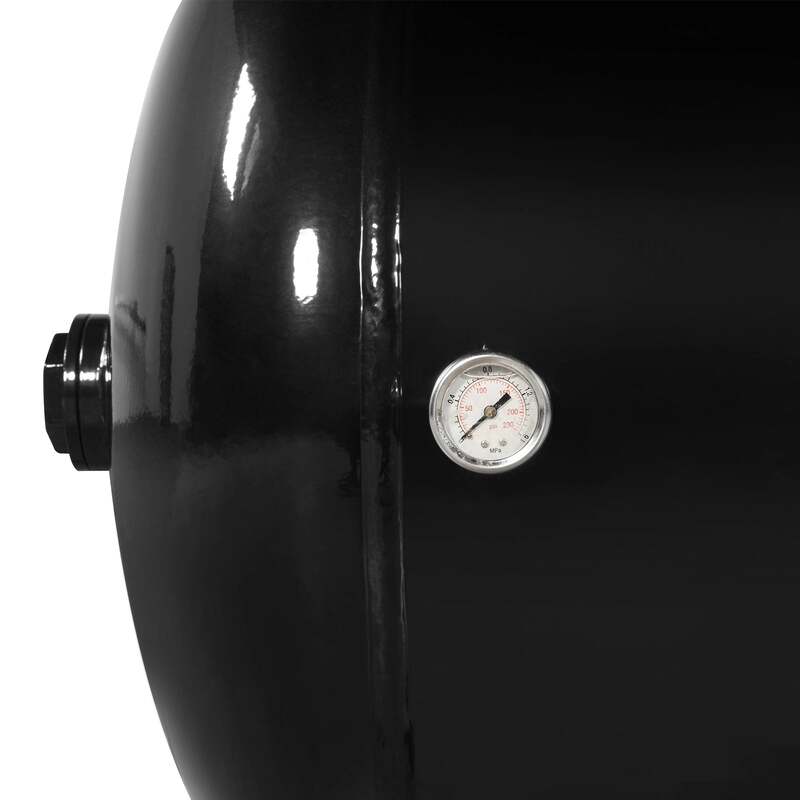

- Air Tank Capacity: 400L / 105.6 GAL
- Air Dryer Capacity: 100 CFM
- Working Pressure: ≤145 PSI (1.0 MPa)
- Design Pressure: 145 PSI (1.0 MPa)
- Maximum Design Temperature: 302°F (150°C)
- Machine Dimensions: 72.8" × 33.5" × 66.1"
- Packing Dimensions: 75.6" × 38.2" × 72.8"
- Net Weight: 1146 lbs
- Gross Weight: 1364 lbs
