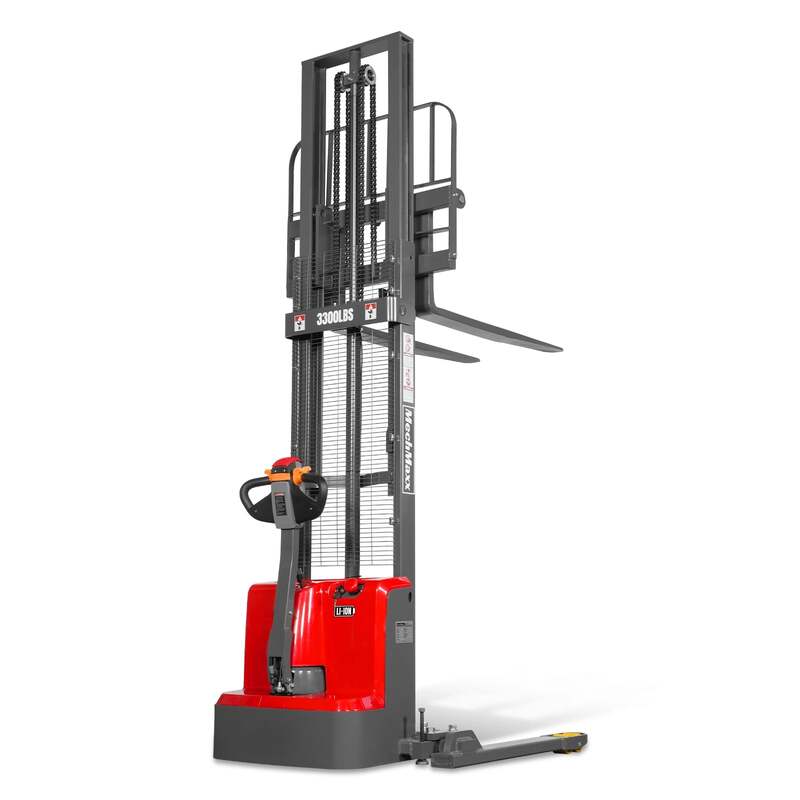

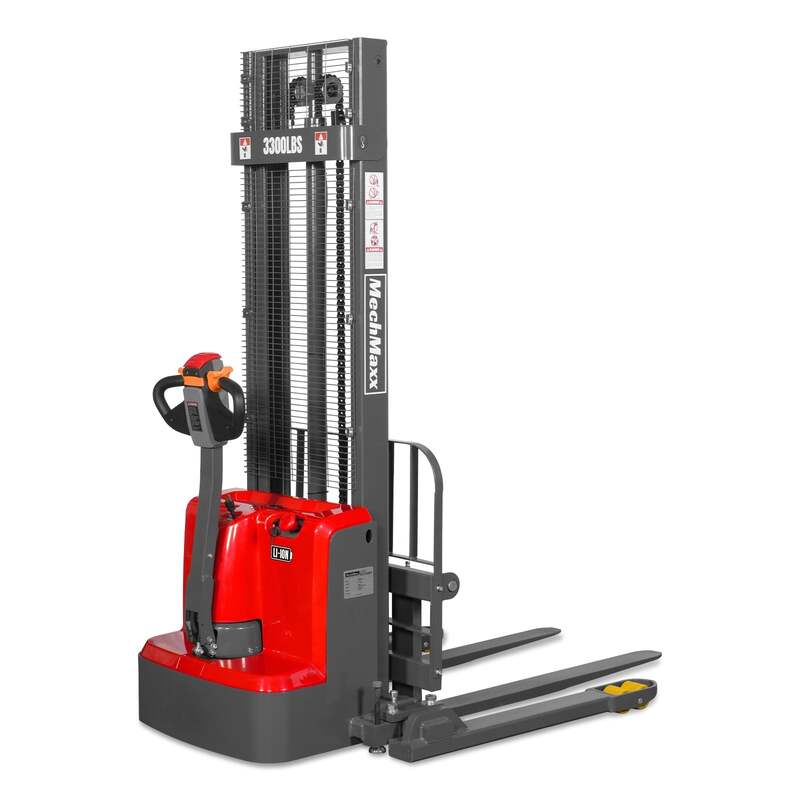

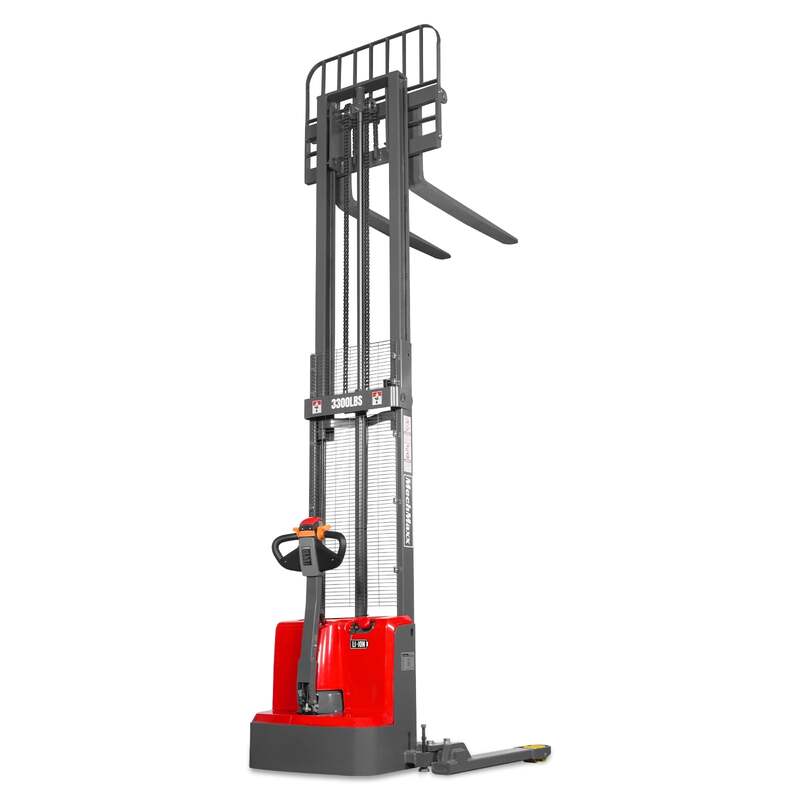

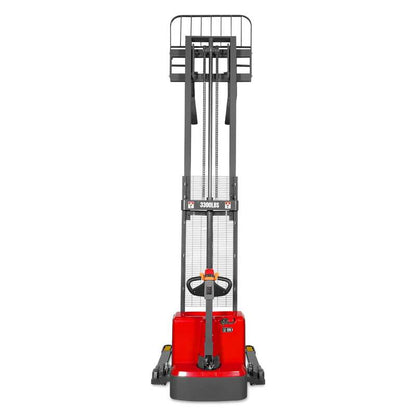

Lithium-Ion Electric Straddle Stacker – 3300 lb Capacity Walkie Stacker with 118" Lift Height (Model F33-118S)
Product Description
The MechMaxx F33-118S Electric Straddle Stacker is a reliable and efficient material handling solution designed for warehouses, distribution centers, and industrial facilities. With a 3300 lb lifting capacity and a maximum lift height of 118 inches, this walkie stacker is ideal for stacking pallets, loading shelving systems, and transporting goods safely within tight warehouse spaces.

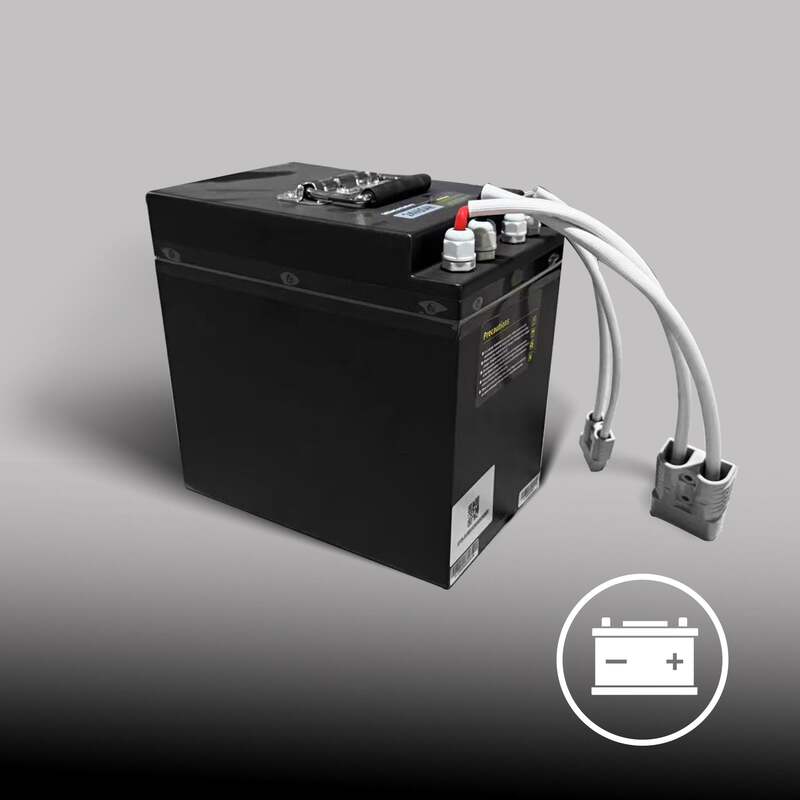

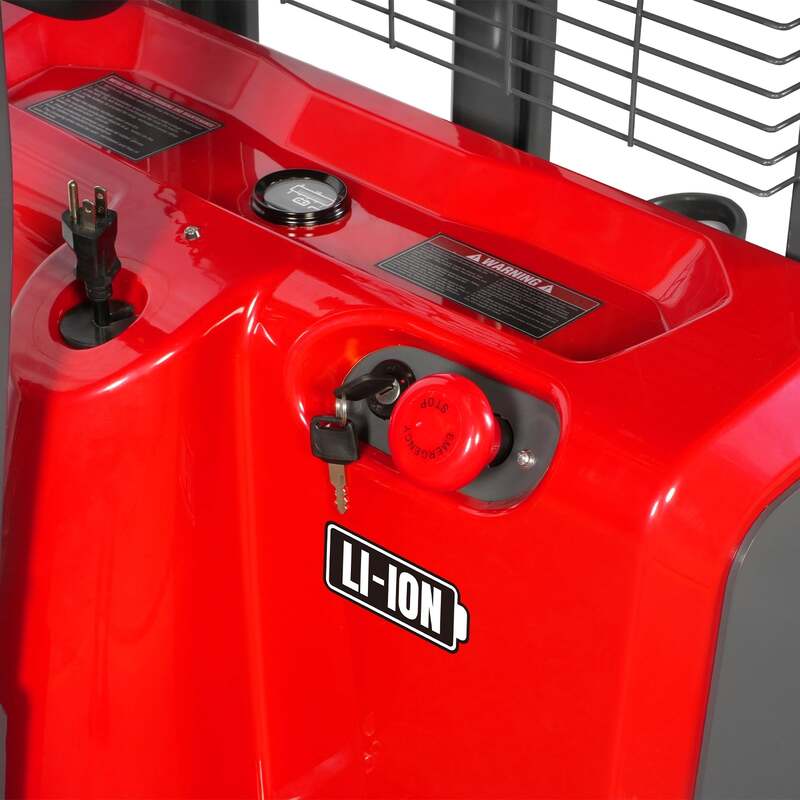

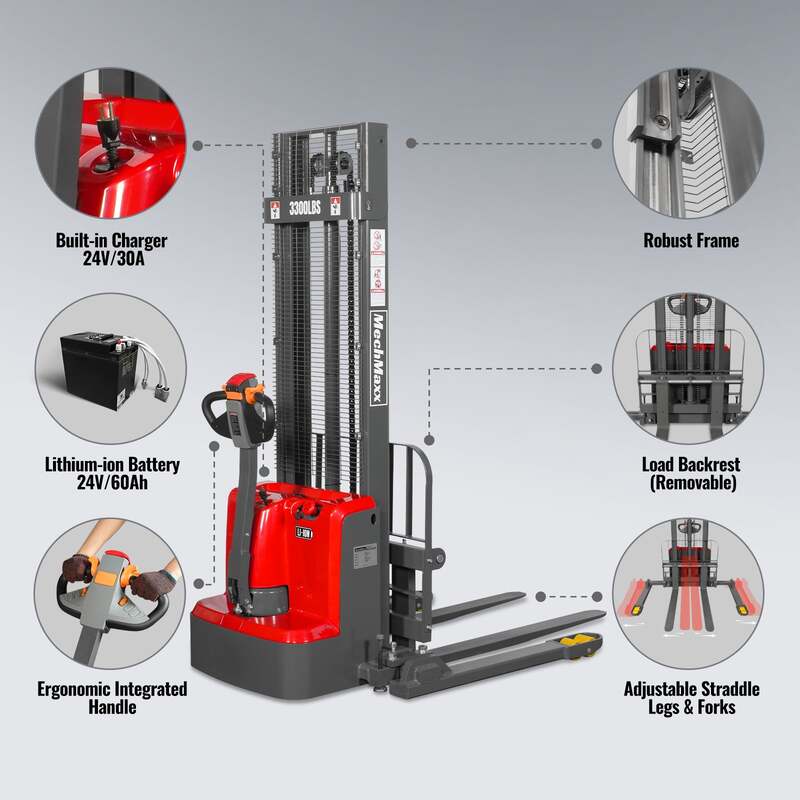

Powered by a 24V 60Ah maintenance-free lithium-ion battery, the F33-118S delivers consistent performance with minimal maintenance requirements. The integrated 24V/30A built-in charger allows convenient onboard charging and opportunity charging between tasks, maximizing operational uptime during busy work shifts.
The stacker features adjustable forks and adjustable straddle legs, allowing operators to handle a wide variety of pallet sizes and load configurations. Combined with a compact design and 53" turning radius, the F33-118S is well suited for narrow aisles and confined warehouse environments where maneuverability is critical.
Powerful Electric Drive & Lift System
The F33-118S is equipped with a fully electric drive and lifting system designed for smooth and efficient pallet handling.
• 0.75 kW drive motor for stable travel performance
• 2.2 kW lift motor for powerful lifting capability
• Travel speeds up to 2.6 mph when unloaded
• Smooth lifting and lowering for precise pallet positioning
This system ensures reliable performance for stacking and transporting palletized goods in industrial environments.

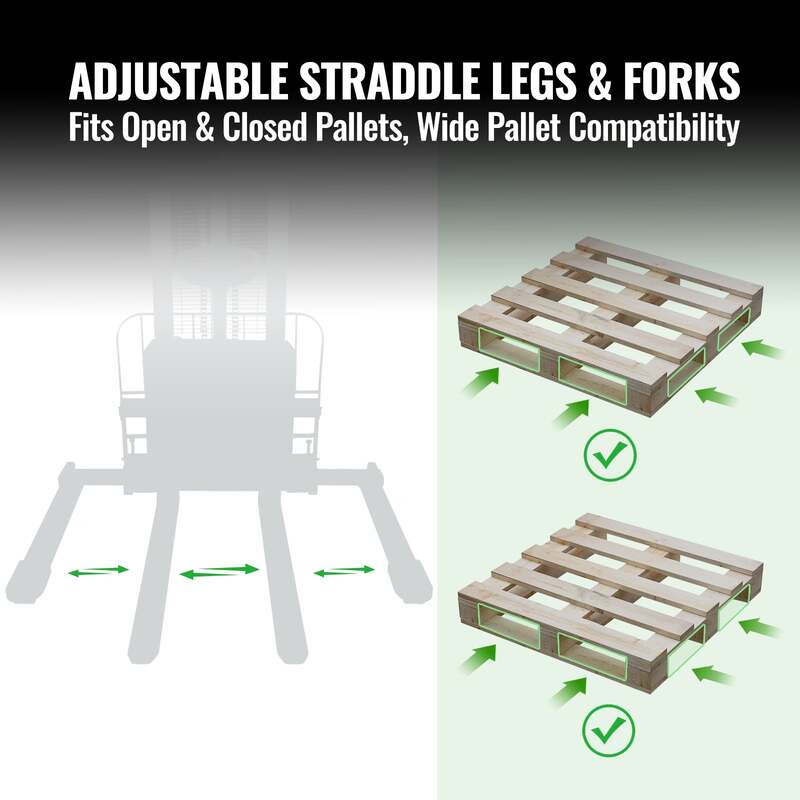

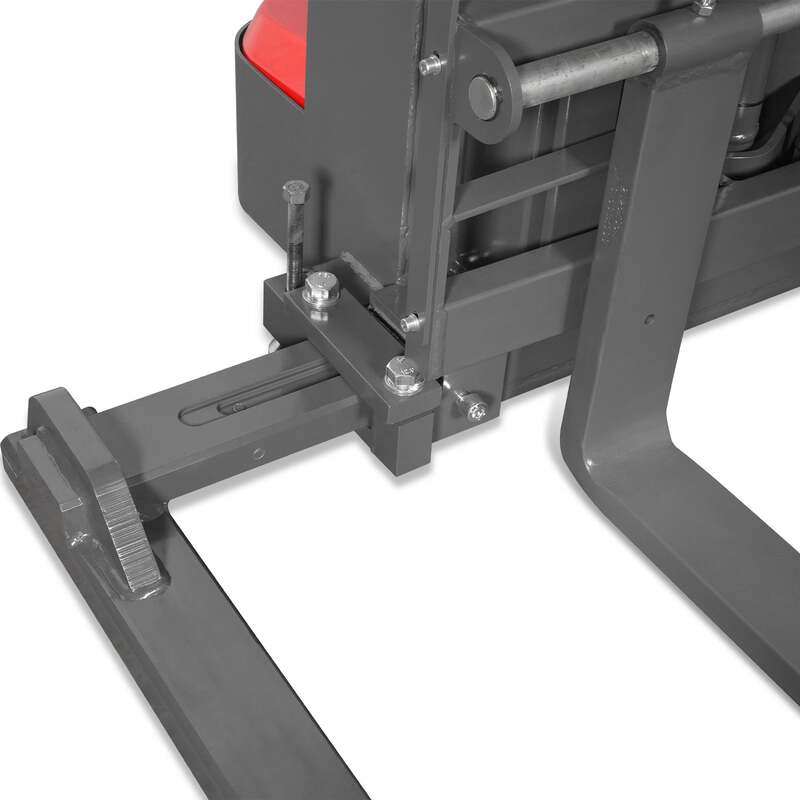

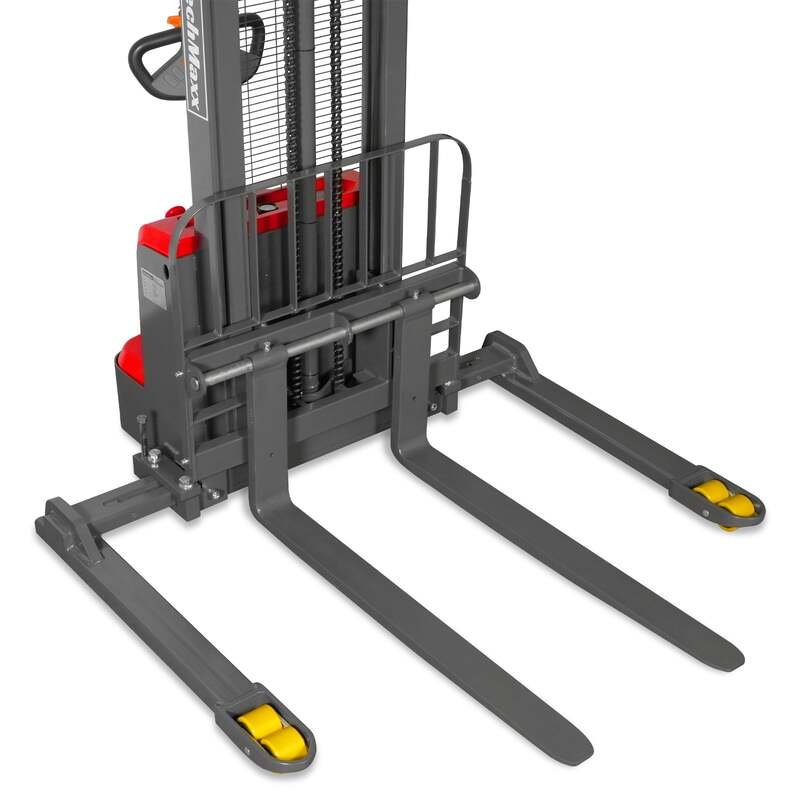

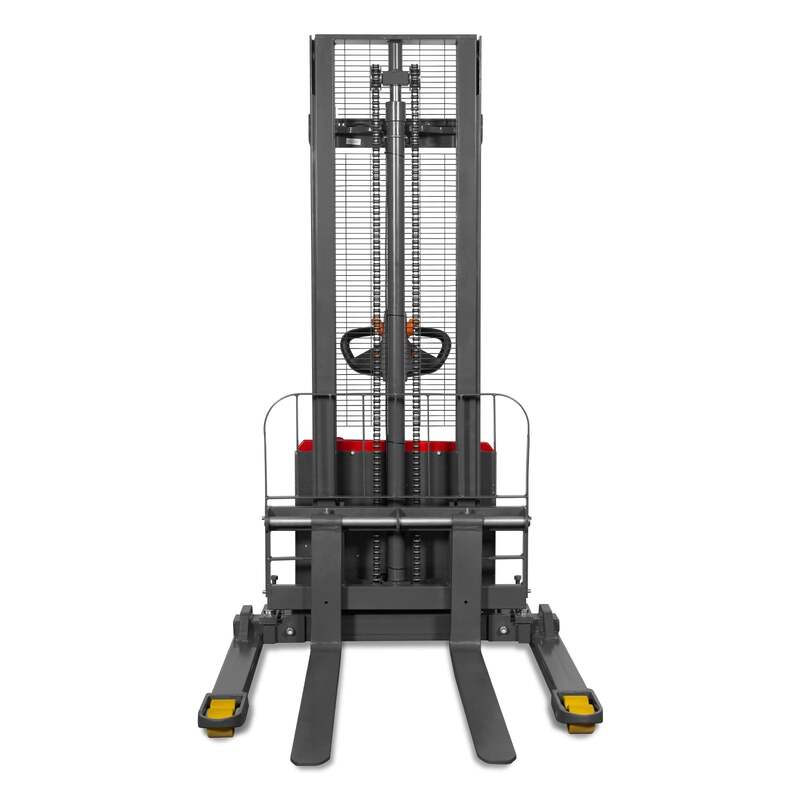

Adjustable Forks & Straddle Legs
Flexible adjustments allow the stacker to handle a wide range of pallet configurations.
• Fork width adjustable from 8.3" to 33.5"

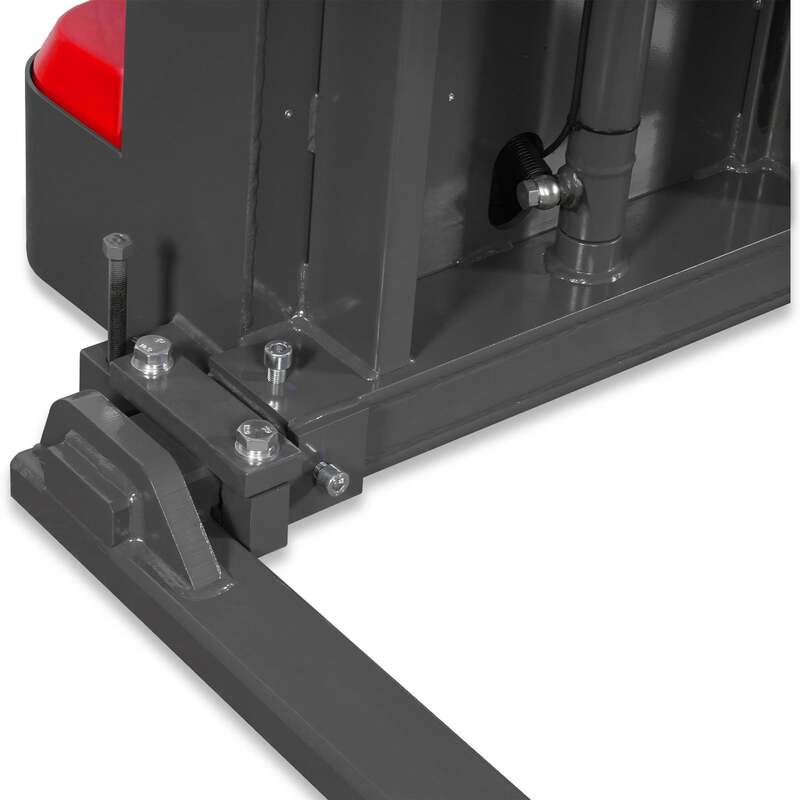

• Straddle leg inside width adjustable from 35.4" to 51.2"
• Compatible with multiple pallet sizes
• Improves versatility across warehouse operations
These features make the machine suitable for diverse material handling tasks.
Durable Industrial Construction
Built with a reinforced frame and heavy-duty components, the F33-118S is designed for long-term industrial use.

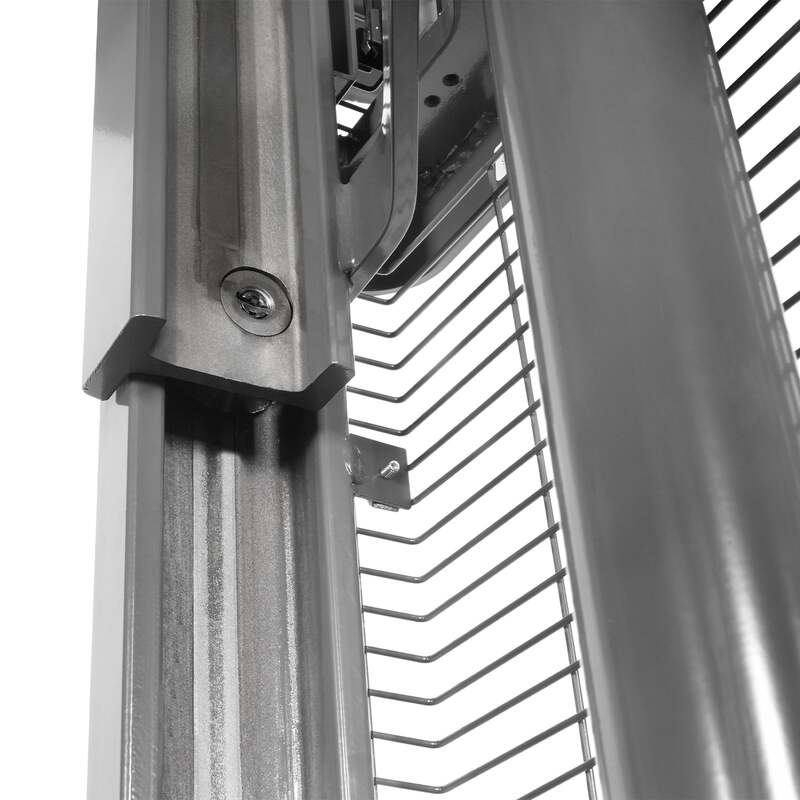

• Double-frame reinforced steel construction

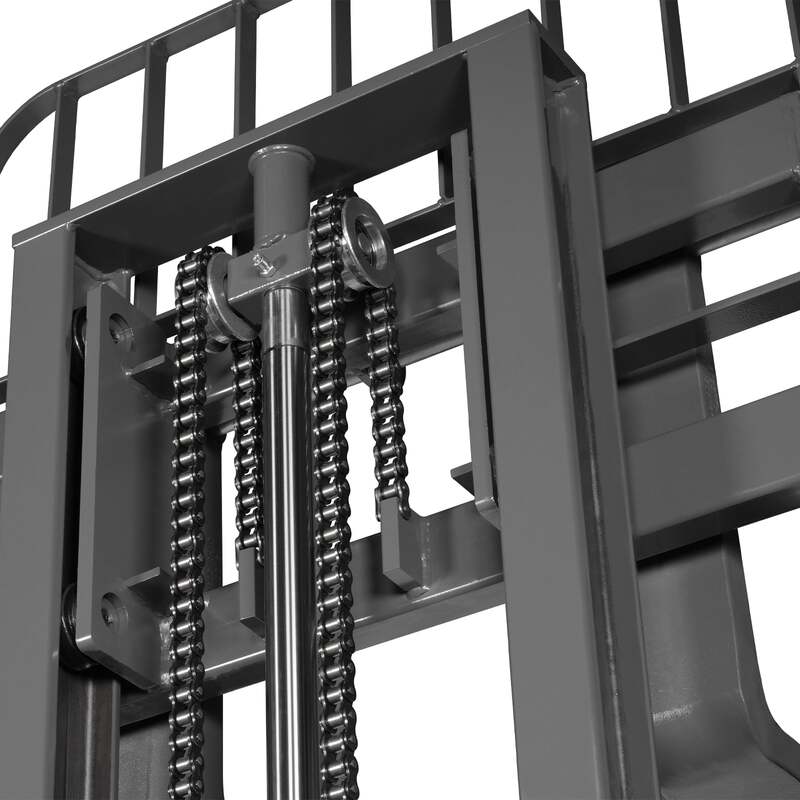

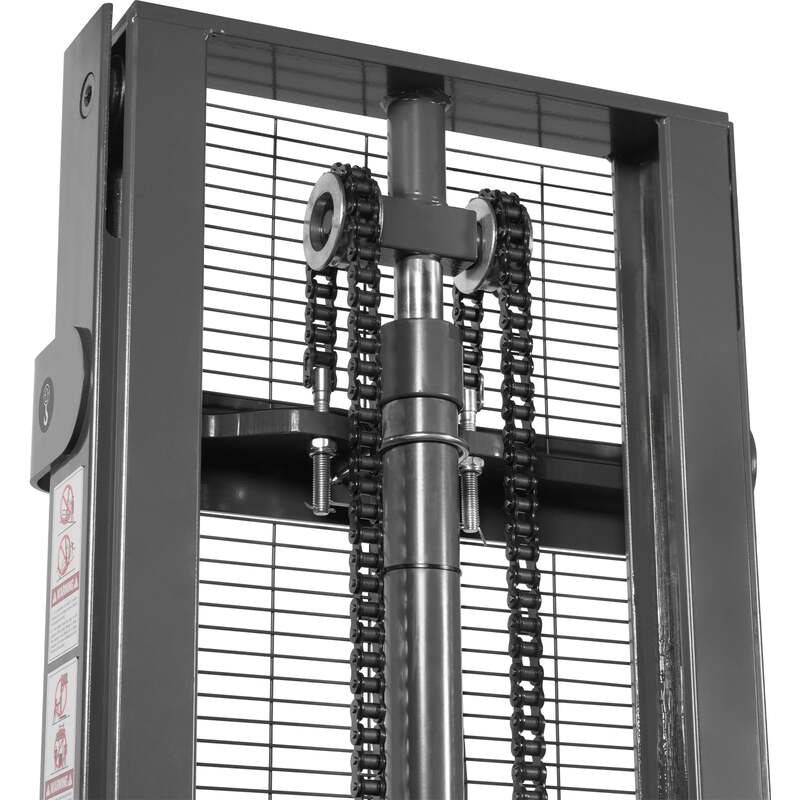

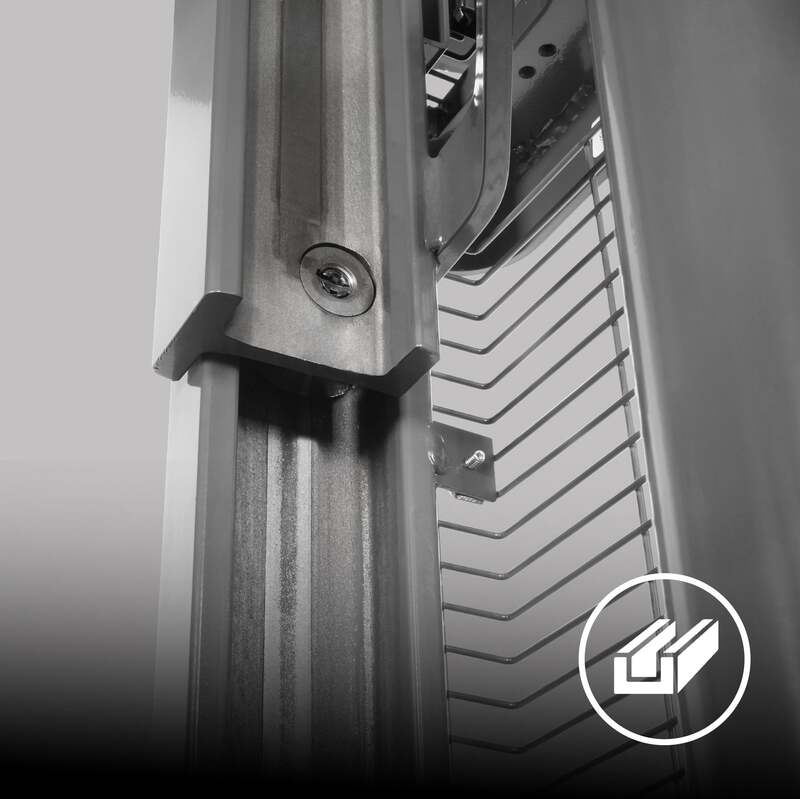

• Stable mast design for secure lifting

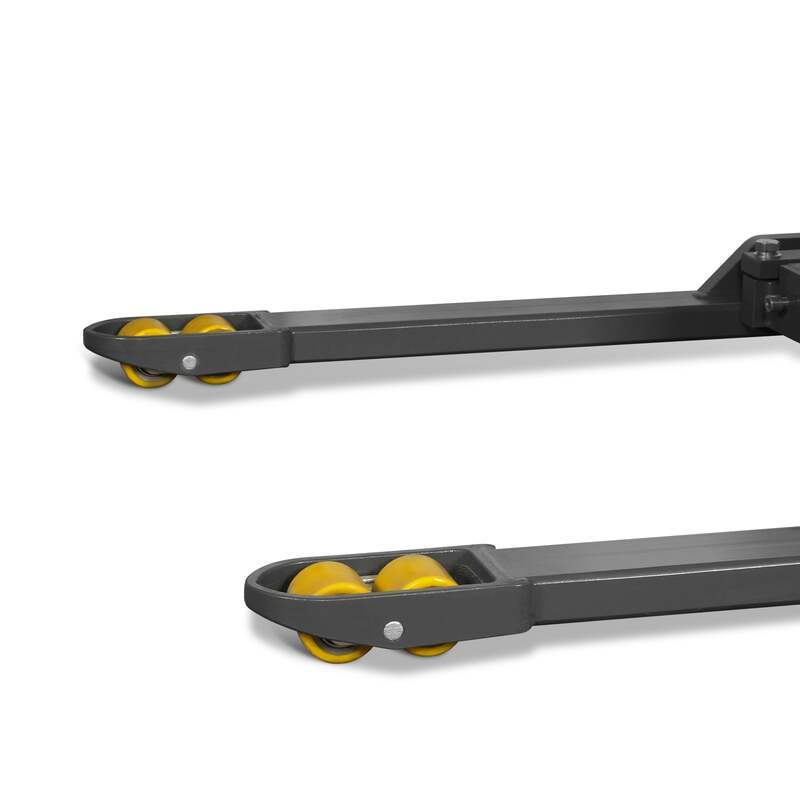

• Polyurethane wheels protect warehouse floors

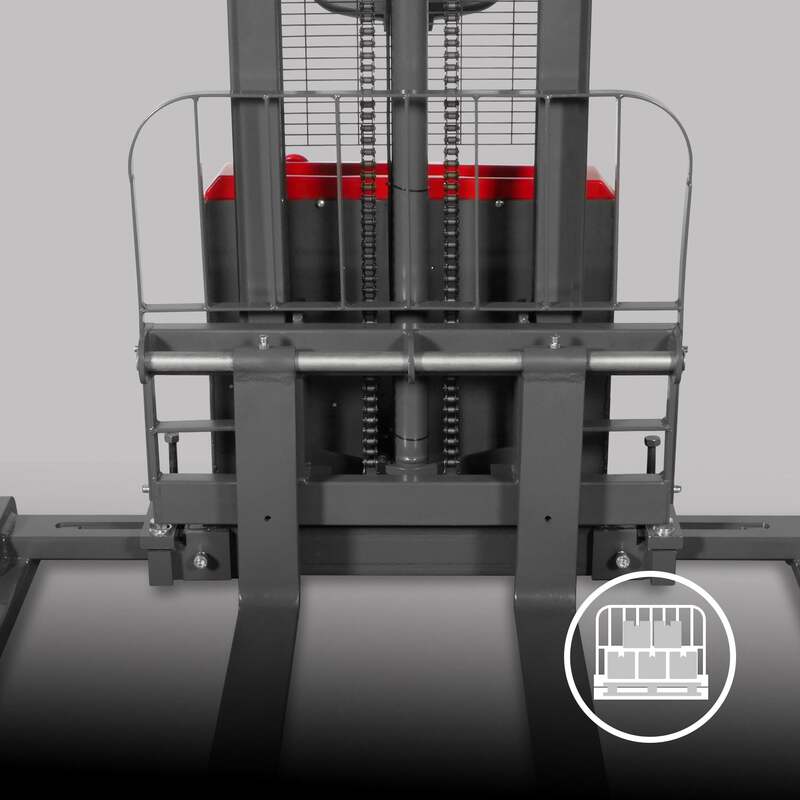

• Removable load backrest for additional safety
This construction ensures durability and consistent performance in demanding warehouse environments.
Comprehensive Safety Features
The stacker incorporates multiple safety systems to protect both operators and loads.

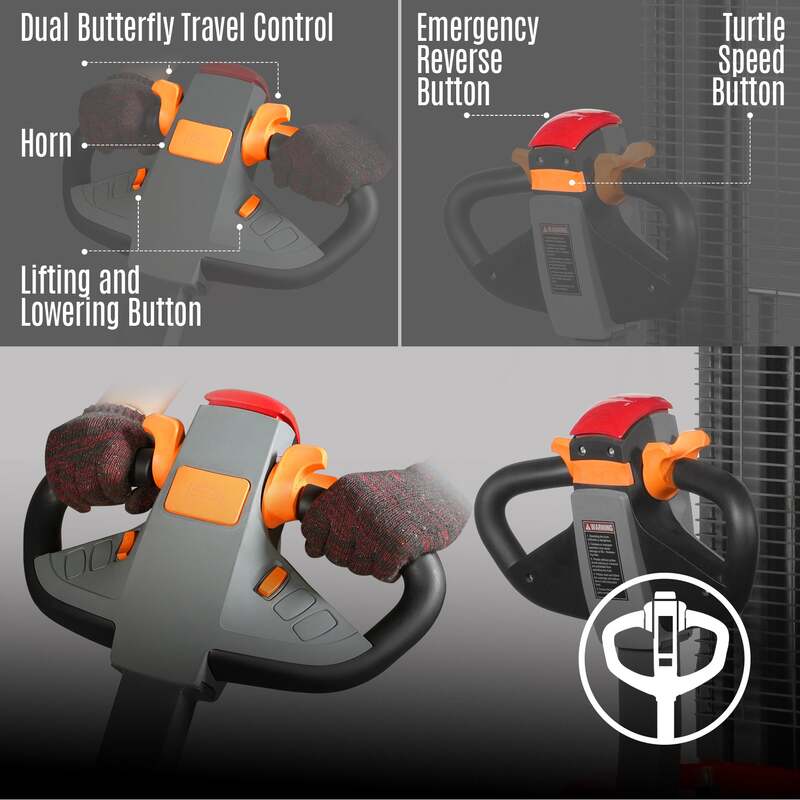

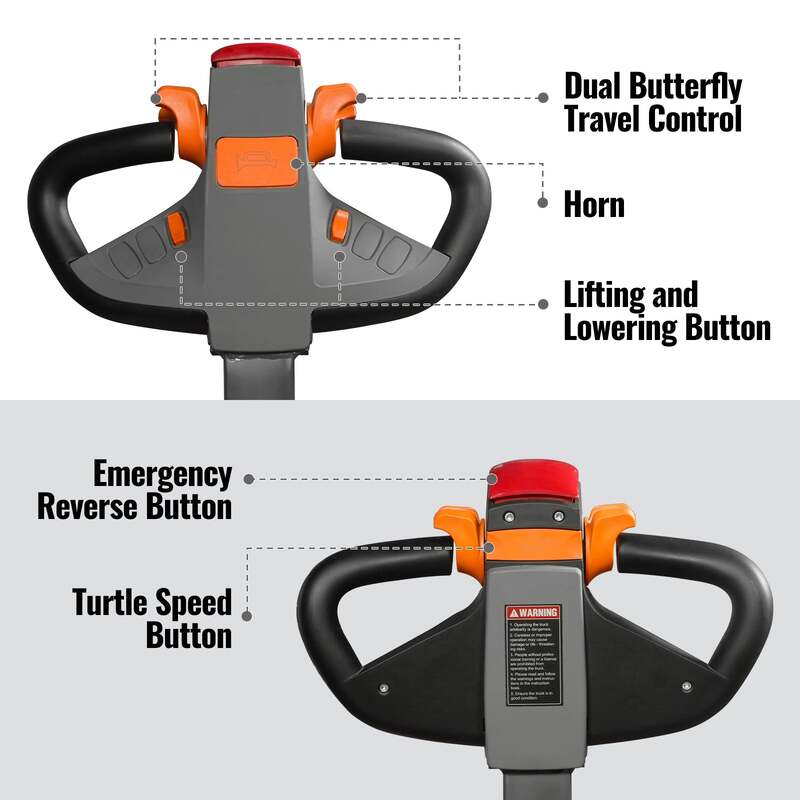

• Emergency reverse safety button
• Electromagnetic braking system

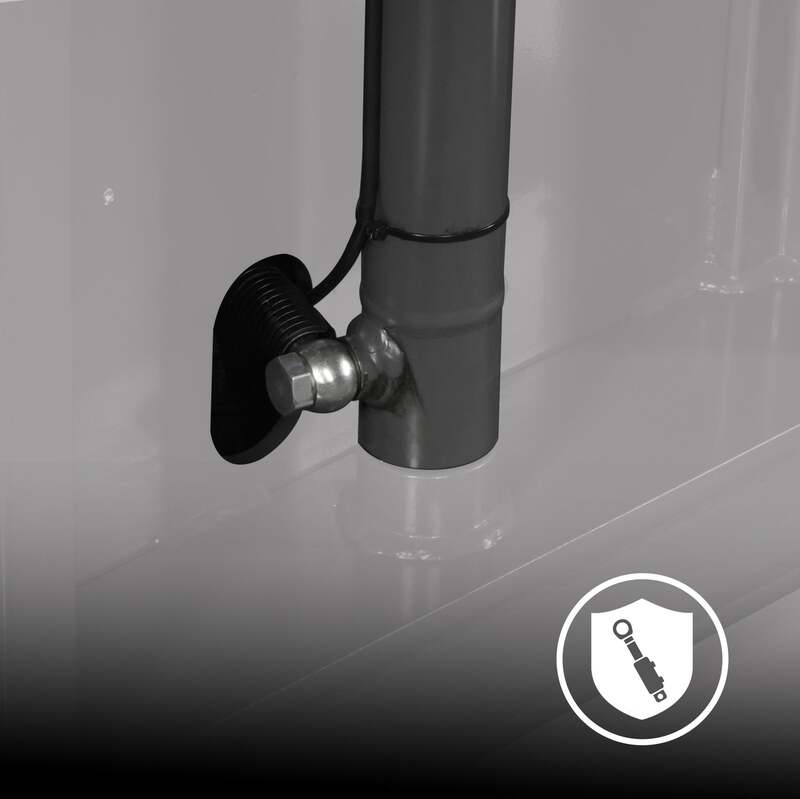

• Explosion-proof hydraulic valve

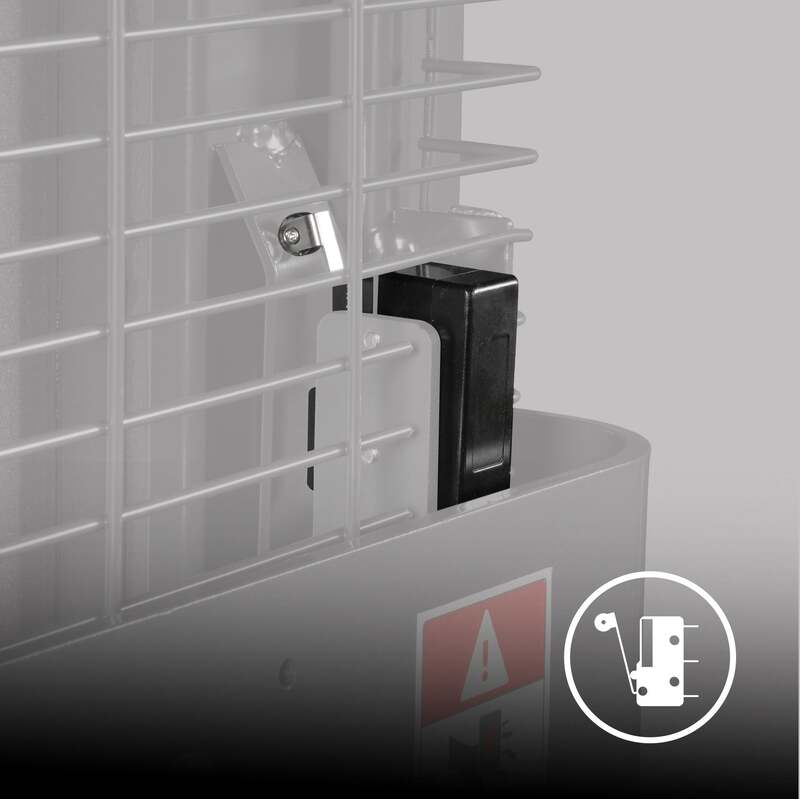

• Electronic lift limit switch
• Automatic safety release braking system

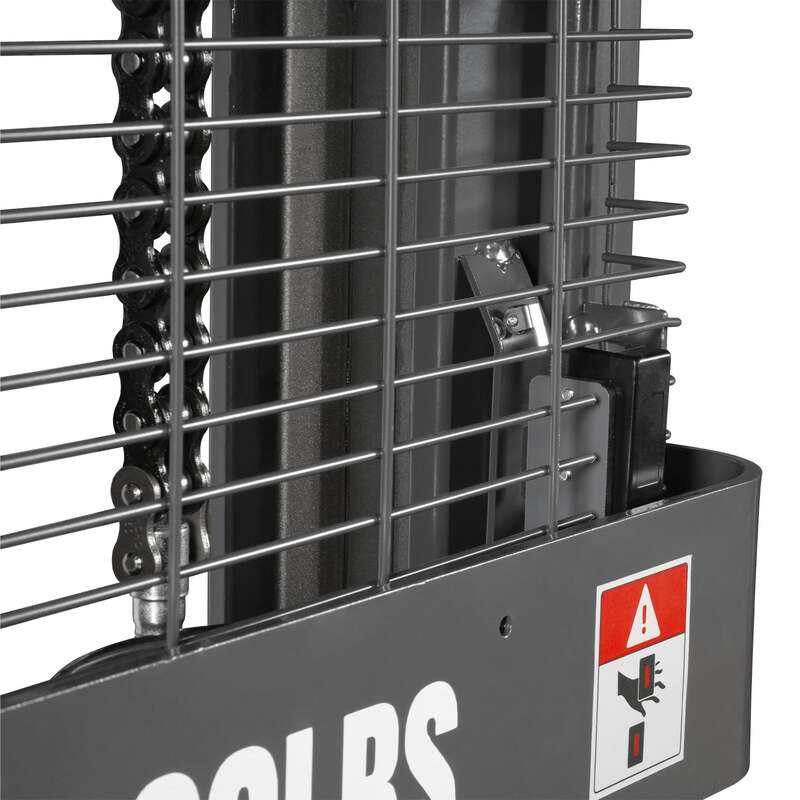

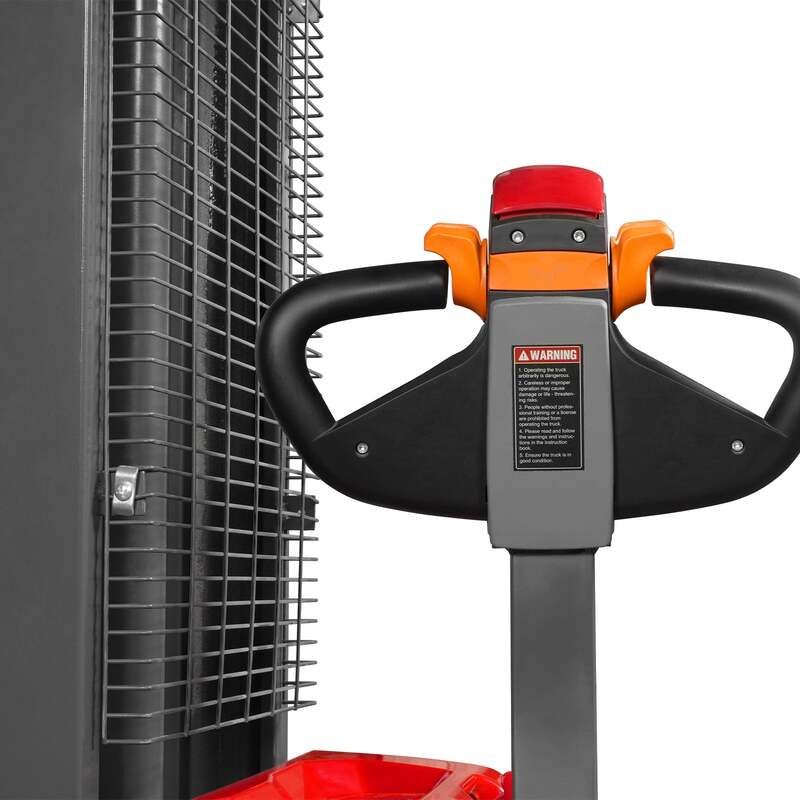

• Protective mesh guard for improved operator safety
These features help maintain safe operation during lifting and transport tasks.
Important Shipping Note
Due to the size and weight of this machine, lift-gate delivery is not supported. Customers must prepare a forklift or unloading equipment for delivery.

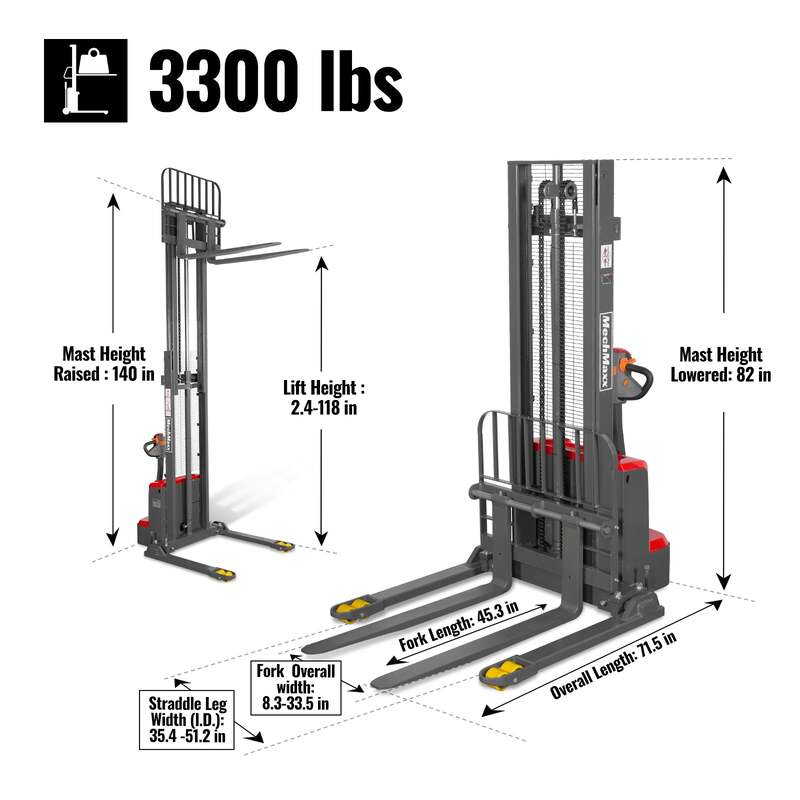

Technical Specifications
Load Capacity: 3300 lbs
Operator Position: Walkie
Maximum Lift Height: 118 in
Minimum Lift Height: 2.4 in
Mast Height (Raised): 140 in
Mast Height (Lowered): 82 in
Turning Radius: 53 in
Driving Speed (Laden / Unladen): 2.5 / 2.6 mph
Lifting Speed (Laden / Unladen): 18.1 / 26.8 fpm
Lowering Speed (Laden / Unladen): 22 / 19.3 fpm
Gradeability (Laden / Unladen): 3% / 8%

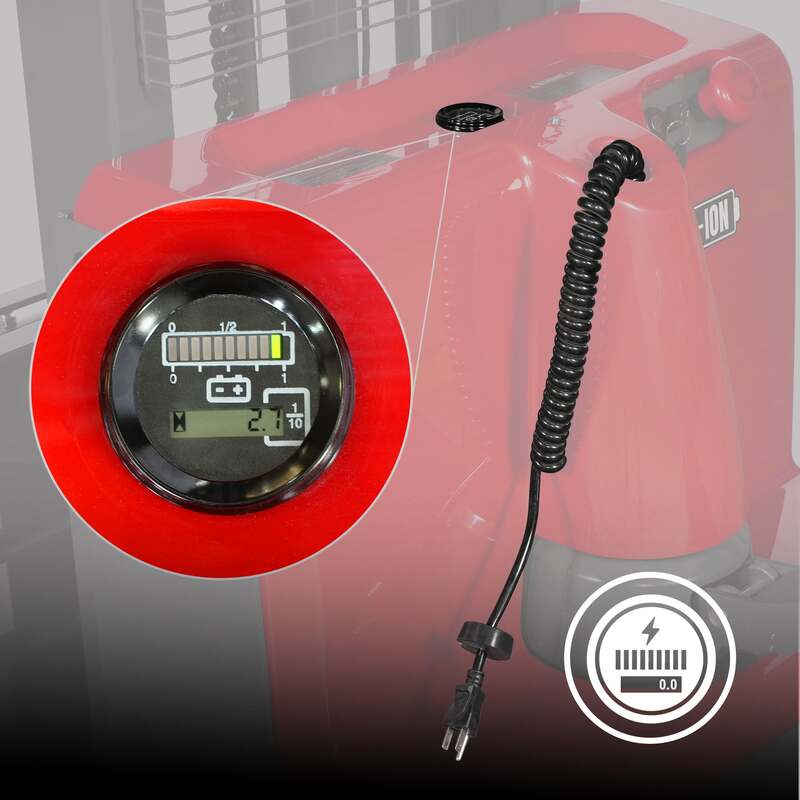

Battery: 24V / 60Ah Maintenance-Free Lithium-ion

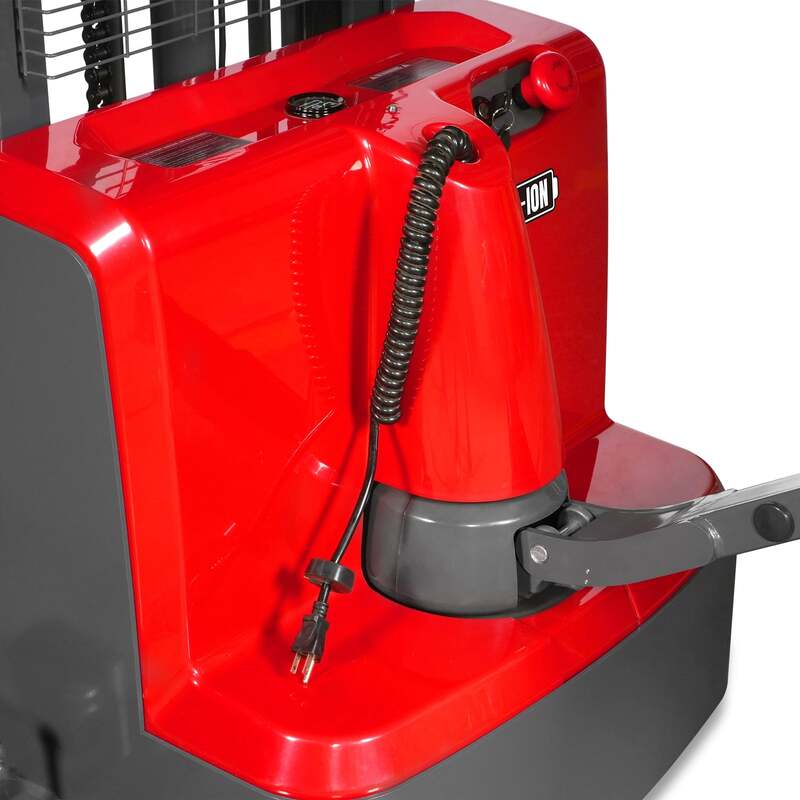

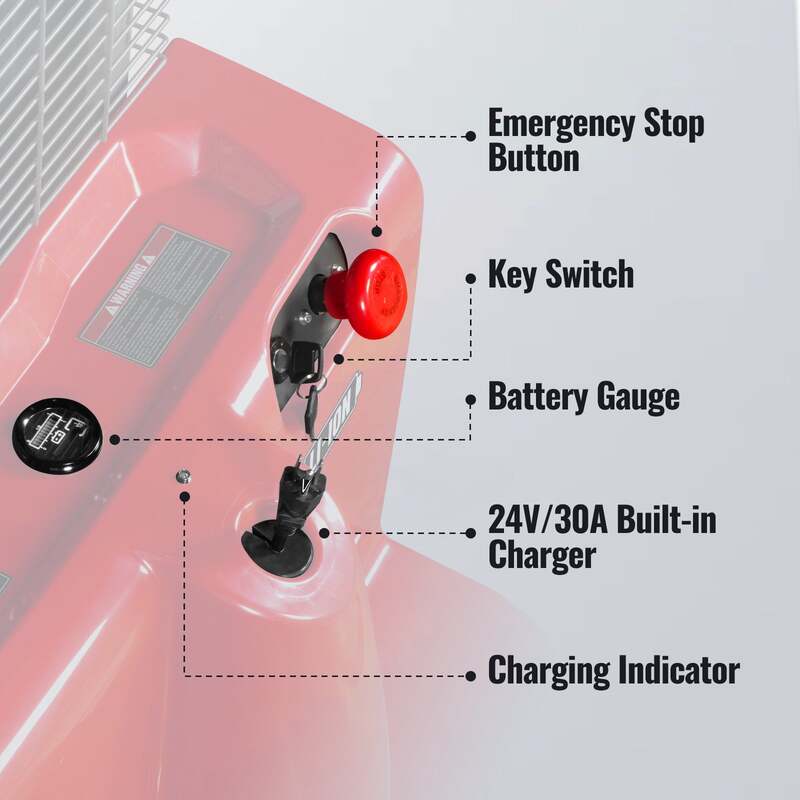

Charger: 24V / 30A Built-in Charger

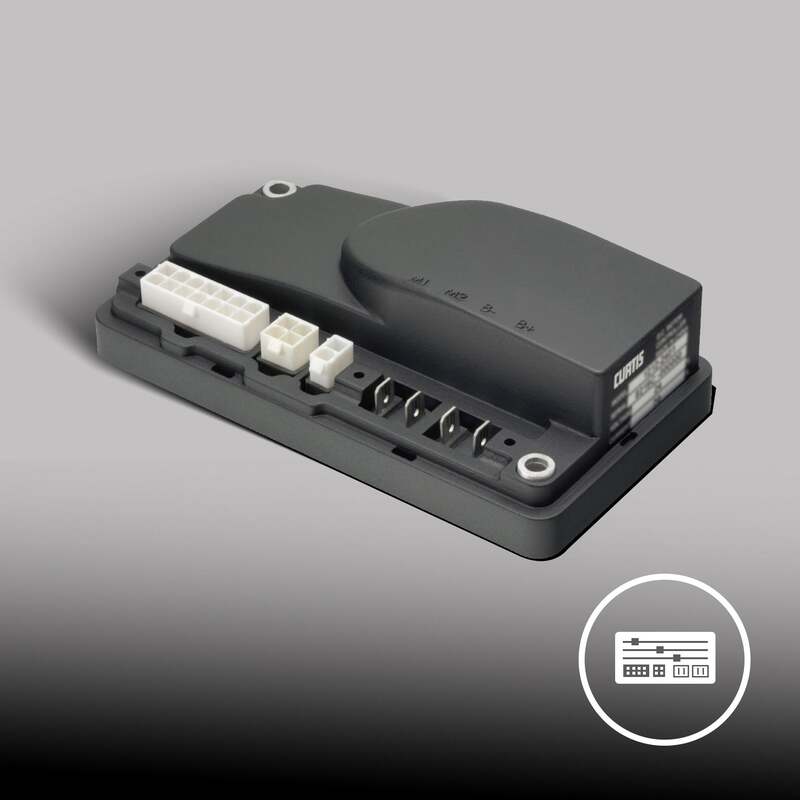

Controller: Curtis
Drive Motor: 0.75 kW DC
Lift Motor: 2.2 kW
Straddle Leg Width (Inside): 35.4 – 51.2 in
Straddle Leg Width (Outside): 43.3 – 59 in
Fork Width Range: 8.3 – 33.5 in
Fork Size: 1.4 × 4 × 45.3 in
Overall Length: 71.5 in
Packing Size: 43 × 37 × 87 in
Net / Gross Weight: 1355 / 1510 lbs
