Lithium-Ion Electric Straddle Stacker – 3300 lb Capacity Walkie Stacker with 98" Lift Height (Model F33-98S)
Product Description

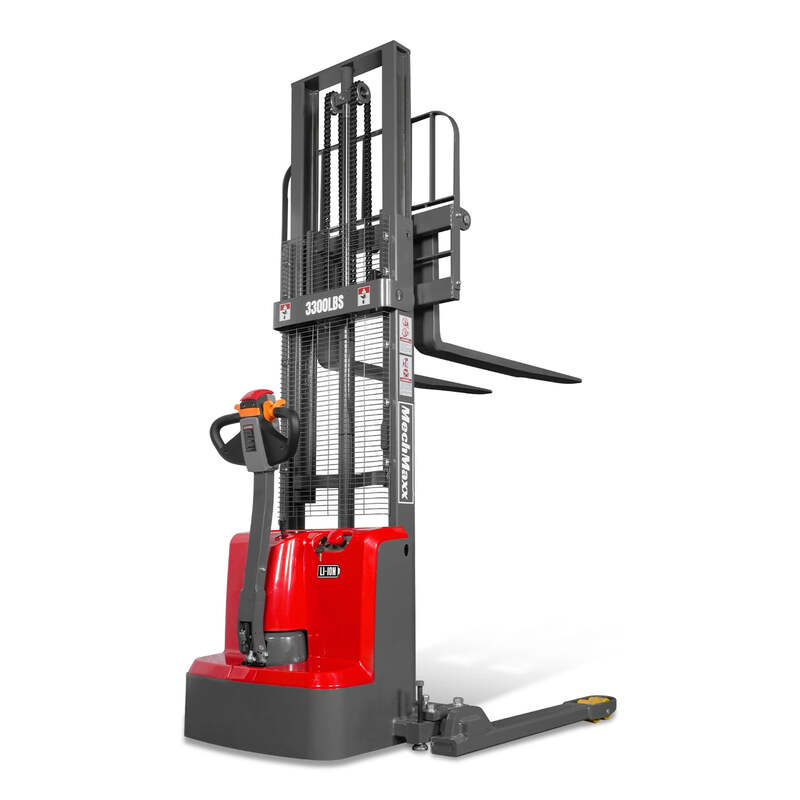

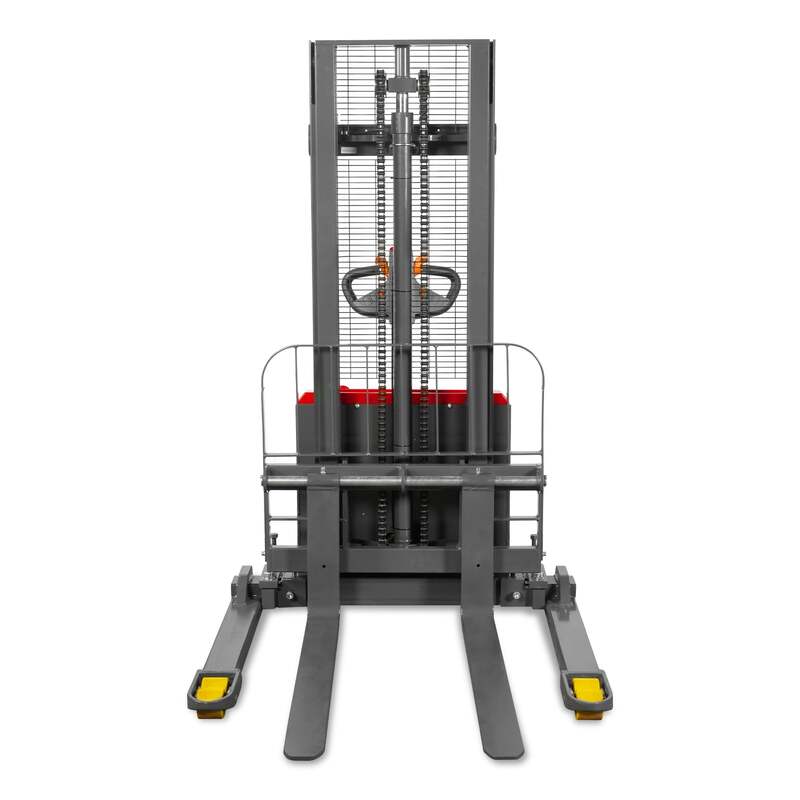

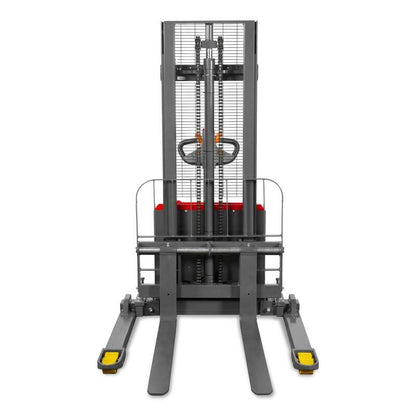

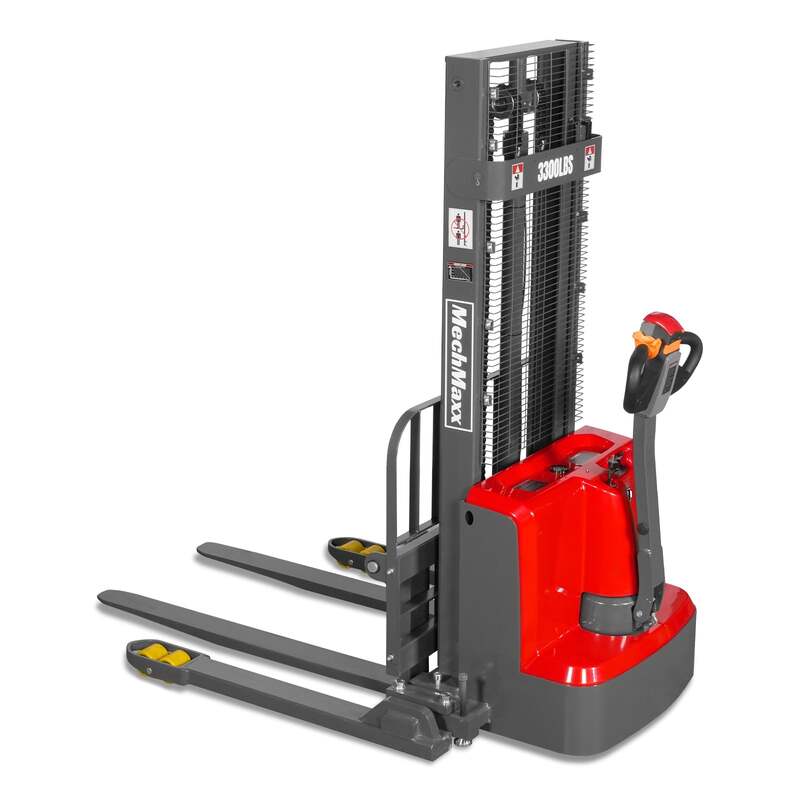

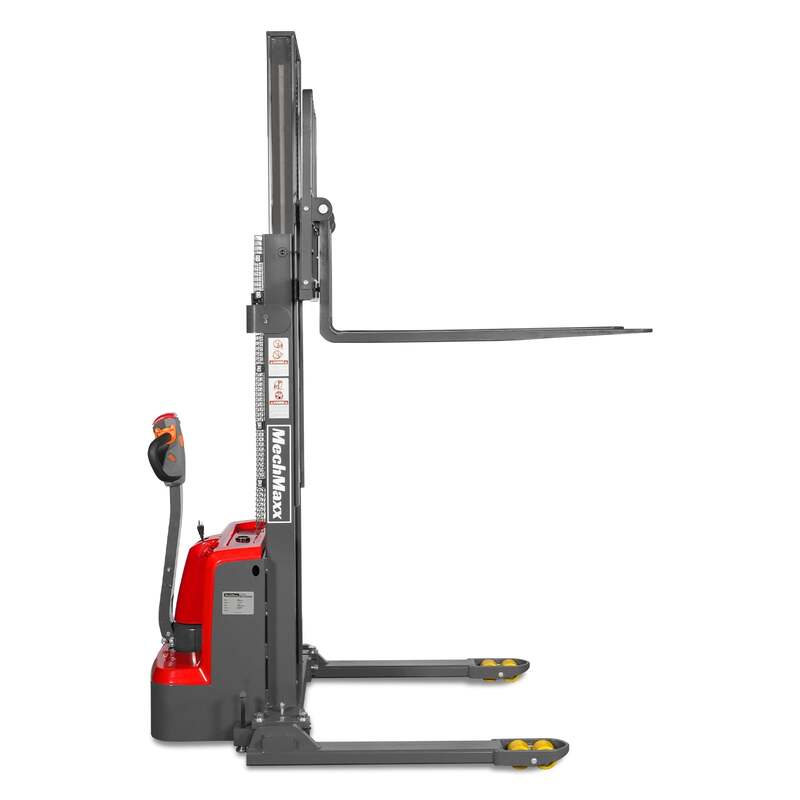

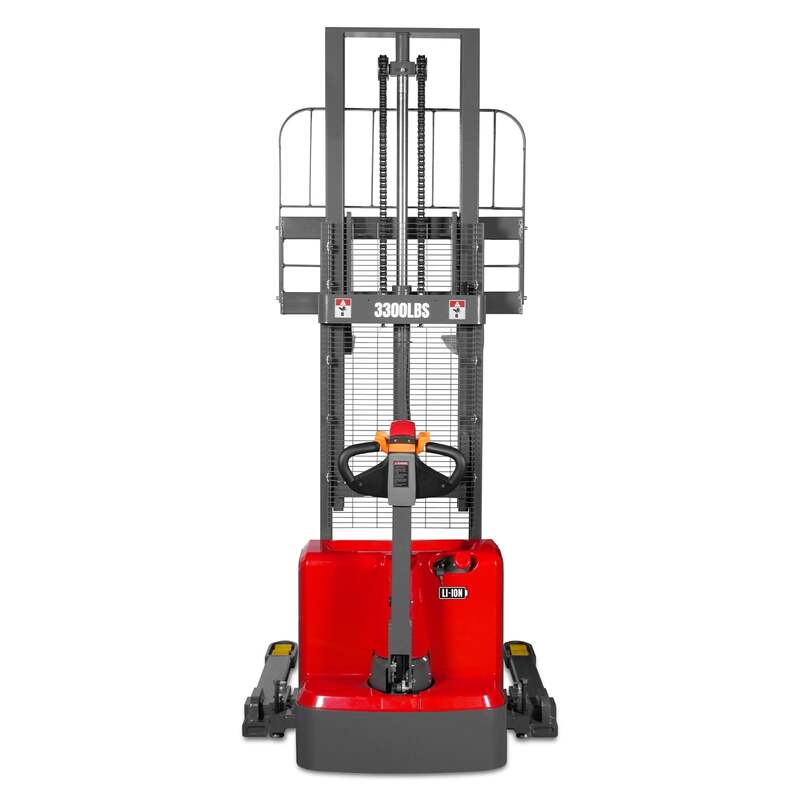

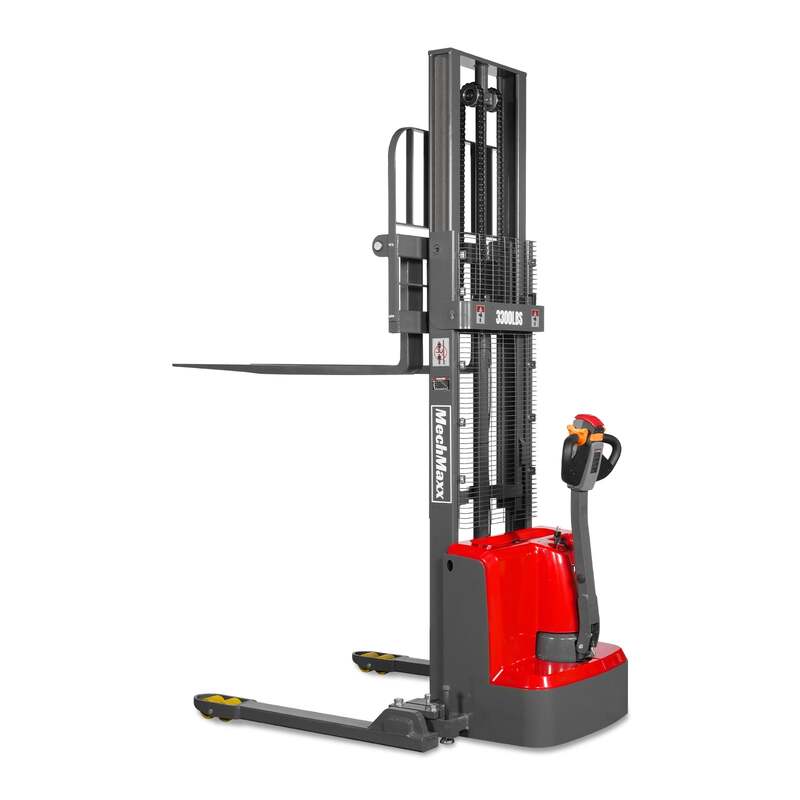

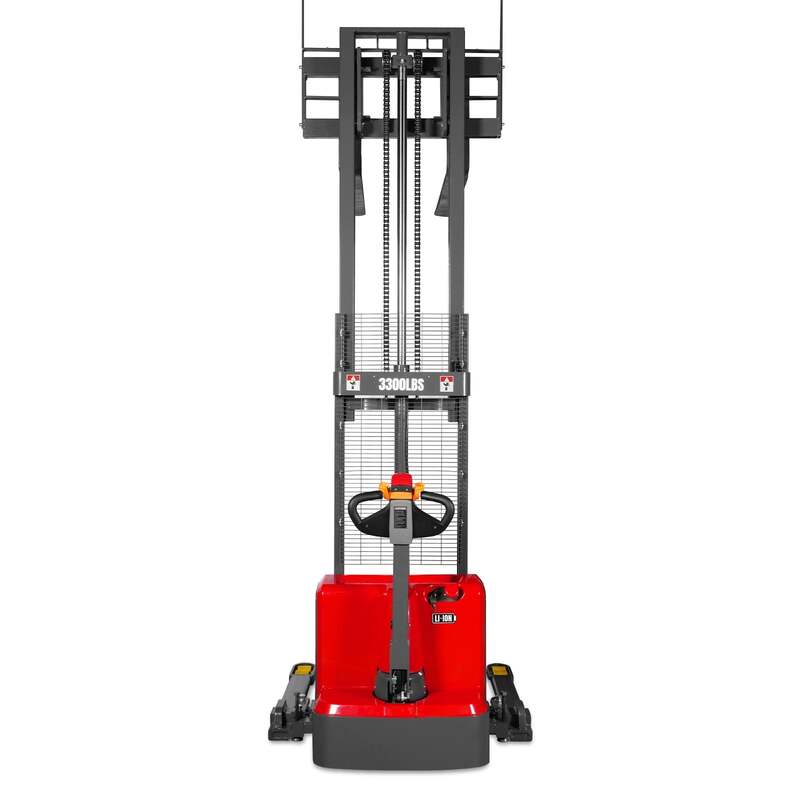

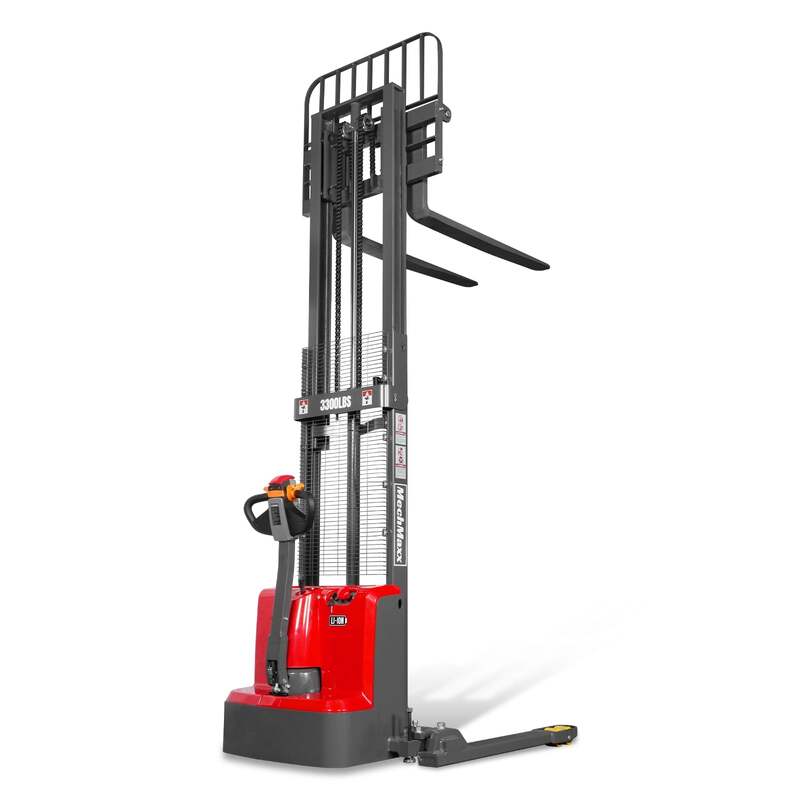

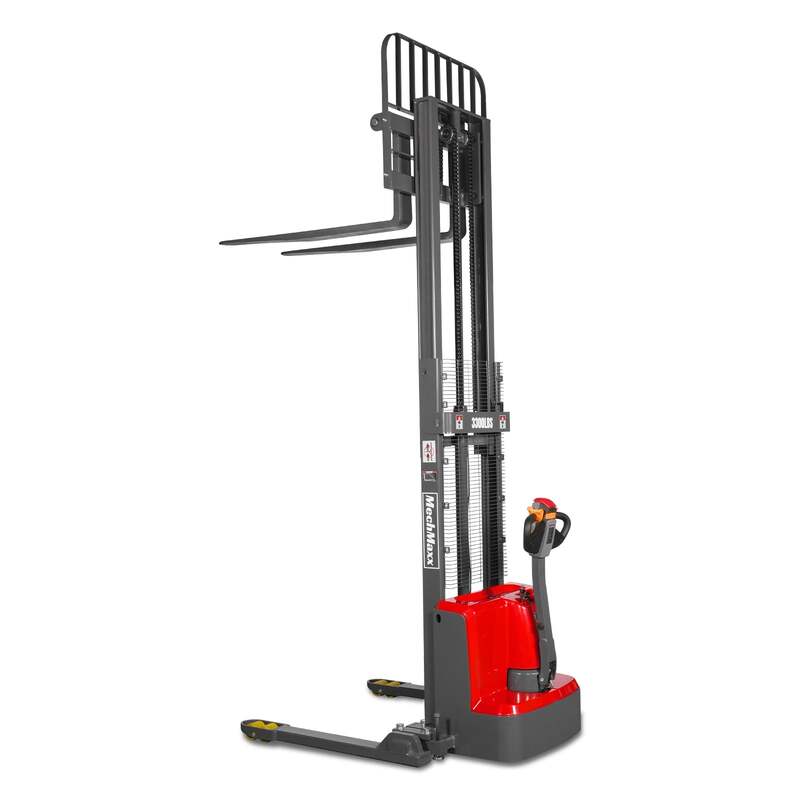

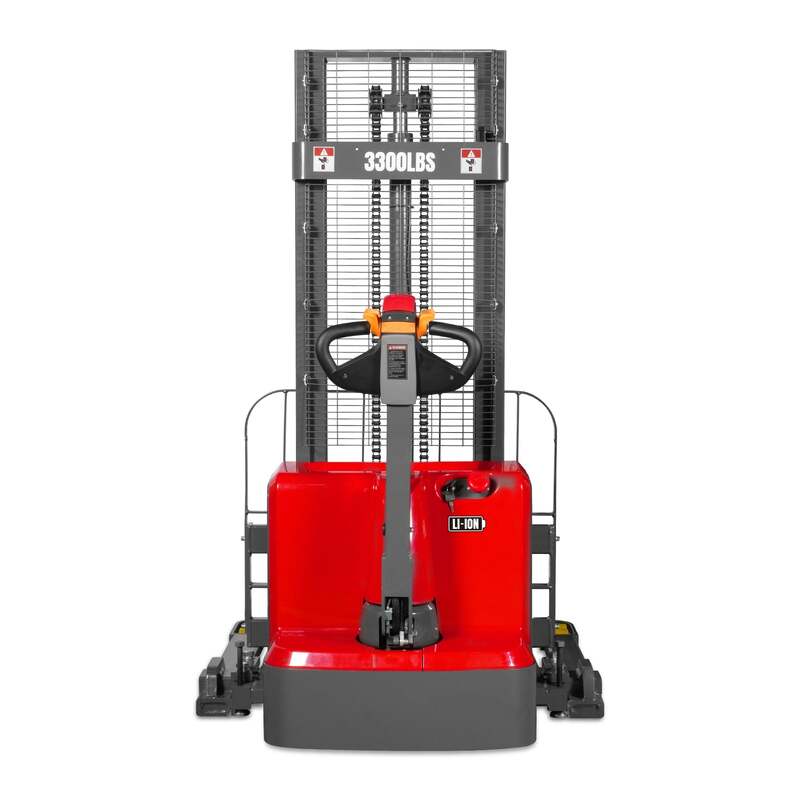

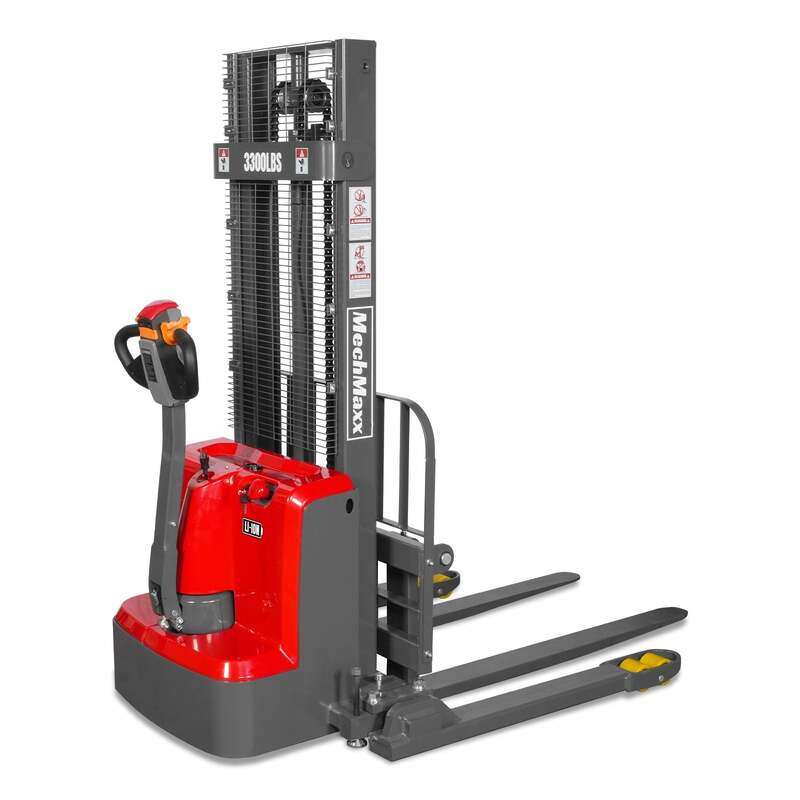

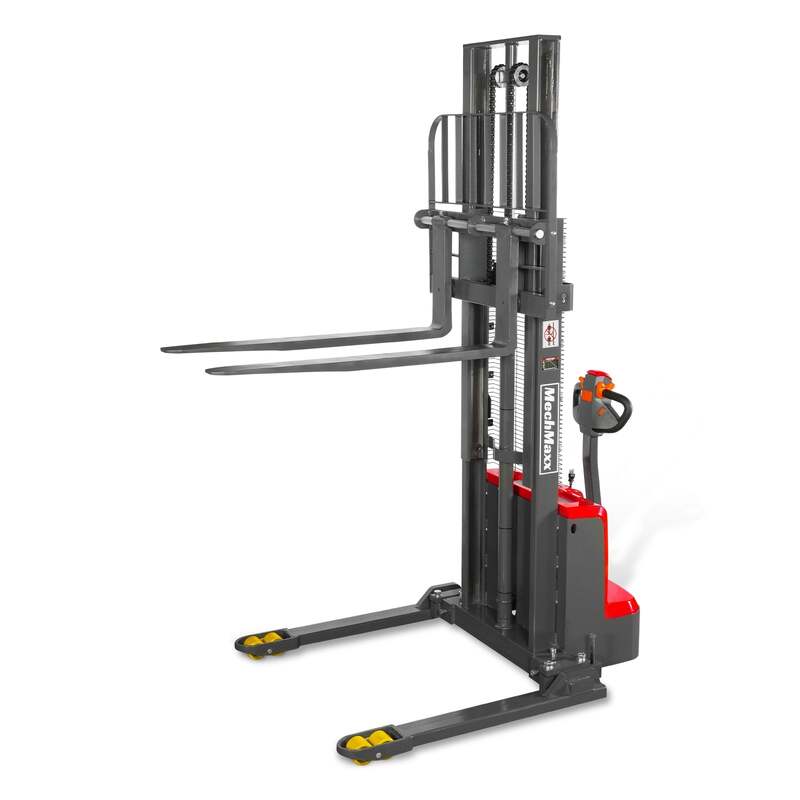

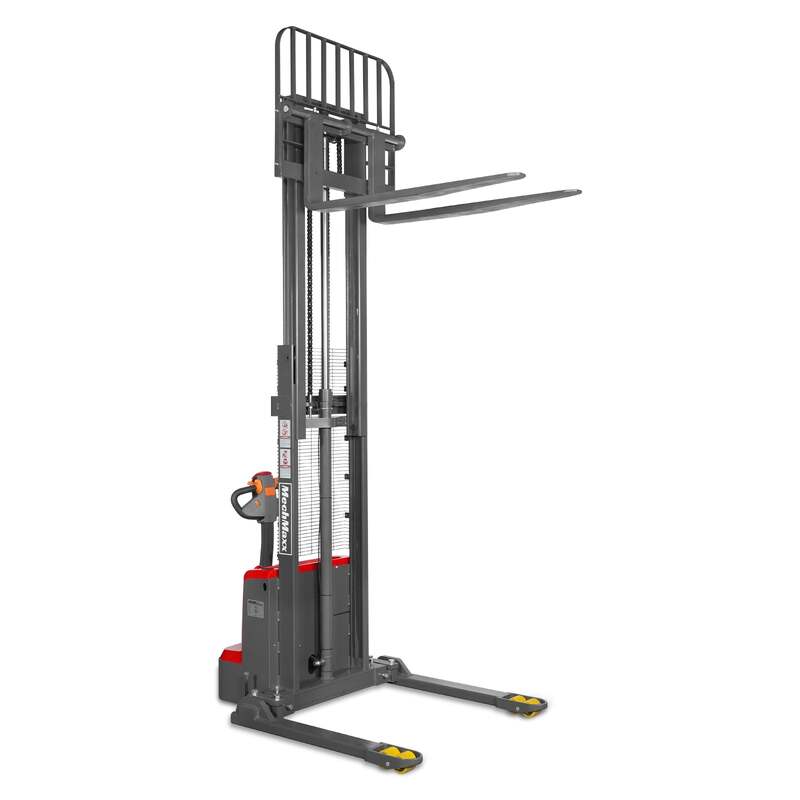

The MechMaxx F33-98S Electric Straddle Stacker is a powerful and efficient material handling solution designed for warehouses, distribution centers, and industrial facilities. With a 3300 lb lifting capacity and a maximum lift height of 98 inches, this walkie stacker allows operators to easily lift, stack, and transport palletized loads while maintaining stability and control.

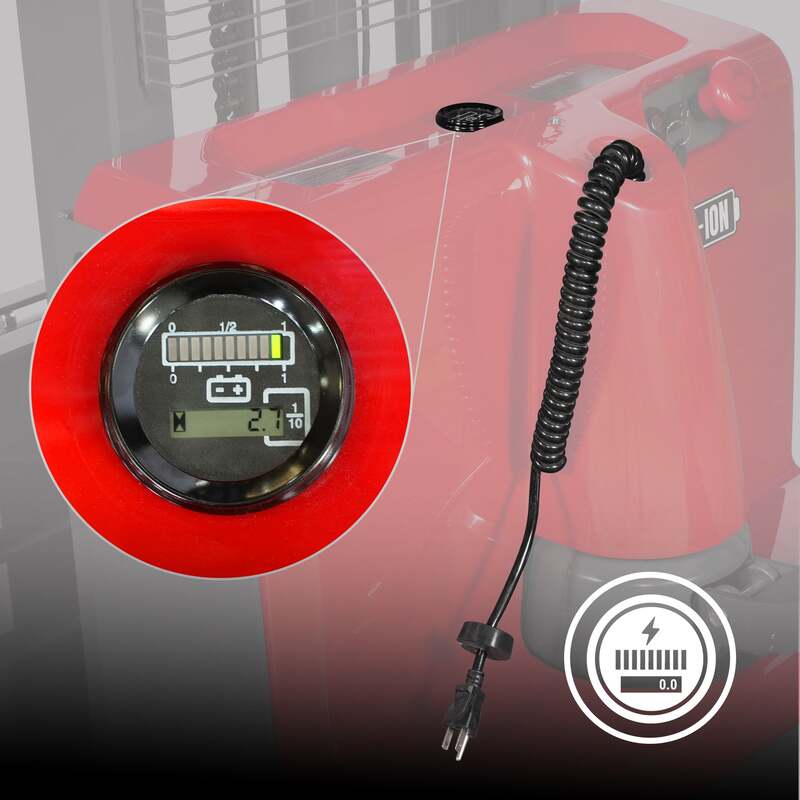

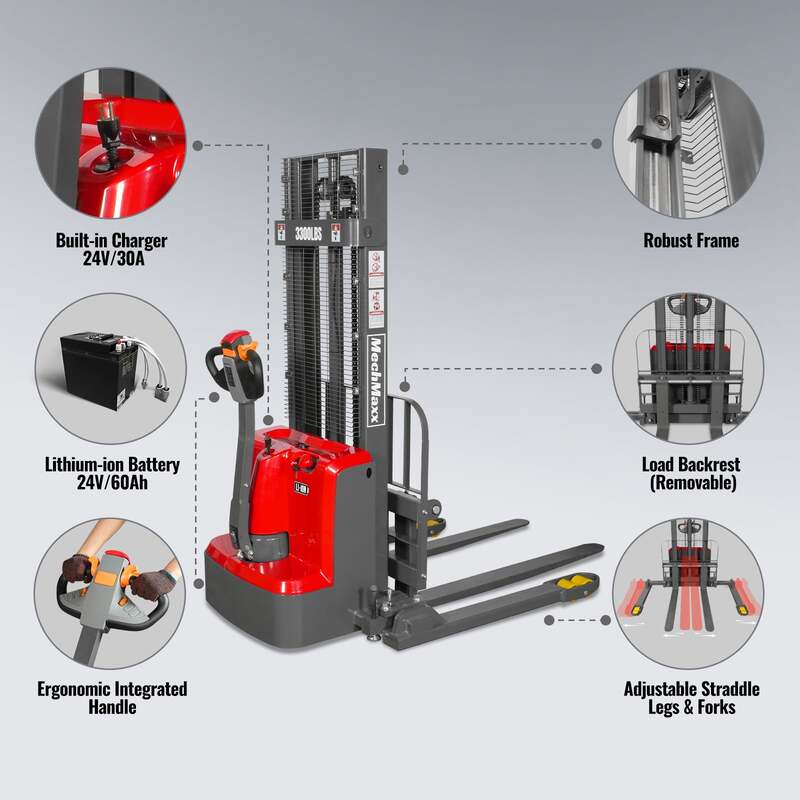

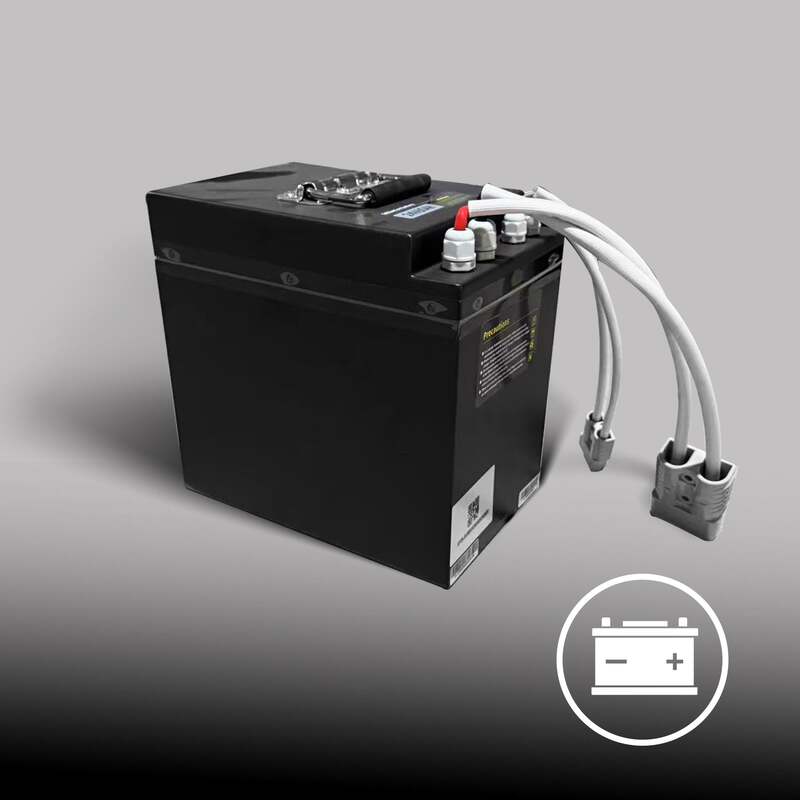

Powered by a 24V 60Ah maintenance-free lithium-ion battery, the F33-98S provides reliable power and long operating time for daily warehouse operations. The 24V/30A built-in charger allows convenient onboard charging and opportunity charging during work breaks, helping reduce downtime and increase productivity.
The stacker features adjustable forks and adjustable straddle legs to accommodate a wide variety of pallet sizes and load configurations. With a compact design and 53" turning radius, the F33-98S is ideal for navigating narrow aisles and tight storage areas.
Fully Electric Drive & Lift System
The F33-98S features fully electric travel and lifting for efficient material handling.
• 0.75 kW drive motor for smooth travel
• 2.2 kW lift motor for powerful lifting performance
• Travel speeds up to 2.6 mph unloaded
• Smooth lifting and lowering for accurate pallet placement
This system improves productivity while reducing operator fatigue during warehouse operations.

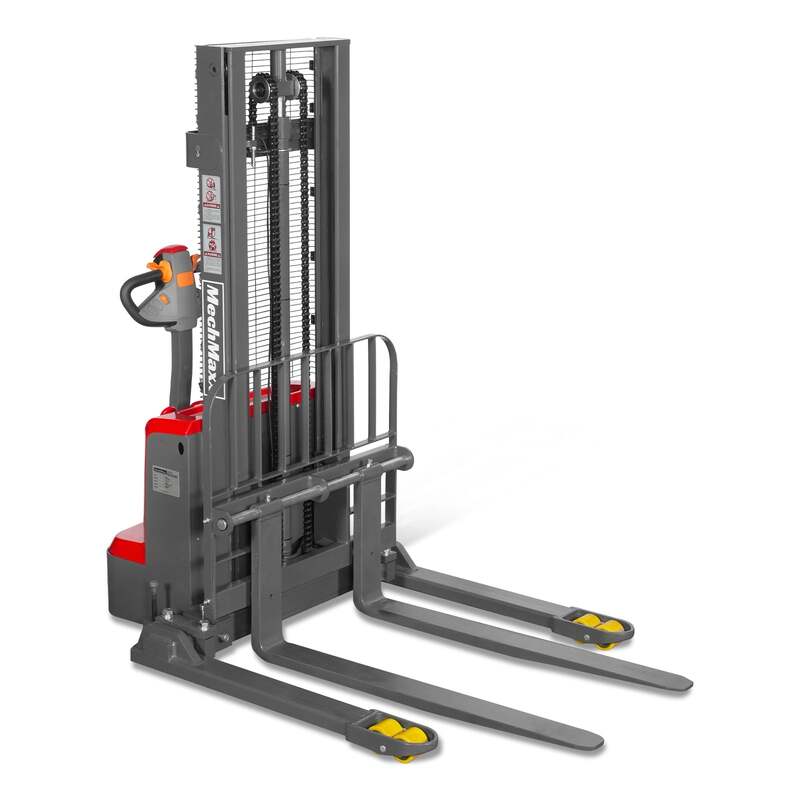

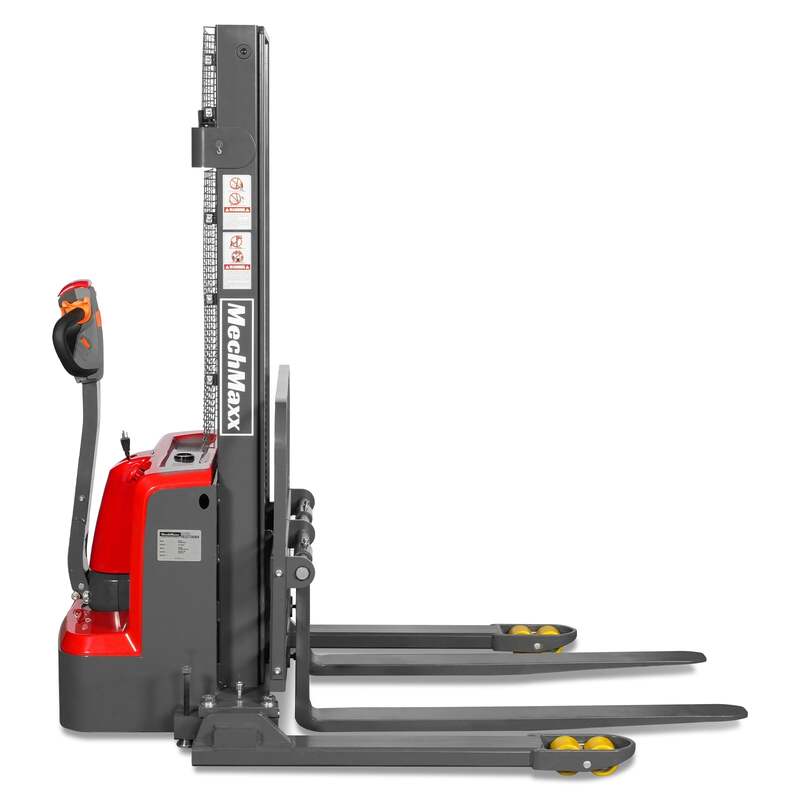

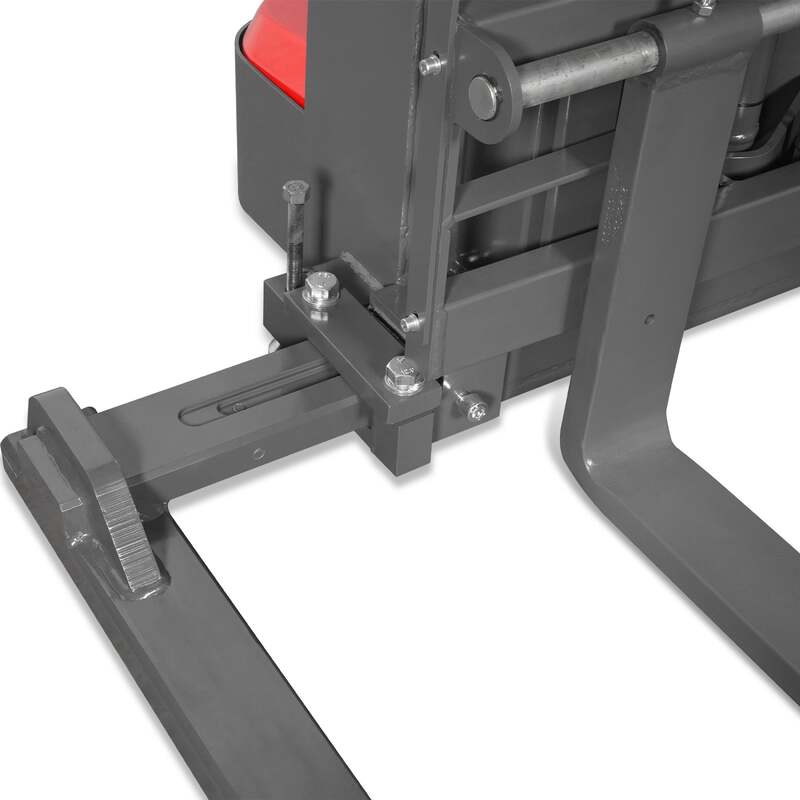

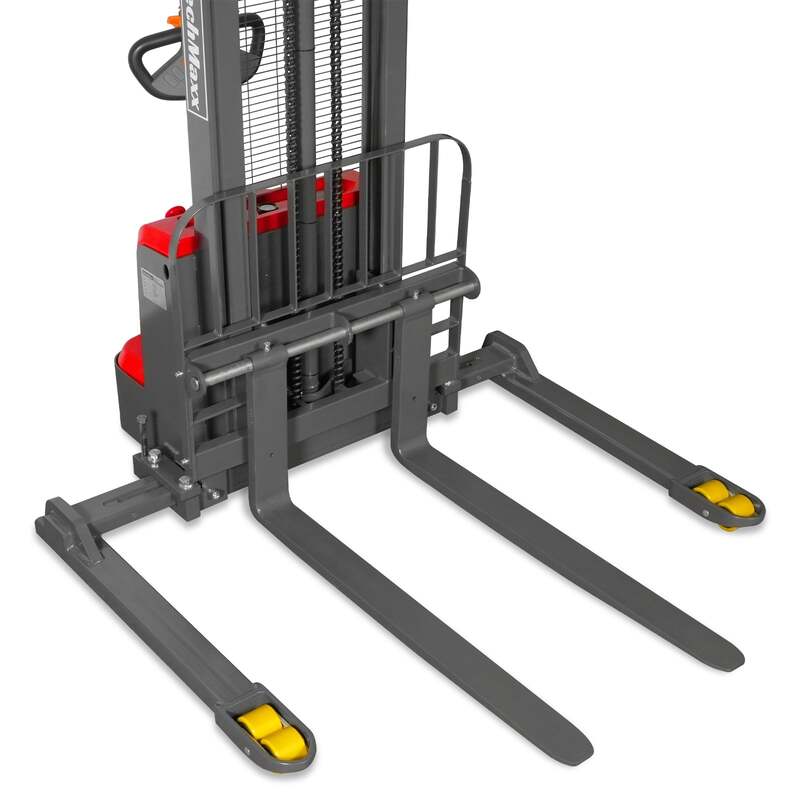

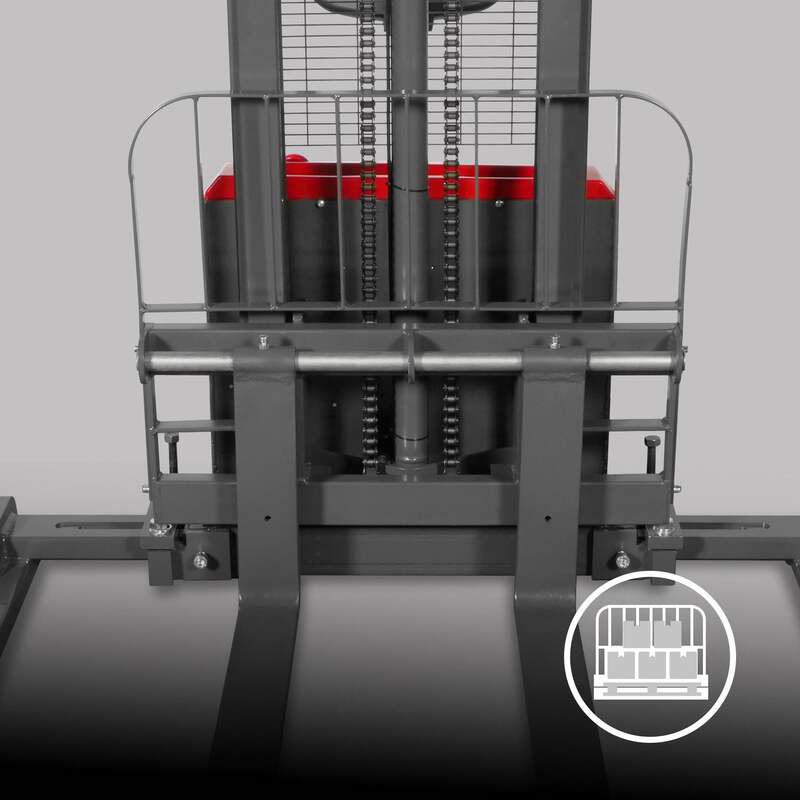

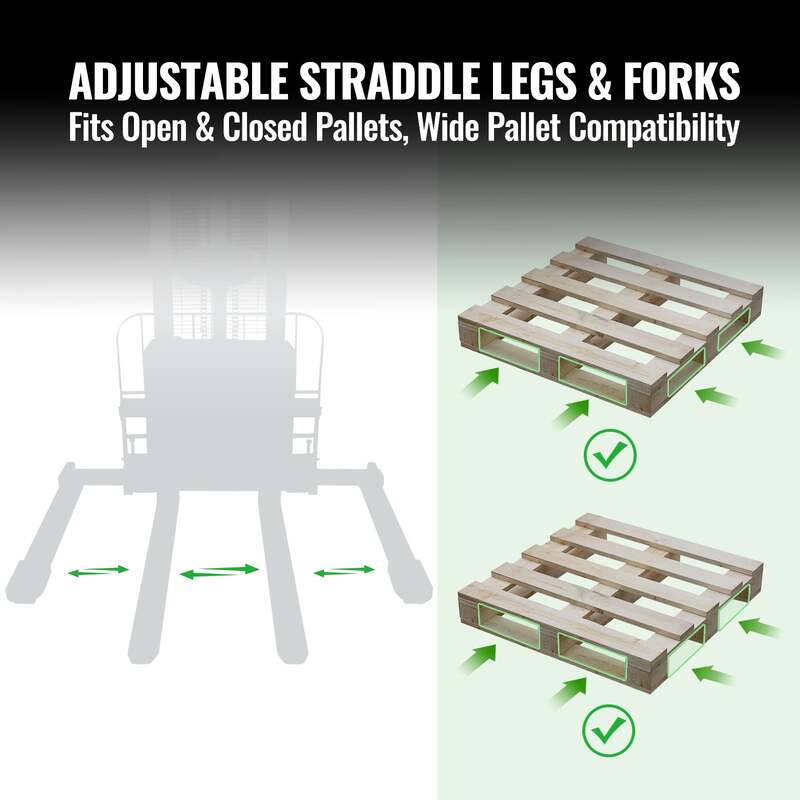

Adjustable Forks & Straddle Legs
Flexible adjustment allows this stacker to handle a wide range of pallet sizes.
• Fork width adjustable from 8.3" to 33.5"

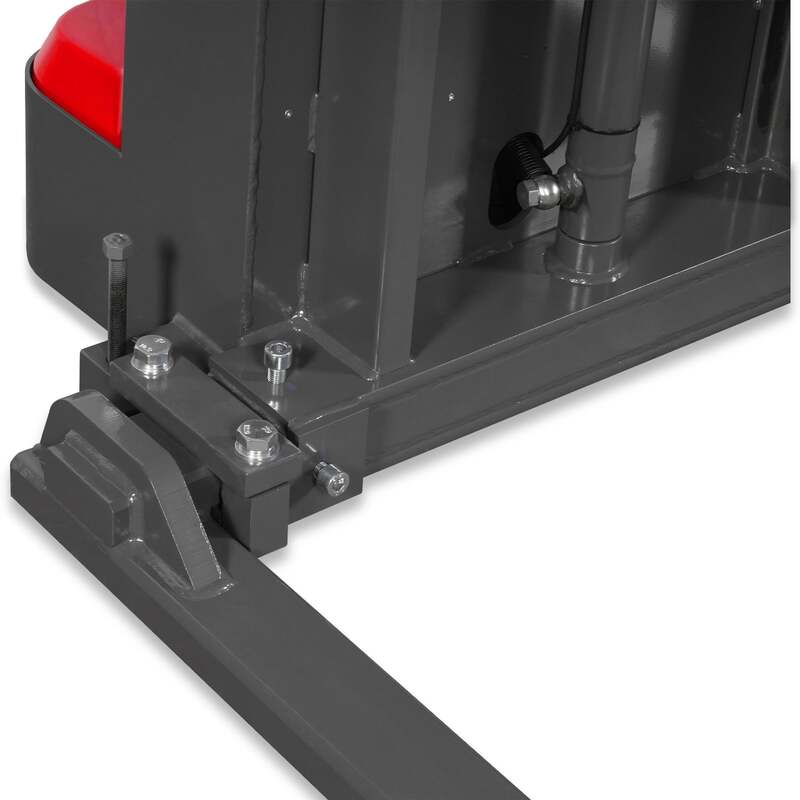

• Straddle leg inside width adjustable from 35.4" to 51.2"
• Compatible with multiple pallet configurations
• Ideal for warehouse and industrial material handling
These adjustments increase versatility and allow the machine to adapt to various material handling tasks.
Durable Industrial Construction

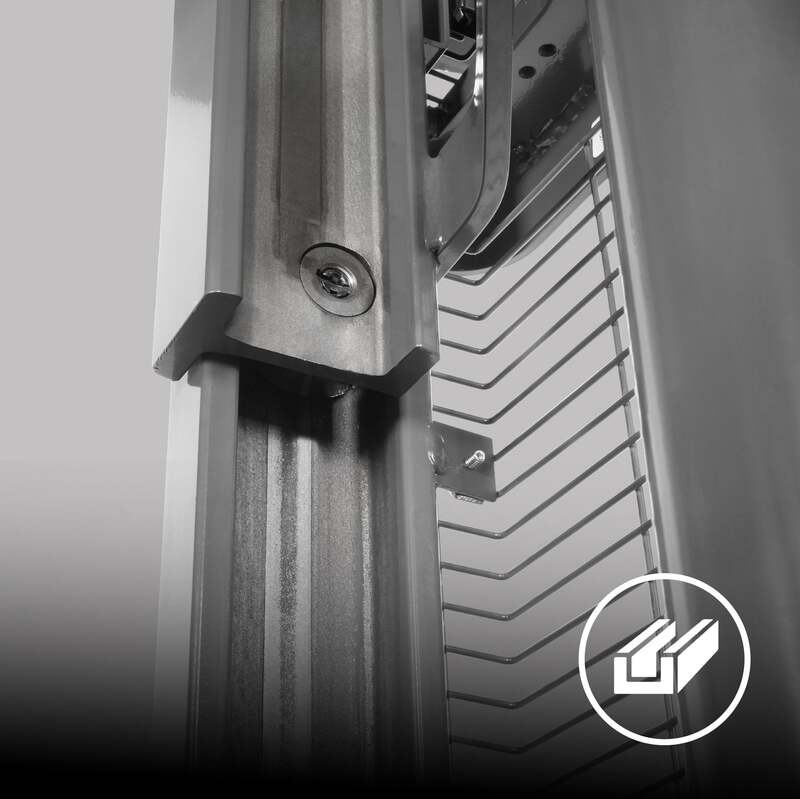

The F33-98S is built with reinforced steel components designed for heavy-duty warehouse use.

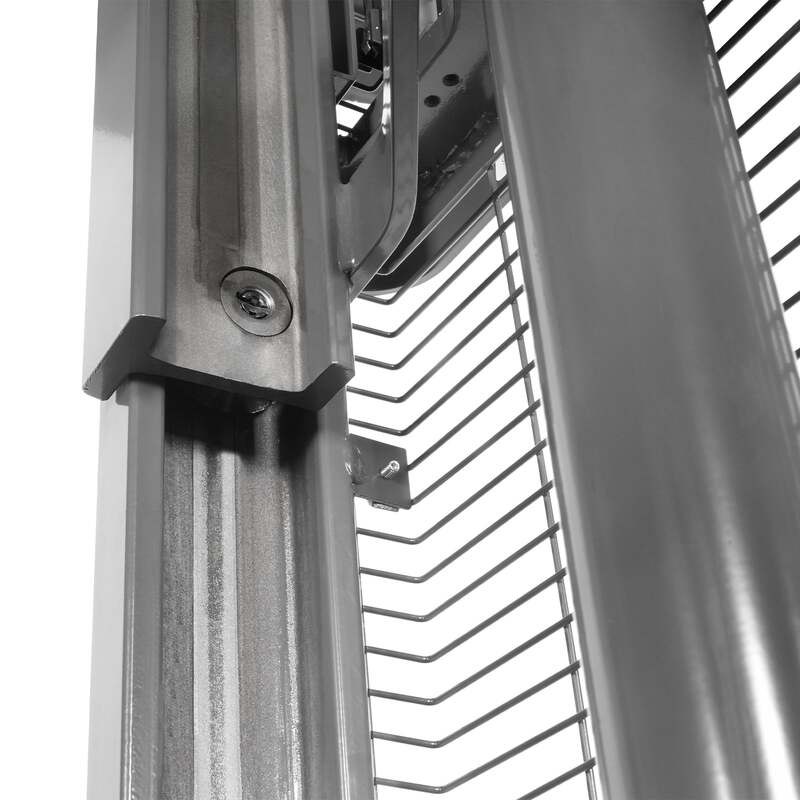

• Double-frame reinforced steel construction

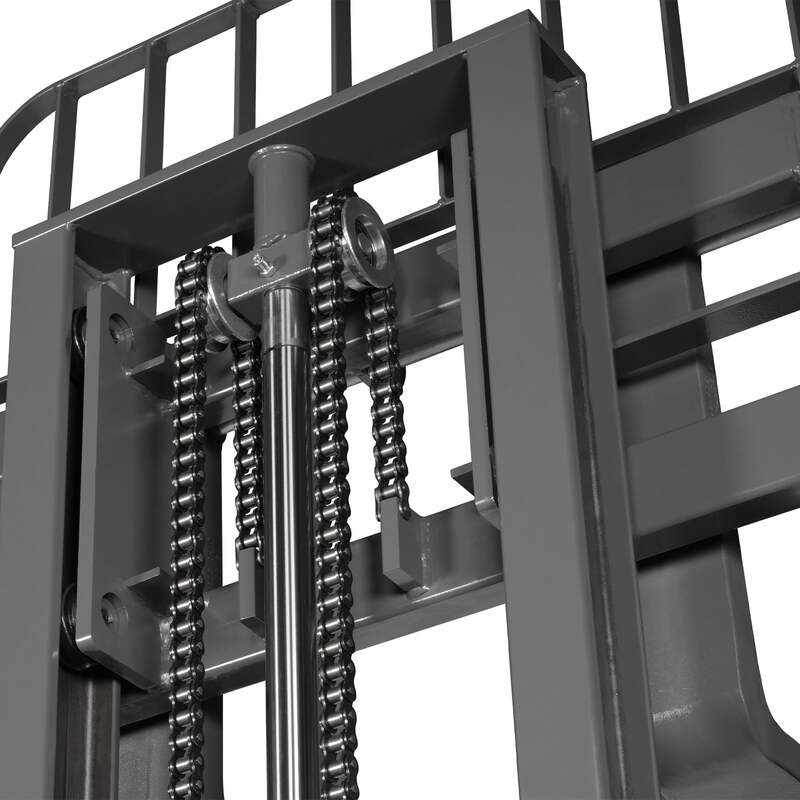

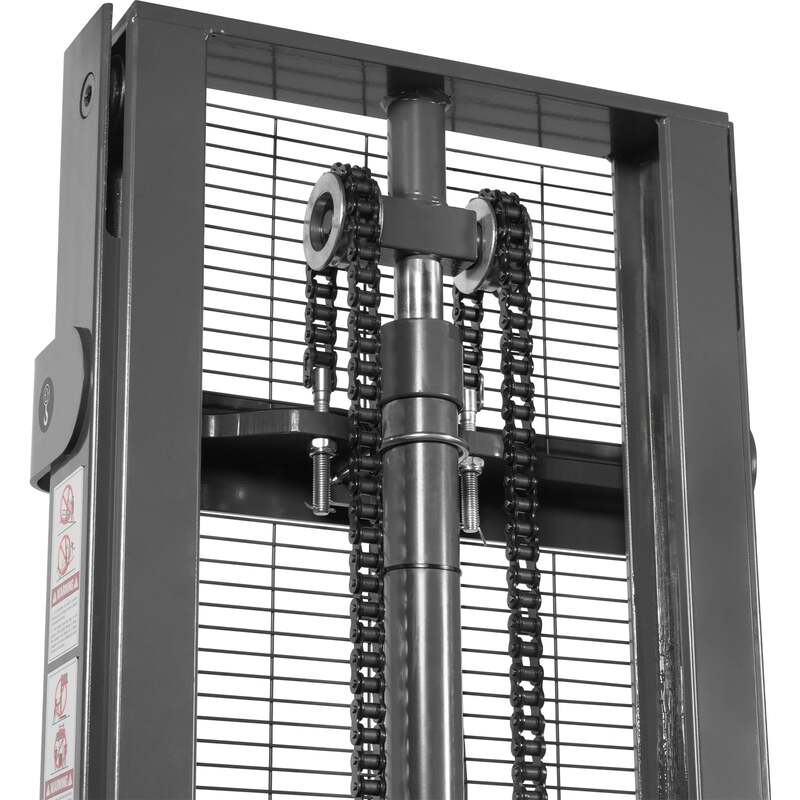

• Stable mast structure for safe lifting

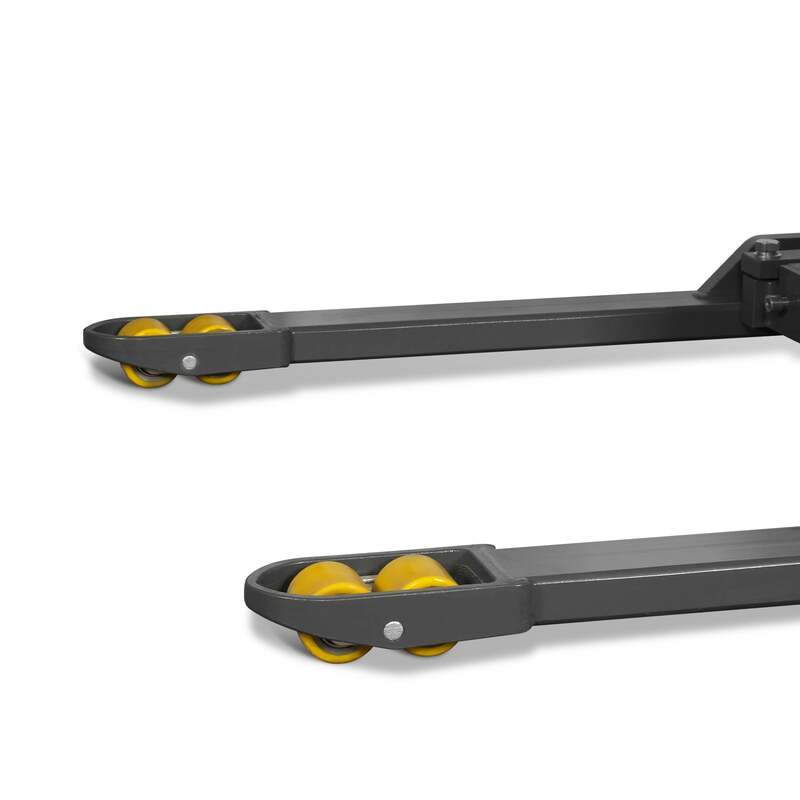

• Polyurethane wheels protect warehouse flooring
• Removable load backrest improves load stability
This durable structure ensures long service life and reliable operation.
Advanced Safety Features
Multiple integrated safety systems help protect operators and loads during operation.

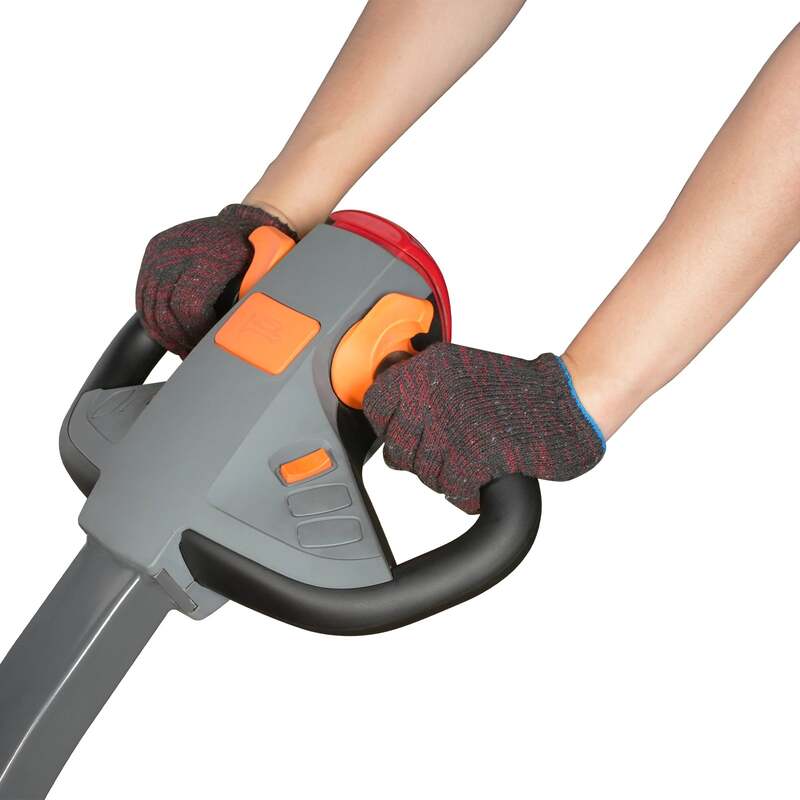

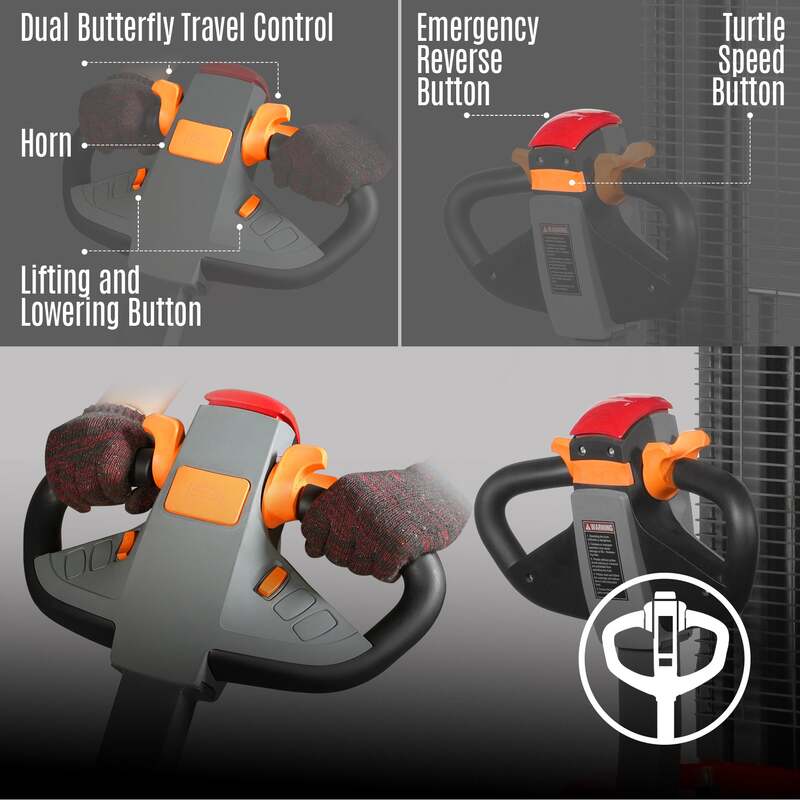

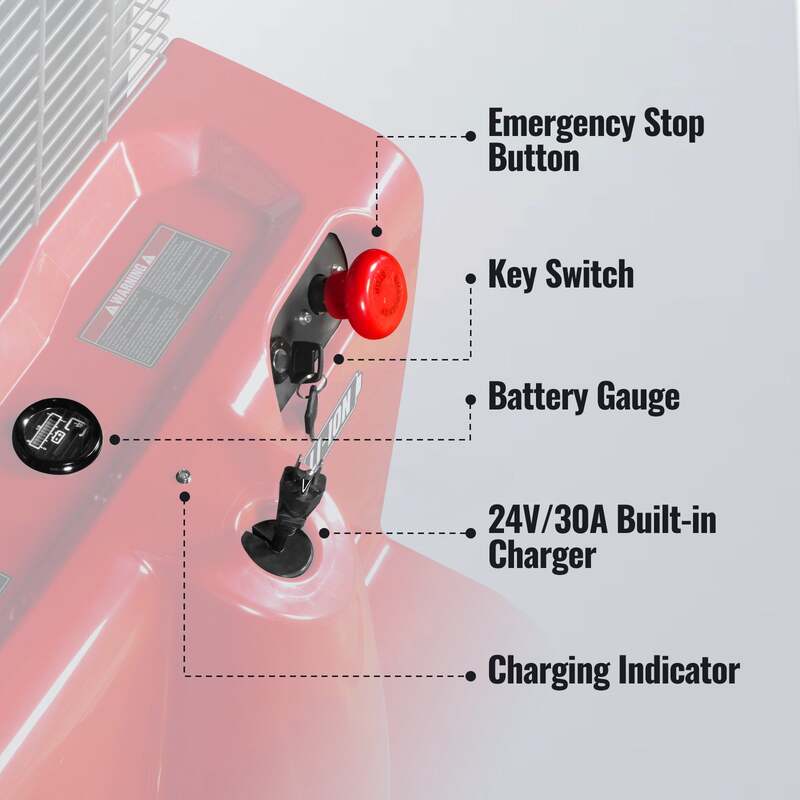

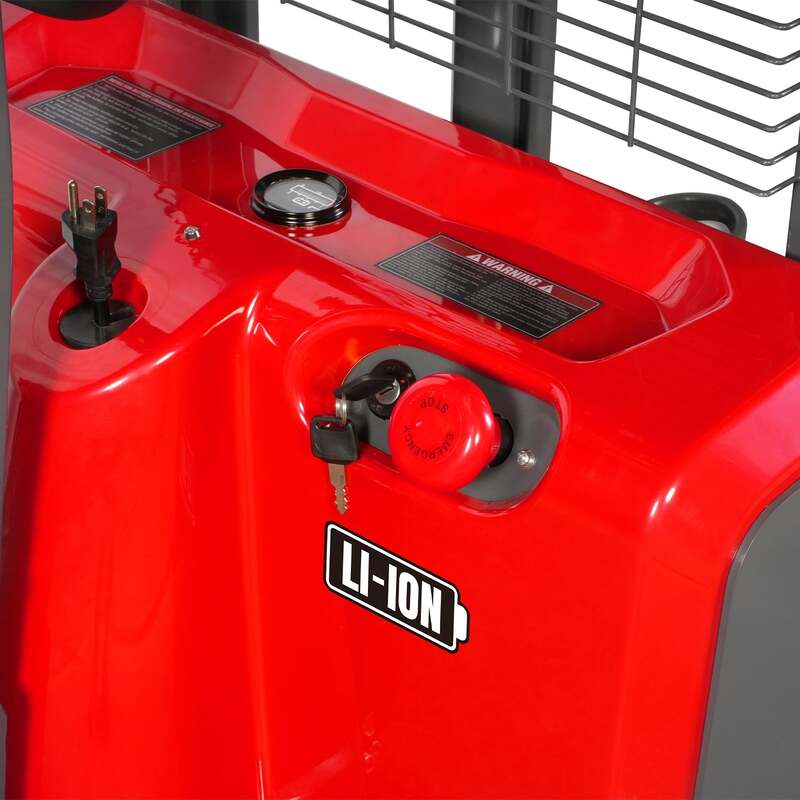

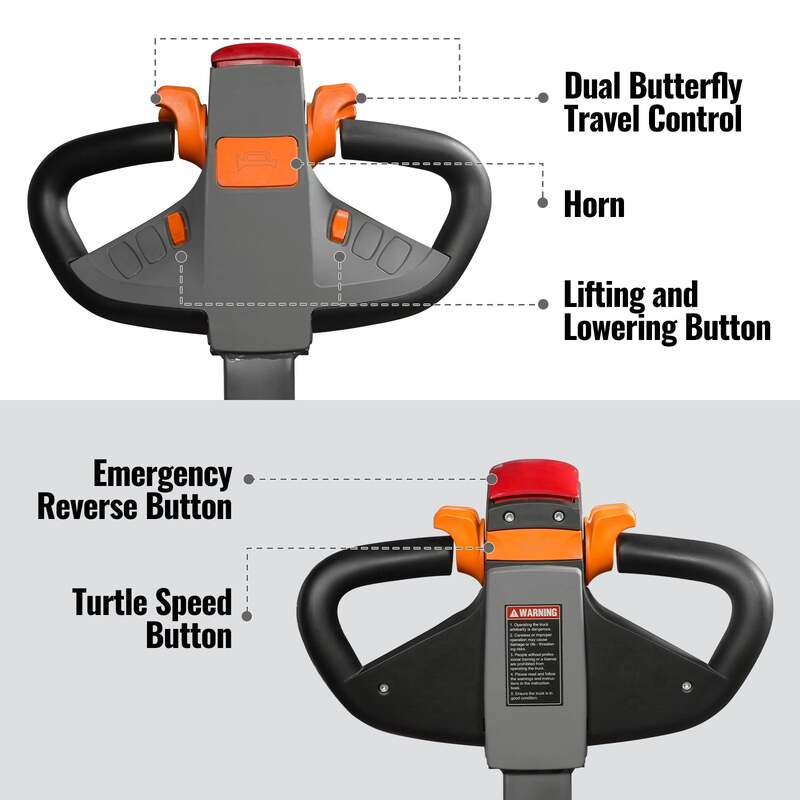

• Emergency reverse safety button
• Electromagnetic braking system

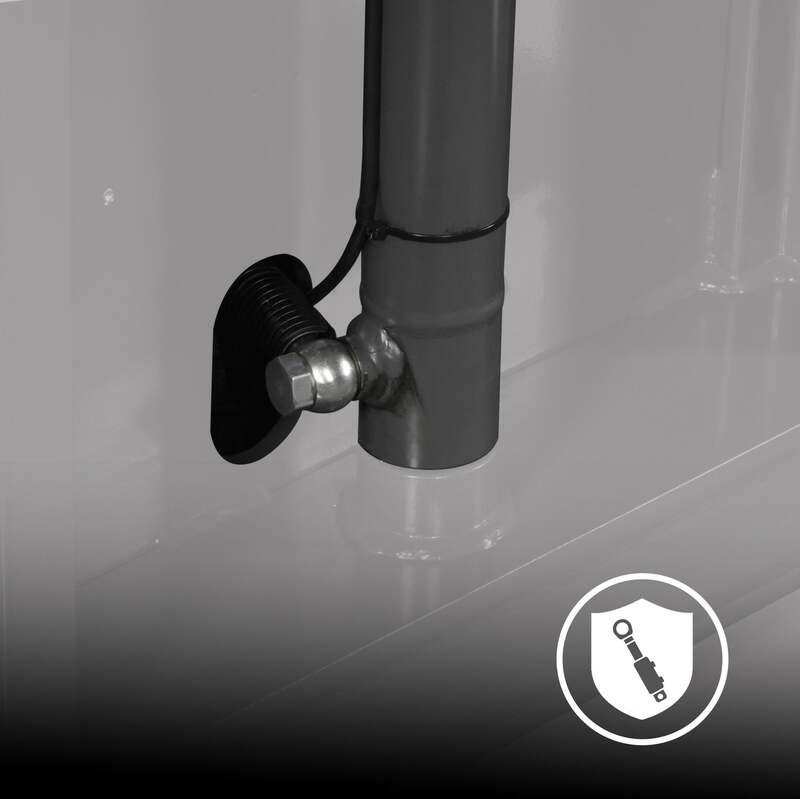

• Explosion-proof hydraulic valve

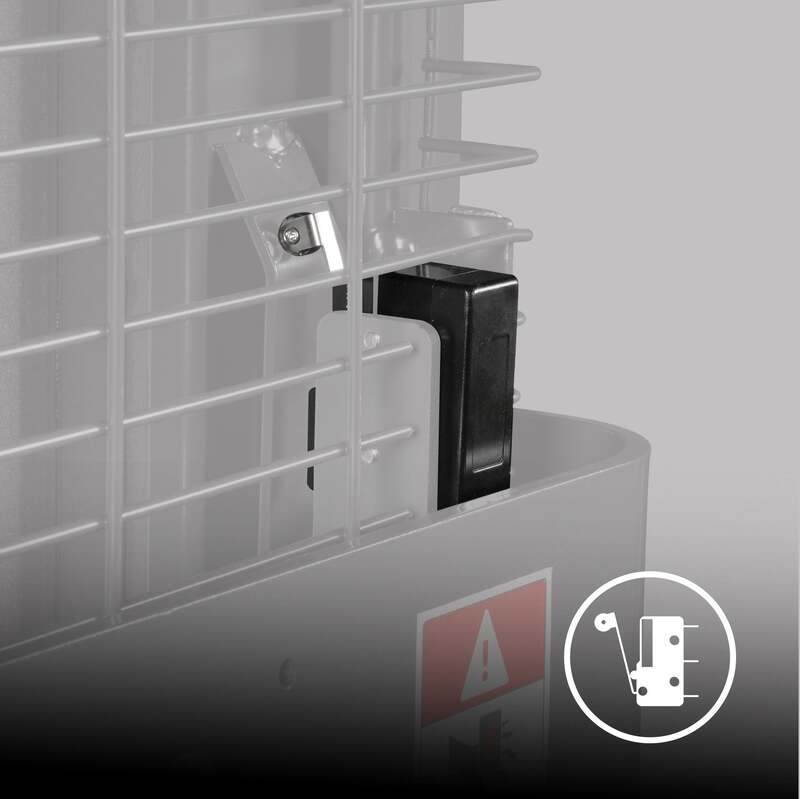

• Electronic lift limit switch
• Automatic safety-release braking system

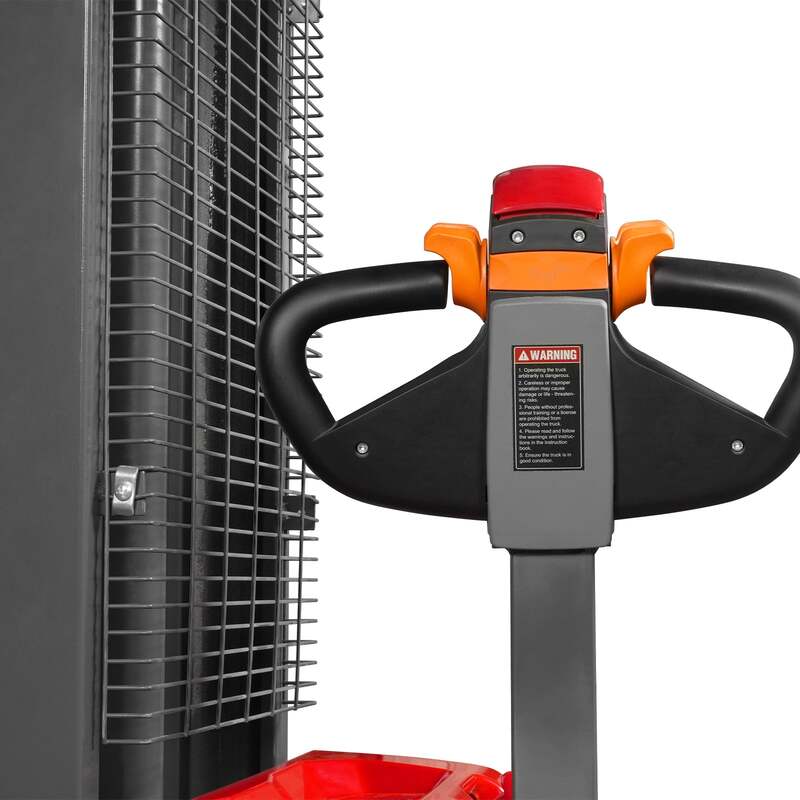

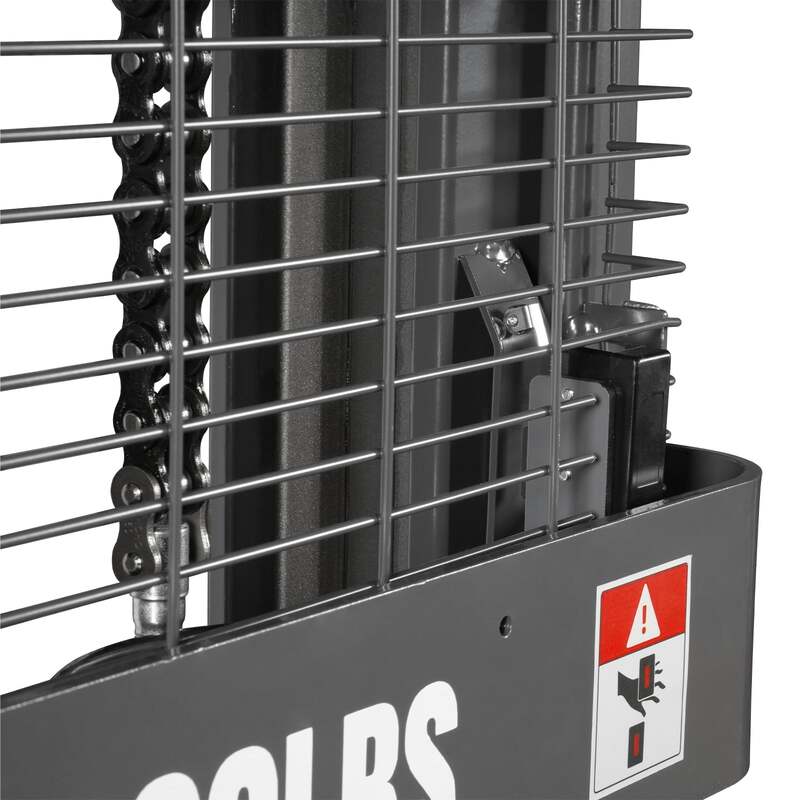

• Protective mesh guard for operator safety
These safety features ensure reliable operation in busy warehouse environments.
Important Shipping Note
Due to the size of this equipment, lift-gate delivery is not supported. Customers must prepare a forklift or unloading platform to unload the machine upon delivery.

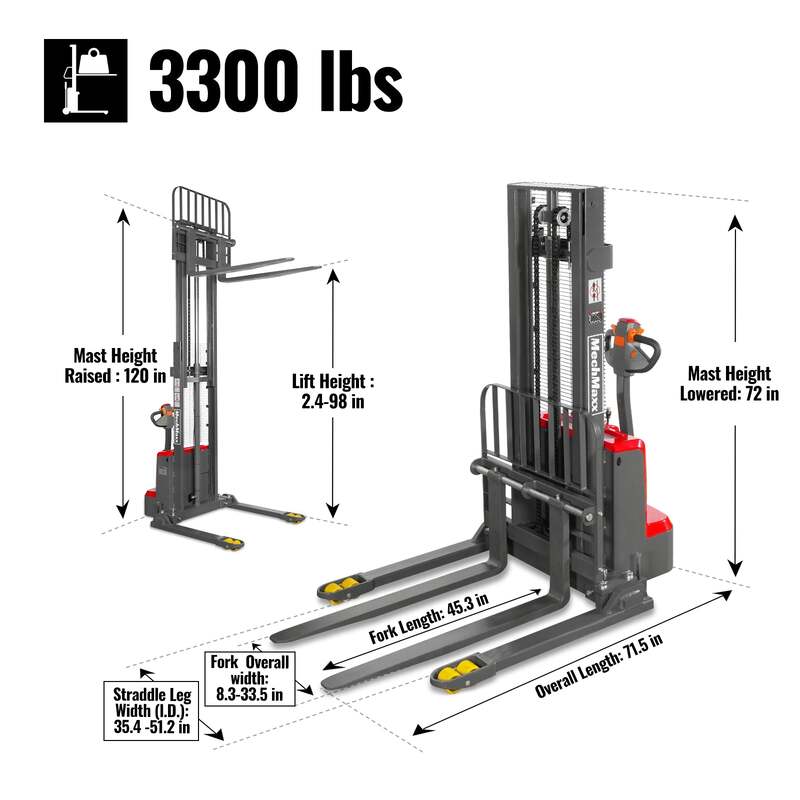

Technical Specifications
Load Capacity: 3300 lbs
Operator Position: Walkie

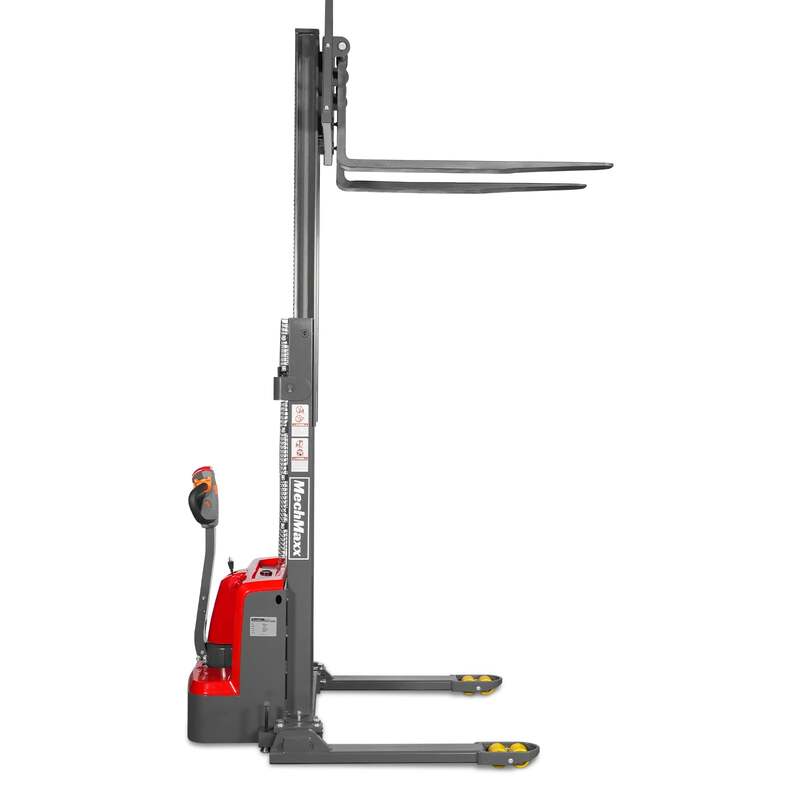

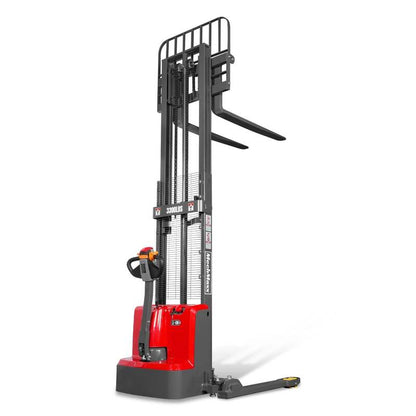

Maximum Lift Height: 98 in
Minimum Lift Height: 2.4 in
Mast Height (Raised): 120 in
Mast Height (Lowered): 72 in
Turning Radius: 53 in
Driving Speed (Laden / Unladen): 2.5 / 2.6 mph
Lifting Speed (Laden / Unladen): 18.1 / 26.8 fpm
Lowering Speed (Laden / Unladen): 22 / 19.3 fpm
Gradeability (Laden / Unladen): 3% / 8%
Battery: 24V / 60Ah Maintenance-Free Lithium-ion

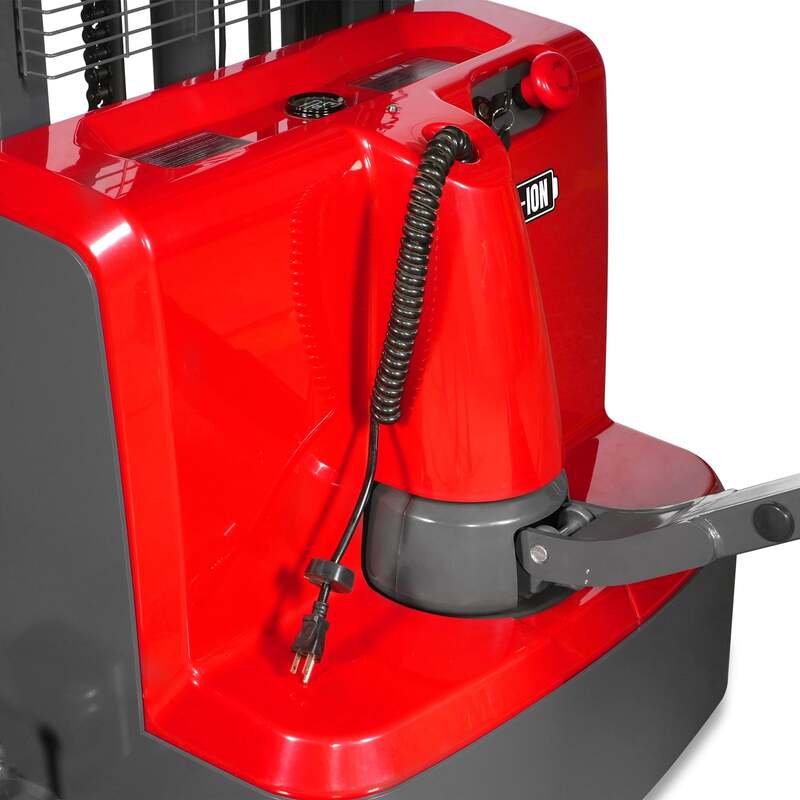

Charger: 24V / 30A Built-in Charger

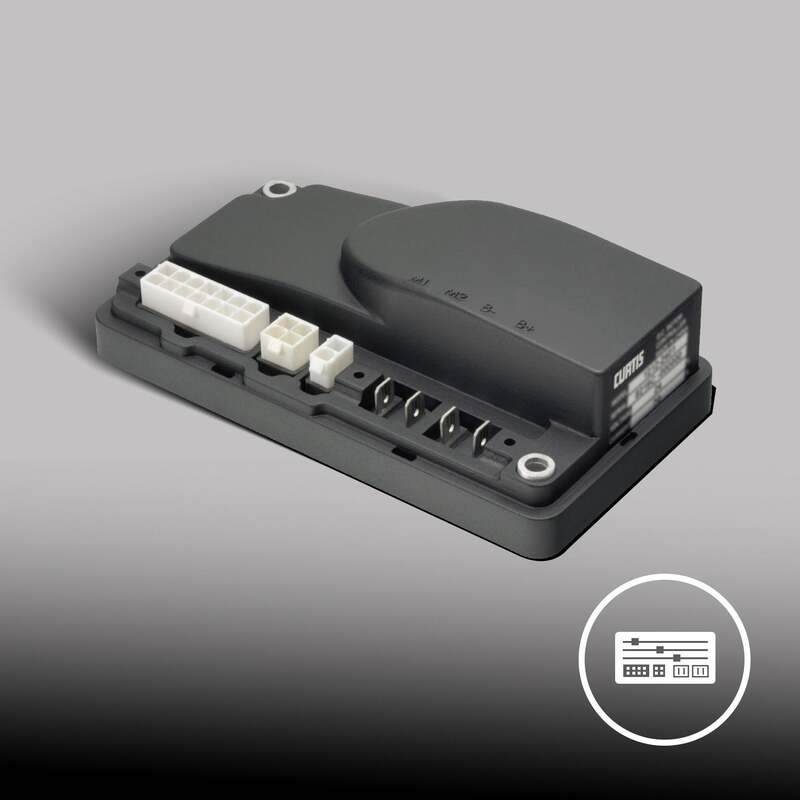

Controller: Curtis
Drive Motor: 0.75 kW DC
Lift Motor: 2.2 kW
Straddle Leg Width (Inside): 35.4 – 51.2 in
Straddle Leg Width (Outside): 43.3 – 59 in
Fork Width Range: 8.3 – 33.5 in
Fork Size: 1.4 × 4 × 45.3 in
Overall Length: 71.5 in
Packing Size: 43 × 37 × 77 in
Net / Gross Weight: 1300 / 1455 lbs
