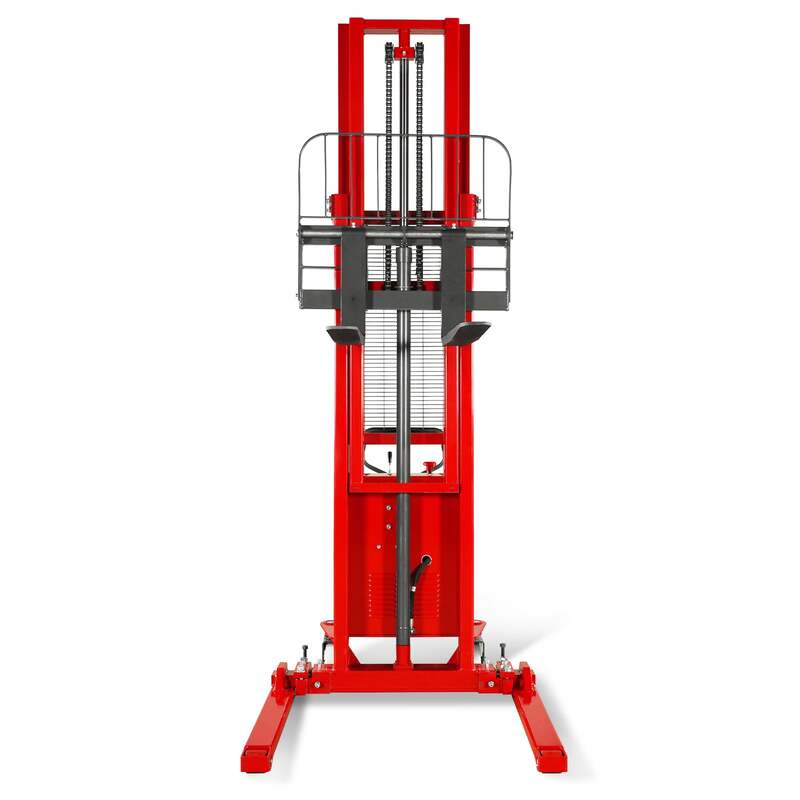

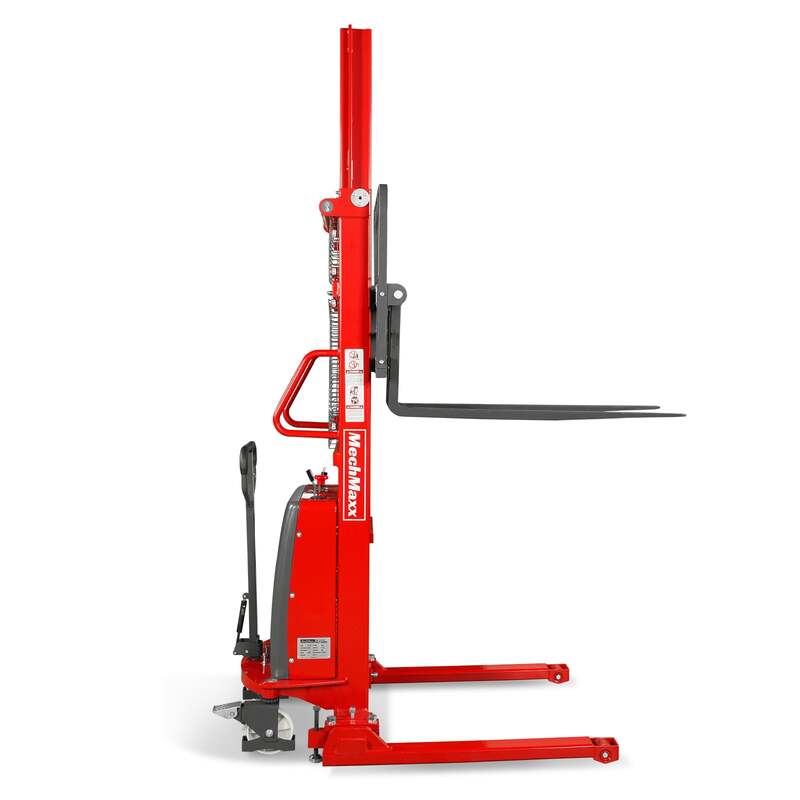

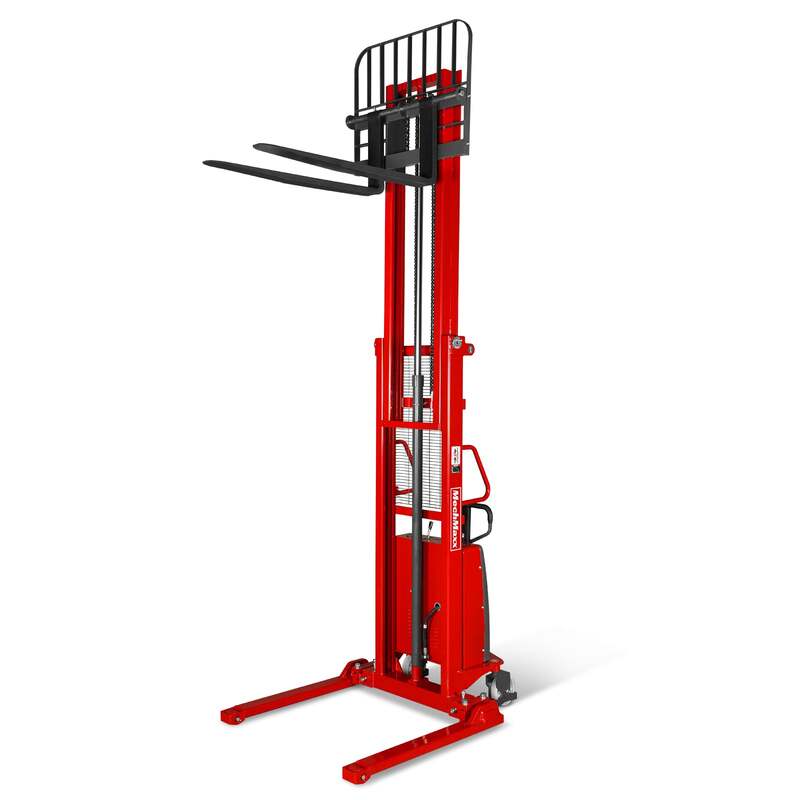

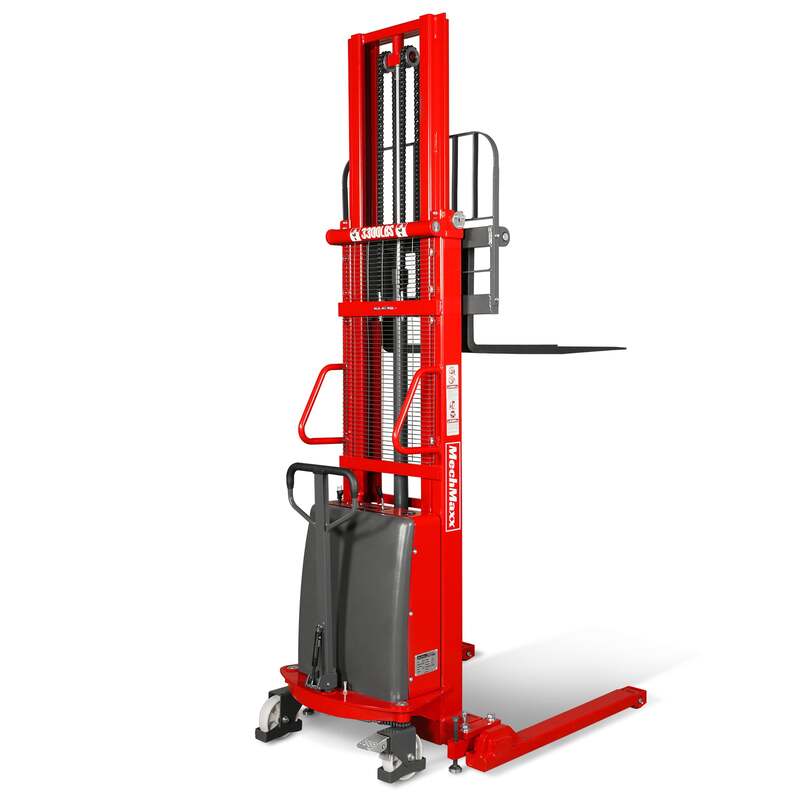

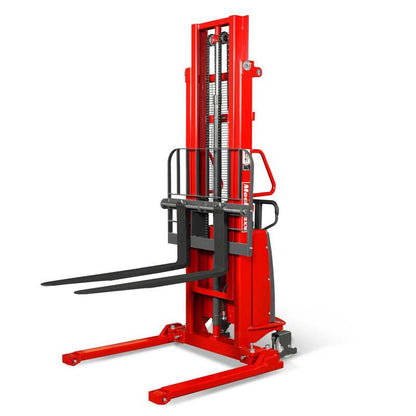

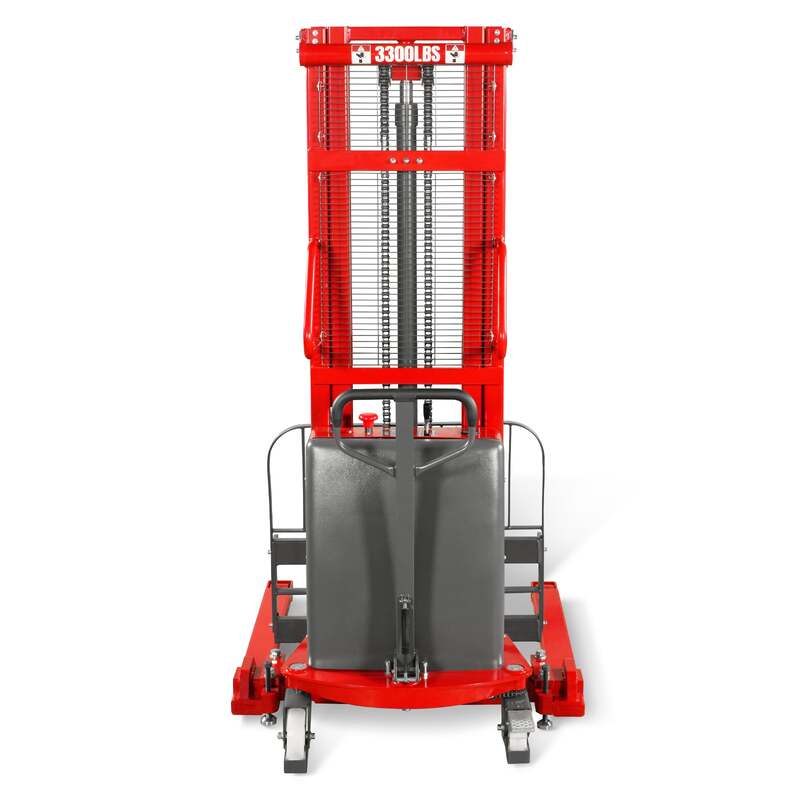

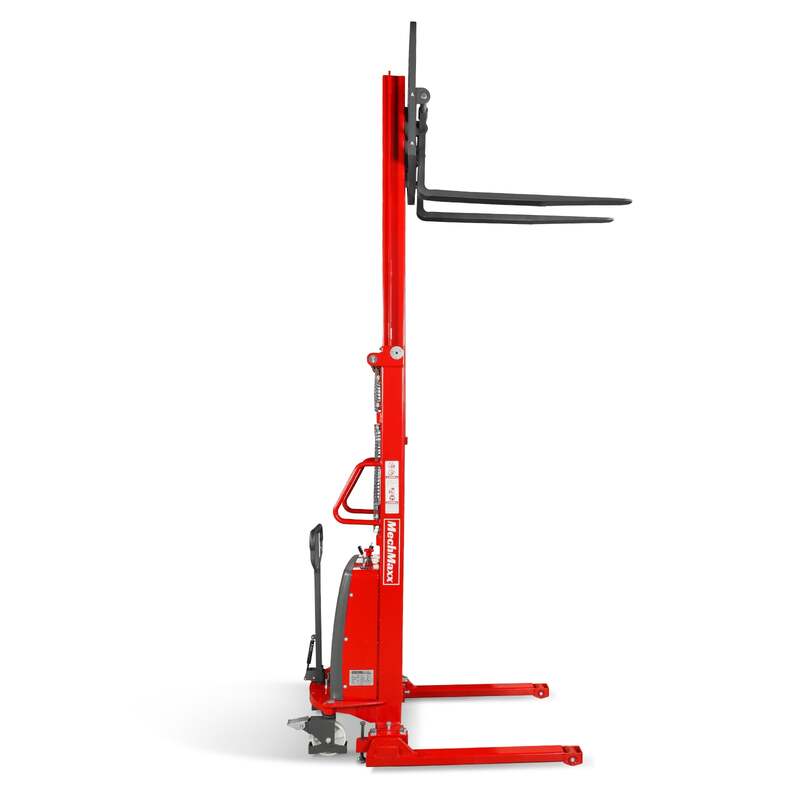

MechMaxx 202006 S33-118S Semi-Electric Straddle Stacker 3300 lb 118" Lift Adjustable Forks & Legs

MechMaxx 202006 S33-118S Semi-Electric Straddle Stacker 3300 lb 118" Lift Adjustable Forks & Legs

Regular price $3,299.00 USD
Regular price Sale price $3,299.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Secure Payments
  • Simple Returns
  • Free Lift Gate

Shipping

Shipping Information

Processing & Delivery
Orders are processed within 1–5 business days. Most deliveries arrive within 6–12 business days, depending on the product and shipping method. Freight carriers typically contact customers by phone to schedule delivery.

Shipping Costs
We offer free shipping on select products within the continental United States. Shipping options and any applicable delivery charges are shown at checkout before purchase.

Freight Shipping
Large equipment, such as vehicle lifts and heavy machinery, ships via freight carriers due to size and weight.

Delivery Requirements
Some items require a commercial delivery location with a forklift or loading dock for unloading. Residential deliveries may require liftgate service and may incur additional fees depending on the product and location.

Pickup Option
Customers may choose to have their order delivered to a nearby freight terminal for pickup.

More Information
For full details on shipping procedures, delivery requirements, and freight options, please view our full Shipping Policy.

Warranty

one-year warranty for machine.

Mechmaxx products stand up to extreme testing and come with a one-year warranty for machine.

We will repair or replace, at our discretion, any part returned to us and found to be defective through manufacturing within the first year of the original purchaser’s ownership (except consumable items like belts, blades, bearings and clutch). The engine is covered under warranty directly with the engine manufacturer.

warranty does not apply to normal wear, commercial or rental use, after-market modification or damages that occur from negligence, misuse, or use not in accordance with the operating and maintenance instructions, or the products intended uses. MechMaxx disclaims liability for any accidents, injury or damages to the equipment or personal property caused by the equipment when equipped with unauthorized parts, equipped with parts for unapproved purposes or modified in any other way. MechMaxx will at its discretion make the final decision regarding warranty eligibility.

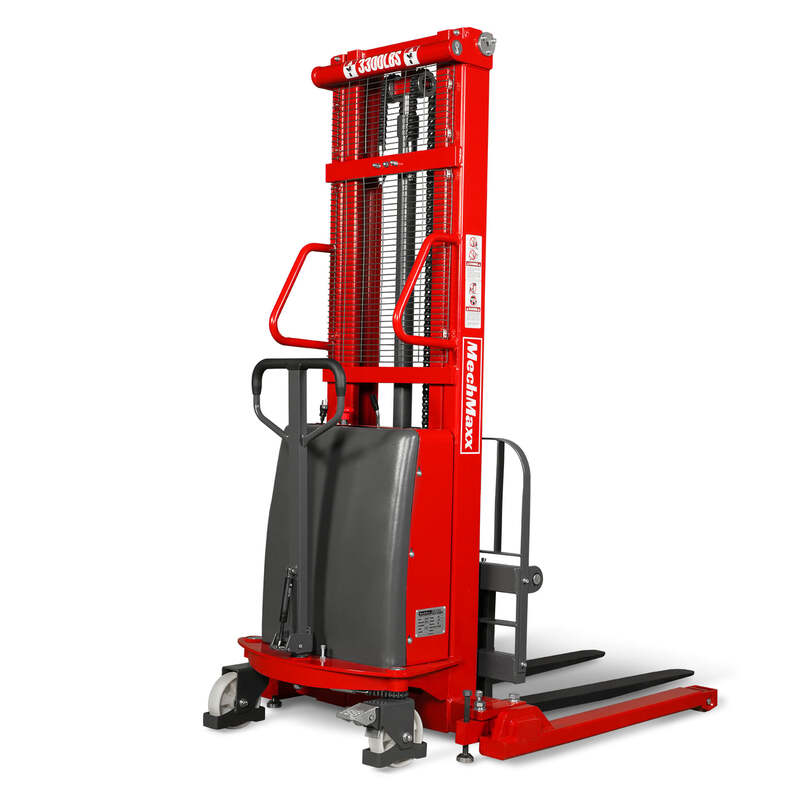

Semi-Electric Straddle Stacker – 3300 lb Capacity Walkie Stacker with 118" Lift Height (Model S33-118S)

 Product Description

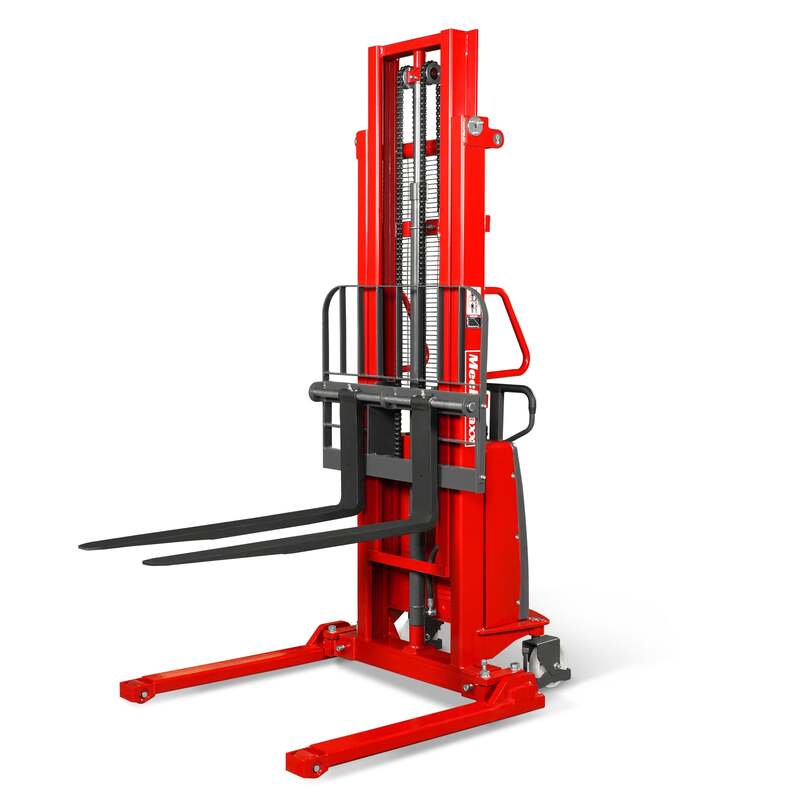

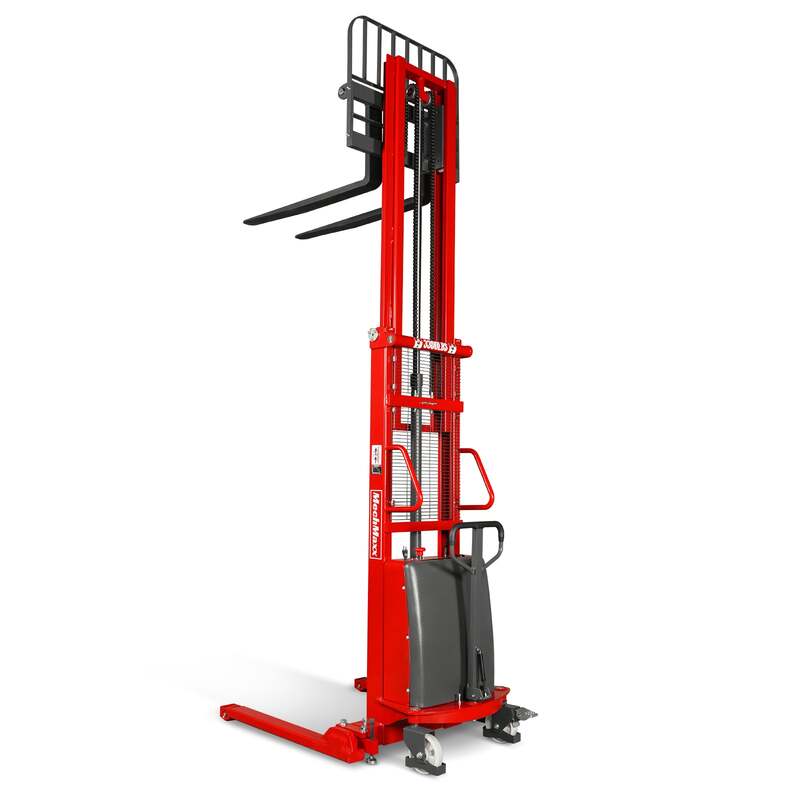

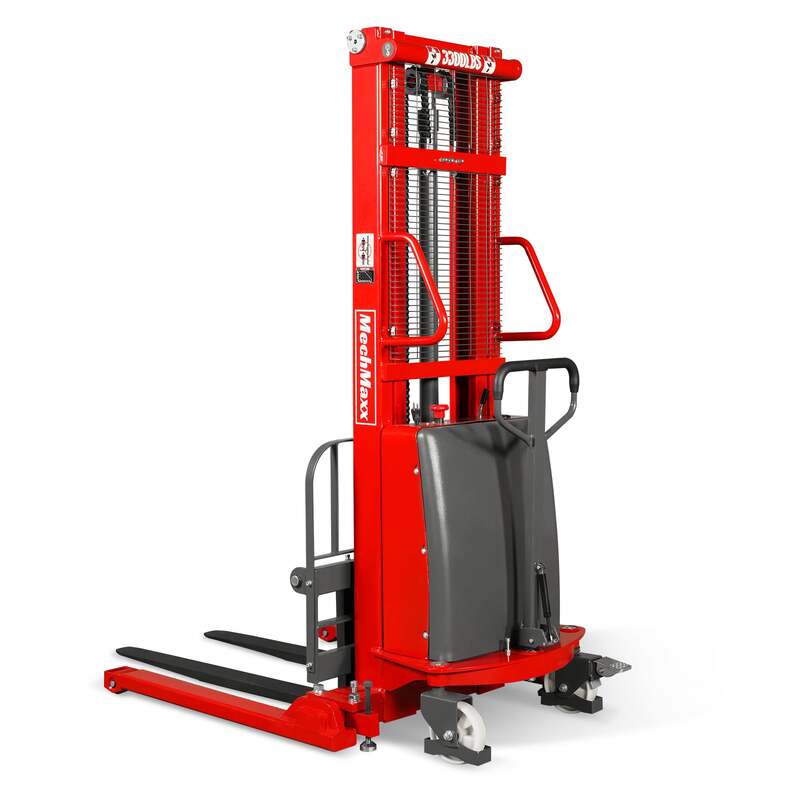

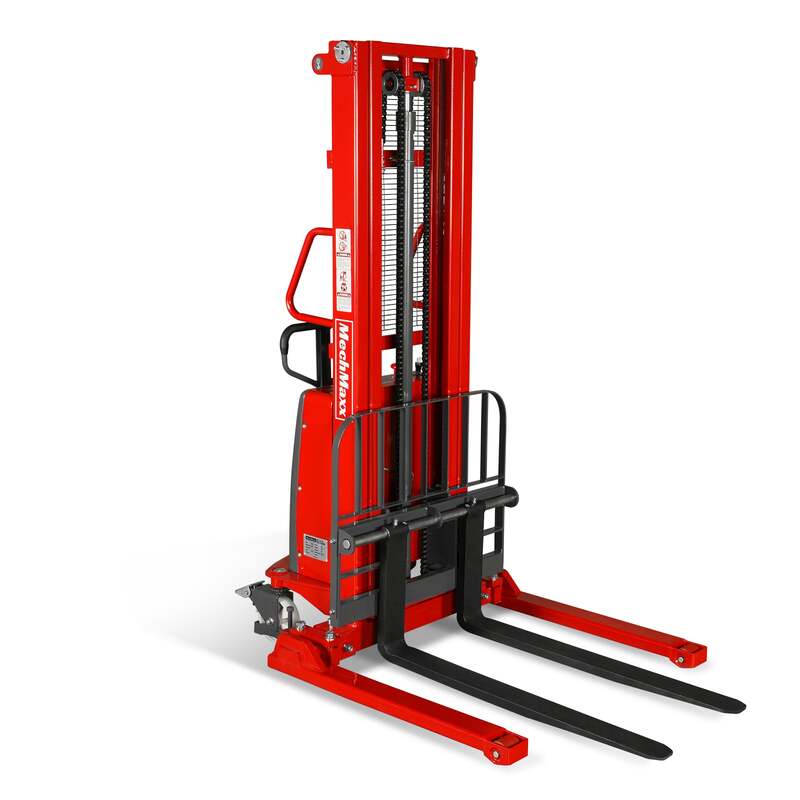

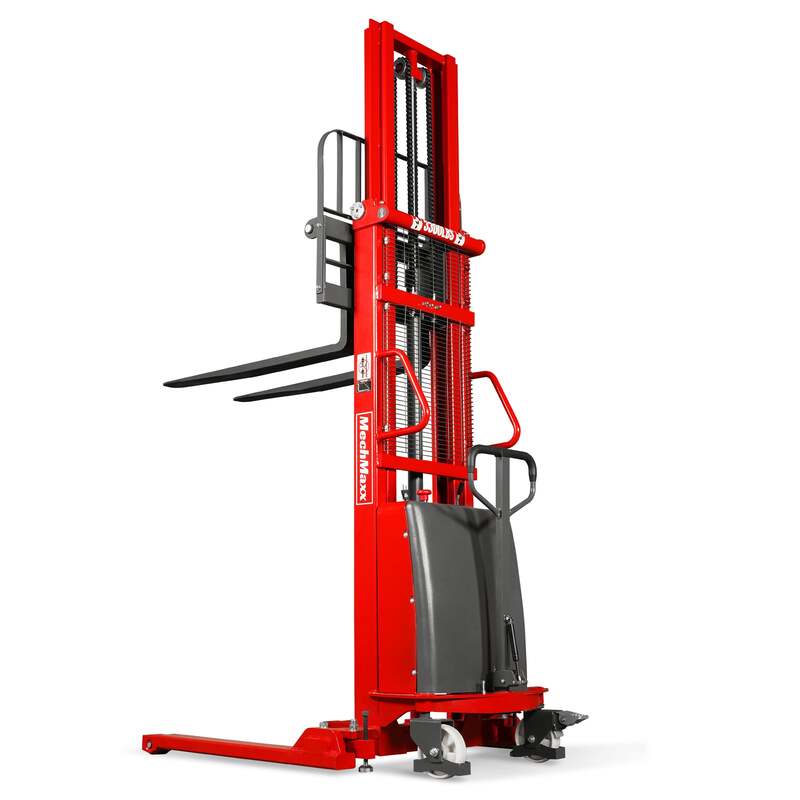

The MechMaxx S33-118S Semi-Electric Straddle Stacker provides reliable and efficient pallet lifting for warehouses, loading docks, stockrooms, and manufacturing facilities. With a 3300 lb lifting capacity and a maximum lift height of 118 inches, this stacker is ideal for stacking pallets, loading trucks, and organizing warehouse storage areas.

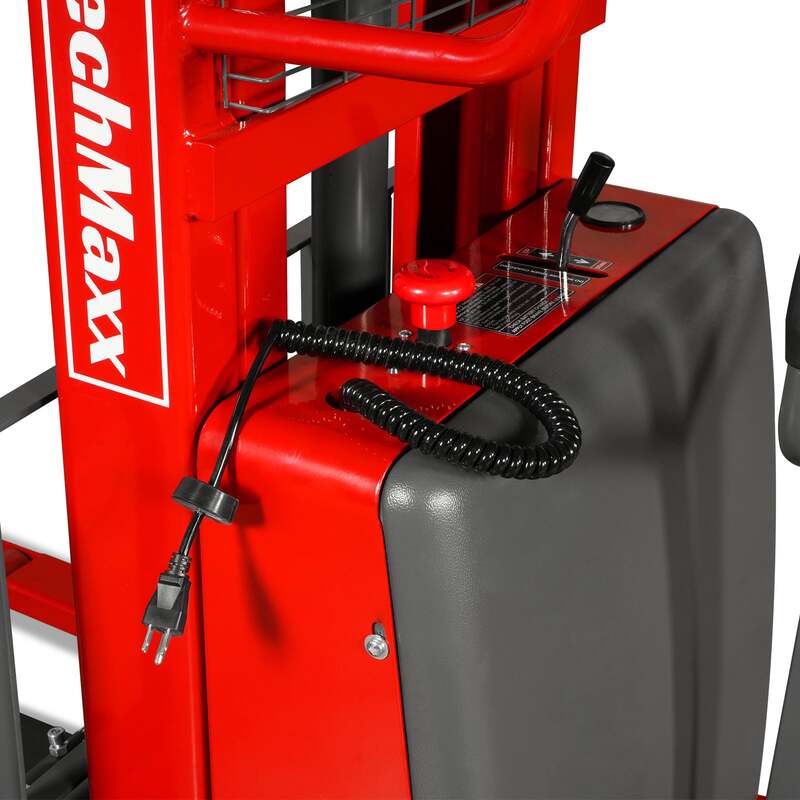

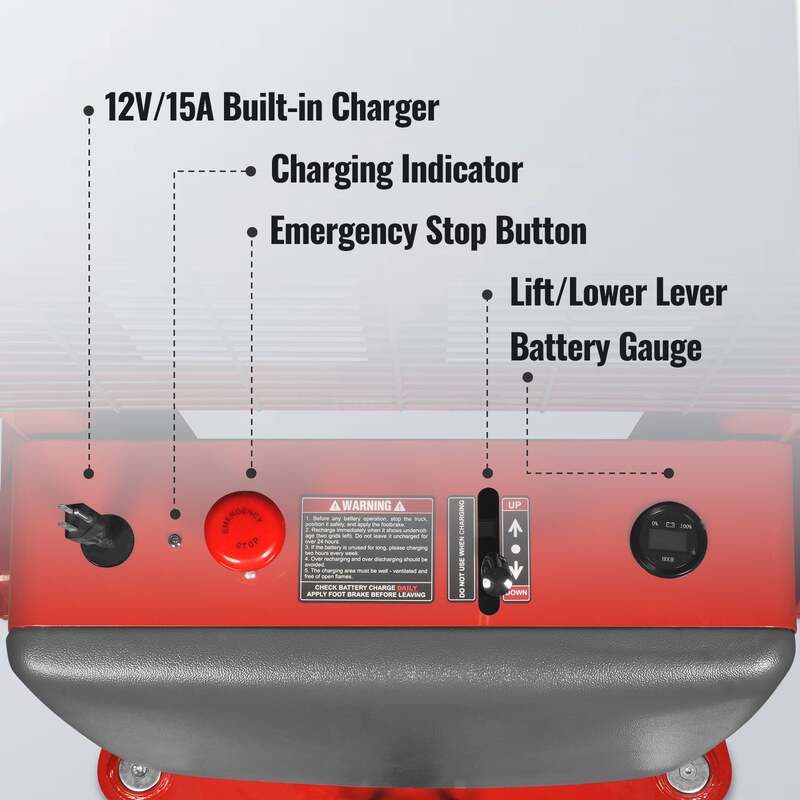

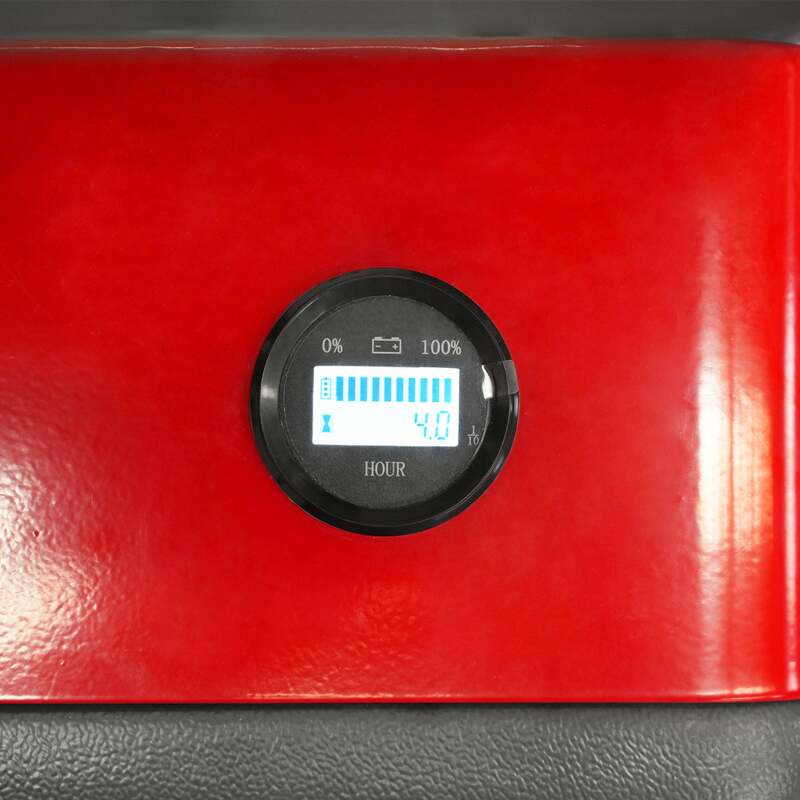

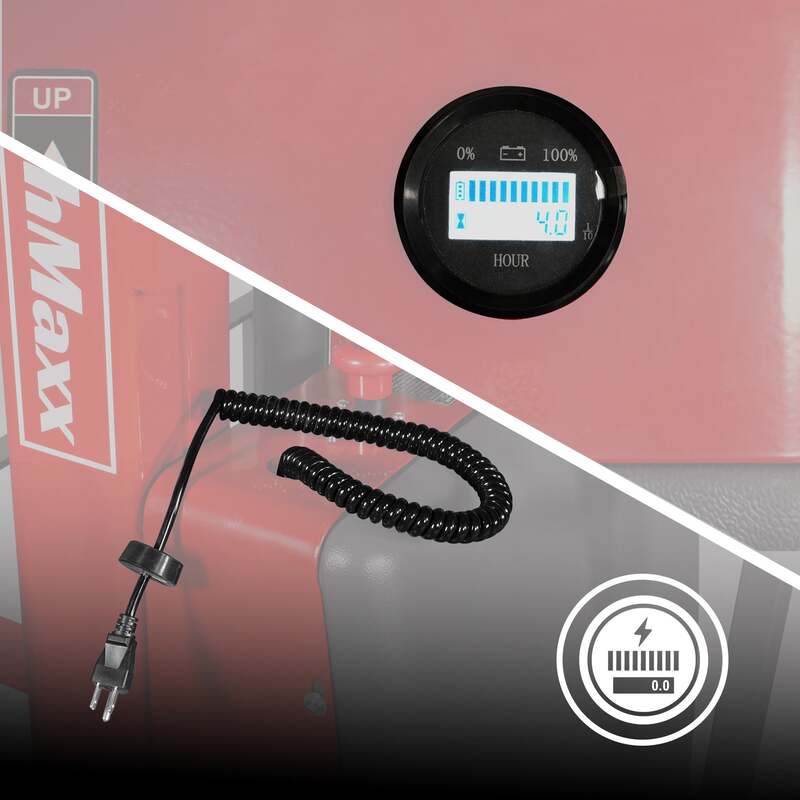

The S33-118S uses a semi-electric design that combines manual movement with electric lifting. Powered by a 12V 120Ah maintenance-free AGM battery and a 1.6 kW lift motor, it delivers dependable lifting performance while remaining simple and cost-effective to operate. A built-in 12V/15A charger allows convenient onboard charging and helps keep the stacker ready for daily use.

Equipped with adjustable forks and adjustable straddle legs, this stacker can handle a wide range of pallet sizes and load types. Its compact design and 53.2" turning radius make it easy to maneuver in narrow warehouse aisles and confined workspaces.


Semi-Electric Operation

The S33-118S combines manual propulsion with electric lifting to deliver efficient material handling.

• Manual propulsion for easy maneuverability
• 1.6 kW electric lift motor for reliable lifting performance
• Smooth and controlled lifting and lowering
• Ideal for light- to medium-duty warehouse tasks

This design keeps operation simple while still providing strong lifting capability.

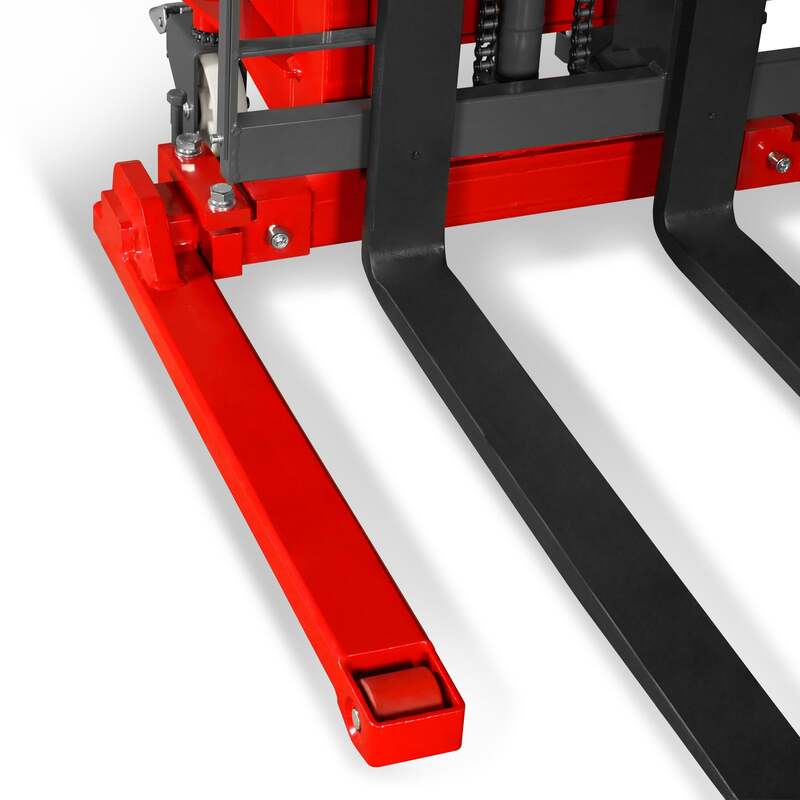

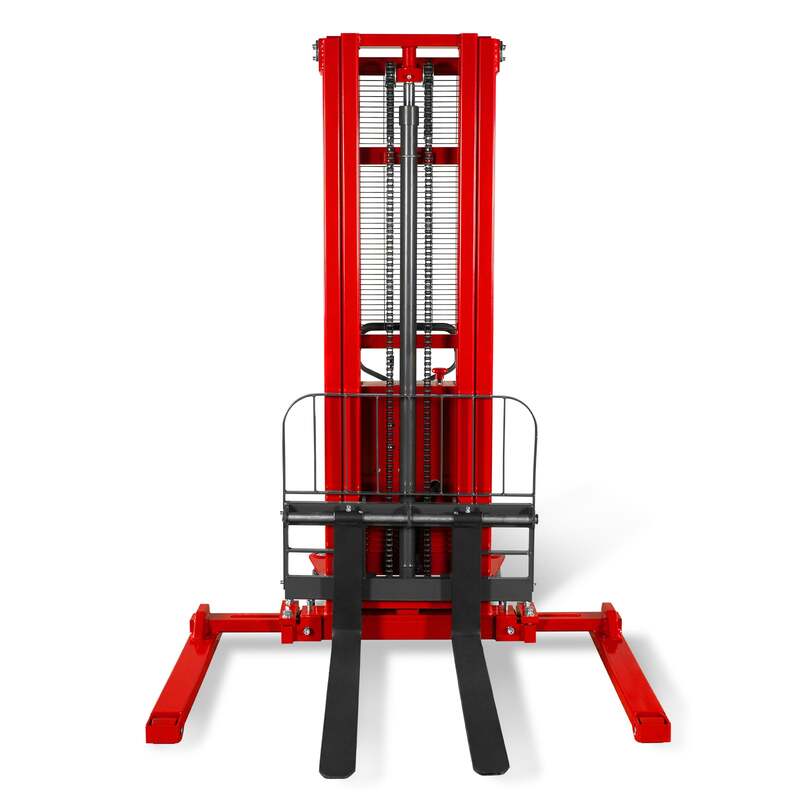

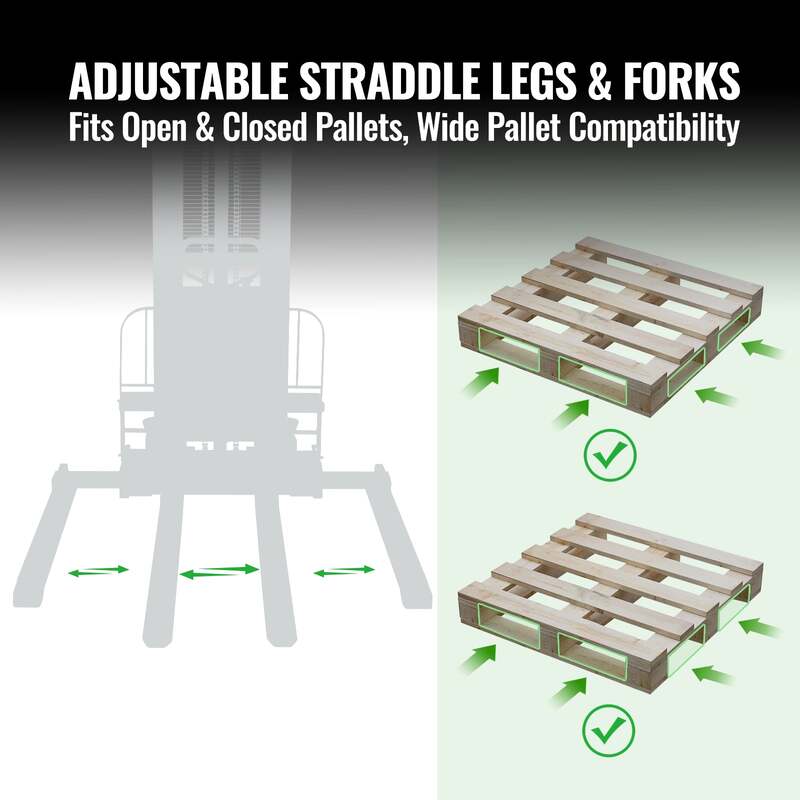

Adjustable Forks & Straddle Legs

Flexible adjustment allows this stacker to work with a wide range of pallet sizes.

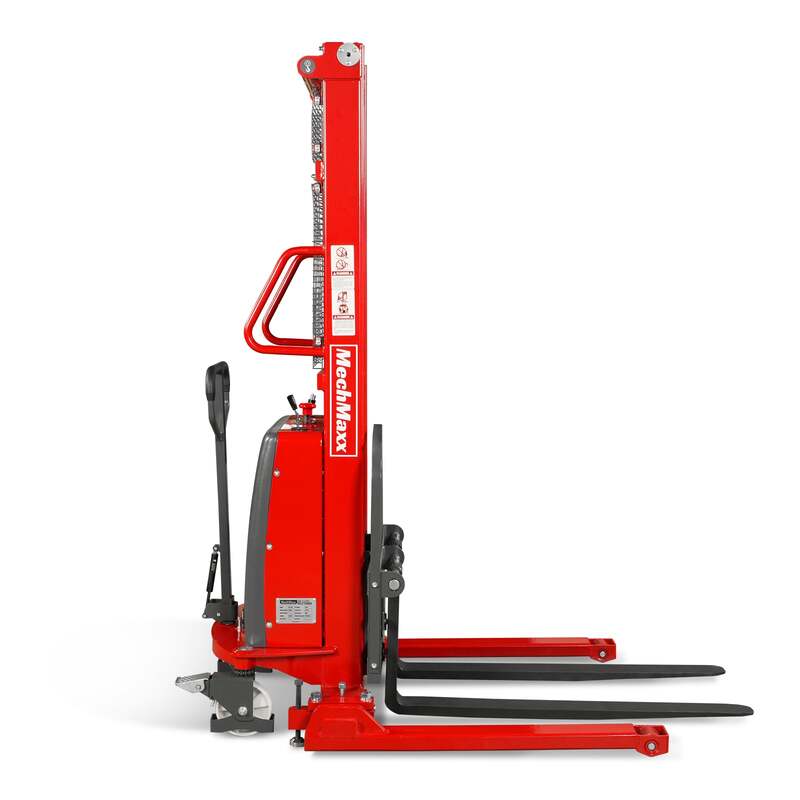

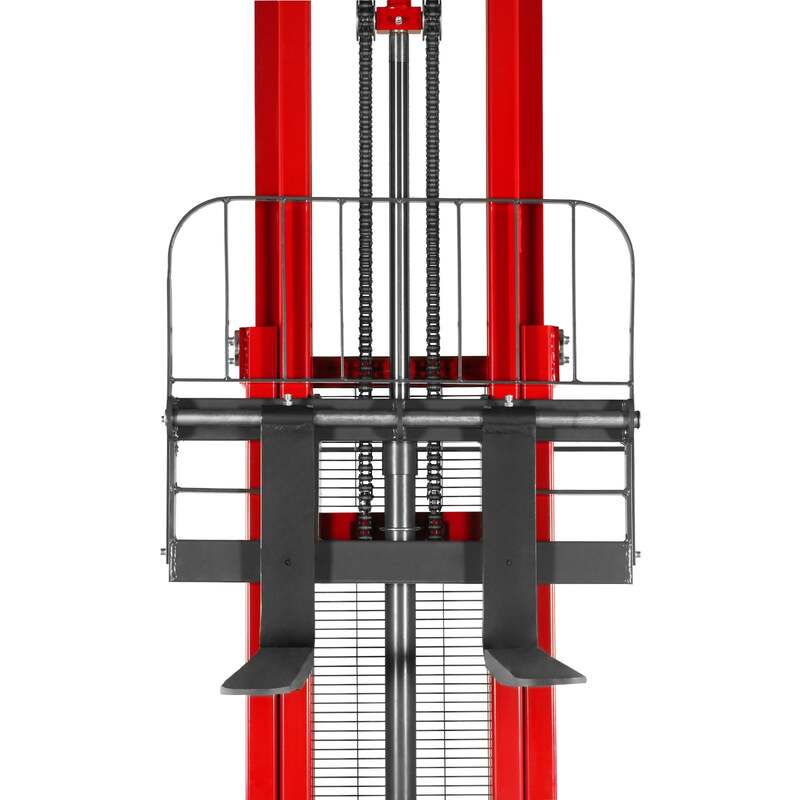

• Fork width adjustable from 8.3" to 33.5"

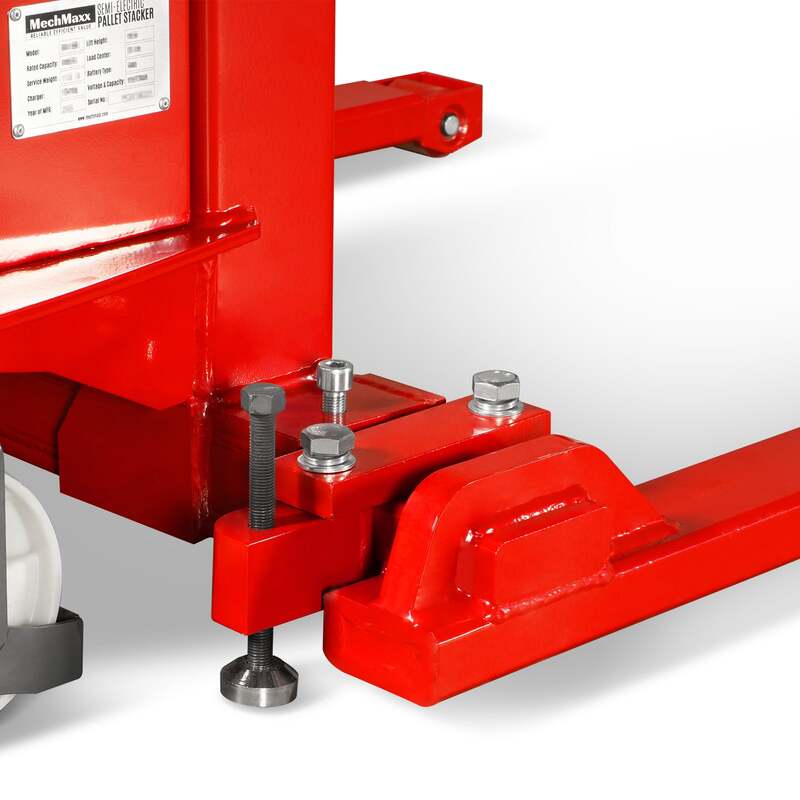

• Straddle leg inside width adjustable from 35.4" to 51.2"
• Supports multiple pallet configurations
• Ideal for warehouses and industrial storage areas

These adjustments improve versatility and expand the range of lifting applications.


Durable Industrial Construction

Built with a reinforced steel frame, the S33-118S is designed for long-term durability.

• Double-frame reinforced steel structure

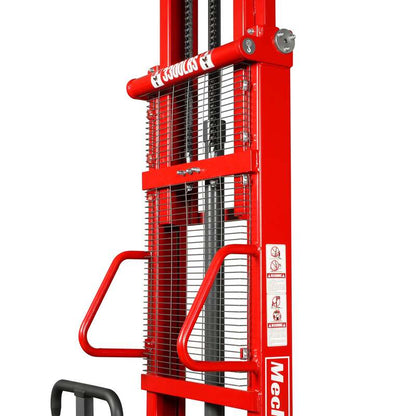

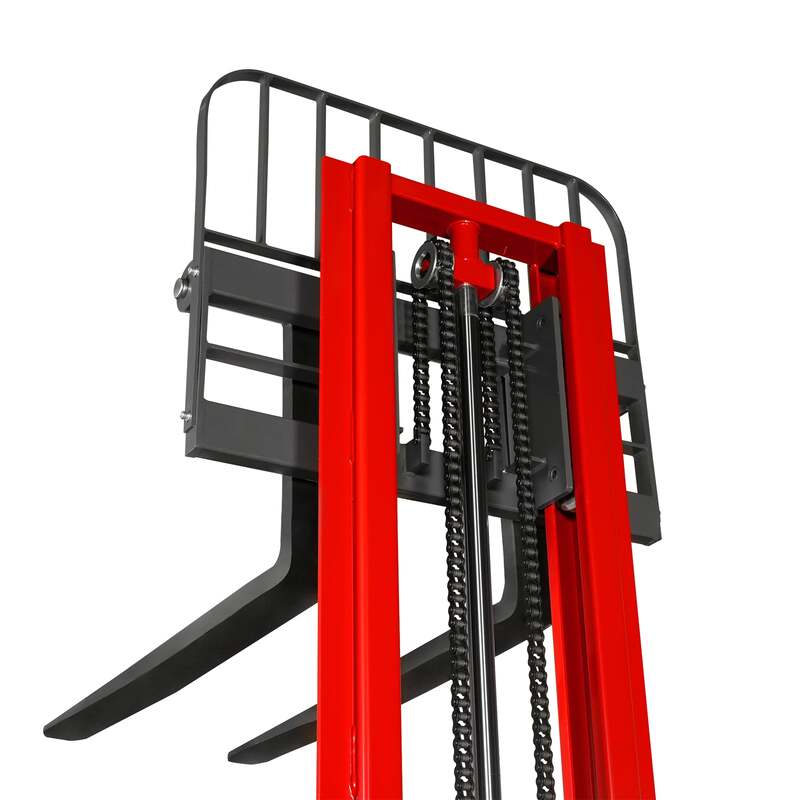

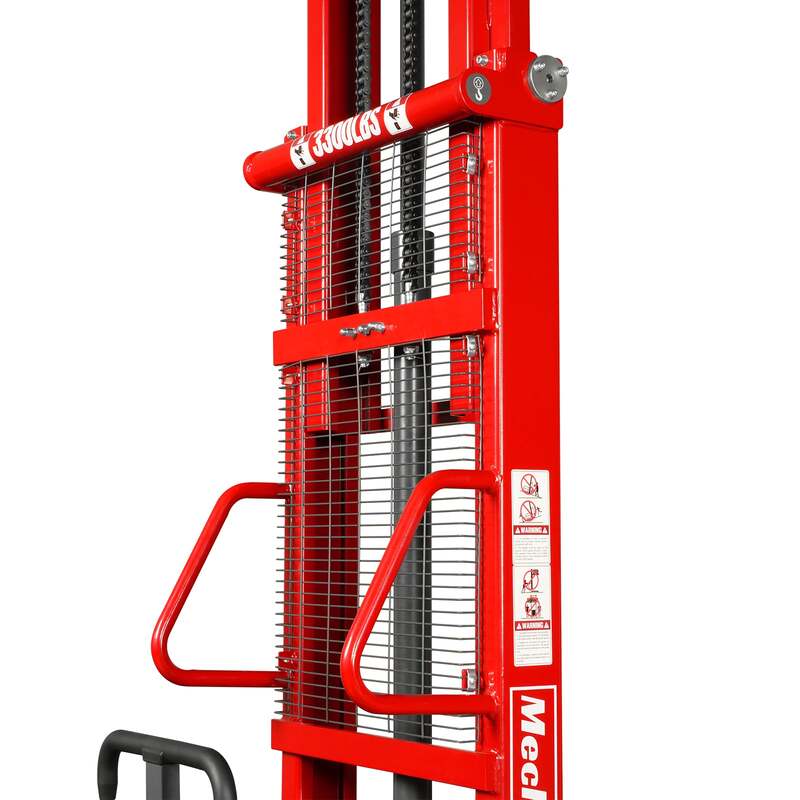

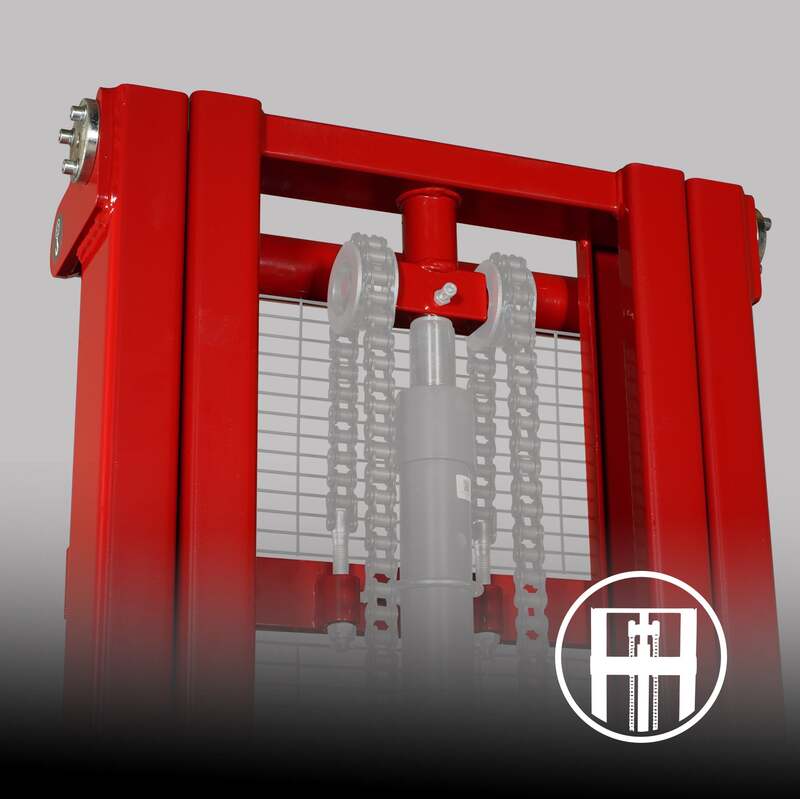

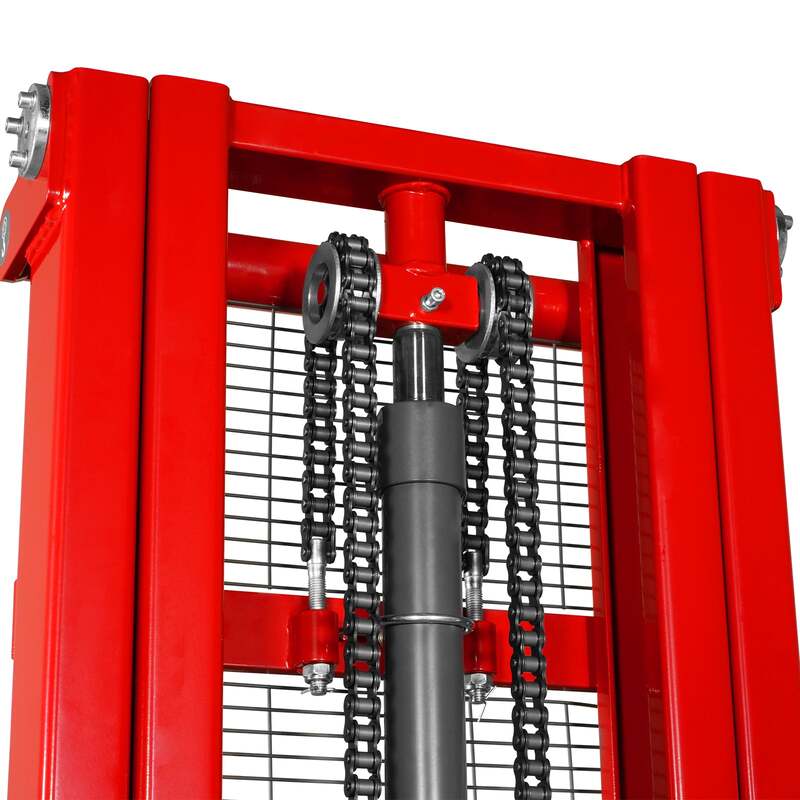

• Stable mast design for safe lifting

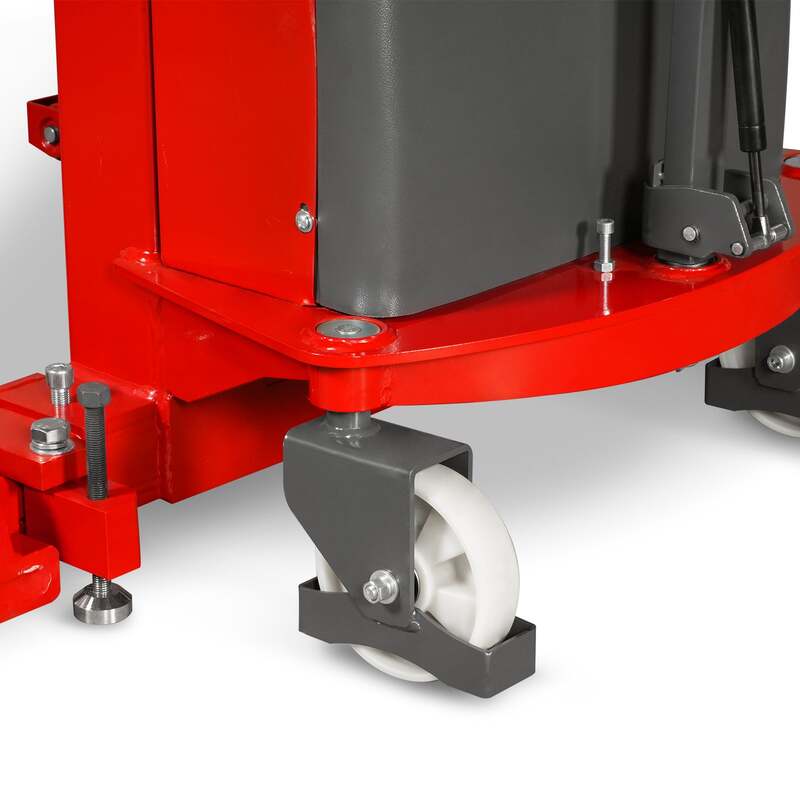

• Polyurethane wheels protect warehouse floors

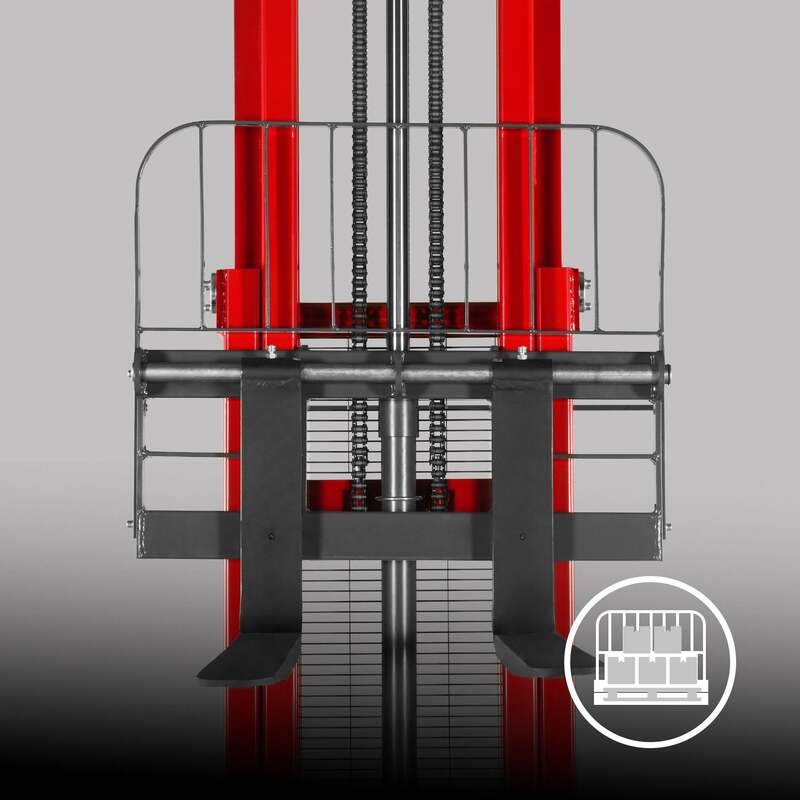

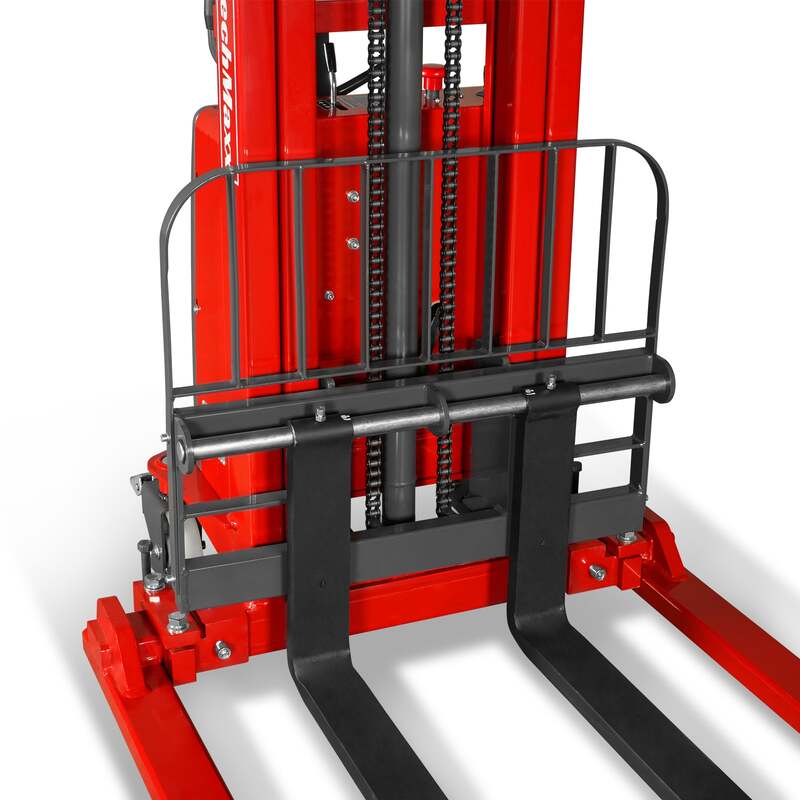

• Removable load backrest for improved load stability

This heavy-duty construction ensures dependable operation in demanding work environments.

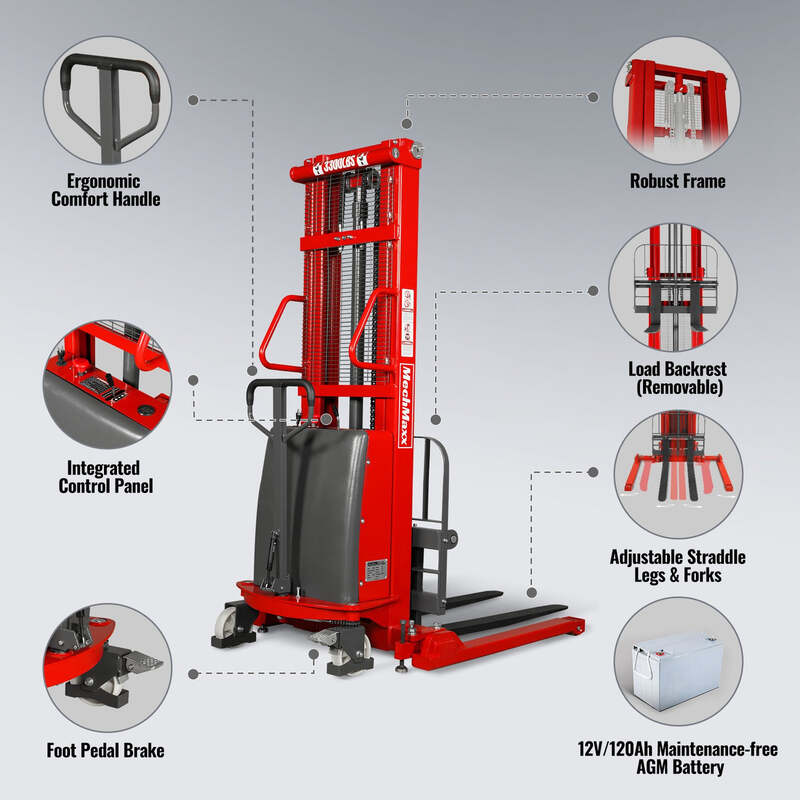

Enhanced Safety Features

Multiple safety features help protect both the operator and the load.

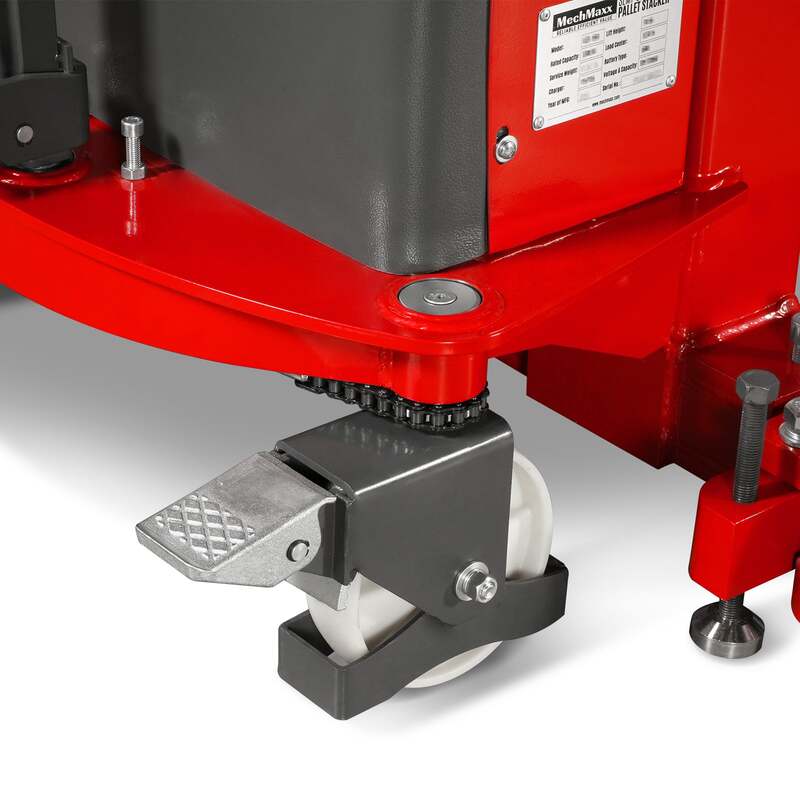

• Foot-pedal parking brake for secure stopping

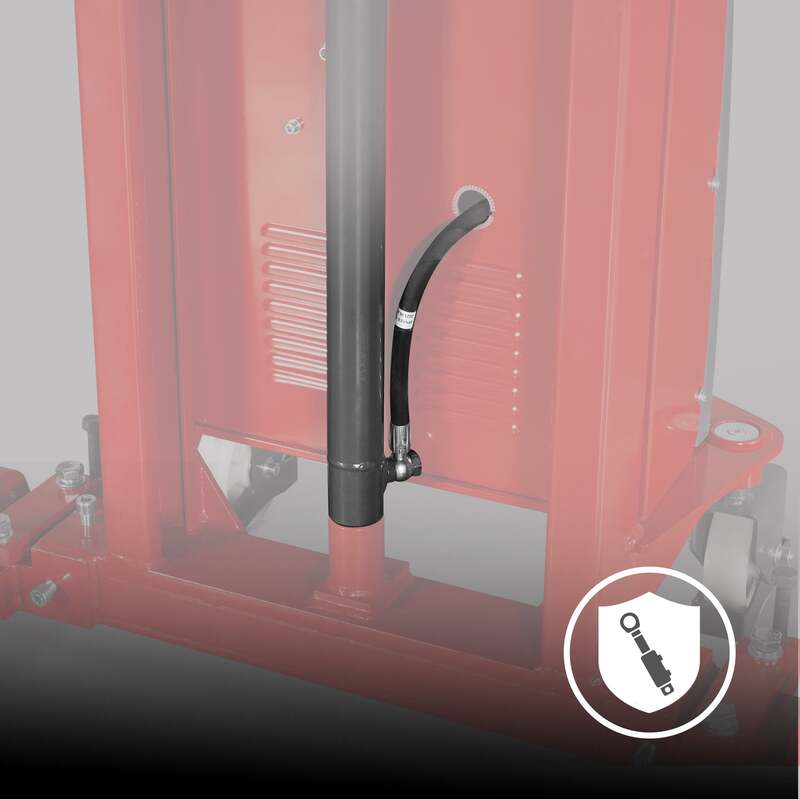

• Explosion-proof hydraulic valve prevents sudden load descent
• Load backrest improves load stability
• Stable mast structure for safe operation

These systems provide safe operation during daily warehouse tasks.


Important Shipping Note

Due to the size of this machine, lift-gate delivery is not supported. Customers must prepare a forklift or unloading equipment for unloading the machine upon delivery.

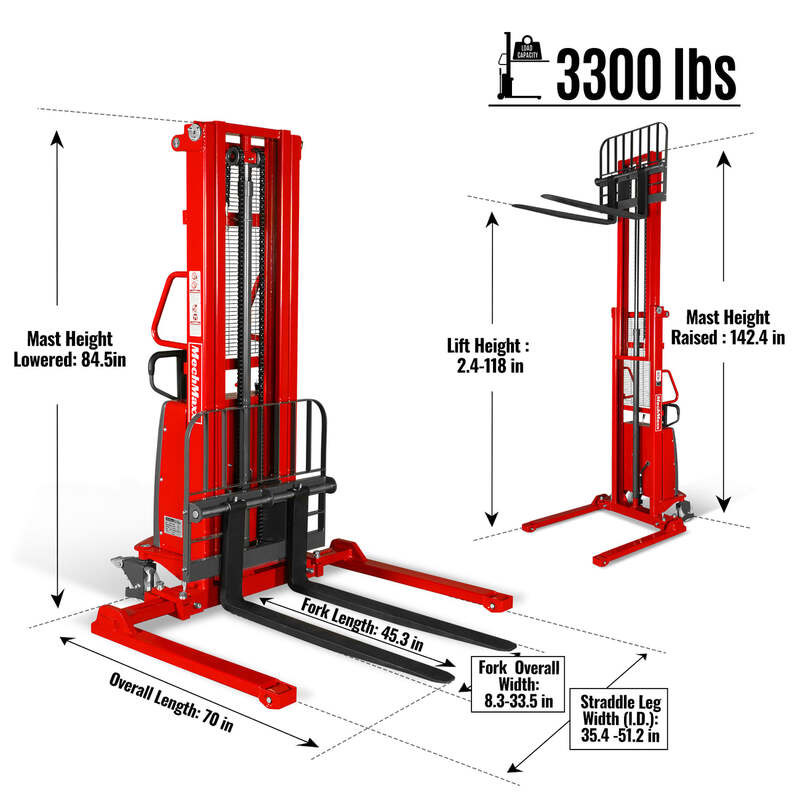

Technical Specifications

Load Capacity: 3300 lbs
Operator Position: Walkie

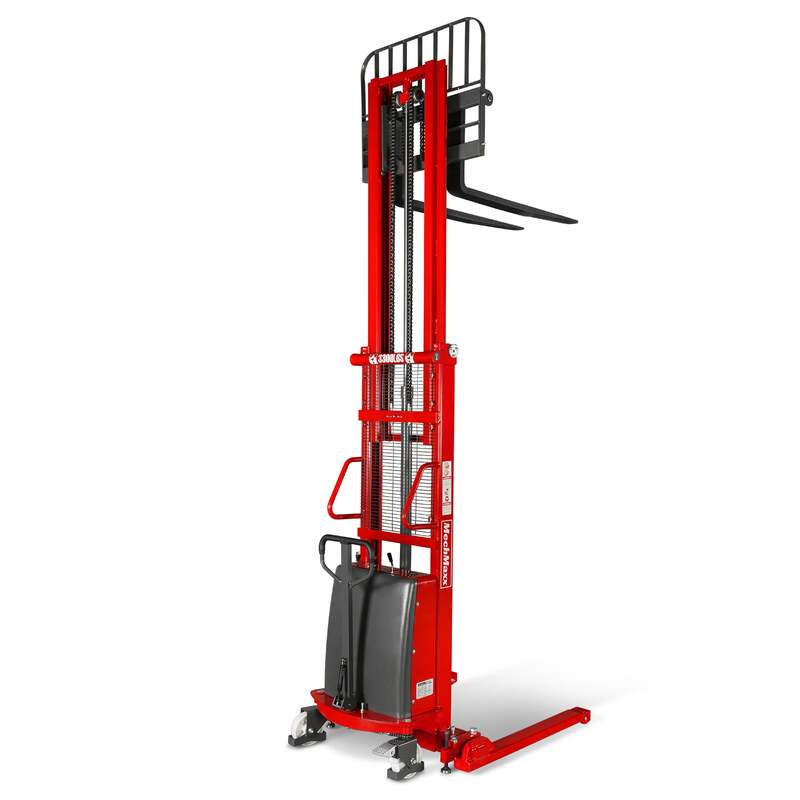

Maximum Lift Height: 118 in
Minimum Lift Height: 2.4 in

Mast Height (Raised): 142.4 in
Mast Height (Lowered): 84.5 in
Turning Radius: 53.2 in

Lifting Speed (Laden / Unladen): 15 / 28.2 fpm
Lowering Speed (Laden / Unladen): 21.3 / 19.1 fpm

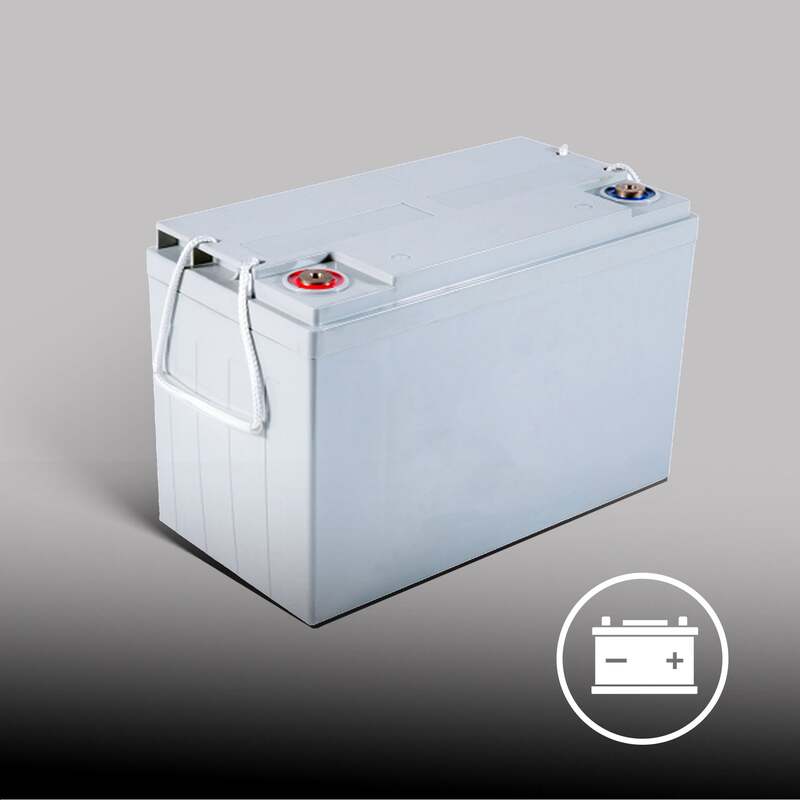

Battery: 12V / 120Ah Maintenance-Free AGM Battery
Charger: 12V / 15A Built-in Charger
Lift Motor: 1.6 kW

Straddle Leg Width (Inside): 35.4 – 51.2 in
Straddle Leg Width (Outside): 43.3 – 59 in
Fork Width Range: 8.3 – 33.5 in
Fork Size: 1.4 × 4 × 45.3 in

Overall Length: 70 in

Packing Size: 39 × 37 × 87 in
Net / Gross Weight: 1124 / 1279 lbs
