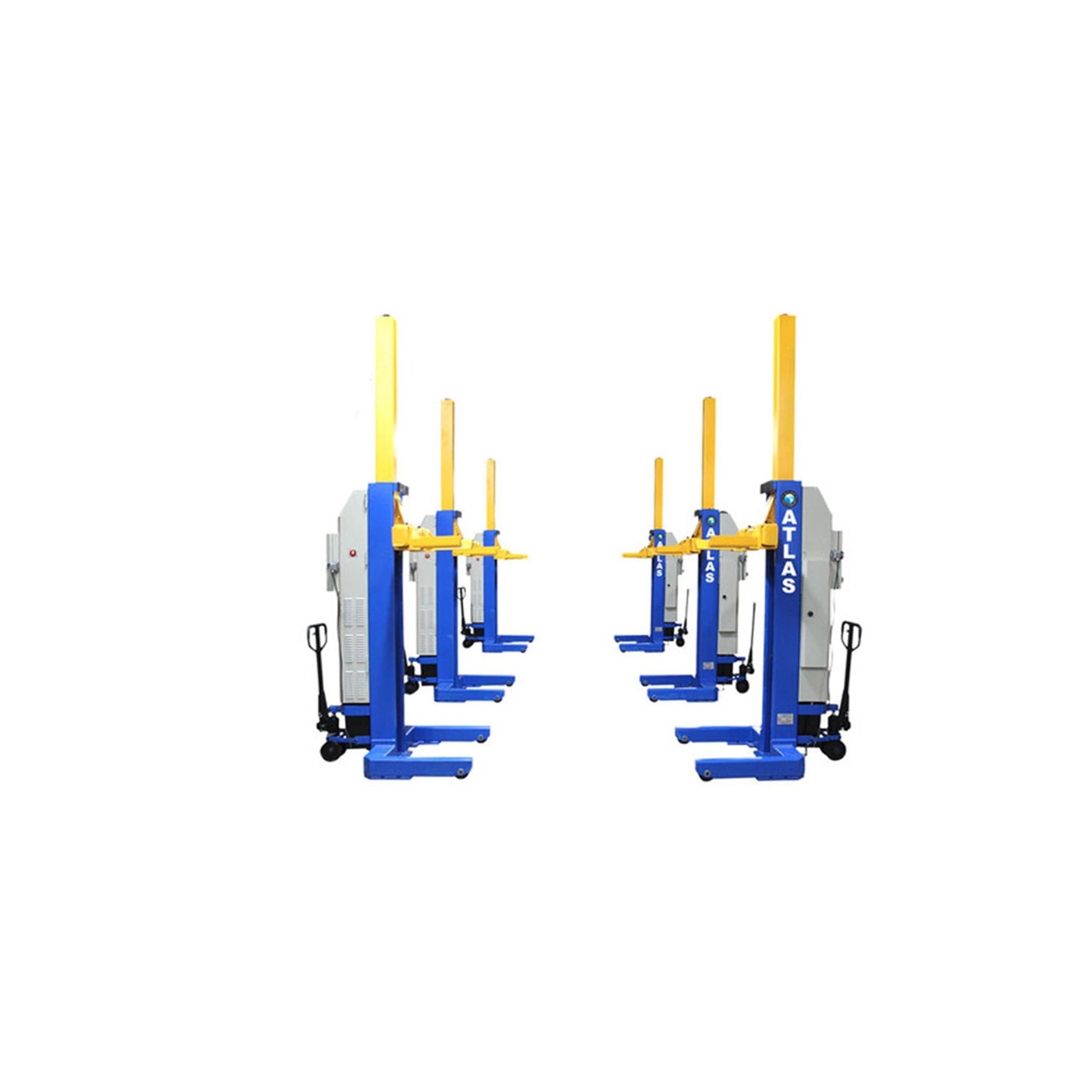

Maxima ML6051BC ALI Certified 111,000 lb Mobile Column Lift System (6-Column Set)
The Maxima ML6051BC is an ALI Certified heavy-duty mobile column lift system designed for commercial truck repair facilities, fleet maintenance operations, transit authorities, municipalities, and industrial service centers. This six-column configuration provides an impressive 111,000 lb total lifting capacity, making it ideal for servicing heavy-duty trucks, buses, coaches, fire apparatus, RVs, and other large commercial vehicles.
Each lifting column delivers an individual lifting capacity of 18,500 lb and is powered by a high-performance 2.2 kW 24V DC hydraulic motor with dual rechargeable batteries. The completely cordless design, combined with integrated hydraulic pallet jack wheels, allows each column to be positioned quickly and easily throughout the workshop or outdoors on approved concrete surfaces without the need for permanent installation.
An advanced electronic synchronization system continuously monitors all six columns to ensure smooth, level lifting throughout every lifting cycle. Every column features an LCD display showing real-time lifting height, while hydraulic flow control valves and mechanical locking systems provide redundant safety protection during operation.
Adjustable lifting forks accommodate tire diameters from 19 inches to 44 inches, allowing the system to service a wide variety of commercial vehicles. Emergency stop buttons on every column, long-life rechargeable batteries, and optional tripod support stands further enhance safety and versatility for demanding professional applications.
Key Features
- ALI Certified mobile column lift system.
- 111,000 lb total lifting capacity using six columns.
- 18,500 lb lifting capacity per column.
- Electronic synchronization for simultaneous operation of all columns.
- LCD display on every column showing precise lifting height.
- Dual safety protection with hydraulic flow control and mechanical locking systems.

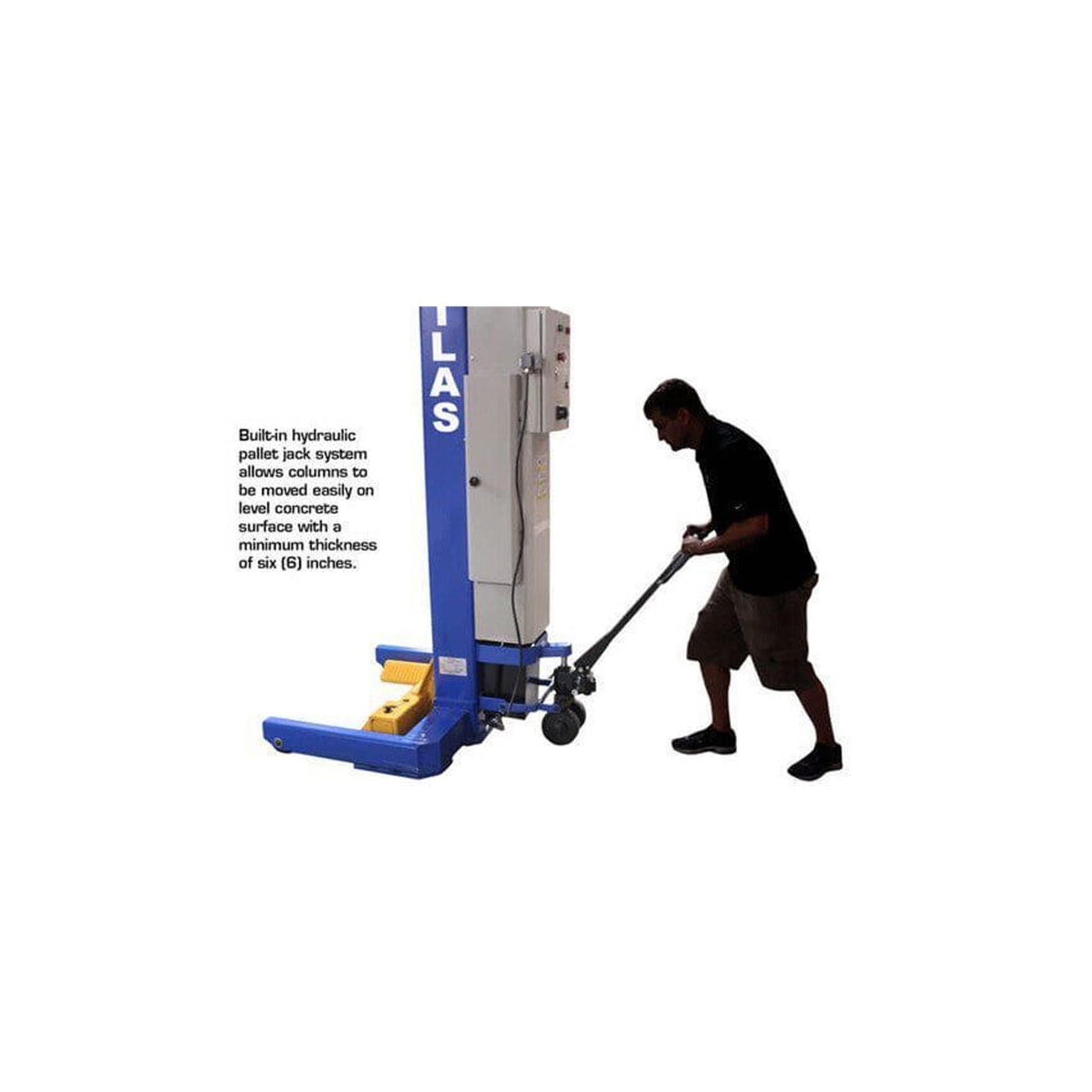

- Portable hydraulic pallet jack system for effortless movement.
- Adjustable lifting forks accommodate tire diameters from 19 in to 44 in.
- Emergency stop button located on every column.
- Battery-powered operation provides approximately 10–20 lifting cycles per charge.
- Rechargeable using standard 110V single-phase power.
- Suitable for indoor or outdoor operation on level concrete surfaces at least 6 in thick.
- Six 32 ft communication cables included.
- Optional tripod support stands available for wheel service.
Ideal Applications
- Commercial truck repair facilities
- Fleet maintenance centers
- Bus and coach maintenance garages
- Municipal vehicle service departments
- Fire and emergency vehicle maintenance
- Heavy-duty diesel repair shops
- Motorhome and RV service centers
- Commercial trailer maintenance
- Agricultural equipment repair
- Industrial vehicle maintenance facilities
Specifications
| Brand | Maxima |
| Model | ML6051BC |
| Certification | ALI Certified |
| Lift Type | Mobile Column Lift System |
| Configuration | 6 Columns |
| Total Lifting Capacity | 111,000 lb |
| Capacity Per Column | 18,500 lb |
| Maximum Lifting Height | 67 in (5 ft 7 in) |
| Overall Height | 145 in (12 ft 1 in) |
| Resting Height | 88 1/2 in (7 ft 4 1/2 in) |
| Overall Width | 43 1/2 in (3 ft 7 1/2 in) |
| Overall Length | 55 1/2 in (4 ft 7 1/2 in) |
| Column Width | 13 1/4 in |
| Compatible Tire Diameter | 19 in – 44 in |
| Synchronization | Electronic Multi-Column Synchronization System |
| Display | LCD Screen on Each Column |
| Safety System | Hydraulic Flow Control and Mechanical Locking System |
| Emergency Controls | Emergency Stop Button on Every Column |
| Motor | 2.2 kW 24V DC Hydraulic Motor with Dual Rechargeable Batteries per Column |
| Battery Performance | Approximately 10–20 Lifts per Charge (Depending on Load) |
| Charging Power | 110V Single-Phase |
| Communication Cables | Six 32 ft Interconnecting Cables Included |
| Mobility | Integrated Hydraulic Pallet Jack System |
| Installation | Portable – Indoor or Outdoor Use on Minimum 6 in Concrete |
| Optional Accessories | Maxima Tripod Support Stands |
| Weight Per Column | 1,700 lb |
| Shipping Weight (6-Column System) | 10,200 lb |
| Warranty | 2-Year Limited Warranty |
```
