Maxima ML4034BC ALI Certified 74,000 lb Mobile Column Lift System (Expandable to 148,000 lb)

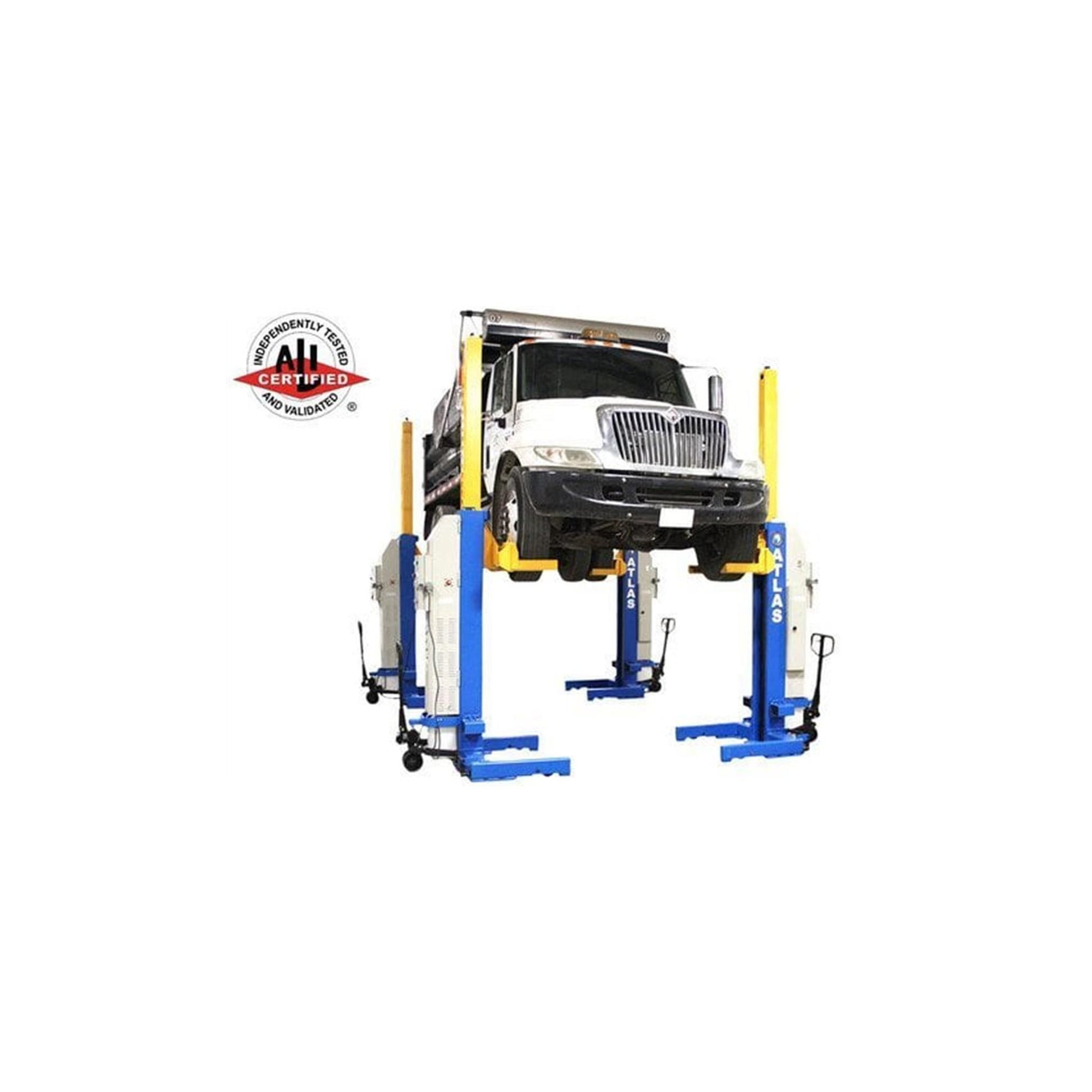

The Maxima ML4034BC is an ALI Certified heavy-duty mobile column lift system built for commercial truck service centers, fleet maintenance operations, transit authorities, municipalities, and industrial repair facilities. Supplied as a four-column system with a total lifting capacity of 74,000 lb, it can easily be expanded to six columns for 111,000 lb capacity or eight columns for an impressive 148,000 lb lifting capacity.

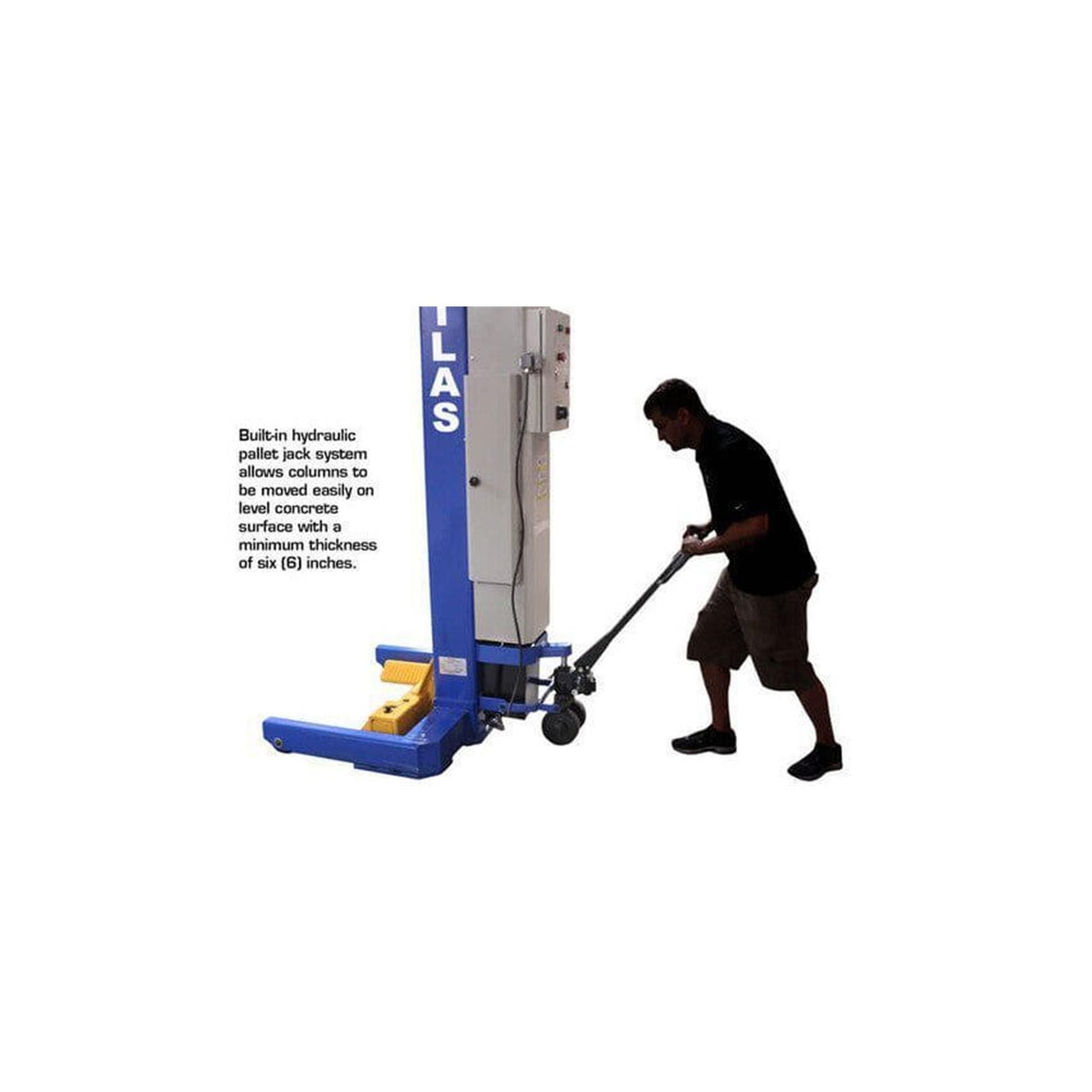

Each mobile lifting column provides an individual lifting capacity of 18,500 lb and is powered by a high-performance 2.2 kW 24V DC hydraulic motor with dual rechargeable batteries. The cordless hydraulic design, combined with integrated pallet jack wheels, allows each column to be moved effortlessly throughout the workshop or outdoors on a properly prepared concrete surface, giving technicians maximum flexibility without requiring permanent installation.

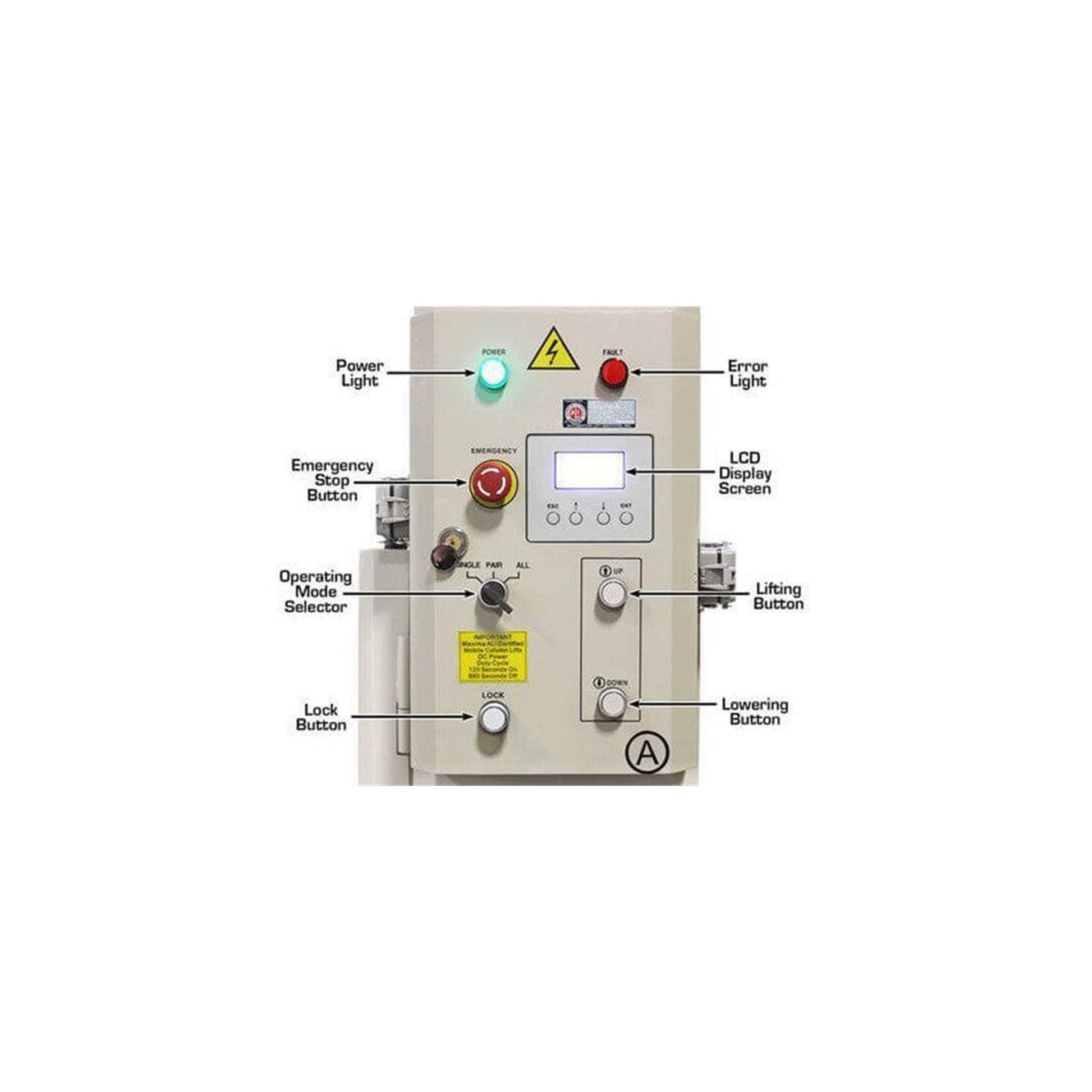

An advanced electronic synchronization system continuously monitors all lifting columns to ensure every wheel rises evenly and safely. Each column features an LCD display showing real-time lifting height, while hydraulic flow control valves and mechanical locking systems provide dual-layer safety throughout every lifting operation.
Designed for a wide range of commercial vehicles, the adjustable lifting forks accommodate tire diameters from 19 inches to 44 inches. Every column is equipped with an emergency stop button, and the included 32-foot communication cables allow synchronized operation of the entire lifting system. When work is complete, the portable columns can be stored away to maximize valuable workshop floor space.
Key Features
- ALI Certified mobile column lift system.
- 74,000 lb total lifting capacity with four columns.
- Expandable to six columns (111,000 lb) or eight columns (148,000 lb).
- 18,500 lb lifting capacity per column.
- Simultaneous synchronized operation of all columns.
- LCD display on every column showing precise lifting height.
- Advanced electronic synchronization system.
- Dual safety system with hydraulic flow control and mechanical locking mechanisms.
- Portable hydraulic pallet jack design for effortless mobility.
- Adjustable lifting forks fit tire diameters from 19 in to 44 in.
- Emergency stop button on every column.
- Powerful 2.2 kW 24V DC hydraulic motor with dual rechargeable batteries per column.
- Four 32-foot communication cables included.

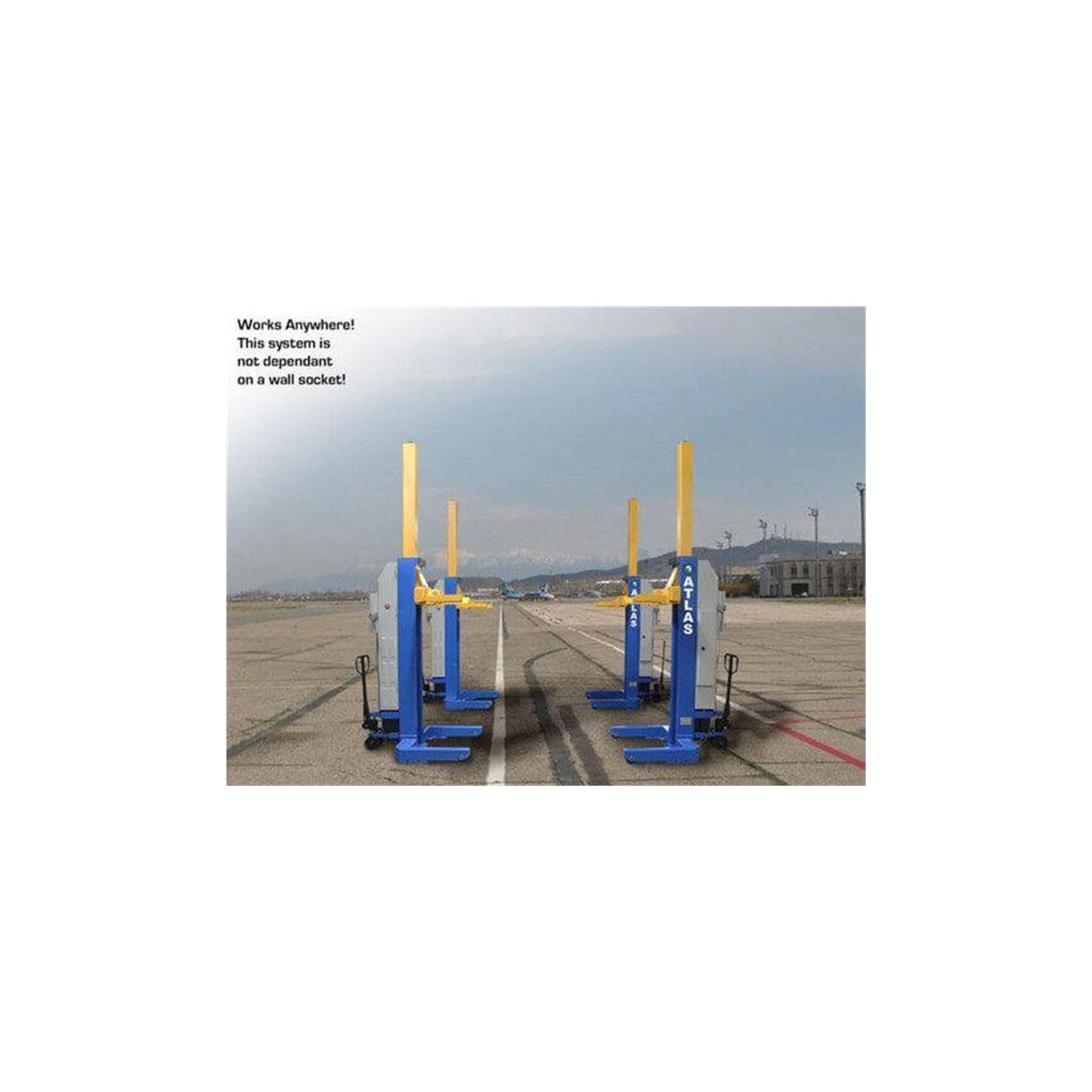

- Suitable for indoor or outdoor use on approved concrete surfaces.
- 110V battery charging system.
Ideal Applications
- Commercial truck repair facilities
- Fleet maintenance centers
- Bus and transit maintenance garages
- Municipal vehicle service departments
- Fire apparatus maintenance
- Heavy equipment service facilities
- RV and motorhome repair
- Commercial trailer maintenance
- Agricultural equipment service
- Industrial vehicle repair operations
Specifications
| Brand | Maxima |
| Model | ML4034BC |

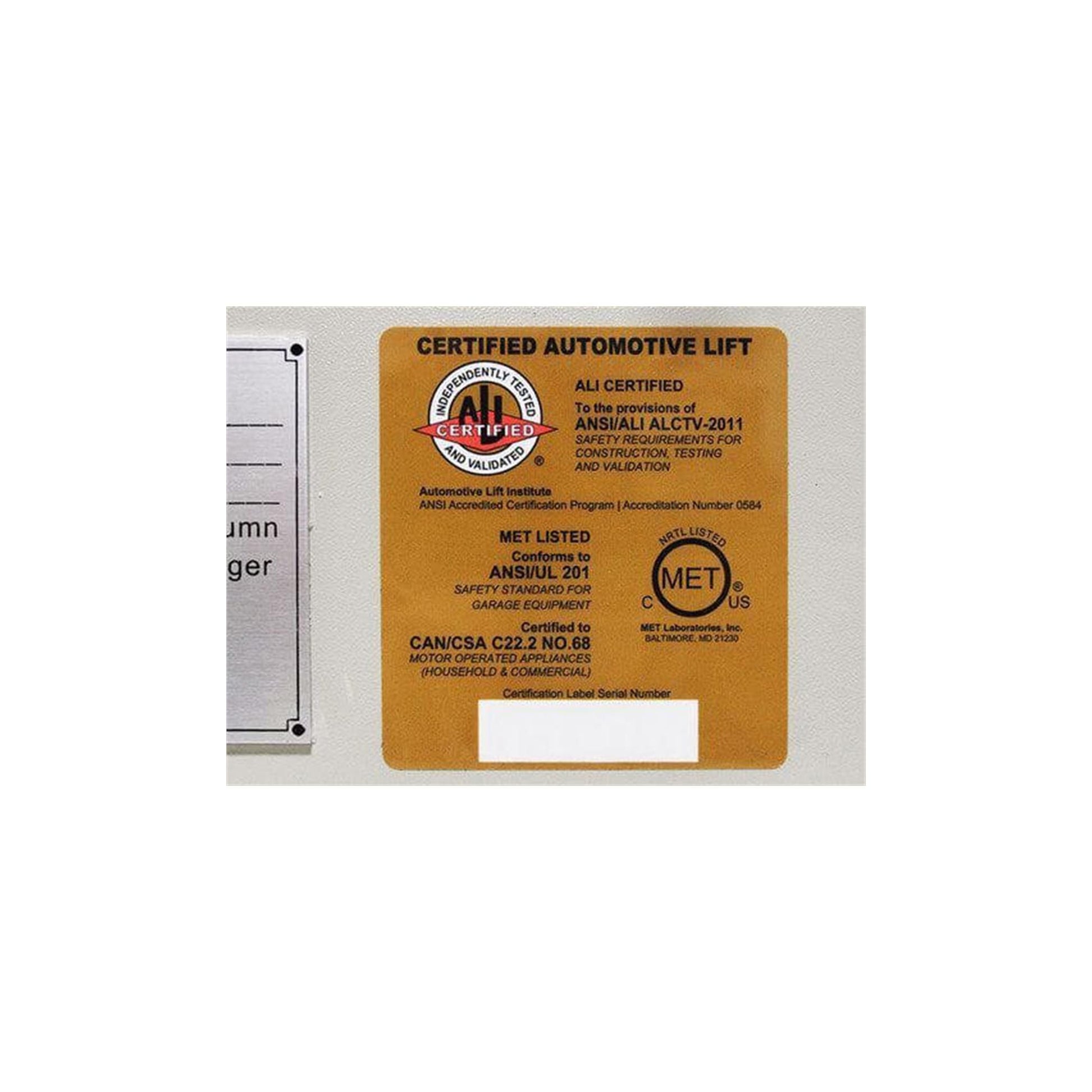

| Certification | ALI Certified |
| Lift Type | Mobile Column Lift System |
| Standard Configuration | 4 Columns |
| Total Capacity (4 Columns) | 74,000 lb |
| Expandable Capacity (6 Columns) | 111,000 lb |
| Expandable Capacity (8 Columns) | 148,000 lb |
| Capacity Per Column | 18,500 lb |
| Maximum Lifting Height | 67 in (5 ft 7 in) |
| Overall Height | 145 in (12 ft 1 in) |
| Resting Height | 88 1/2 in (7 ft 4 1/2 in) |
| Overall Width | 43 1/2 in (3 ft 7 1/2 in) |
| Overall Length | 55 1/2 in (4 ft 7 1/2 in) |
| Column Width | 13 1/4 in |
| Compatible Tire Diameter | 19 in – 44 in |
| Synchronization | Electronic Multi-Column Synchronization System |
| Display | LCD Screen on Each Column |
| Safety System | Hydraulic Flow Control and Mechanical Locking System |
| Emergency Controls | Emergency Stop Button on Every Column |
| Motor | 2.2 kW 24V DC Hydraulic Motor with Two Rechargeable Batteries per Column |
| Charging Power | 110V Single-Phase |
| Communication Cables | Four 32 ft Interconnecting Cables Included |
| Mobility | Integrated Hydraulic Pallet Jack System |
| Installation | Portable – Indoor or Outdoor Use on Minimum 6 in Concrete |
| Optional Accessories | Additional Columns (6- or 8-Column Systems), Maxima Tripod Support Stands |
| Shipping Weight (4-Column System) | 6,800 lb |
| Shipping Weight Per Column | 1,700 lb |
| Warranty | 2-Year Limited Warranty |
```
