Maxima 6045BC ALI Certified 99,000 lb Mobile Column Lift System (6-Column Set)

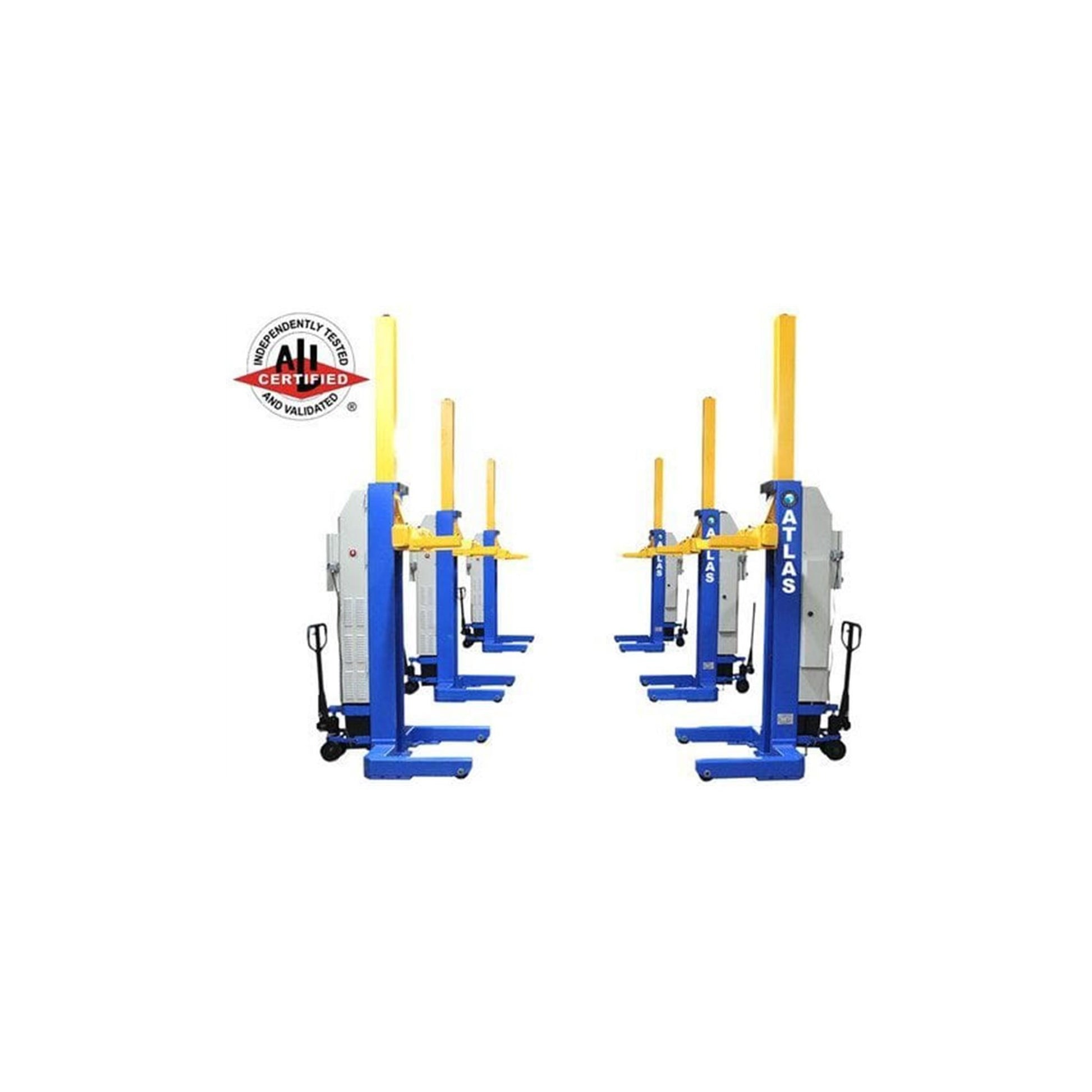

The Maxima 6045BC mobile column lift system is an ALI Certified heavy-duty lifting solution engineered for safely servicing commercial trucks, buses, motorhomes, emergency vehicles, and large fleet vehicles. This six-column configuration delivers an impressive 99,000 lb total lifting capacity while providing the flexibility of a completely portable, battery-powered lifting system.

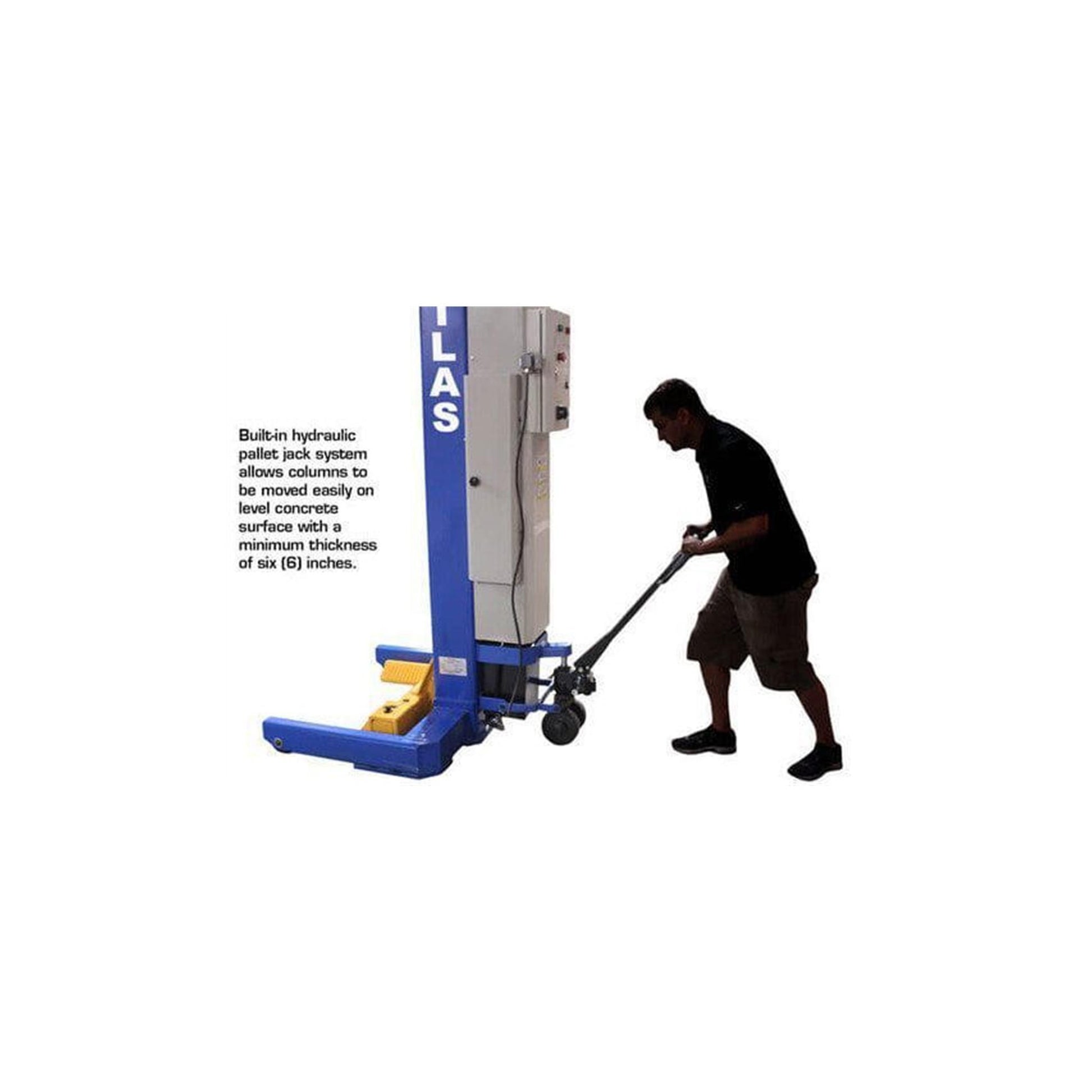

Each lifting column is powered by a high-performance 2.2 kW 24V DC hydraulic motor with dual rechargeable batteries, allowing fully cordless operation for maximum mobility throughout the workshop. Integrated hydraulic pallet jack systems enable each column to be positioned quickly and easily, while the advanced electronic synchronization system ensures all six columns raise and lower simultaneously for smooth, level lifting.
Every column features an LCD display showing its exact lifting height, an emergency stop button for added operator safety, and a dual-protection safety system combining hydraulic flow control with mechanical locking mechanisms. Adjustable lifting forks accommodate tire diameters from 19 to 44 inches, making the system suitable for a wide range of commercial vehicle applications.
Designed for both indoor and outdoor use on properly prepared concrete surfaces, the Maxima 6045BC offers unmatched flexibility for professional fleet maintenance facilities. Optional tripod support stands are also available for wheel service and additional vehicle support during repairs.
Key Features
- ALI Certified mobile column lift system.
- 99,000 lb total lifting capacity using six columns.
- 16,500 lb lifting capacity per column.
- Electronic synchronization for simultaneous operation of all columns.
- LCD display on every column showing exact lifting height.
- Dual safety protection with hydraulic flow control and mechanical locking systems.
- Portable hydraulic pallet jack system for easy positioning.
- Adjustable lifting forks fit tire diameters from 19 in to 44 in.
- Emergency stop button on every column.
- Battery-powered operation provides approximately 10–20 lifting cycles per charge.
- Rechargeable using standard 110V single-phase power.
- Suitable for indoor or outdoor operation on level concrete surfaces at least 6 in thick.
- Six 32 ft communication cables included.
- Optional tripod support stands available for wheel service.
Ideal Applications
- Commercial truck repair facilities
- Fleet maintenance operations
- Bus and transit maintenance garages
- Municipal vehicle service departments
- Fire and emergency vehicle maintenance
- Motorhome and RV repair
- Heavy-duty diesel service shops
- Commercial trailer maintenance
- Agricultural equipment service
- Industrial vehicle repair facilities
Specifications
| Brand | Maxima |
| Model | 6030BC |
| Certification | ALI Certified |
| Lift Type | Mobile Column Lift System |
| Configuration | 6 Columns |
| Total Lifting Capacity | 99,000 lb |
| Capacity Per Column | 16,500 lb |
| Maximum Lifting Height | 67 in (5 ft 7 in) |
| Overall Height | 145 in (12 ft 1 in) |
| Resting Height | 88 1/2 in (7 ft 4 1/2 in) |
| Overall Width | 43 1/2 in (3 ft 7 1/2 in) |
| Overall Length | 55 1/2 in (4 ft 7 1/2 in) |
| Column Width | 13 1/4 in |
| Compatible Tire Diameter | 19 in – 44 in |
| Synchronization | Electronic Multi-Column Synchronization System |
| Display | LCD Screen on Each Column |
| Safety System | Hydraulic Flow Control and Mechanical Locking System |
| Emergency Controls | Emergency Stop Button on Every Column |
| Motor | 2.2 kW 24V DC Hydraulic Motor with Dual Rechargeable Batteries per Column |
| Battery Performance | Approximately 10–20 Lifts per Charge (Depending on Load) |
| Charging Power | 110V Single-Phase |
| Communication Cables | Six 32 ft Interconnecting Cables Included |
| Mobility | Integrated Hydraulic Pallet Jack System |
| Installation | Portable – Indoor or Outdoor Use on Minimum 6 in Concrete |
| Optional Accessories | Maxima Tripod Support Stands |
| Weight Per Column | 1,600 lb |
| Shipping Weight (6 Columns) | 9,600 lb |
| Warranty | 2-Year Limited Warranty |
```
