Maxima 4030BC ALI Certified 66,000 lb Mobile Column Lift System (Expandable to 132,000 lb)

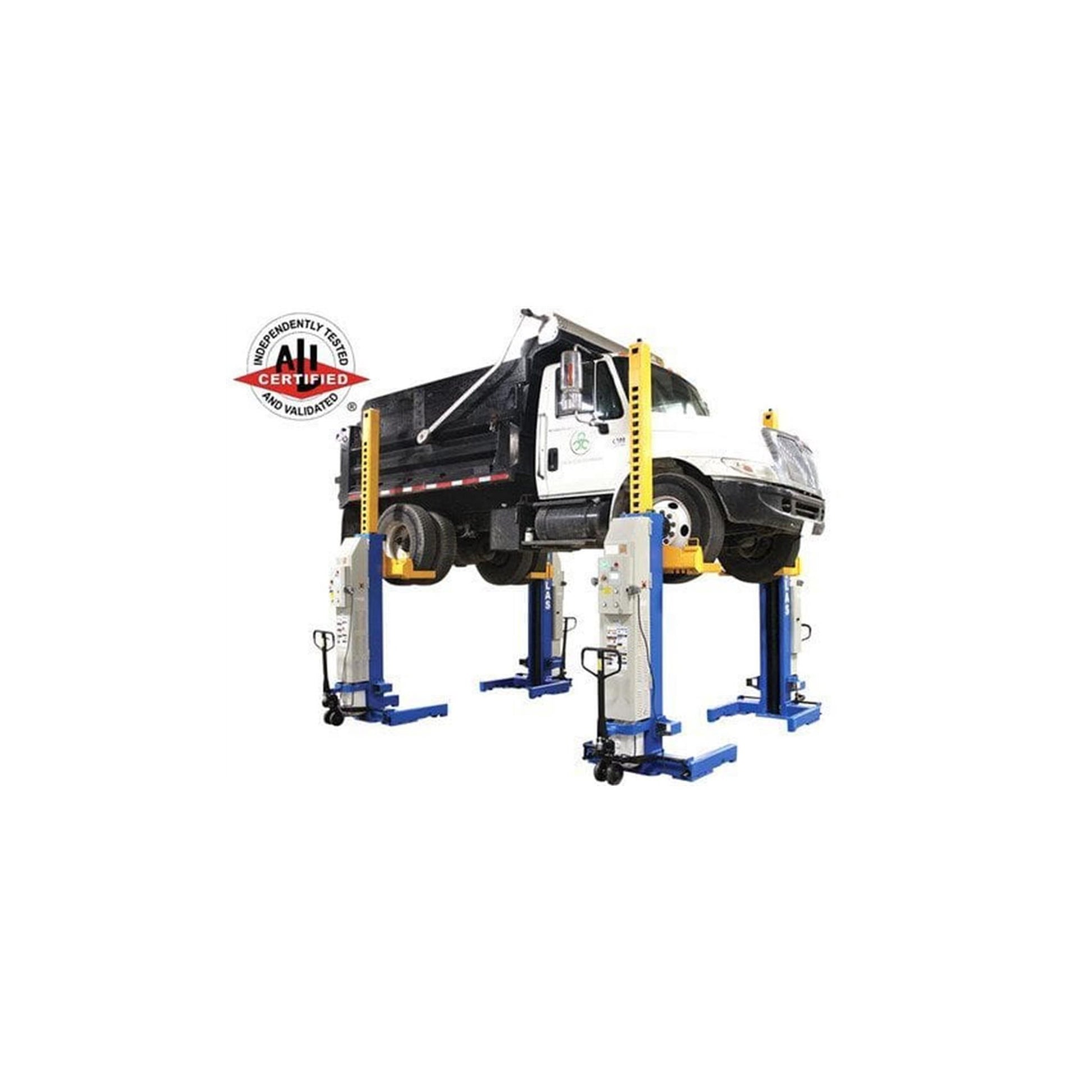

The Maxima 4030BC is an ALI Certified heavy-duty mobile column lift system engineered for commercial truck repair facilities, bus maintenance centers, fleet service operations, municipalities, and industrial vehicle maintenance. Supplied as a four-column system with a total lifting capacity of 66,000 lb, the system can easily be expanded to six or eight columns, increasing lifting capacity to an impressive 99,000 lb or 132,000 lb.
Each mobile lifting column provides an individual lifting capacity of 16,500 lb and operates using a powerful 24V DC hydraulic drive system powered by dual rechargeable batteries. The cordless design, combined with integrated hydraulic pallet jack wheels, allows each column to be positioned quickly inside the workshop or outdoors on a properly prepared concrete surface, providing exceptional flexibility without permanent installation.
An advanced electronic synchronization system continuously monitors every lifting column to ensure smooth, level lifting throughout the entire lifting cycle. Individual LCD displays show the exact lifting height of each column, while hydraulic flow control and mechanical locking systems provide dual-layer safety for maximum operator confidence.
Designed to accommodate a wide range of commercial vehicles, the adjustable lifting forks fit tire diameters from 19 inches to 44 inches. Emergency stop buttons are located on every column, and four 32-foot communication cables are included for synchronized operation. When not in use, the portable columns can be stored away to maximize valuable workshop floor space.
Key Features
- ALI Certified heavy-duty mobile column lift system.
- 66,000 lb lifting capacity using four columns.
- Expandable to six columns (99,000 lb) or eight columns (132,000 lb).
- 16,500 lb lifting capacity per column.
- Simultaneous synchronized operation of all lifting columns.

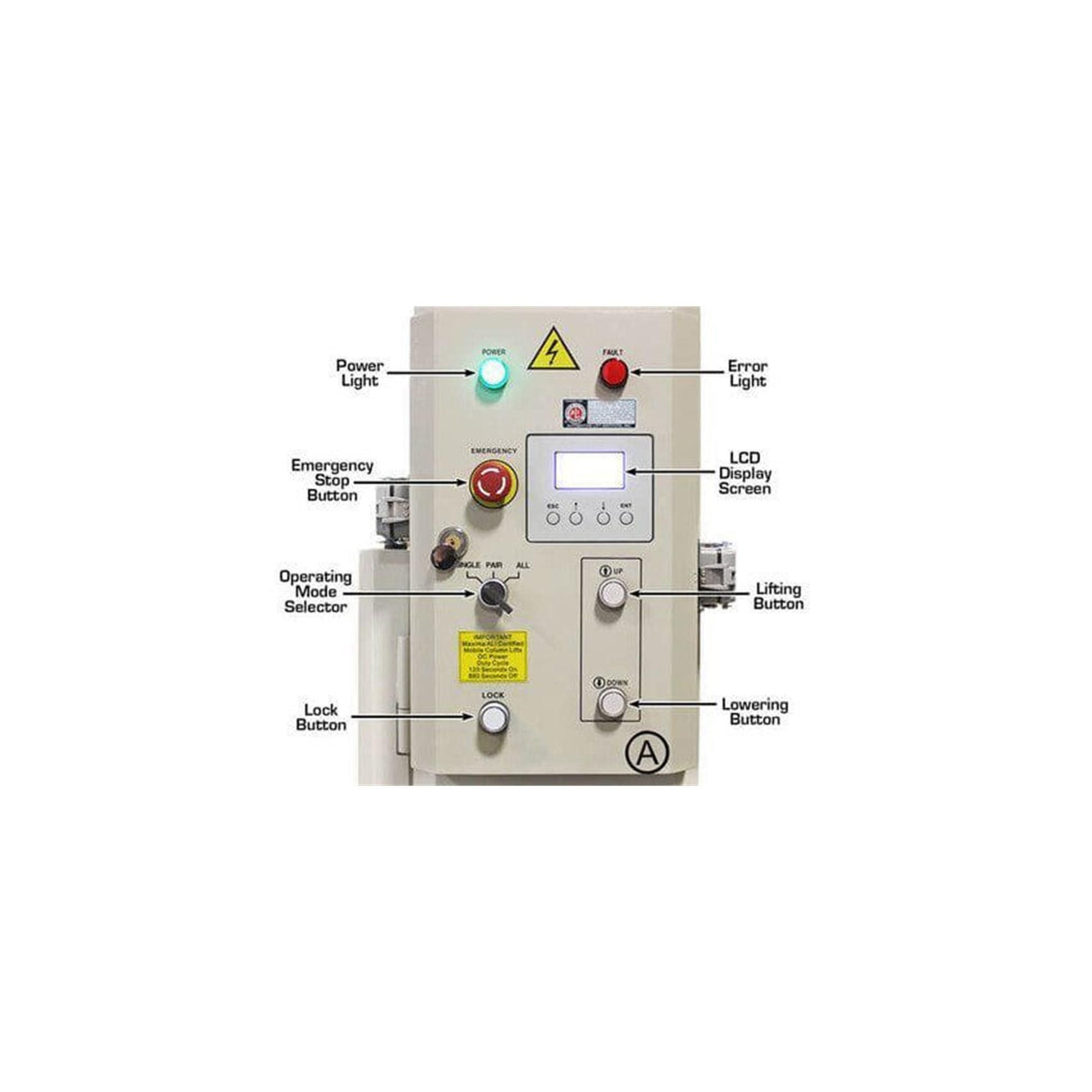

- LCD display on every column showing real-time lifting height.
- Advanced electronic synchronization system.
- Dual safety protection using hydraulic flow control and mechanical locking systems.

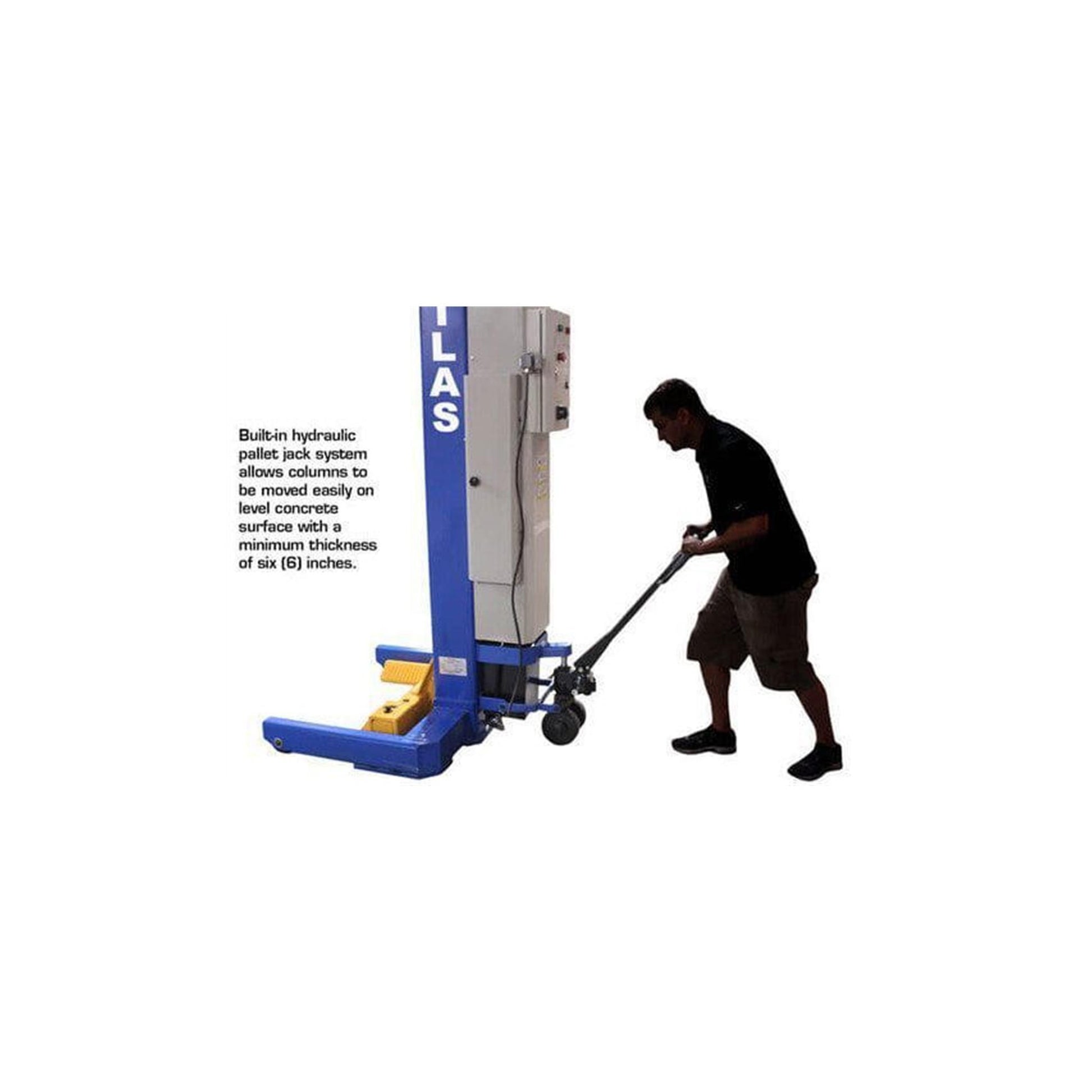

- Portable hydraulic pallet jack design for easy movement.
- Adjustable lifting forks fit tire diameters from 19 in to 44 in.
- Emergency stop button on every column.
- Powerful 2.2 kW 24V DC hydraulic motor with dual rechargeable batteries per column.
- Four 32-foot communication cables included.

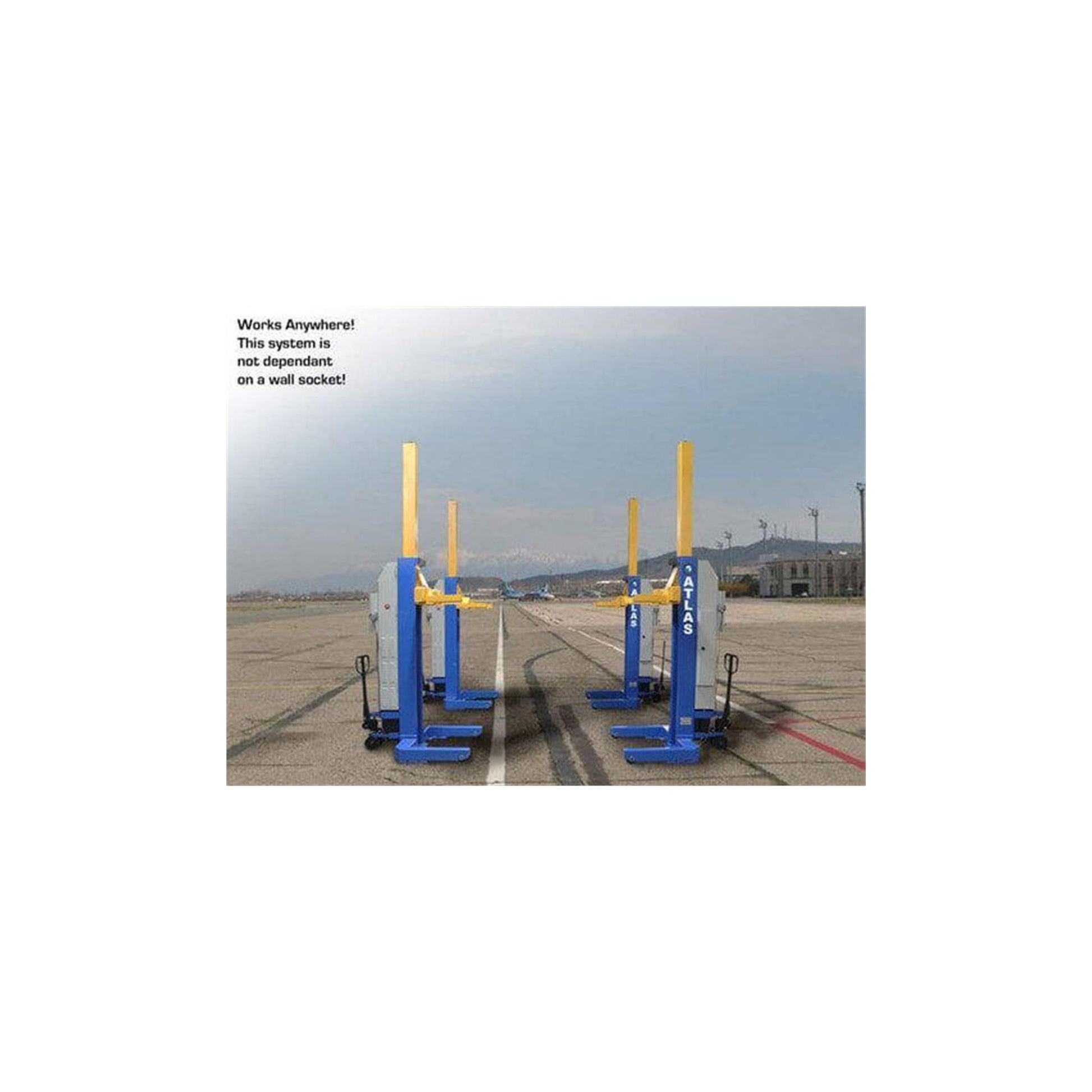

- Suitable for indoor or outdoor operation on approved concrete surfaces.
- 110V charging system for onboard batteries.
Ideal Applications
- Commercial truck repair facilities
- Fleet maintenance operations
- Municipal vehicle service centers
- Transit and bus maintenance garages
- Fire and emergency vehicle maintenance
- Heavy equipment service facilities
- RV and motorhome repair
- Commercial trailer service
- Agricultural equipment maintenance
- Large industrial vehicle repair
Specifications
| Brand | Maxima |
| Model | 4030BC |

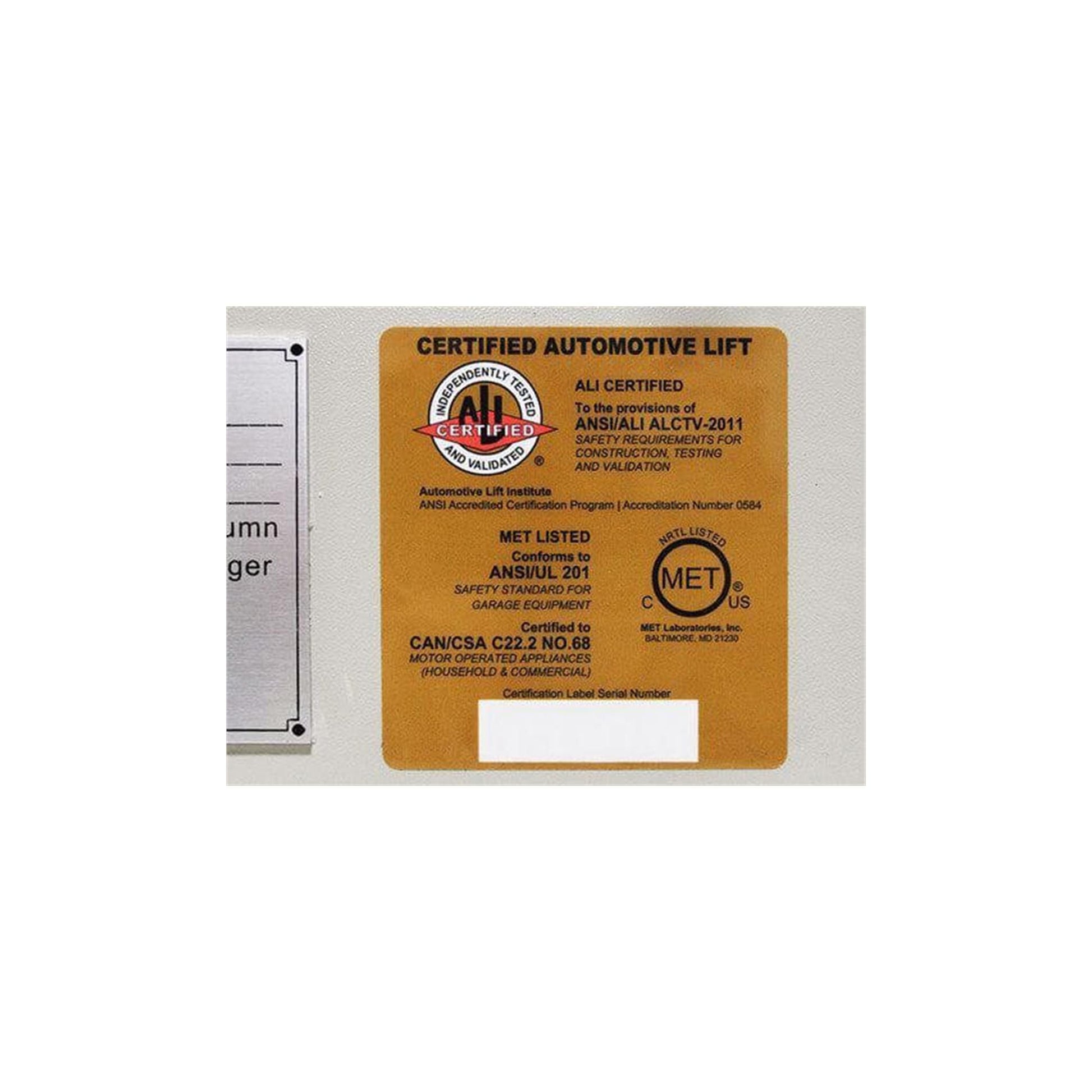

| Certification | ALI Certified |
| Lift Type | Mobile Column Lift System |
| Standard Configuration | 4 Columns |
| Total Capacity (4 Columns) | 66,000 lb |
| Expandable Capacity (6 Columns) | 99,000 lb |
| Expandable Capacity (8 Columns) | 132,000 lb |
| Capacity Per Column | 16,500 lb |
| Maximum Lifting Height | 67 in (5 ft 7 in) |
| Overall Height | 145 in (12 ft 1 in) |
| Resting Height | 88 1/2 in (7 ft 4 1/2 in) |
| Overall Width | 43 1/2 in (3 ft 7 1/2 in) |
| Overall Length | 55 1/2 in (4 ft 7 1/2 in) |
| Column Width | 13 1/4 in |
| Compatible Tire Diameter | 19 in – 44 in |
| Synchronization | Electronic Multi-Column Synchronization System |
| Display | LCD Screen on Each Column |
| Safety System | Hydraulic Flow Control and Mechanical Locking System |
| Emergency Controls | Emergency Stop Button on Every Column |
| Motor | 2.2 kW 24V DC Hydraulic Motor with Two Rechargeable Batteries per Column |
| Charging Power | 110V Single-Phase |
| Communication Cables | Four 32 ft Interconnecting Cables Included |
| Mobility | Integrated Hydraulic Pallet Jack System |
| Installation | Portable – Indoor or Outdoor Use on Minimum 6 in Concrete |
| Optional Accessories | Additional Columns (6- or 8-Column Systems), Maxima Tripod Support Stands |
| Shipping Weight (4-Column System) | 6,400 lb |
| Shipping Weight Per Column | 1,600 lb |
| Warranty | 2-Year Limited Warranty |
```
