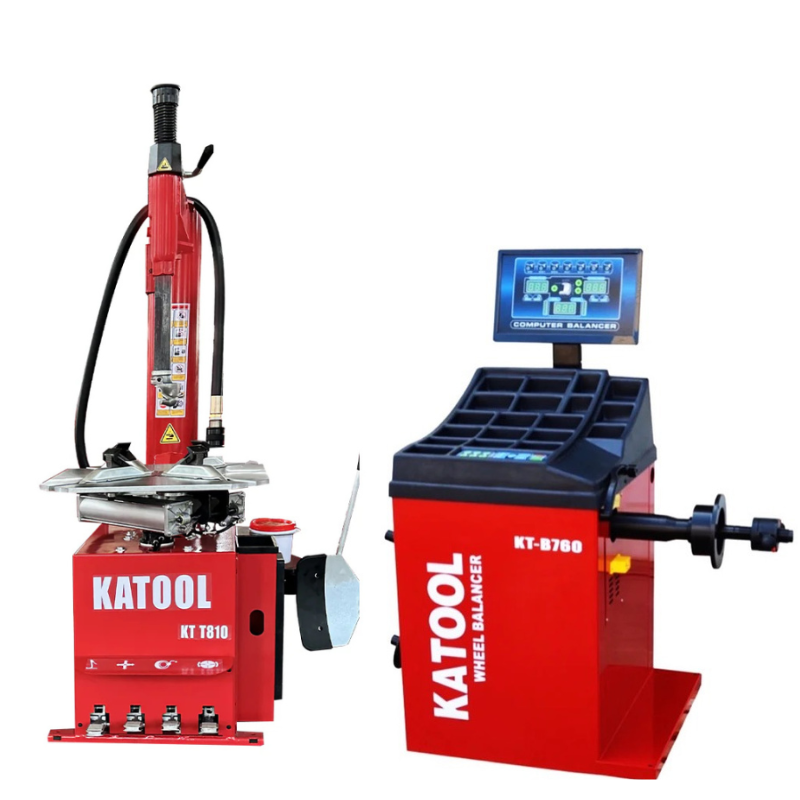

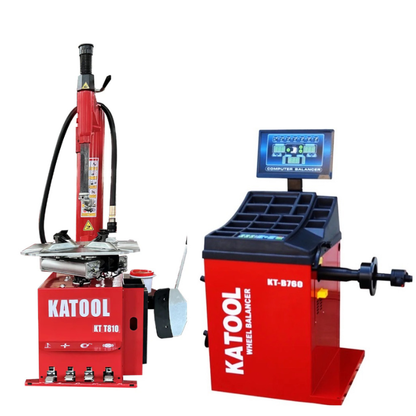

Katool KT-T810 Tire Changer & KT-B760 Wheel Balancer Combo

Professional Tire Changing & Balancing System for Automotive Shops

Take your tire service capability to the next level with the Katool KT-T810 and KT-B760 combo. Designed for performance, durability, and ease of use, this setup delivers everything needed to handle tire mounting, demounting, and precision balancing with confidence. Built for demanding shop environments, it provides reliable operation while helping protect wheels and improve overall workflow efficiency.

Complete Tire Service Solution

This combination of tire changer and wheel balancer creates a seamless workflow from start to finish. The KT-T810 handles tire removal and installation with power and control, while the KT-B760 ensures accurate wheel balancing for smooth, vibration-free driving. Together, they form a dependable system suitable for cars, SUVs, and light trucks.

Durable Construction & Rim Protection

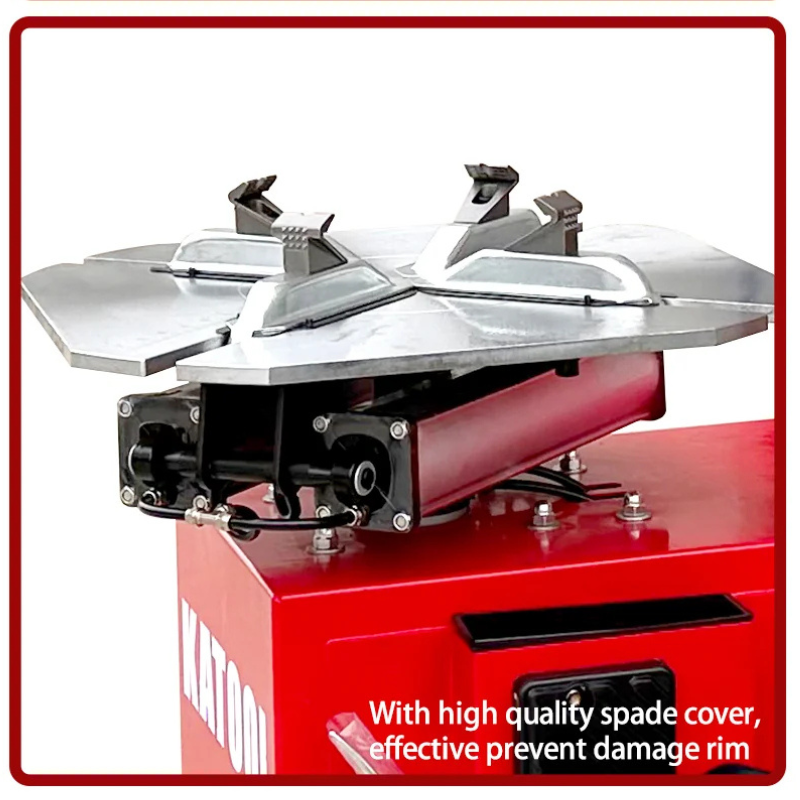

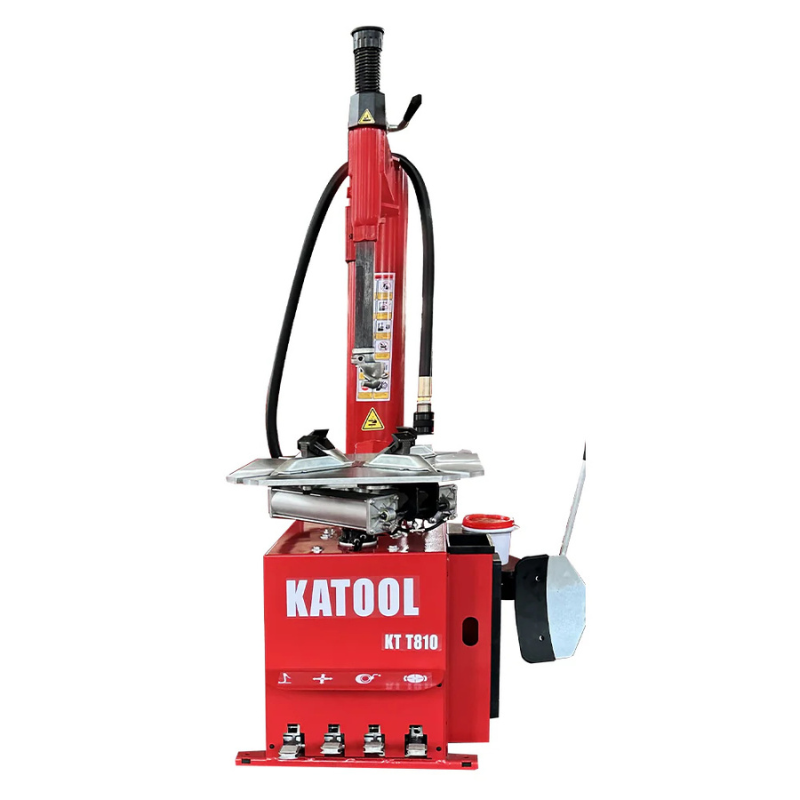

The KT-T810 tire changer is built with high-strength alloy steel jaws that undergo carburization and full quenching, providing enhanced durability and grip while maintaining long-term performance. Protective jaw covers and a precision-engineered stainless steel mounting head help minimize the risk of rim damage during operation.

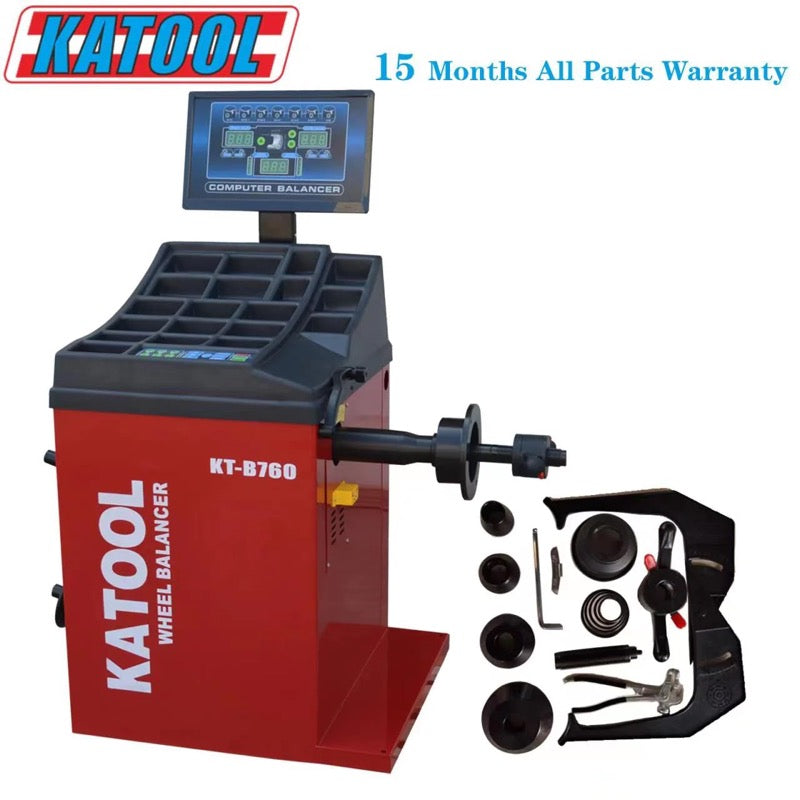

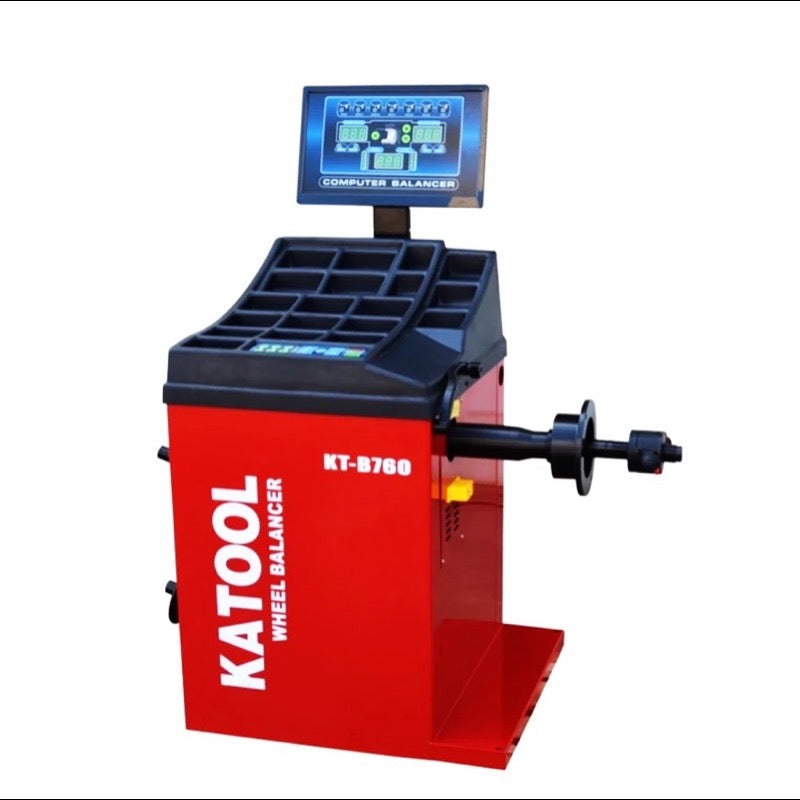

The KT-B760 wheel balancer features a heavy-duty steel body with reinforced structural components designed to reduce vibration and maintain stability. Its robust build ensures consistent performance even under frequent use in busy shop environments.

Powerful & Efficient Performance

The KT-T810 is powered by a 2.0 HP motor with pure copper windings, delivering strong, consistent torque while improving heat dissipation for extended service life. The pneumatic system is supported by a high-quality air filter that ensures clean, regulated airflow for reliable operation.

The KT-B760 uses a high-performance motor combined with advanced sensor technology to deliver fast and accurate balancing results. Its precision system ensures reliable readings, helping reduce vibration and improve vehicle handling.

Precision Balancing Technology

The KT-B760 is equipped with an automatic measurement ruler that inputs key values for faster setup and improved accuracy. Multiple balancing modes allow it to adapt to different rim types, while built-in self-calibration and diagnostic functions ensure consistent and precise results with minimal setup time.

An advanced control board with moisture-proof, dustproof, and anti-static protection enhances durability and long-term reliability, making it a dependable solution for professional use.

User-Friendly Operation

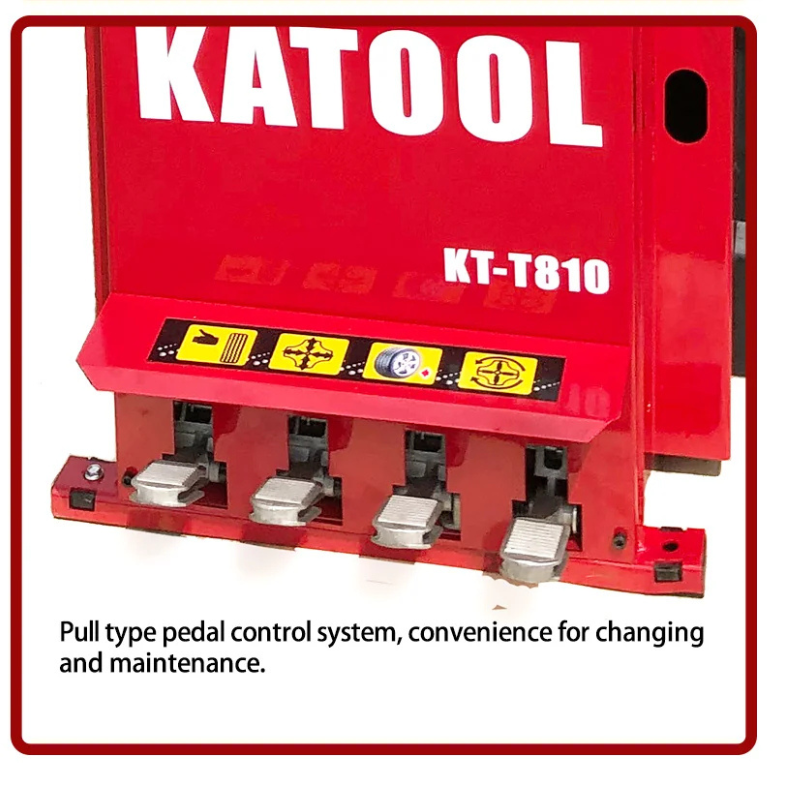

The KT-T810 features a pull-type pedal control system and integrated inflation gauge, allowing for smooth and intuitive tire changing. Its closed-body design protects internal components while simplifying maintenance.

The KT-B760 offers a straightforward interface with selectable measurement units and automated functions that reduce operator effort. The system is designed to be easy to use while maintaining high levels of accuracy and efficiency.

Specifications

Tire Changer – KT-T810

• Max Wheel Diameter: 41" (1040 mm)
• Max Wheel Width: 15" (380 mm)
• Outside Clamp Range: 12"–22"
• Inside Clamp Range: 14"–24"
• Power Supply: 120V / 1 Phase
• Motor Power: 2.0 HP / 1.5 kW
• Rotation Speed: 6.8 rpm
• Air Pressure: 116–145 psi (0.8–1.0 MPa)
• Net Weight: 186 kg

Wheel Balancer – KT-B760

• Rim Diameter: Up to 30"
• Wheel Width: 3"–12"
• Max Wheel Diameter: 880 mm
• Max Wheel Weight: 65 kg
• Rim Center Hole Diameter: Up to 135 mm
• Balancing Speed: 180 rpm
• Balancing Accuracy: ±1 g
• Measuring Time: 7 seconds
• Motor Power: 0.25 kW
• Power Supply: 120V / 1 Phase

Why This Combo Stands Out

This system combines durability, power, and precision into one efficient setup. With high-quality materials, advanced balancing technology, and user-friendly controls, it is designed to improve workflow, reduce service time, and deliver consistent professional results. Ideal for both growing shops and established operations, this combo provides the performance needed to handle daily tire service with confidence.
