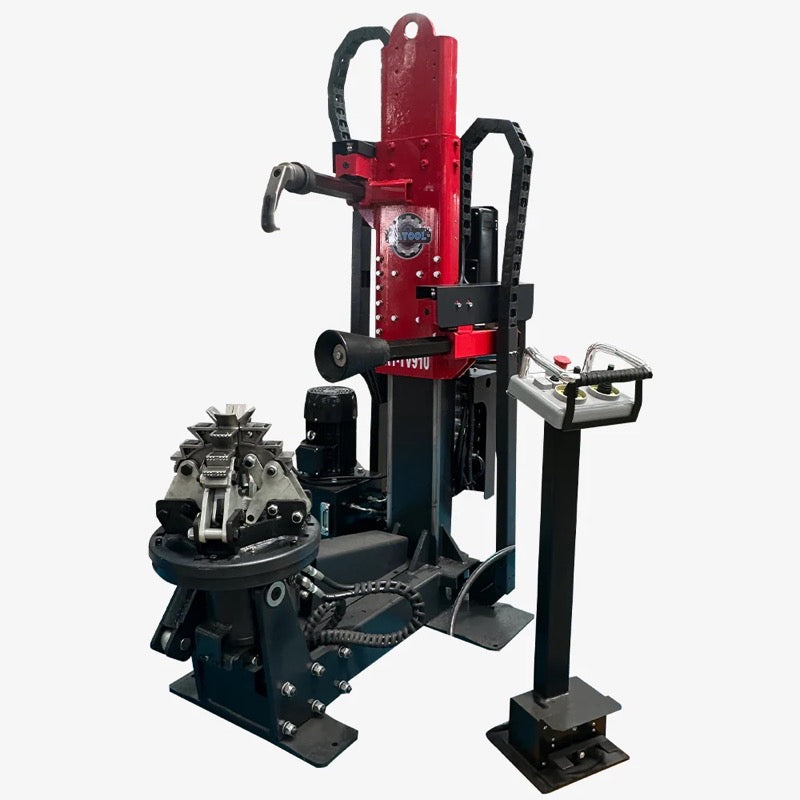

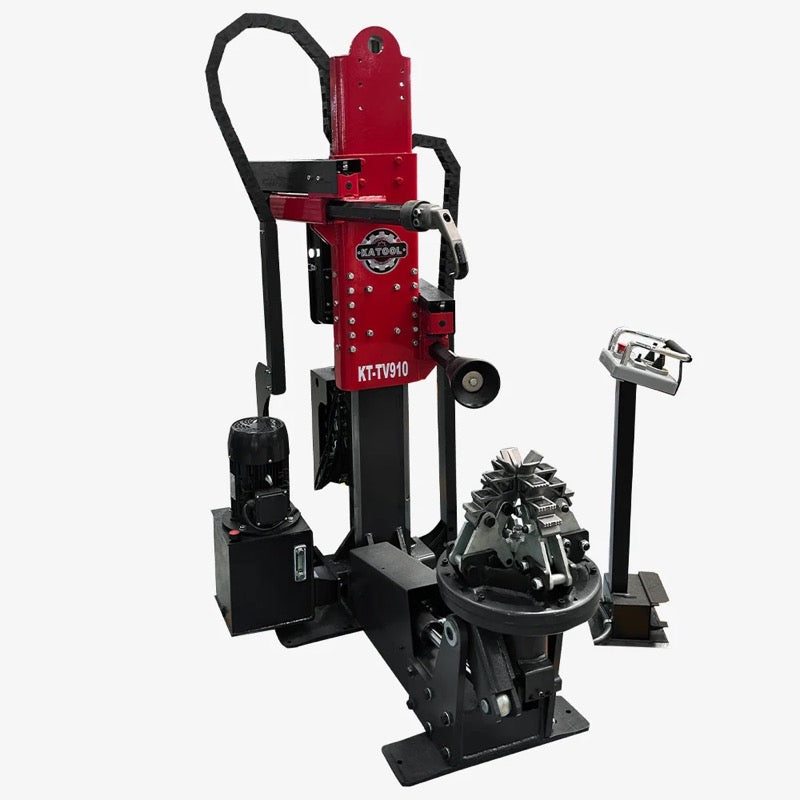

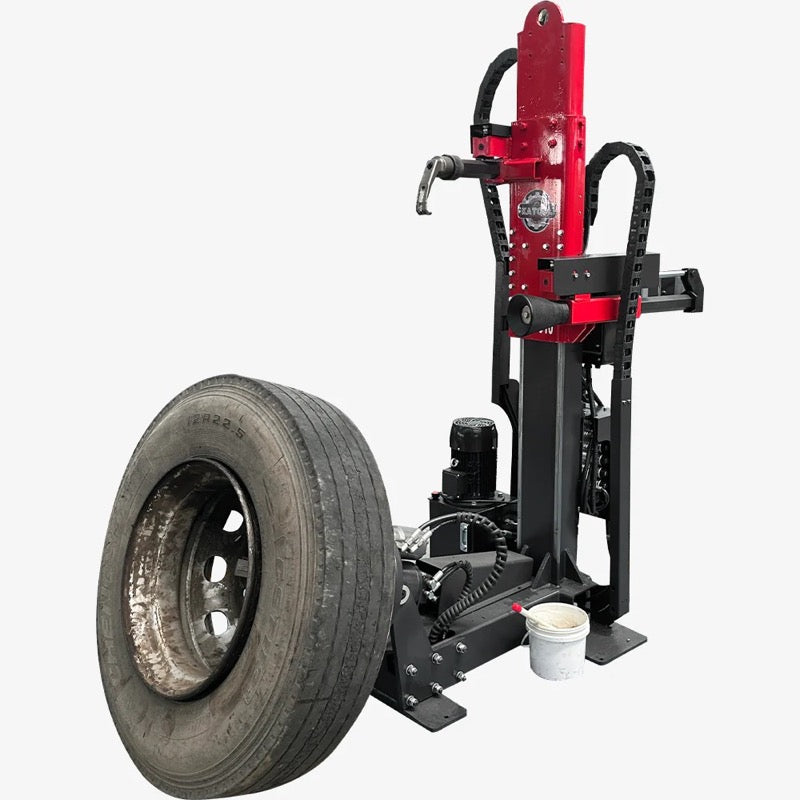

Katool TV910 Hydraulic Truck Tire Changer – 14”–42” Rim Capacity, 4.0HP Electro-Hydraulic Power
The Katool TV910 Hydraulic Truck Tire Changer is a heavy-duty electro-hydraulic machine built for professional service centers handling commercial truck, bus, tractor, and industrial vehicle tires. Designed for demanding workloads, the TV910 delivers powerful bead breaking, controlled tire mounting, and smooth demounting for large and high-weight wheels.
With an impressive 14”–42” outer rim clamping capacity and support for wheels up to 55 inches in diameter, this hydraulic tire changer offers exceptional versatility across commercial and fleet applications. Its 4.0 HP hydraulic motor combined with high working pressure ensures consistent torque and reliable performance—even on reinforced and heavy-duty tires.
If you're looking for a professional truck tire changer for sale, the TV910 delivers industrial strength with operator-focused safety and efficiency.
Built for Heavy Commercial Tire Service
The TV910 is engineered to handle the toughest tire service demands.
• Supports wheels up to 55” diameter
• Handles tire widths up to 31”
• 14”–42” external clamping range
• Maximum tire weight capacity of 3,306 lbs
• Powerful 4.0 HP hydraulic motor
• 220V single-phase power supply
With a maximum working pressure of ≤ 18,855 PSI, this machine delivers serious hydraulic force for efficient bead engagement and tire handling.
Operator-Focused Design
Designed for busy workshops, the TV910 prioritizes both performance and safety.
• Multifunctional control system for flexible operation
• Ergonomically positioned pedals and helper controls
• Low-voltage electrical components for enhanced safety
• Protective safety hood
• Integrated lighting for clear visibility
• Operates at a quiet <70 dB(A) noise level
Despite its heavy-duty capabilities, it maintains smooth and controlled operation.
Technical Specifications
Outer Rim Capacity: 14”–42”

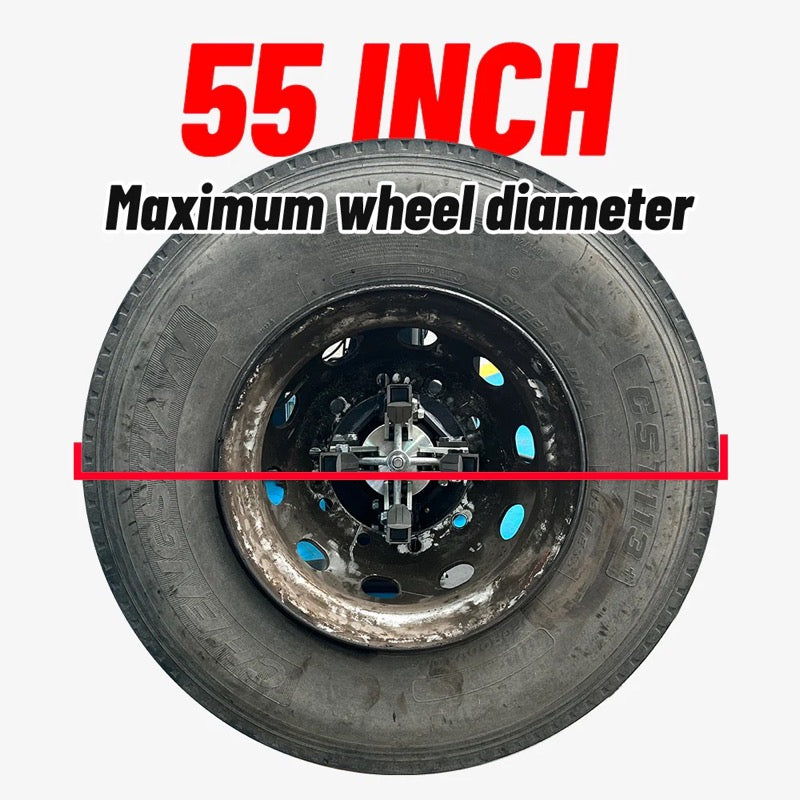

Max Wheel Diameter: 55”
Max Wheel Width: 31”
Max Working Pressure: ≤ 18,855 PSI
Power Supply: 220V / 1PH / 60Hz
Hydraulic Motor Output: 4.0 HP
Max Hydraulic Oil Flow: 83.2 GPM
Max Tire Weight Capacity: 3,306 lbs
Net Weight: 1,256 lbs
Shipping Weight: 1,388 lbs
Noise Level: <70 dB(A)
Katool Warranty
Includes a 12-month manufacturer warranty covering parts and product defects.
