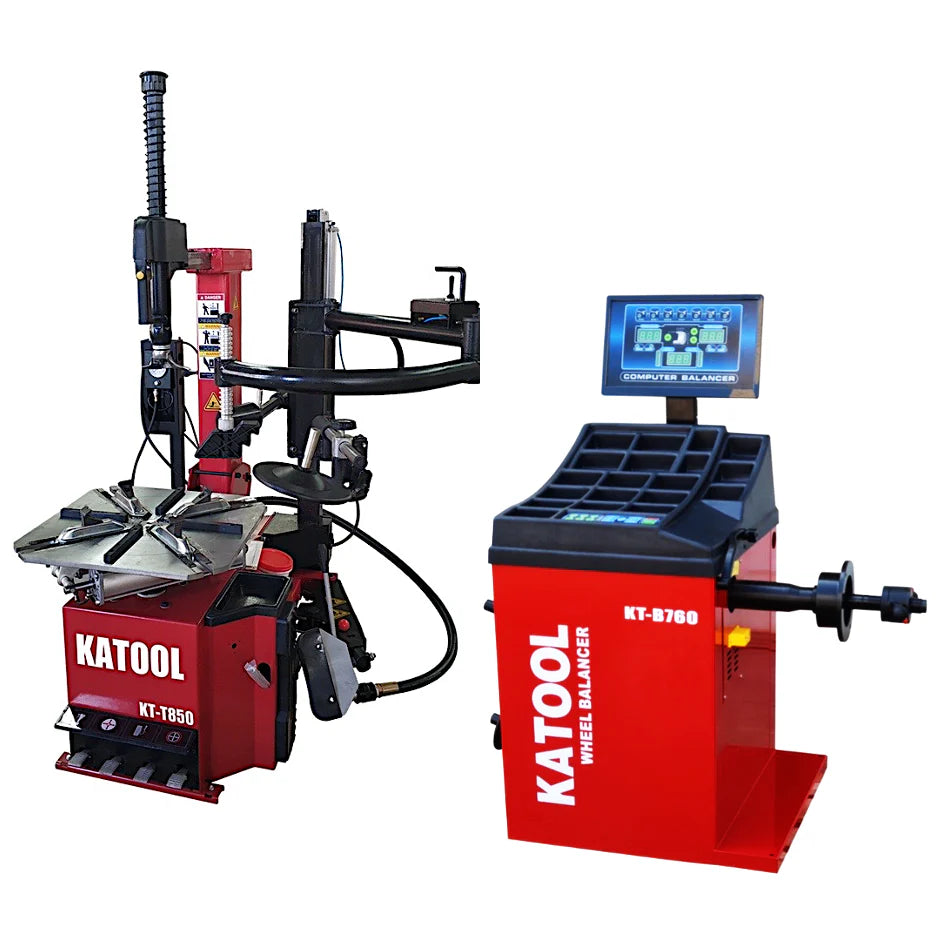

Katool KT-T850 Tire Changer & KT-B760 Wheel Balancer Combo

Heavy-Duty Tire Changing & Precision Balancing System

---

The Katool KT-T850 and KT-B760 combo delivers a powerful, professional-grade tire service solution designed for demanding shop environments. Combining a tilt-arm tire changer with a precision wheel balancer, this system provides everything needed to handle tire mounting, demounting, and balancing with speed, accuracy, and reliability.

Ideal for automotive repair shops, tire service centers, and commercial garages, this combo is built to service passenger vehicles, SUVs, and light trucks while improving workflow and productivity.

---

Complete Tire Service Solution

This combo offers a seamless workflow from tire removal and installation to accurate wheel balancing. The KT-T850 tire changer provides strong, controlled handling for a wide range of tires, while the KT-B760 wheel balancer ensures precise results that reduce vibration and improve ride quality.

Together, they create an efficient system that enhances shop performance and reduces service time.

---

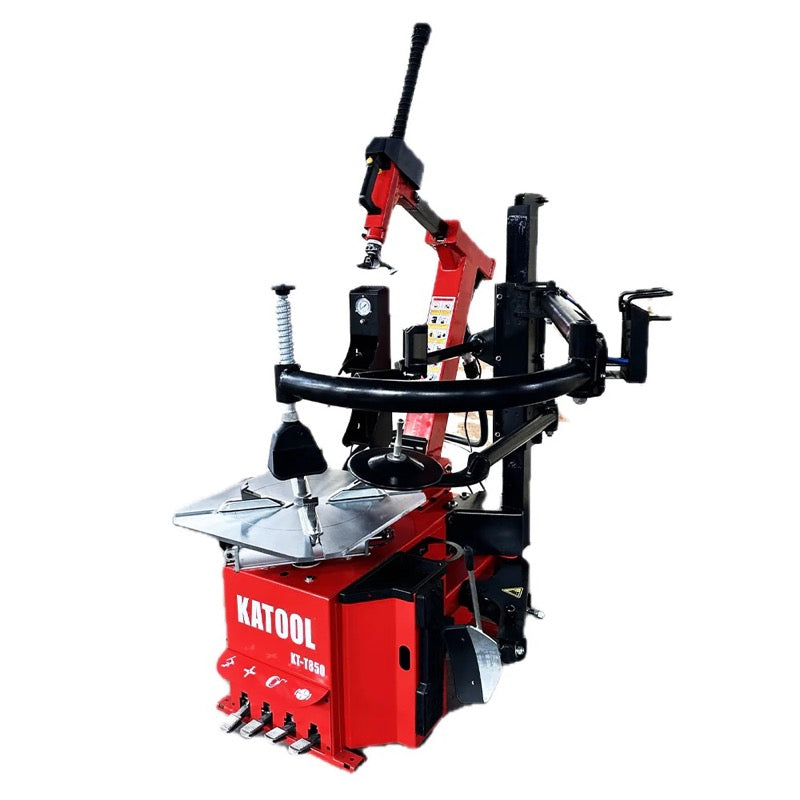

Advanced Tire Changing Performance

The KT-T850 tilt-arm tire changer is engineered for durability and performance. Its alloy steel jaws undergo advanced carburization and quenching, providing exceptional strength while maintaining rim protection through integrated covers. The stainless steel mounting head is precision-shaped and polished for smooth operation and reduced wear.

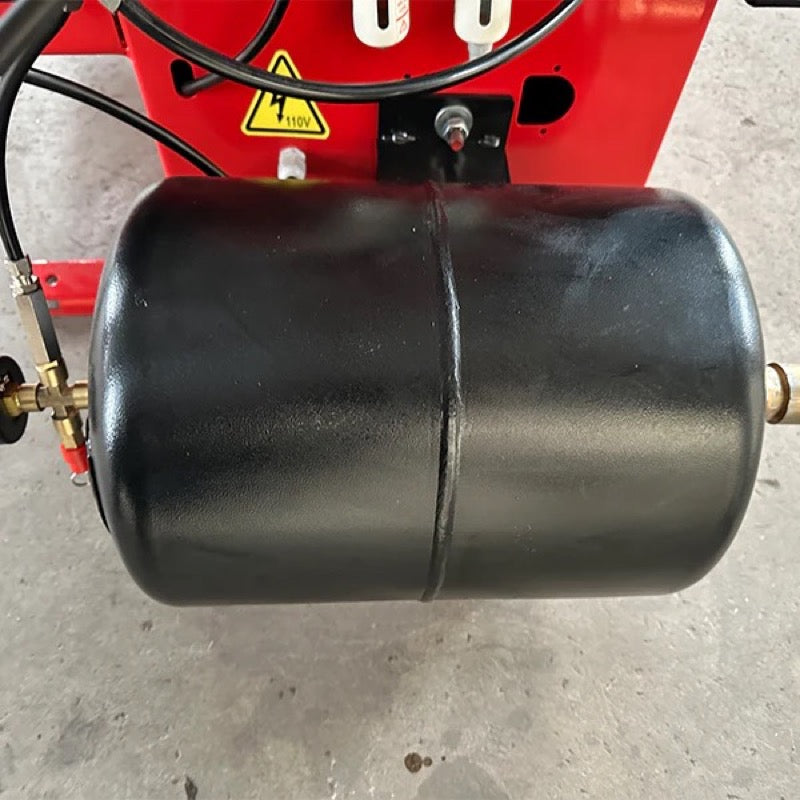

A powerful 2.0 HP motor with pure copper winding delivers consistent torque and efficient heat dissipation for long-term reliability. The pull-type pedal control system allows for intuitive operation, while assist arms and a bead blast seating system make it easier to handle low-profile and stiff sidewall tires.

The heavy-duty aluminum bead breaker cylinder ensures reliable performance across a wide range of wheel sizes, making this machine well-suited for demanding daily use.

---

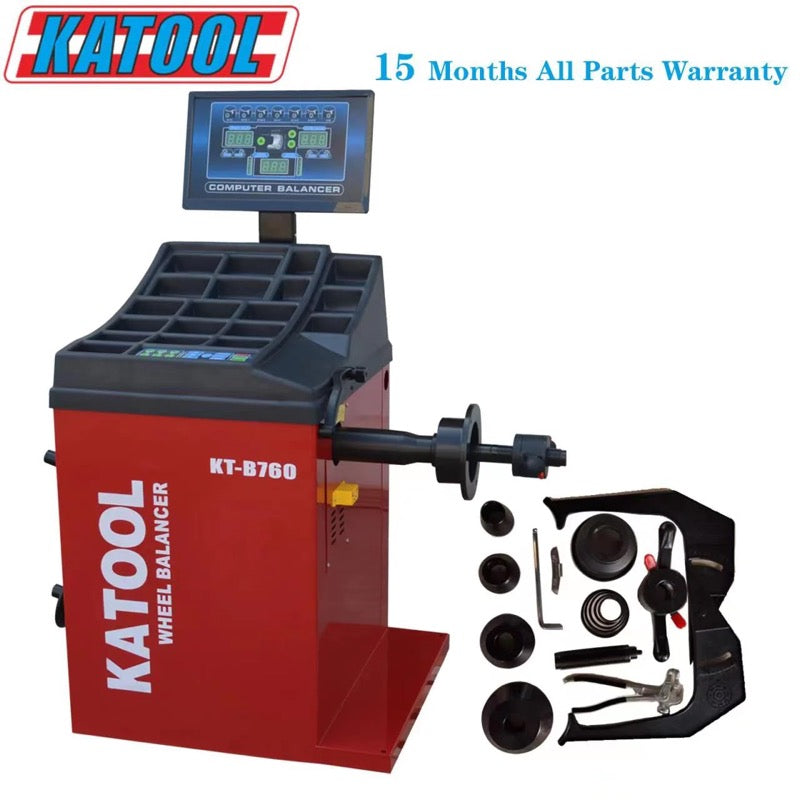

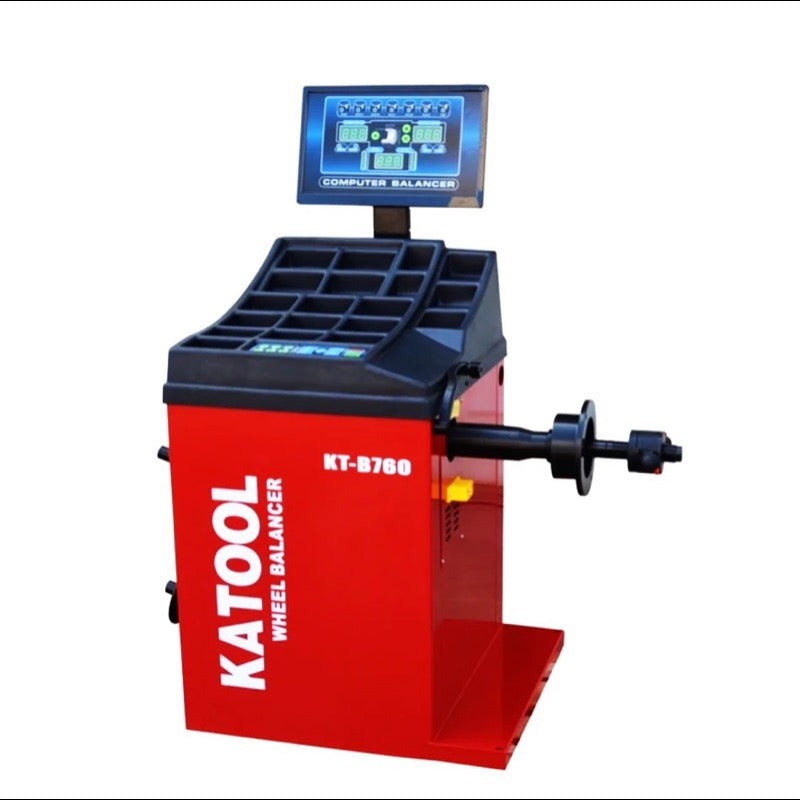

Precision Wheel Balancing Technology

The KT-B760 wheel balancer is designed to deliver fast, accurate results with minimal setup. Its automatic measurement ruler simplifies operation by quickly inputting key values, while multiple balancing modes allow it to adapt to different rim types for improved precision.

Built with a reinforced steel structure and high-strength shaft, the balancer maintains stability during operation. Advanced sensor support and a durable control board with moisture-proof, dustproof, and anti-static protection ensure consistent performance and long service life.

Self-calibration and built-in diagnostics help maintain accuracy while making operation simple and efficient for technicians.

---

Built for Daily Shop Use

Both machines are constructed with heavy-duty materials designed to withstand continuous use in high-volume environments. Their robust design minimizes vibration, improves stability, and ensures reliable performance over time.

---

User-Friendly Operation

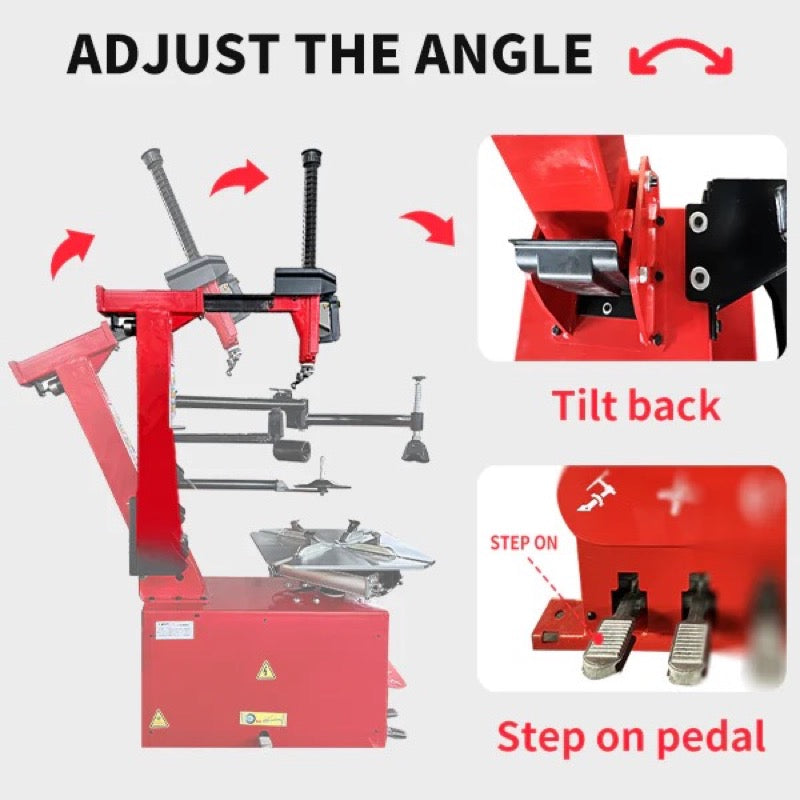

The KT-T850 features intuitive pedal controls and an efficient layout that allows technicians to work quickly and confidently. The KT-B760 offers a simple interface with flexible unit selection and automated functions, reducing training time and improving overall workflow.

---

Specifications

Tire Changer – KT-T850

• Max Wheel Diameter: 47" (1200 mm)
• Max Wheel Width: 15" (380 mm)
• Outside Clamp Range: 14"–26"
• Inside Clamp Range: 16"–28"
• Power Supply: 110V / 1 Phase
• Motor Power: 2.0 HP / 1.5 kW
• Rotation Speed: 6.8 rpm
• Air Pressure: 116–145 psi (0.8–1.0 MPa)
• Net Weight: 340 kg (750 lbs)

Wheel Balancer – KT-B760

• Rim Diameter: Up to 30"
• Wheel Width: 3"–12"
• Max Wheel Diameter: 34.64" (880 mm)
• Max Wheel Weight: 65 kg (143 lbs)
• Rim Center Hole Diameter: Up to 5.31" (135 mm)
• Balancing Speed: 180 rpm
• Balancing Accuracy: ±1 g
• Measuring Time: 7 seconds
• Motor Power: 0.25 kW
• Power Supply: 110V / 1 Phase

---

Why This Combo Stands Out

This system combines heavy-duty tire changing capability with precision balancing technology, offering a complete solution for modern tire service operations. With advanced features, durable construction, and user-friendly controls, it helps shops increase efficiency, reduce downtime, and deliver consistent, professional results.

Perfect for high-volume shops and growing businesses, the KT-T850 and KT-B760 combo provides the performance and reliability needed for daily tire service.
