Katool KT-H105 10,000 lb Two Post Car Lift

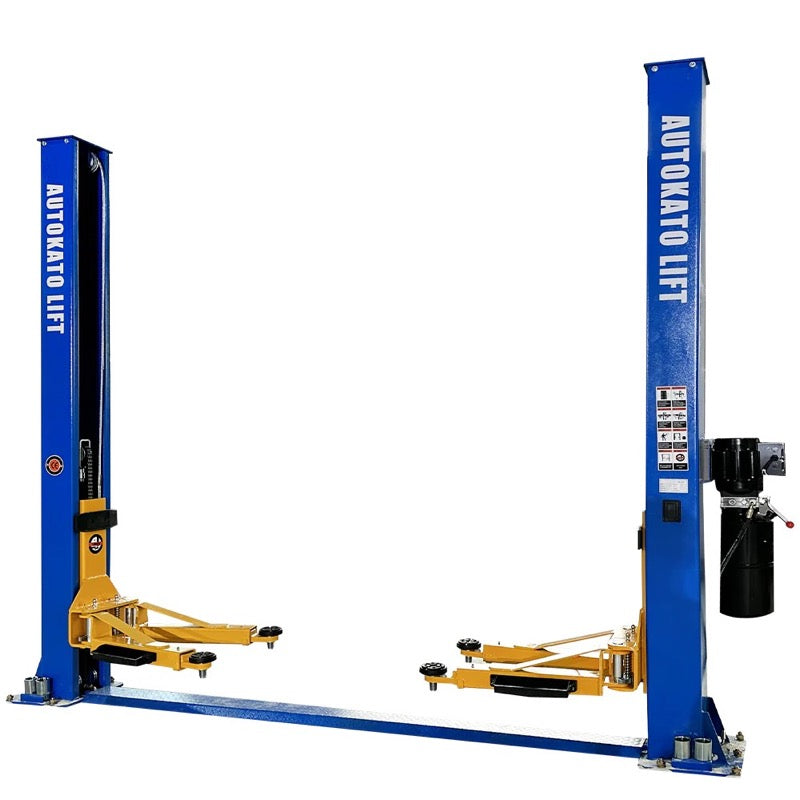

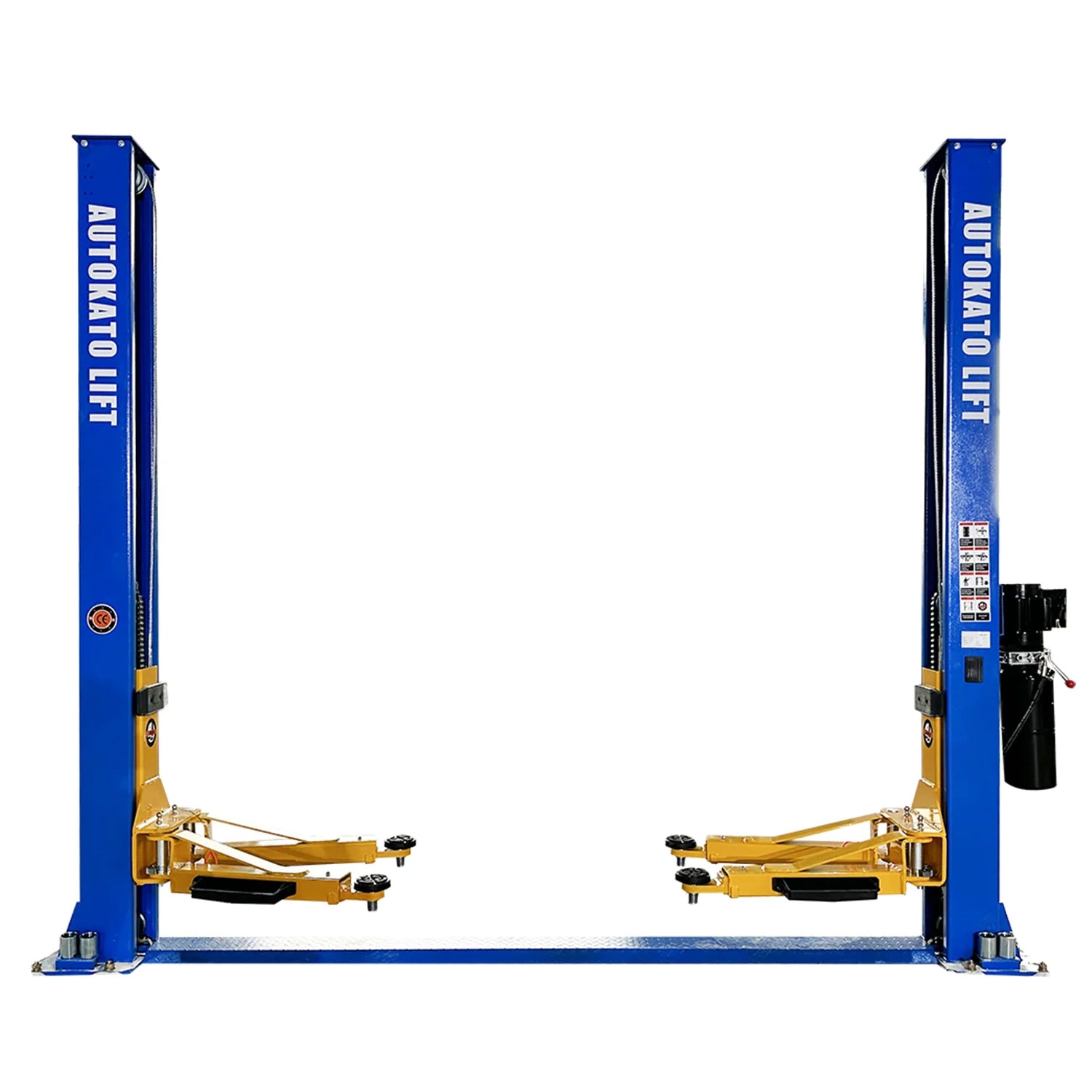

The Katool KT-H105 is a professional-grade 10,000 lb two post vehicle lift designed for lifting passenger vehicles, SUVs, and light-duty trucks within its rated capacity. Built with a durable base plate design, dual hydraulic chain-drive cylinders, and symmetric lift arms, the KT-H105 provides stable lifting performance for automotive workshops and service facilities.

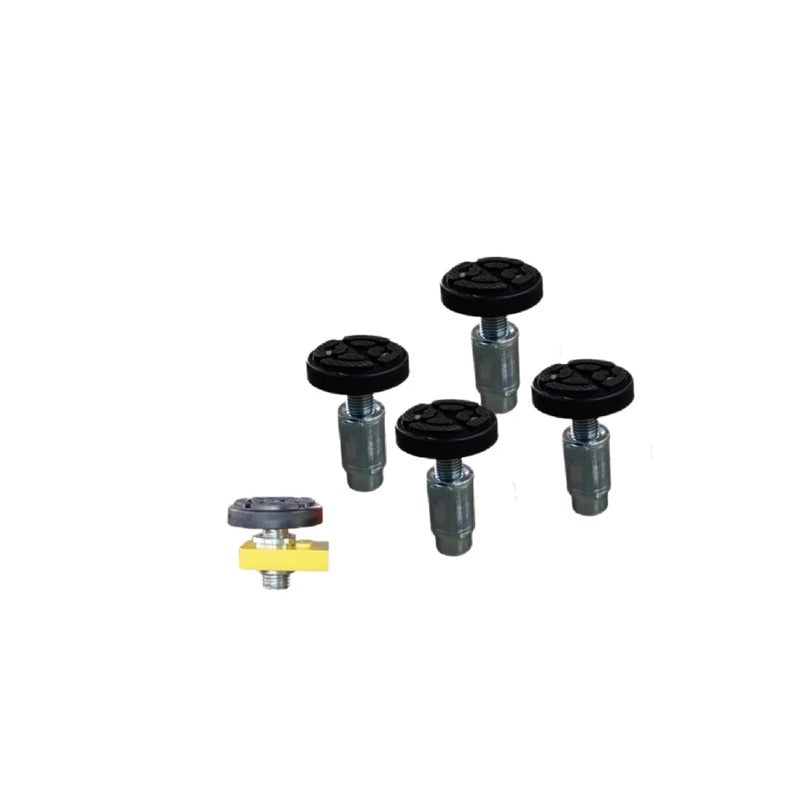

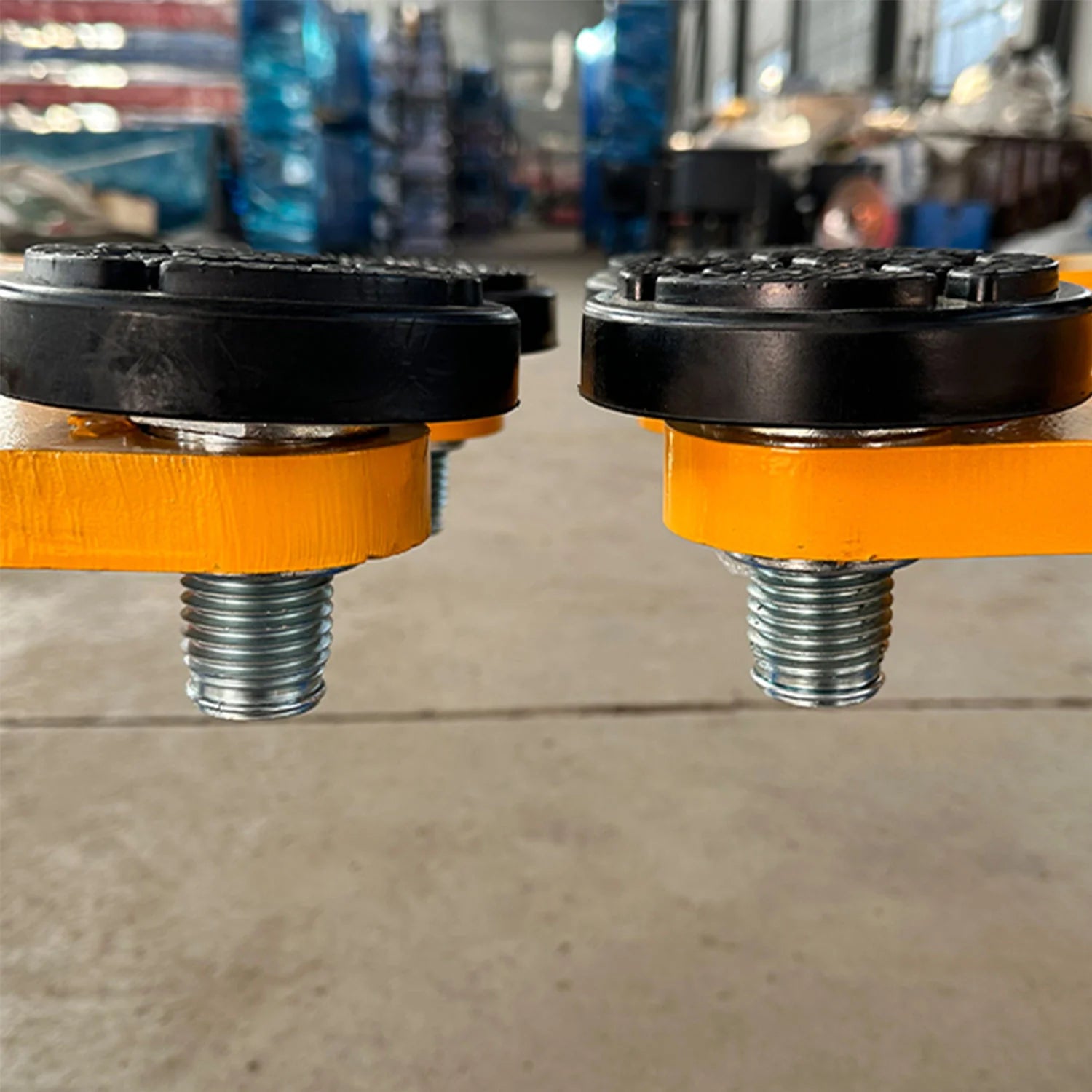

The lift features a high-quality hydraulic system, manual safety release from both sides, screw-on lifting pads with +100 mm extension adapters, and a CE approved design tested to both dynamic and static load standards.
Safety & Certifications
The Katool KT-H105 incorporates multiple mechanical and hydraulic safety systems designed to assist with safe lifting and lowering operations.
- ✔ CE Approved and Certified
- ✔ Tested to 115% Dynamic Load Capacity
- ✔ Tested to 150% Static Load Capacity
- ✔ Manual Safety Release from Both Sides
- ✔ Dual Mechanical Safety Locking System
- ✔ Automatic Swing Arm Positioning Mechanism

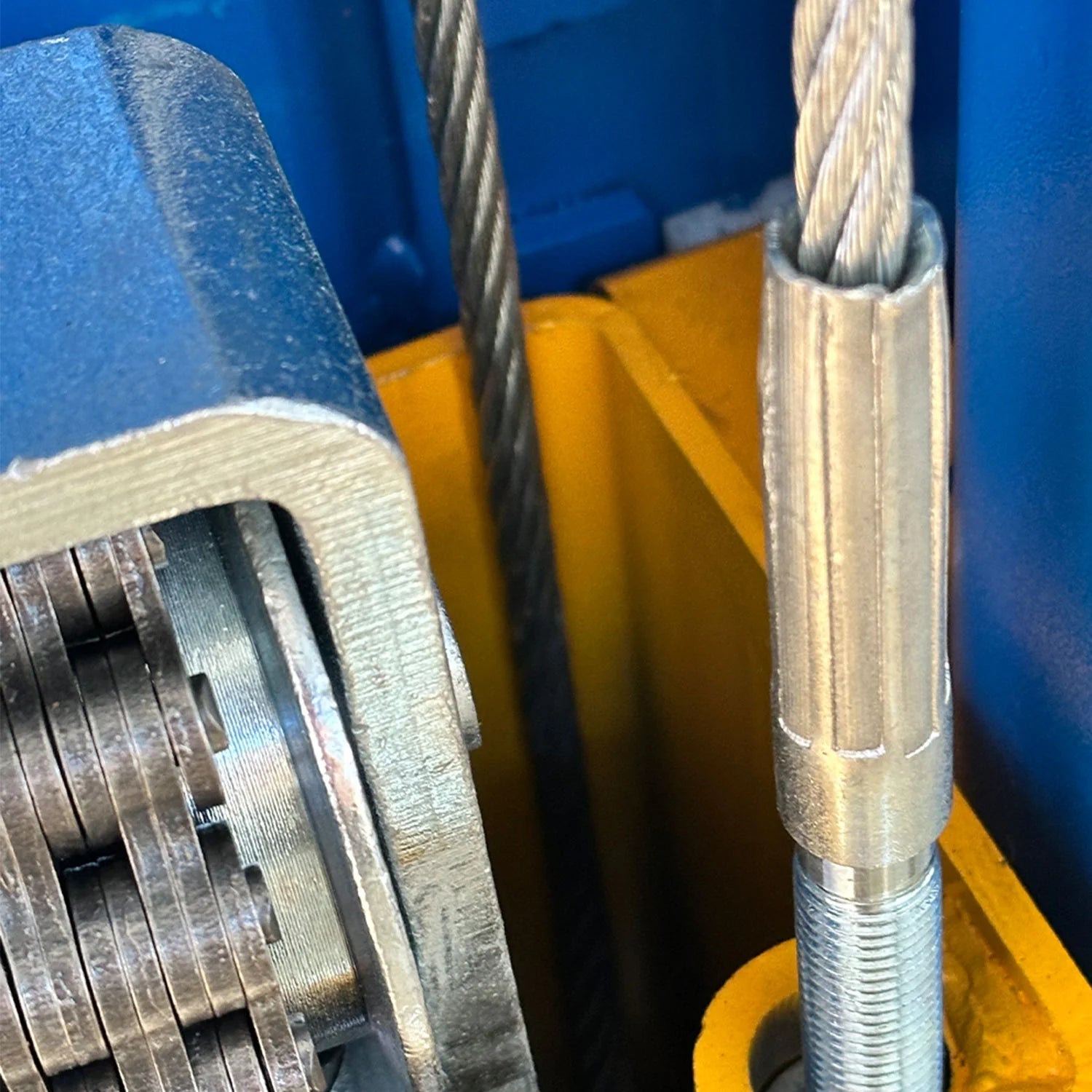

- ✔ Dual Synchronized Lifting Cables

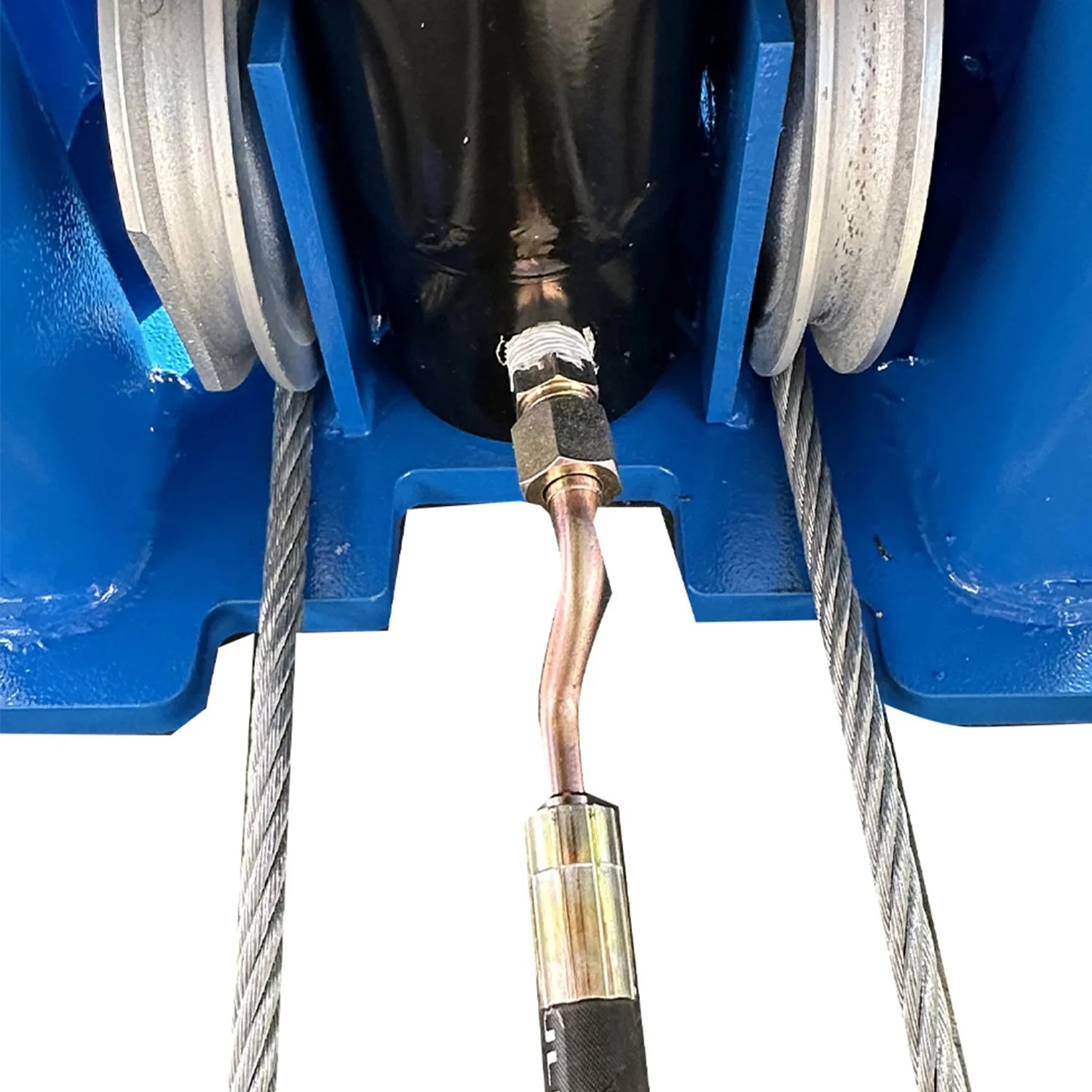

- ✔ Dual Hydraulic Chain-Drive Cylinders
- ✔ Rubber Door Protection Pads

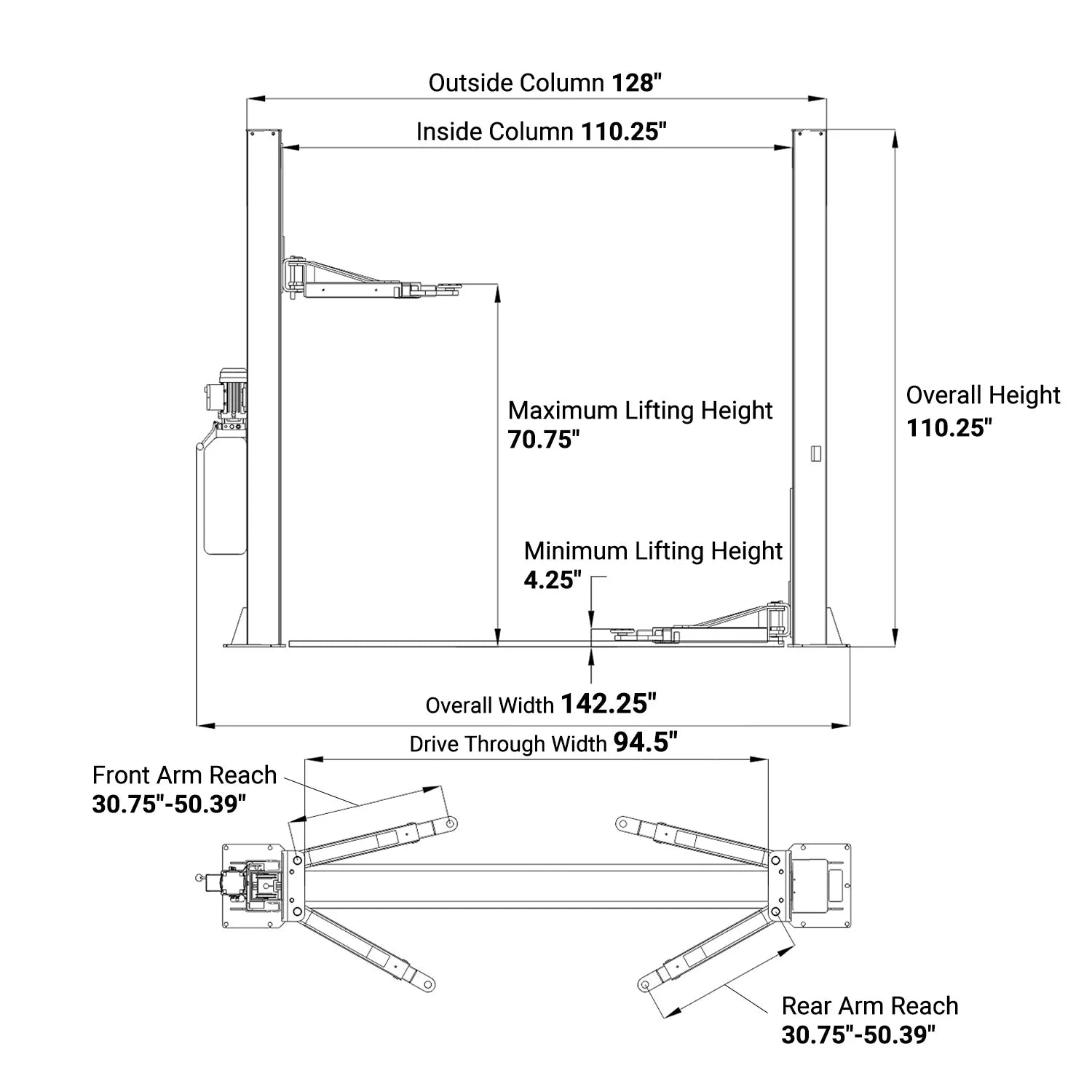

Lift Dimensions
| Dimension | Measurement |
|---|---|
| Lifting Capacity | 10,000 lbs (4,500 kg) |
| Maximum Lift Height | 70.75 in (1800 mm) |
| Minimum Pad Height | 3.9 in (100 mm) |
| Overall Height | 110.9 in (2818 mm) |
| Overall Width | 140.4 in (3565 mm) |
| Outside Column Width | 124.8 in (3170 mm) |
| Inside Column Width | 110.25 in (2800 mm) |
| Drive-Through Clearance | 98.4 in (2500 mm) |
| Front Arm Reach | 29.5 – 46 in (750 – 1170 mm) |
| Rear Arm Reach | 35.4 – 58.2 in (900 – 1480 mm) |
Installation Requirements
Before installation, ensure the installation area meets the manufacturer's minimum requirements for safe operation.
- Concrete Thickness: Minimum 5.9 in (150 mm)
- Concrete Strength: Minimum 3,000 PSI
- Floor: Level concrete surface
- Installation Location: Indoor use only
- Power Supply: 220V / 60Hz / Single Phase
What's in the Box?
The Katool KT-H105 includes the major components required for installation.
- ✔ Powerside Post
- ✔ Offside Post
- ✔ Four Lift Arm Assemblies
- ✔ Two Hydraulic Cylinders
- ✔ Hydraulic Power Unit
- ✔ Four Frame Contact Pads
- ✔ Floor Board Cover
- ✔ Parts Box
Product Specifications
| Specification | Details |
|---|---|
| Model | KT-H105 |
| Lift Type | Two Post Vehicle Lift |
| Arm Configuration | Symmetric |
| Design | Base Plate |
| Hydraulic System | Dual Hydraulic Chain-Drive Cylinders |

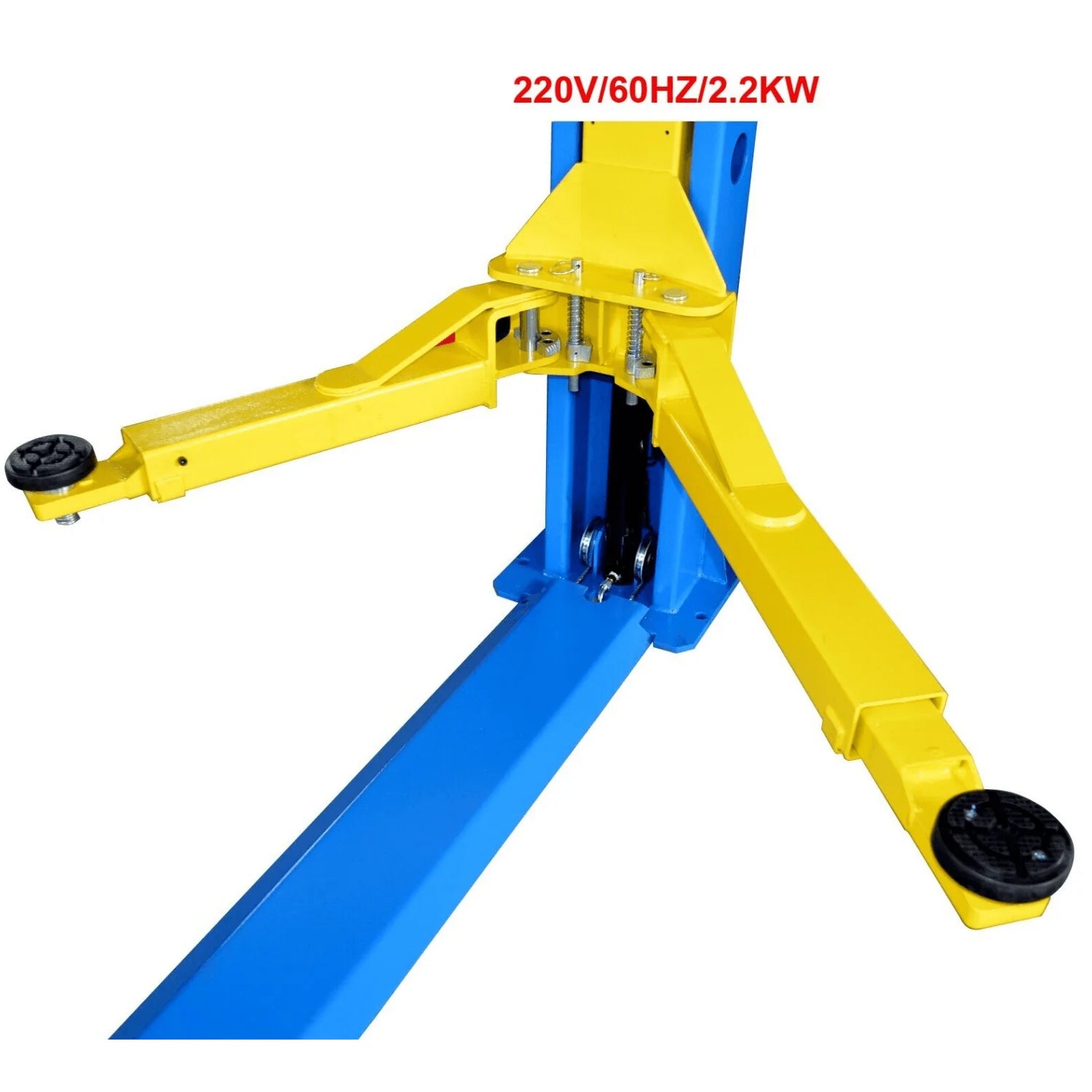

| Motor | 220V / 60Hz / 1 Phase / 2.2 kW |
| Extension Adapters | +100 mm |
| Net Weight | 1,246 lbs (565 kg) |
Warranty
The Katool KT-H105 is backed by the manufacturer's limited warranty.
| Coverage | Warranty |
|---|---|
| Parts | 12 Months Limited Warranty |
| Structural Components | 36 Months Limited Warranty |
Warranty coverage applies to manufacturing defects and is subject to the manufacturer's warranty terms and conditions.
