Fortisky 1670-8833 Tilt Back Tire Changer & Dynamic Display Screen Wheel Balancer Combo

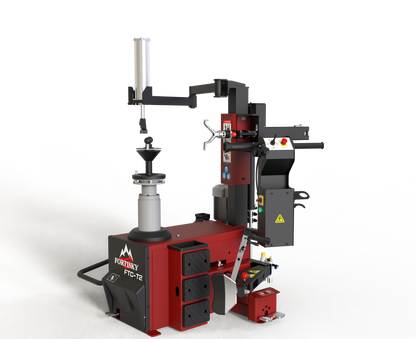

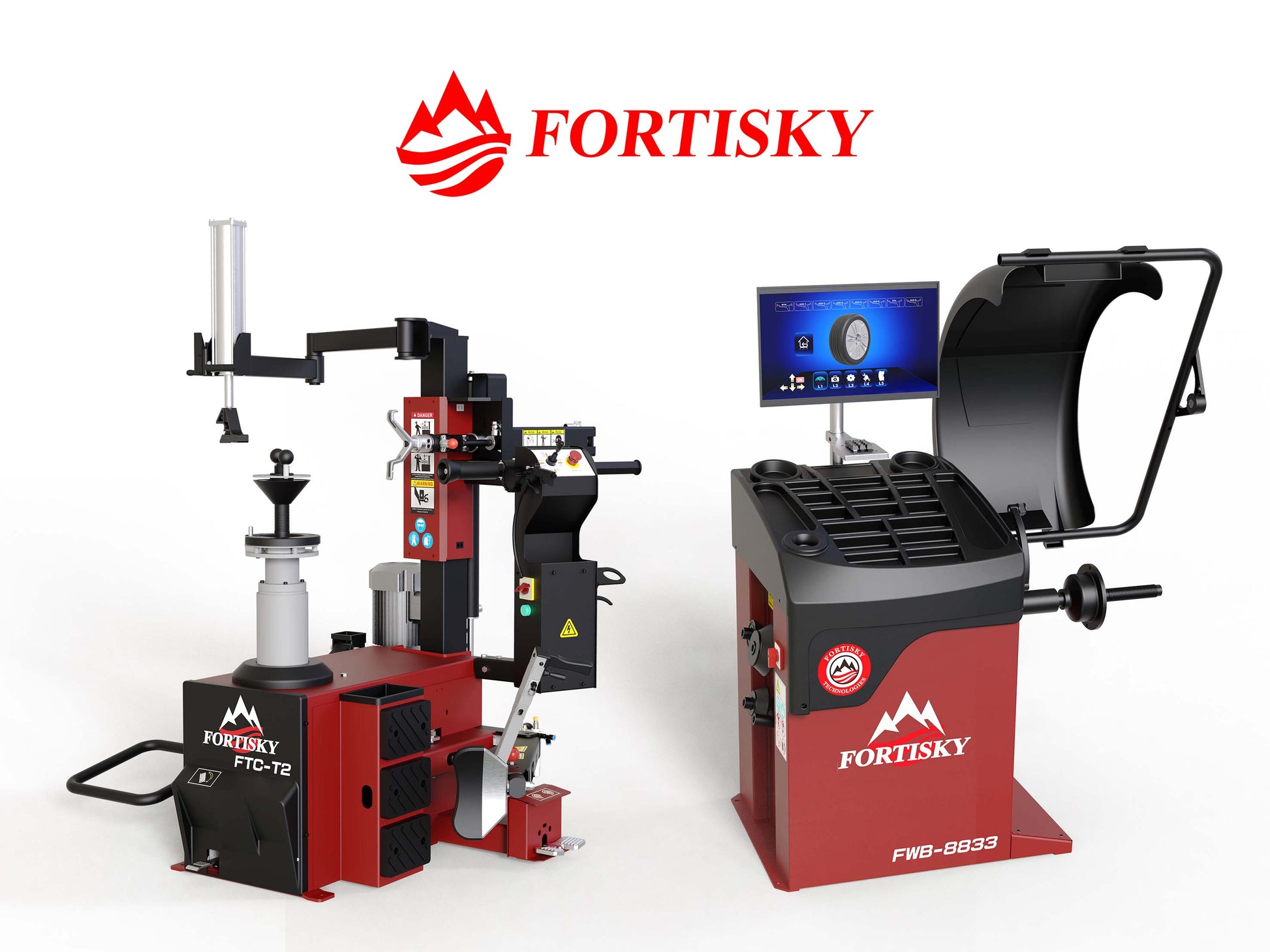

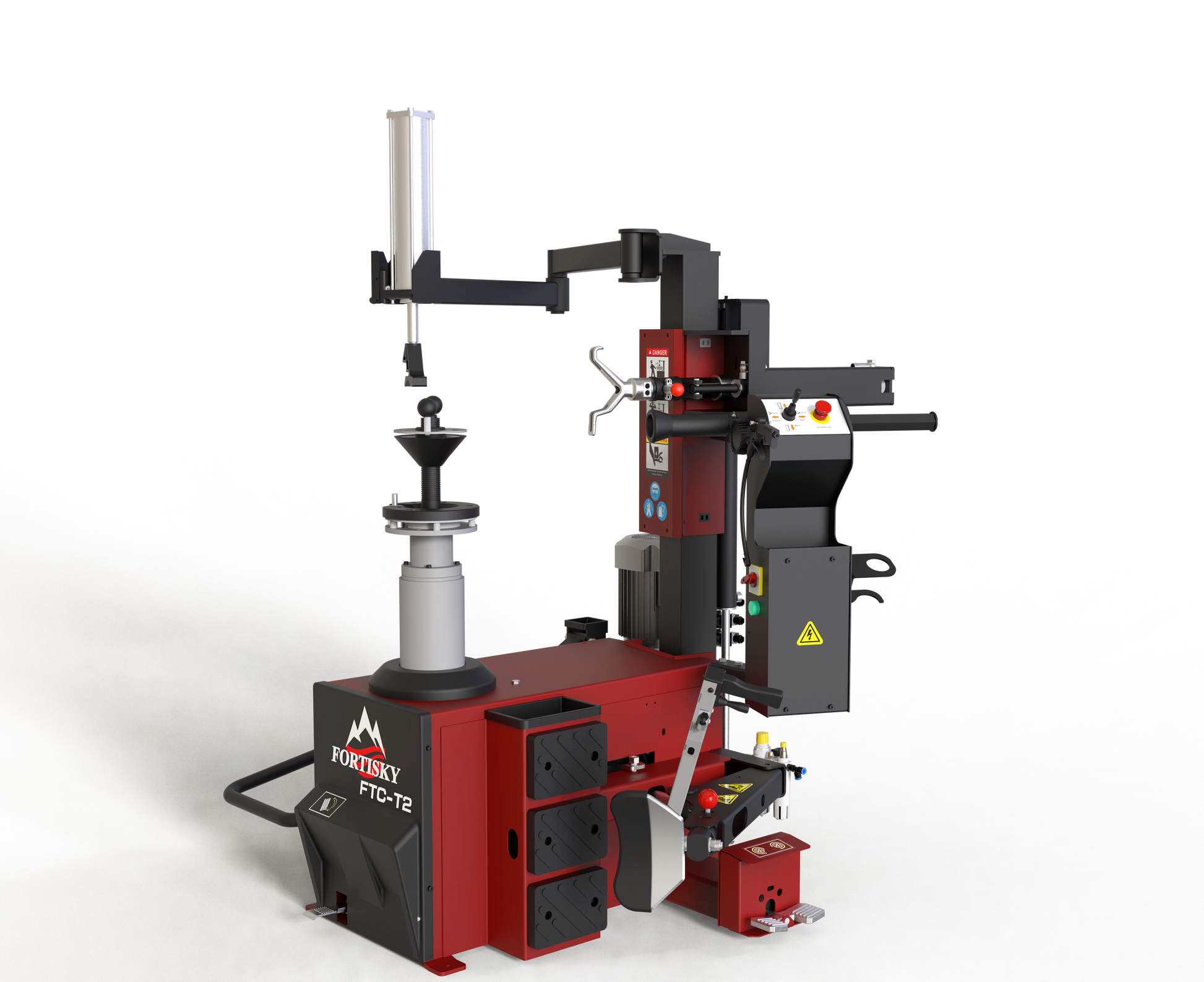

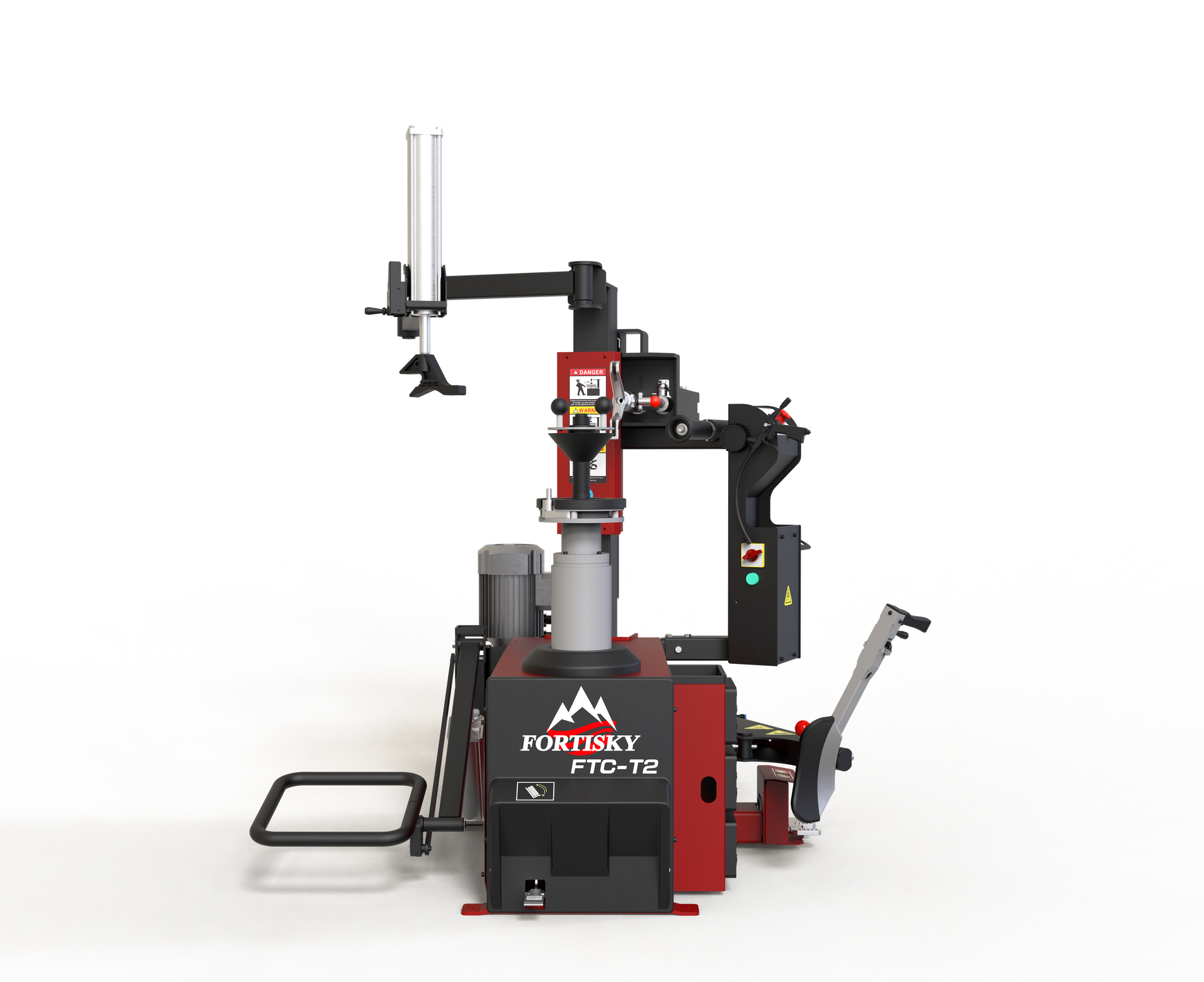

Fortisky FTC-1670 Tire Changer & FWB-8833 Wheel Balancer Combo

Tilt-Back Tire Changing with Advanced 3D Radar Wheel Balancing

---

The Fortisky FTC-1670 and FWB-8833 combo is designed for shops that want strong tire changing performance combined with next-generation wheel balancing technology. This system delivers a complete solution for mounting, demounting, inflating, and balancing wheels with greater speed, precision, and control.

With a tilt-back tire changer, helper arm system, turbo bead blast inflation, and a fully automatic 3D radar wheel balancer, this setup helps reduce manual effort while improving workflow and service quality.

---

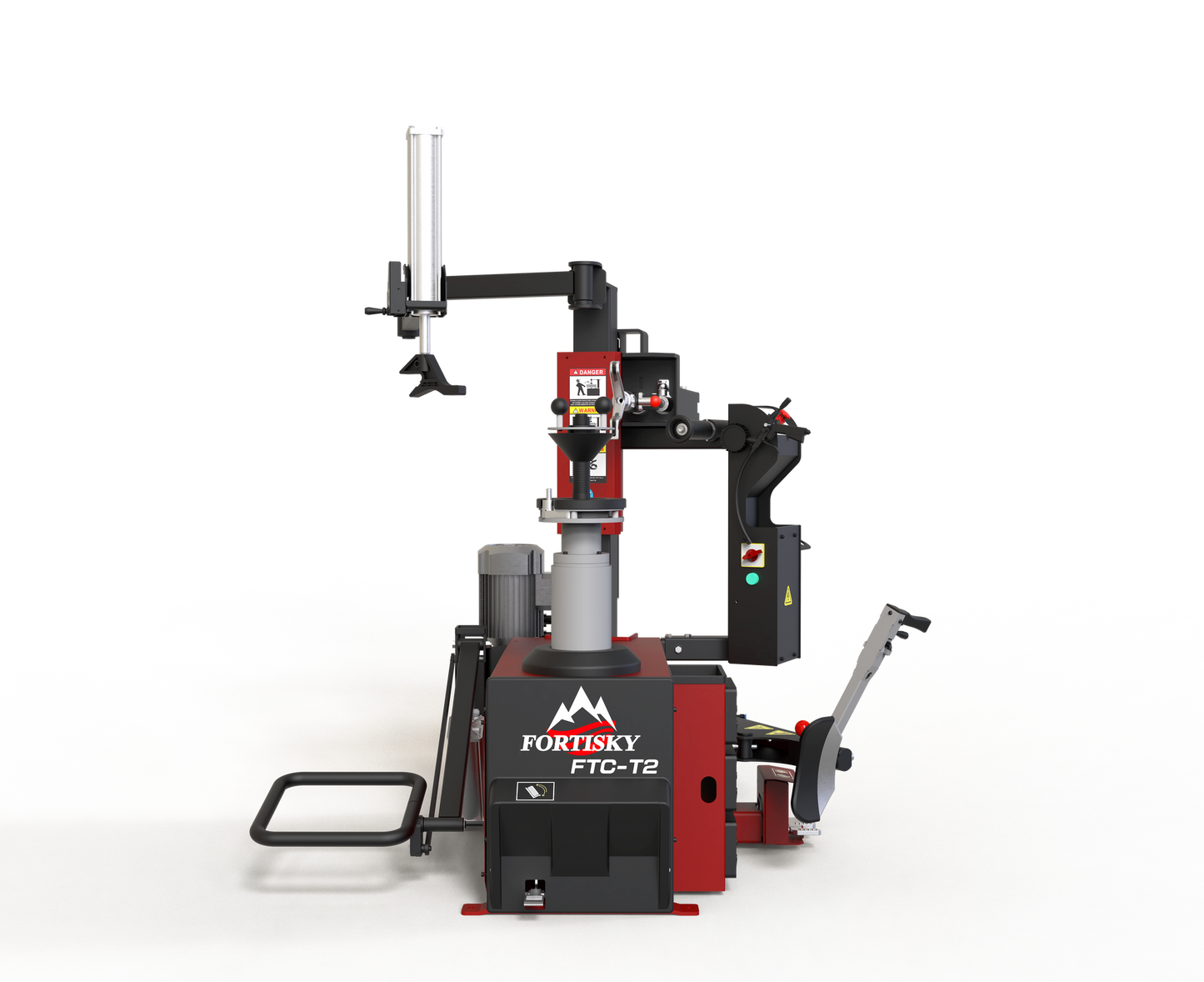

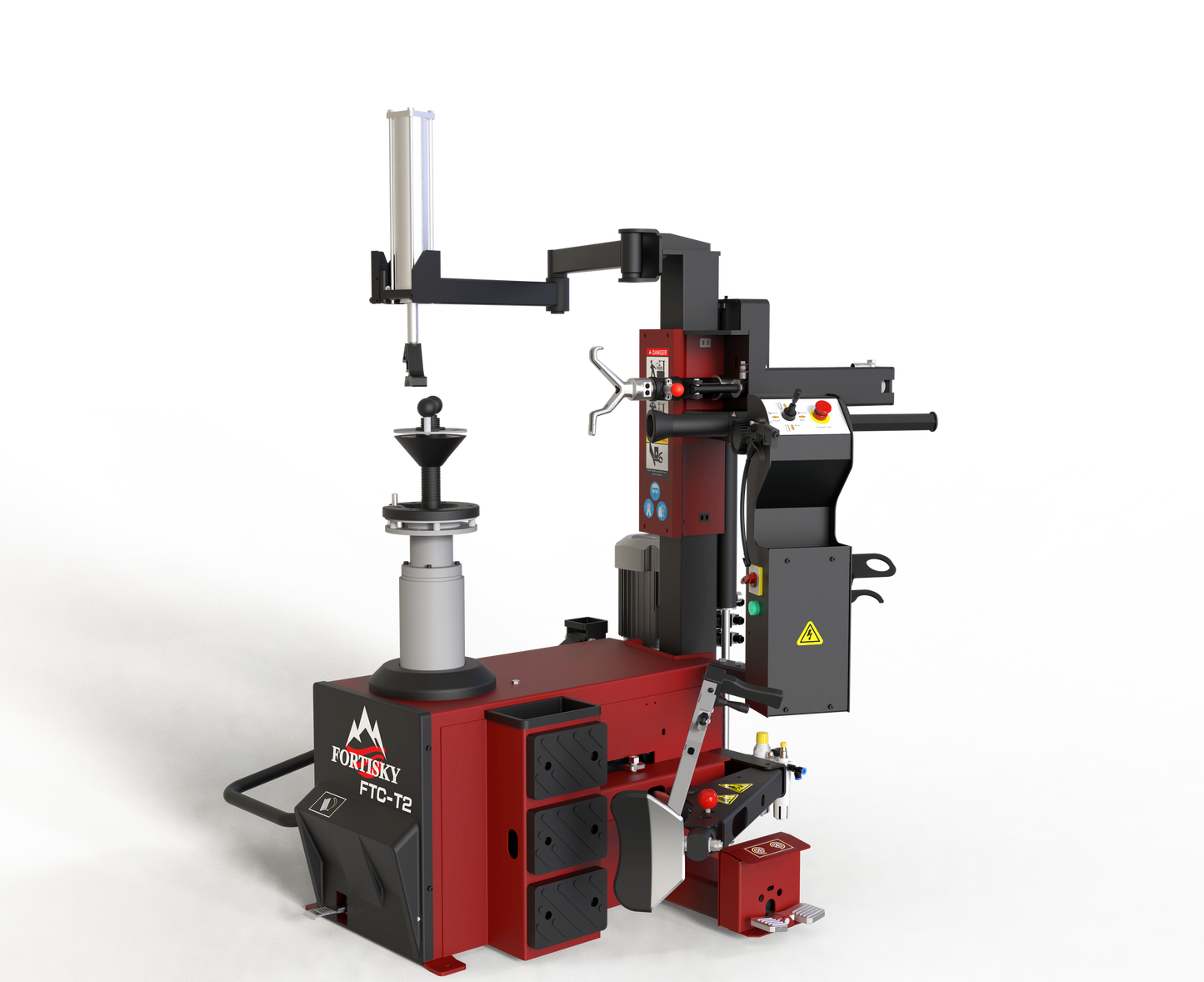

Tilt-Back Design for Better Access

The pneumatic tilt-back column creates more working space, making it easier to position and service tires. Its automatic push-pull locking system keeps operation stable while improving speed and convenience during daily use.

---

Helper Arm and Three-Point Assist System

The built-in helper arm and three-point tire push system provide extra support when handling stiff, low-profile, or larger tires. This reduces physical strain on the operator and allows for smoother, more controlled tire service.

---

Safe and Powerful Bead Blast Inflation

The turbo bead blast system features a dual-button safety design to reduce the risk of accidental activation. It delivers strong inflation power for faster bead seating while maintaining better control during operation.

---

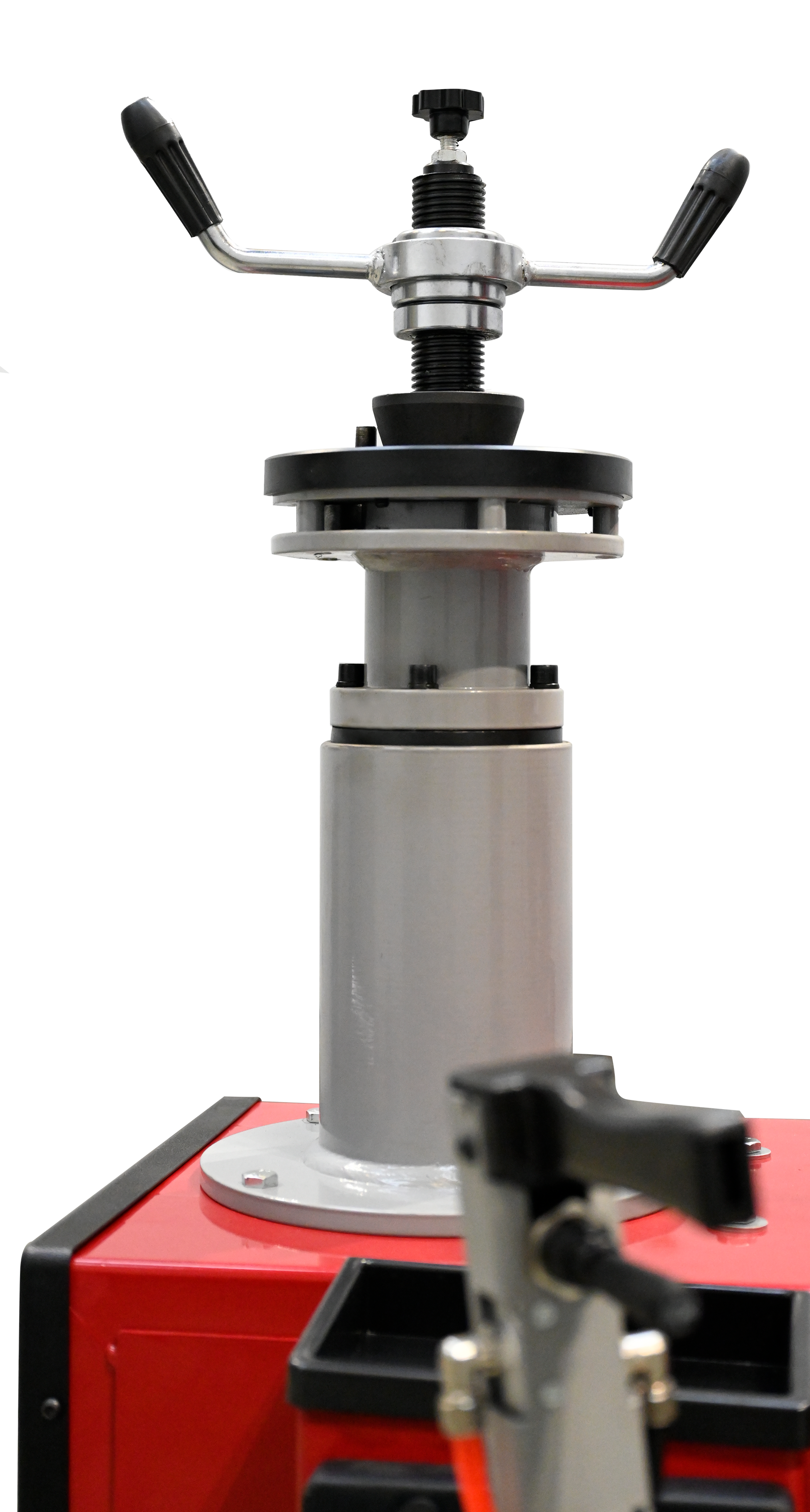

Strong Clamping and Stable Turntable

The central bead pressing system ensures fast and secure rim clamping. Combined with the automatic centering turntable and four-jaw linkage structure, it provides smooth, accurate, and consistent tire handling.

---

Durable Build for Long-Term Use

A hard chrome-plated working head and one-piece machined chuck base deliver strength, rigidity, and resistance to wear. This ensures reliable performance over time, even under heavy daily use in busy workshops.

---

Rim Protection on All Contact Points

Protective covers and pads are fitted on all tire-contacting tools, including the working head, jaws, lever, and bead breaker. This helps prevent scratches and rim damage, making it ideal for servicing customer vehicles with care.

---

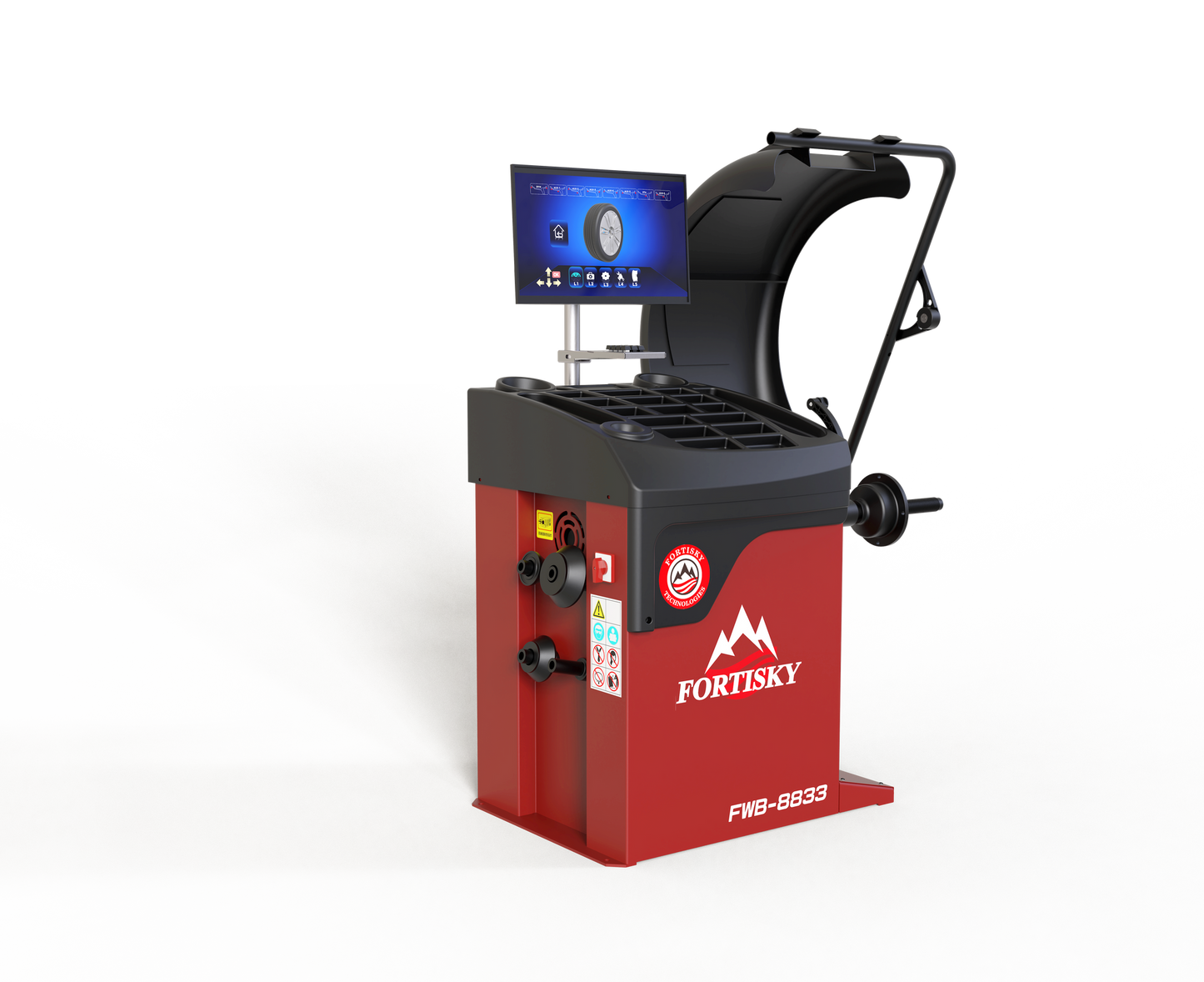

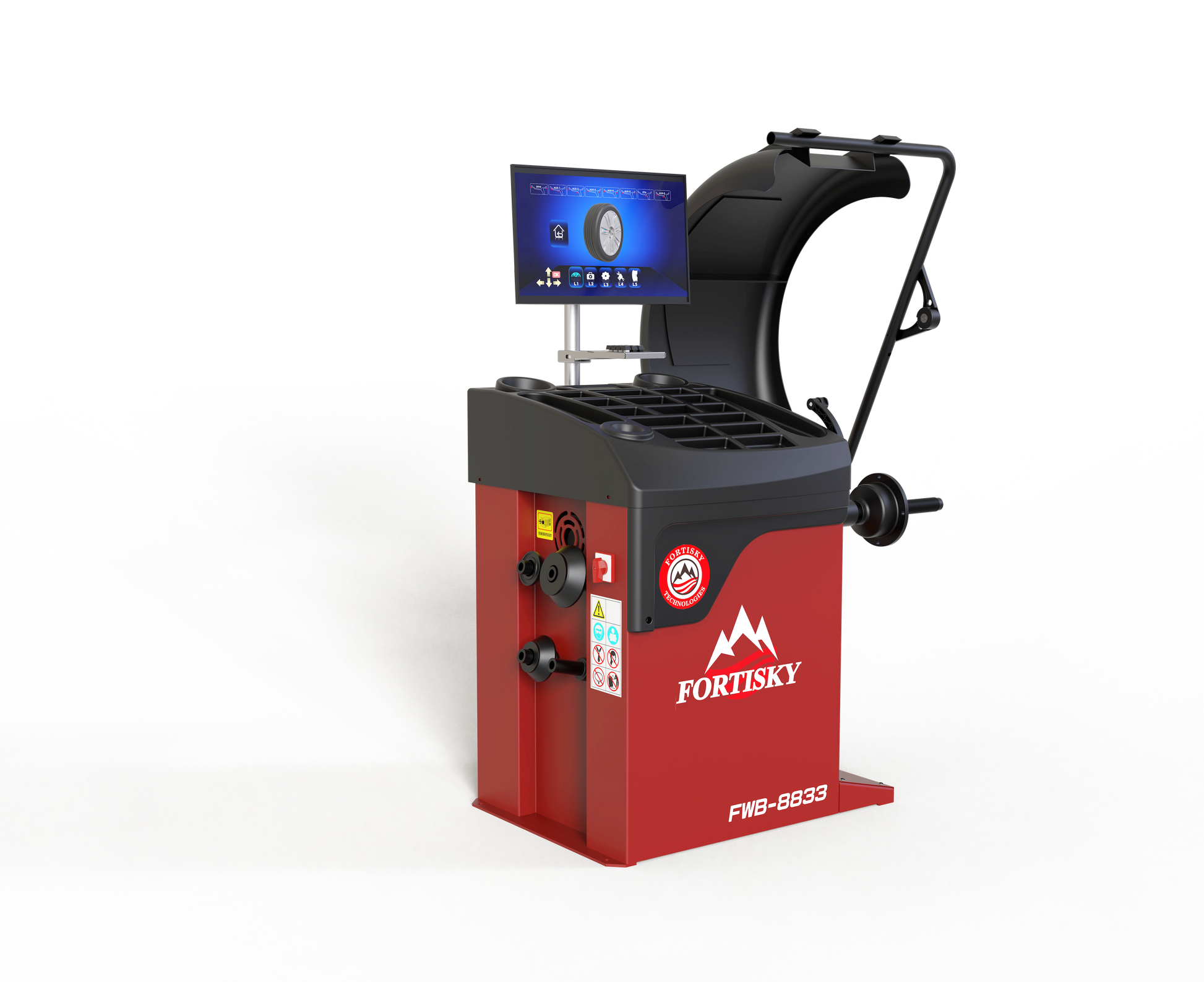

3D Fully Automatic Balancing Technology

The FWB-8833 features fully automatic 3D data entry using millimeter wave radar technology. This eliminates manual input, speeds up setup, and ensures accurate measurement of rim parameters.

---

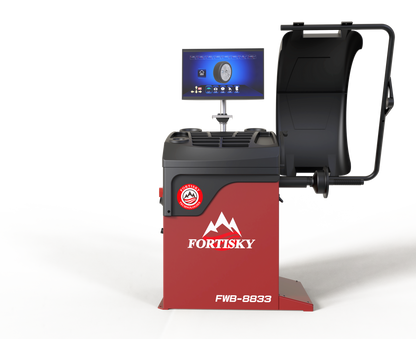

Dynamic Display and Faster Controls

The advanced dynamic display screen provides real-time balancing feedback, while the mechanical keyboard control improves response speed and avoids touchscreen lag or misclicks. This creates a smoother and more reliable user experience in busy shop environments.

---

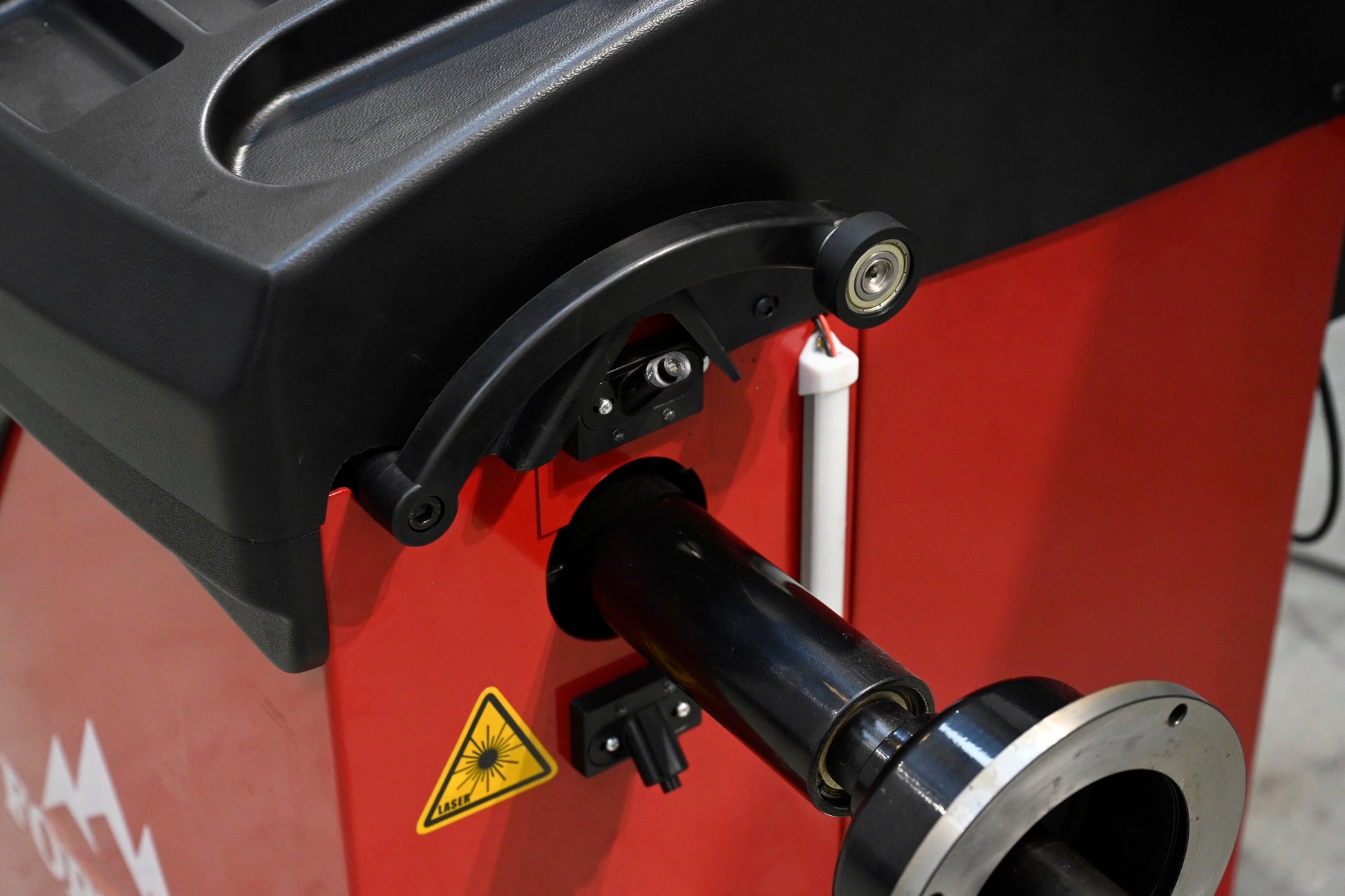

Laser-Guided Precision Weight Placement

Visual laser technology pinpoints the exact location for weight placement, reducing guesswork and improving balancing accuracy. This results in better ride quality and more consistent outcomes for customers.

---

Smart Balance Positioning

With one-button operation, the wheel automatically rotates to the correct balance point and locks in place. This speeds up the balancing process and makes weight application faster and more precise.

---

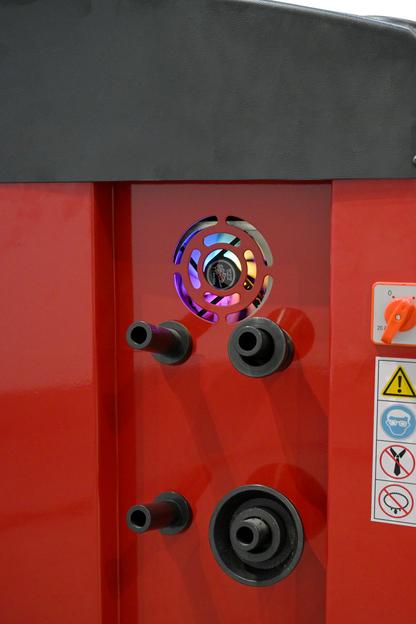

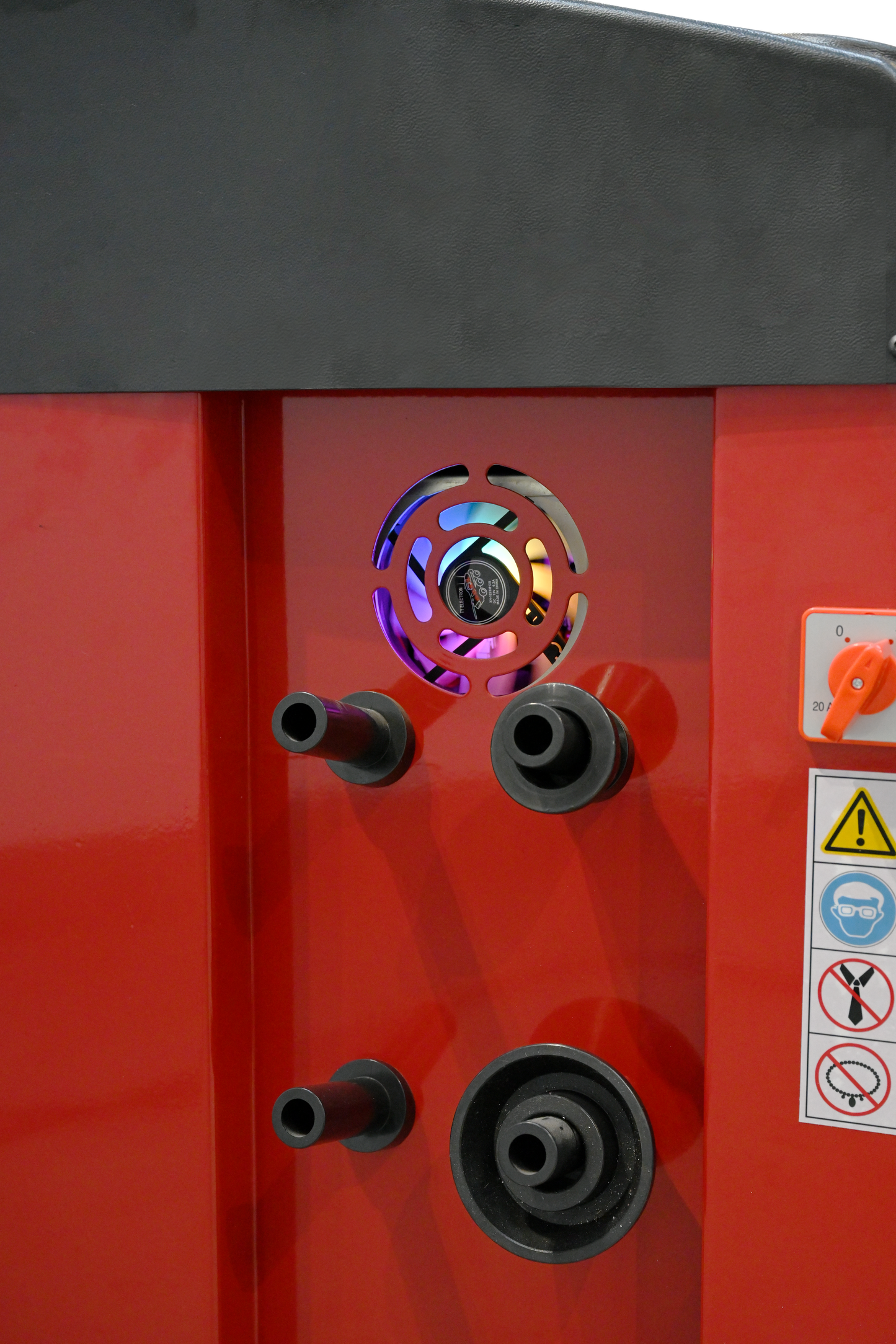

Advanced Cooling for Reliable Performance

The dual-channel air cooling and flow diversion system helps reduce internal temperatures and prevent overheating. This ensures stable performance and reduces the risk of slowdowns during extended use.

---

Additional Features

• 2.0HP tire changer motor with 28" rim capacity
• Pneumatic tilt-back column design
• Helper arm and three-point assist system
• Turbo bead blast inflation system
• High-pressure resistant water and oil filter
• Detachable swing arm head for precise positioning
• Automatic centering turntable with four-jaw linkage
• 3D radar-based automatic balancing system
• Dynamic display screen for real-time control
• Laser-guided weight placement
• Self-calibration function

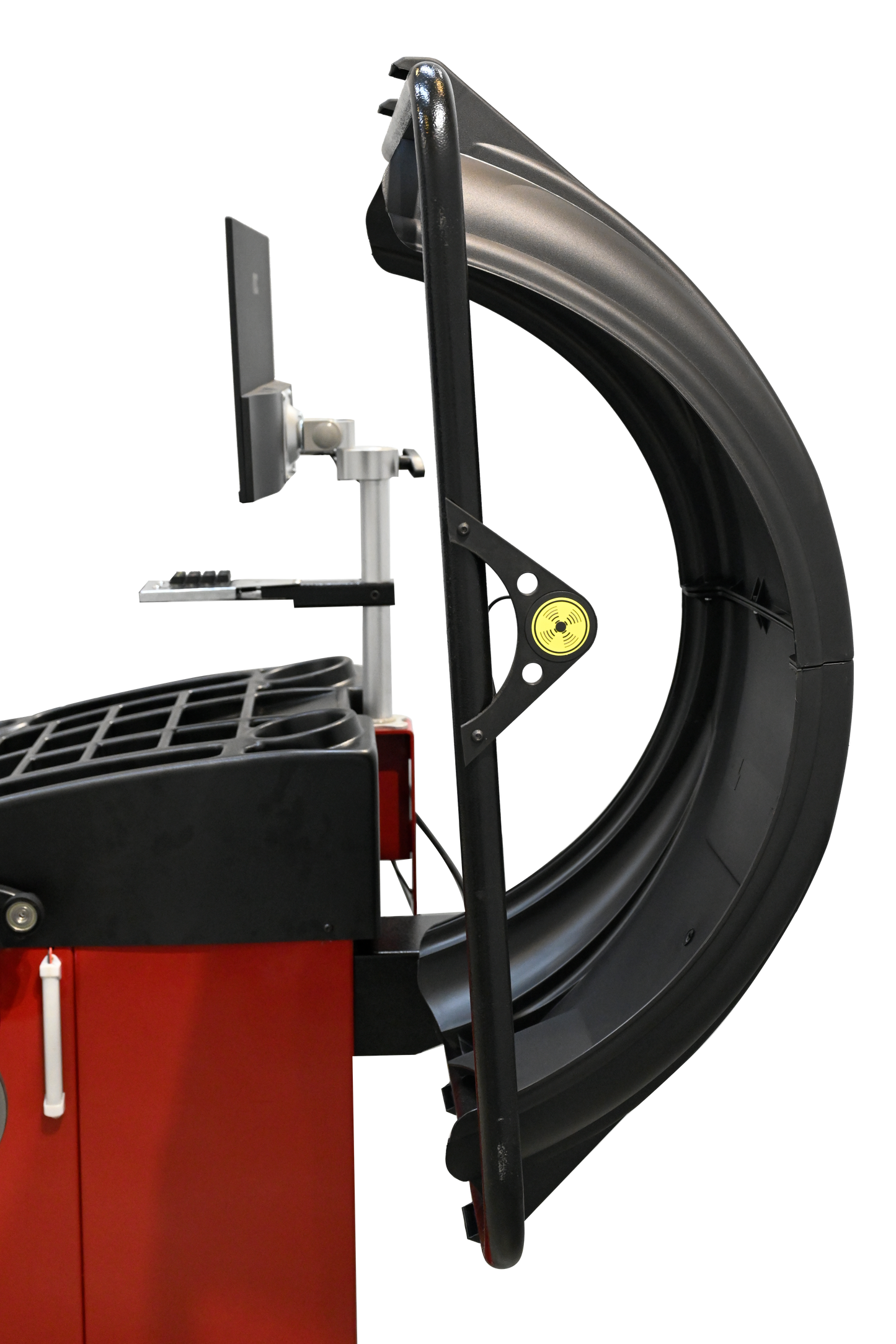

• Complete with wheel guard

---

FTC-1670 Tire Changer Specifications

Model	FTC-1670
Outside Rim Clamping	14" – 26"
Inside Rim Support	16" – 28"
Maximum Wheel Diameter	1200 mm / 47"
Applicable Wheel Width	380 mm / 15"
Working Pressure	0.8 – 1.0 MPa (116 – 145 PSI)
Power Supply	110V / 60Hz / 1PH
Motor Power	1.0 kW / 1.5 kW
Rotation Speed	6.8 r/min
Machine Weight	232 kg / 511 lbs
Assist Arm Weight	55 kg / 121 lbs
Machine Packing Size	1120 x 820 x 900 mm
Assist Arm Packing Size	1220 x 460 x 320 mm

---

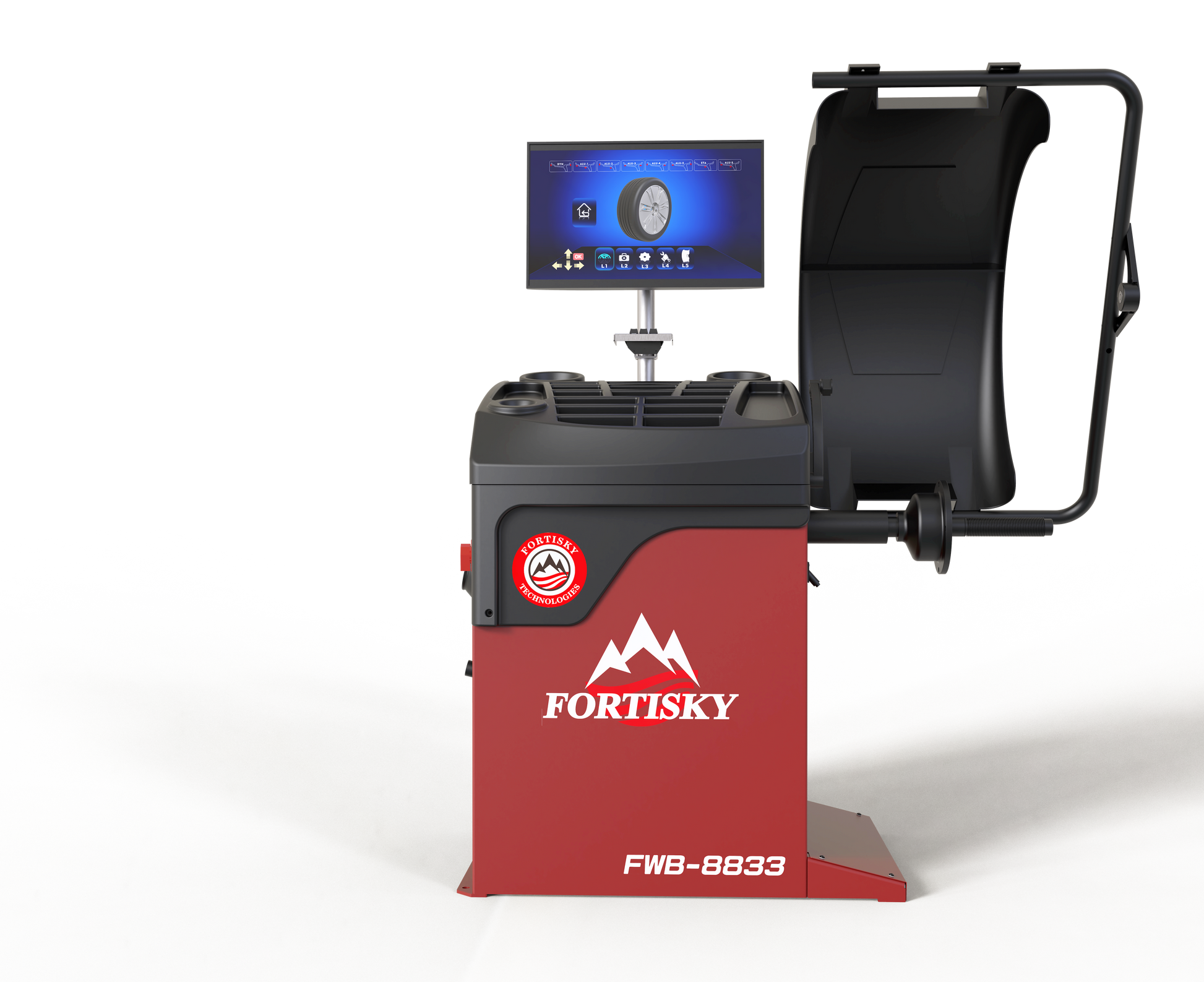

FWB-8833 Wheel Balancer Specifications

Model	FWB-8833
Applicable Rim Size	<30"
Maximum Wheel Diameter	1000 mm / 39"
Applicable Wheel Width	15"
Maximum Wheel Weight	75 kg / 165 lbs
Main Shaft Rotation Speed	180 rpm
Balancing Precision	±0.1 g
Measuring Time	7 seconds
Power Supply	110V / 60Hz / 1PH
Weight of Equipment	124 kg / 273 lbs
Heat Dissipation Noise	<45 dB
Packing Size	1060 x 750 x 1240 mm

Note: Includes 90mm pallet height.
