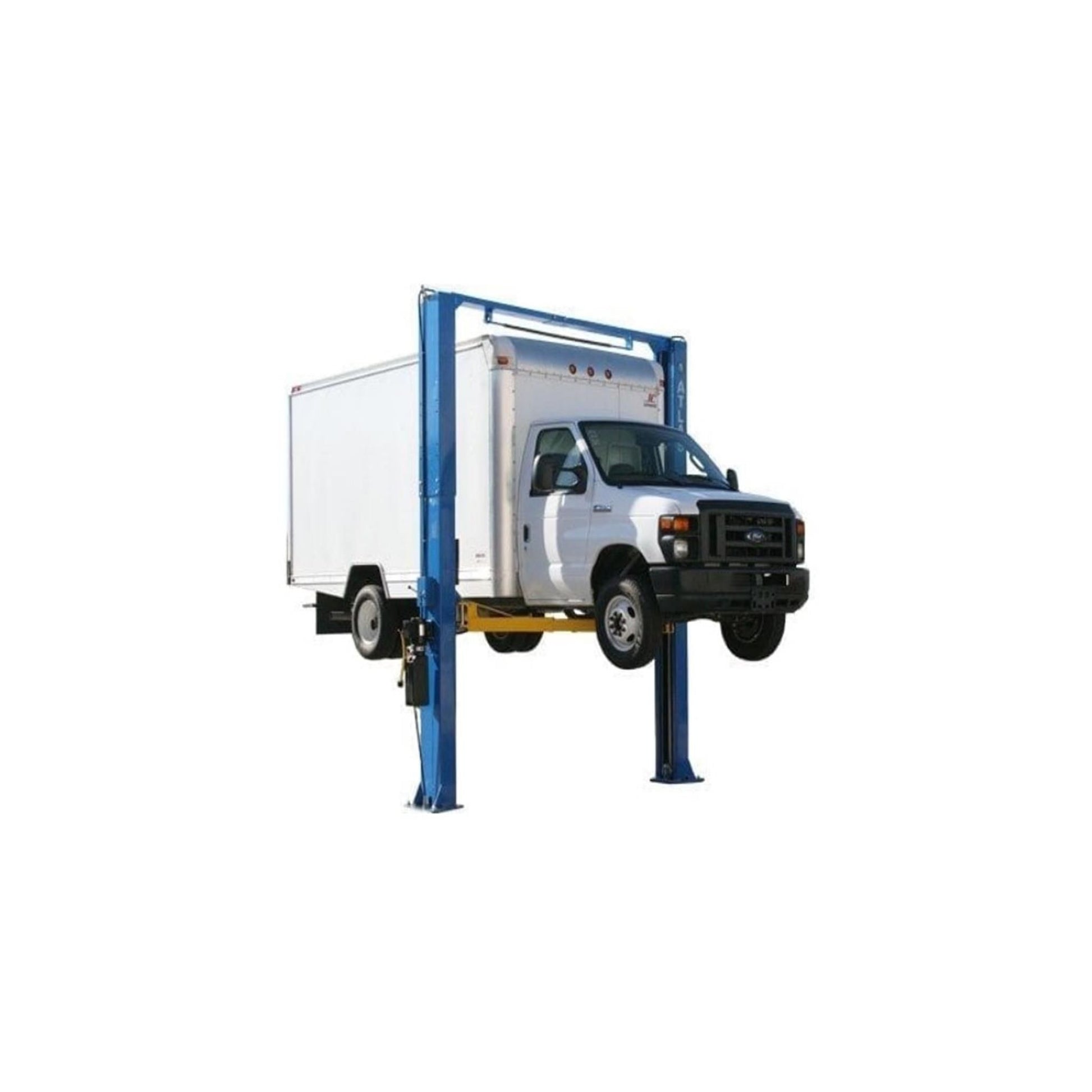

Atlas XH-PV15PX 15,000 lb Heavy-Duty Commercial Two-Post Car Lift
The Atlas XH-PV15PX is a heavy-duty commercial two-post lift with an impressive 15,000 lb lifting capacity, built to handle everything from passenger vehicles to large commercial trucks. Designed for demanding repair facilities, fleet maintenance operations, and heavy-duty service shops, this lift combines exceptional lifting power with extra-wide column spacing and adjustable overhead height for maximum versatility.
Featuring direct-drive hydraulic cylinders, heavy-duty symmetric lifting arms, automatic arm restraints, and a single-point lock release, the XH-PV15PX delivers reliable lifting performance throughout the workday. Its extra-tall design provides additional clearance for servicing vans, box trucks, lifted pickups, and long wheelbase commercial vehicles, while the padded overhead shut-off bar and carriage door guards help protect vehicles during operation.
Multiple installation height options allow the lift to be configured to suit a variety of workshop layouts. Combined with the included 12-piece truck adapter set and rugged commercial construction, the Atlas XH-PV15PX is an excellent choice for shops that require maximum lifting capacity and long-term durability.
Key Features
- 15,000 lb lifting capacity.
- Heavy-duty commercial-grade construction.
- Extra-tall and extra-wide design for larger vehicles.
- Multiple adjustable installation heights.
- Optional low-height installation available with optional short cable kit.

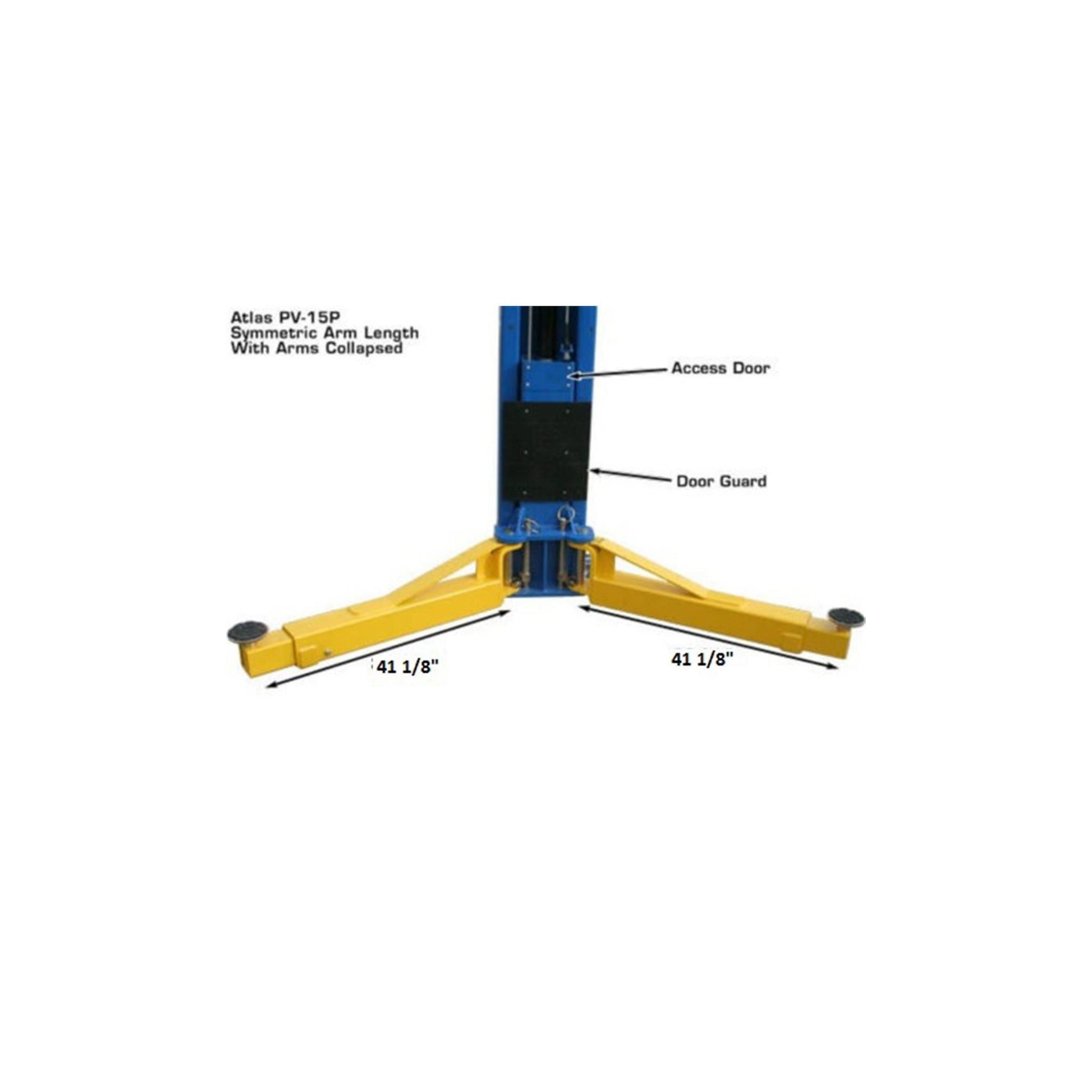

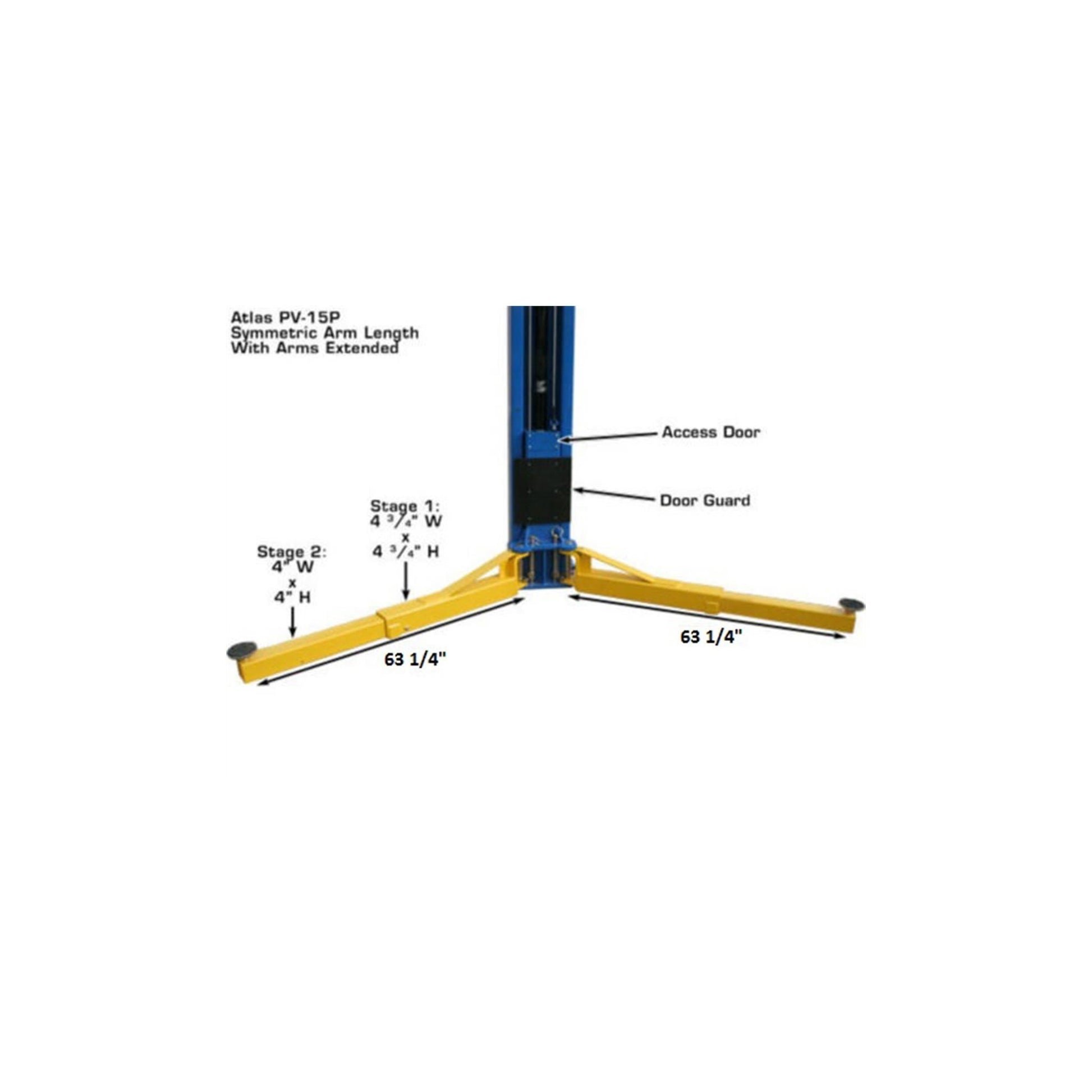

- Heavy-duty symmetric lifting arms.

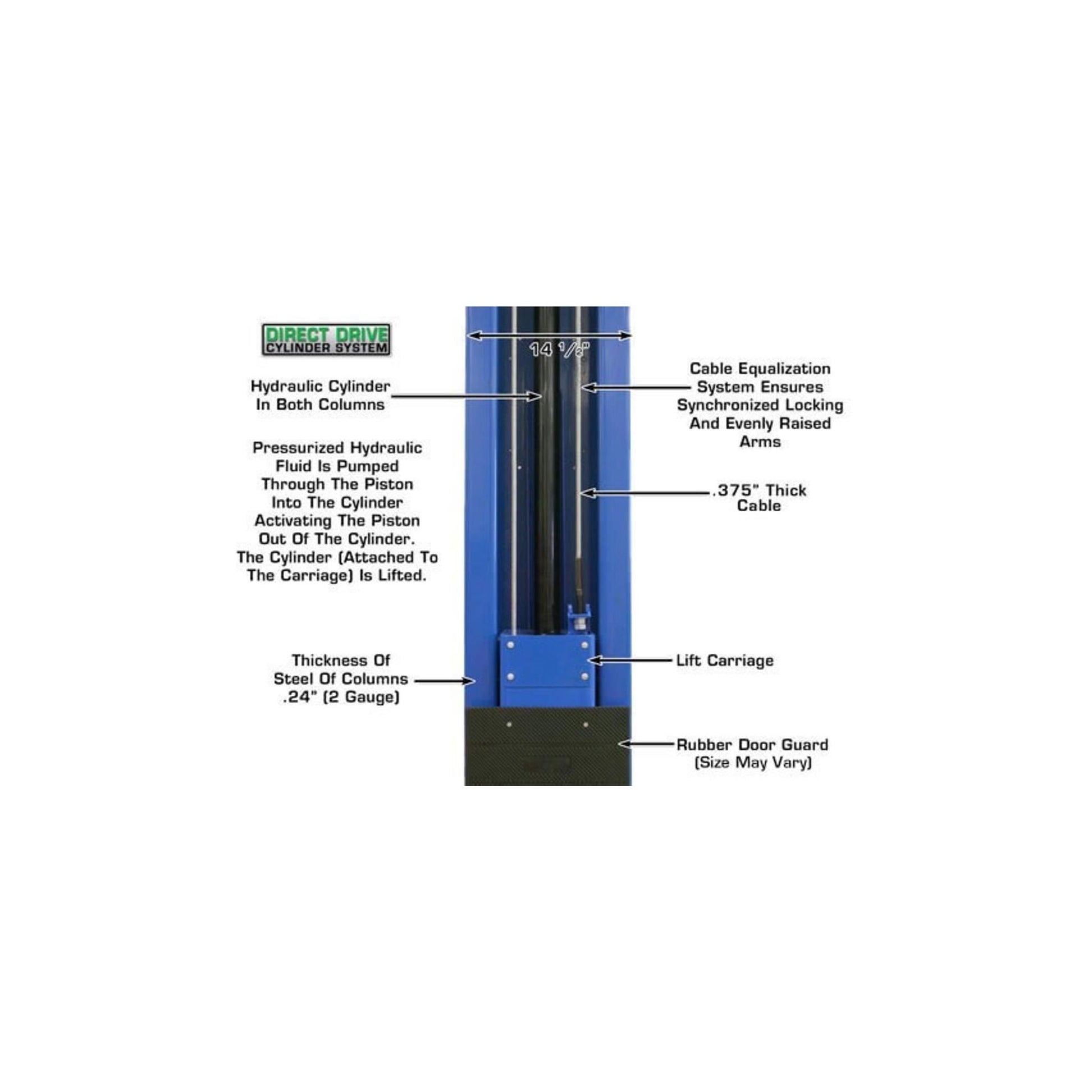

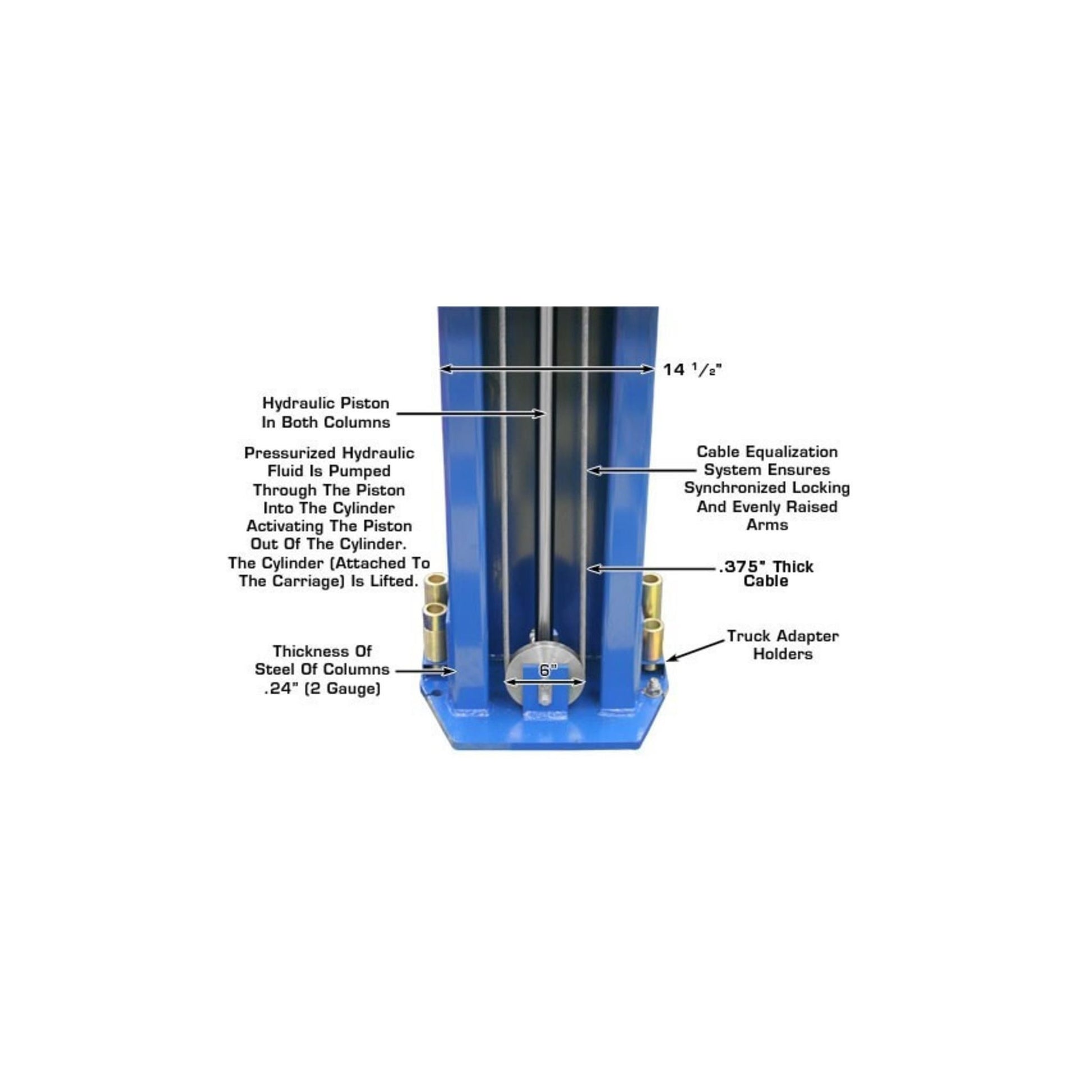

- Dual direct-drive hydraulic cylinders.

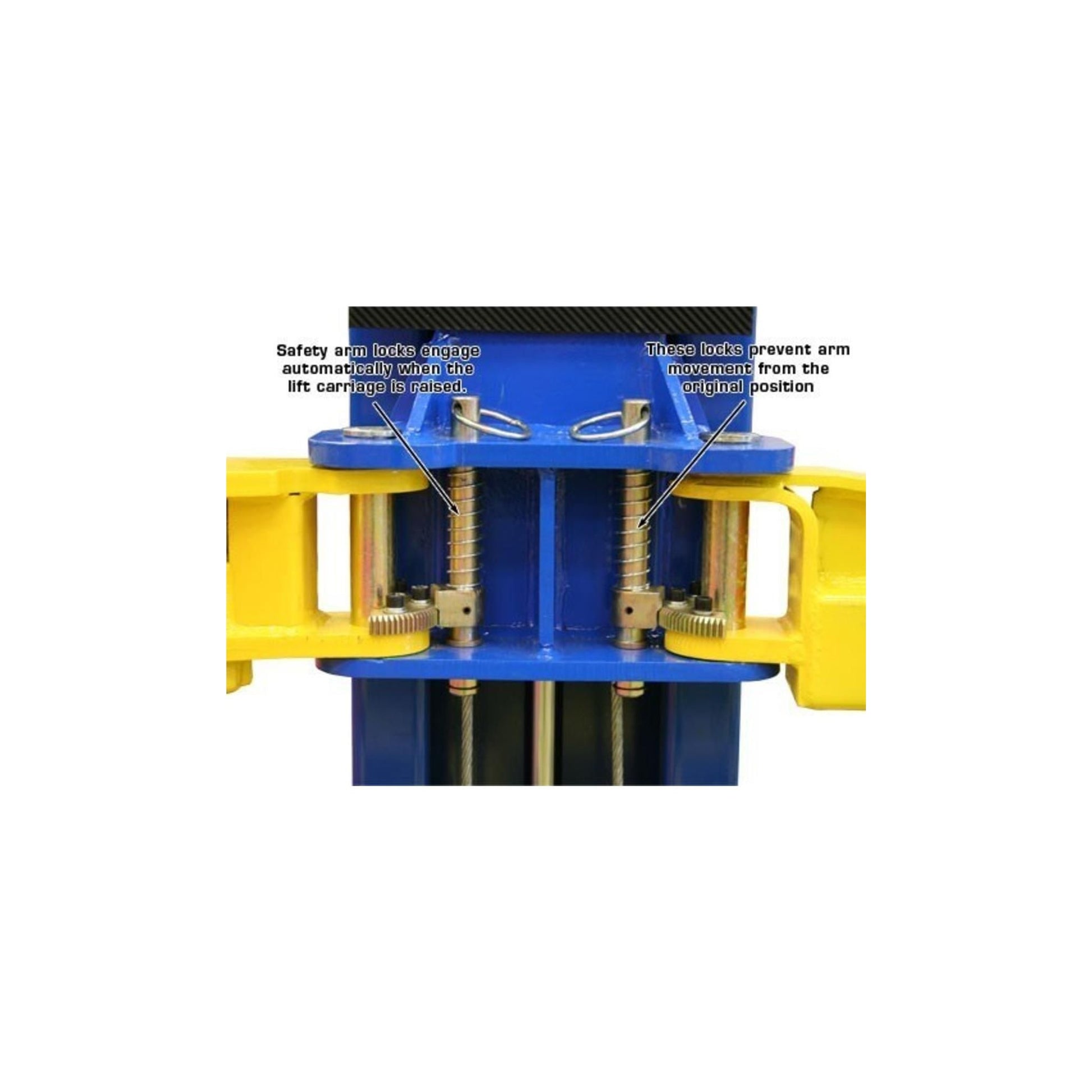

- Automatic arm restraints improve operator safety.

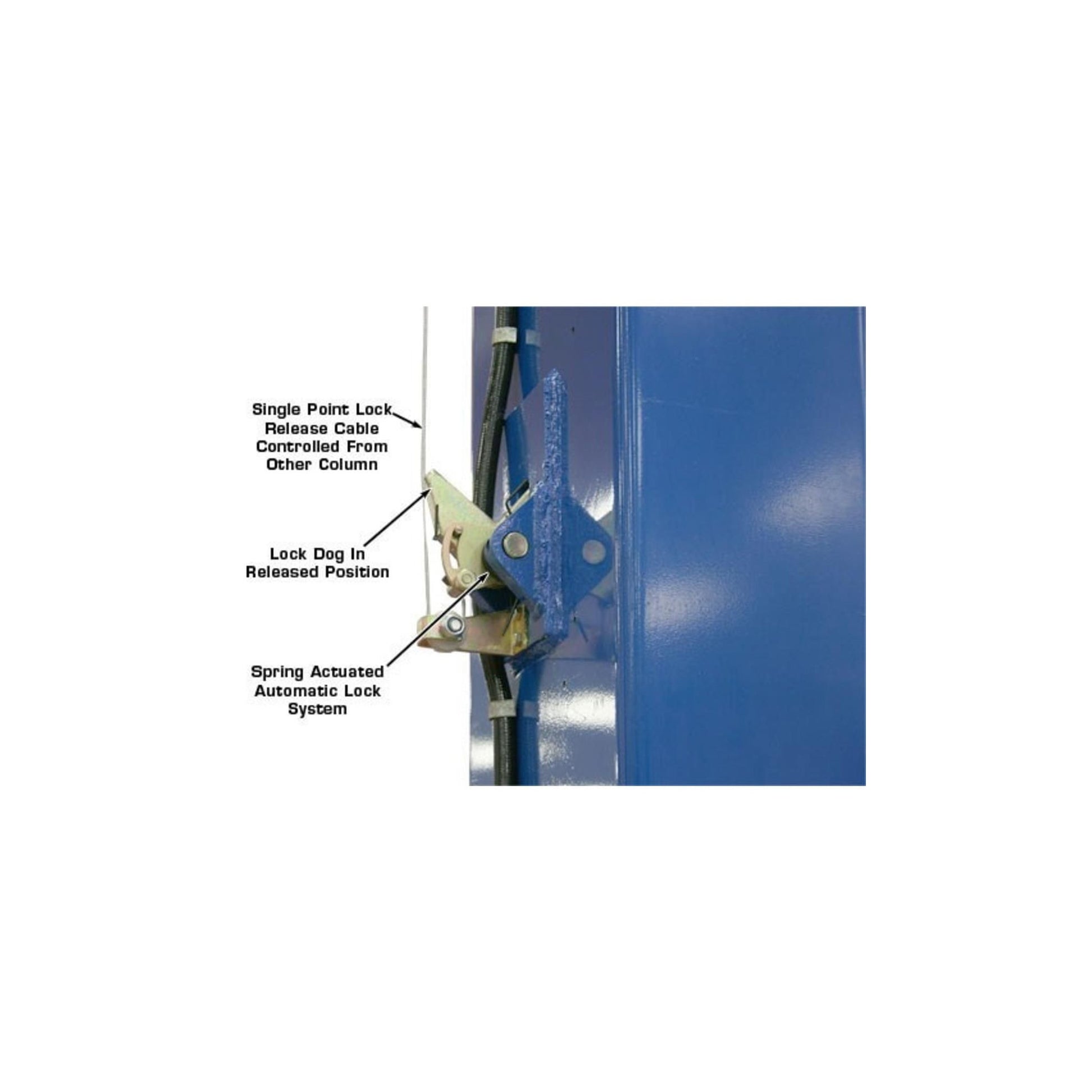

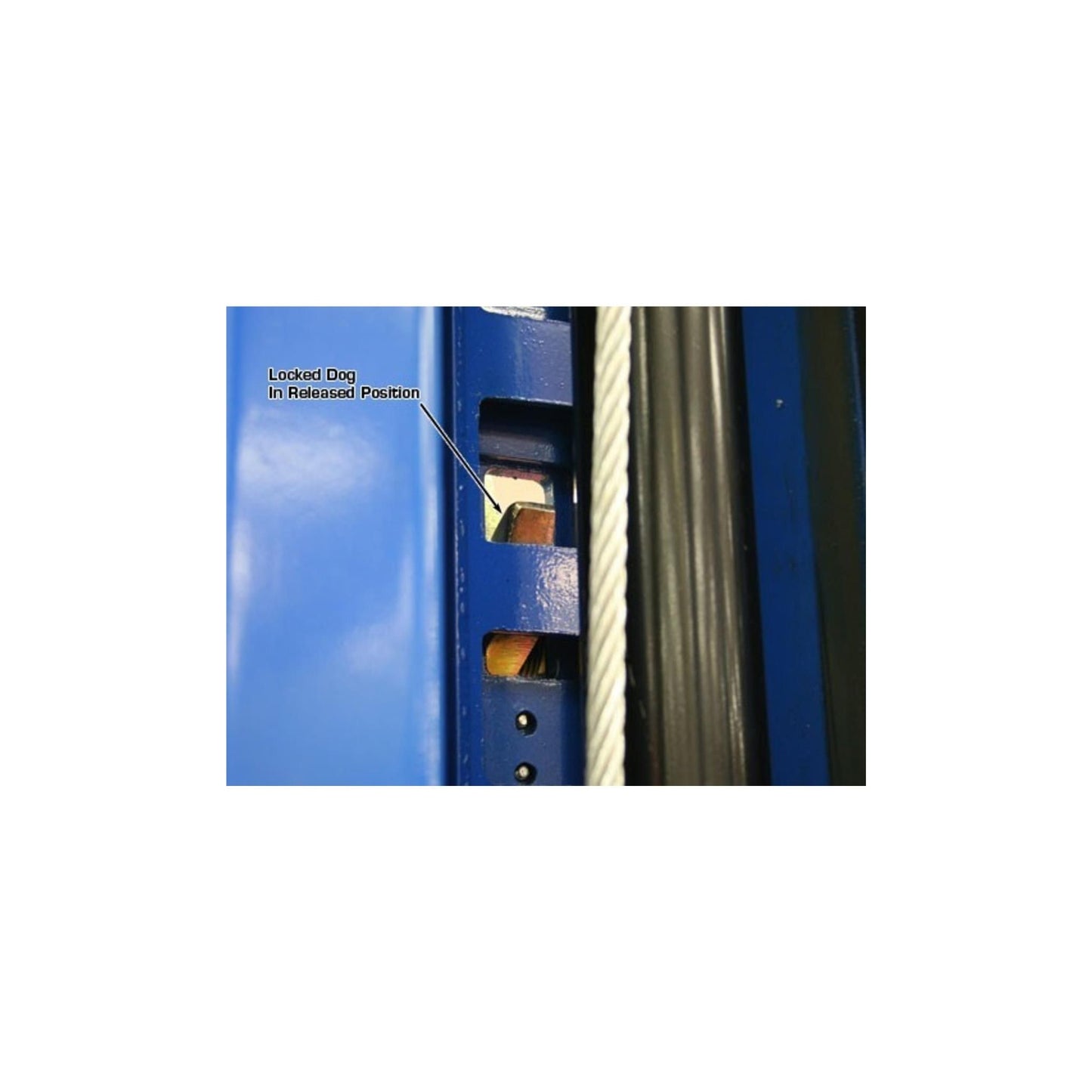

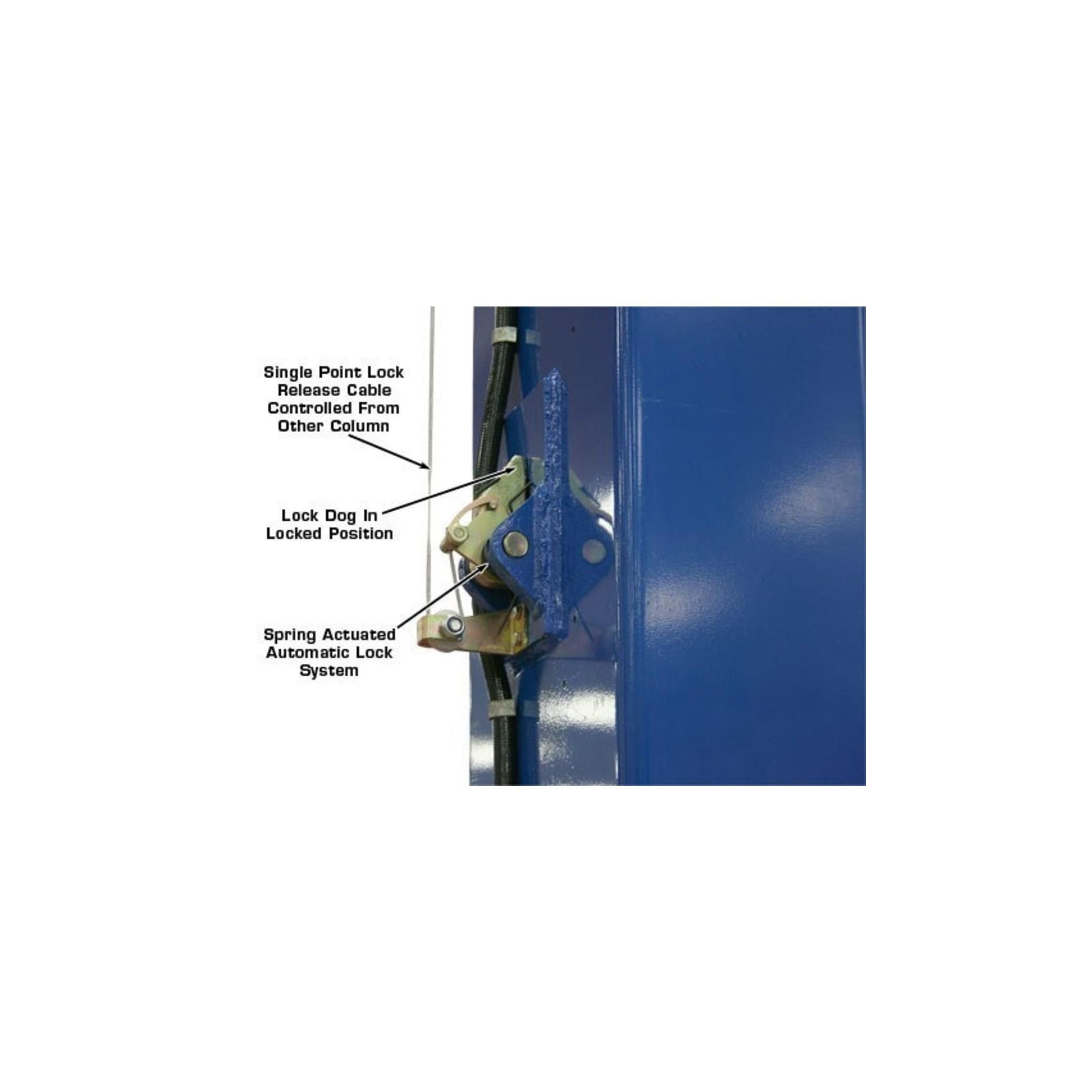

- Single-point lock release system.
- Padded overhead shut-off bar protects taller vehicles.
- Protective door guards on carriages.
- Durable powder-coated finish.

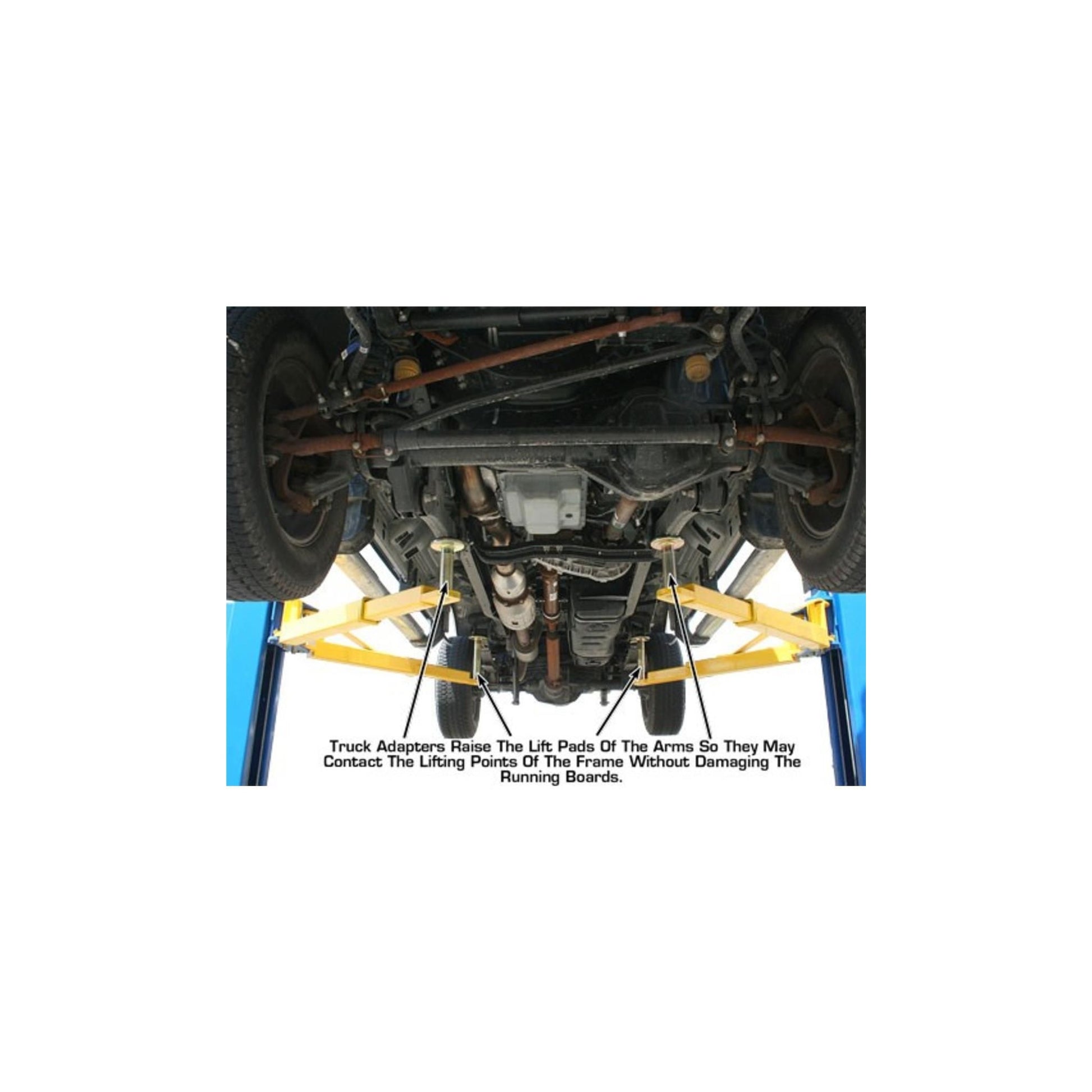

- Includes a deluxe 12-piece truck adapter set.

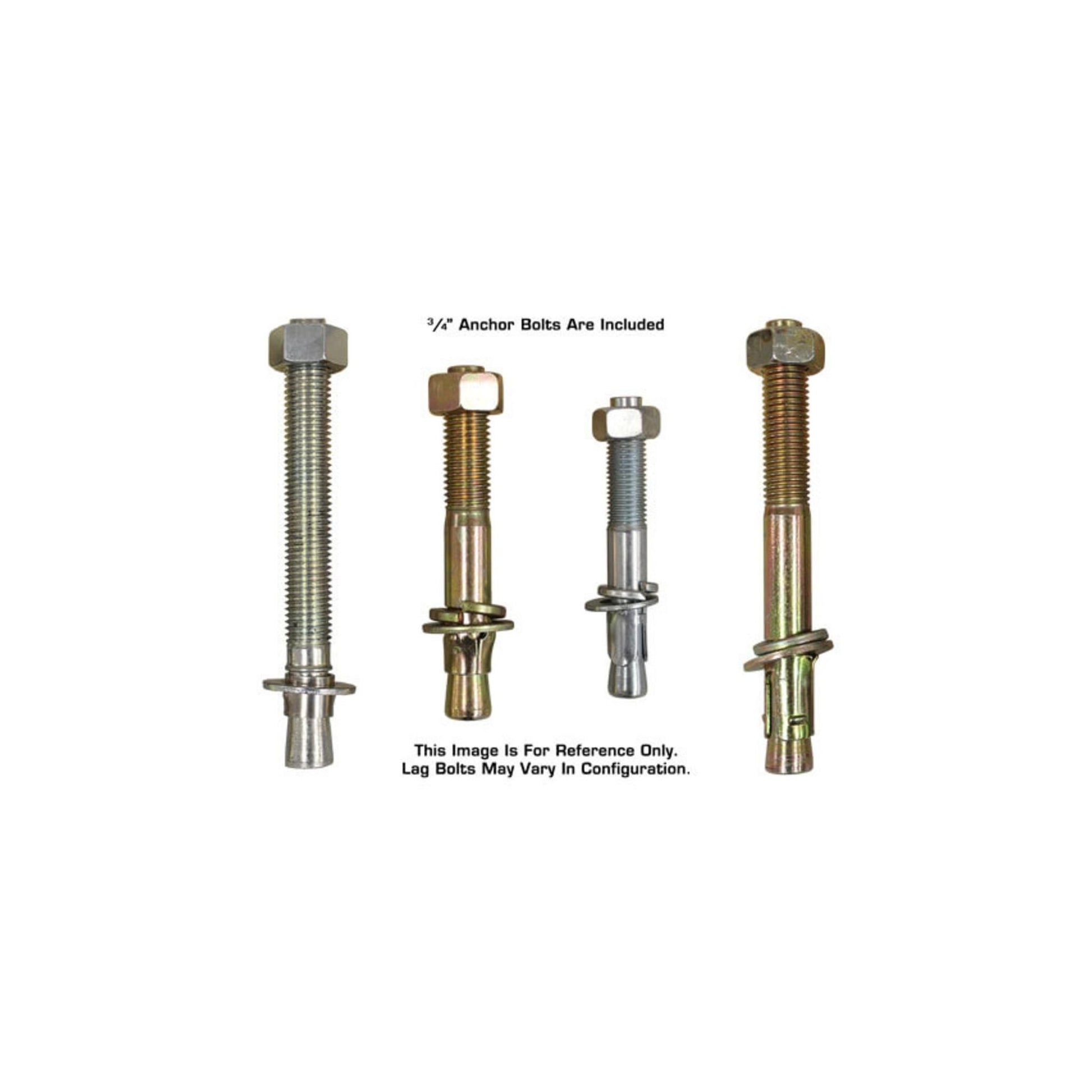

- Mounting hardware included.
Ideal Applications
- Commercial automotive repair shops
- Fleet maintenance facilities
- Heavy-duty truck repair shops
- Municipal maintenance garages
- Commercial vehicle service centers
- Passenger cars
- SUVs
- Full-size pickup trucks
- One-ton dually trucks
- Commercial vans
- Box trucks
- Heavy-duty service trucks
Specifications
| Brand | Atlas |
| Model | XH-PV15PX |
| Lift Capacity | 15,000 lb |
| Lift Type | Commercial Overhead Two-Post Lift |
| Arm Configuration | Symmetric Arms |
| Overall Height Options | 165 in (13 ft 9 in) or 177 in (14 ft 9 in) |
| Low Height Option | 150 in (12 ft 6 in) with Optional Short Cable Kit (Sold Separately) |
| Overall Width | 150 3/4 in (12 ft 6 3/4 in) |
| Outside Column Width | 139 1/8 in (11 ft 7 1/8 in) |
| Inside Column Width | 123 1/2 in (10 ft 3 1/2 in) |
| Drive-Through Width | 109 1/2 in (9 ft 1 1/2 in) |
| Maximum Lift Height (Without Adapters) | 72 1/4 in |
| Maximum Lift Height (With Adapters) | 81 in |
| Minimum Pad Height | 7 1/4 in |
| Column Size | 7 1/2 in × 14 1/2 in |

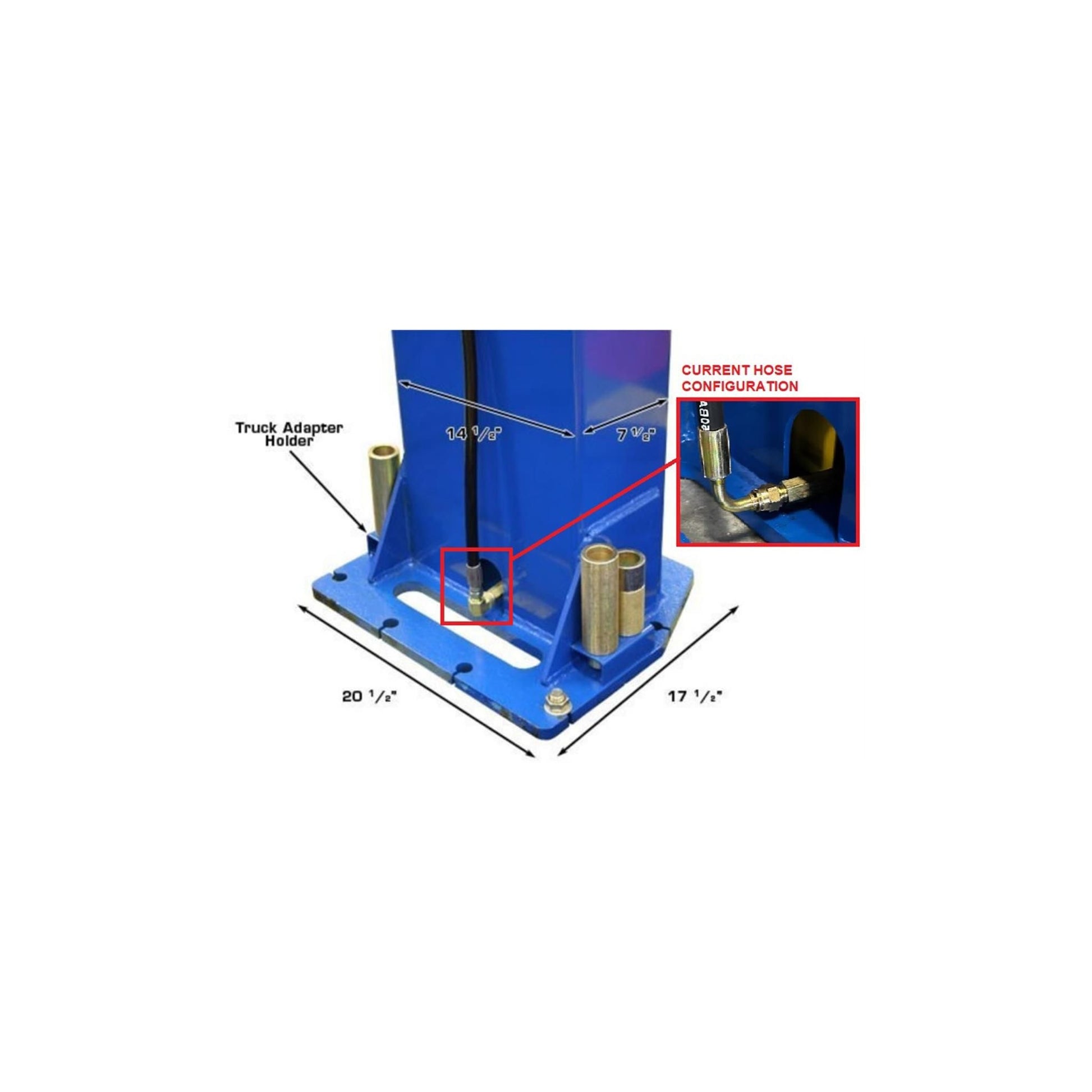

| Base Size | 17 1/2 in × 20 1/2 in |
| Hydraulic System | Dual Direct-Drive Hydraulic Cylinders |
| Lock Release | Single-Point Lock Release |
| Power Requirements | 220V, Single-Phase (30 Amp Breaker Recommended) |
| Hydraulic Oil Required | 3–5 Gallons AW32/AW46 (Not Included) |
| Adapter Heights | Four 1.25 in, Four 2.5 in, Four 5 in Adapters Included |
| Adapter Peg Size | 1.5 in |
| Minimum Concrete Requirement | 6 in Thick, 3,000 PSI |
| Finish | Powder Coat |

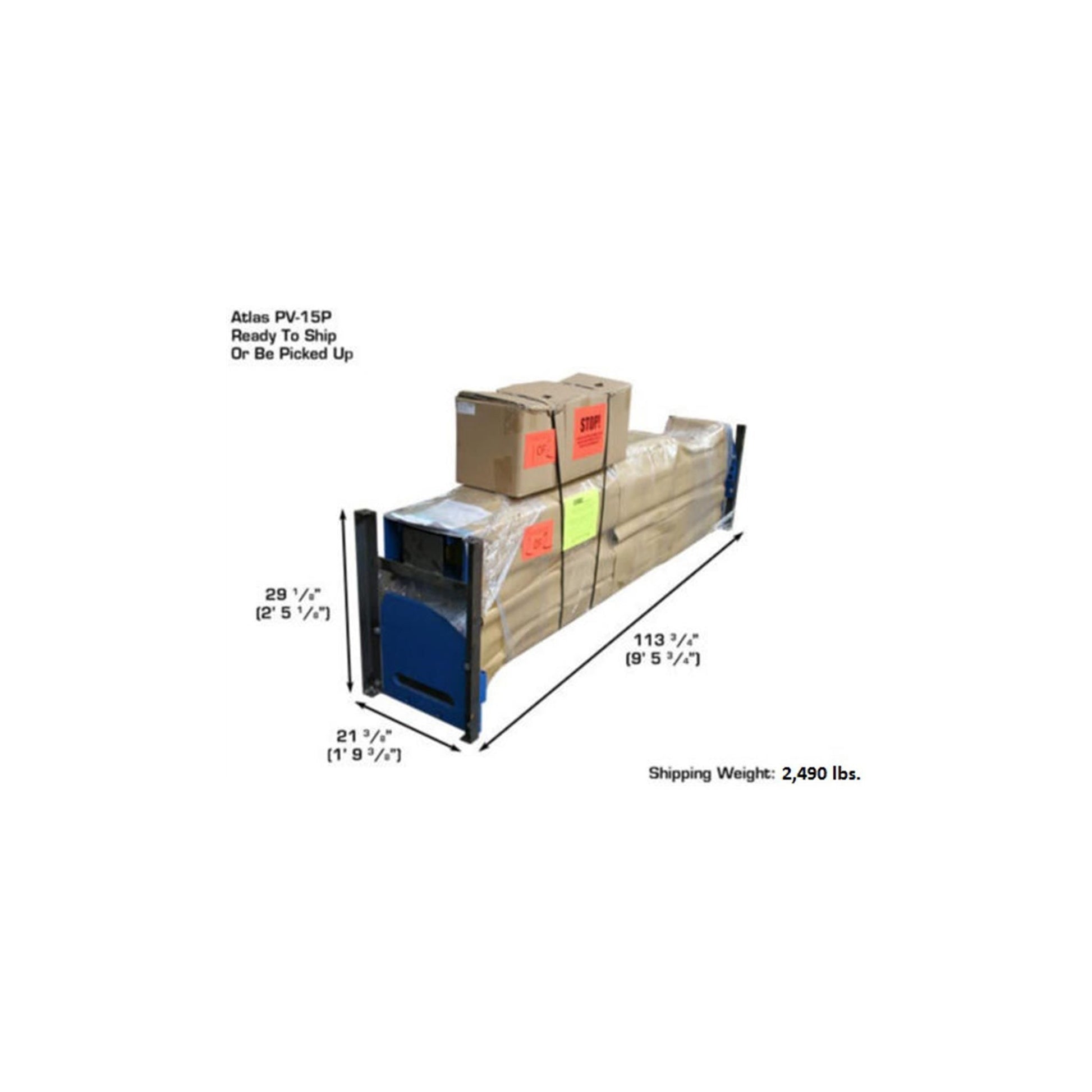

| Shipping Weight | 2,490 lb |
| Warranty | 5-Year Structural / 2-Year Hydraulic (Parts Only) |
```
