Atlas XH-PV10PX 10,000 lb Commercial Overhead Two-Post Car Lift

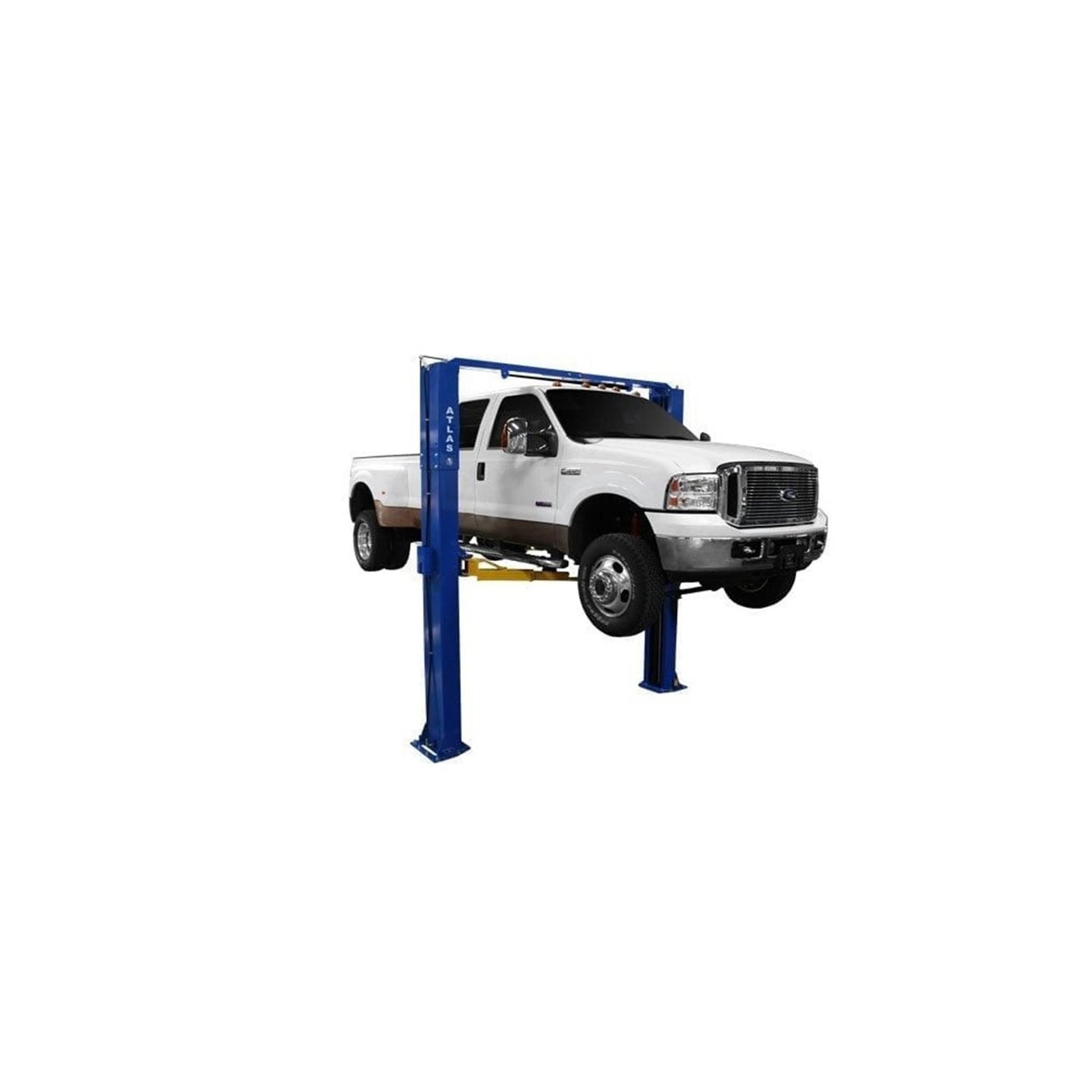

The Atlas XH-PV10PX is a commercial-grade 10,000 lb capacity overhead two-post lift designed for professional automotive repair facilities and serious home workshops. Built to handle demanding daily use, this lift combines heavy-duty construction with premium safety features, making it an excellent solution for servicing everything from compact passenger cars to one-ton diesel dually trucks.
Featuring direct-drive hydraulic cylinders, adjustable overhead height settings, and configurable asymmetric or symmetric lifting arms, the XH-PV10PX provides the flexibility needed to accommodate a wide variety of vehicle sizes. Automatic arm restraints, a single-point lock release, padded carriages, and a padded overhead shut-off bar enhance operator safety while protecting both the vehicle and the lift during operation.
Designed for long-term reliability, the Atlas XH-PV10PX also includes a deluxe 12-piece truck adapter set, reinforced rubber lifting pads, and a durable powder-coated finish, making it an ideal investment for commercial garages, fleet maintenance facilities, and high-end home workshops.
Key Features
- 10,000 lb lifting capacity.
- Commercial-grade overhead two-post lift.
- Adjustable overall height for installation flexibility.

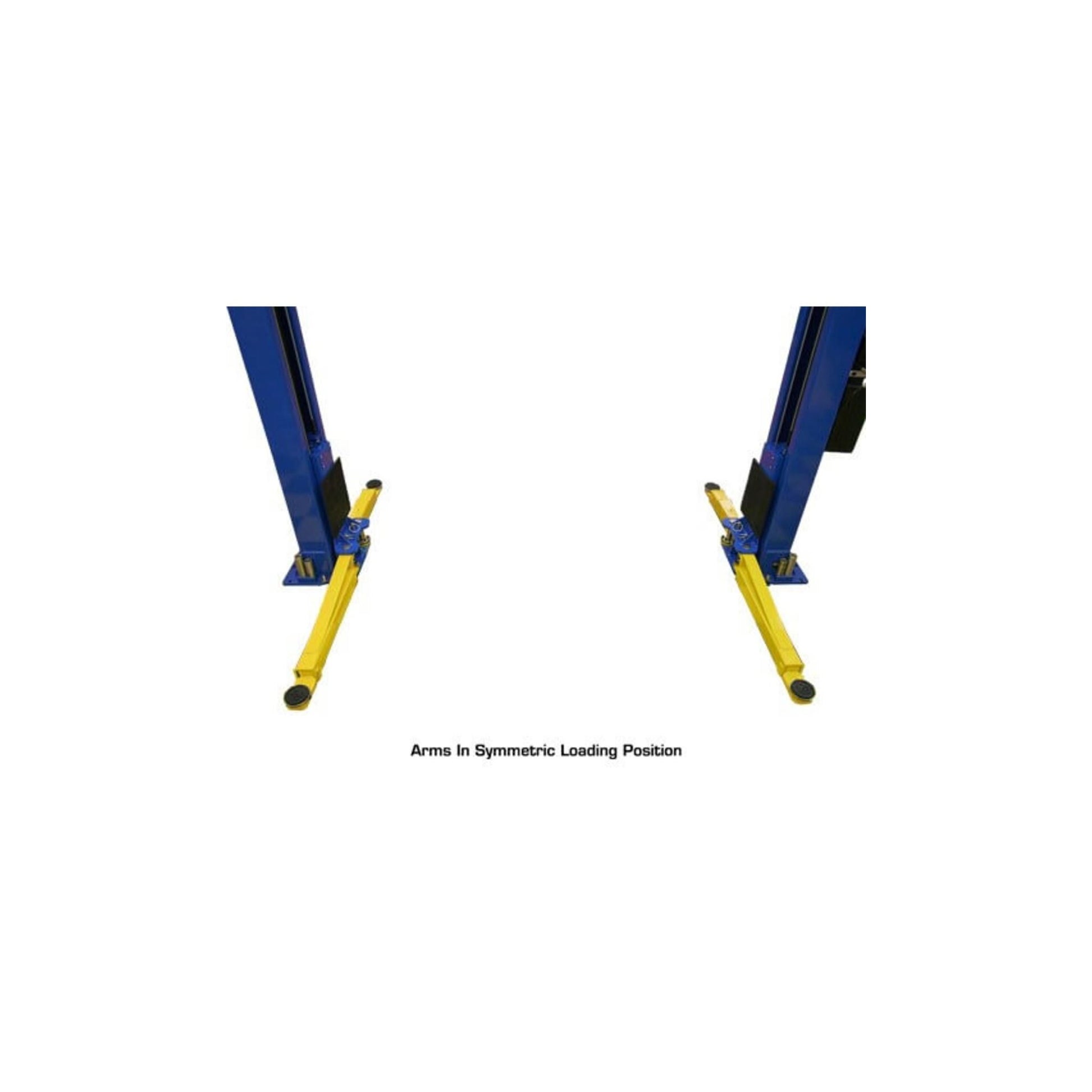

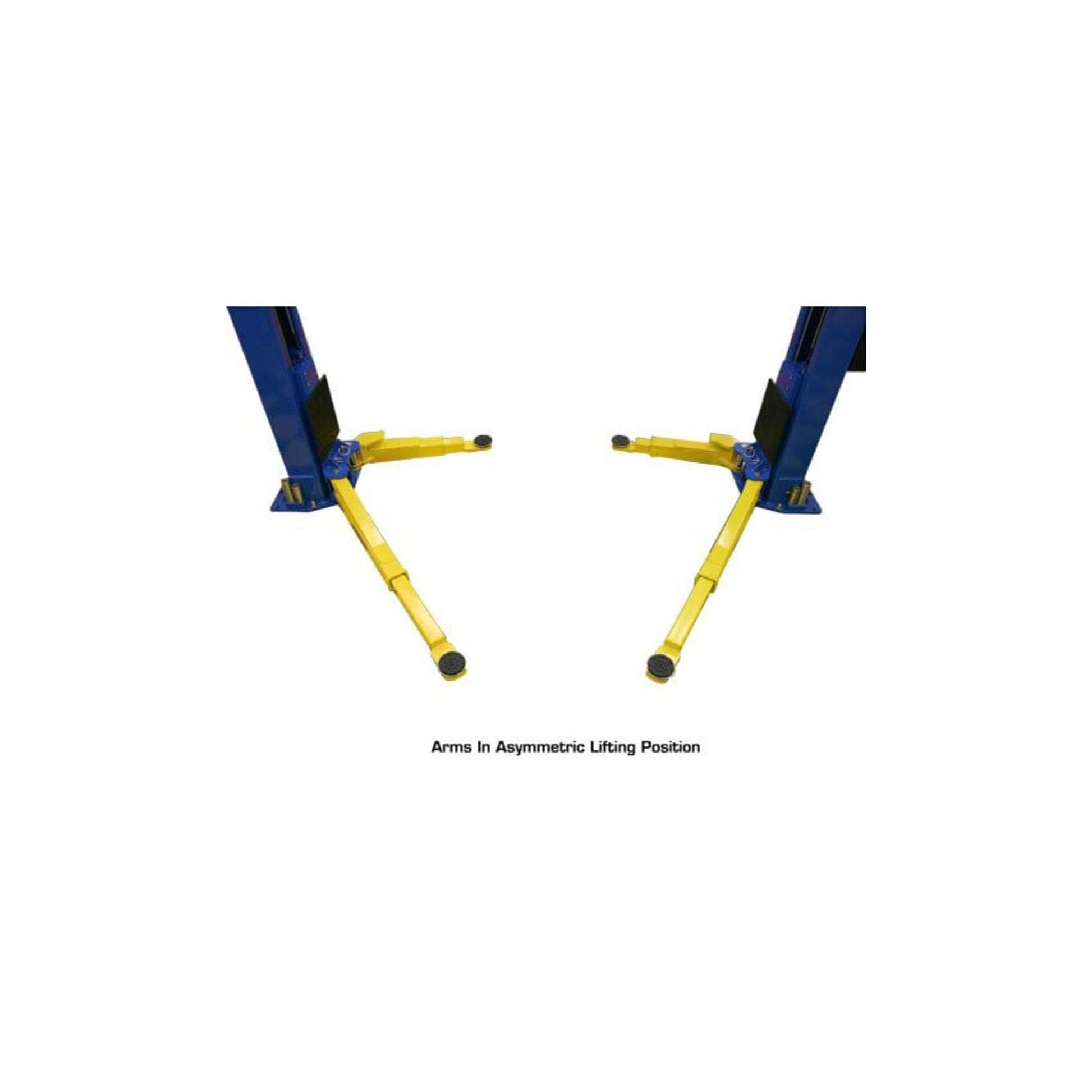

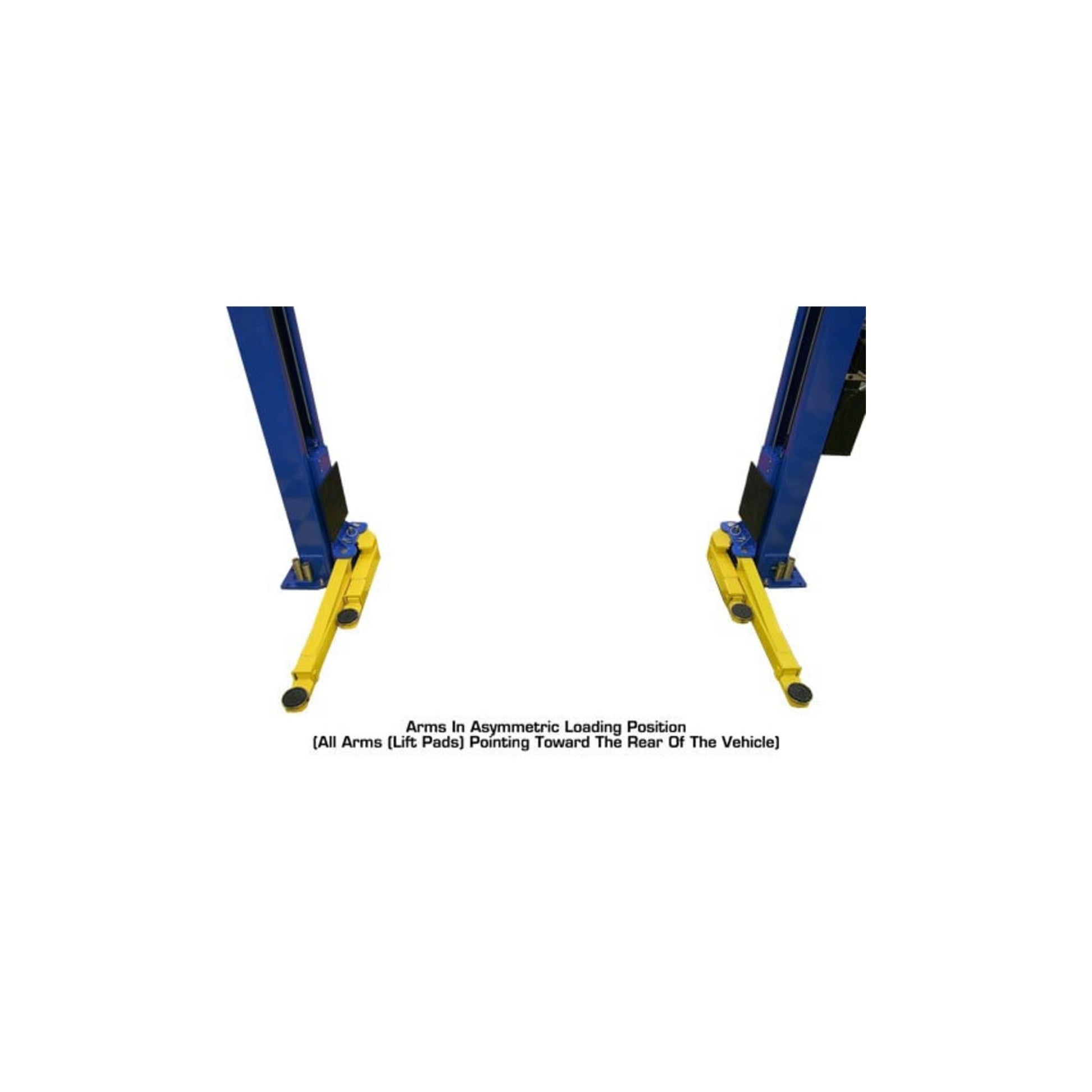

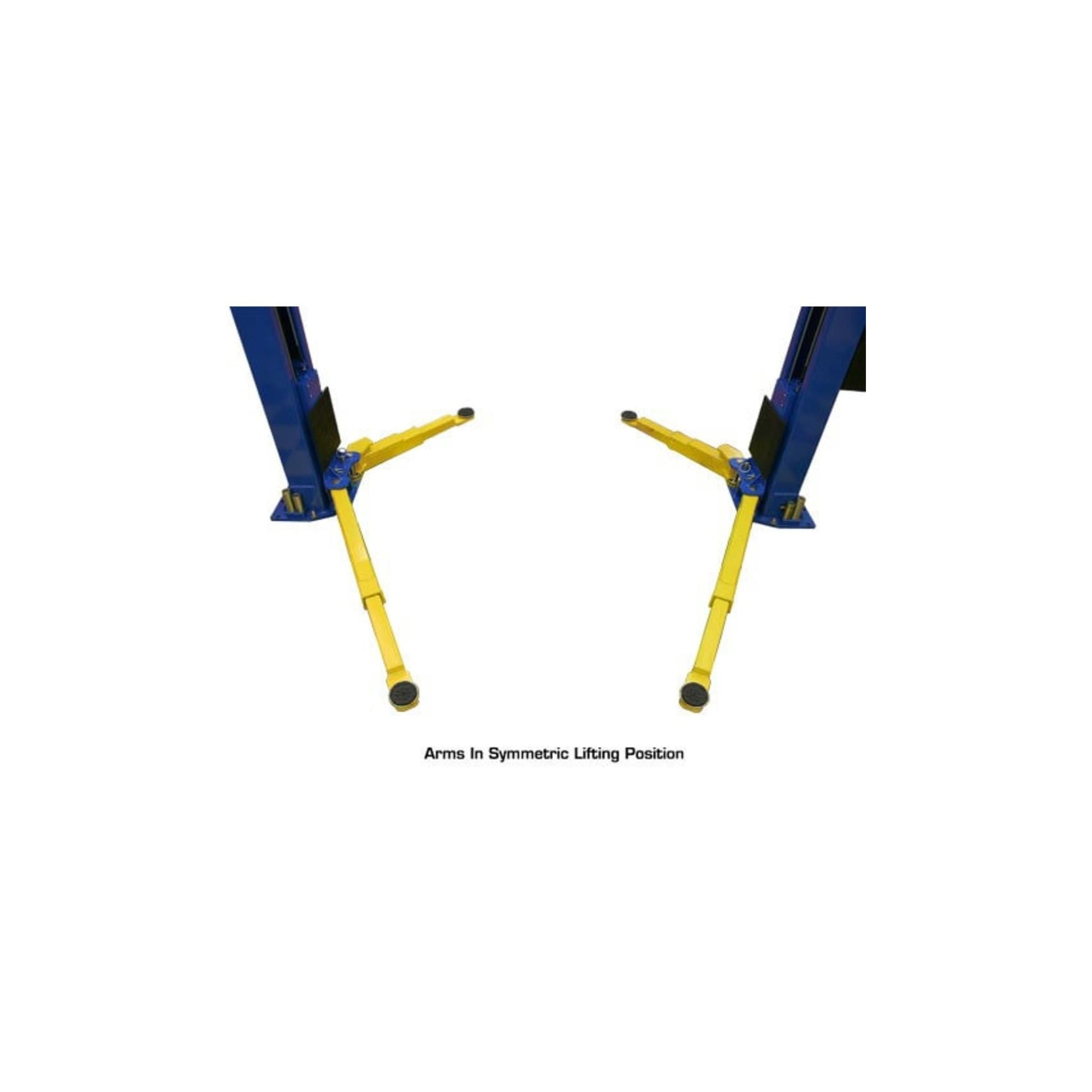

- Configurable asymmetric or symmetric lifting arms.

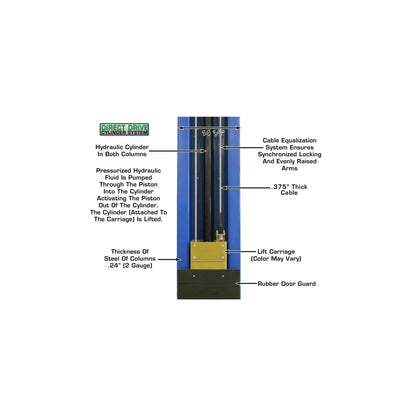

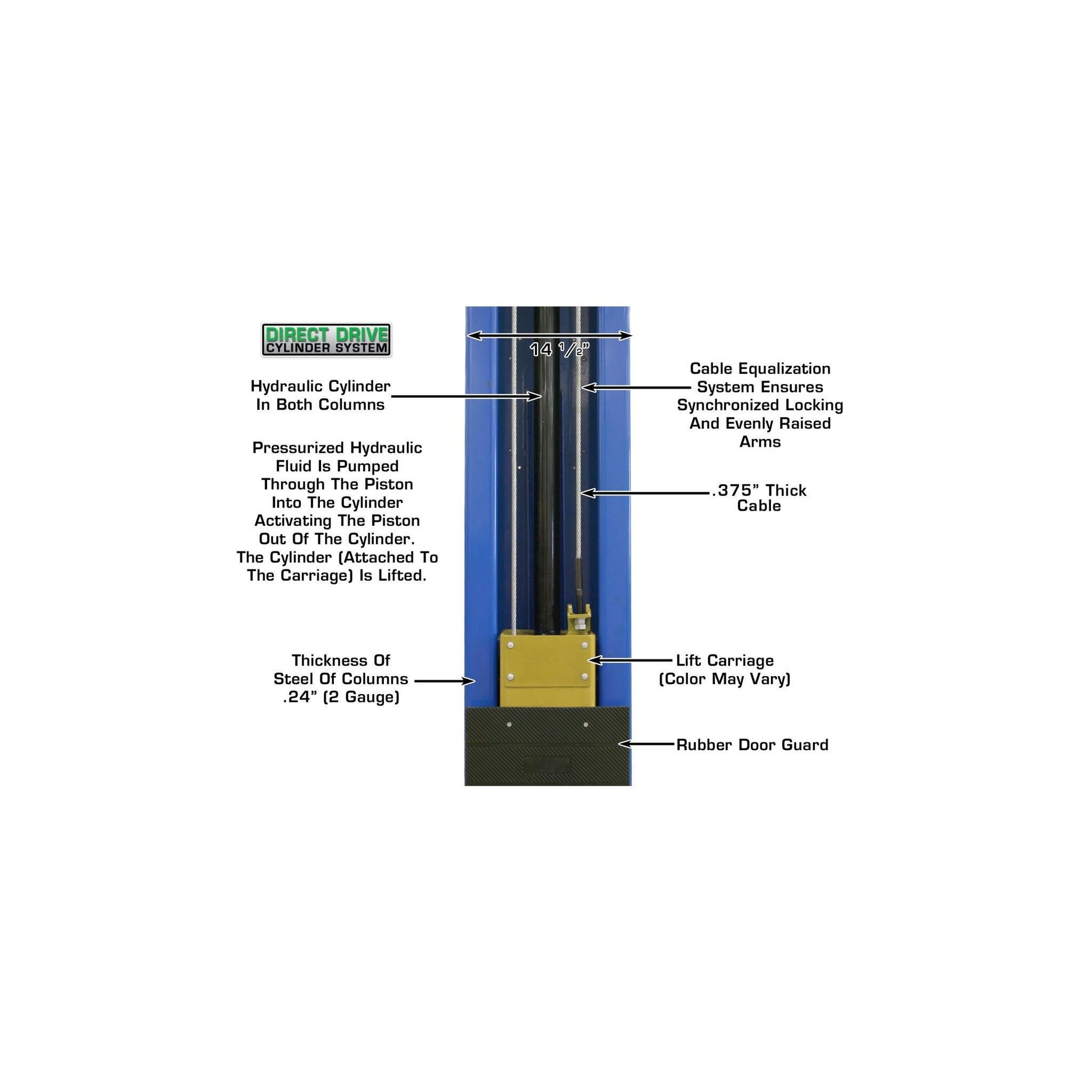

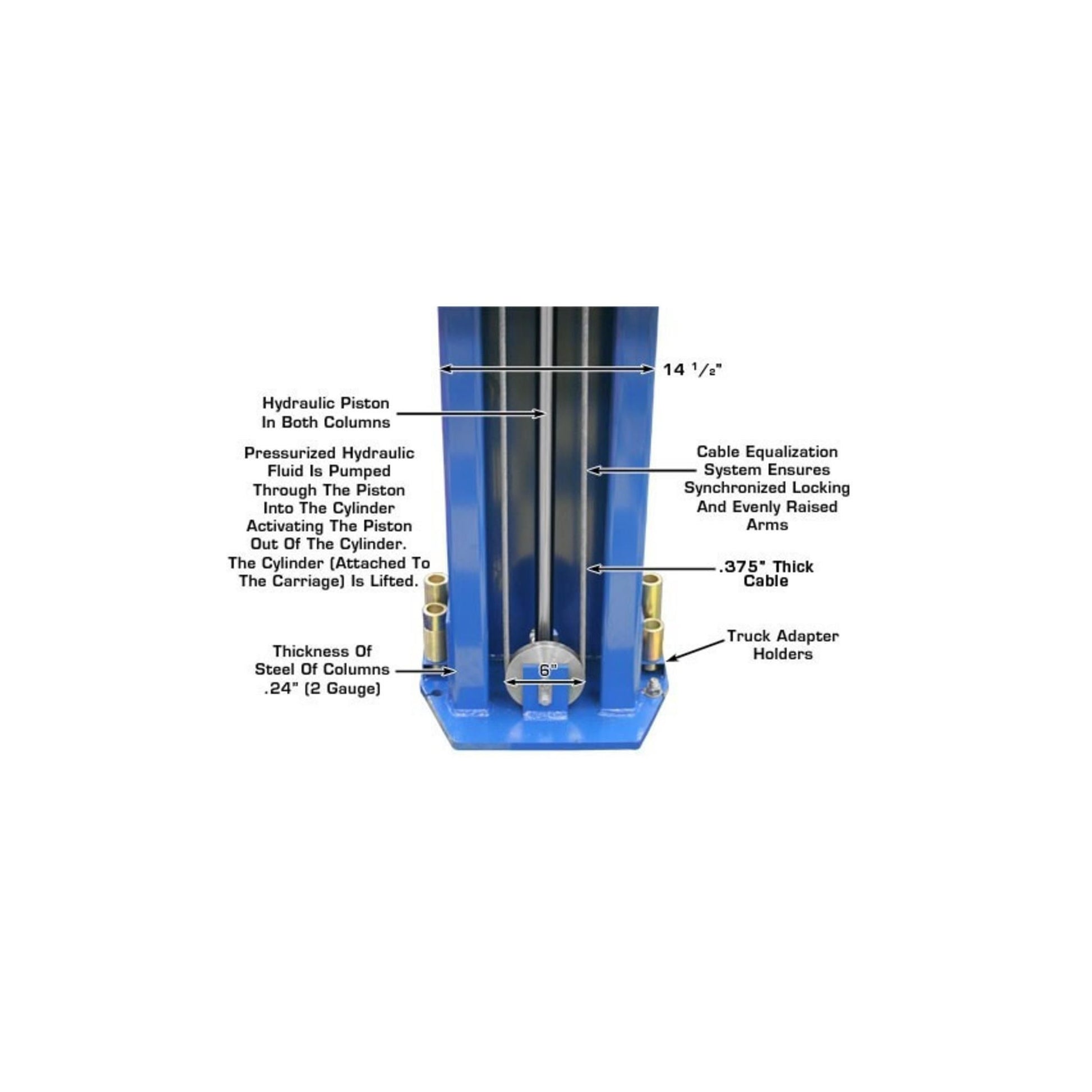

- Direct-drive hydraulic cylinders provide smooth and reliable lifting.

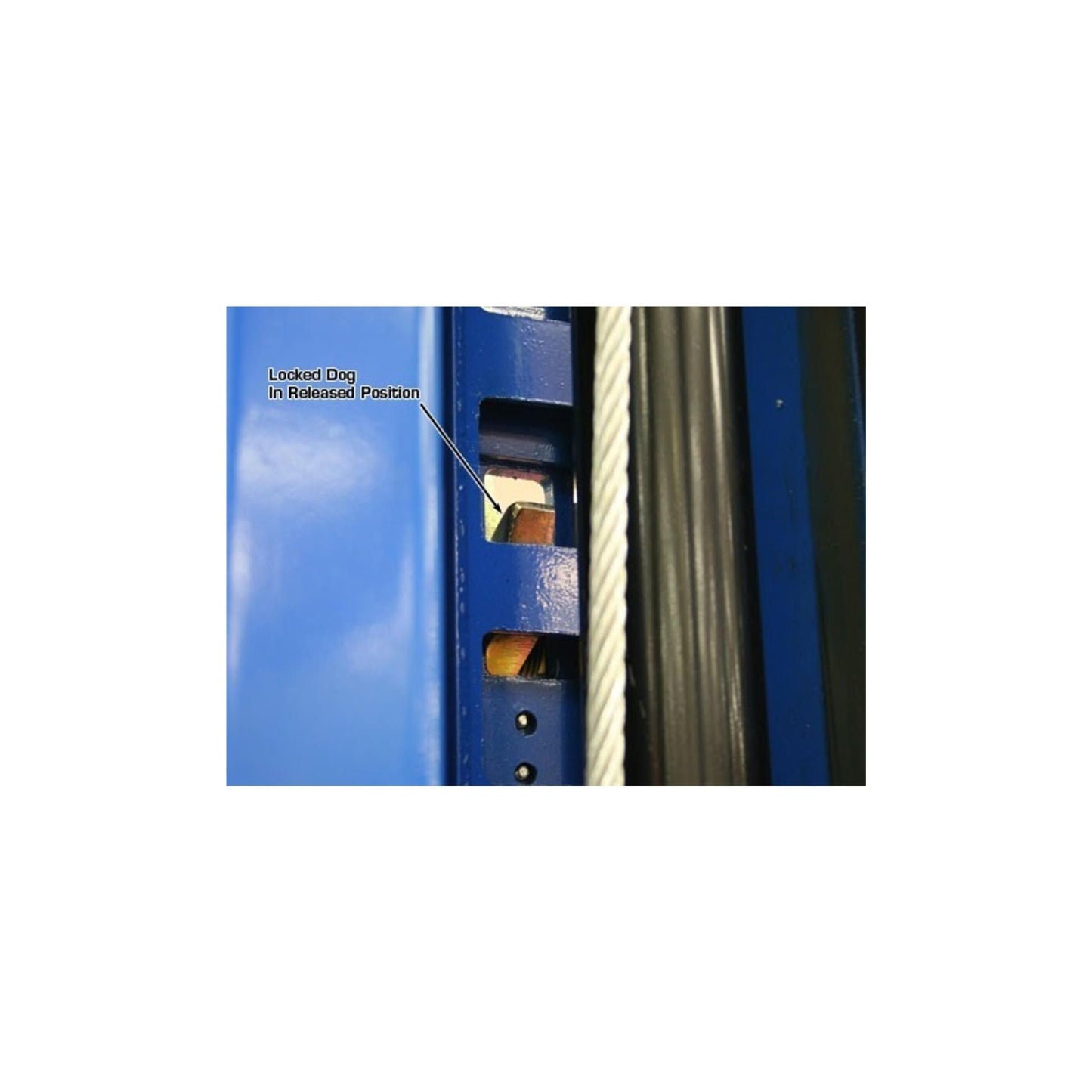

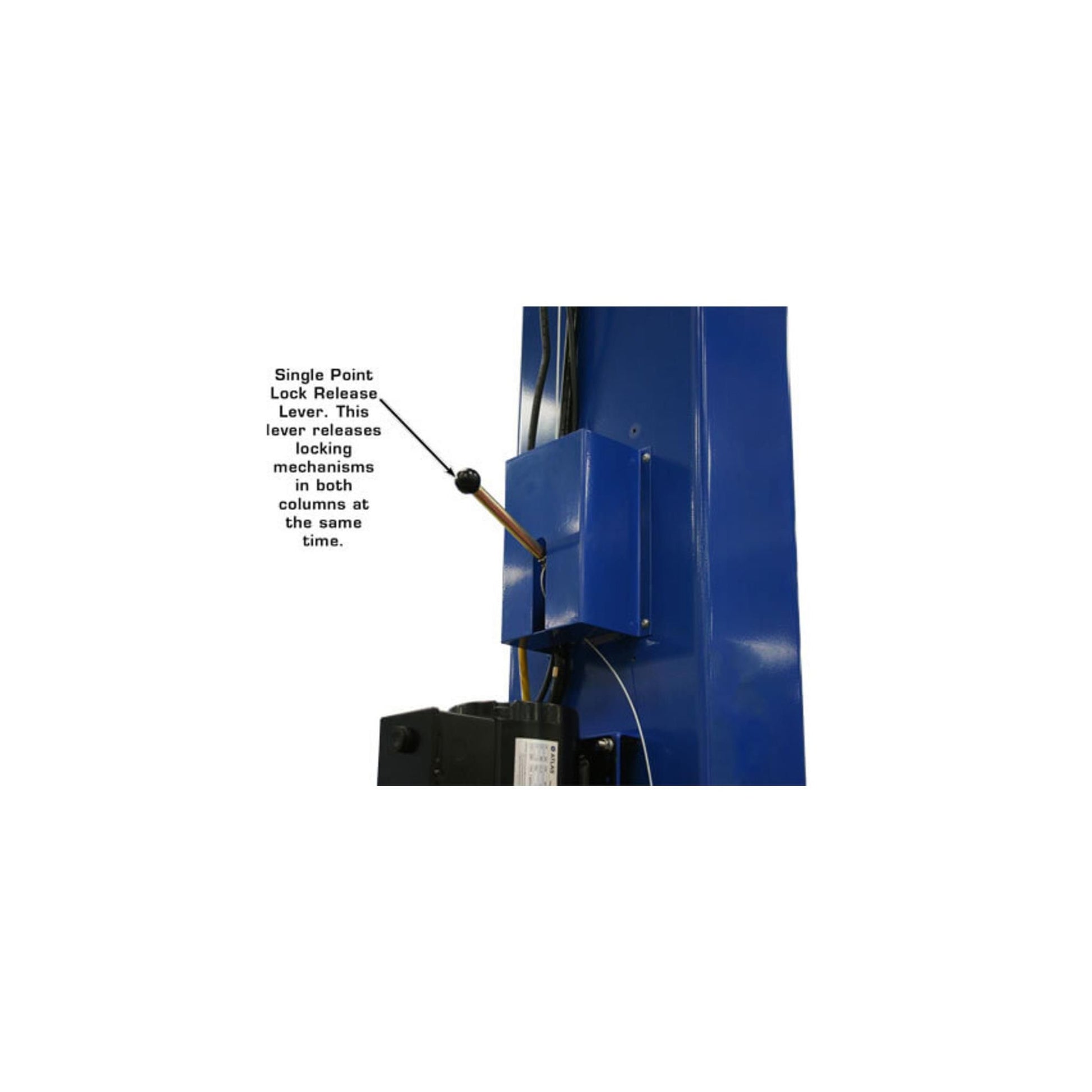

- Single-point lock release for quick operation.

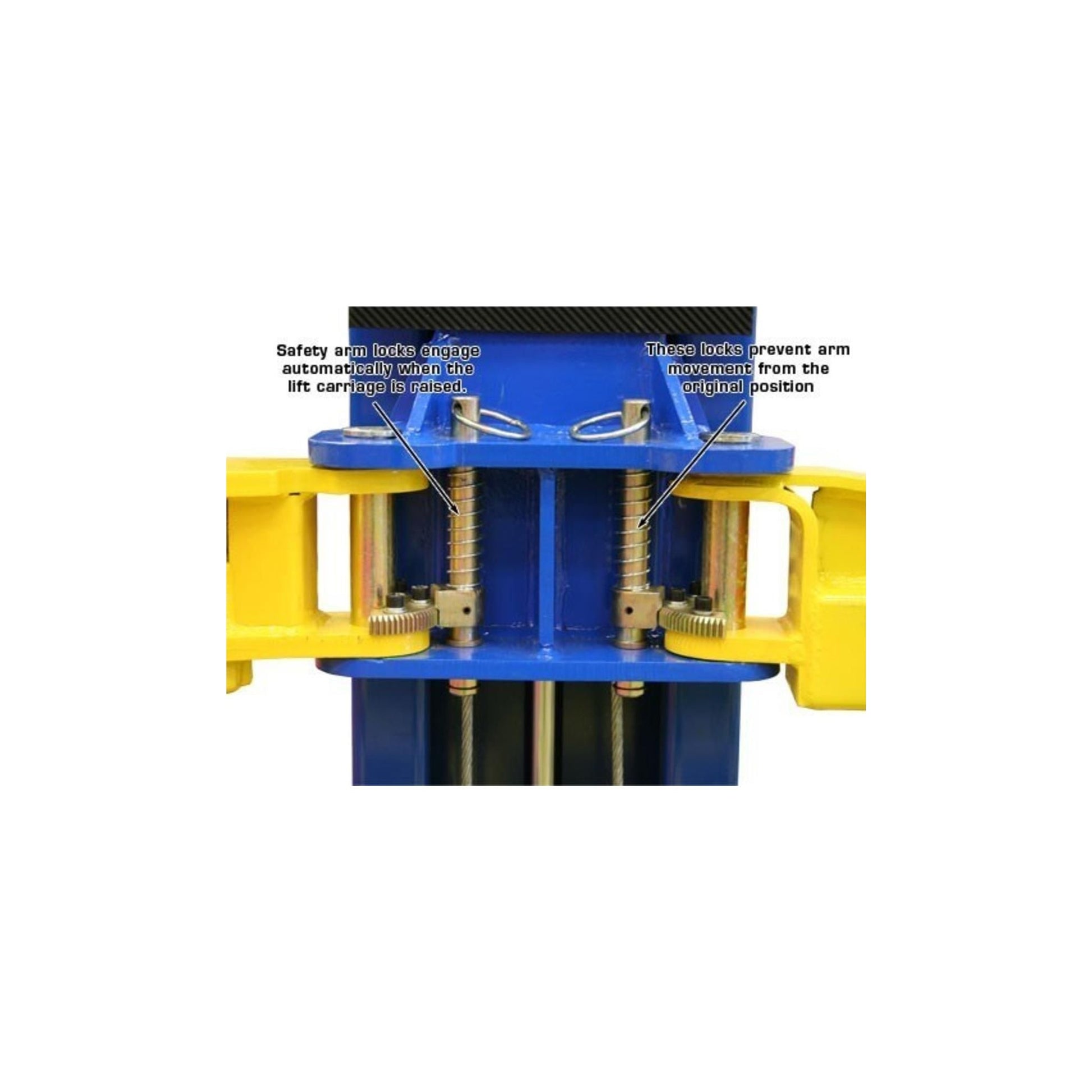

- Automatic arm restraints improve lifting safety.

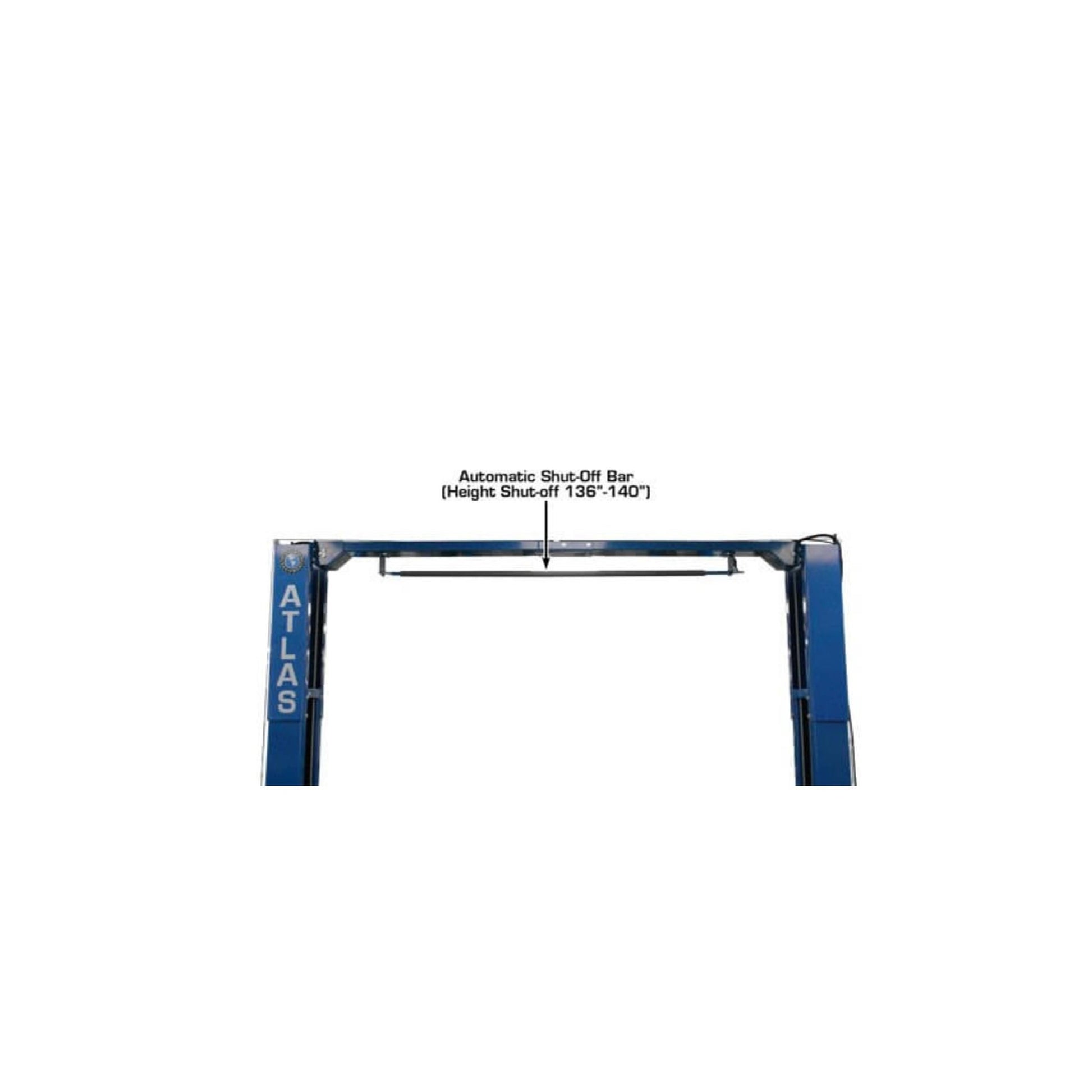

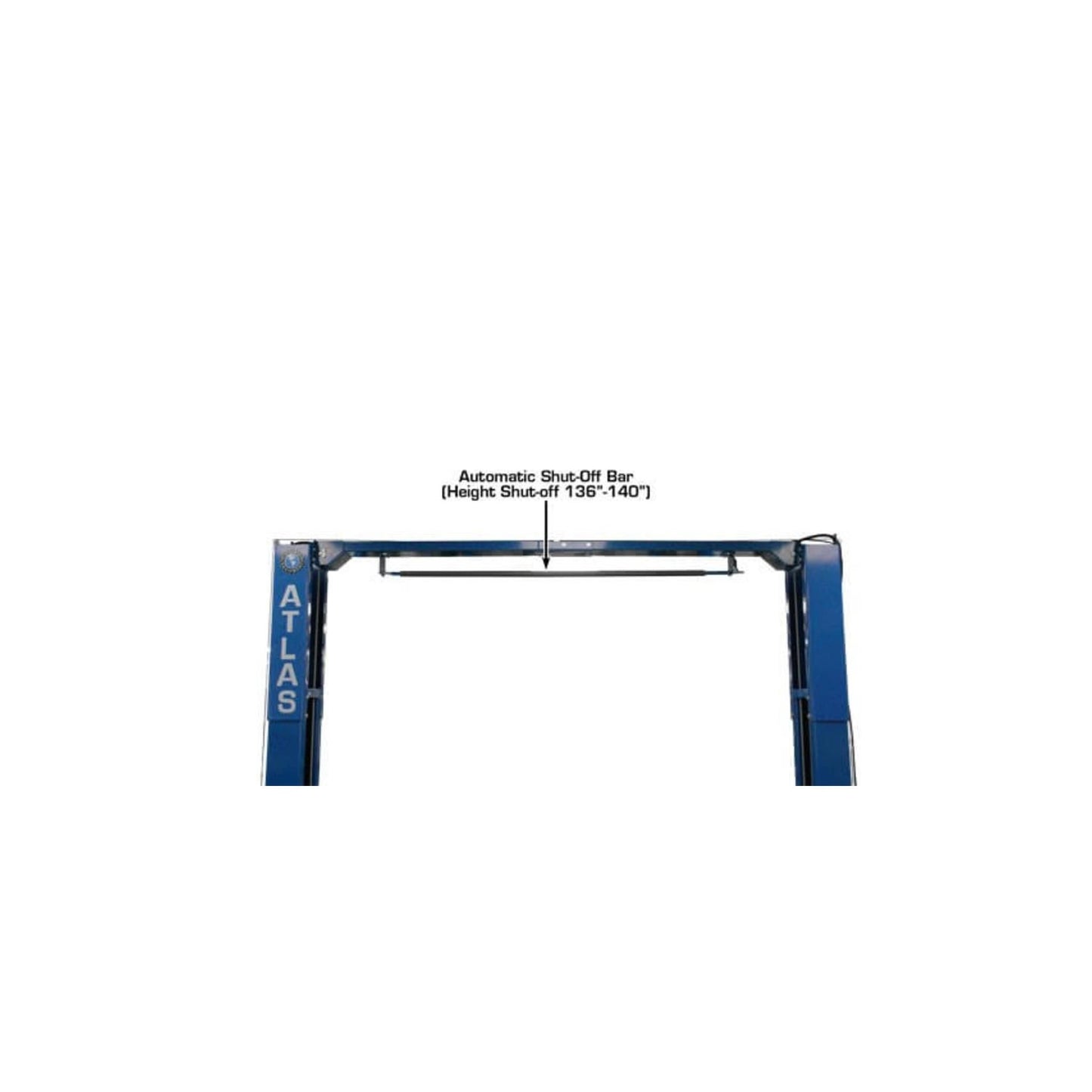

- Padded overhead shut-off bar helps protect taller vehicles.
- Rubber-padded carriages help prevent vehicle door damage.
- Durable powder-coated finish resists corrosion and wear.

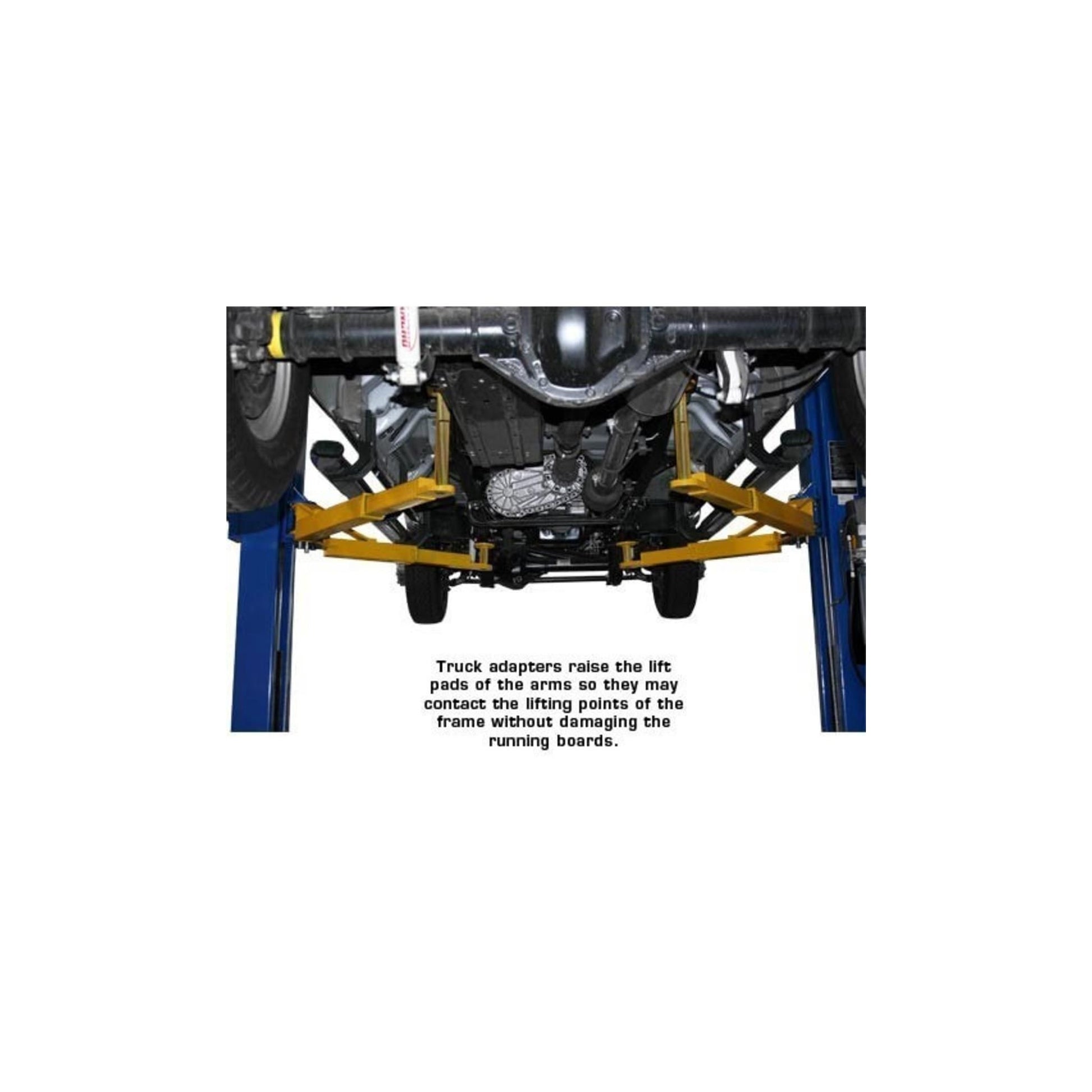

- Includes a deluxe 12-piece truck adapter set.

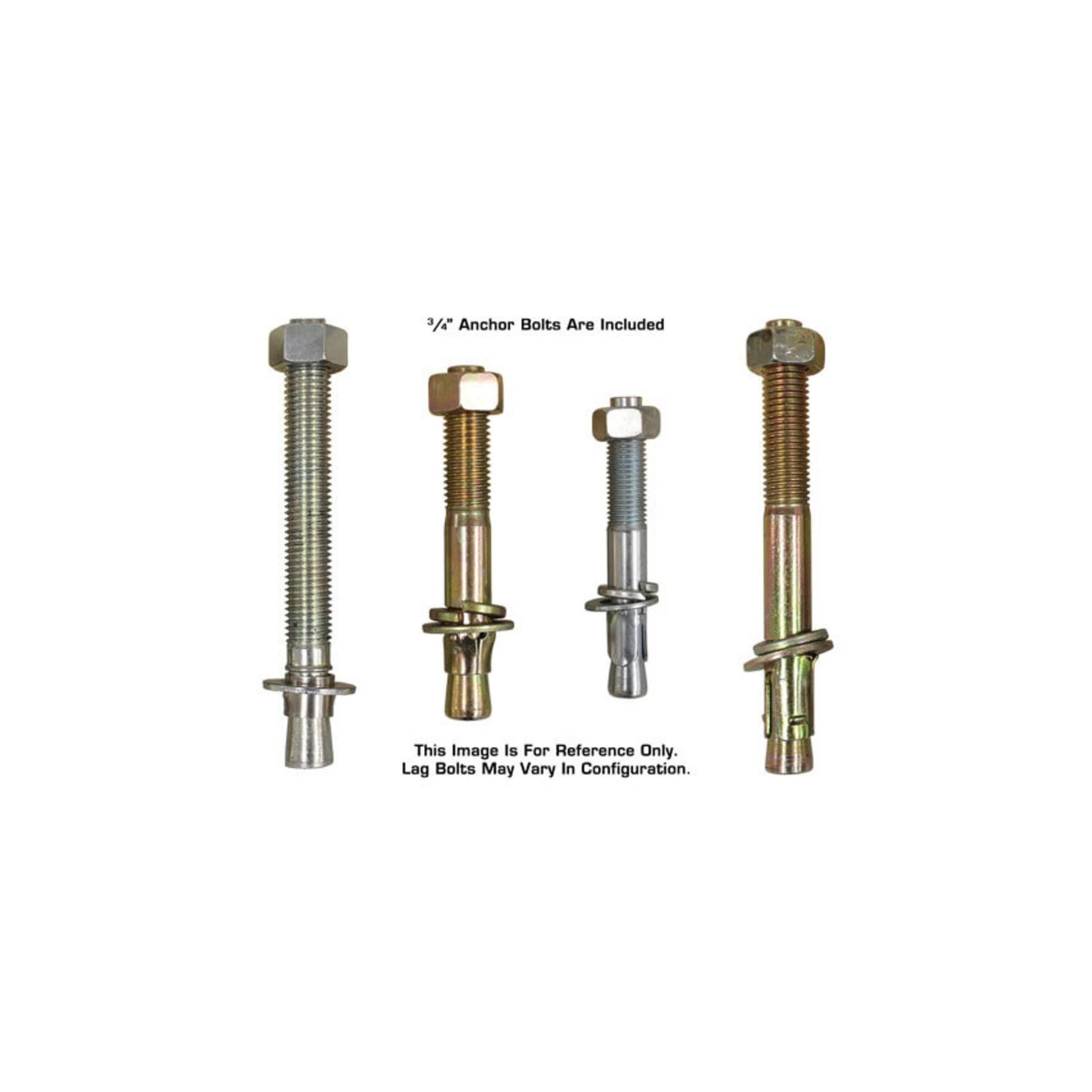

- Mounting hardware included.
Ideal Applications
- Commercial automotive repair shops
- Fleet maintenance facilities
- Dealership service departments
- Heavy-duty home workshops
- Brake and suspension repairs
- Engine and transmission service
- Passenger cars
- SUVs
- Pickup trucks
- One-ton diesel dually trucks
Specifications
| Brand | Atlas |
| Model | XH-PV10PX |
| Lift Capacity | 10,000 lb |
| Lift Type | Commercial Overhead Two-Post Lift |
| Arm Configuration | Asymmetric / Symmetric |
| Overall Height | 143 1/8 in (11 ft 11 1/8 in) or 147 in (12 ft 3 in) |
| Overall Width (with Motor) | 145 in (12 ft 1 in) |
| Outside Column Width | 125 1/2 in |
| Inside Column Width | 110 1/8 in |
| Drive-Through Width (Symmetric) | 96 1/4 in |
| Drive-Through Width (Asymmetric) | 90 1/4 in |
| Maximum Lift Height (Without Adapters) | 72 1/2 in |
| Maximum Lift Height (With Adapters) | 81 1/4 in |
| Minimum Pad Height | 4 1/2 in |
| Column Size | 7 1/2 in × 14 1/2 in |

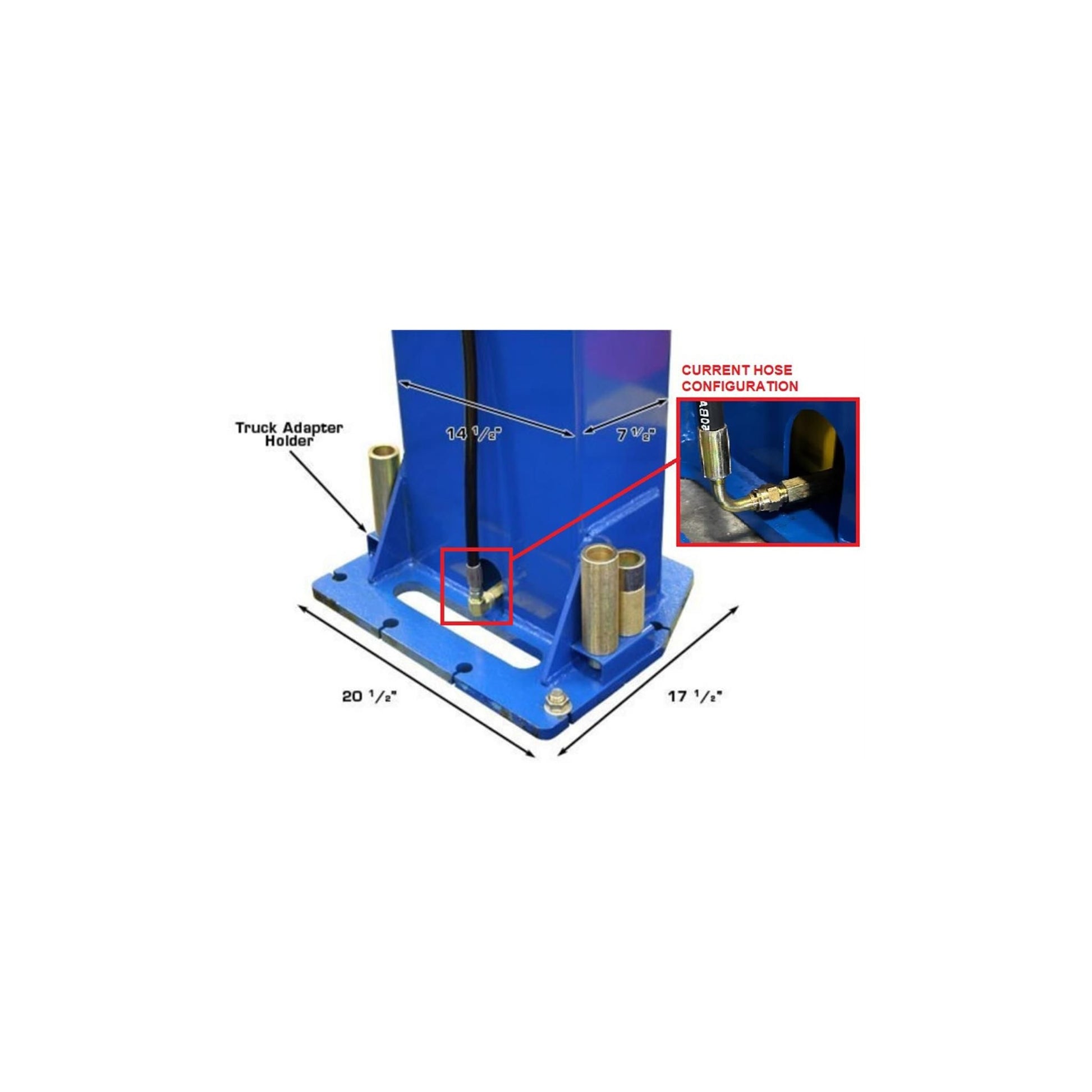

| Base Size | 17 1/2 in × 20 1/2 in |
| Hydraulic System | Direct-Drive Hydraulic Cylinders |

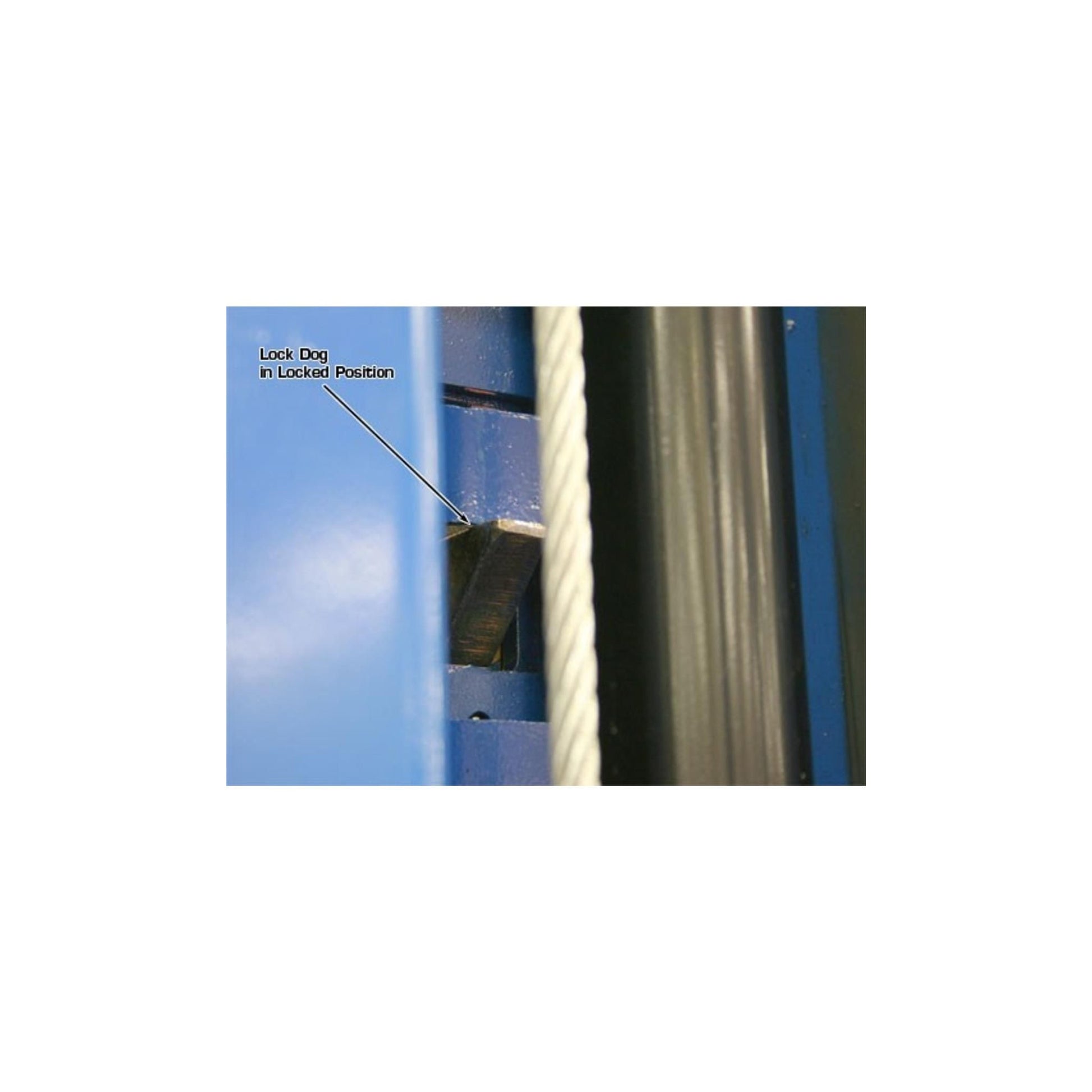

| Lock Release | Single-Point Lock Release |
| Power Requirements | 220V, Single-Phase (30 Amp Breaker Recommended) |
| Hydraulic Oil Required | 3–5 Gallons AW32/AW46 (Not Included) |

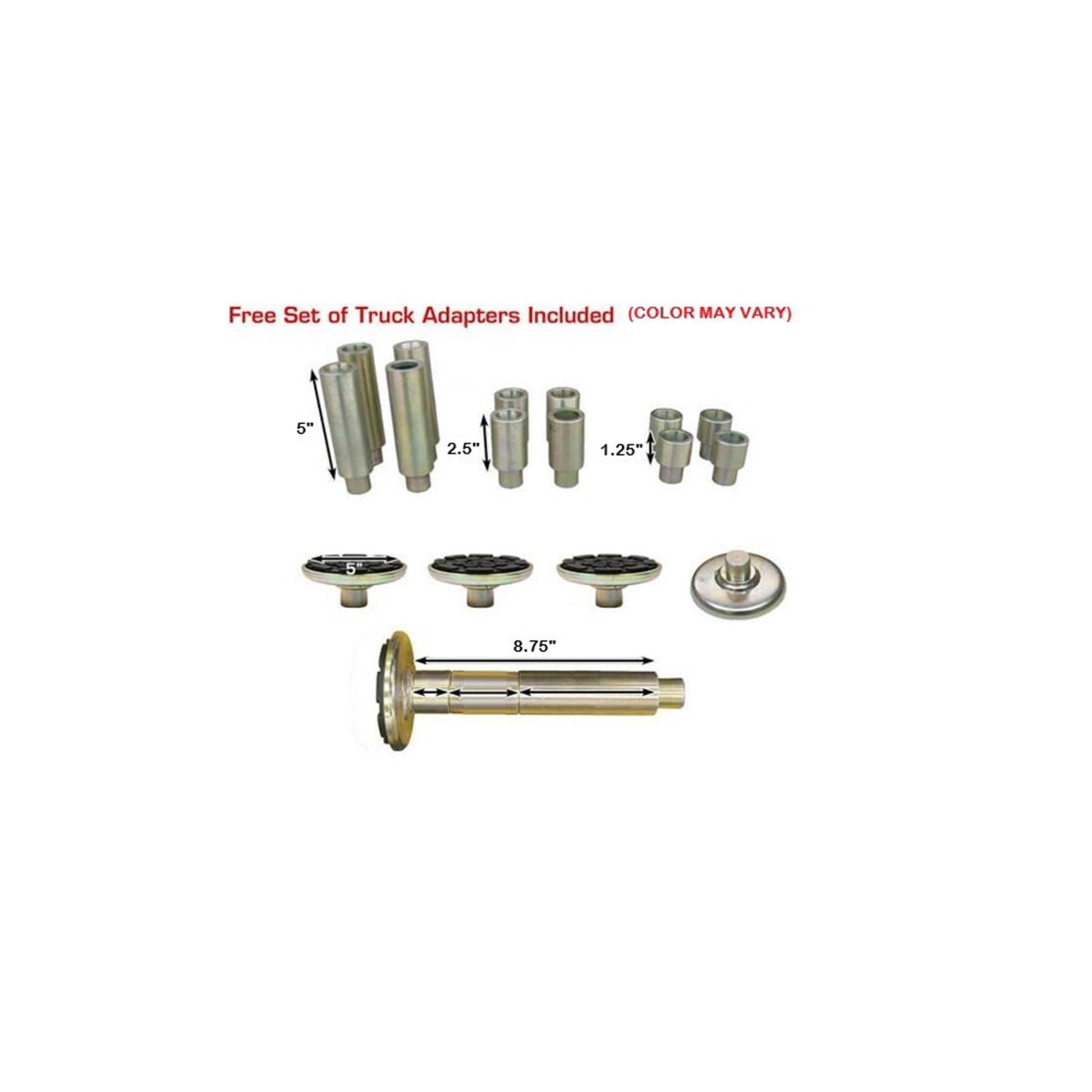

| Adapter Heights | Four 1.25 in, Four 2.5 in, Four 5 in Adapters Included |
| Adapter Peg Size | 1.5 in |
| Minimum Concrete Requirement | 4 in Thick, 3,000 PSI |
| Finish | Powder Coat |
| Shipping Weight | 1,875 lb |
| Warranty | 5-Year Structural / 2-Year Hydraulic (Parts Only) |
```
