Atlas WB49-2 PRO Computerized Wheel Balancer | Automatic 3D Data Entry | Split-Weight | 10"–32" Rim Capacity | 110V

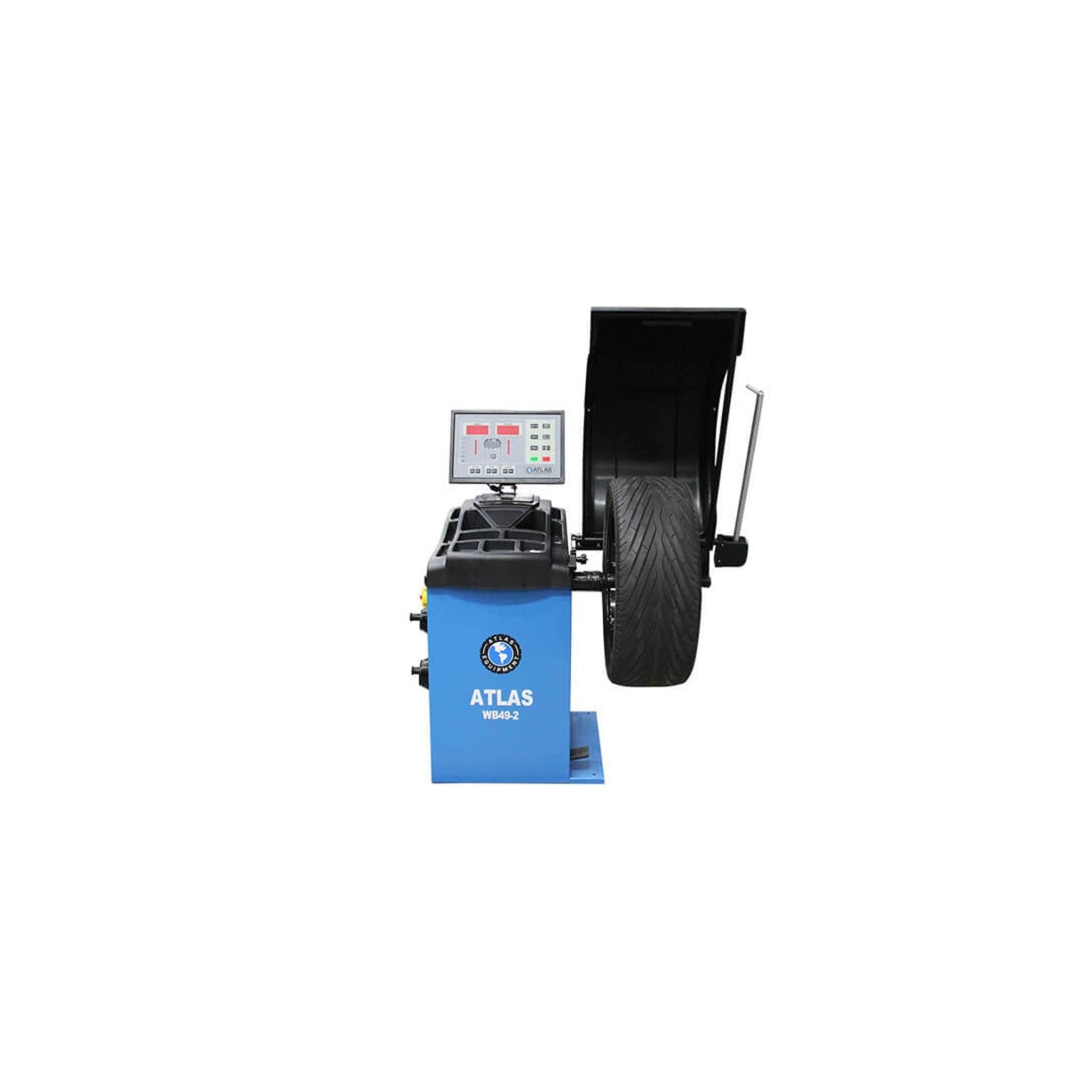

The Atlas WB49-2 PRO is the flagship model in the Atlas computerized wheel balancer lineup, engineered for professional tire shops, automotive dealerships, performance centers, and high-volume service facilities that demand maximum speed and precision. Building upon the advanced WB49-2 platform, the PRO model adds Automatic 3D Data Entry, allowing all three wheel dimensions—offset, diameter, and width—to be measured automatically for faster setup and greater technician efficiency.
Designed for passenger vehicles, SUVs, and light trucks, the WB49-2 PRO eliminates manual dimension entry, significantly reducing balancing time while improving consistency and accuracy. Combined with automatic wheel positioning, Split-Weight functionality, automatic LED rim illumination, and advanced computerized balancing technology, the WB49-2 PRO delivers premium performance for modern wheel service operations.
The balancer features a raised LED display for improved visibility, a large wheel weight tray for organized storage, automatic hood start and stop operation, static and dynamic balancing modes, Rapid Optimization (OPT), self-diagnostics, and self-calibration. Built with plug-and-play electrical components, the WB49-2 PRO is easy to maintain while delivering dependable long-term performance.
Complete with a plastic quick-release wing nut, four centering cones, wheel weight pliers, and measuring calipers, the Atlas WB49-2 PRO is ready for immediate installation and backed by a 1-Year Parts Only Warranty.
Key Features
- Computer-controlled motorized spin wheel balancer.

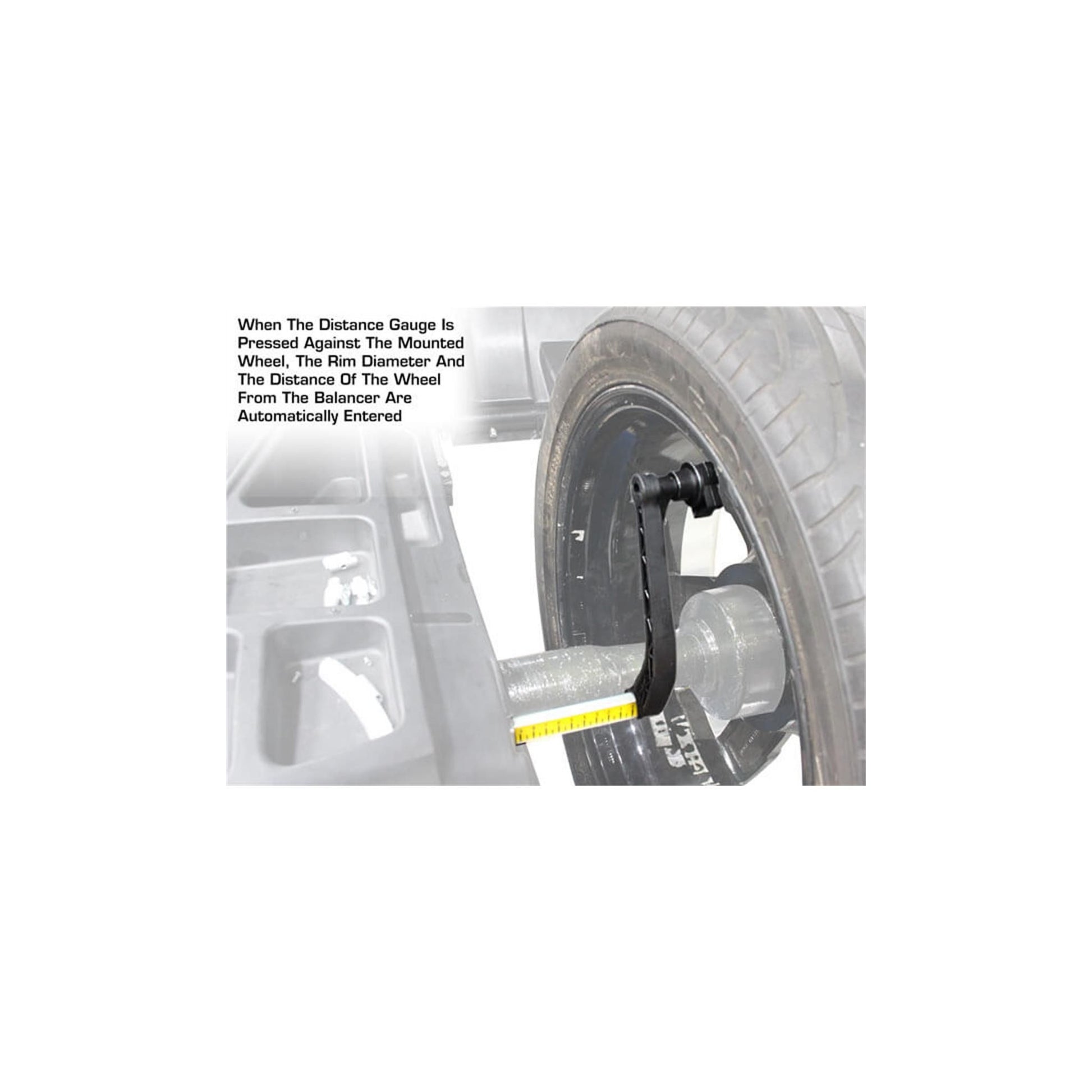

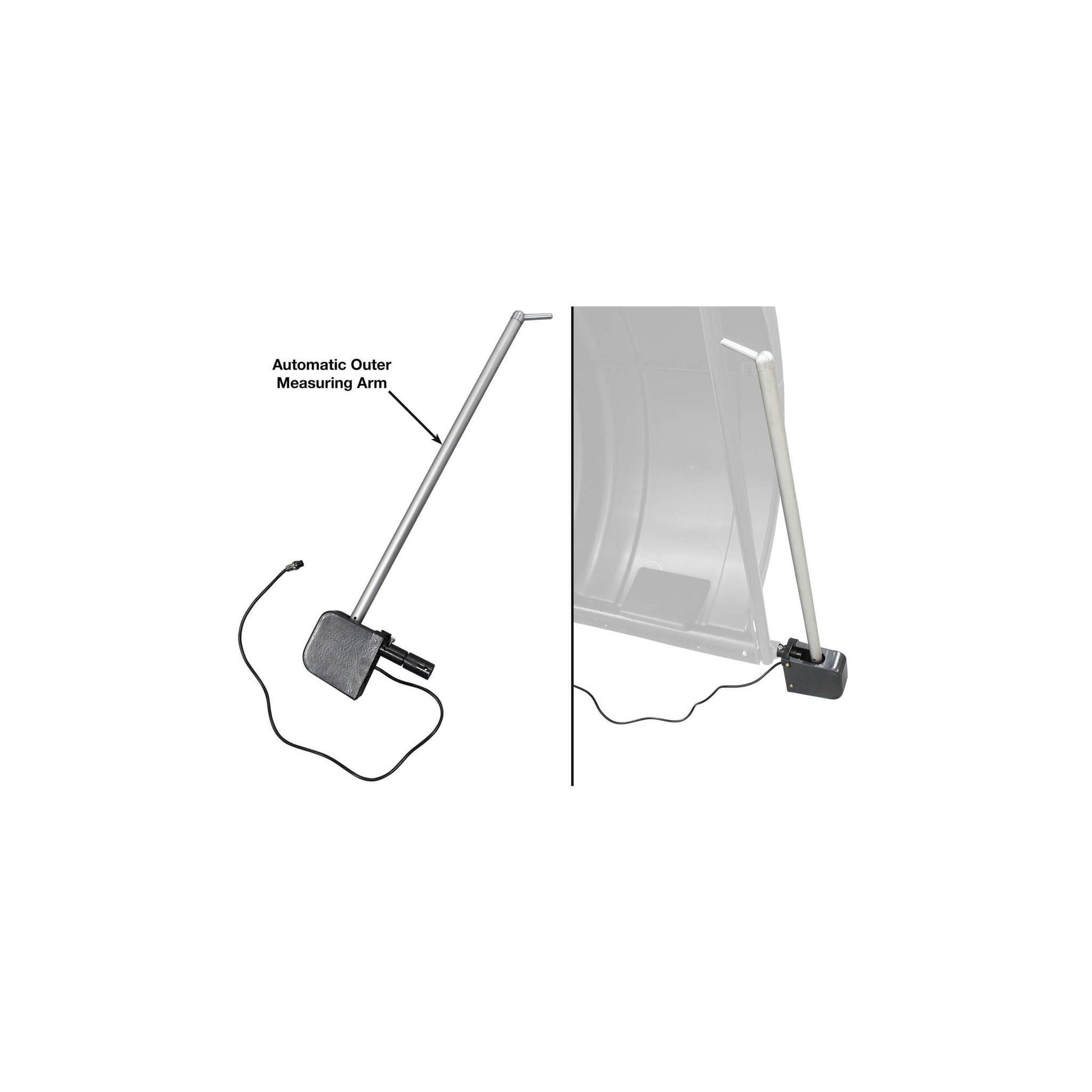

- Fully automatic 3D data entry for wheel diameter, offset, and width.

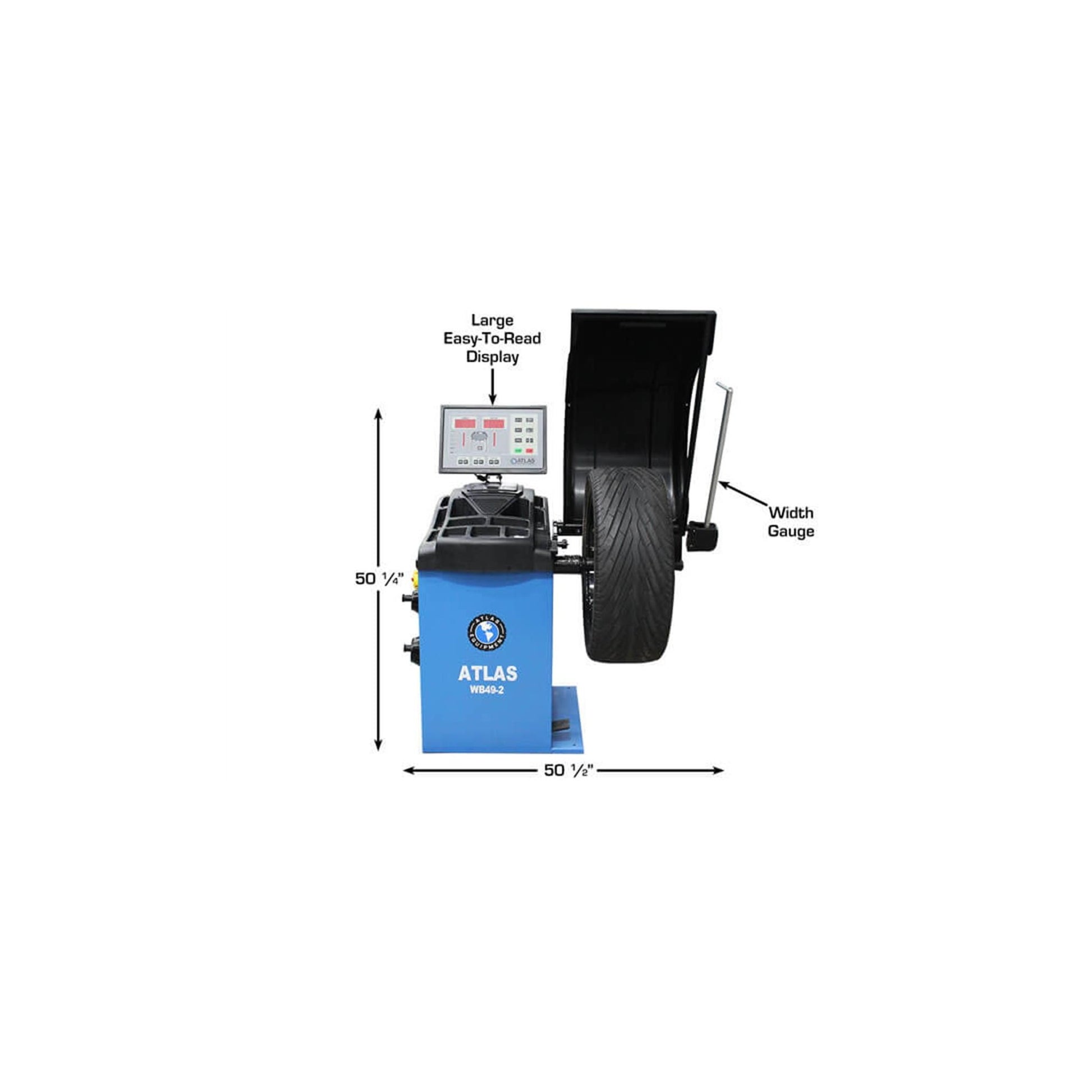

- Raised LED display for improved visibility and operator comfort.
- Large integrated wheel weight storage tray.
- Split-Weight function hides adhesive weights behind wheel spokes.
- Automatic LED work light illuminates the inside of the wheel.
- Automatic wheel positioning for faster weight placement.
- Automatic start when hood is lowered.
- Automatic stop when hood is raised.
- Automatic and pedal-operated braking system.
- Static and dynamic balancing modes.
- Rapid Optimization (OPT) function.
- Self-diagnostic error reporting.
- Self-calibration capability.
- Exceptional 1-gram balancing accuracy.
- Displays measurements in grams or ounces.
- Displays dimensions in inches or millimeters.
- No floor anchoring required.
- Plug-and-play electrical components simplify maintenance.
- Replacement parts and wear items readily available.
- 1-Year Parts Only Warranty.

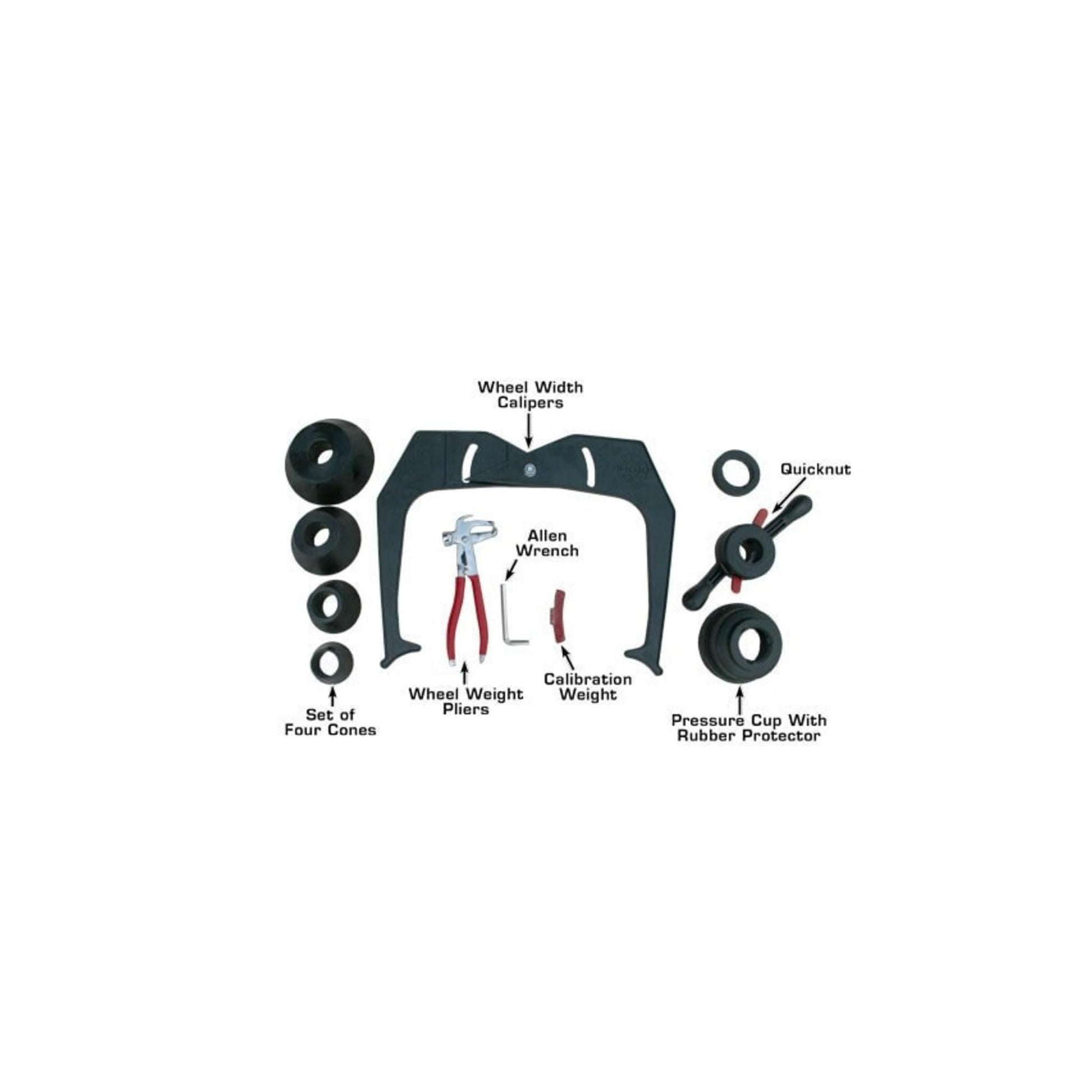

Included Accessories
- Plastic quick-release wing nut

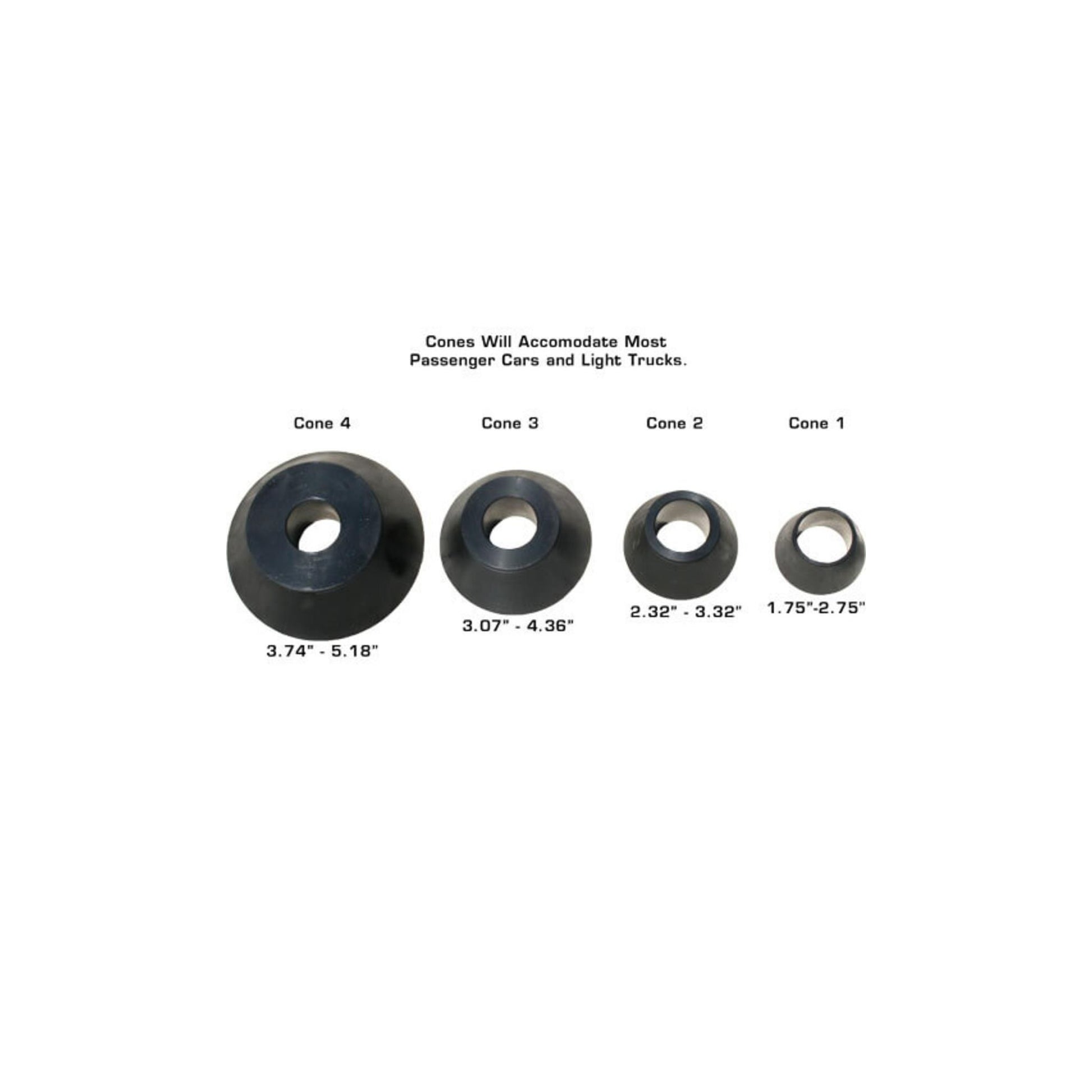

- Four centering cones
- Wheel weight pliers
- Measuring calipers
Ideal Applications
- Professional tire shops
- Automotive dealerships
- Performance wheel specialists
- Fleet maintenance facilities
- Commercial automotive repair centers
- High-volume tire service operations
- Passenger vehicles
- SUVs
- Light trucks
- Custom wheel installations

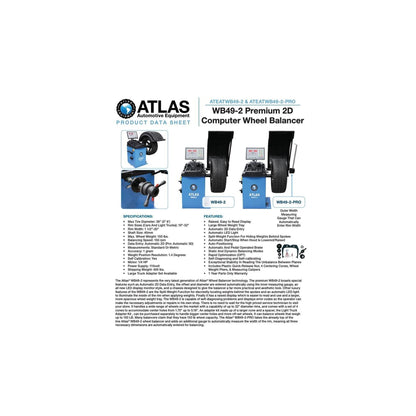

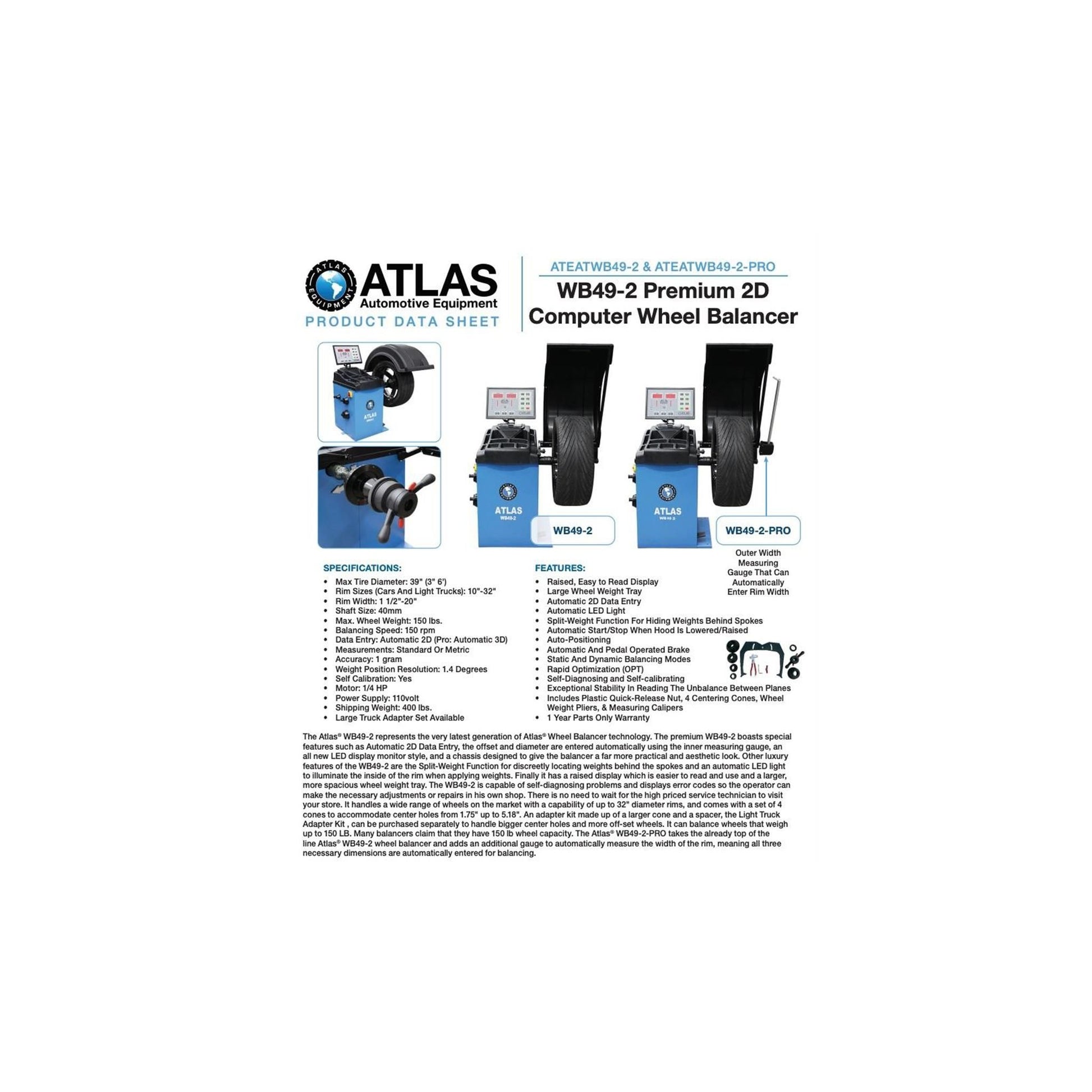

Specifications
| Brand | Atlas |
| Model | WB49-2 PRO |
| Machine Type | Computerized Motorized Spin Wheel Balancer |
| Maximum Tire Diameter | 39 in. |
| Supported Rim Diameter | 10"–32" |
| Supported Rim Width | 1 1/2"–20" |
| Maximum Wheel Weight | 150 lb. |

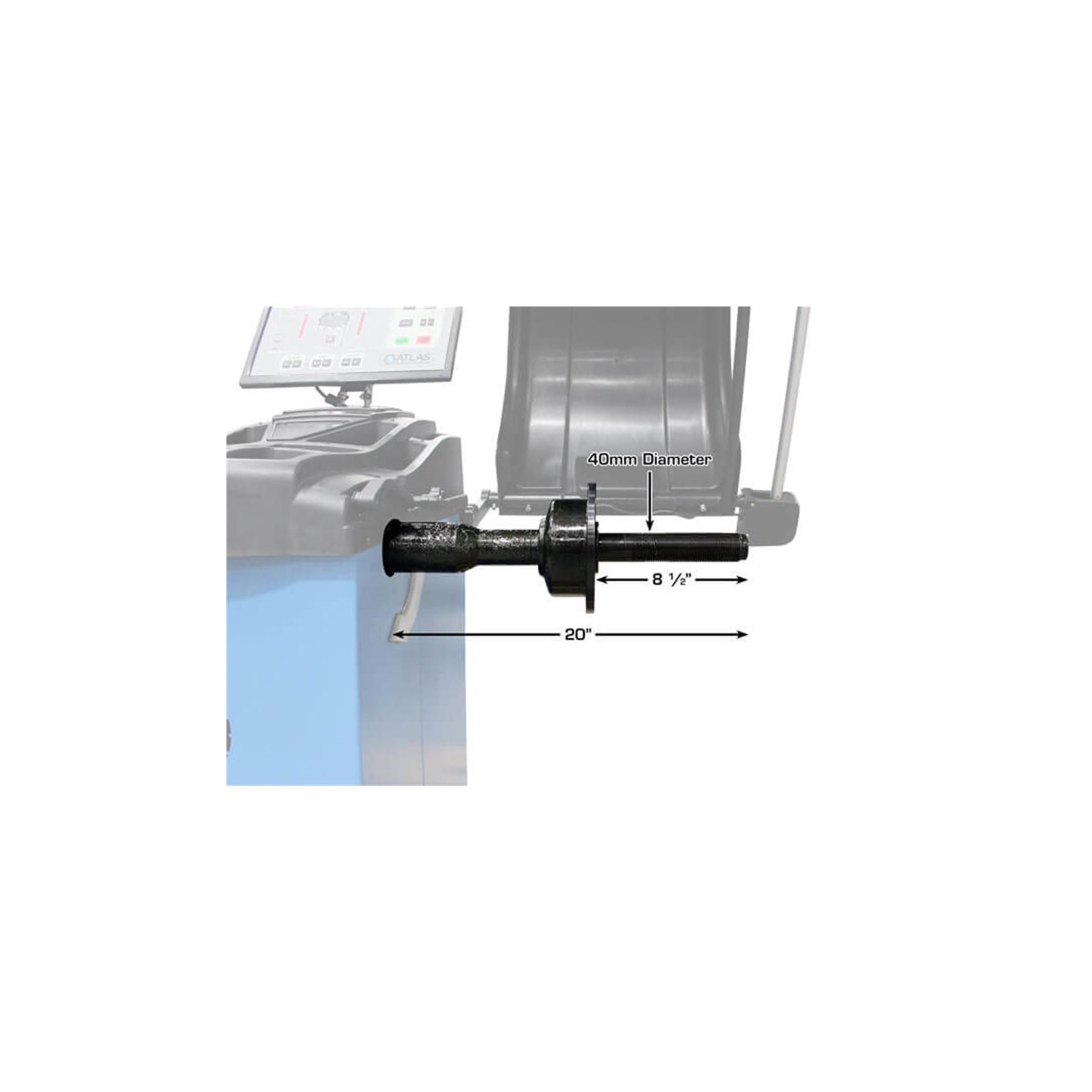

| Shaft Diameter | 40 mm |
| Balancing Speed | 150 RPM |
| Data Entry | Fully Automatic 3D |
| Balancing Modes | Static & Dynamic |
| Measurement Units | Standard or Metric |
| Accuracy | 1 Gram |
| Weight Position Resolution | 1.4° |
| Split Weight Function | Yes |
| Automatic LED Work Light | Yes |
| Automatic Wheel Positioning | Yes |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110 Volt |
| Installation | Free Standing – No Anchoring Required |
| Included Accessories | Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, Measuring Calipers |
| Shipping Weight | 400 lb. |
| Warranty | 1-Year Parts Only Warranty |
```
