Atlas WB49-2 Computerized Wheel Balancer | Automatic 2D Data Entry | Split-Weight | 10"–32" Rim Capacity | 110V

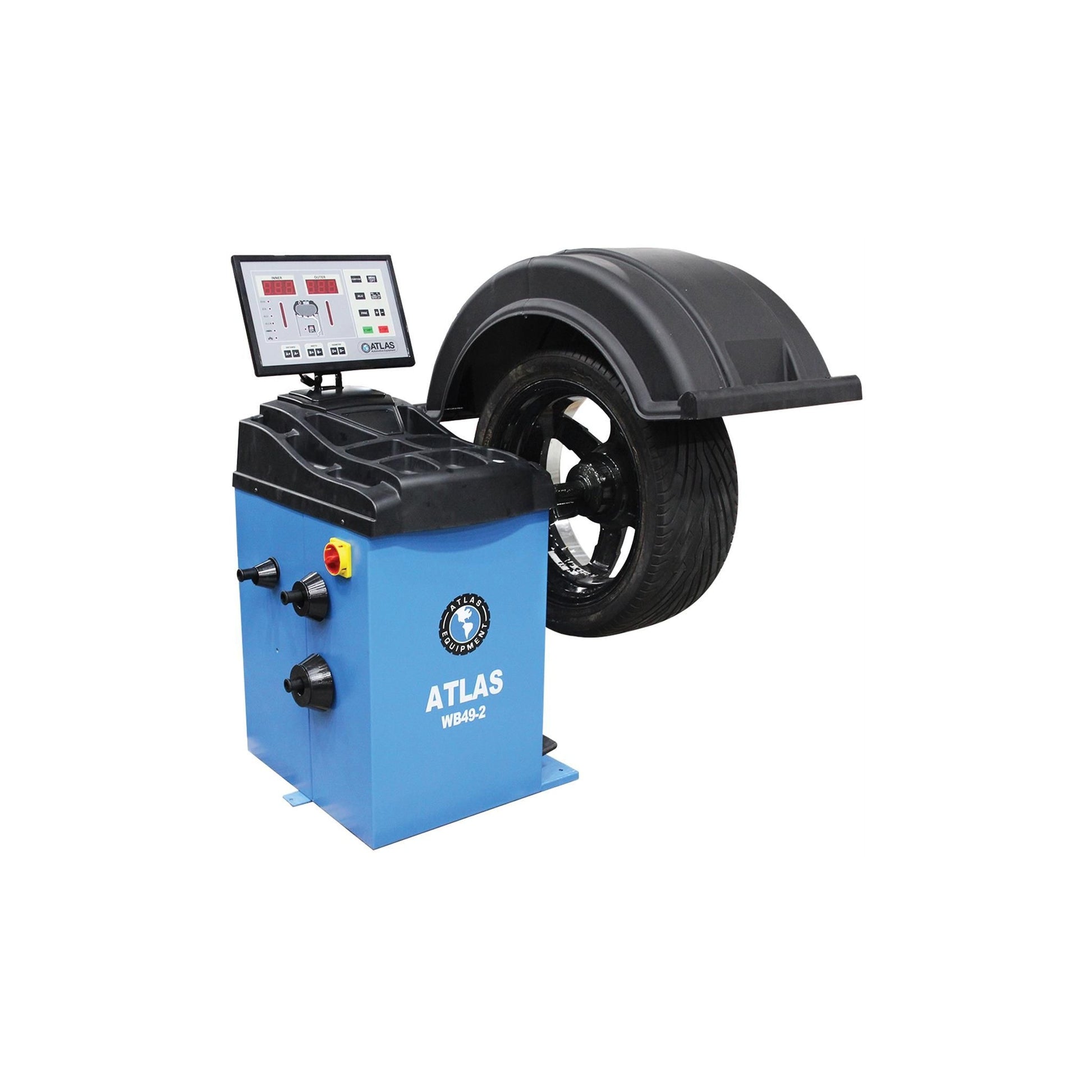

The Atlas WB49-2 is a premium computerized wheel balancer engineered for professional tire shops, automotive repair facilities, dealerships, and fleet maintenance operations. Featuring the latest generation of Atlas balancing technology, the WB49-2 combines automatic data entry, advanced balancing functions, and user-friendly controls to improve productivity while delivering exceptional balancing accuracy.
Designed to handle passenger cars, SUVs, and light trucks, the WB49-2 features Automatic 2D Data Entry using the integrated measuring arm to automatically capture wheel offset and diameter. Shops can further upgrade to Automatic 3D Data Entry by adding the optional width measuring gauge (sold separately), reducing setup time even further.
The premium feature set includes Split-Weight functionality for hiding adhesive wheel weights behind wheel spokes, an automatic LED work light that illuminates the inside of the rim during weight placement, and automatic wheel positioning for faster, more efficient balancing. Combined with automatic hood start/stop, static and dynamic balancing modes, Rapid Optimization (OPT), self-diagnostics, and self-calibration, the WB49-2 provides everything today's professional technician needs for fast and accurate wheel service.
A raised display improves visibility and ergonomics, while the oversized wheel weight tray keeps tools and wheel weights organized for maximum efficiency. Built with plug-and-play electrical components for simplified servicing and backed by a 1-Year Parts Only Warranty, the Atlas WB49-2 offers advanced performance with dependable long-term reliability.
Key Features
- Computer-controlled motorized spin wheel balancer.
- Automatic 2D data entry using integrated measuring arm.
- Optional Automatic 3D data entry with width measuring gauge (sold separately).

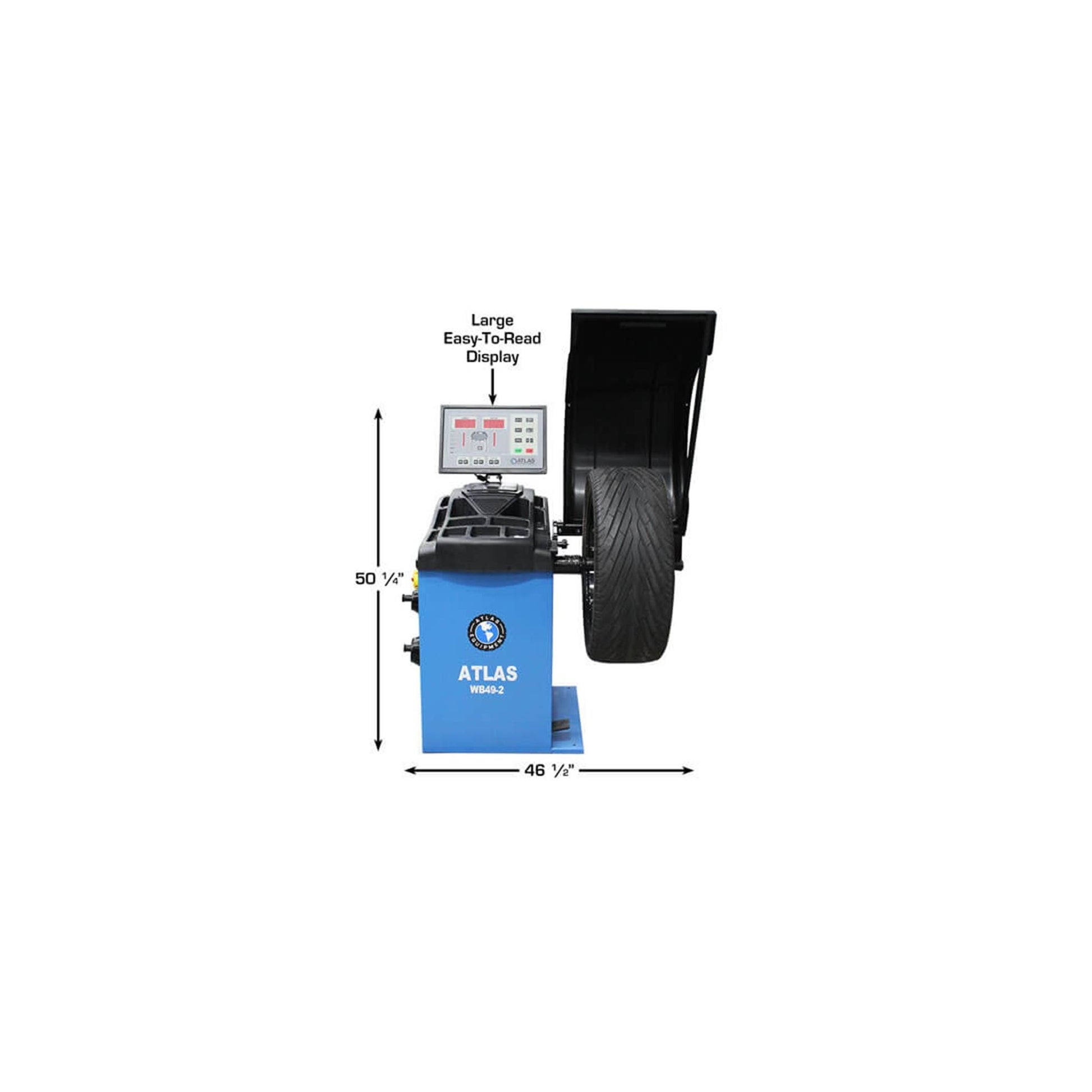

- Raised LED display for improved visibility.
- Large integrated wheel weight storage tray.
- Split-Weight function hides adhesive weights behind wheel spokes.
- Automatic LED work light illuminates the inside of the wheel.
- Automatic wheel positioning for faster weight placement.
- Automatic start when hood is lowered.
- Automatic stop when hood is raised.

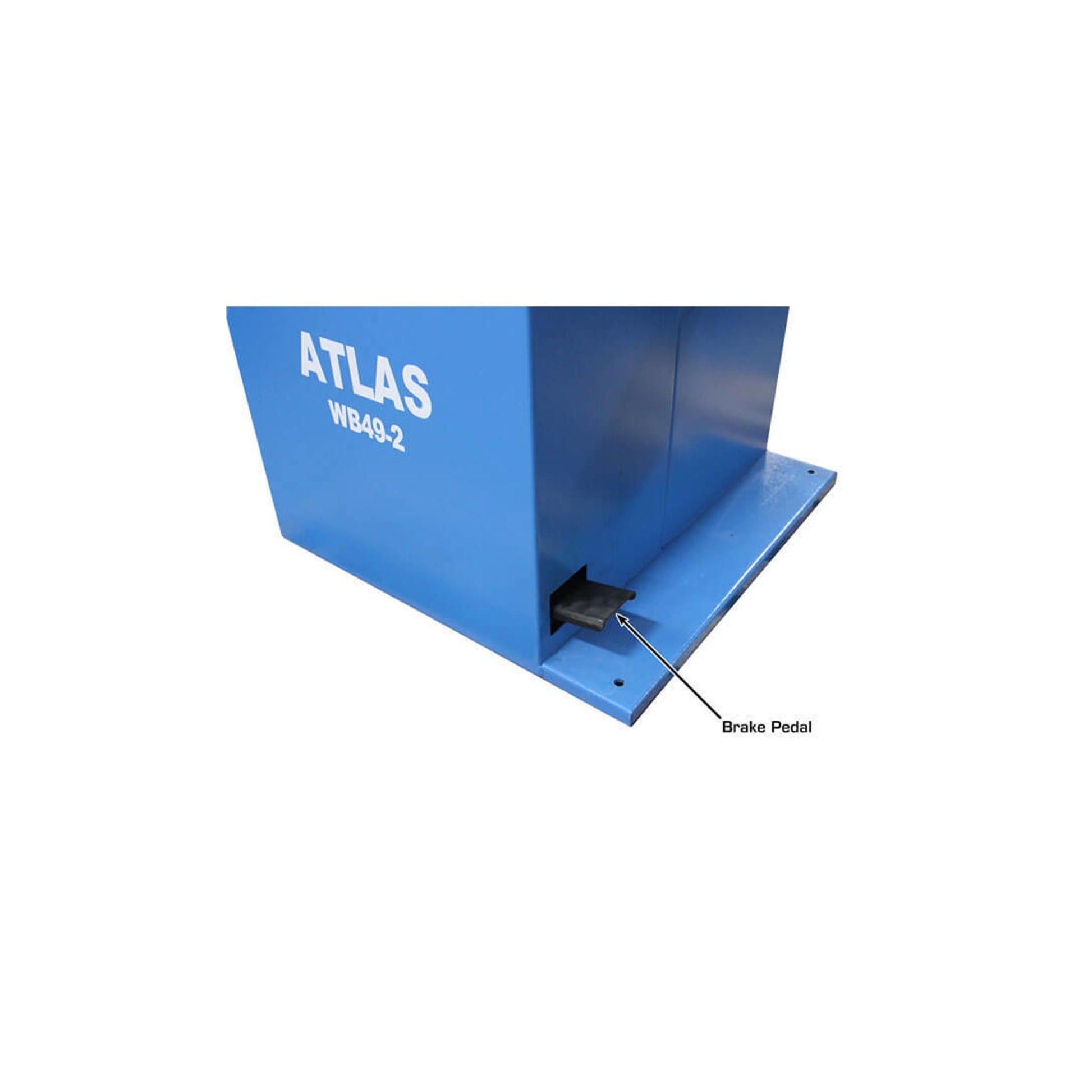

- Automatic and pedal-operated braking system.
- Static and dynamic balancing modes.
- Rapid Optimization (OPT) function.
- Self-diagnostic error reporting.
- Self-calibration capability.
- Exceptional 1-gram balancing accuracy.
- Displays measurements in grams or ounces.
- Displays dimensions in inches or millimeters.
- No floor anchoring required.
- Plug-and-play electrical components simplify maintenance.
- Replacement parts and wear items readily available.
- 1-Year Parts Only Warranty.

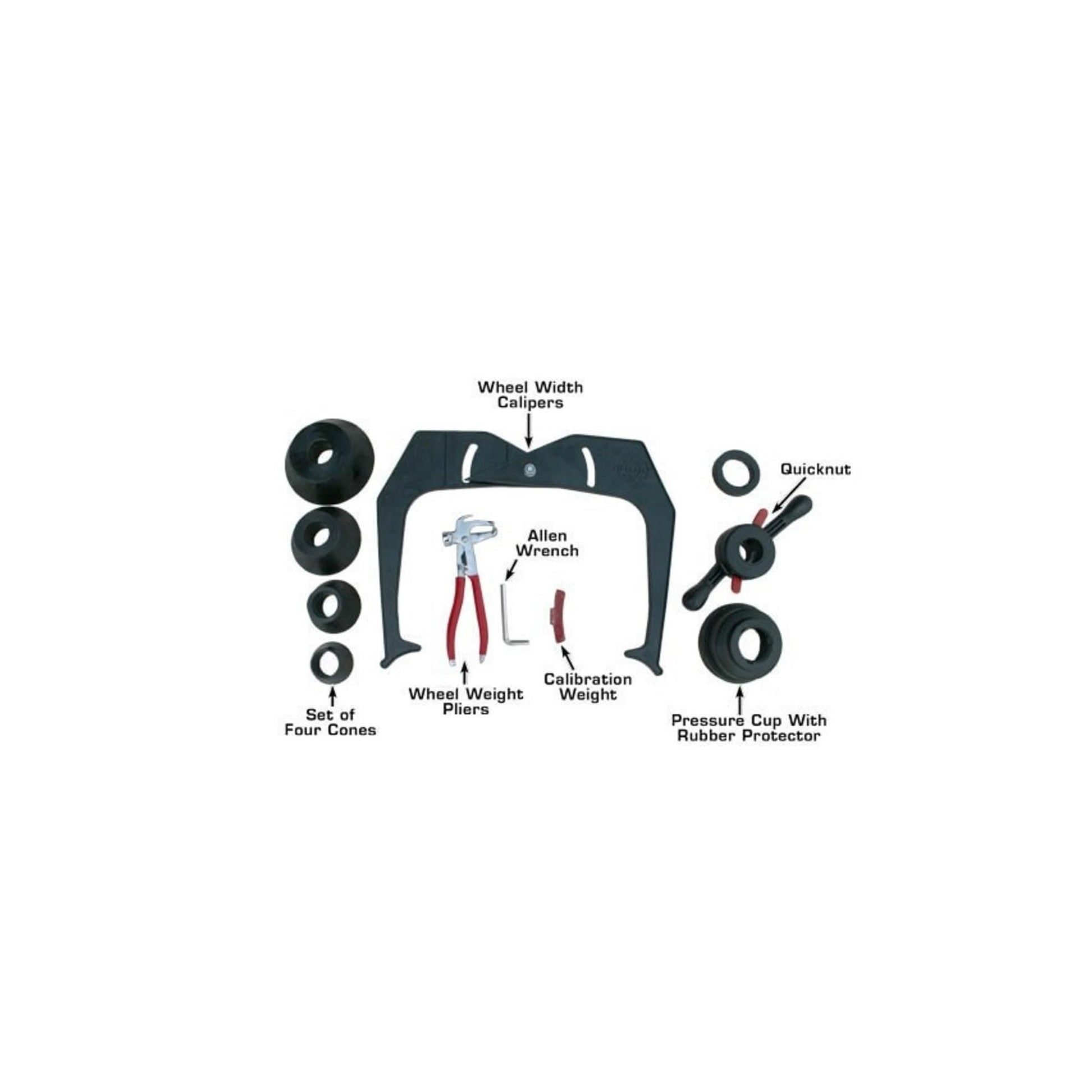

Included Accessories
- Plastic quick-release wing nut

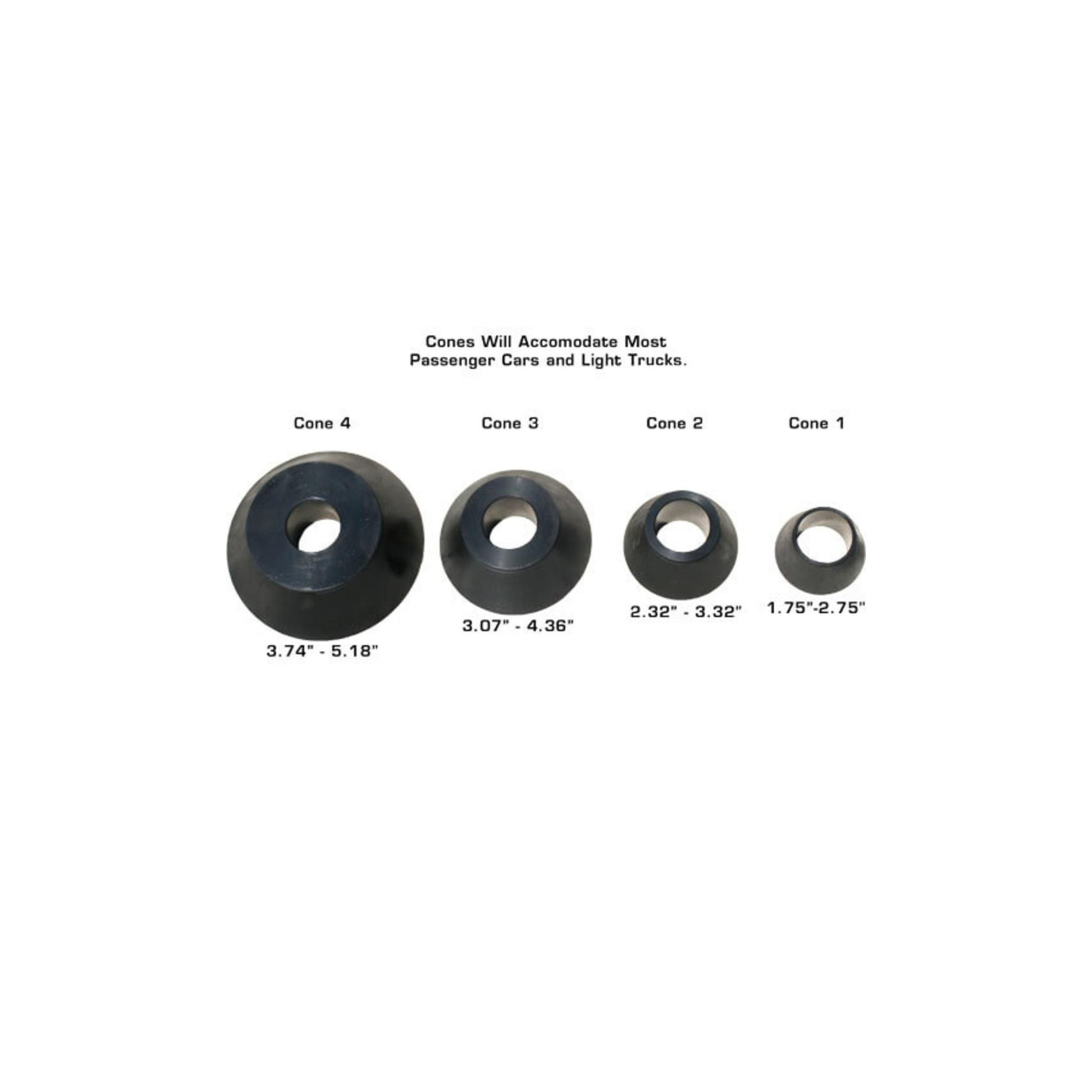

- Four centering cones
- Wheel weight pliers
- Measuring calipers
Ideal Applications
- Professional tire shops
- Automotive repair facilities
- Fleet maintenance shops
- Car dealerships
- Performance and custom wheel shops
- Passenger vehicles
- SUVs
- Light trucks
- Commercial automotive service centers
- High-volume wheel balancing operations
Specifications
| Brand | Atlas |
| Model | WB49-2 |
| Machine Type | Computerized Motorized Spin Wheel Balancer |
| Maximum Tire Diameter | 39 in. |
| Supported Rim Diameter | 10"–32" |
| Supported Rim Width | 1 1/2"–20" |
| Maximum Wheel Weight | 150 lb. |

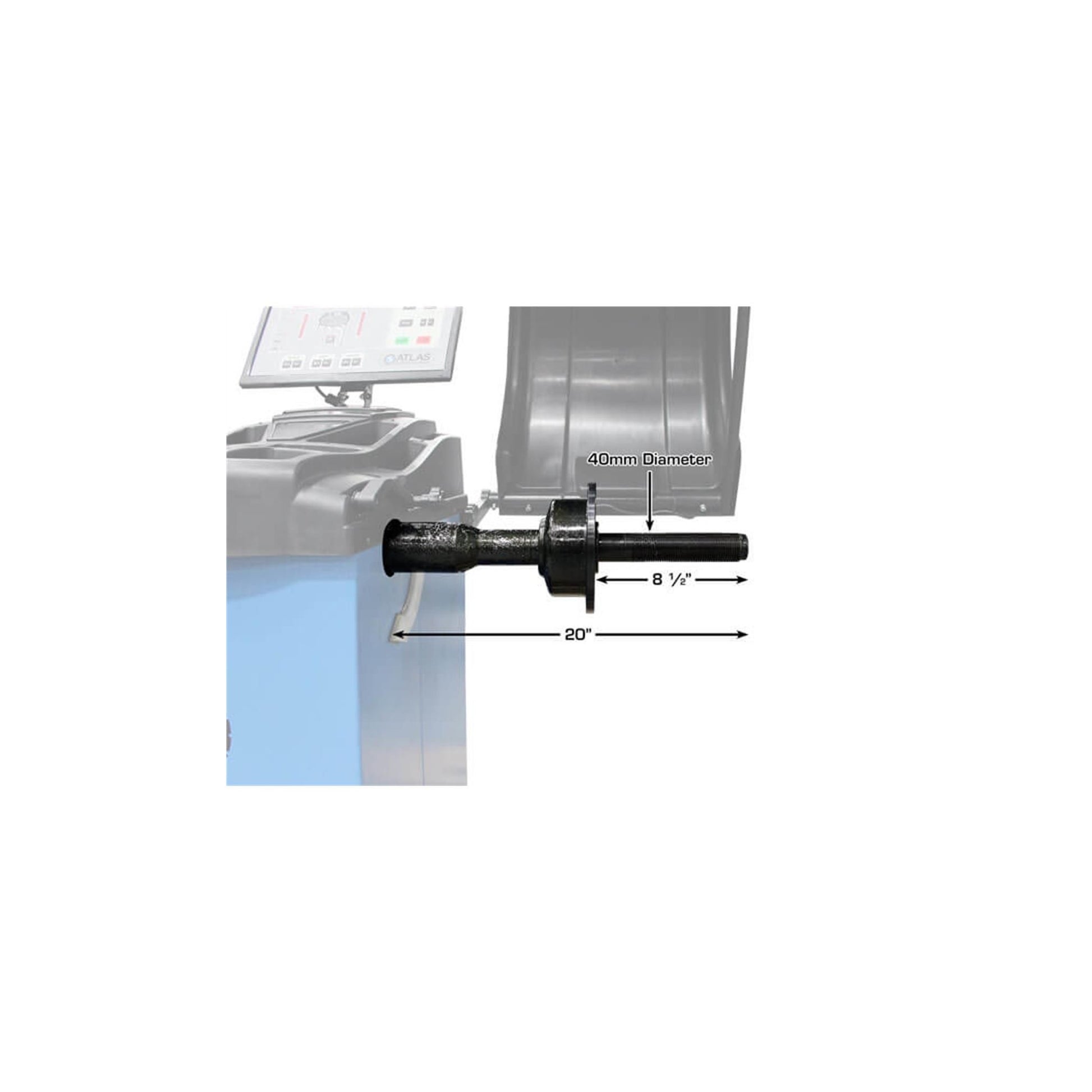

| Shaft Diameter | 40 mm |
| Balancing Speed | 150 RPM |
| Data Entry | Automatic 2D (Automatic 3D Optional) |
| Balancing Modes | Static & Dynamic |
| Measurement Units | Standard or Metric |
| Accuracy | 1 Gram |
| Weight Position Resolution | 1.4° |
| Split Weight Function | Yes |
| Automatic LED Work Light | Yes |
| Automatic Wheel Positioning | Yes |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110 Volt |
| Installation | Free Standing – No Anchoring Required |
| Included Accessories | Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, Measuring Calipers |
| Optional Accessory | Automatic 3D Width Measuring Gauge |
| Shipping Weight | 400 lb. |
| Warranty | 1-Year Parts Only Warranty |
```
