Atlas TTC306 Deluxe Automated Truck Tire Changer | 14"–56" Rim Capacity | 220V 3-Phase Super Duty Tire Machine

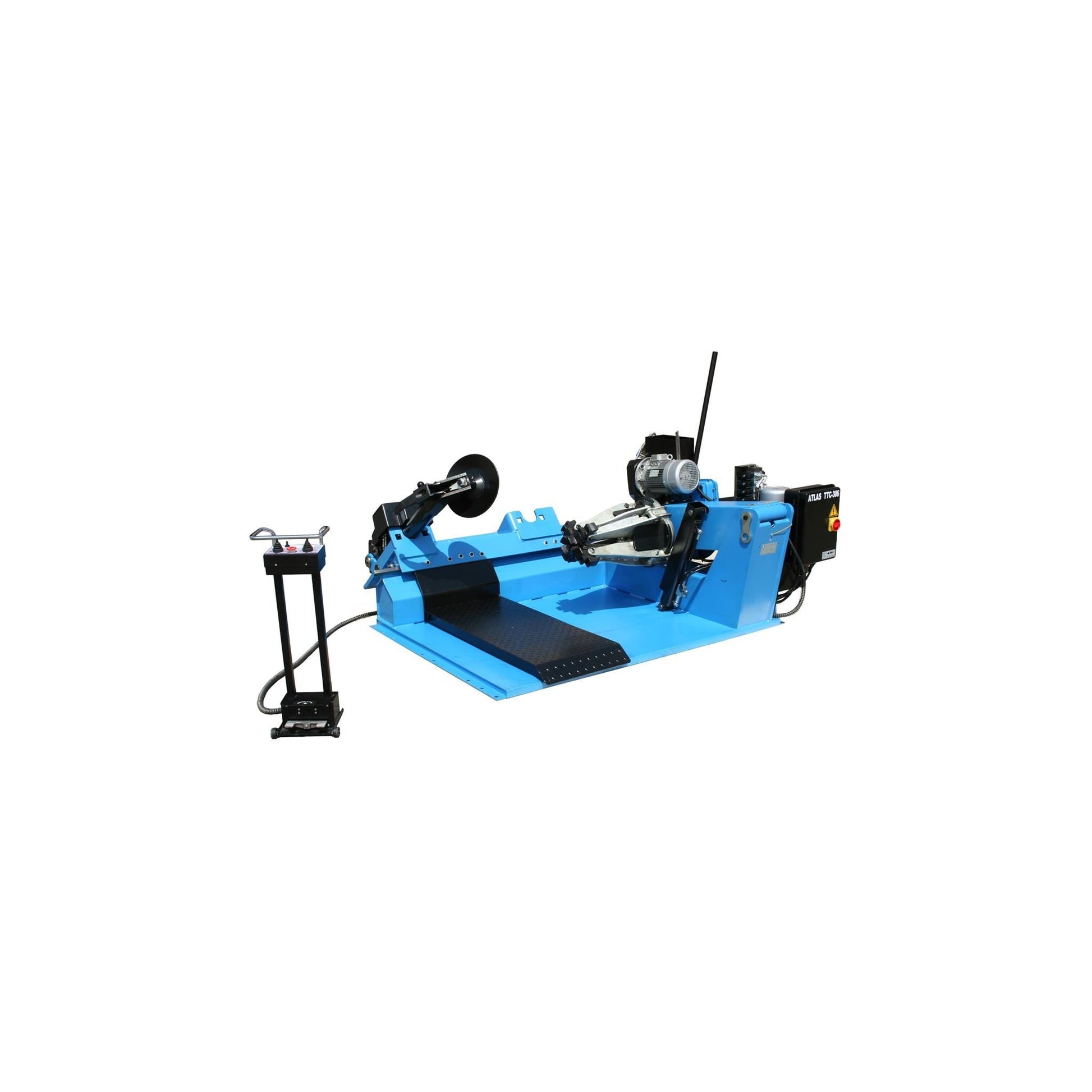

The Atlas TTC306 is a deluxe fully automated super-duty truck tire changer engineered for commercial truck tire dealerships, agricultural equipment service centers, mining operations, heavy equipment repair facilities, and high-production fleet maintenance shops. Designed to handle some of the industry's largest wheel and tire assemblies, the TTC306 combines advanced electro-hydraulic automation with exceptional lifting capacity to maximize productivity while minimizing operator effort.
Built to service rims from 14 to 46 inches as standard and up to 56 inches with the included clamping extensions, the TTC306 easily accommodates oversized agricultural, earthmover, forestry, mining, off-road, and commercial truck tires measuring up to 98 inches in diameter. Automatic positioning of the bead tool, carriage, and chuck arm allows technicians to service massive wheel assemblies quickly, accurately, and safely.
The powerful two-speed electric/hydraulic self-centering four-jaw chuck generates up to 13,173 pounds of clamping force while securely holding wheel assemblies weighing nearly two tons. The wired remote control console provides complete control over automatic machine functions, and an optional wireless control system is available to eliminate cables on the shop floor while allowing operators to work from virtually any position around the tire.
Constructed with a heavy-duty single-piece steel frame, premium hydraulic components, and professional-grade controls, the Atlas TTC306 delivers capabilities comparable to premium machines costing significantly more. Complete with clamping extensions, alloy wheel adapters, heavy-duty tire tools, and backed by a 1-year parts warranty, the TTC306 is the ideal solution for shops servicing commercial trucks, agricultural equipment, mining machinery, earthmovers, and oversized industrial vehicles.
Key Features
- Deluxe fully automated super-duty truck tire changer.
- 220 Volt, 3-phase commercial electrical operation.
- Automatic tool arm positioning.
- Automatic bead tool positioning.
- Automatic carriage movement.
- Two-speed electric/hydraulic self-centering four-jaw chuck.
- Five adjustable rim locking positions.
- Heavy-duty hydraulic bead breaker.
- Automatic mount/demount head positioning.
- Wired mobile control console included.
- Optional wireless remote control capability.
- Clamping extensions included for up to 56-inch rims.
- Single-piece commercial steel frame with solid floor plate.
- Designed for truck, agricultural, earthmover, mining, forestry, and off-road tires.
- Heavy-duty tire tool included.
- Steel and alloy rim clamps included.
- Alloy rim adapter set with plastic inserts included.
- Replacement parts and wear items readily available.
- Backed by a 1-year parts-only warranty.
Ideal Applications
- Commercial truck tire dealerships
- Agricultural equipment dealerships
- Mining equipment maintenance
- Earthmoving equipment service centers
- Forestry equipment repair facilities
- Large fleet maintenance operations
- Construction equipment maintenance
- Off-road tire service centers
- Industrial heavy equipment repair shops
- High-volume commercial tire operations
Specifications
| Brand | Atlas |
| Model | TTC306 |
| Machine Type | Deluxe Automated Super Duty Truck Tire Changer |
| Frame Construction | Single-Piece Frame with Solid Floor Plate |
| Electrical Supply | 220 Volt, 3 Phase |
| Rim Clamping Range | 14"–46" |
| Maximum Rim Capacity (with Extensions) | 56" |
| Maximum Wheel Weight | 3,968 lb |
| Maximum Tire Diameter | 98 in (8 ft 2 in) |
| Maximum Tire Width | 53 in |
| Wheel Chuck | 2-Speed Electric/Hydraulic Self-Centering Four-Jaw Chuck |
| Rim Locking Positions | 5 Positions |
| Clamping Force | 13,173 lb |
| Bead Breaker Force | 5,930 lb |
| Tool Arm Positioning | Automatic |
| Tool Head Positioning | Automatic |
| Operating Pressure | 0–1,885 PSI |
| Hydraulic Motor | 3 HP, 220V (+/-5%), 3 Phase |
| Chuck Motor | 3.5–4 HP, 220V (+/-5%), 3 Phase |
| Electrical Requirements | 220 Volt, 3 Phase, 30 Amp Breaker Required |
| Noise Level | <70 dBA |
| Shipping Weight | 2,260 lb |
| Control System | Wired Mobile Control Console (Wireless Optional) |
| Included Accessories | Heavy-Duty Tire Tool, Steel & Alloy Rim Clamps, Alloy Rim Adapter Set with Plastic Inserts, Clamping Extensions |
| Warranty | 1-Year Parts Only Warranty |
