Atlas STW-750 Heated Spray Wash Cabinet | 50 Gallon Industrial Parts Washer | 1,000 lb Capacity | Extra Tall | 220V

Atlas STW-750 Heated Spray Wash Cabinet | 50 Gallon Industrial Parts Washer | 1,000 lb Capacity | Extra Tall | 220V

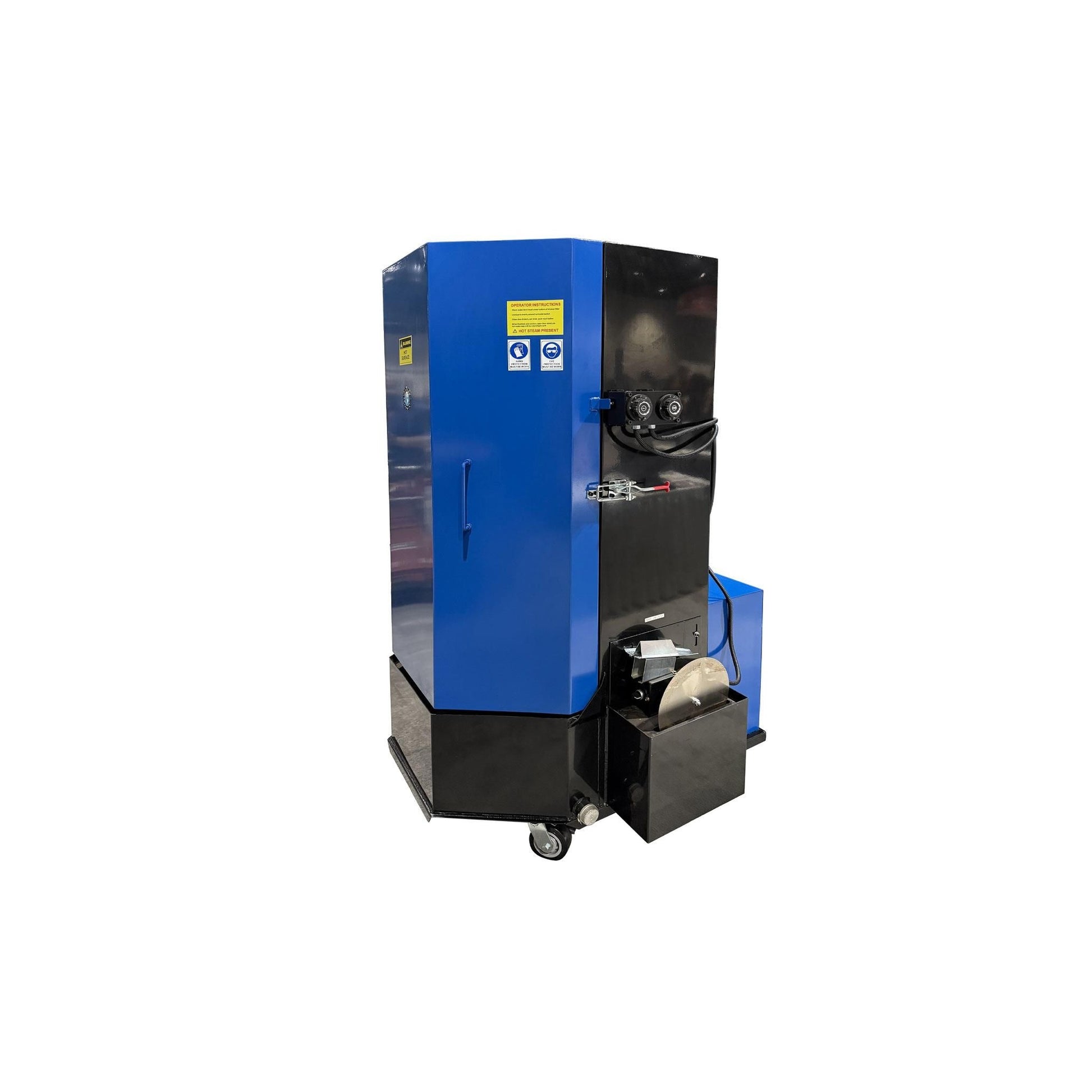

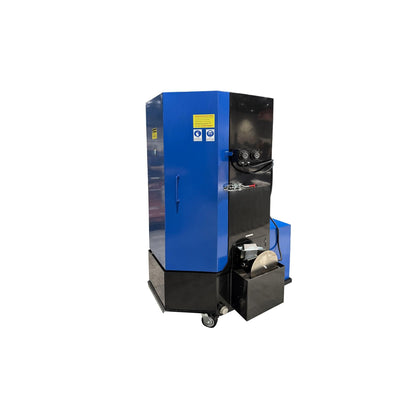

The Atlas STW-750 Spray Wash Cabinet is a professional-grade heated parts washer designed for automotive repair facilities, engine rebuilding shops, diesel service centers, machine shops, industrial maintenance departments, and manufacturing operations. Built with an extra-tall cleaning chamber, the STW-750 accommodates larger engines, transmissions, axle housings, and oversized mechanical components while delivering powerful, environmentally friendly cleaning performance.

The heavy-duty 1,000 lb capacity rotating turntable makes loading large components simple, while the cut-away cabinet design allows an engine crane to roll directly over the turntable for convenient loading and unloading. Twenty-two adjustable high-pressure spray nozzles work together with a high-output 43 GPM pump to thoroughly clean grease, oil, sludge, carbon deposits, and contaminants from every angle throughout the wash cycle.

The integrated heating system maintains cleaning solution temperatures between 135°F and 175°F for improved cleaning efficiency without the use of harsh solvents. An adjustable 60-minute timer automatically shuts the machine off at the end of each cycle, allowing technicians to work on other tasks while parts are being cleaned. A stainless steel oil skimmer helps extend cleaning solution life by removing floating oil, while the rugged 12-gauge steel cabinet and industrial powder-coated finish are built to withstand years of demanding commercial use.

Key Features

• Professional heated spray wash cabinet.
• Extra-large, extra-tall cleaning chamber.
• 50-gallon cleaning solution tank.
• Heavy-duty 1,000 lb capacity rotating turntable.
• 22 adjustable high-pressure spray nozzles.
• 43 GPM high-output wash pump.
• Heating system maintains temperatures from 135°F to 175°F.
• 60-minute timer with automatic shut-off.
• Built-in stainless steel oil skimmer extends solution life.
• Tree rack and parts basket included.
• Heavy-duty 12-gauge steel cabinet construction.
• Industrial powder-coated exterior finish.
• Large octagonal full-opening access door.
• Cut-away cabinet sides allow easy engine crane loading.
• Uses hot water and biodegradable detergents—no harsh solvents required.
• Freight prepaid.

Ideal Applications

• Automotive repair shops
• Engine rebuilding
• Transmission rebuilding
• Diesel repair facilities
• Industrial maintenance
• Machine shops
• Manufacturing facilities
• Fleet maintenance
• Agricultural equipment service
• Cleaning oversized mechanical components

Specifications

```
