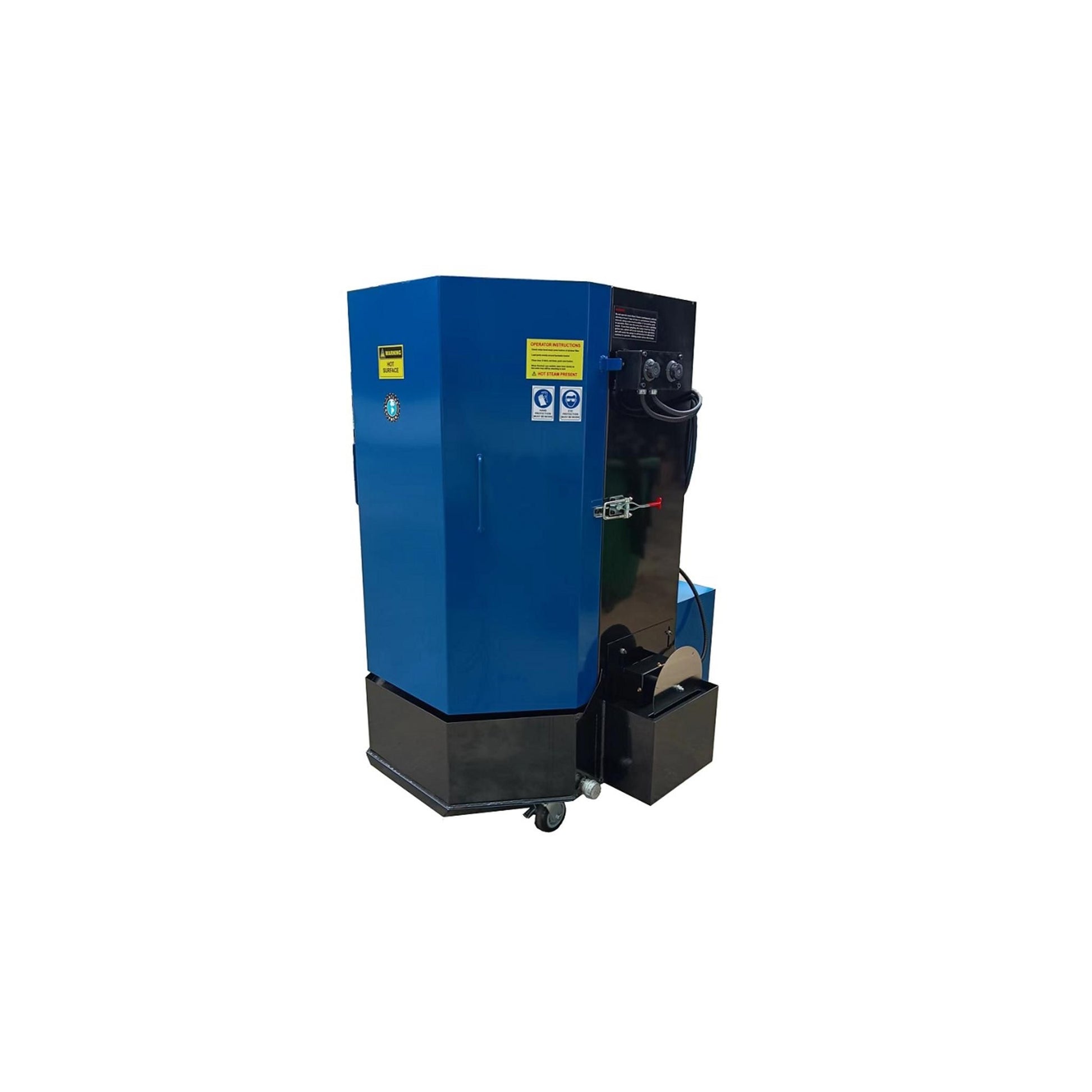

Atlas STW-500 Heated Spray Wash Cabinet | 50 Gallon Industrial Parts Washer | 1,000 lb Capacity | 220V
The Atlas STW-500 Spray Wash Cabinet is a heavy-duty heated parts washer designed for automotive repair shops, diesel service centers, machine shops, industrial maintenance facilities, and manufacturing operations. Utilizing high-pressure heated water and biodegradable detergents instead of harsh solvents, the STW-500 provides an environmentally friendly solution for removing grease, oil, carbon deposits, sludge, and contaminants from engines, transmissions, cylinder heads, and other heavy mechanical components.
Its durable 1,000-pound capacity rotating turntable accommodates large automotive and light truck components, while the cut-away cabinet design allows an engine crane to roll directly over the turntable for simplified loading and unloading. Nineteen adjustable stainless steel spray nozzles work together with a high-output 43 GPM pump to thoroughly clean parts from multiple angles throughout the wash cycle.
The integrated heating system maintains cleaning solution temperatures between 135°F and 175°F to improve cleaning performance, while the adjustable 60-minute timer automatically shuts the machine off at the end of each cycle. A built-in stainless steel oil skimmer extends solution life by removing floating oil, helping reduce maintenance and operating costs. Constructed from heavy-duty 12-gauge steel with an industrial powder-coated finish, the Atlas STW-500 is built to withstand years of demanding commercial use.
Key Features
- Professional heated spray wash cabinet.
- 50-gallon cleaning solution tank.
- Heavy-duty 1,000 lb capacity rotating turntable.
- High-performance 43 GPM spray pump.
- 19 adjustable stainless steel spray nozzles.
- Heated cleaning solution operating between 135°F and 175°F.
- 60-minute timer with automatic shut-off.
- Built-in stainless steel oil skimmer extends solution life.
- Tree rack and parts basket included.
- Heavy-duty 12-gauge steel cabinet construction.
- Industrial powder-coated exterior finish.
- Uses hot water and biodegradable detergents—no harsh cleaning solvents required.

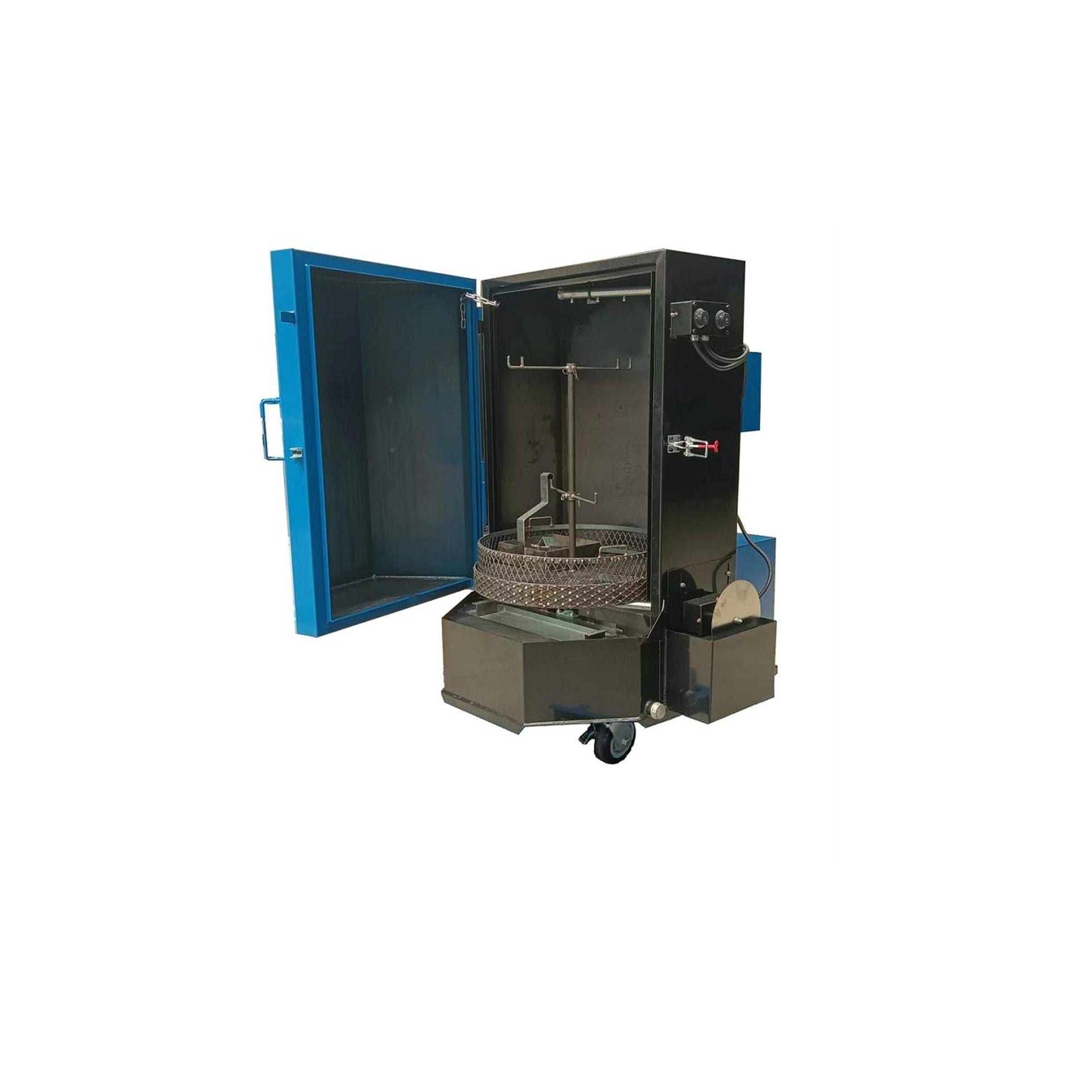

- Large full-opening octagonal door for easy loading.
- Cut-away cabinet sides accommodate engine crane loading.
- Freight prepaid.
Ideal Applications
- Automotive repair shops
- Engine rebuilding
- Transmission rebuilding
- Diesel repair facilities
- Industrial maintenance
- Machine shops
- Manufacturing facilities
- Fleet maintenance
- Agricultural equipment service
- Heavy grease and oil removal
Specifications
| Brand | Atlas |
| Model | STW-500 |
| Machine Type | Heated Spray Wash Cabinet |
| Tank Capacity | 50 Gallons |
| Turntable Capacity | 1,000 lb. |
| Turntable Diameter | 30" |
| Inside Height | 42" |
| Inside Width | 32" |

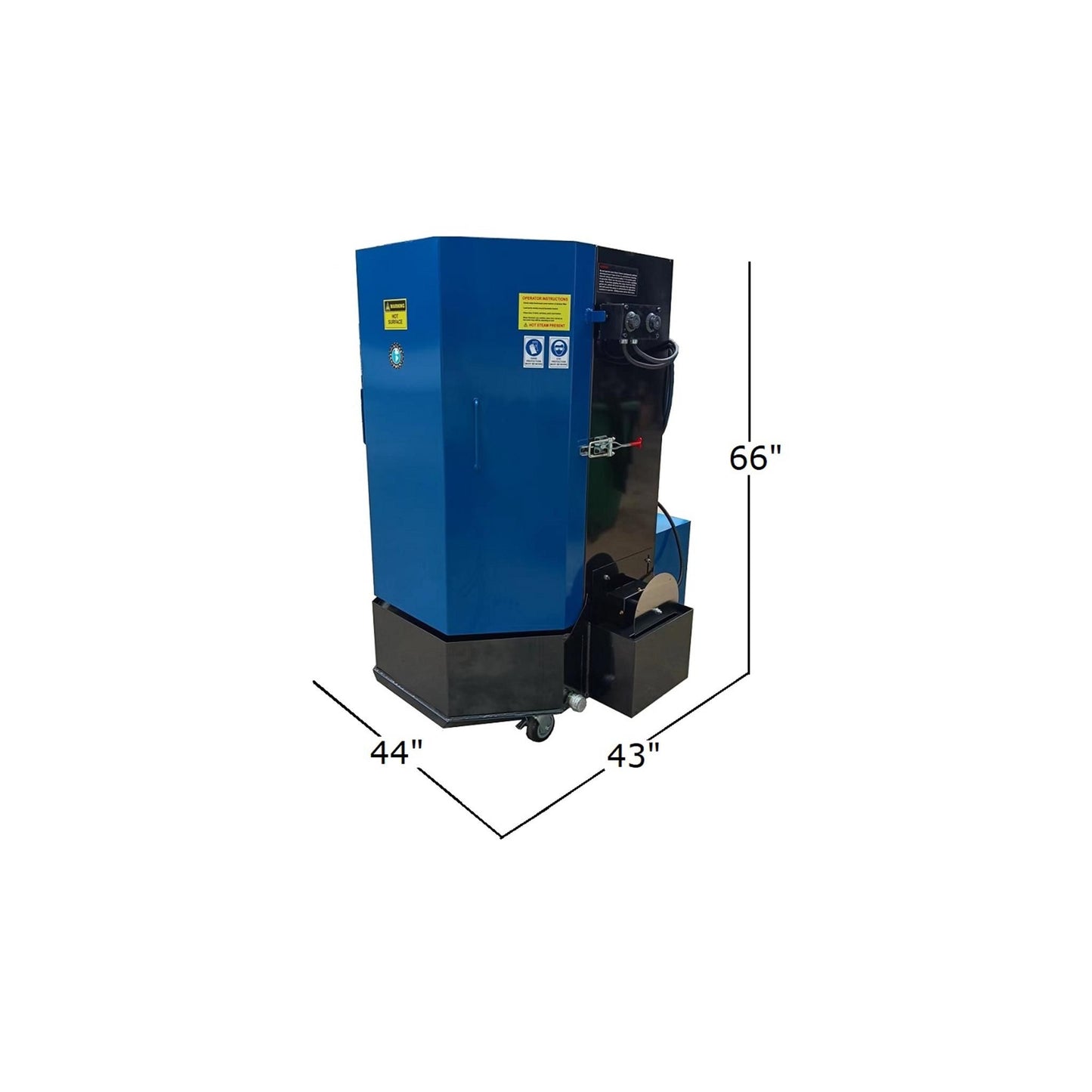

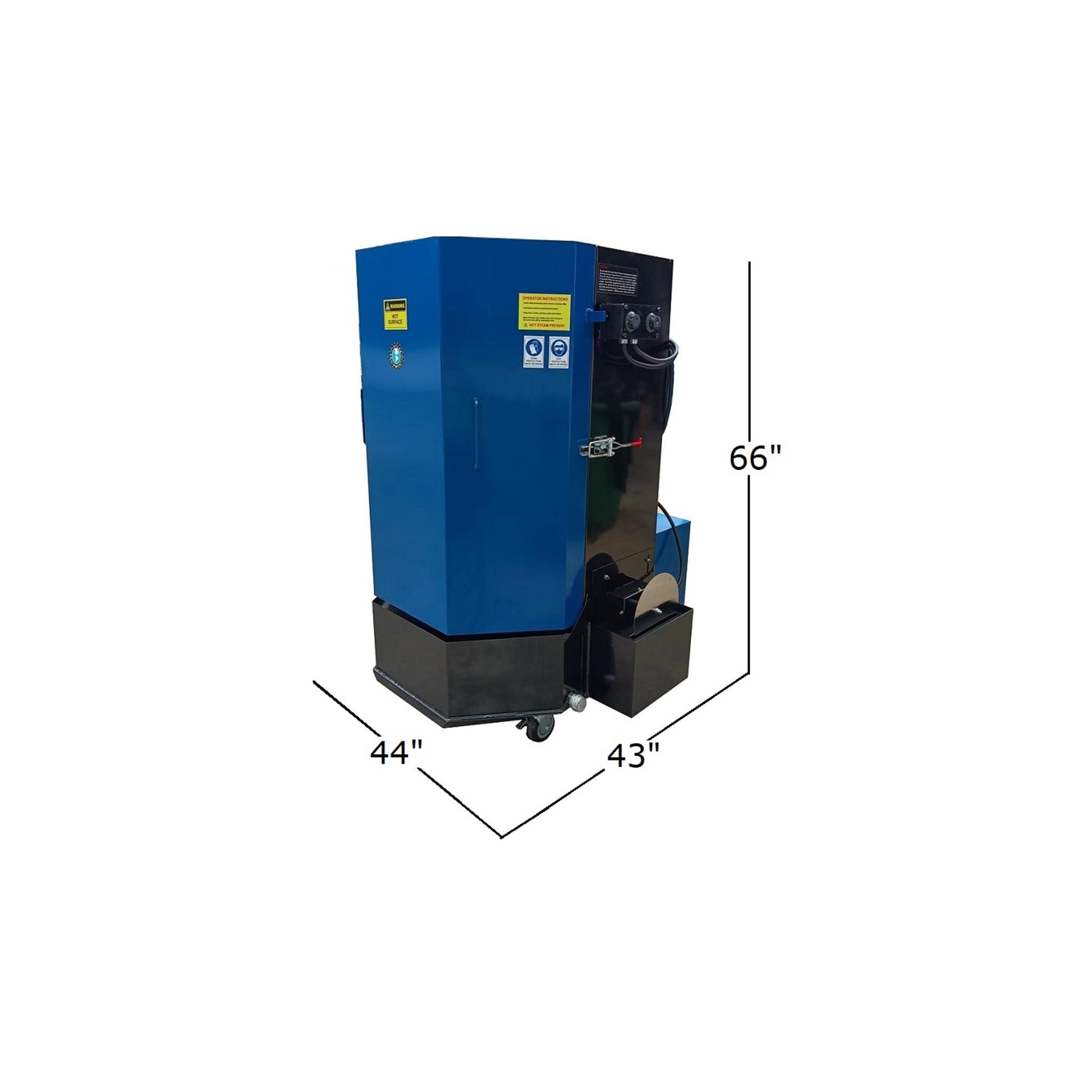

| Overall Dimensions | 44 3/8" L × 44 1/8" W × 66 3/4" H |
| Heating Temperature | 135°F – 175°F |
| Cycle Timer | 60 Minutes with Automatic Shut-Off |
| Spray Nozzles | 19 Adjustable Stainless Steel Nozzles |
| Pump Output | 28 PSI @ 43 GPM |
| Motor | 2 HP |
| Oil Skimmer | Included |
| Parts Tree & Basket | Included |
| Electrical Requirement | 220 Volt, Single Phase, 30 Amp Breaker Required |
| Shipping Weight | 750 lb. |
| Warranty | 1 Year Limited Parts Warranty |
```
