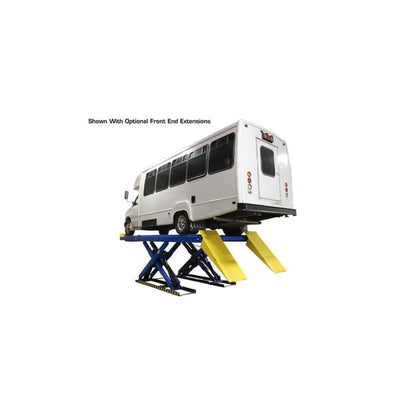

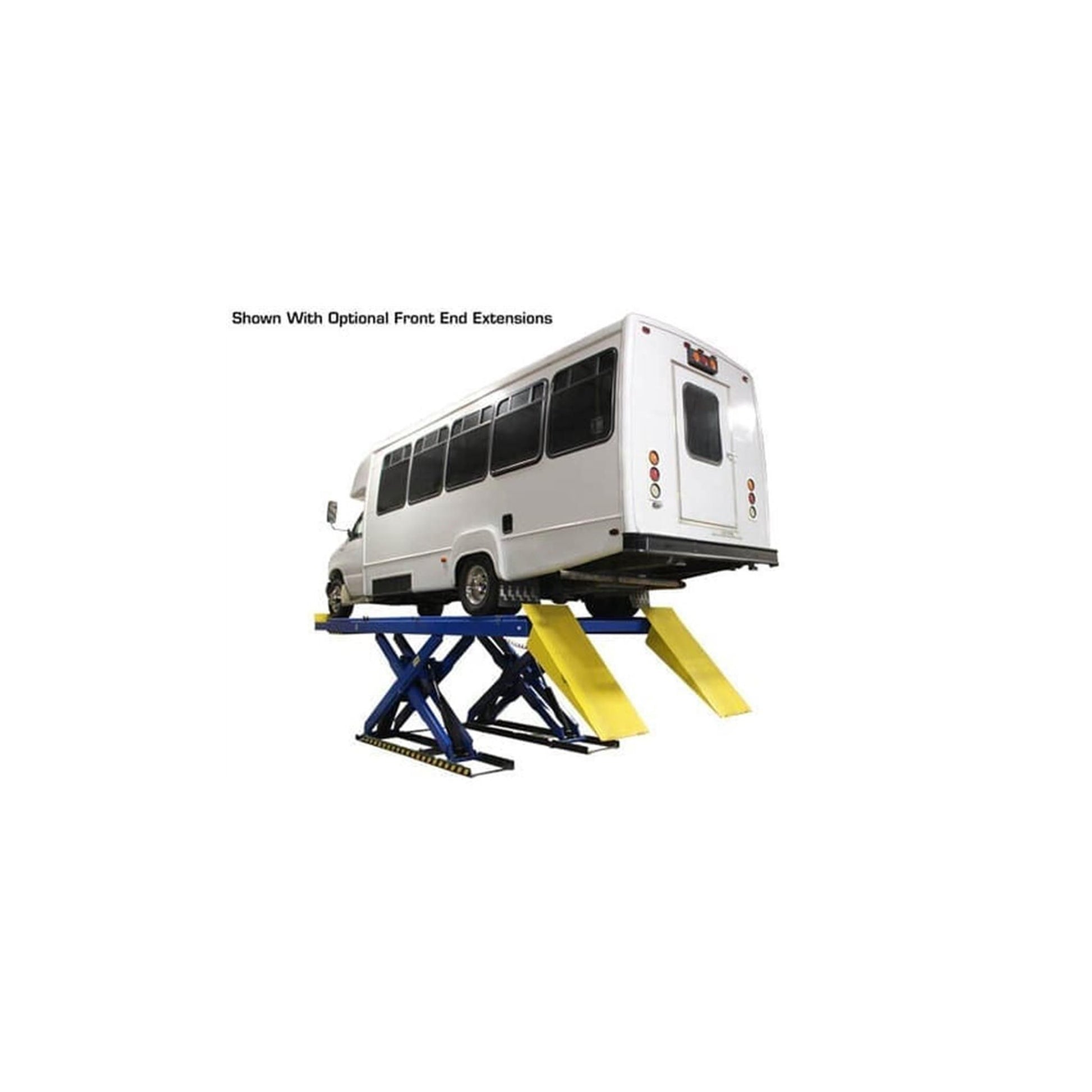

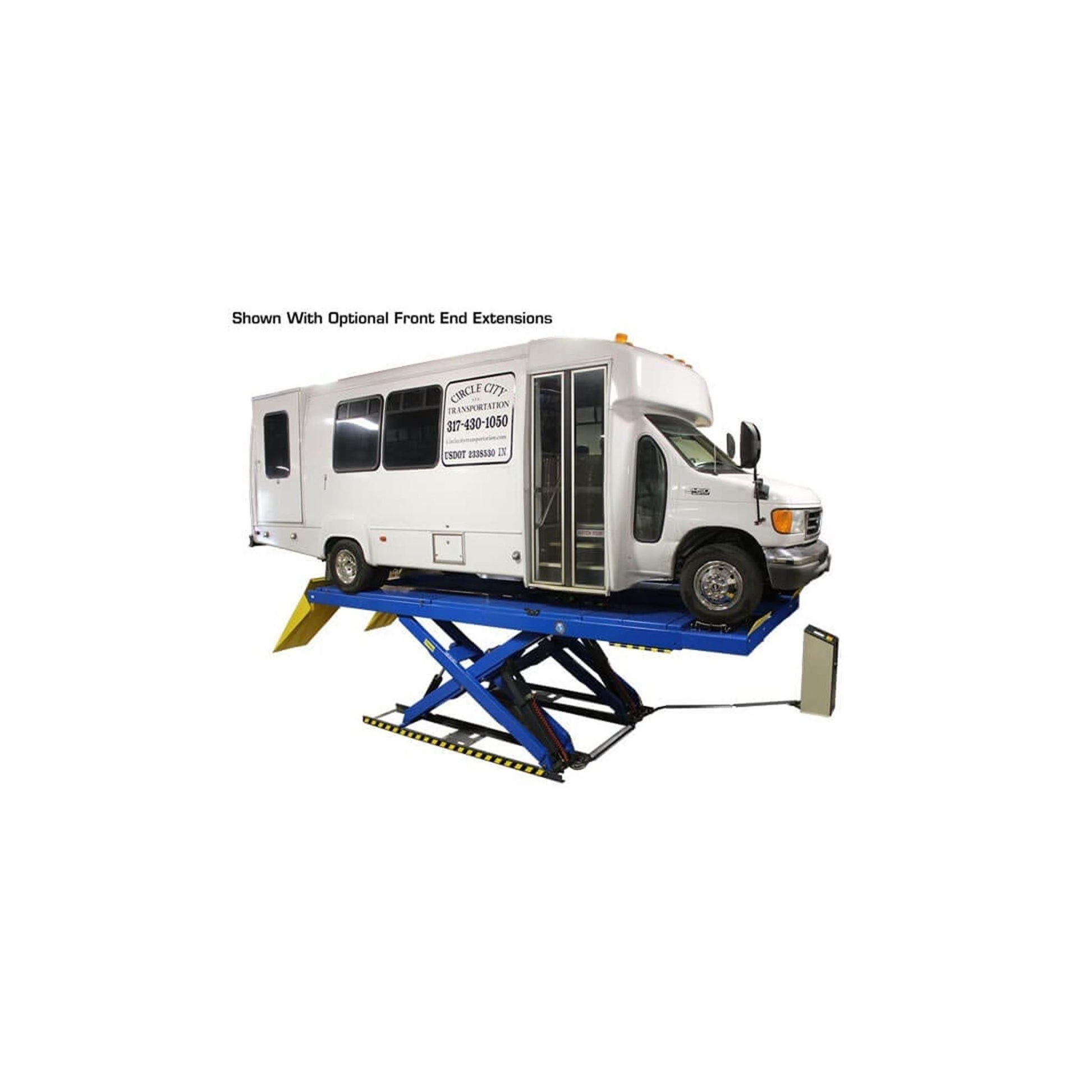

Atlas PX16A 16,000 lb Heavy-Duty Commercial Scissor Alignment Lift

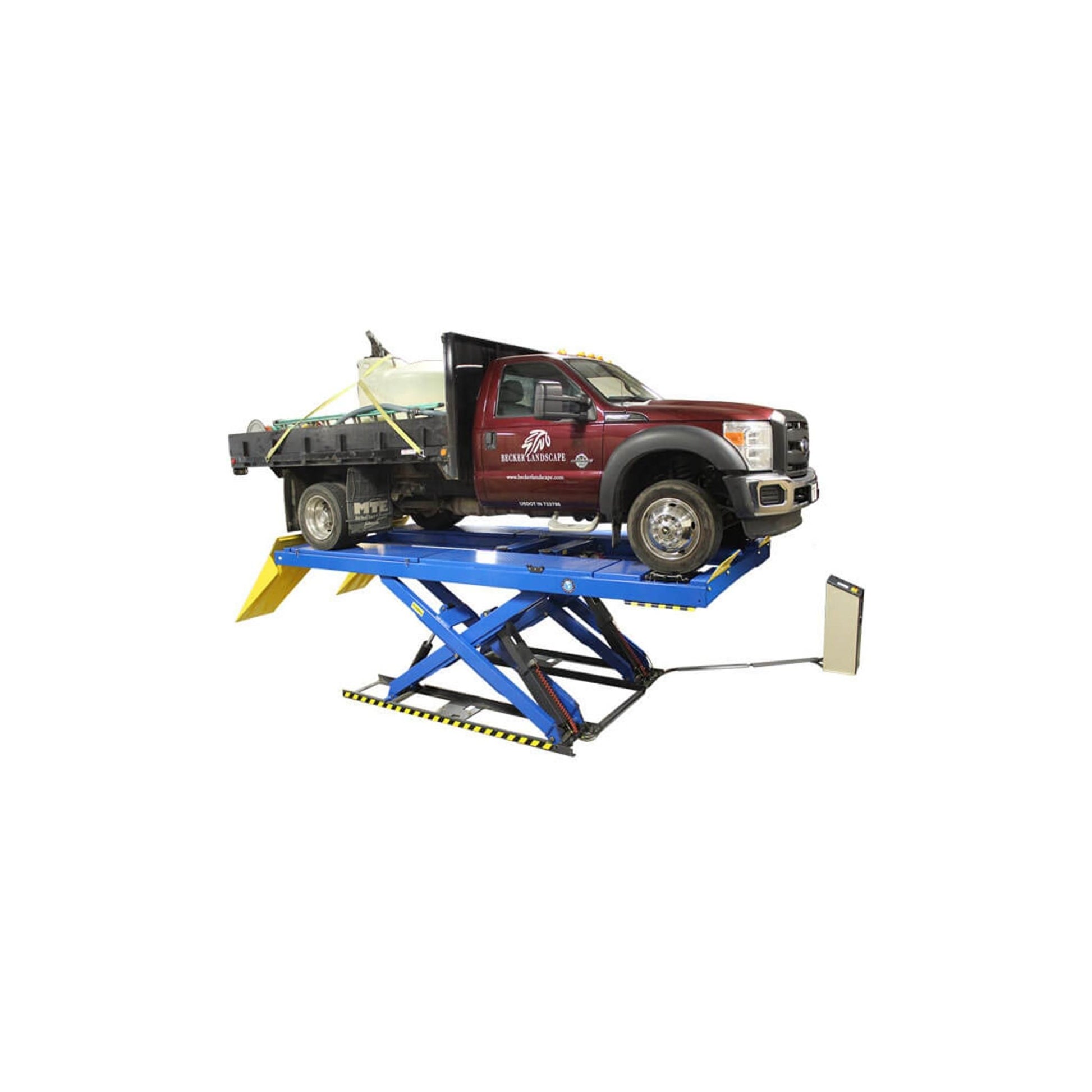

The Atlas PX16A is a premium 16,000 lb capacity commercial scissor alignment lift designed for high-volume alignment shops, fleet maintenance facilities, truck service centers, and professional automotive repair shops. Engineered to handle everything from passenger cars and SUVs to heavy-duty pickup trucks, long-wheelbase vans, and commercial vehicles, the PX16A combines exceptional lifting performance with the space-saving footprint of an in-ground style scissor lift.
Built for precision wheel alignment, the PX16A features an exceptionally balanced lifting platform that delivers outstanding leveling accuracy throughout the lifting cycle. Integrated recessed front turntable pockets and extra-long rear slip plates accommodate wheelbases from 96 inches to 184 inches, making the lift ideal for servicing a broad range of vehicles.

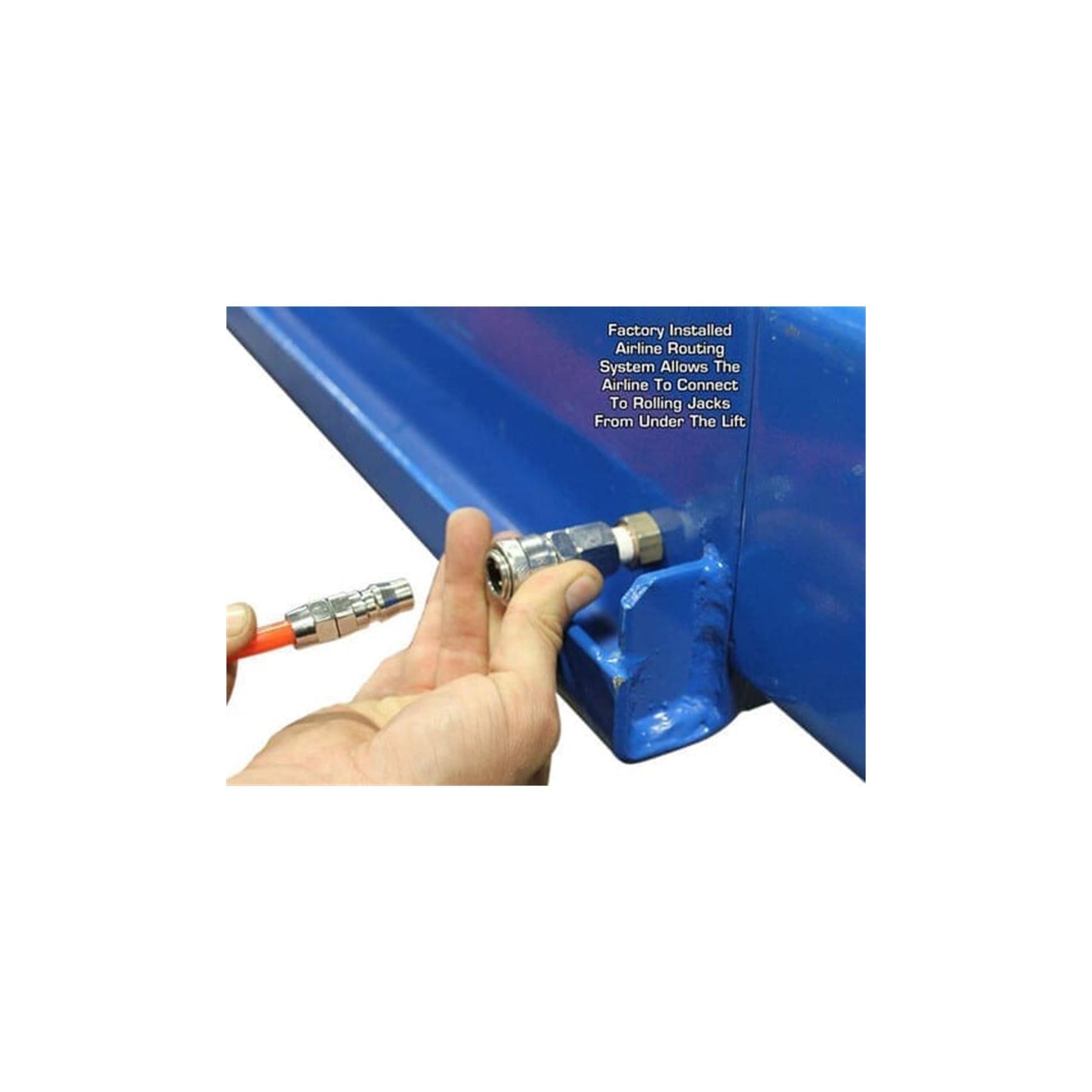

The lift is equipped with air-operated mechanical safety locks, an emergency manual lowering pump, overload protection, and controlled lowering valves for safe, reliable operation. The runways also include integrated jack rails designed to accept optional rolling bridge jacks, while the semi-enclosed airline routing system helps keep shop floors clean and organized by supplying compressed air directly to optional bridge jacks.
With freight prepaid, heavy-duty commercial construction, and professional alignment capabilities, the Atlas PX16A is an excellent solution for shops requiring maximum lifting capacity in a compact alignment lift.
Key Features
- 16,000 lb lifting capacity.
- Heavy-duty commercial-grade scissor alignment lift.
- High-precision platform leveling for accurate wheel alignments.

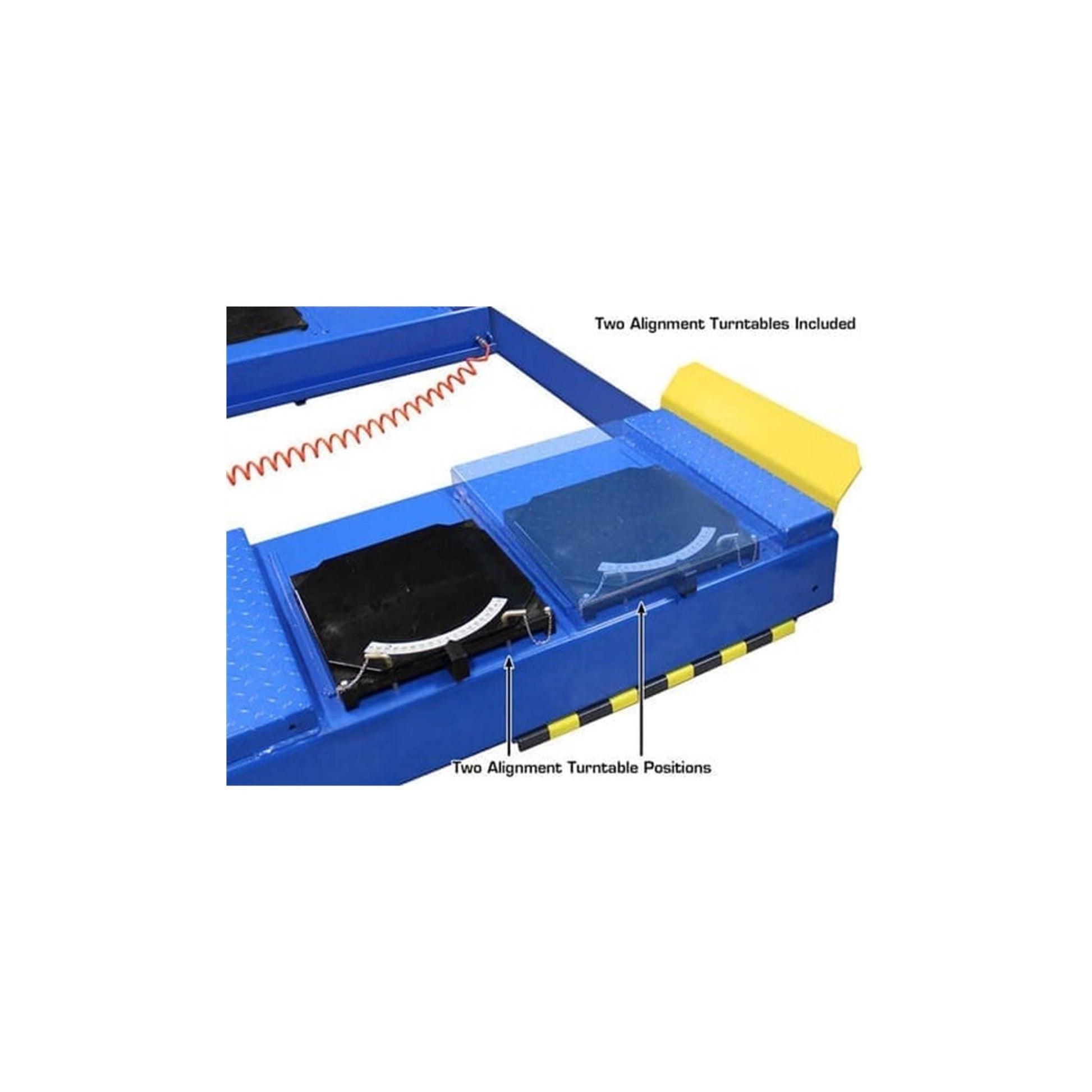

- Integrated recessed pockets for alignment turntables.

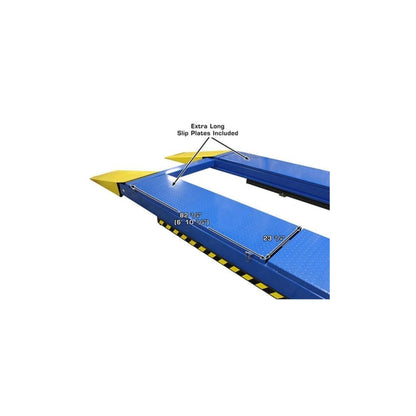

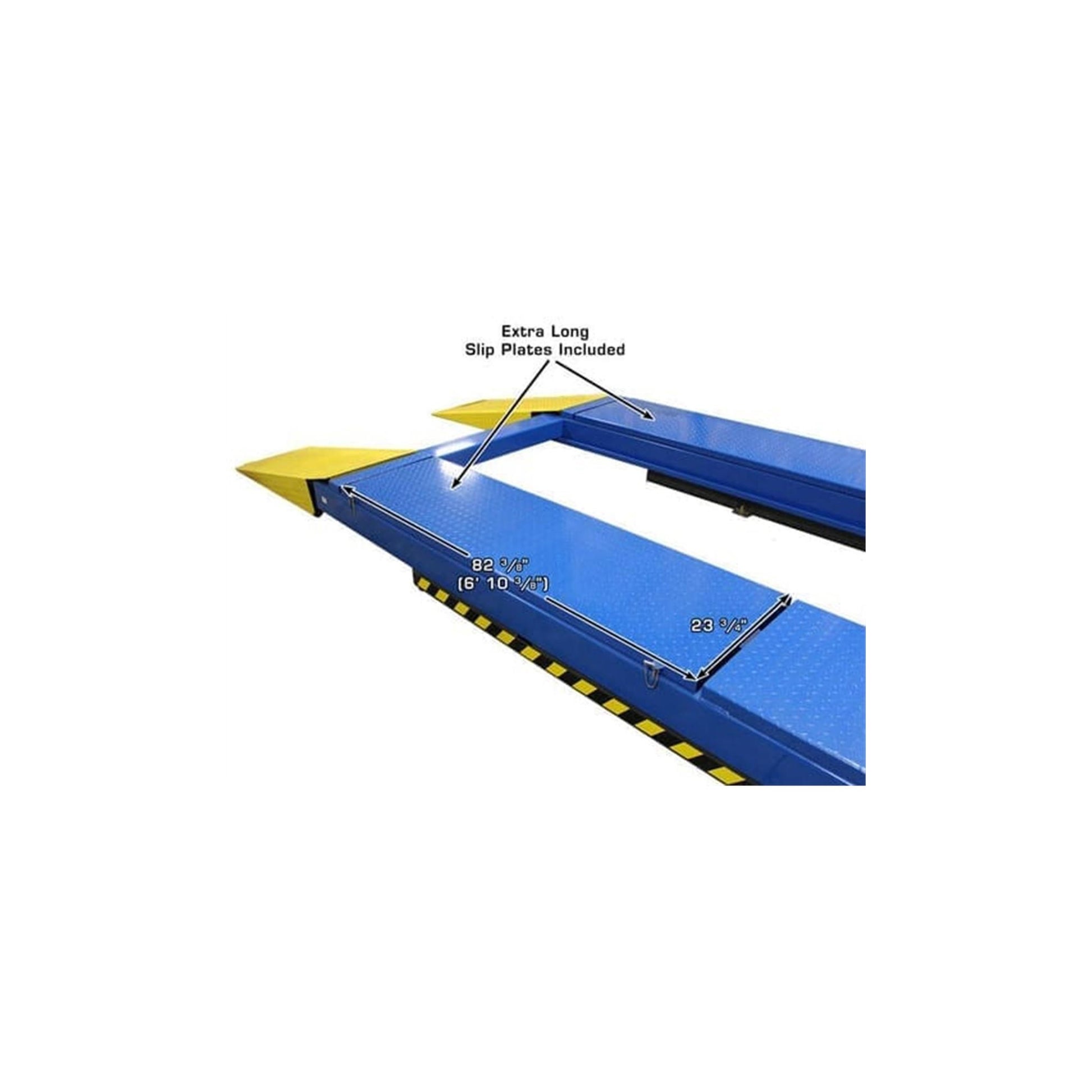

- Extra-long rear slip plates for wheelbases from 96 in to 184 in.
- Alignment turntables included.

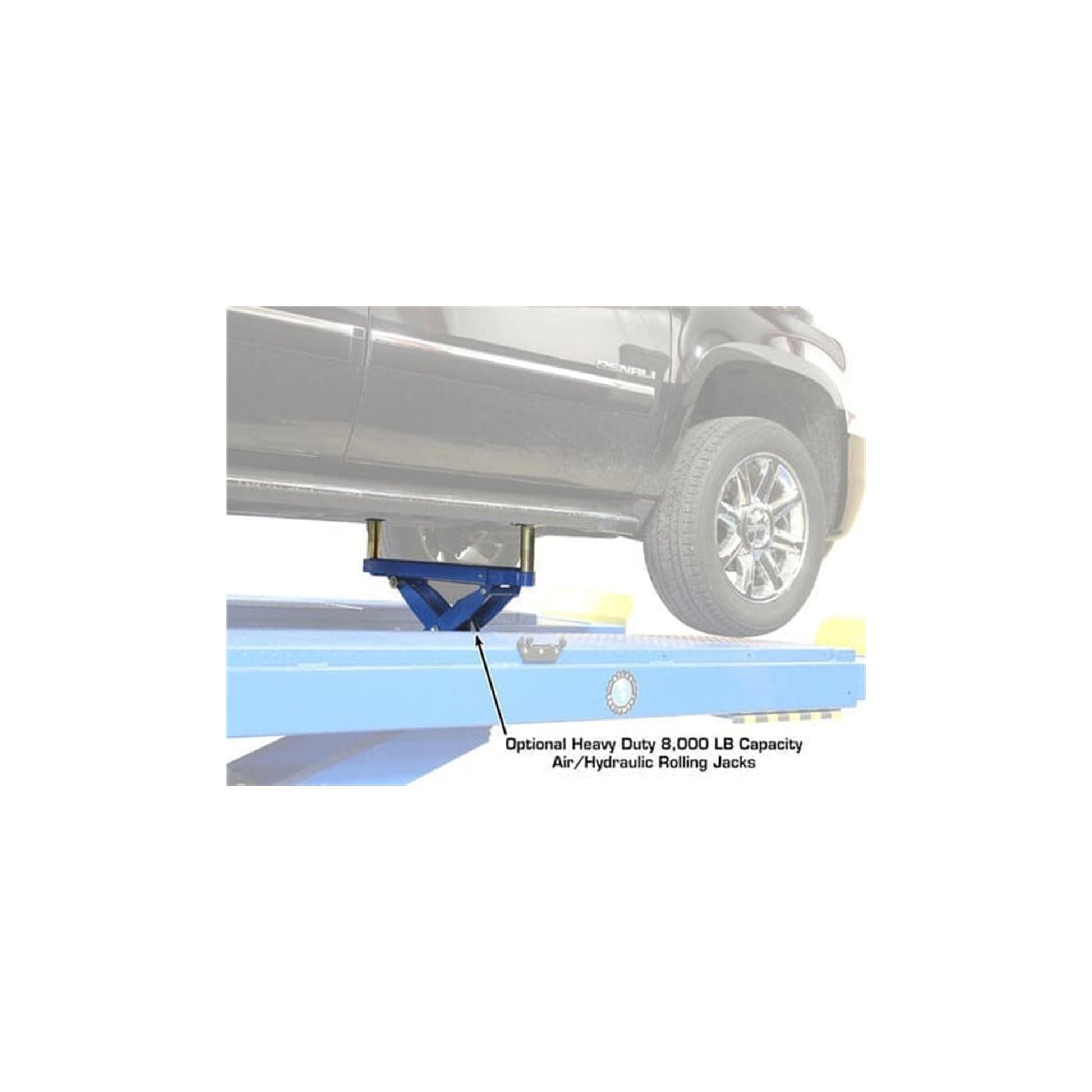

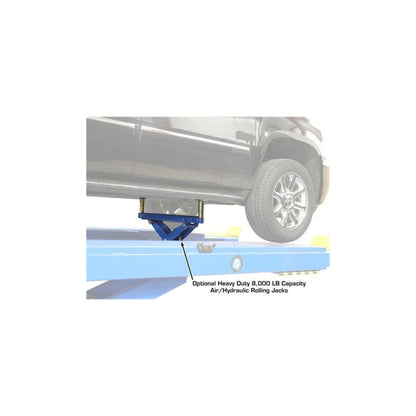

- Runway jack rails accept optional rolling bridge jacks.

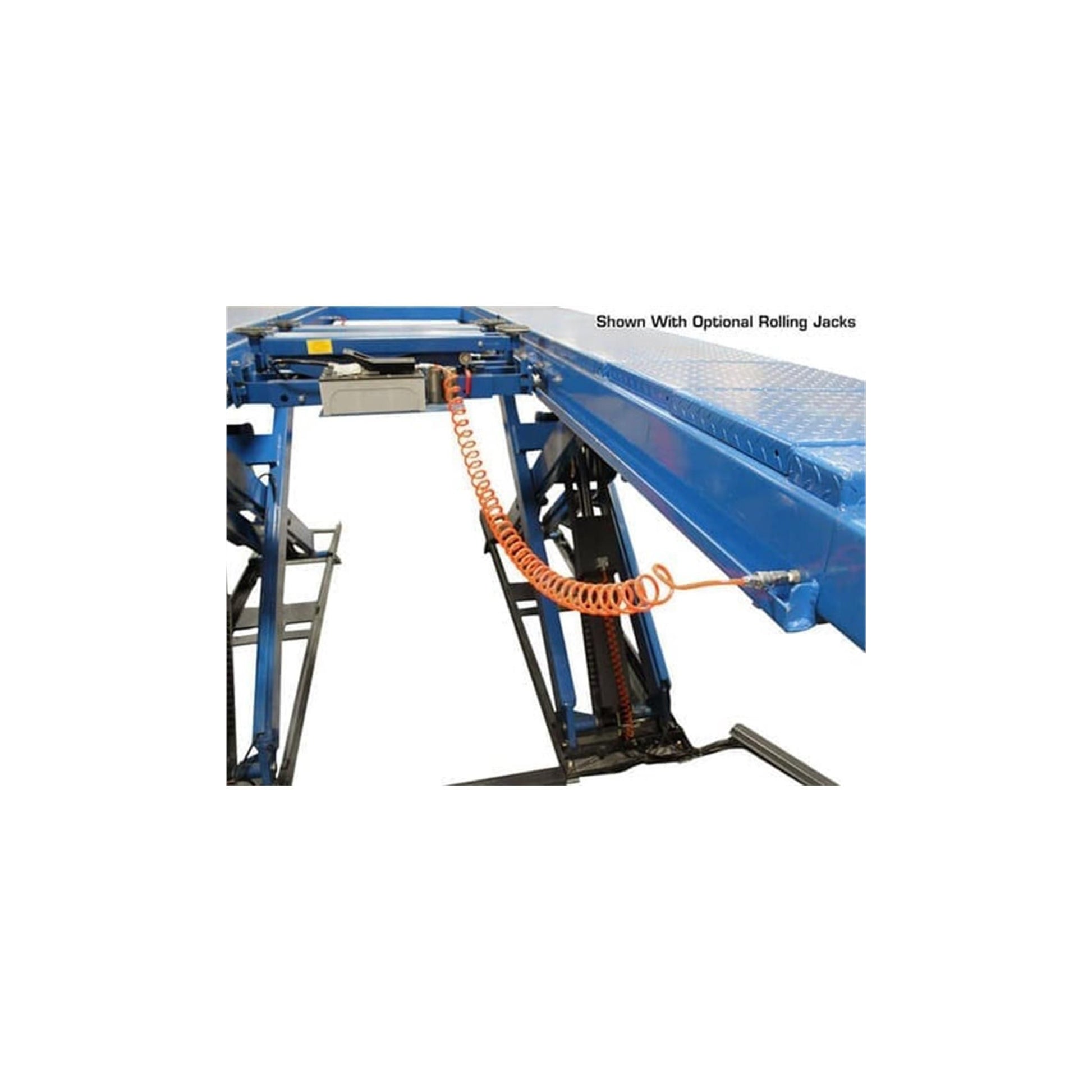

- Semi-enclosed airline routing system for optional bridge jacks.

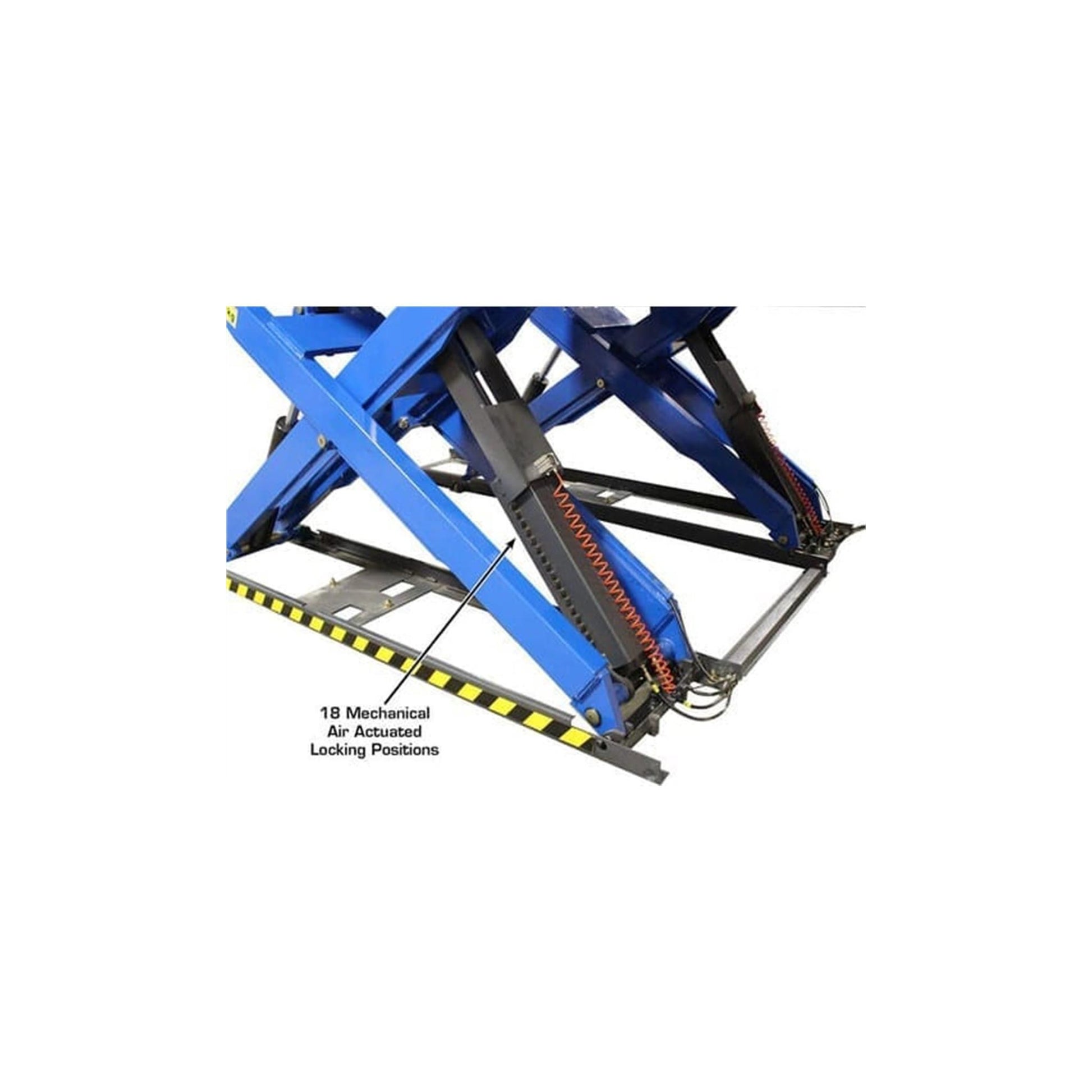

- Air-operated mechanical safety locks (external air supply required).
- Emergency manual lowering pump.
- Hydraulic overload protection valve.
- Controlled lowering speed valve.
- Mounting hardware included.
- Freight prepaid.
- 220V single-phase commercial power operation.
Ideal Applications
- Wheel alignment shops
- Commercial automotive repair facilities
- Fleet maintenance centers
- Truck repair shops
- Dealership service departments
- Brake and suspension repairs
- Steering system service
- Heavy-duty vehicle maintenance
- Passenger cars
- SUVs
- Pickup trucks
- Long-wheelbase vans and commercial vehicles
Specifications
| Brand | Atlas |
| Model | PX16A |
| Lift Capacity | 16,000 lb |
| Lift Type | Commercial Scissor Alignment Lift |
| Construction | Heavy-Duty Commercial Grade |
| Minimum Lift Height | 13 1/4 in |

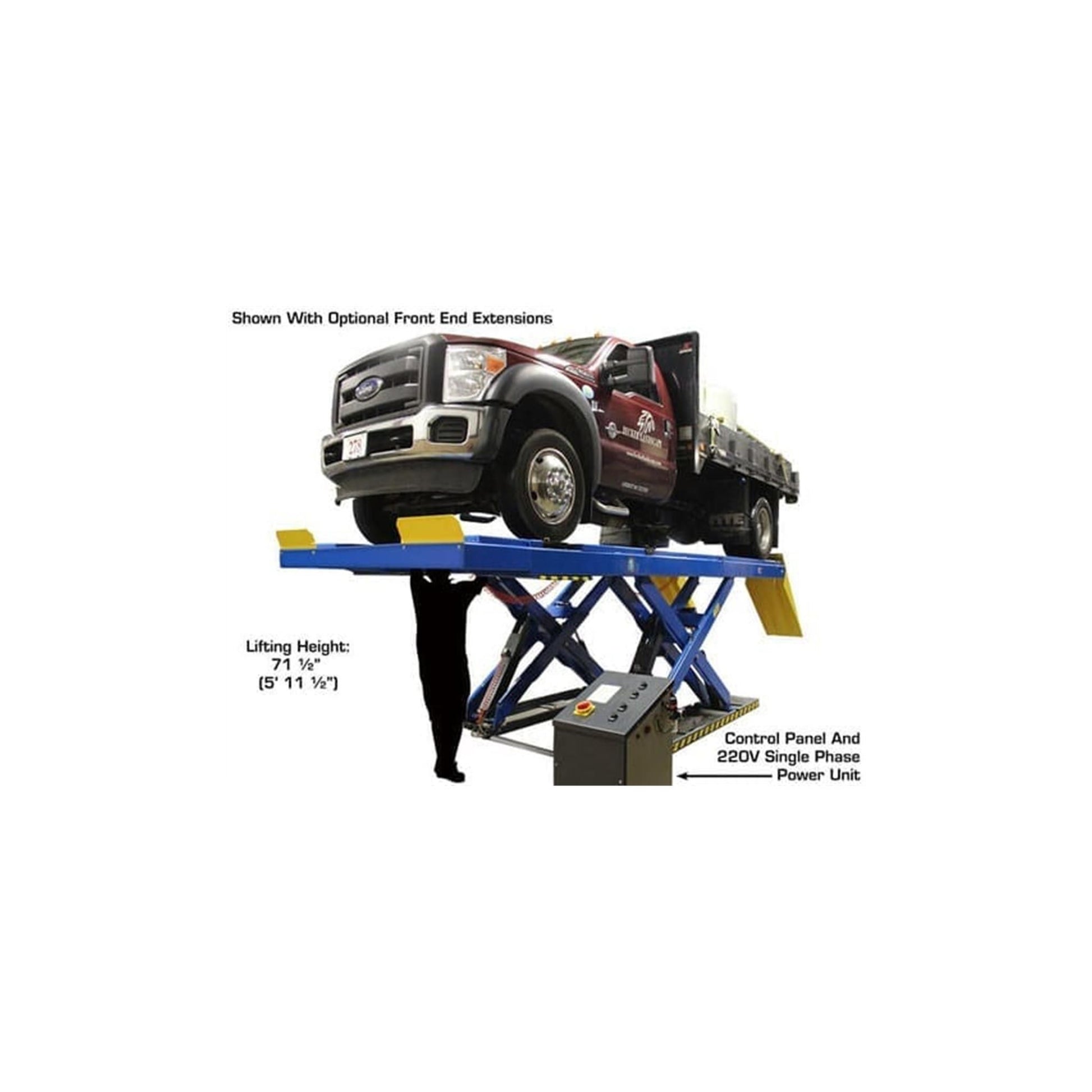

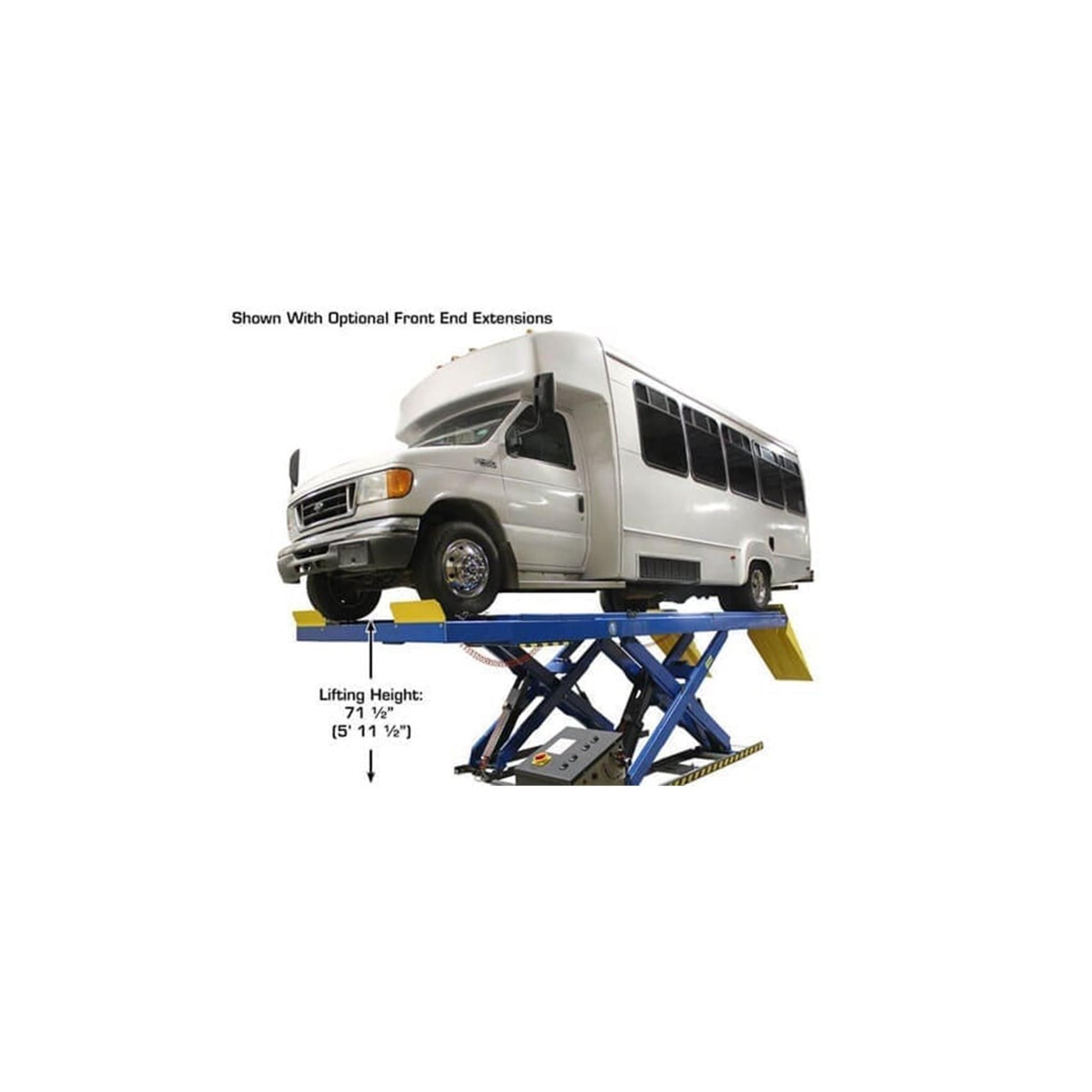

| Maximum Lifting Height | 71 1/2 in (5 ft 11 1/2 in) |

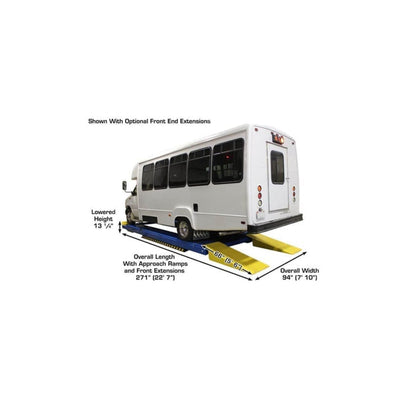

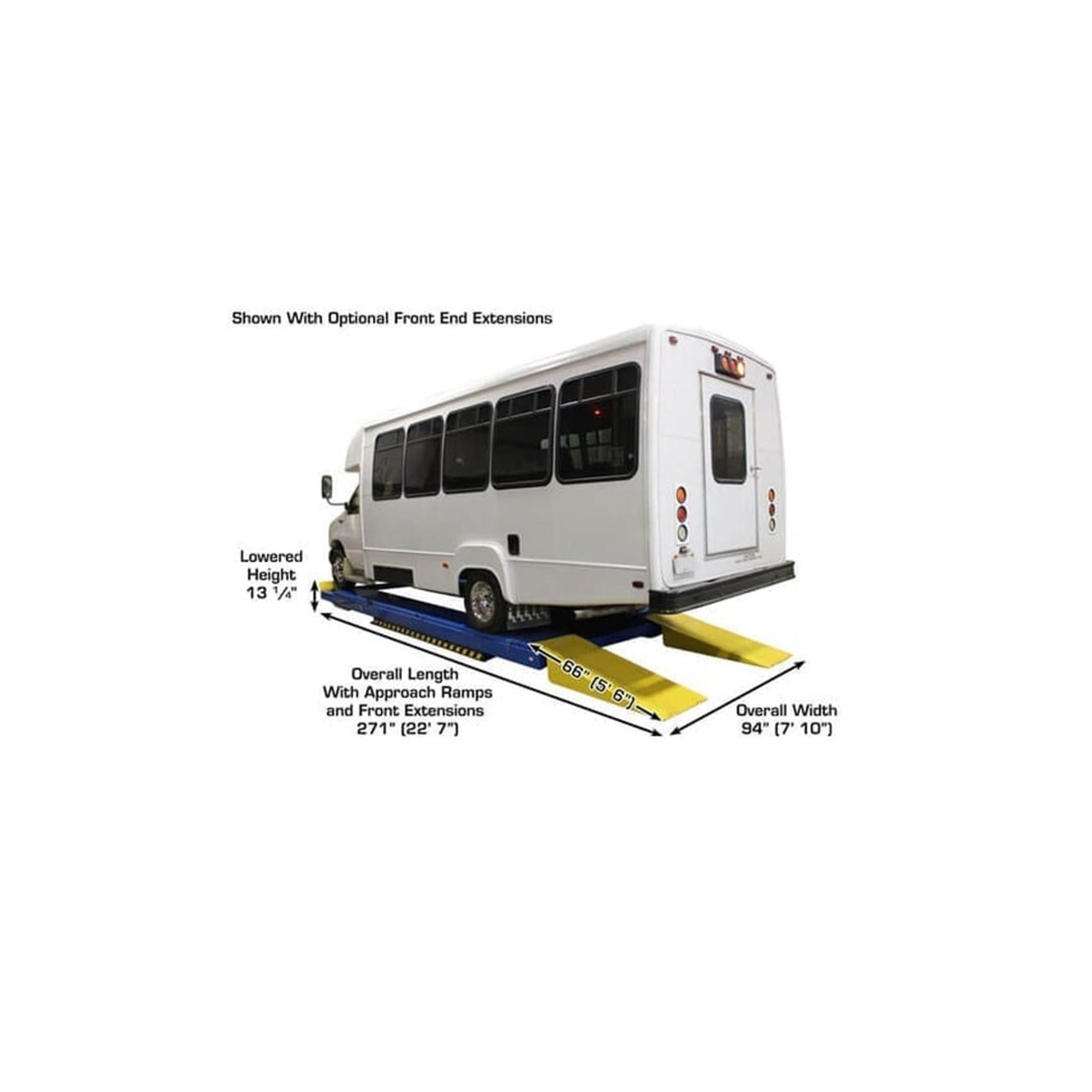

| Overall Length (With Ramps) | 271 in (22 ft 7 in) |

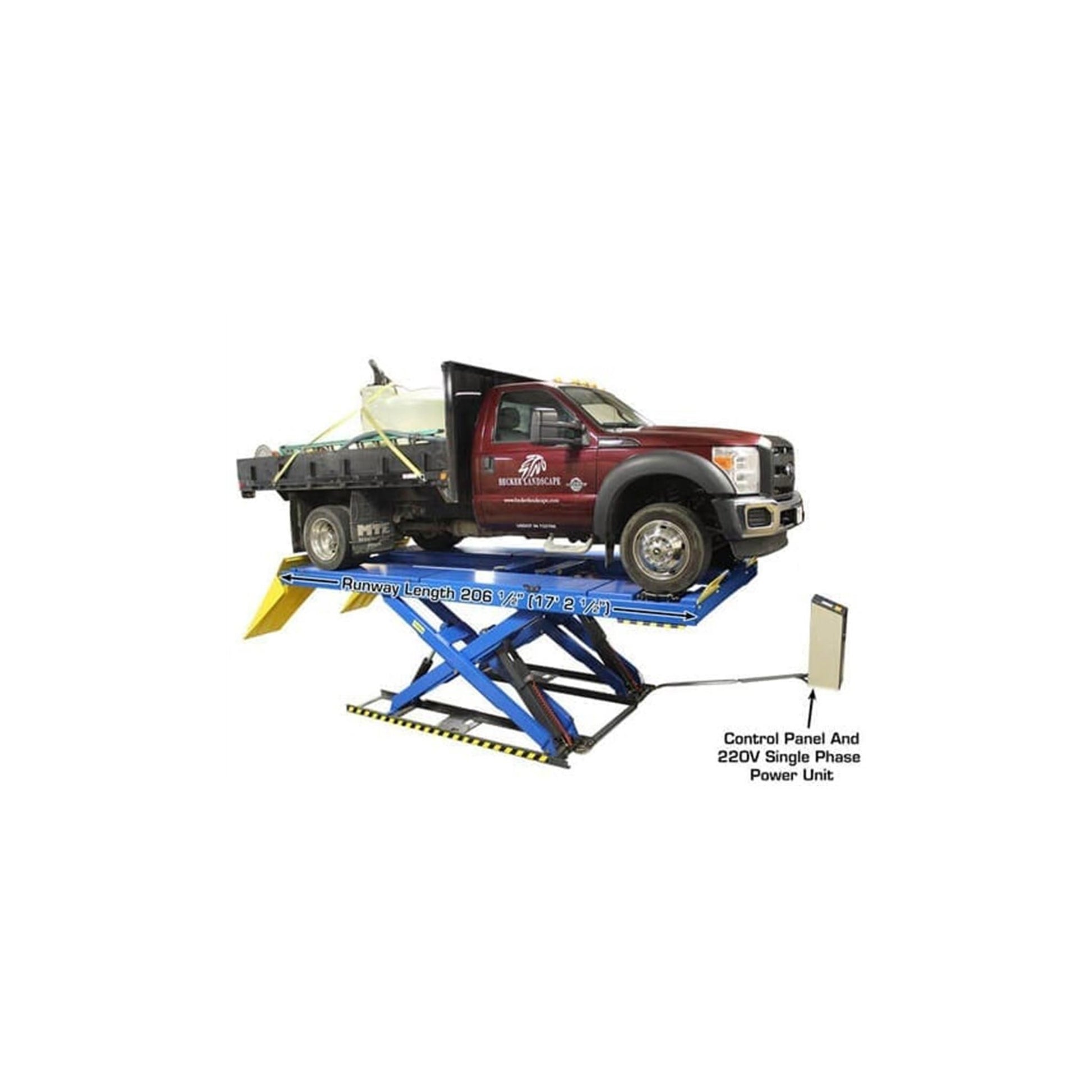

| Overall Length (Without Ramps) | 206 1/2 in (17 ft 2 1/2 in) |
| Overall Width | 94 in (7 ft 10 in) |
| Runway Width | 23 3/4 in |

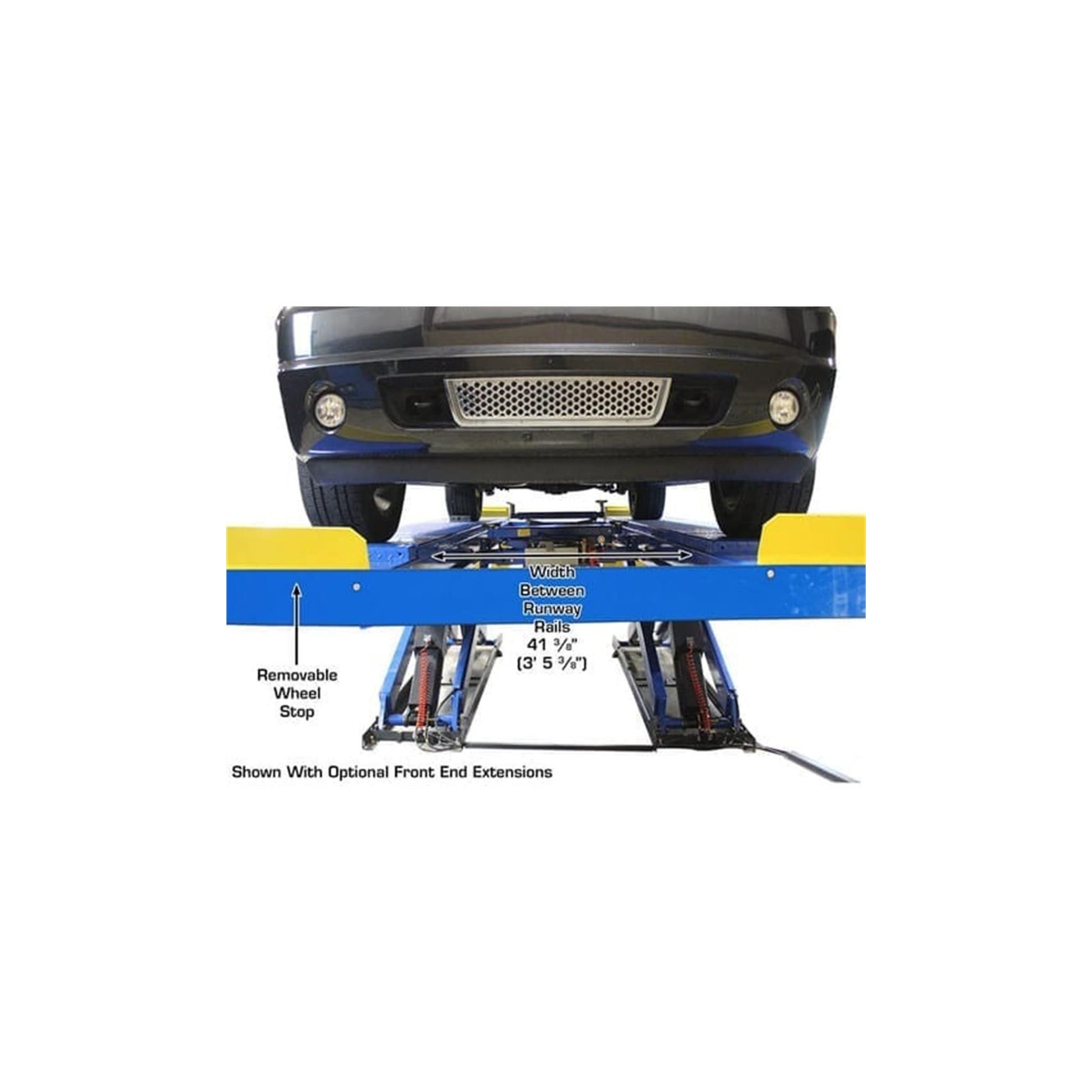

| Width Between Runways | 44 7/8 in (Top) / 41 3/8 in (Rails) |

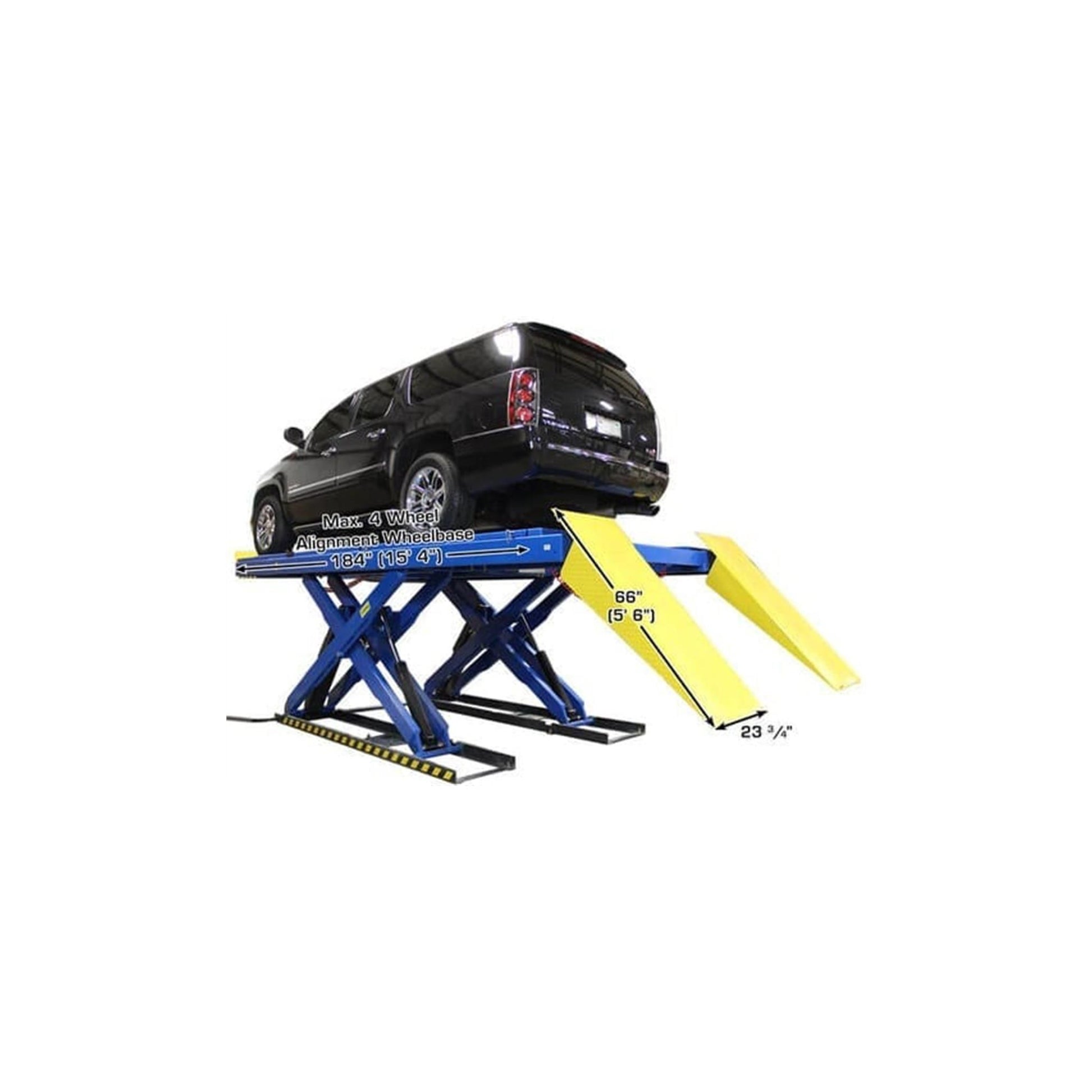

| Supported Wheelbase Range | 96 in – 184 in |
| Alignment Equipment | Front Turntables Included with Extra-Long Rear Slip Plates |
| Turntable Mounting | Recessed Turntable Positions |
| Platform Accuracy | Precision Balanced Platform for Wheel Alignment |
| Safety System | Air-Operated Mechanical Safety Locks |
| Emergency Lowering | Manual Hydraulic Pump |
| Hydraulic Protection | Overload Valve and Lowering Speed Valve |
| Bridge Jack Compatibility | Runway Jack Rails for Optional Atlas RJ8000BK Rolling Bridge Jack |
| Airline Routing | Semi-Enclosed Airline Routing System |
| Air Requirement | 85–120 PSI |

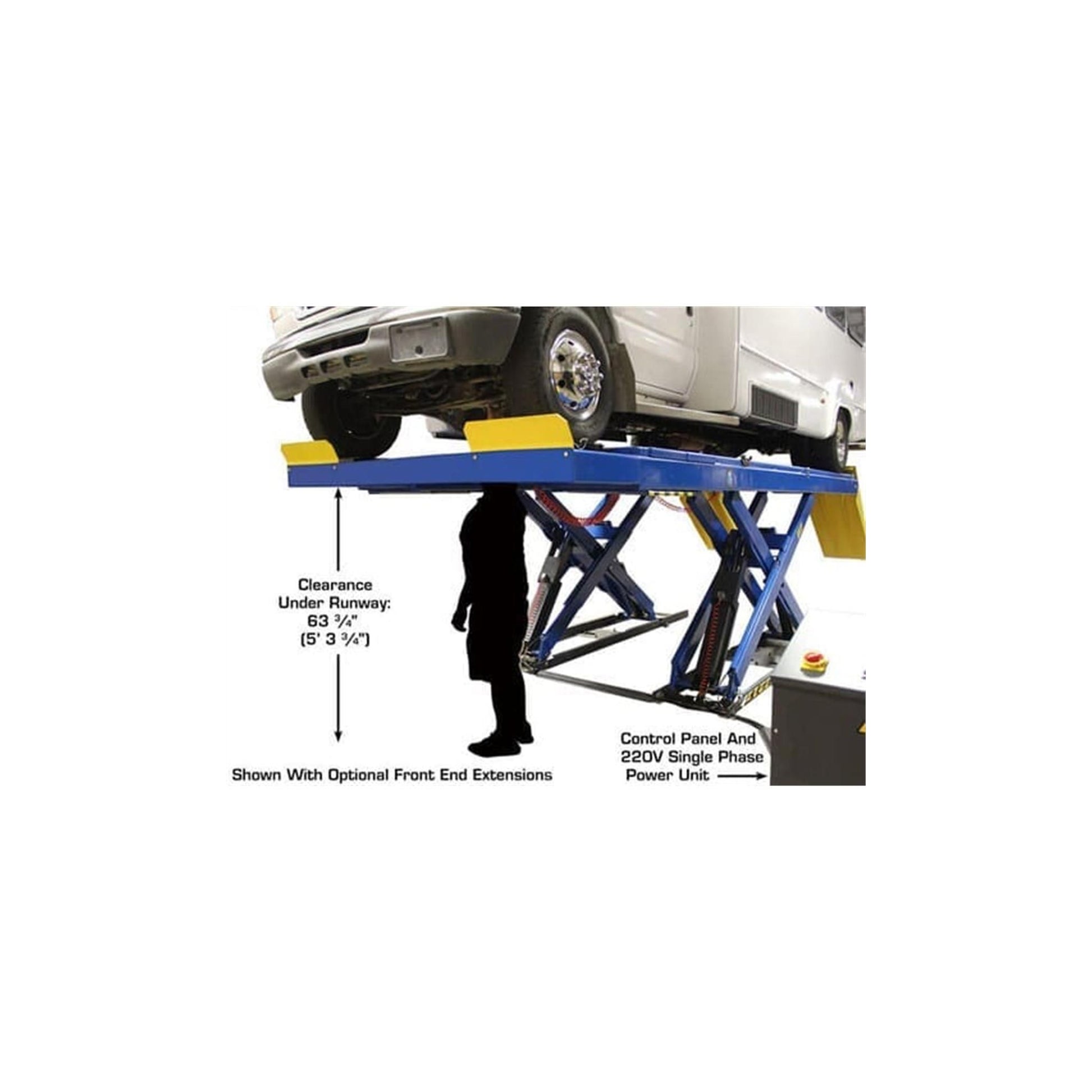

| Power Requirements | 220V (±5%), Single-Phase, 30 Amp Breaker Required |
| Hydraulic Oil Requirement | 3–5 Gallons AW32 or AW46 Hydraulic Oil (Not Included) |
| Included Accessories | Alignment Turntables, Mounting Hardware |
| Shipping | Freight Prepaid |

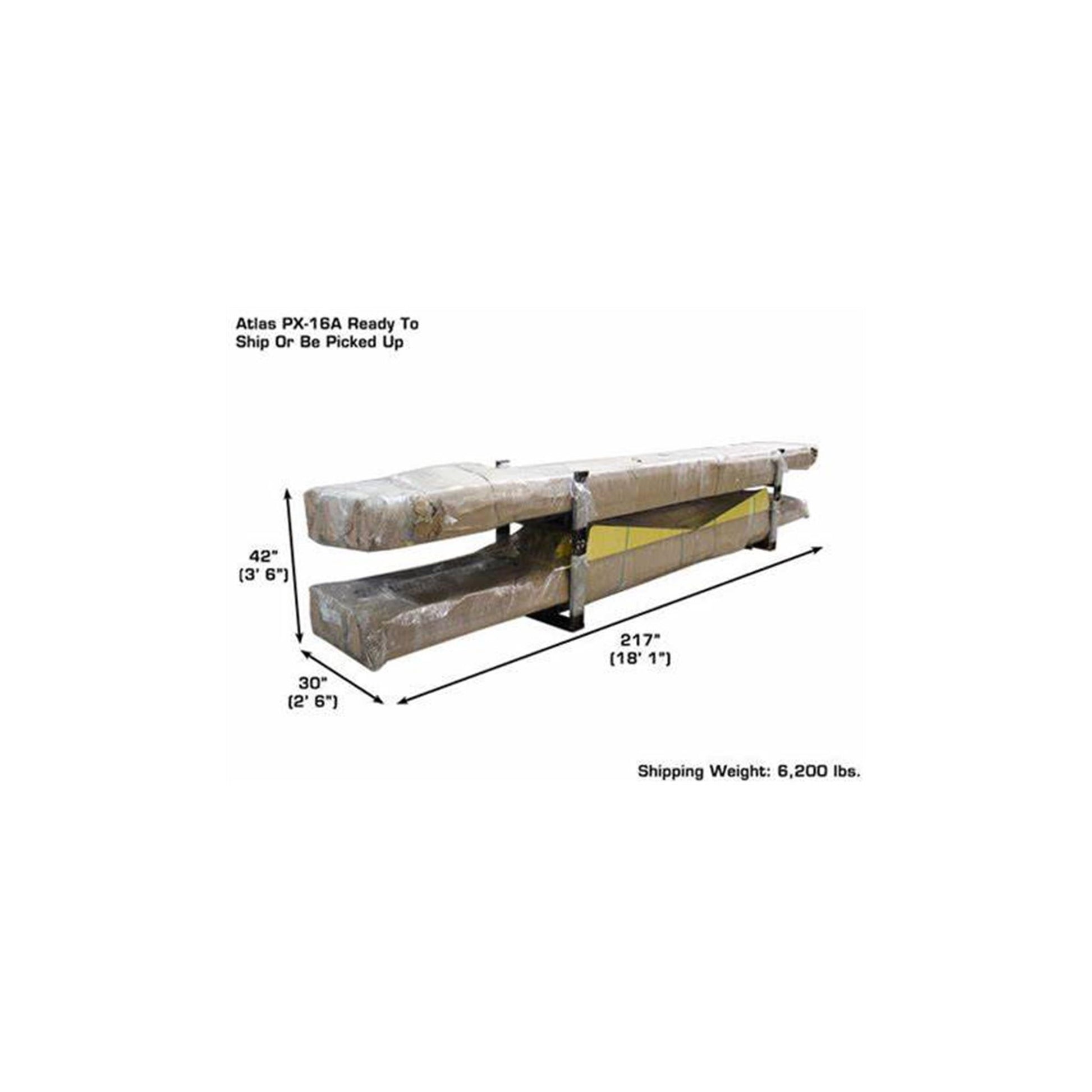

| Shipping Weight | 6,200 lb |
| Warranty | 2-Year Structural / 1-Year Hydraulic |
```
