Atlas EVBL3310 3,300 lb Electric Vehicle Battery Lift Table

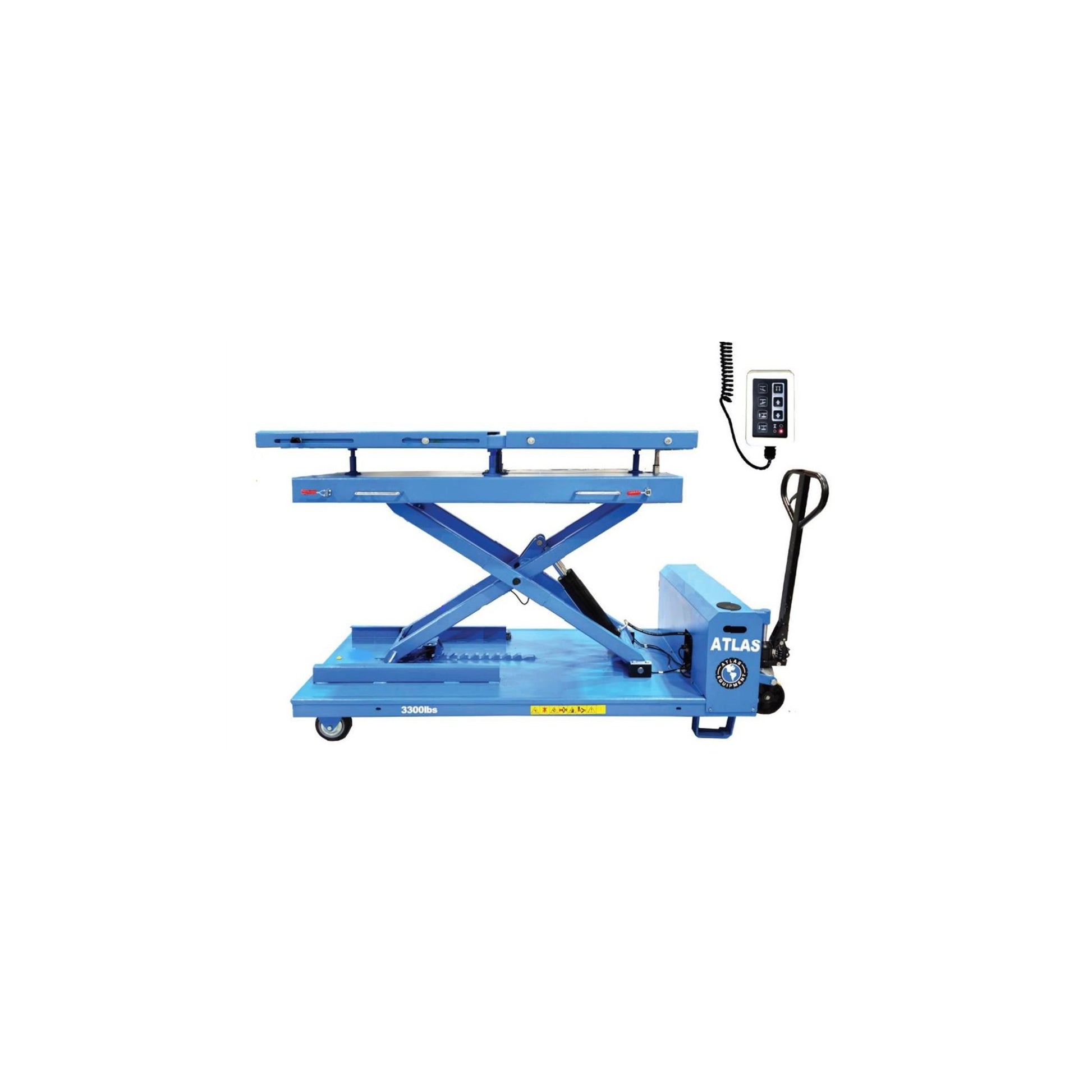

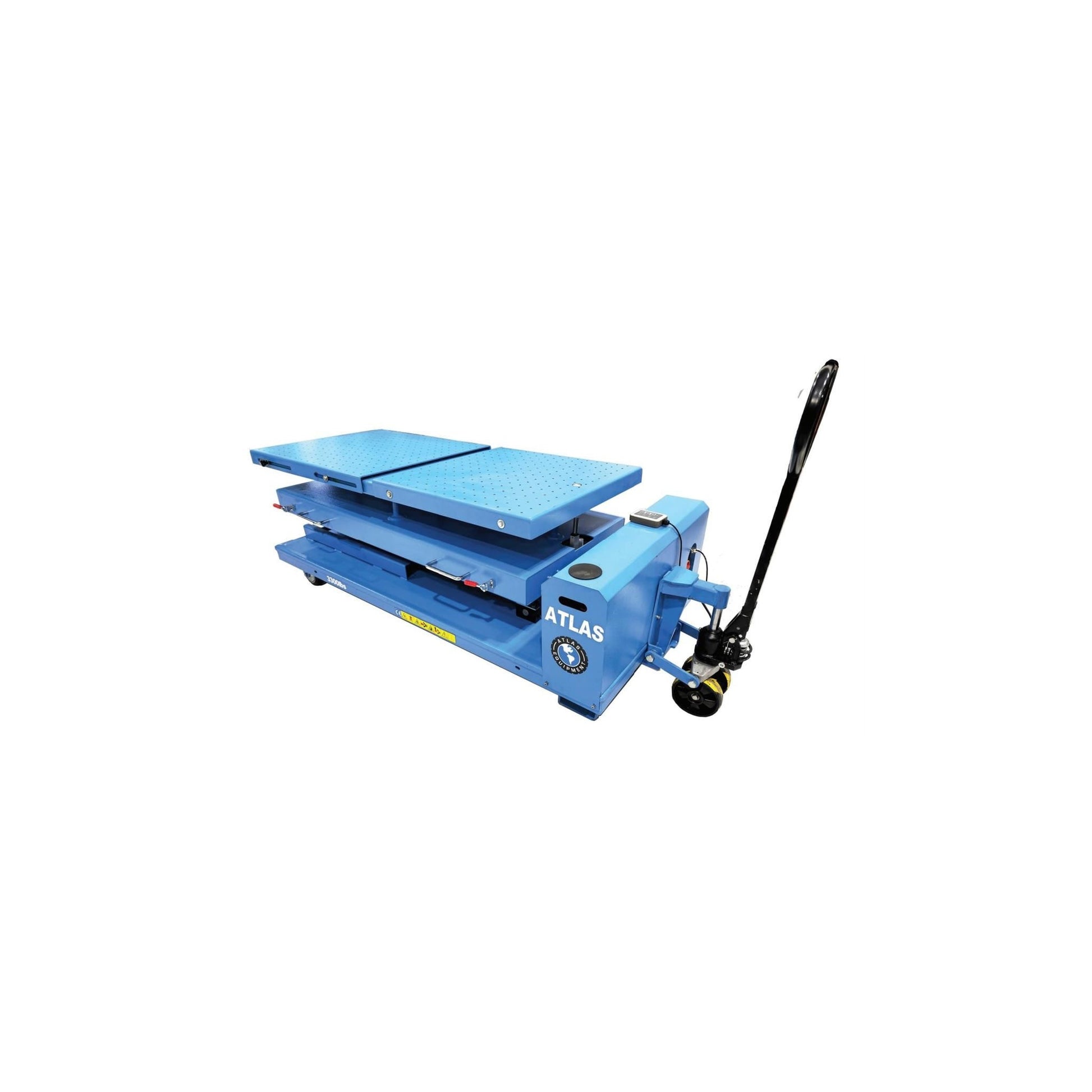

The Atlas EVBL3310 is a heavy-duty electric/hydraulic battery lift table engineered specifically for servicing electric vehicle (EV) battery packs and other large, heavy vehicle components. With a 3,300 lb lifting capacity, precision tilting platform, and expandable tabletop, this lift is an essential piece of equipment for modern automotive repair facilities, EV service centers, and fleet maintenance operations.
Powered by a 110-volt electric/hydraulic system, the EVBL3310 provides smooth lifting and precise positioning through a wired remote control, allowing technicians to safely raise, lower, and tilt heavy battery assemblies with exceptional accuracy. The adjustable platform can be extended to accommodate a wide variety of EV battery sizes, while multi-directional tilt adjustments help align battery packs during removal and installation.
The reinforced frame and built-in mechanical safety lock provide outstanding stability and operator confidence throughout the lifting process. Multiple threaded mounting holes across the tabletop allow optional accessories (sold separately) to be securely attached for handling different battery configurations and vehicle platforms.
Designed for portability, safety, and versatility, the Atlas EVBL3310 is an ideal solution for professional workshops preparing for the growing demand of electric vehicle maintenance and battery replacement.
Key Features
- 3,300 lb lifting capacity.
- Heavy-duty electric/hydraulic battery lift table.
- 110V single-phase electric operation.
- Smooth electric/hydraulic lifting system.
- Expandable lifting platform accommodates various battery sizes.
- Multi-directional tilting platform for precise battery alignment.

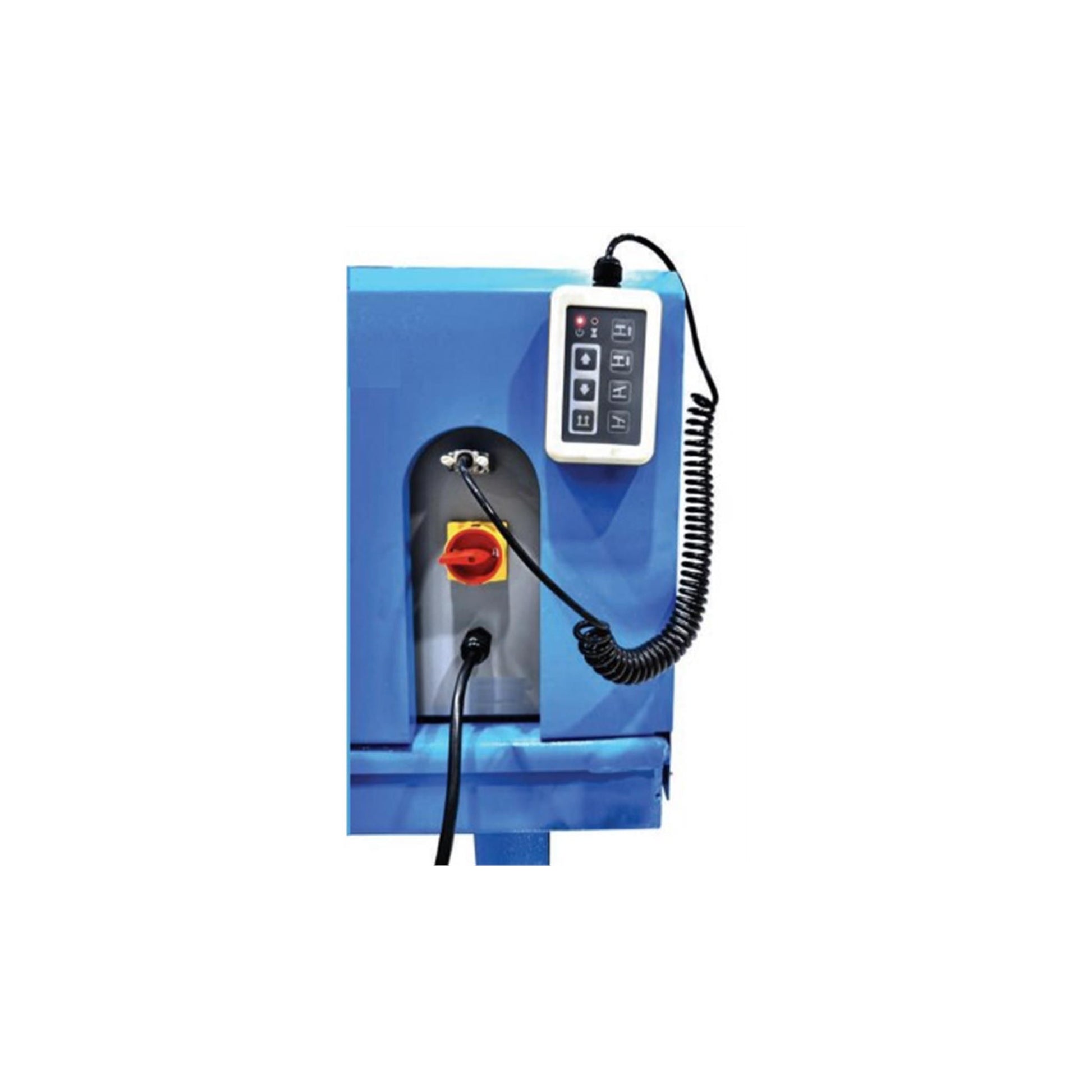

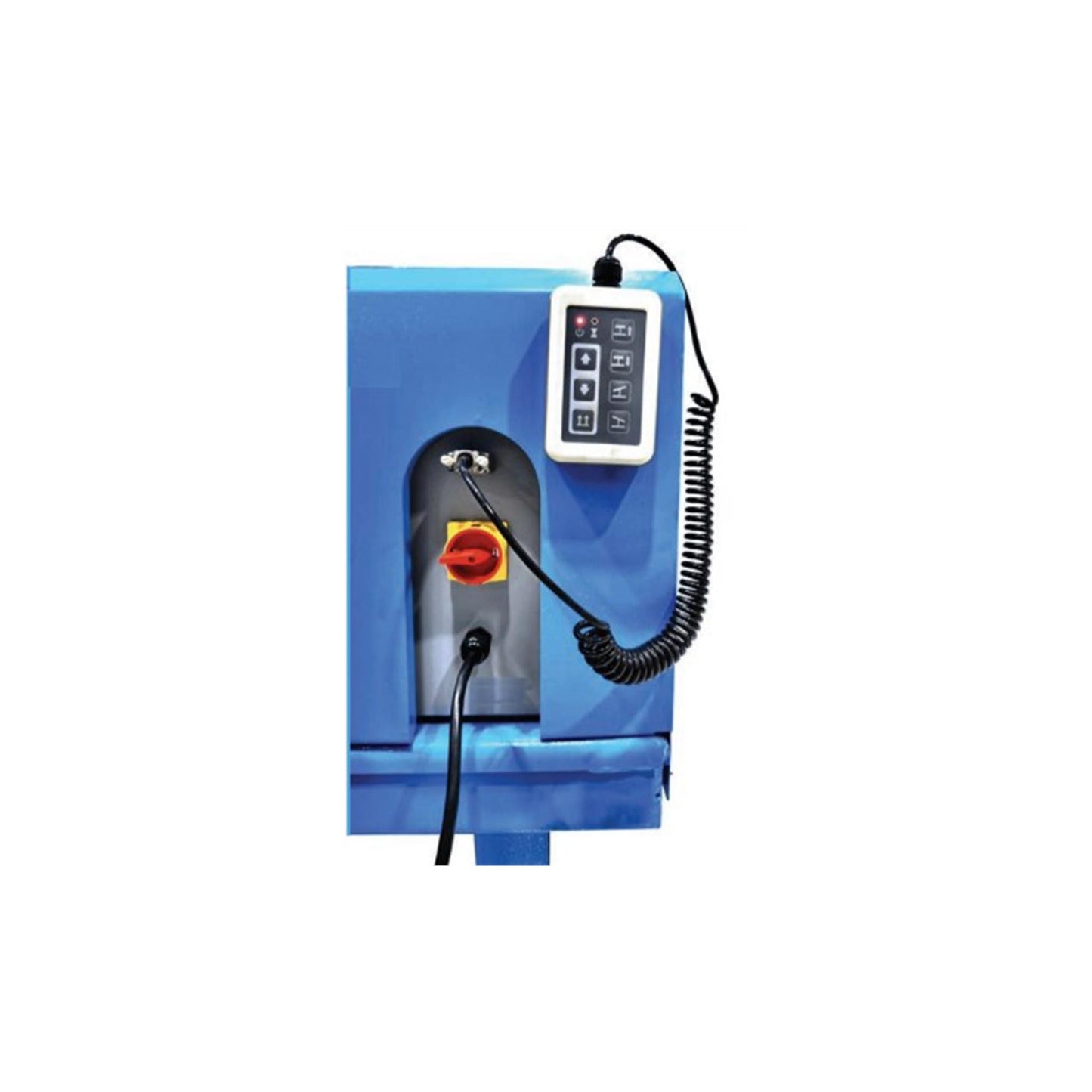

- Wired remote control for lifting and tilt adjustments.
- Multiple threaded tabletop mounting holes for optional accessories.

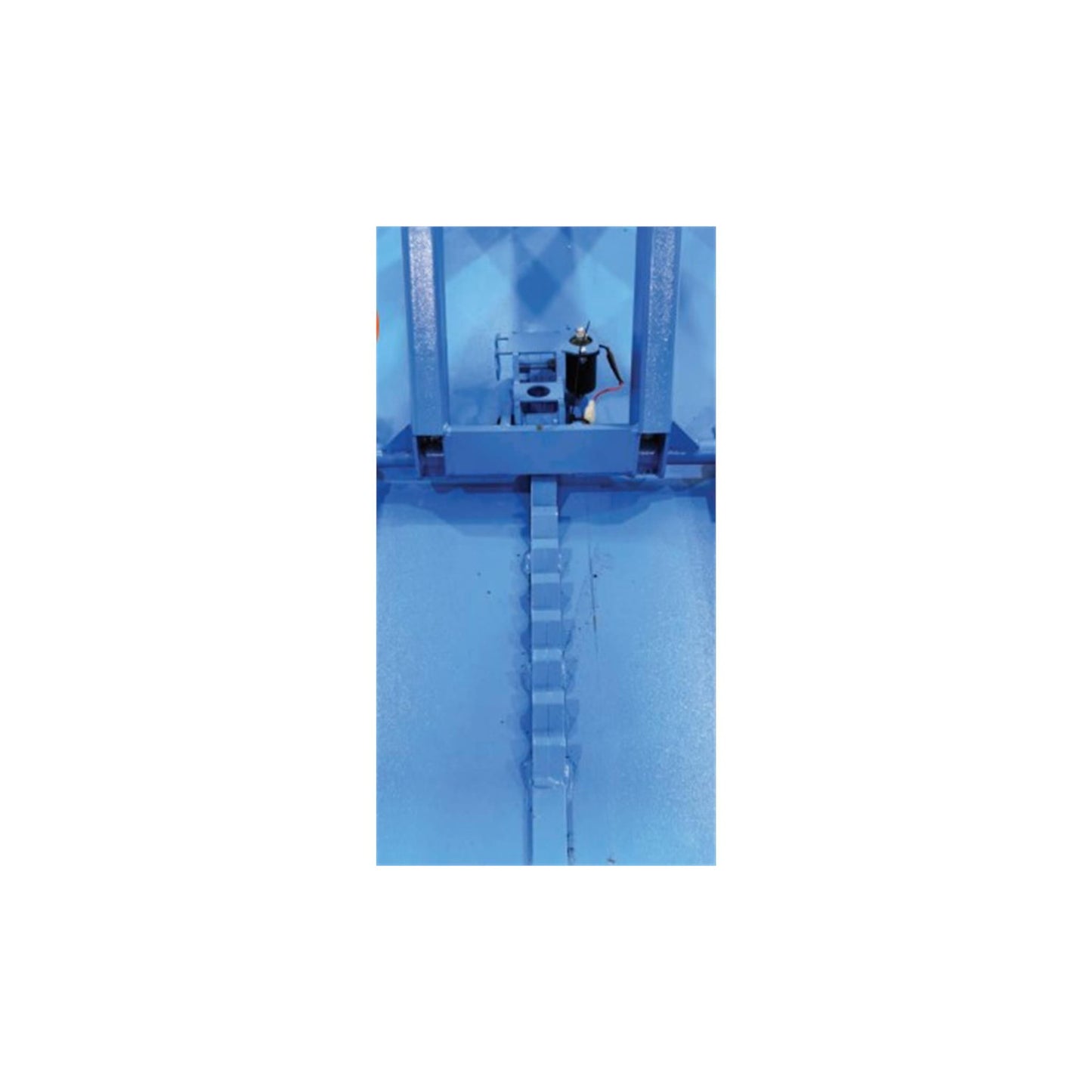

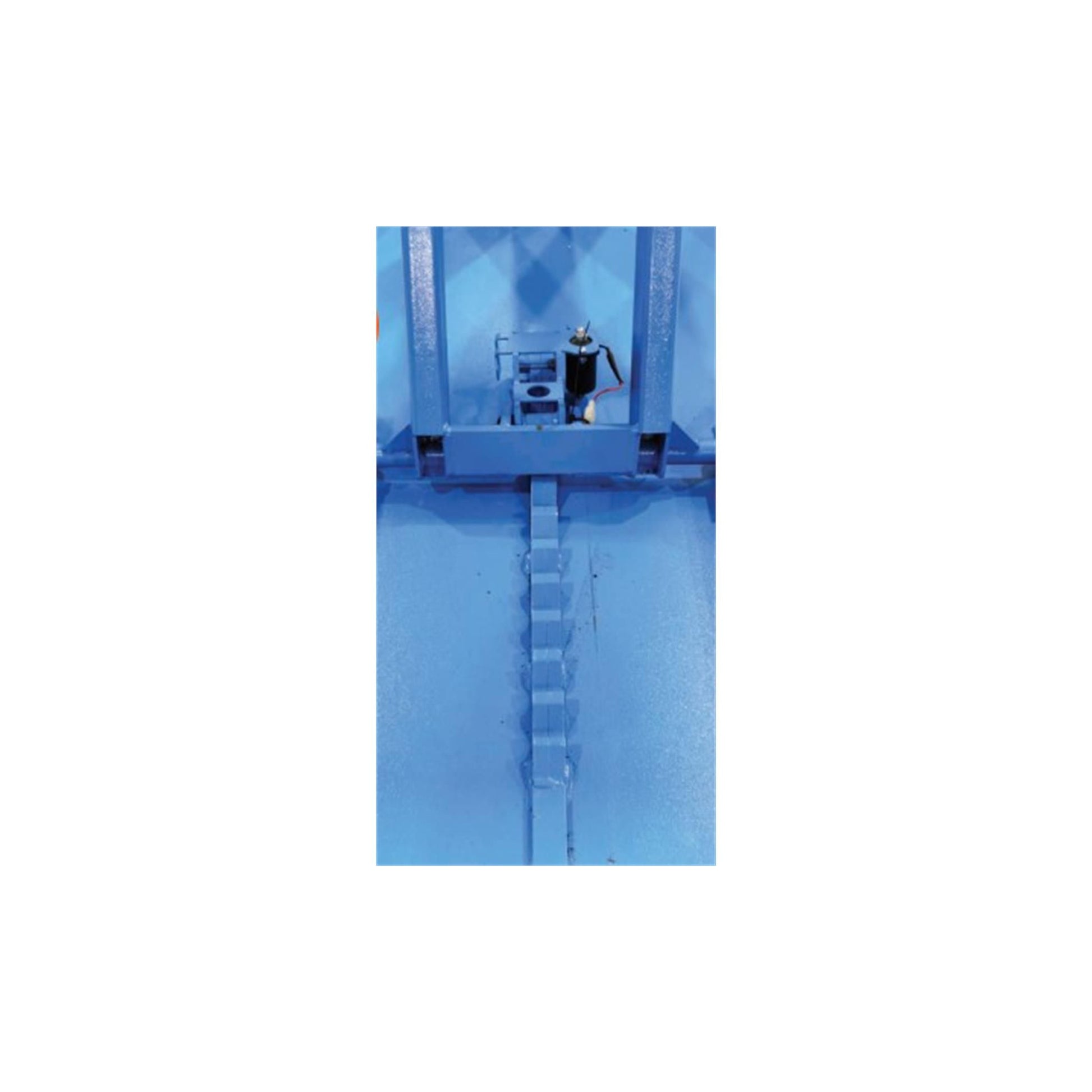

- Built-in mechanical safety lock ladder with manual release.
- Reinforced support legs for maximum stability during operation.
- Portable design for easy positioning around the workshop.
- Ideal for EV battery removal, installation, and servicing.
- Freight prepaid.
Ideal Applications
- Electric vehicle repair shops
- EV dealerships
- Automotive service centers
- Fleet maintenance facilities
- Battery replacement and installation
- Hybrid vehicle servicing
- Electric bus and commercial EV maintenance
- Research and development facilities
- Technical training centers
- General heavy component handling
Specifications
| Brand | Atlas |
| Model | EVBL3310 |
| Lift Capacity | 3,300 lb |
| Lift Type | Electric/Hydraulic EV Battery Lift Table |
| Maximum Lift Height | 71 1/4 in |
| Minimum Lift Height | 29 1/4 in |
| Platform Width | 31 3/4 in |
| Expandable Platform Length | 68 1/4 in – 79 3/4 in |
| Platform Tilt (Left/Right) | ±5.1° |
| Platform Tilt (Front/Rear) | ±2.2° |
| Tabletop Mounting Holes | 50 mm Center-to-Center Spacing |
| Controls | Wired Remote Control for Lift and Tilt Functions |
| Safety System | Built-In Mechanical Safety Lock Ladder with Manual Release |
| Frame Construction | Reinforced Steel Legs for Maximum Stability |
| Power Requirements | 110V Single-Phase Electric (30 Amp Breaker Recommended) |
| Mobility | Portable Rolling Design |
| Accessory Compatibility | Threaded Tabletop Accepts Optional Accessory Kit (Sold Separately) |
| Shipping Weight | 1,500 lb |
| Shipping | Freight Prepaid |
| Warranty | 2-Year Structural / Hydraulic Warranty |
```
