Atlas ATTD-414AT 14,000 lb Commercial Four-Post Alignment Lift

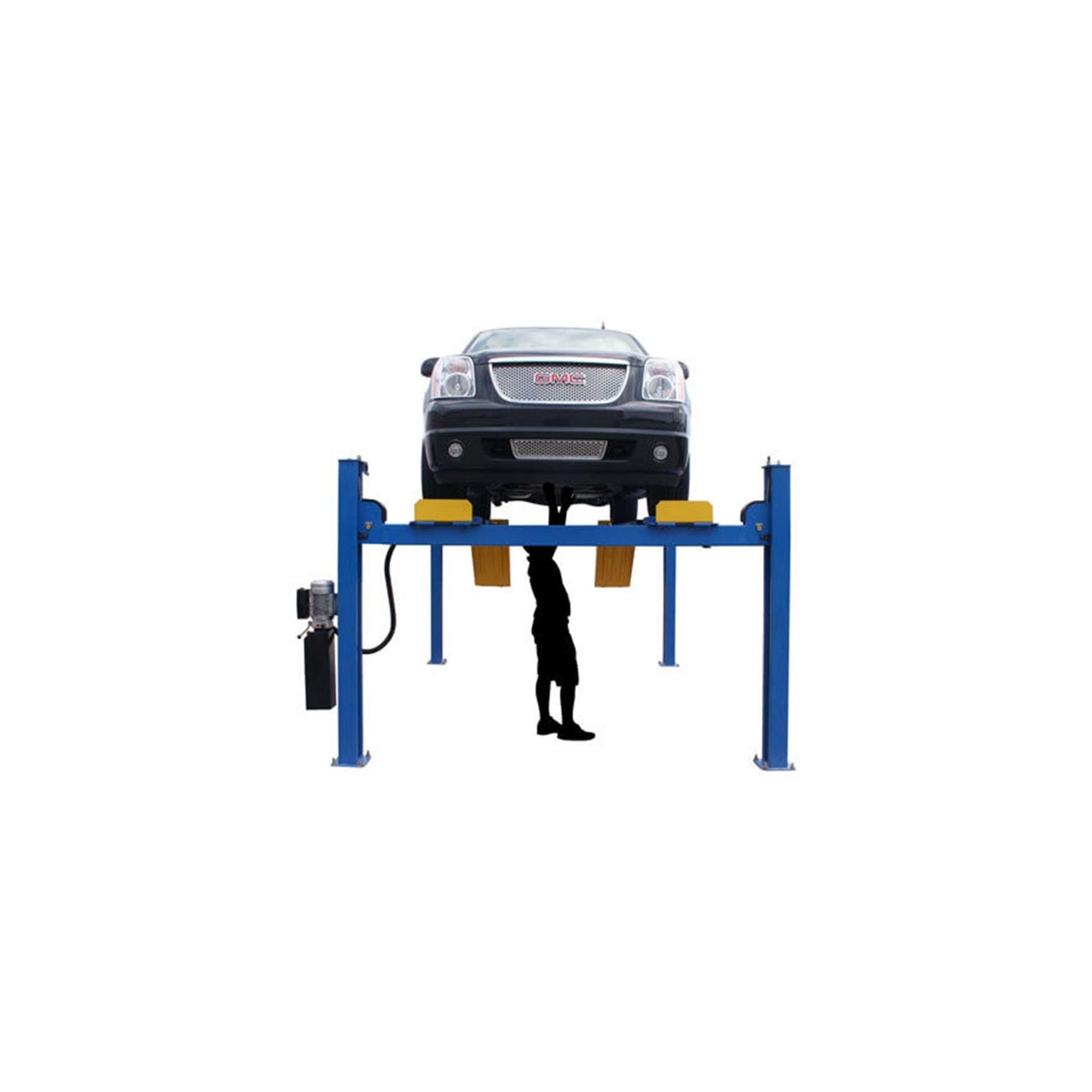

The Atlas ATTD-414AT is a heavy-duty 14,000 lb capacity commercial four-post alignment lift built for professional automotive repair facilities, tire shops, fleet maintenance centers, and alignment specialists. Combining the rugged construction of the Atlas ATTD-414 with integrated alignment equipment, this lift provides a complete solution for wheel alignments, suspension repairs, and general vehicle service.
Engineered for demanding commercial environments, the ATTD-414A features built-in rear slip plates and front alignment turntables that are precision-installed into the runways for accurate alignment measurements. Multiple turntable mounting positions allow the lift to accommodate a wide range of vehicle wheelbases, while the included steel cover plates replace the turntables when not in use, converting the lift into a versatile service lift for everyday repairs.

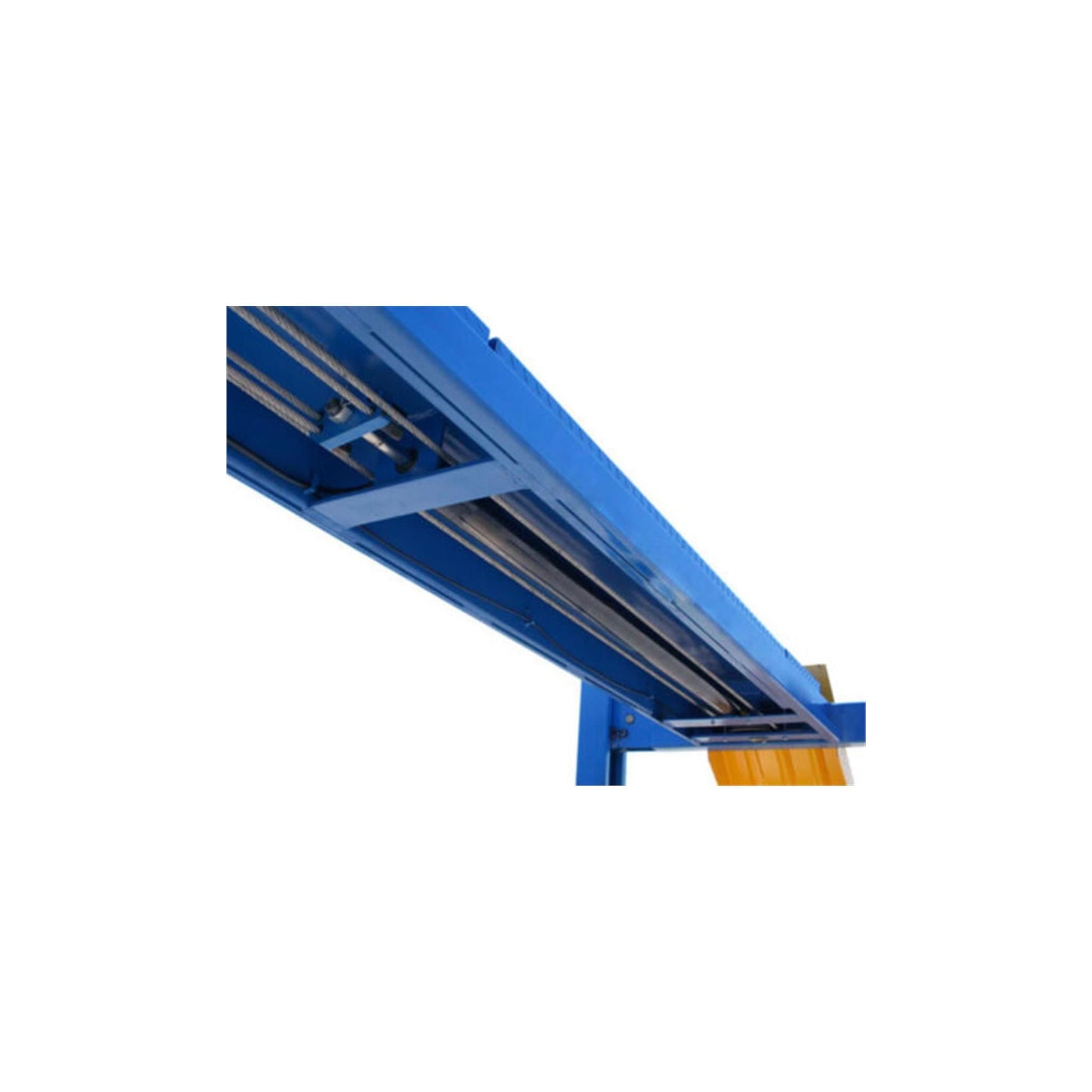

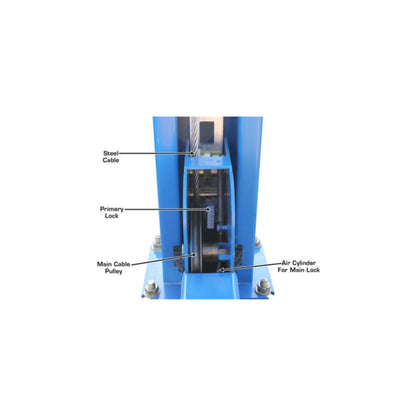

The lift utilizes a high-strength cable lifting system and an oversized hydraulic cylinder mounted beneath the runways, delivering smooth lifting performance while protecting hydraulic components from accidental vehicle contact. An air-operated single-point lock release, heavy-duty lock ladder, and double-lock safety system provide dependable safety and efficient operation throughout every service cycle.
Key Features
- 14,000 lb lifting capacity.
- Heavy-duty commercial-grade construction.
- Designed for wheel alignments and general vehicle service.
- Extra-tall, extra-wide, and extra-long platform.

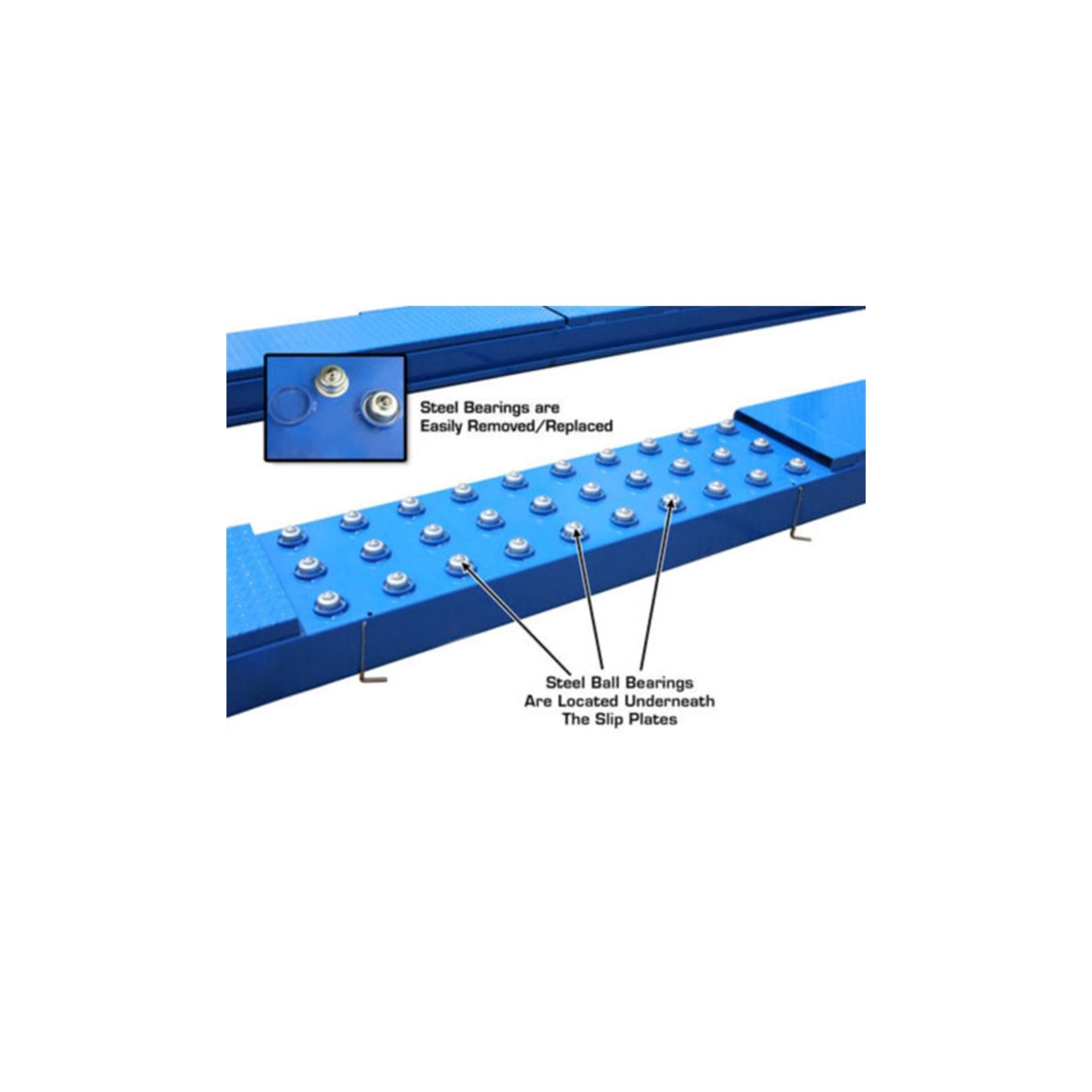

- Built-in rear slip plates.

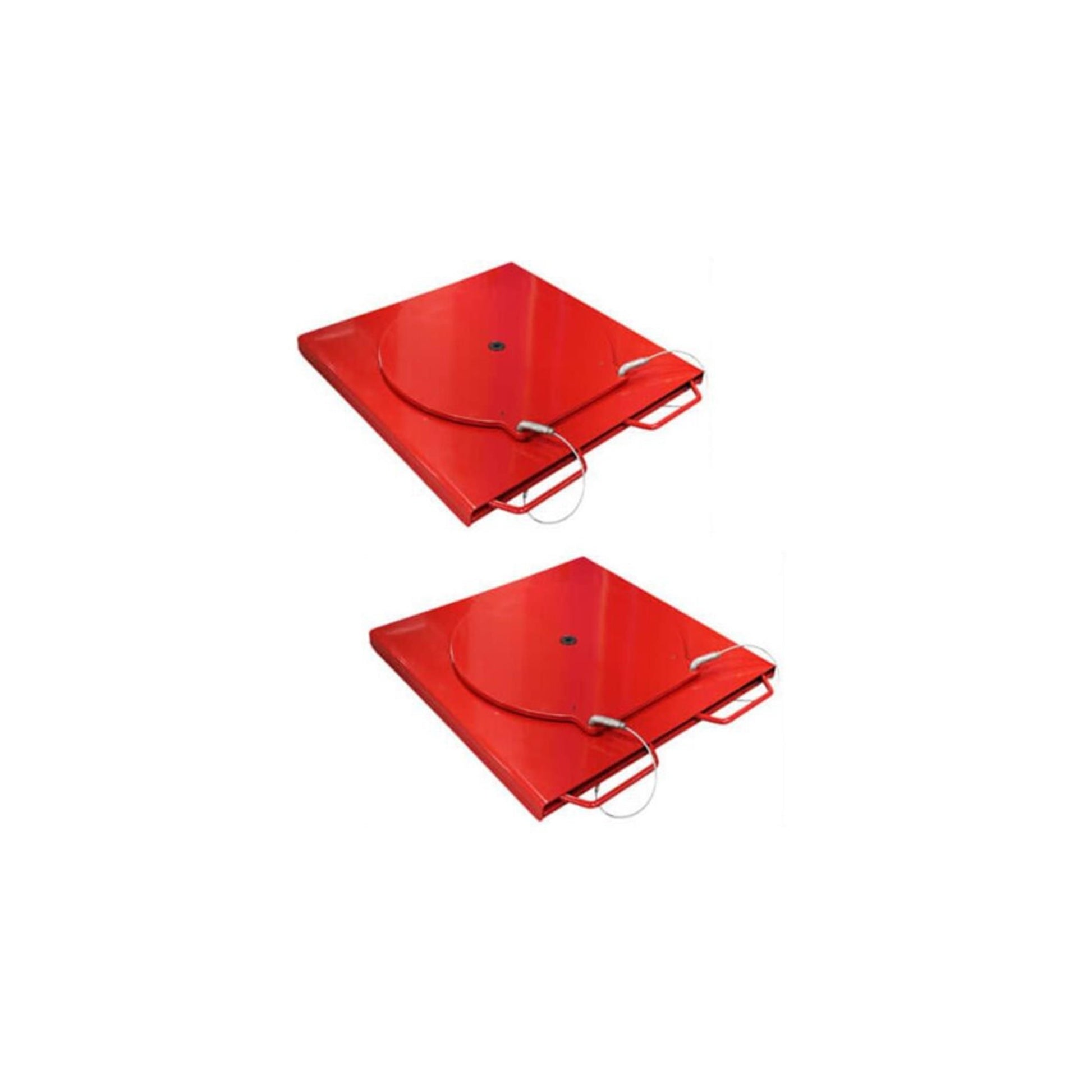

- Front alignment turntables included.

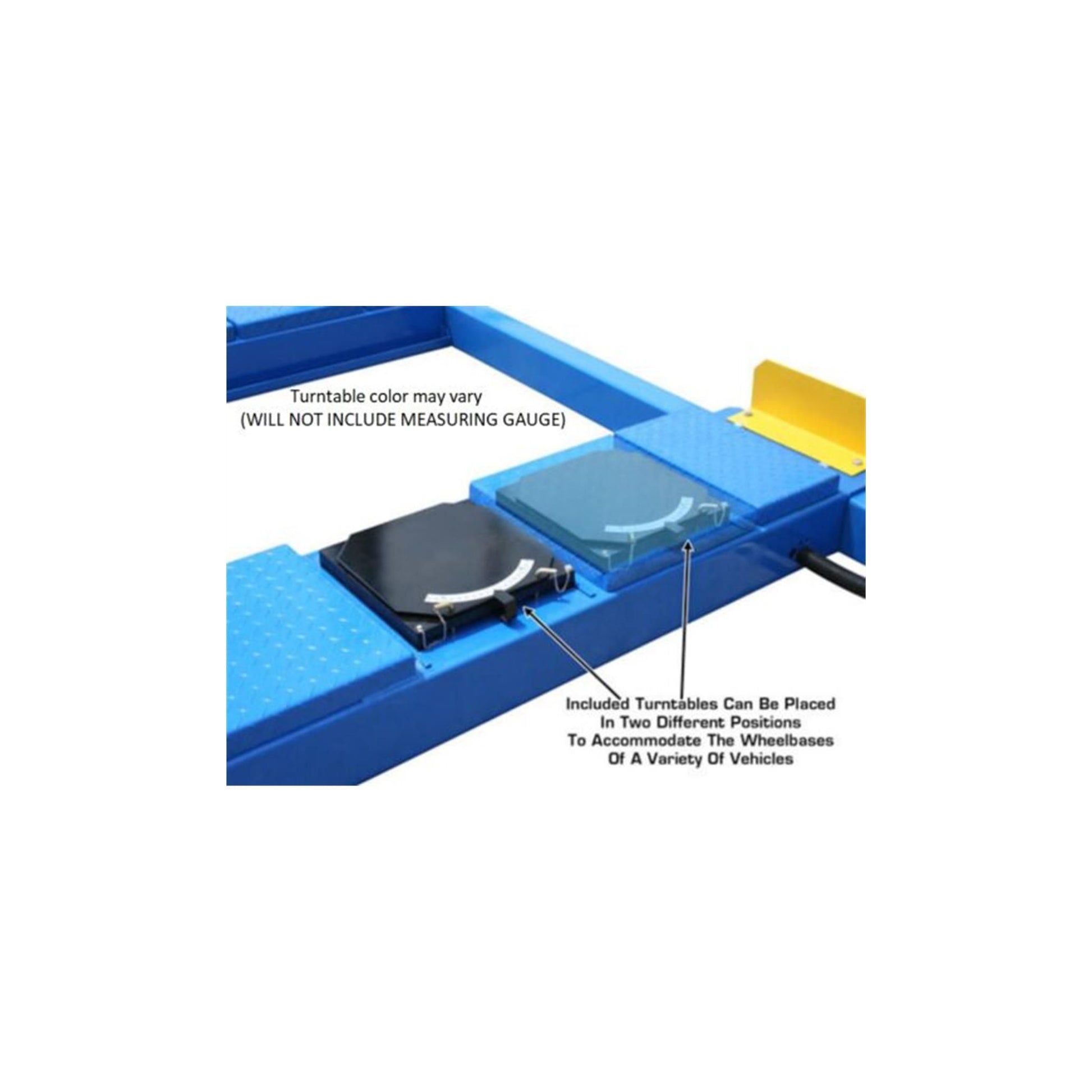

- Multiple turntable mounting positions for various wheelbases.

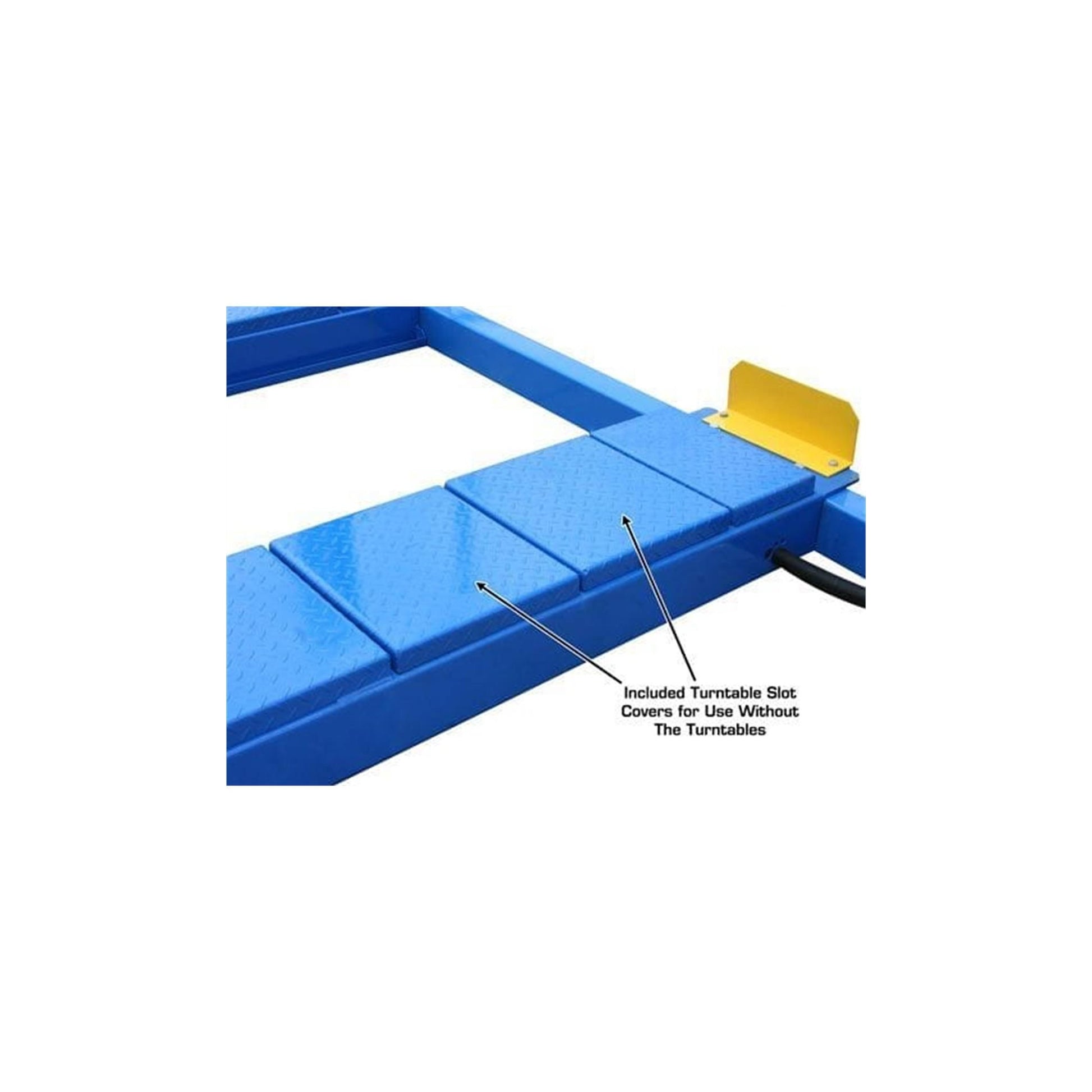

- Steel runway cover plates included for non-alignment service.

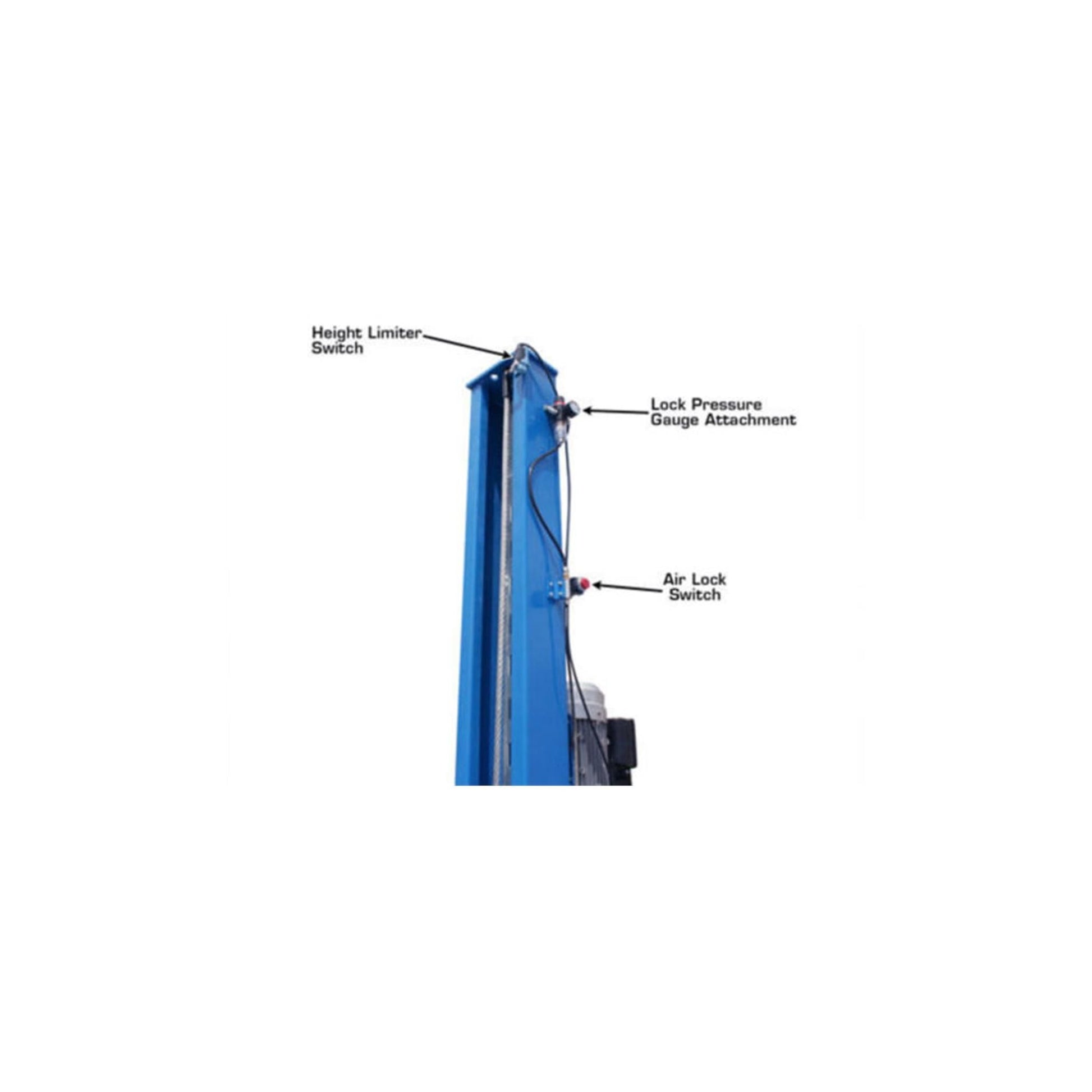

- Air-operated single-point lock release (external air supply required).

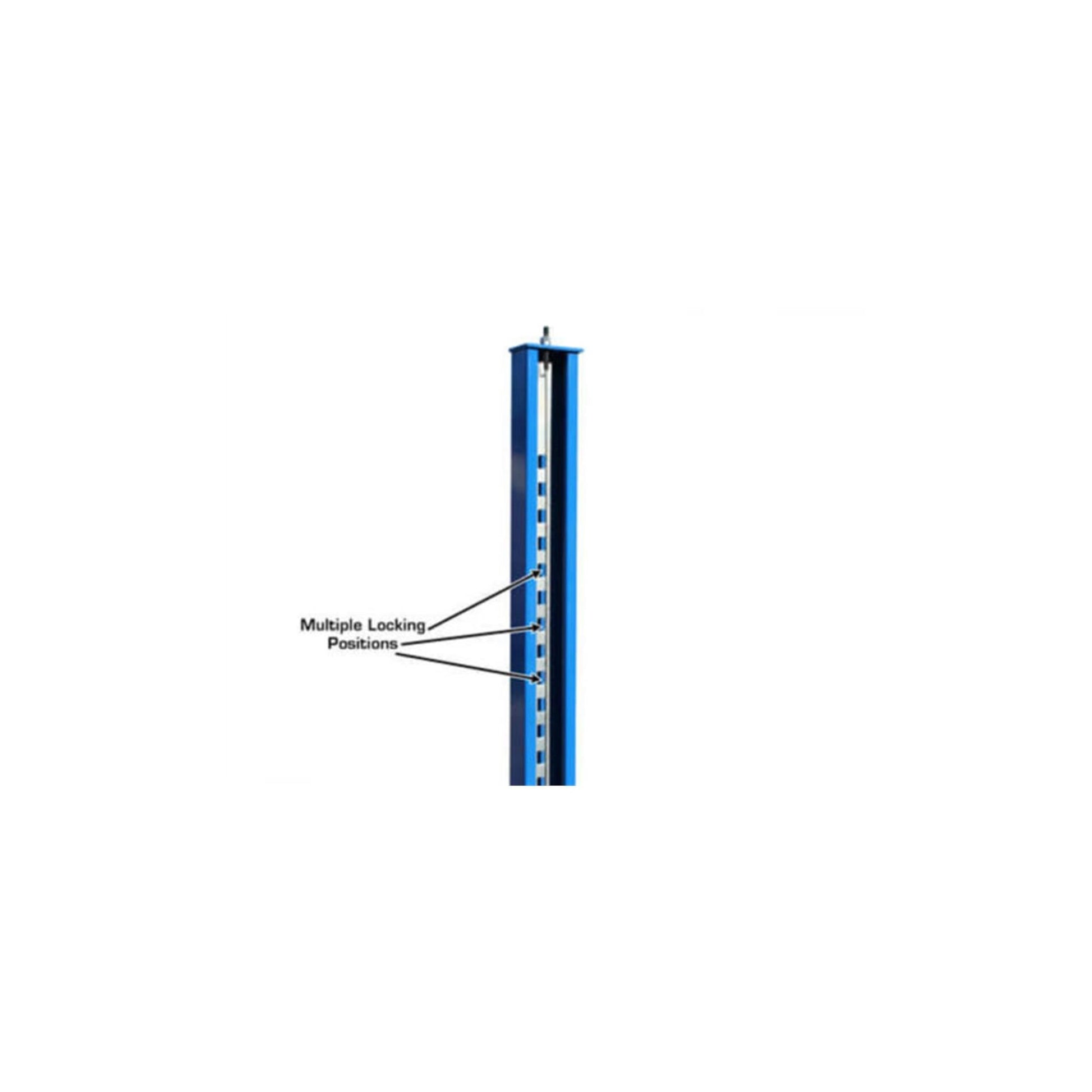

- Double-lock ladder safety system.
- Oversized under-runway hydraulic cylinder.

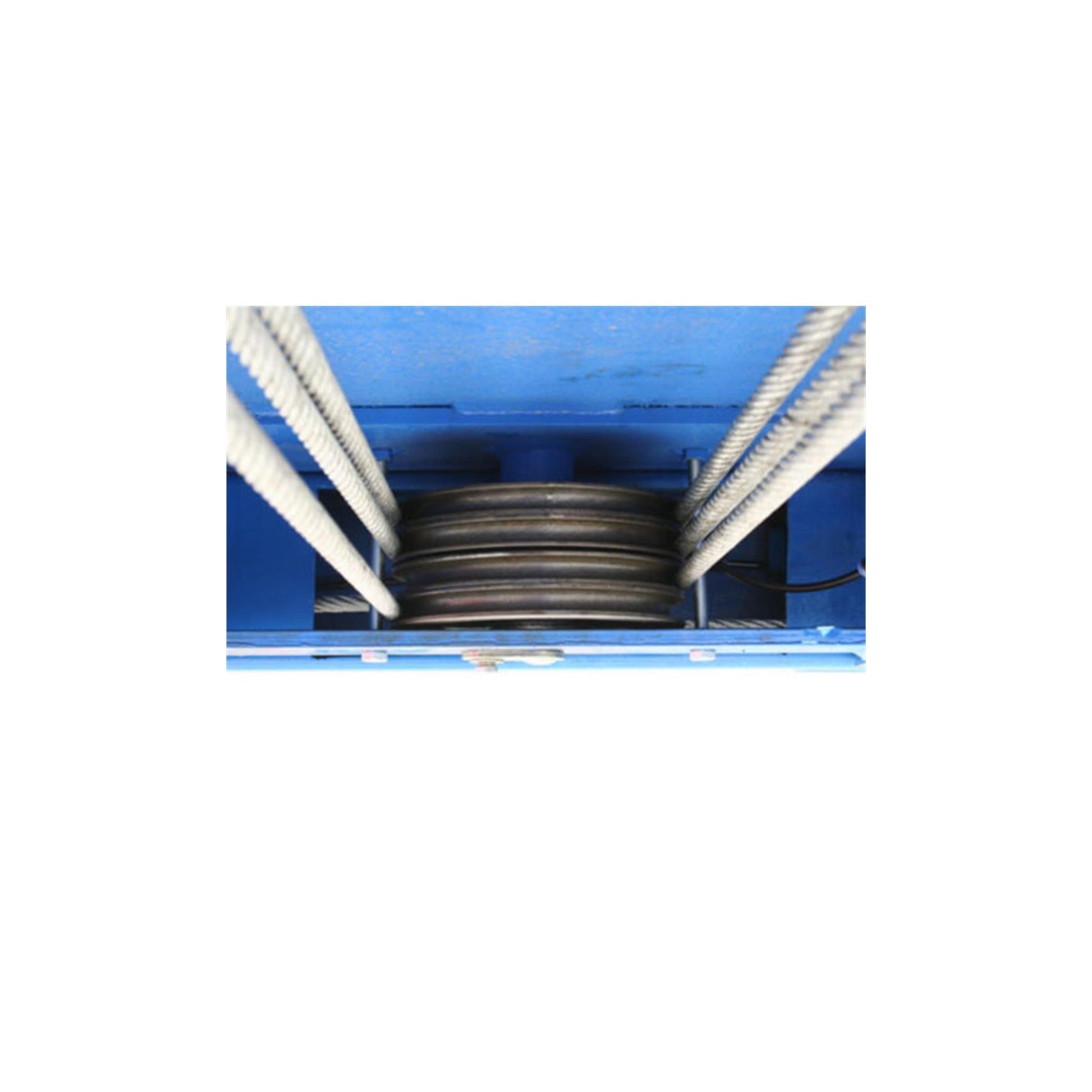

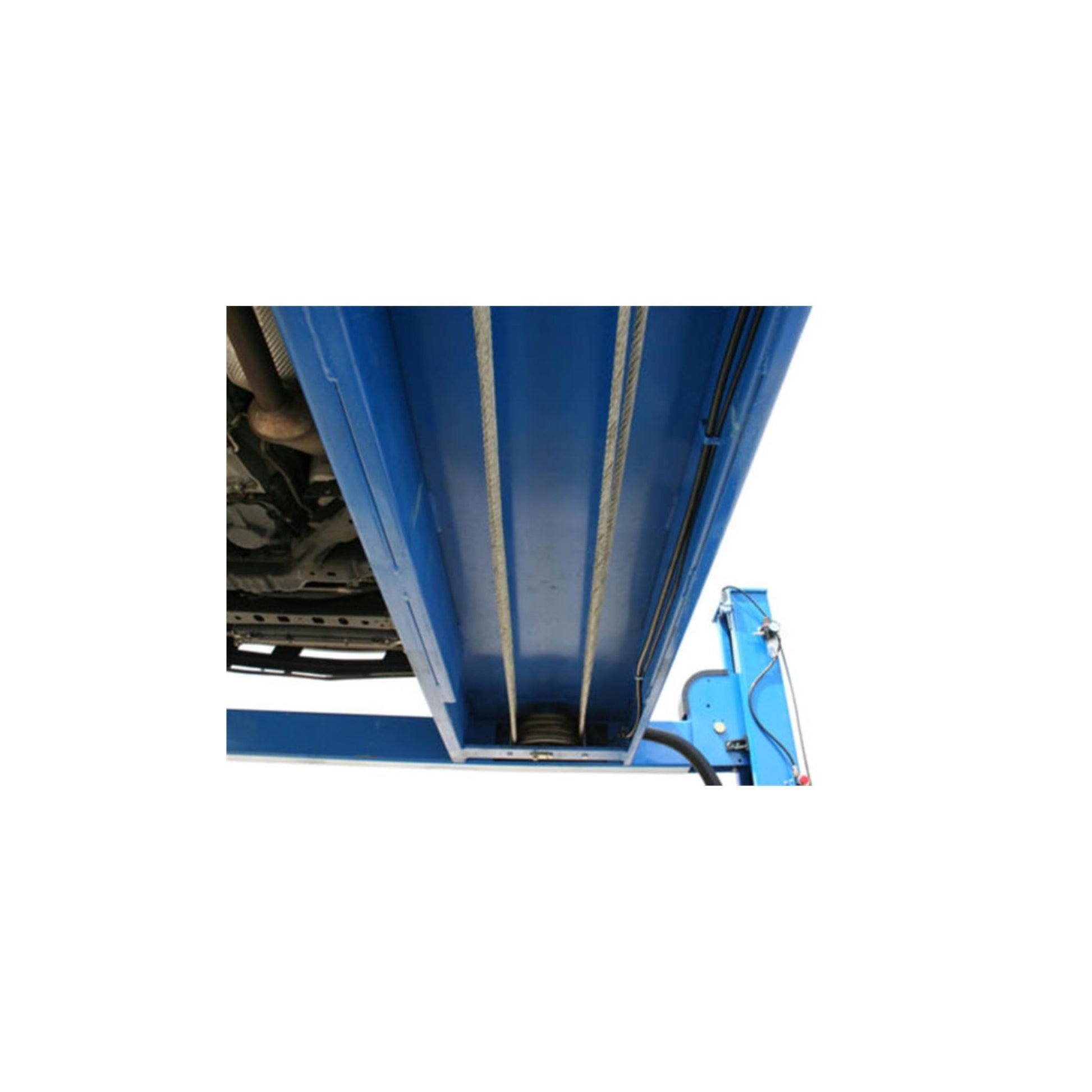

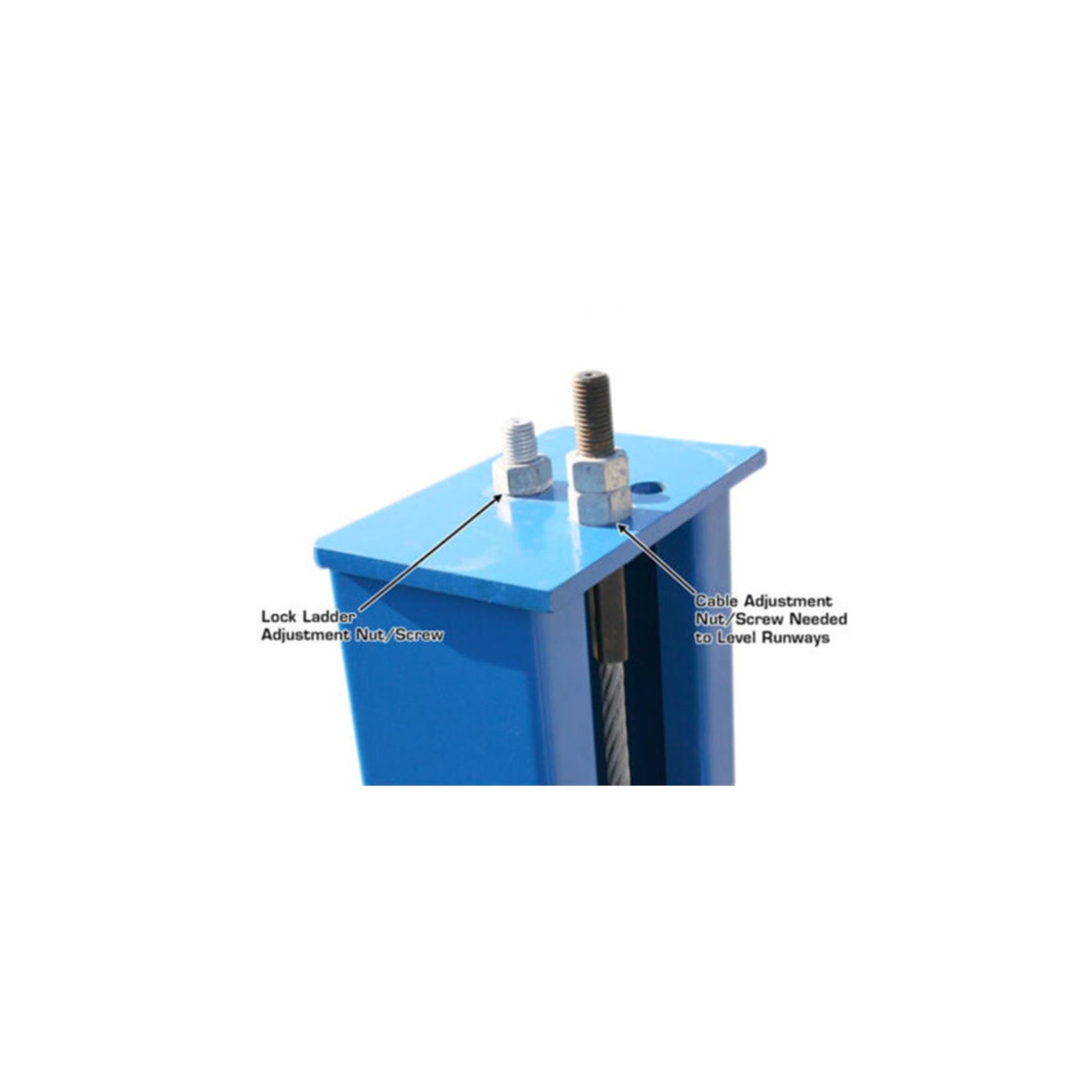

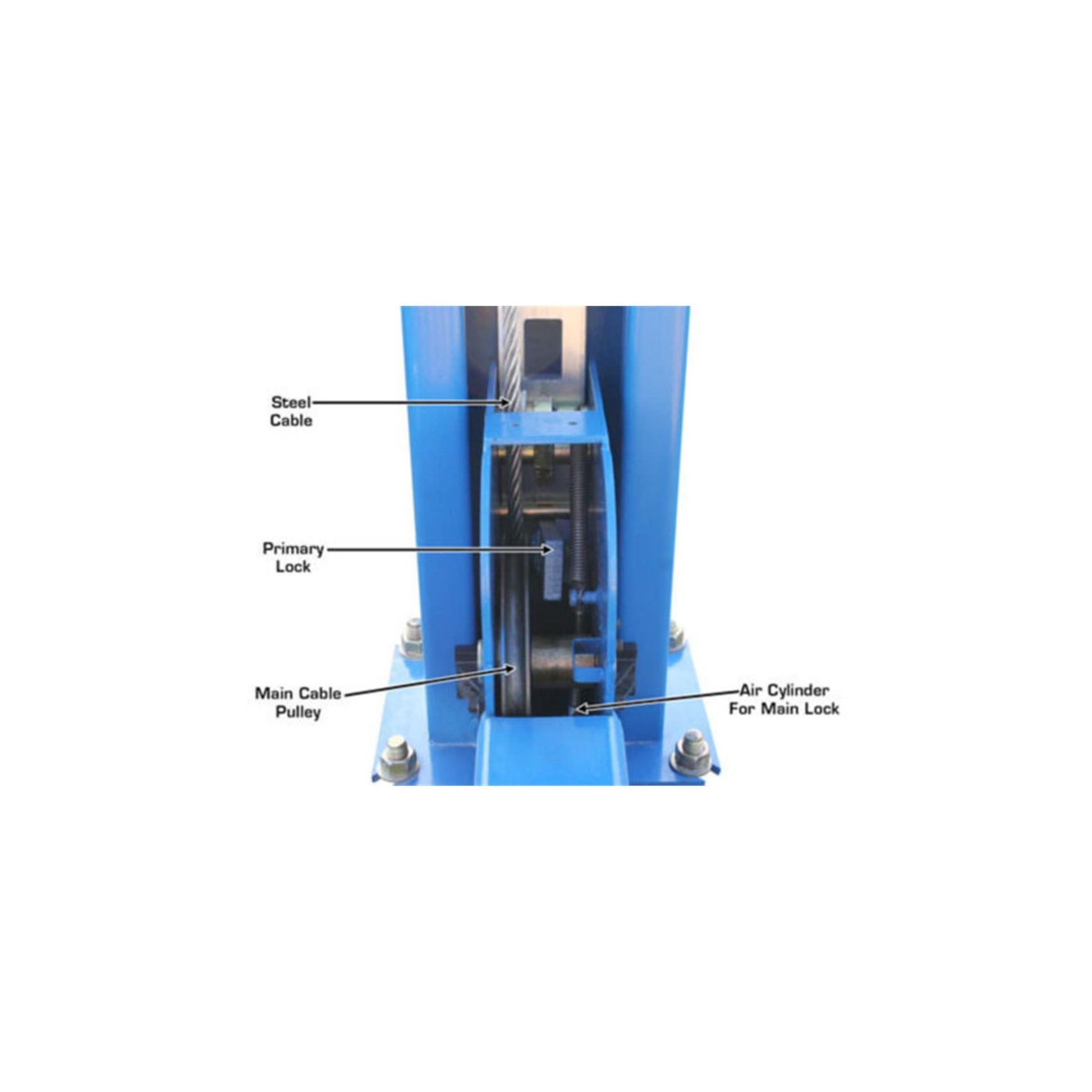

- High-strength cable lifting system.
- Integrated tracks for optional rolling bridge jack compatibility.
- Heavy-duty powder-coated finish.

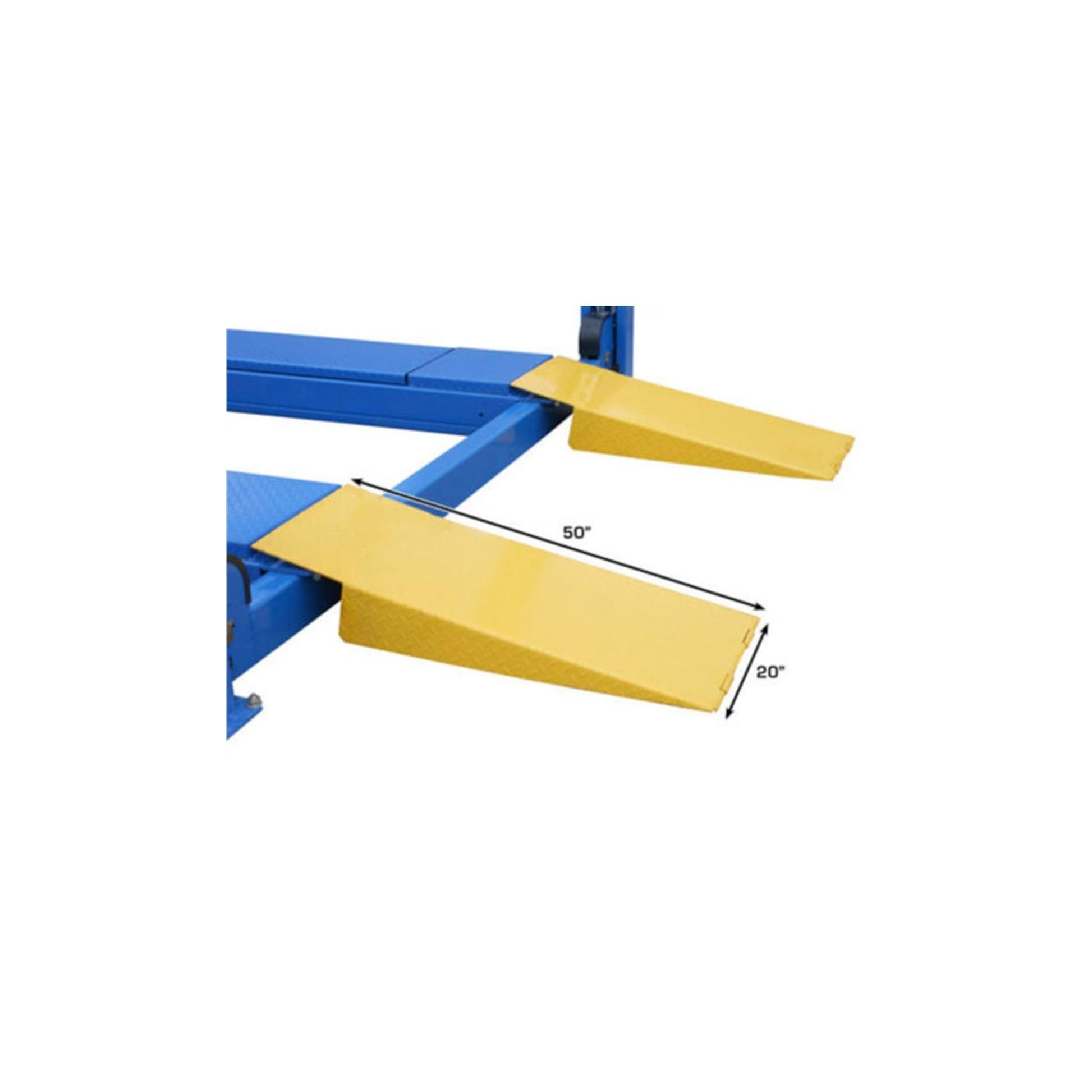

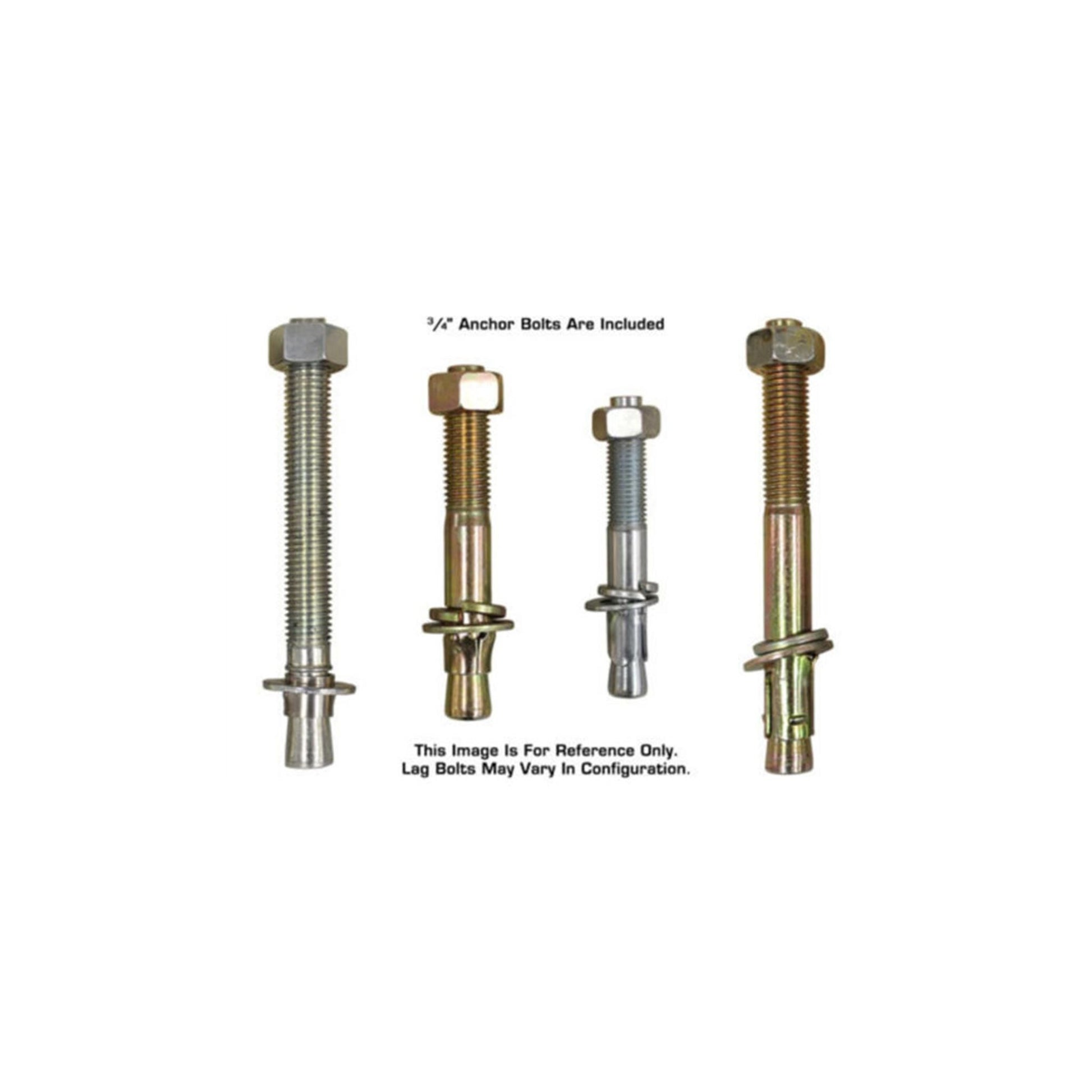

- Steel approach ramps and mounting hardware included.

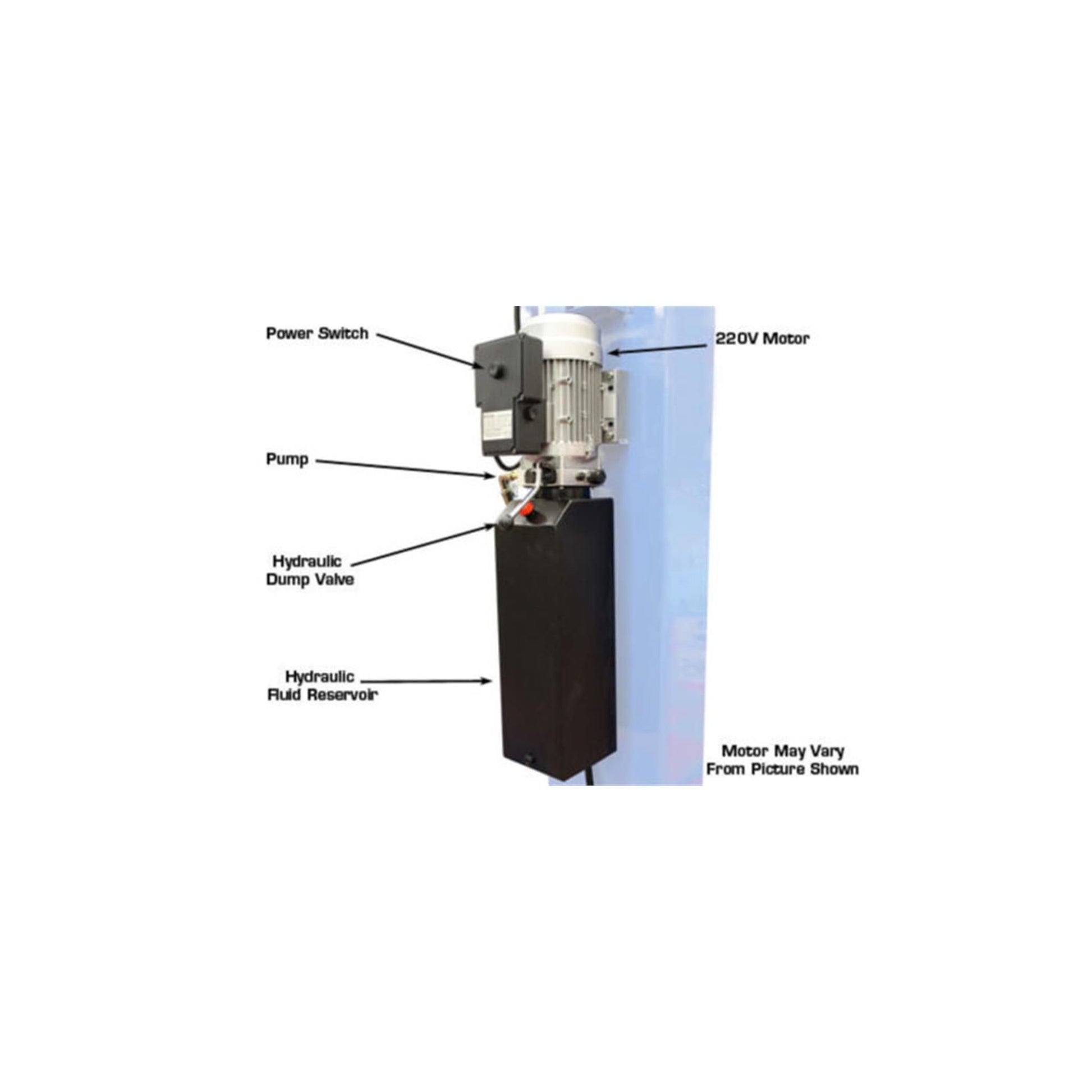

- 220V single-phase commercial power unit.
Ideal Applications
- Wheel alignment shops
- Commercial automotive repair facilities
- Tire and suspension shops
- Fleet maintenance centers
- Dealership service departments
- Brake and suspension repairs
- Vehicle inspections
- General mechanical service
- Passenger cars
- SUVs
- Pickup trucks
- Commercial vans and long-wheelbase vehicles
Specifications
| Brand | Atlas |
| Model | ATTD-414A |
| Lift Capacity | 14,000 lb |
| Lift Type | Commercial Four-Post Alignment Lift |
| Construction | Heavy-Duty Commercial Grade |
| Finish | Powder Coat |

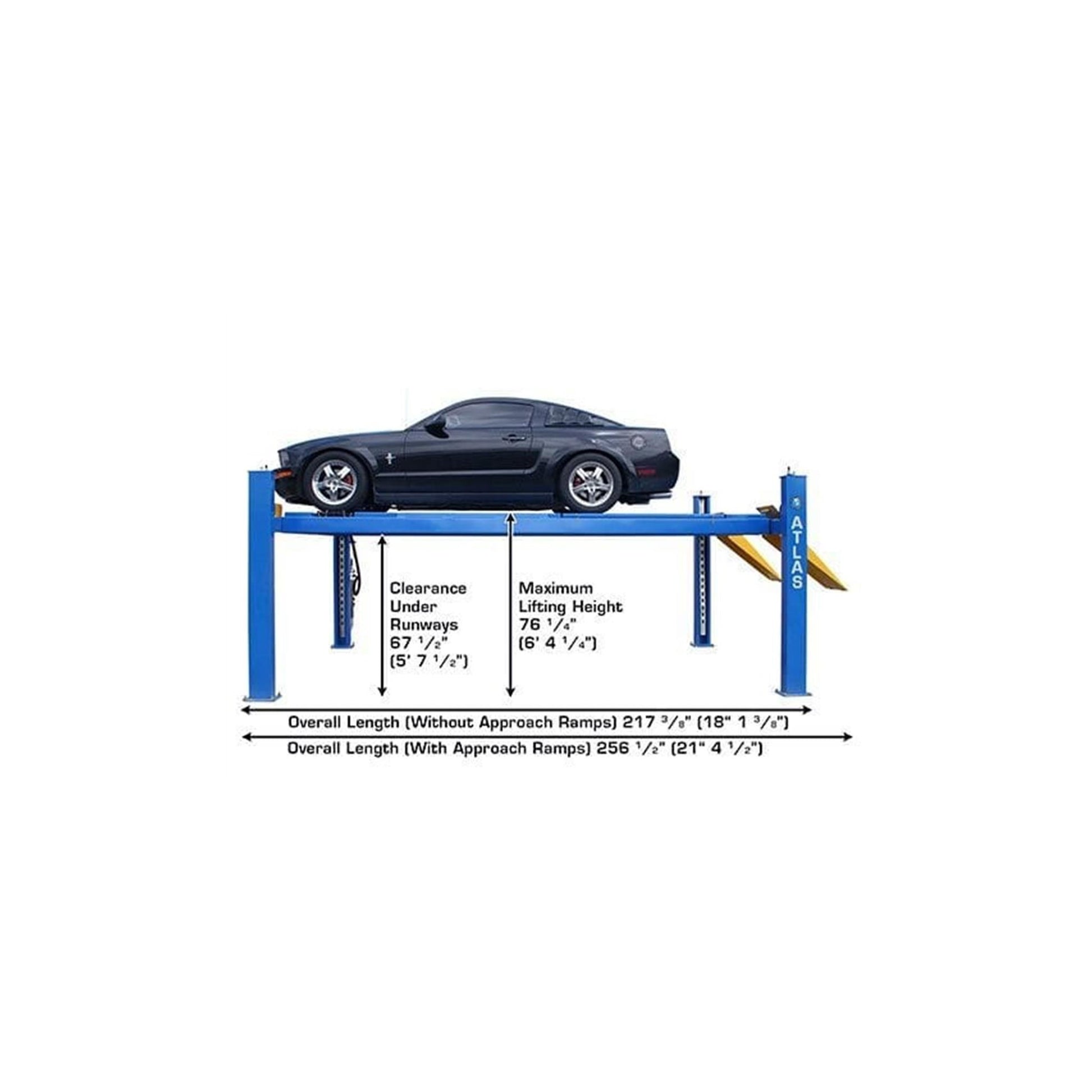

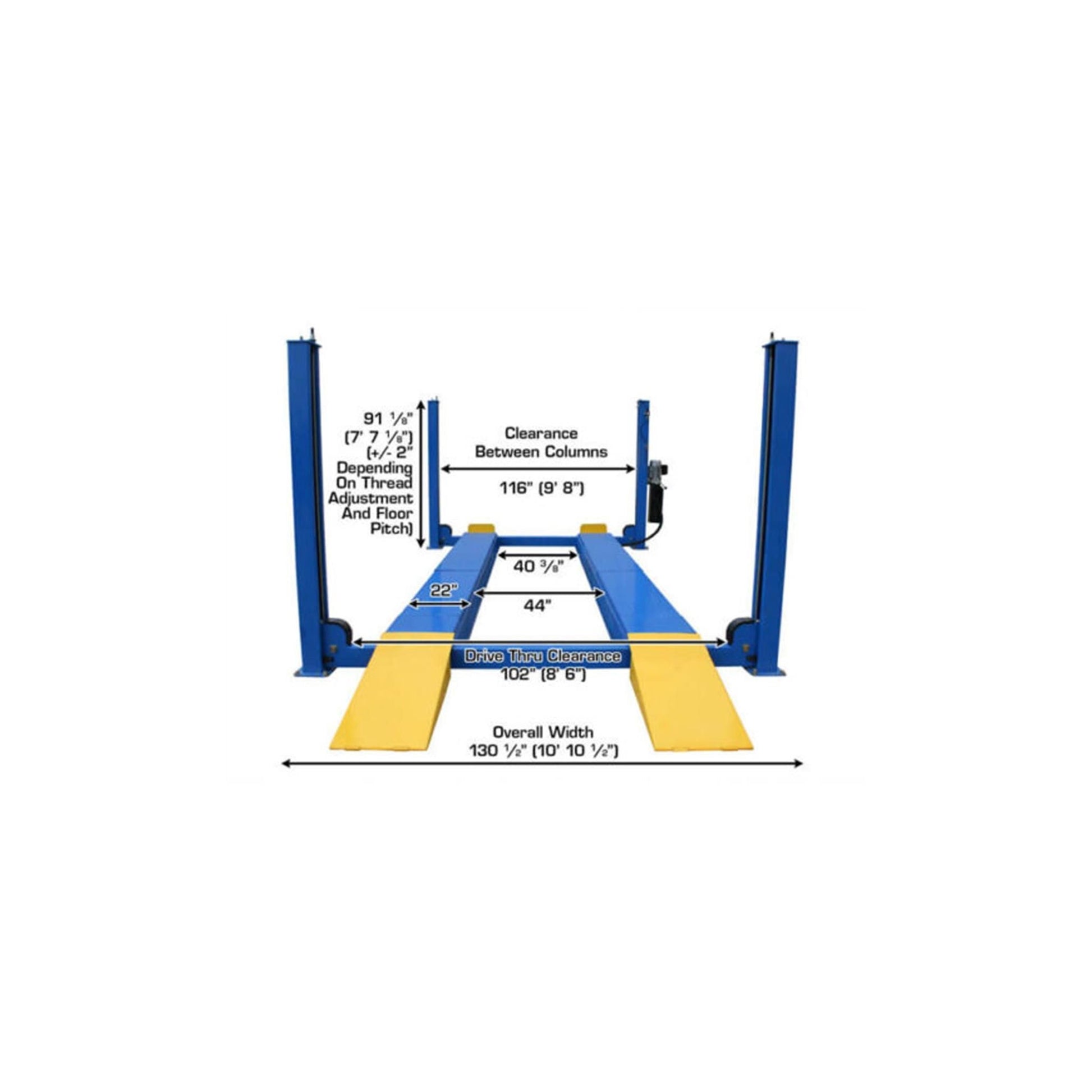

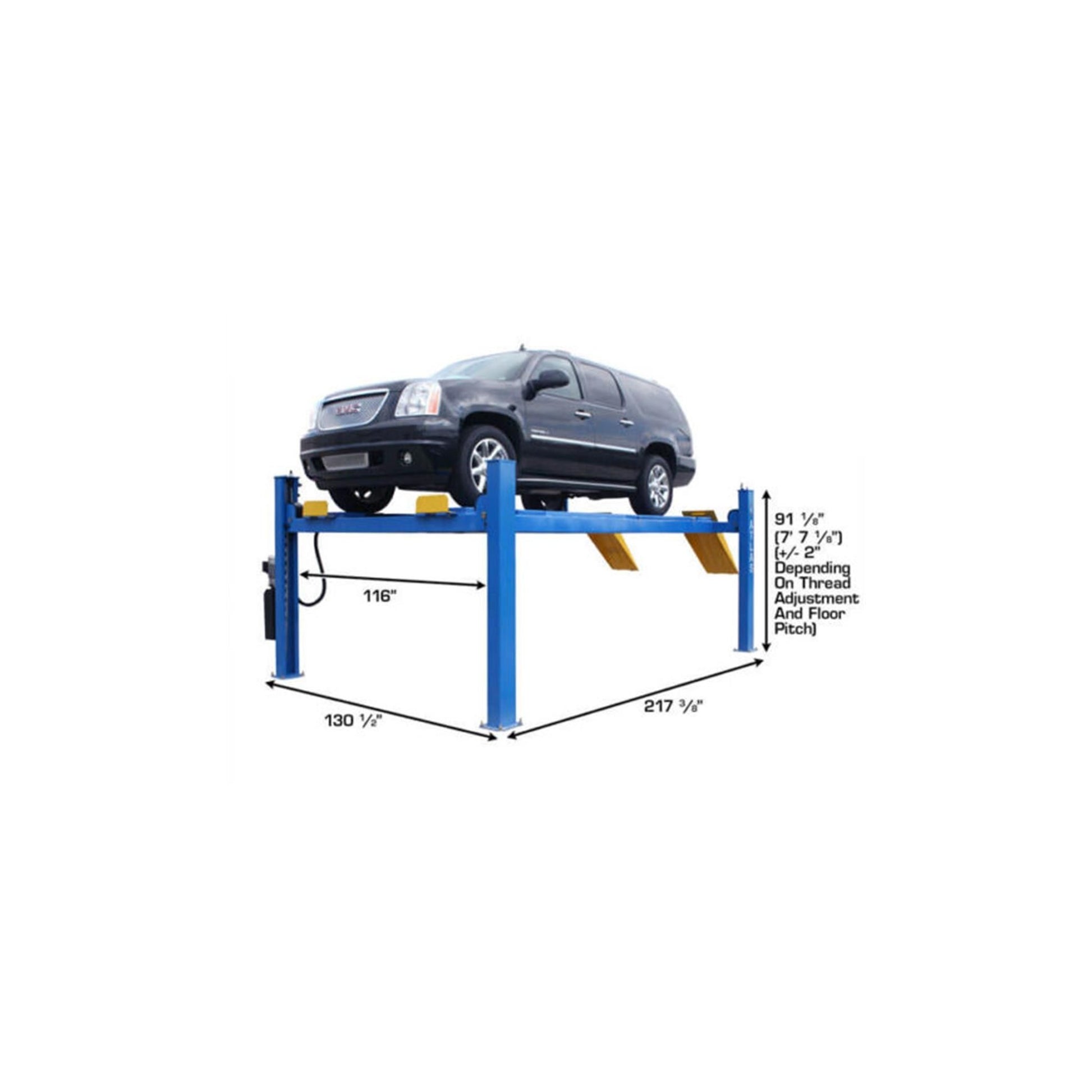

| Lifting Height | 80 in (6 ft 8 in) |

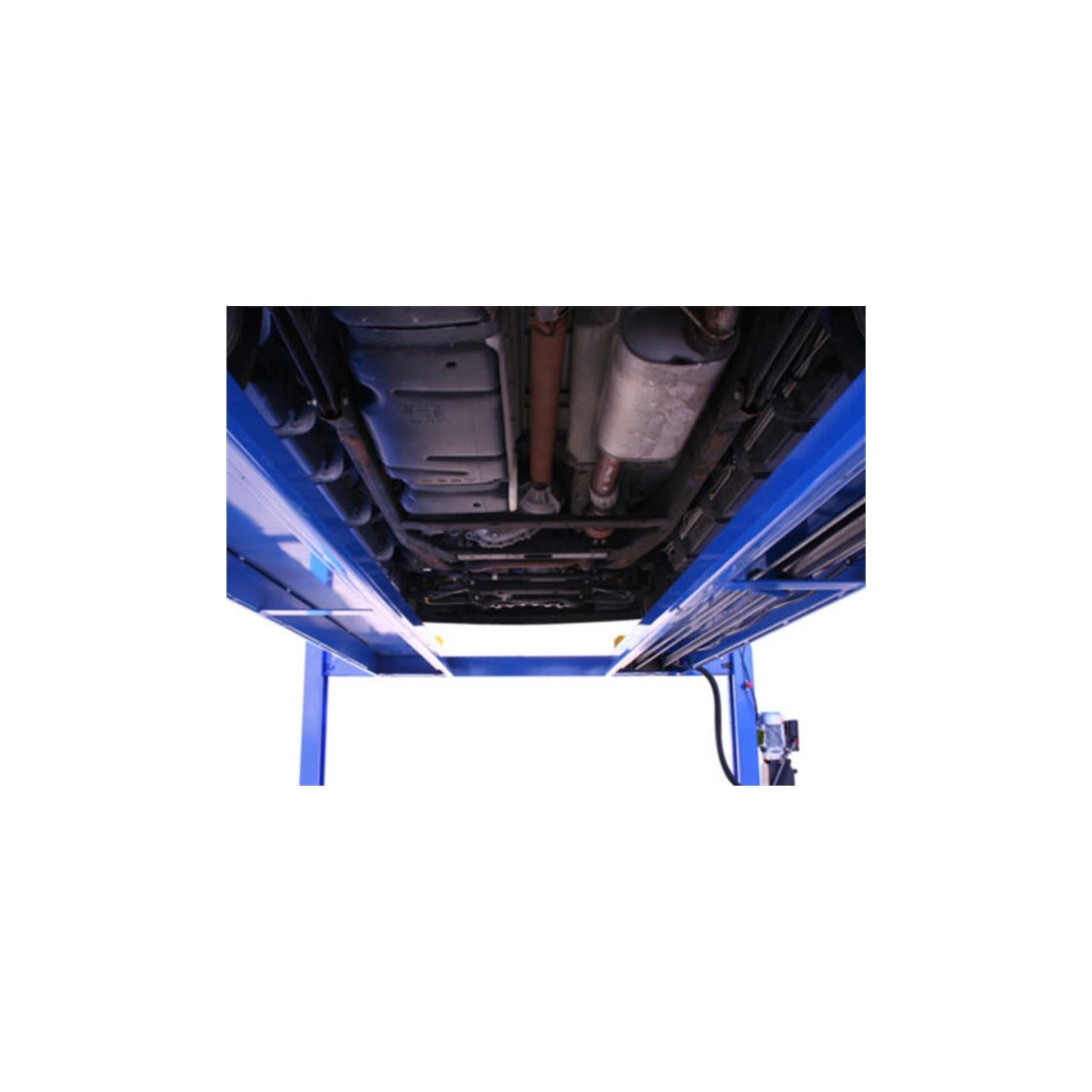

| Clearance Under Runways | 71 1/4 in (5 ft 11 1/4 in) |

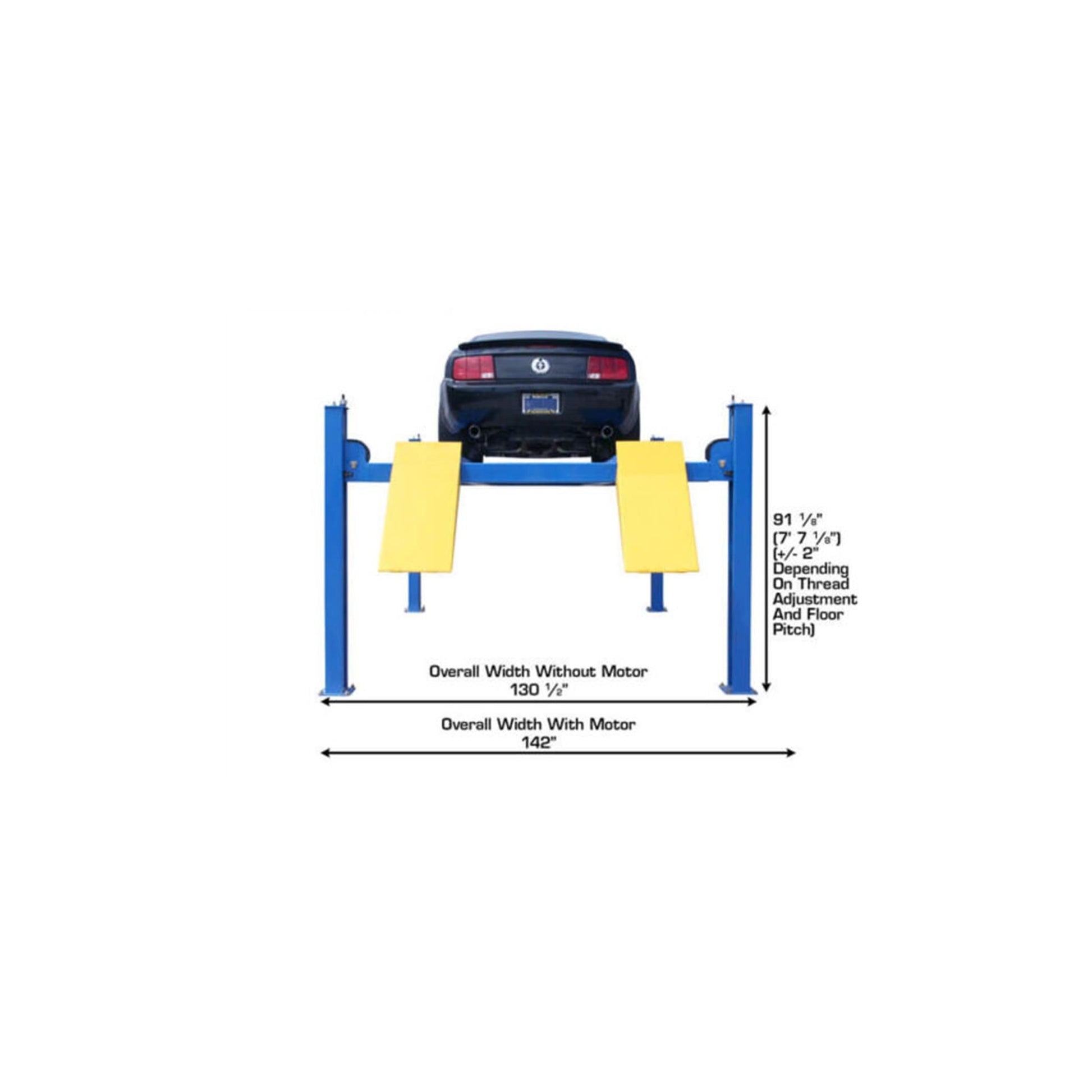

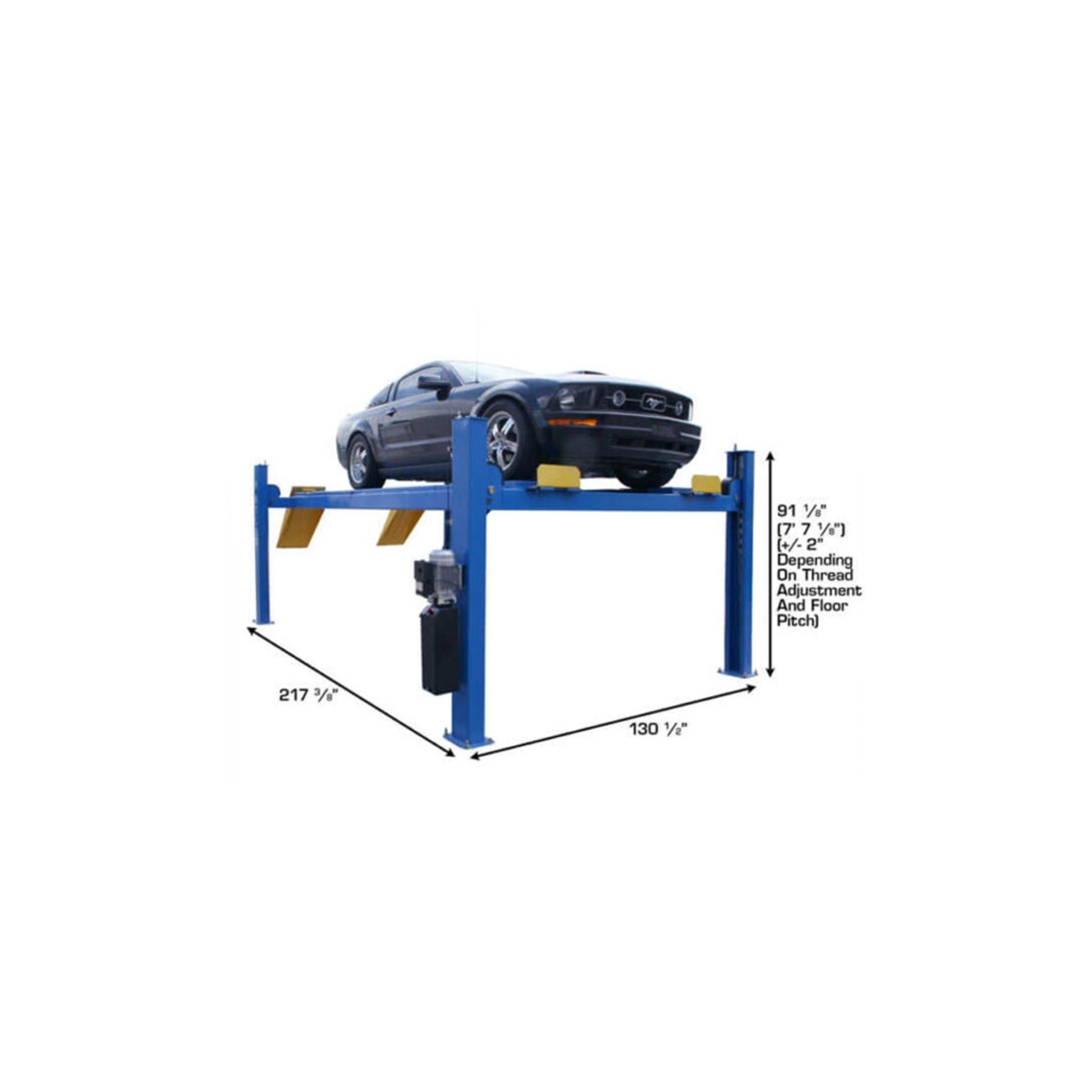

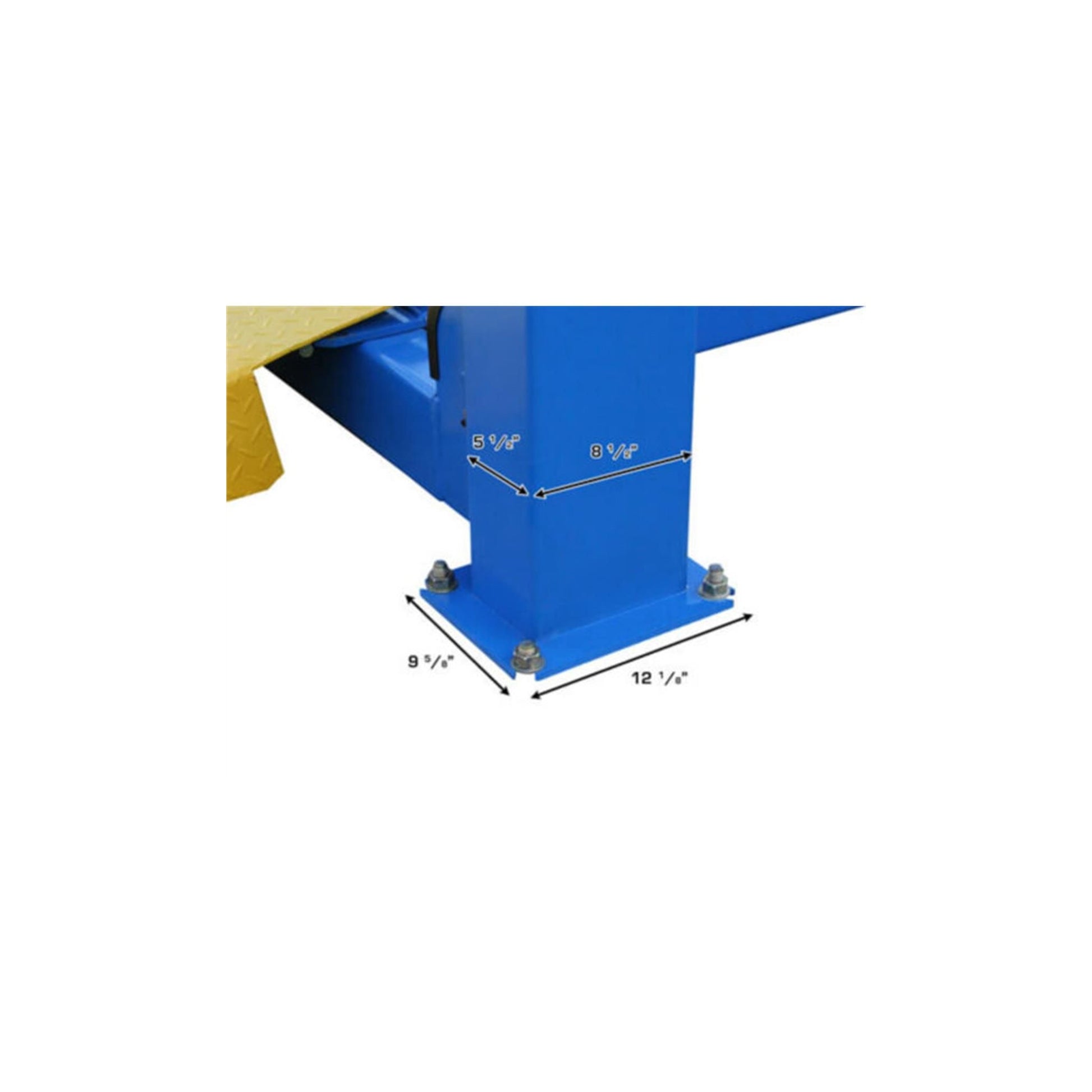

| Column Height | 91 1/8 in (7 ft 7 1/8 in) |

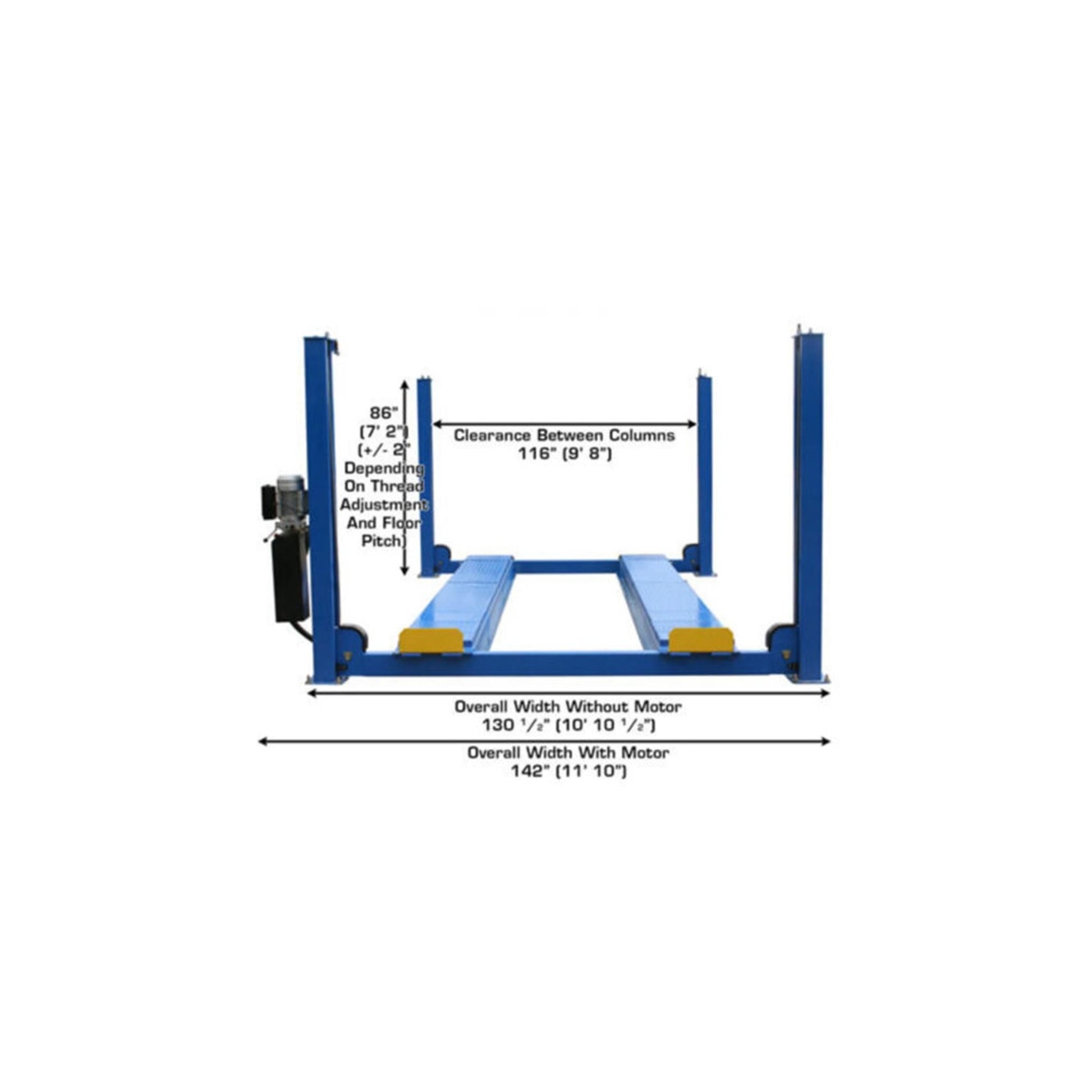

| Overall Width (Without Power Unit) | 130 7/8 in (10 ft 10 7/8 in) |
| Overall Width (With Power Unit) | 138 7/8 in (11 ft 6 7/8 in) |

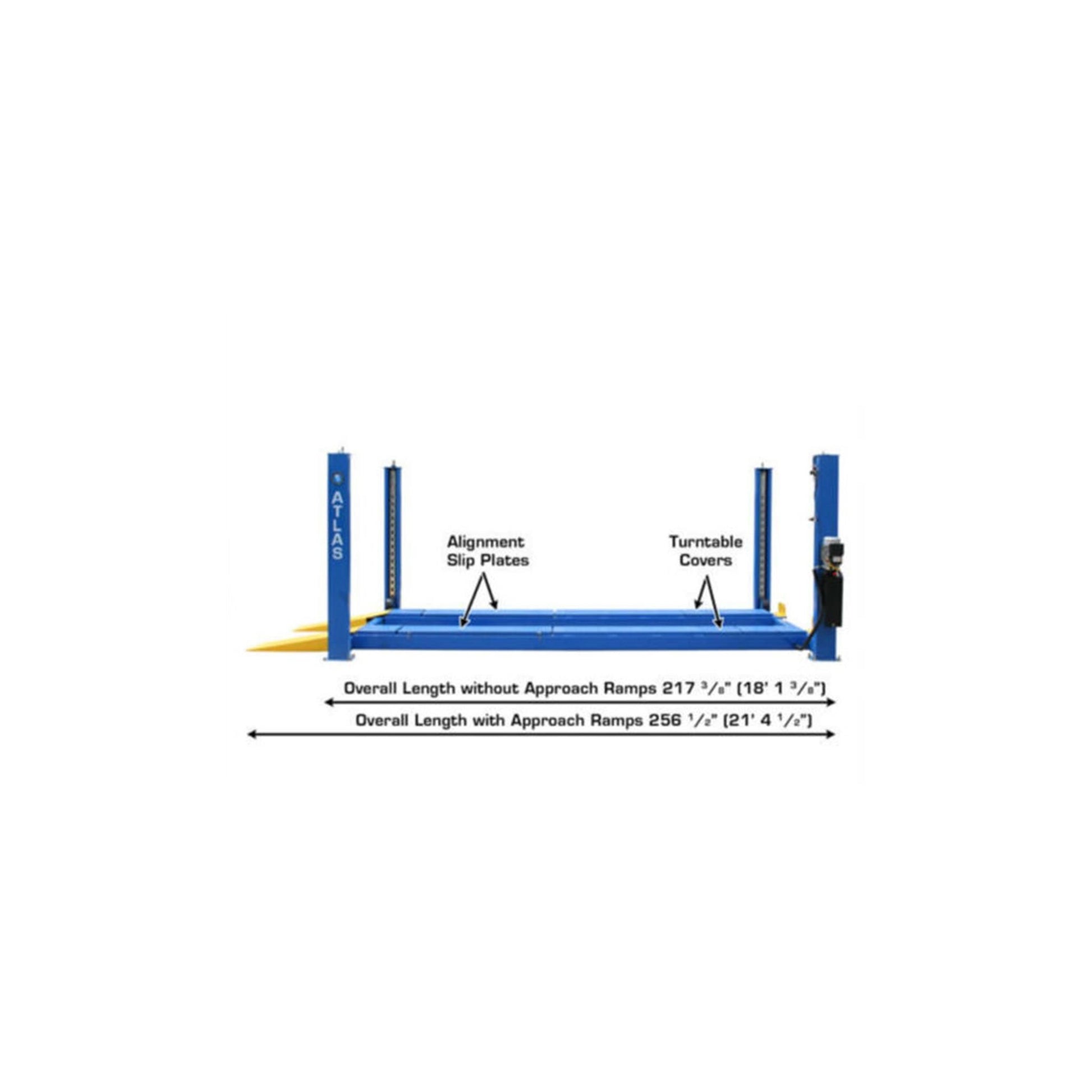

| Overall Length (With Approach Ramps) | 255 in (21 ft 3 in) |
| Length Between Columns | 197 1/4 in (16 ft 5 1/4 in) |
| Runway Length | 208 5/8 in (17 ft 4 5/8 in) |
| Runway Width | 20 in |
| Runway Thickness | 8 3/4 in |

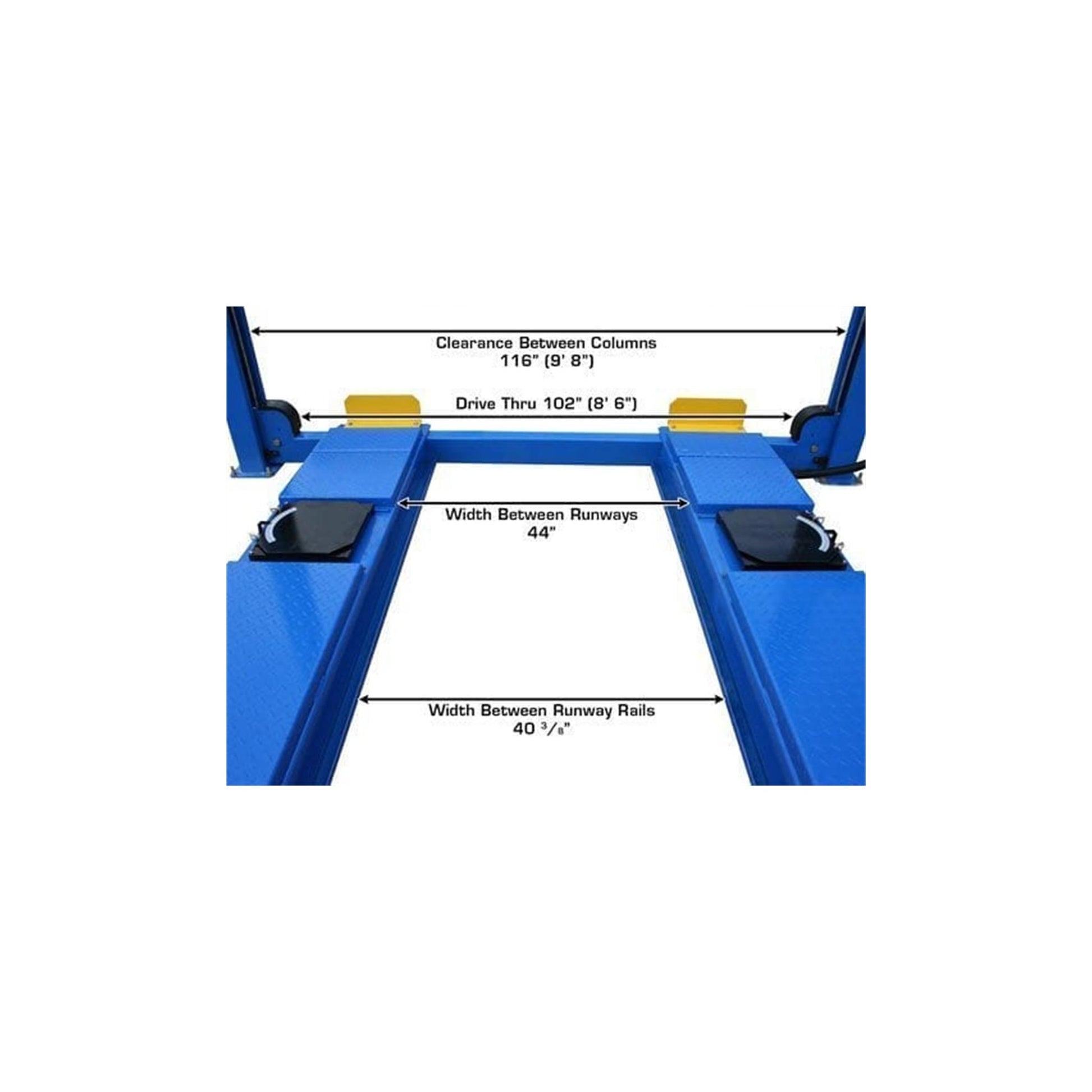

| Width Between Runways | 46 7/8 in (44 3/8 in between rails) |
| Outside Runway to Outside Runway | 86 7/8 in (7 ft 2 7/8 in) |
| Clearance Between Columns | 116 in (9 ft 8 in) |

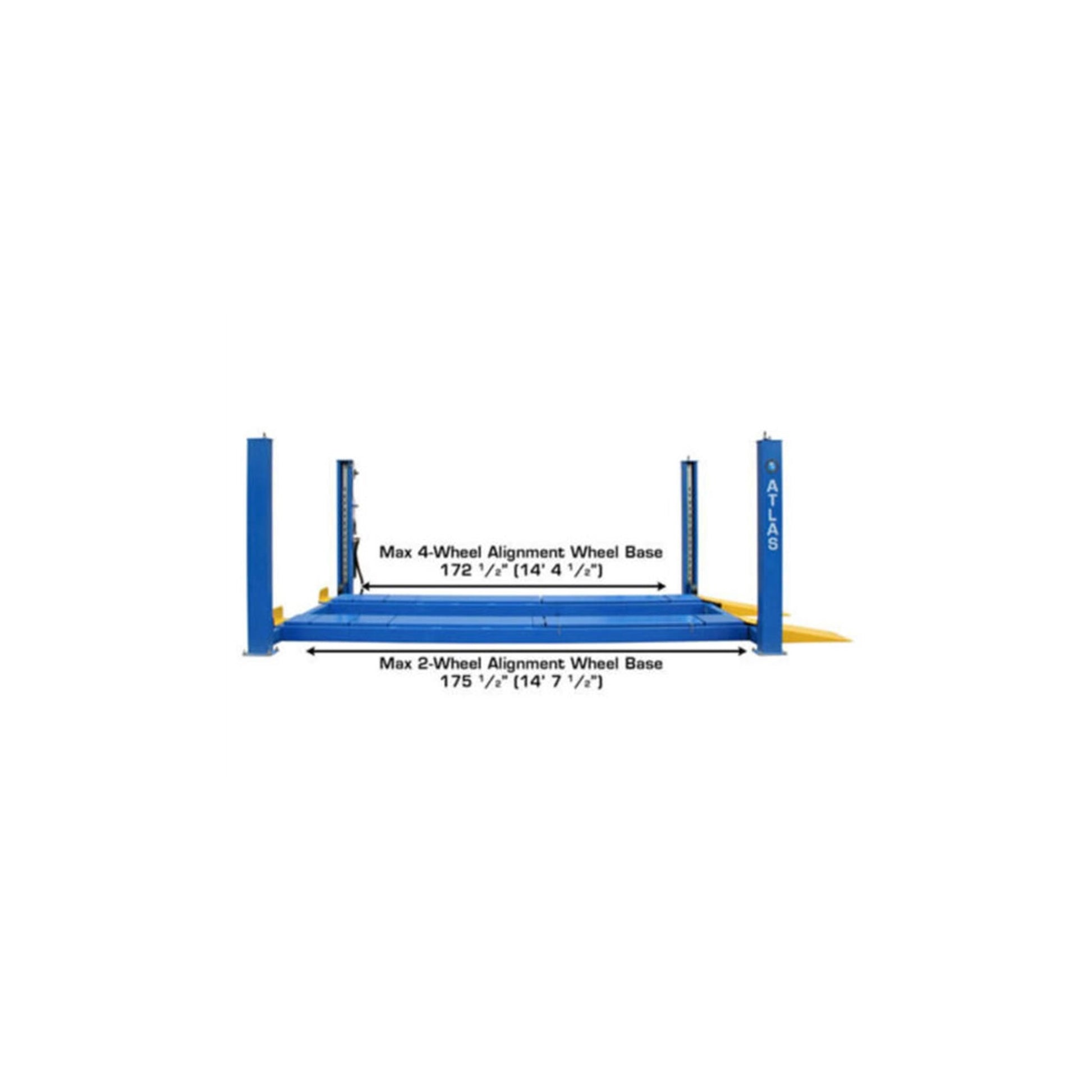

| Maximum Wheelbase | 197 in (16 ft 5 in) |
| Drive-Through Width | 102 1/8 in (8 ft 6 1/8 in) |
| Alignment Equipment | Built-In Rear Slip Plates and Front Alignment Turntables |
| Turntable Positions | Multiple Mounting Positions for Various Wheelbases |

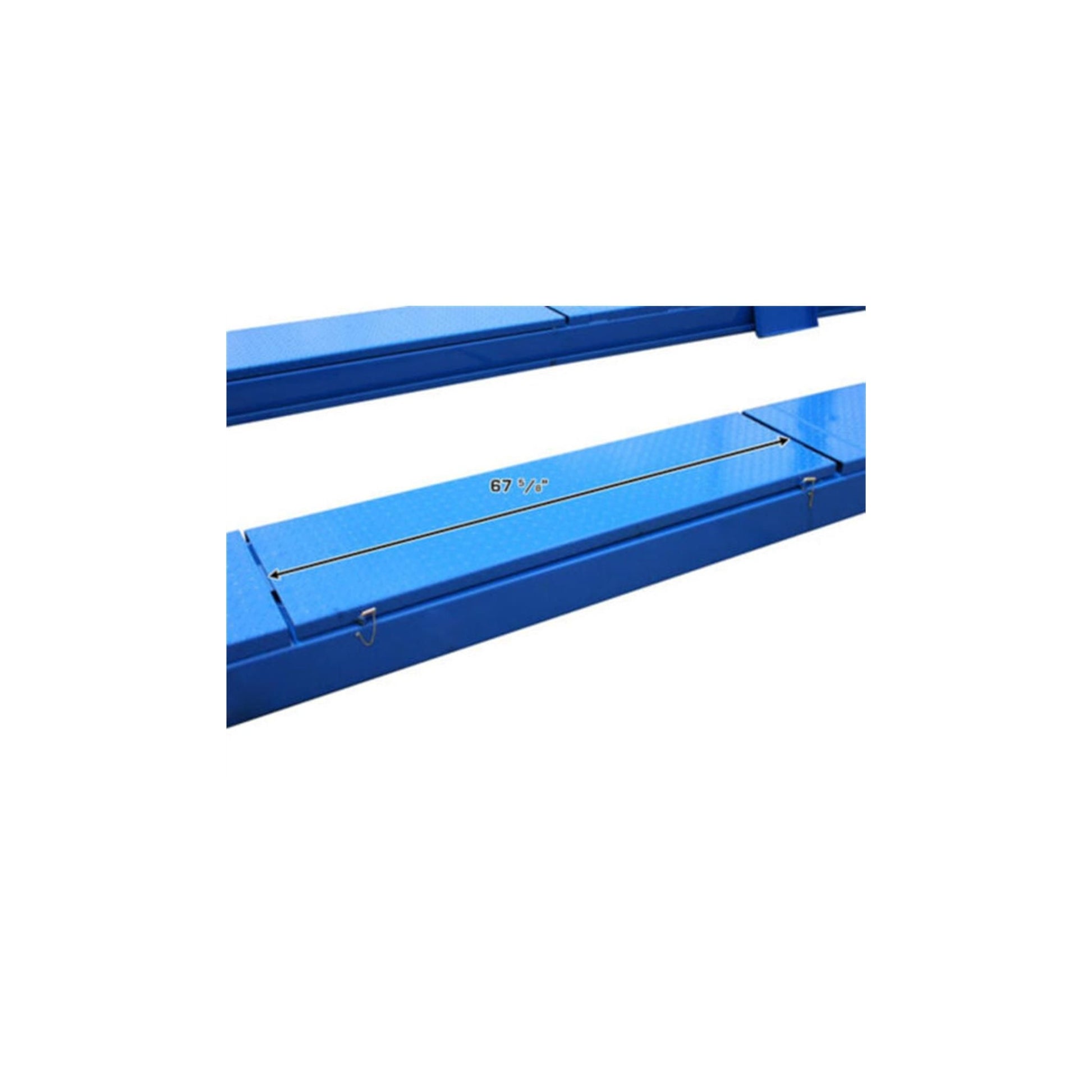

| Runway Covers | Steel Cover Plates Included |
| Safety System | Double-Lock Ladder Safety System |
| Lock Release | Air-Operated Single-Point Lock Release |
| Air Requirement | 85–115 PSI (External Air Supply Required) |
| Bridge Jack Compatibility | Integrated Tracks for Optional Atlas RJ8000BK Rolling Bridge Jack |
| Power Requirements | 220V, Single-Phase, 30 Amp Breaker Recommended |
| Hydraulic Oil Capacity | 3–5 Gallons AW32/AW46 Hydraulic Oil (Not Included) |
| Concrete Requirement | Minimum 6 in Thick, 3,000 PSI Concrete |
| Included Accessories | Steel Approach Ramps, Front Alignment Turntables, Rear Slip Plates, Steel Runway Covers, Mounting Hardware |
| Optional Accessories | Rolling Bridge Jack, Drive-Off Ramps, Runway Extensions |

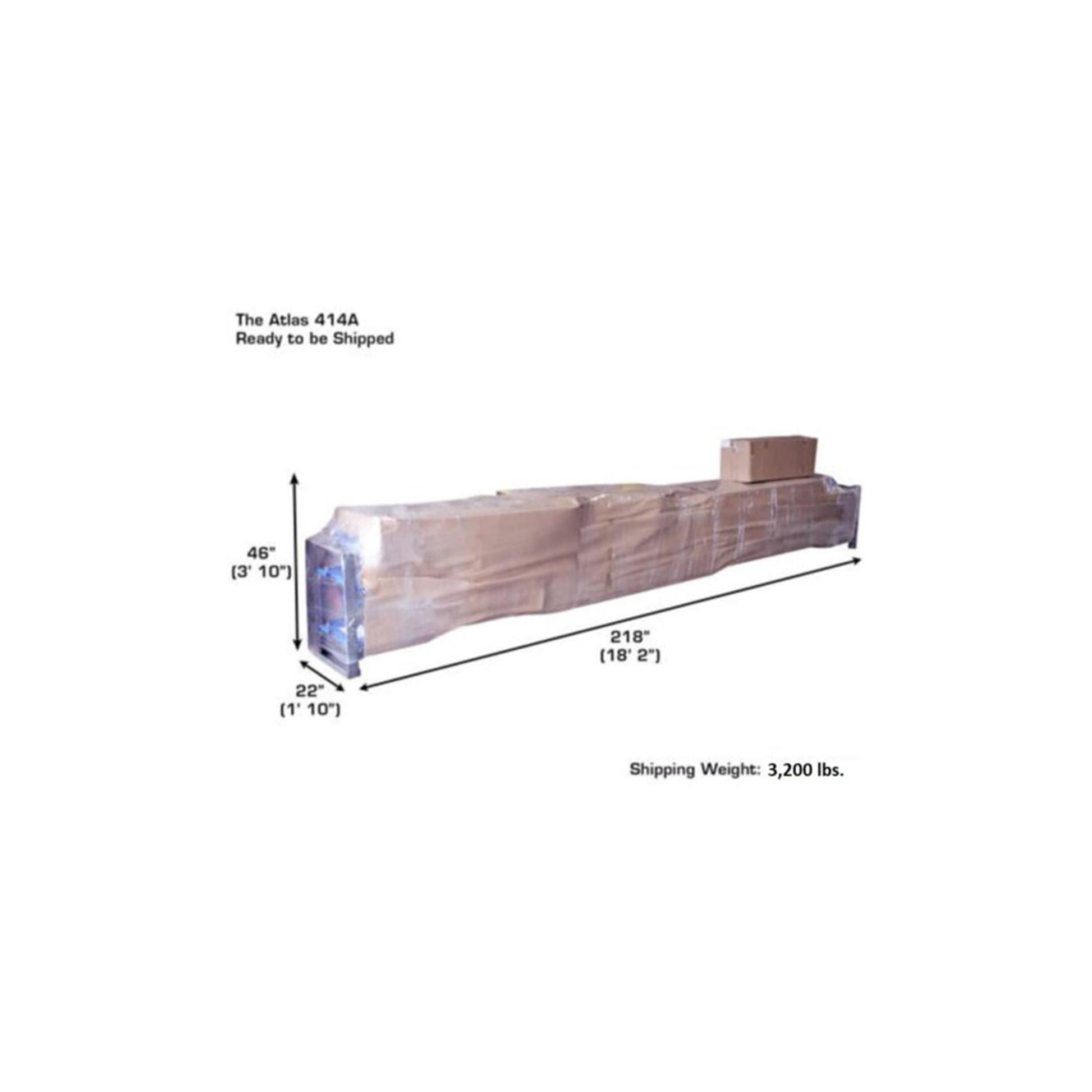

| Shipping Weight | 3,200 lb |
| Warranty | 5-Year Structural / 2-Year Hydraulic (Parts Only) |
```
