Atlas ATTD-414 14,000 lb Commercial Four-Post Vehicle Lift

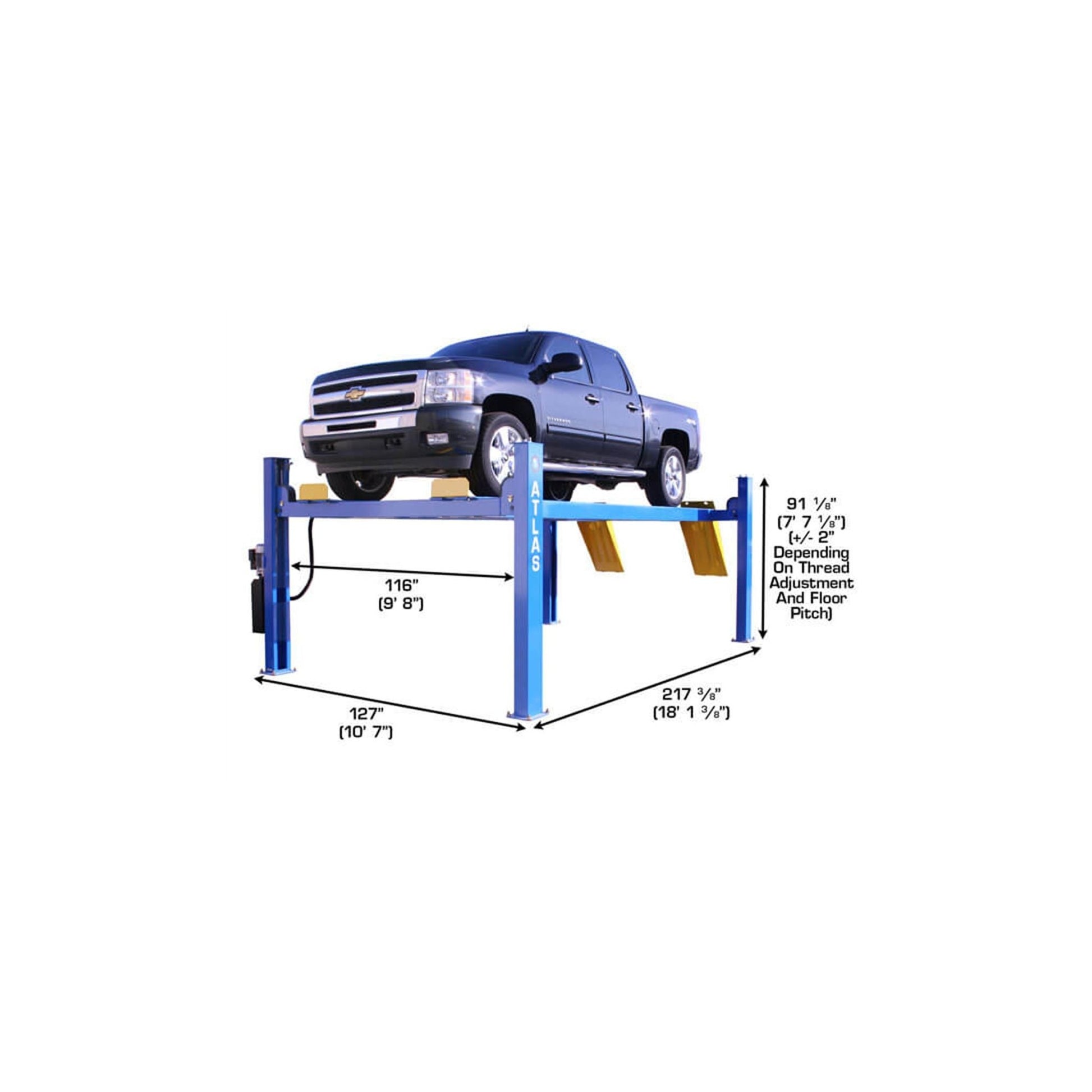

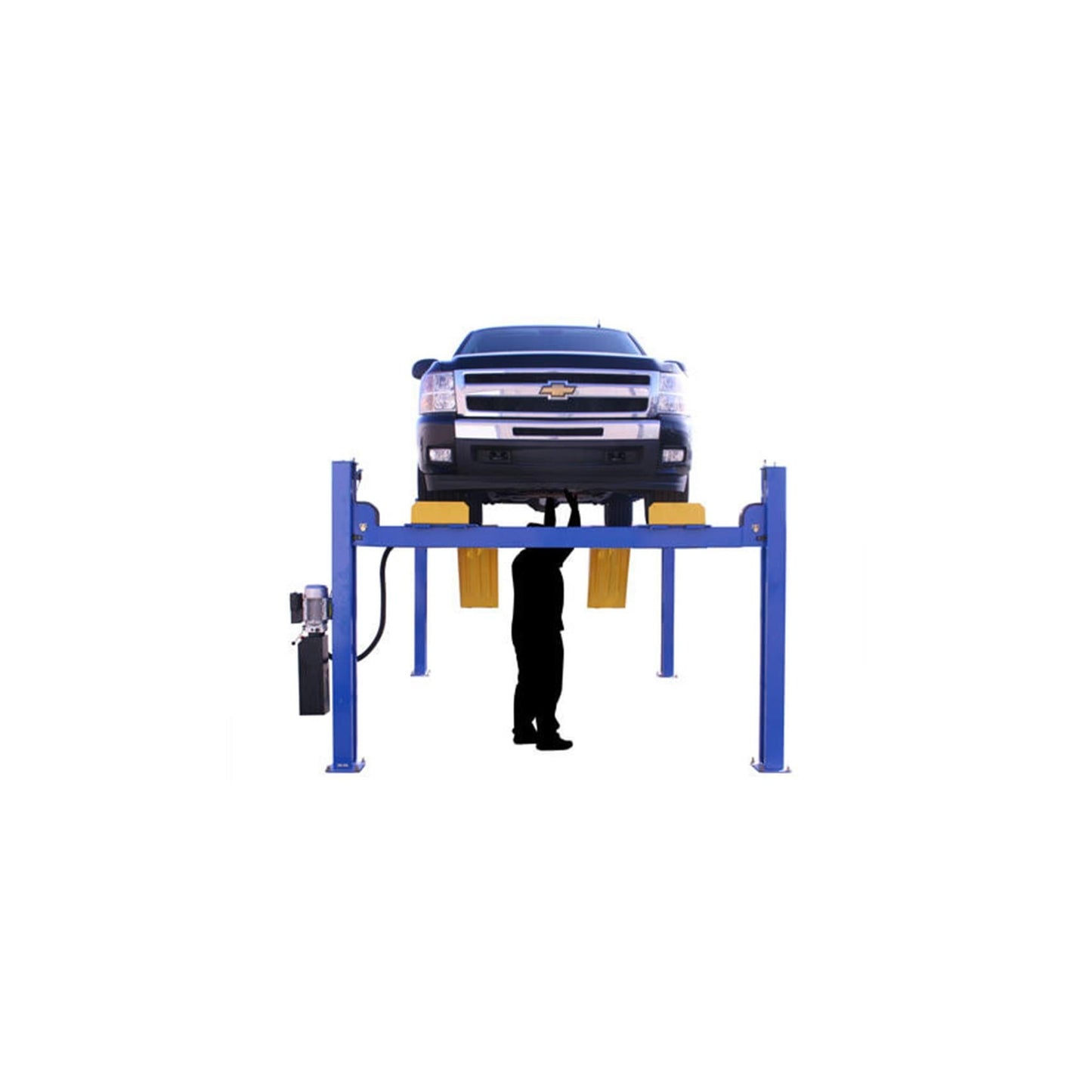

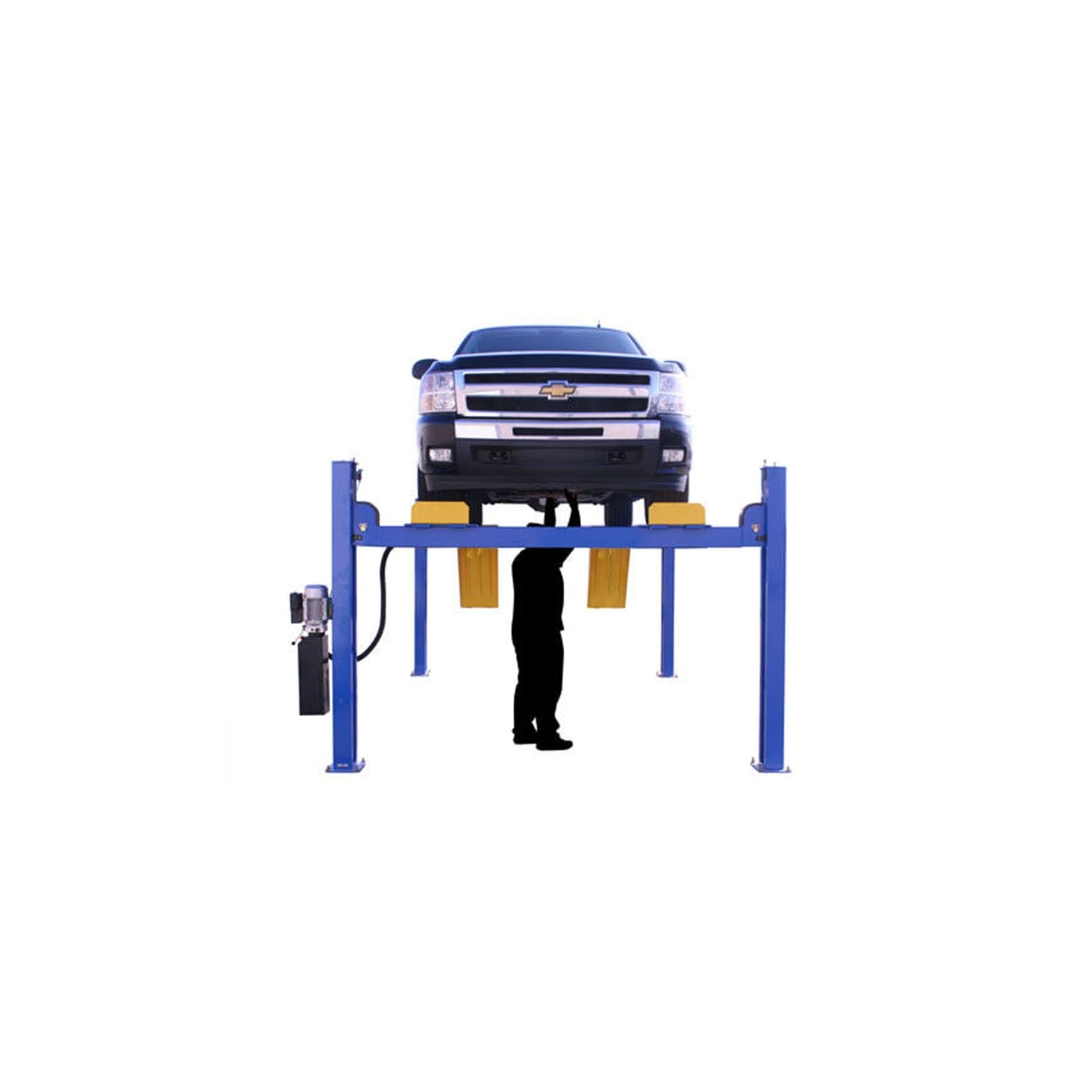

The Atlas ATTD-414 is a heavy-duty 14,000 lb capacity commercial four-post vehicle lift engineered for professional automotive repair facilities, fleet maintenance shops, dealerships, and heavy-duty service centers. Built with an extra-tall, extra-wide, and extra-long platform, this lift is designed to safely service larger passenger vehicles, commercial vans, fleet trucks, and long-wheelbase pickups while delivering dependable performance in demanding commercial environments.

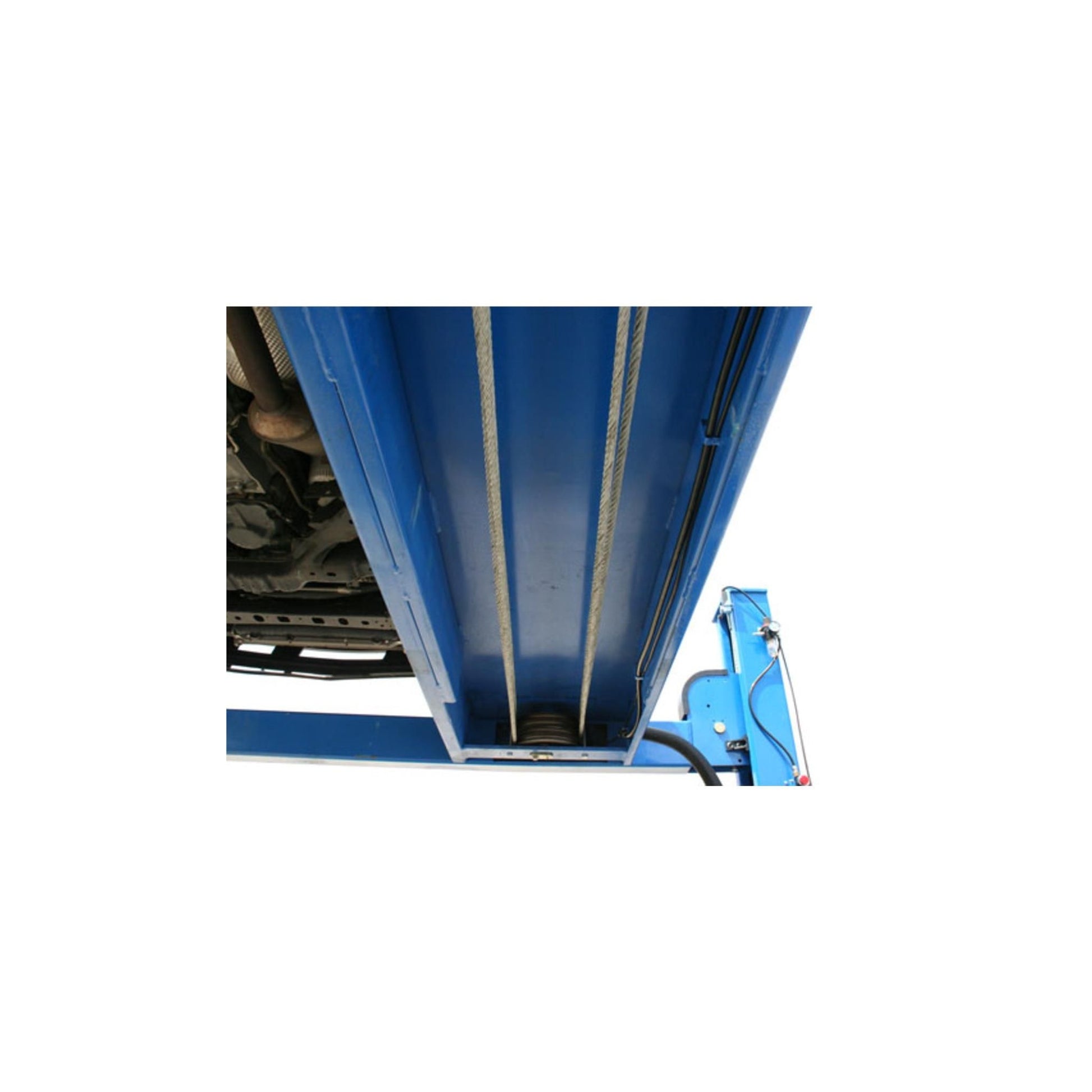

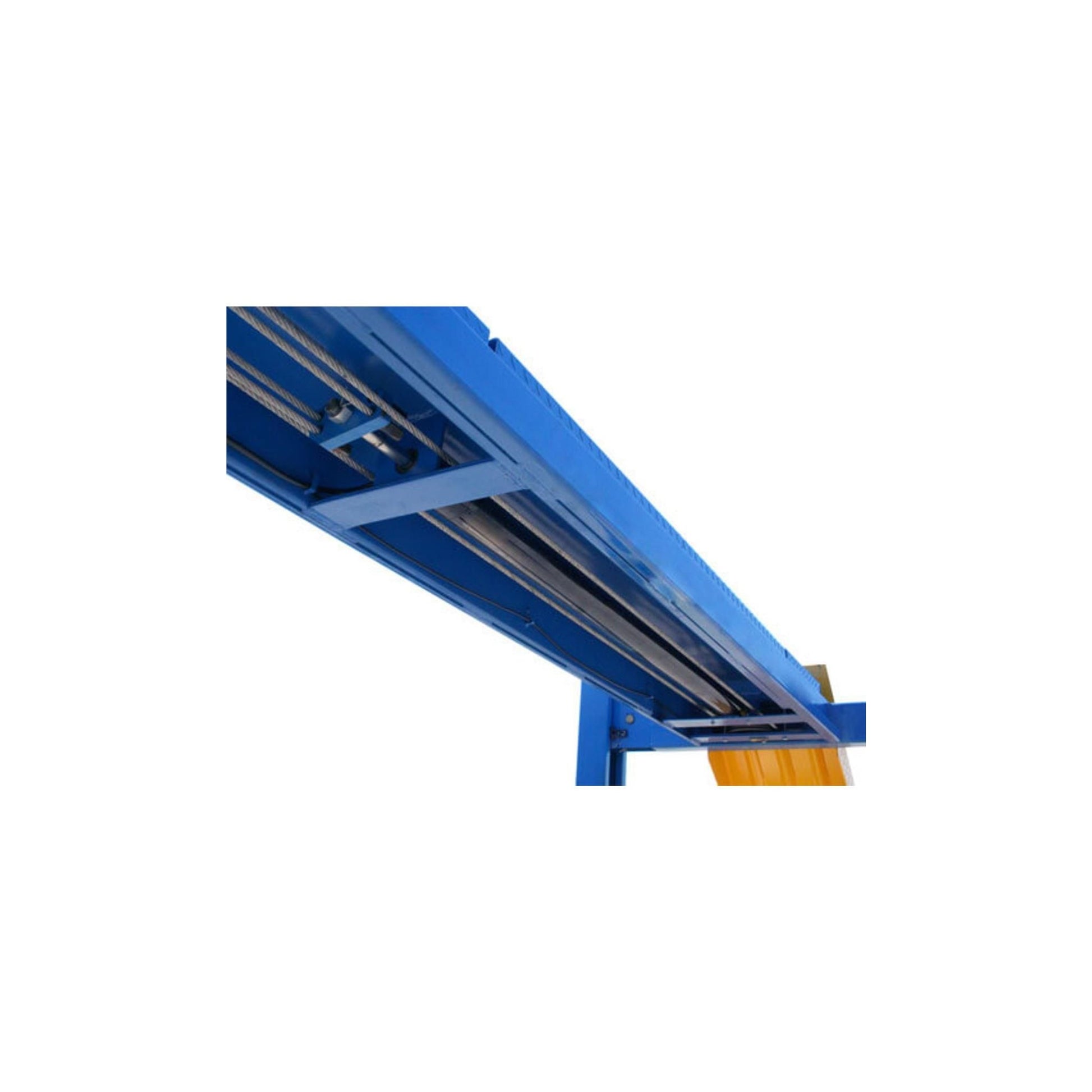

Designed for maximum durability, the ATTD-414 features an oversized hydraulic cylinder mounted beneath the runways and a high-strength cable lifting system that provides smooth, synchronized lifting while protecting hydraulic components from accidental vehicle contact. Compared to traditional chain-driven lifts with exposed cylinders, this design offers easier leveling, reduced maintenance, and improved reliability.

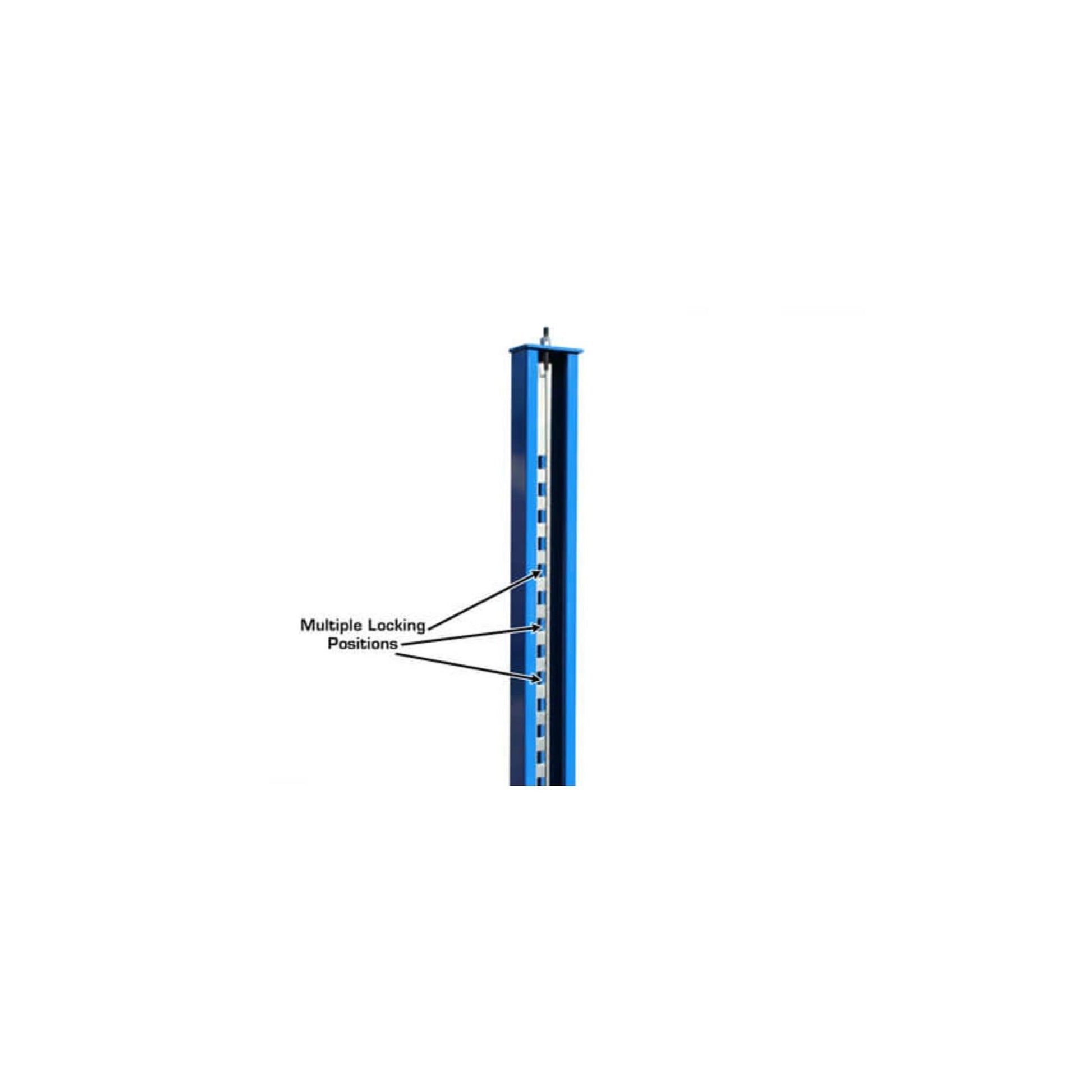

An air-operated single-point lock release, heavy-duty lock ladder, and double-lock safety system ensure safe and efficient operation throughout every lift cycle. Integrated rolling bridge jack tracks further expand the lift's capabilities by allowing optional bridge jacks for wheel, brake, and suspension service.
Finished with a durable powder-coated finish and supplied with steel approach ramps and mounting hardware, the Atlas ATTD-414 is built to deliver years of dependable commercial service.
Key Features
- 14,000 lb lifting capacity.
- Heavy-duty commercial-grade construction.
- Extra-tall, extra-wide, and extra-long design.
- Diamond-plated steel runways.
- Durable powder-coated finish.

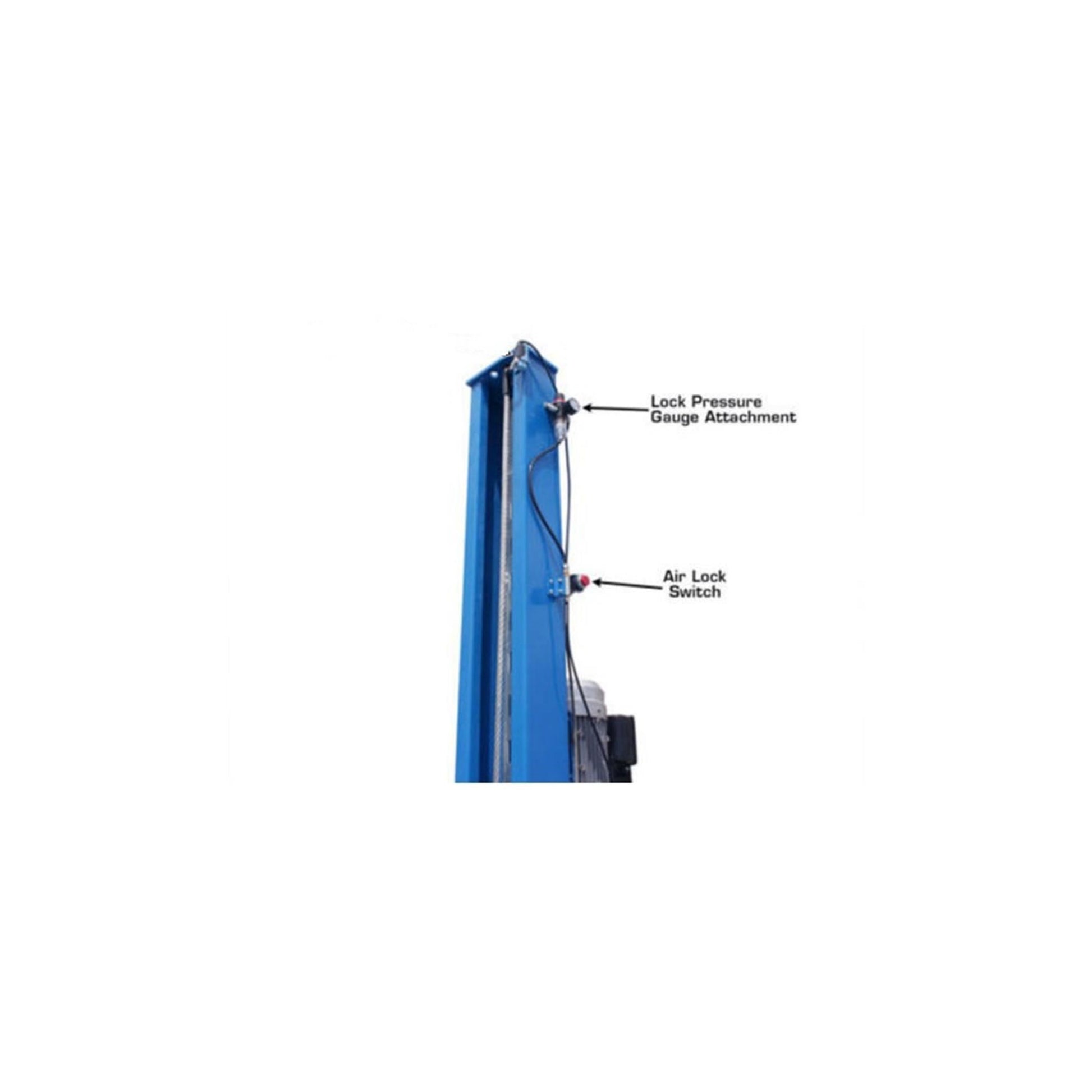

- Air-operated single-point lock release (external air supply required).

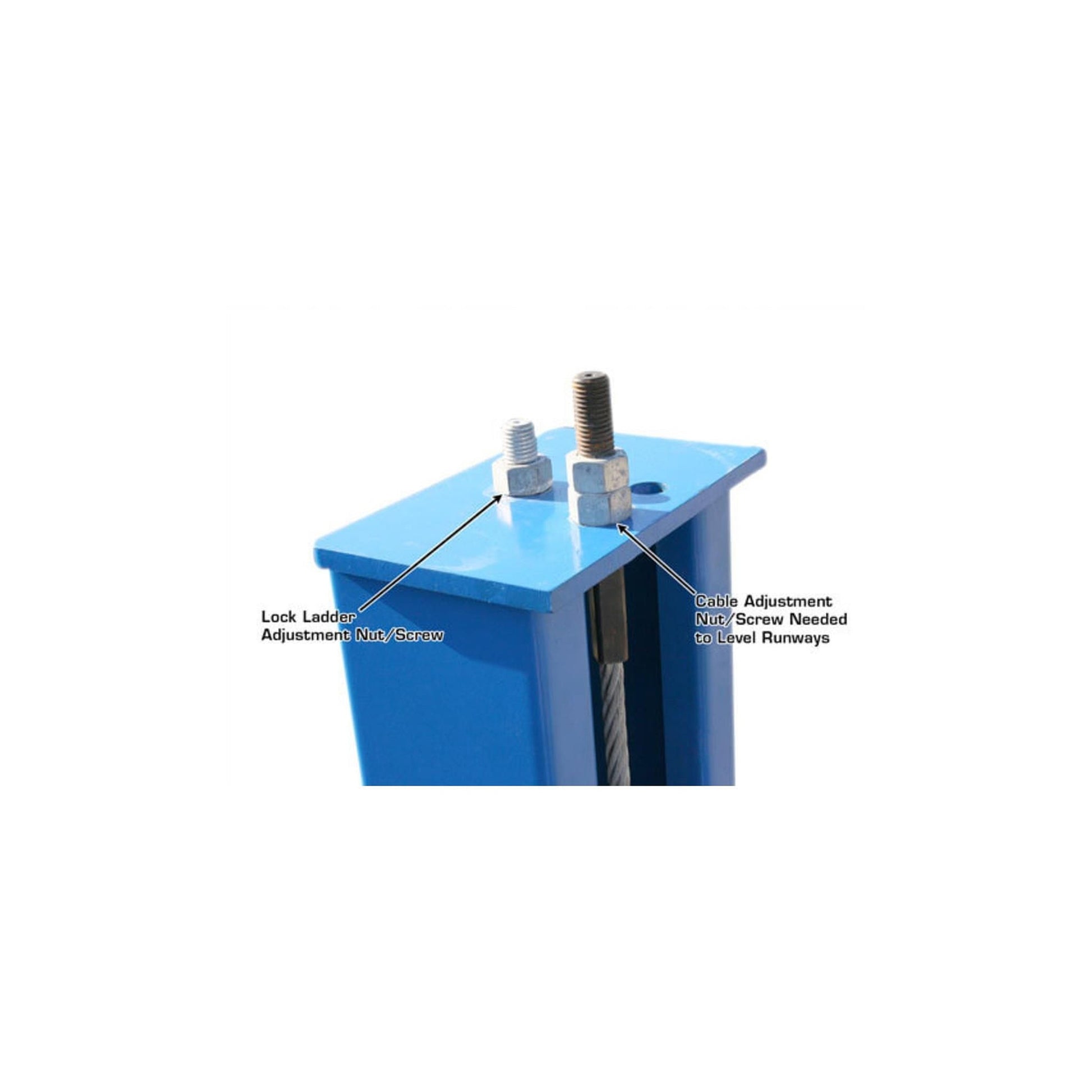

- Double-lock ladder safety system.
- Oversized under-runway hydraulic cylinder.

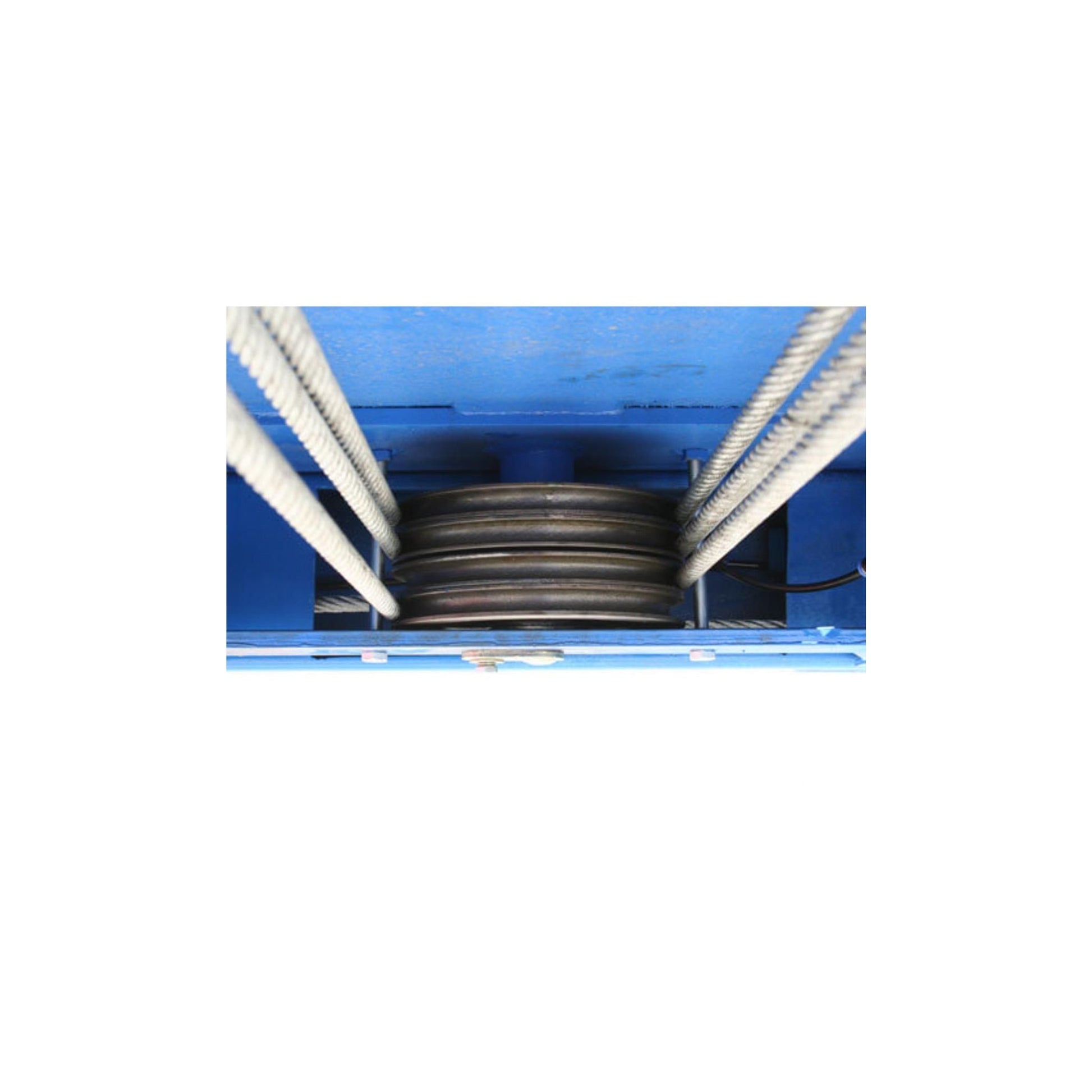

- High-strength cable lifting system.
- Integrated tracks for optional rolling bridge jack compatibility.
- Steel approach ramps included.

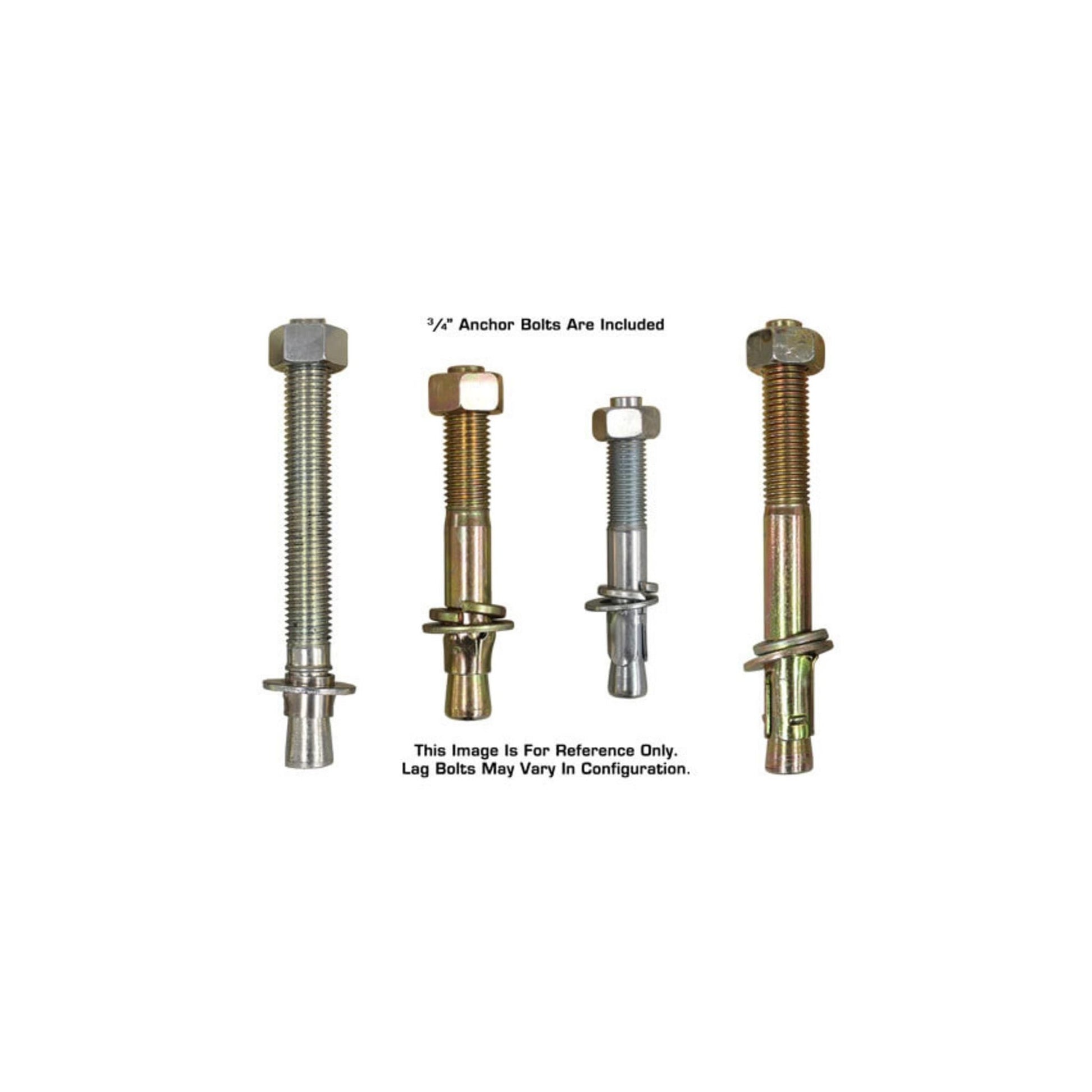

- Mounting hardware included.
- Optional drive-off ramps available.
- Optional runway extensions available.

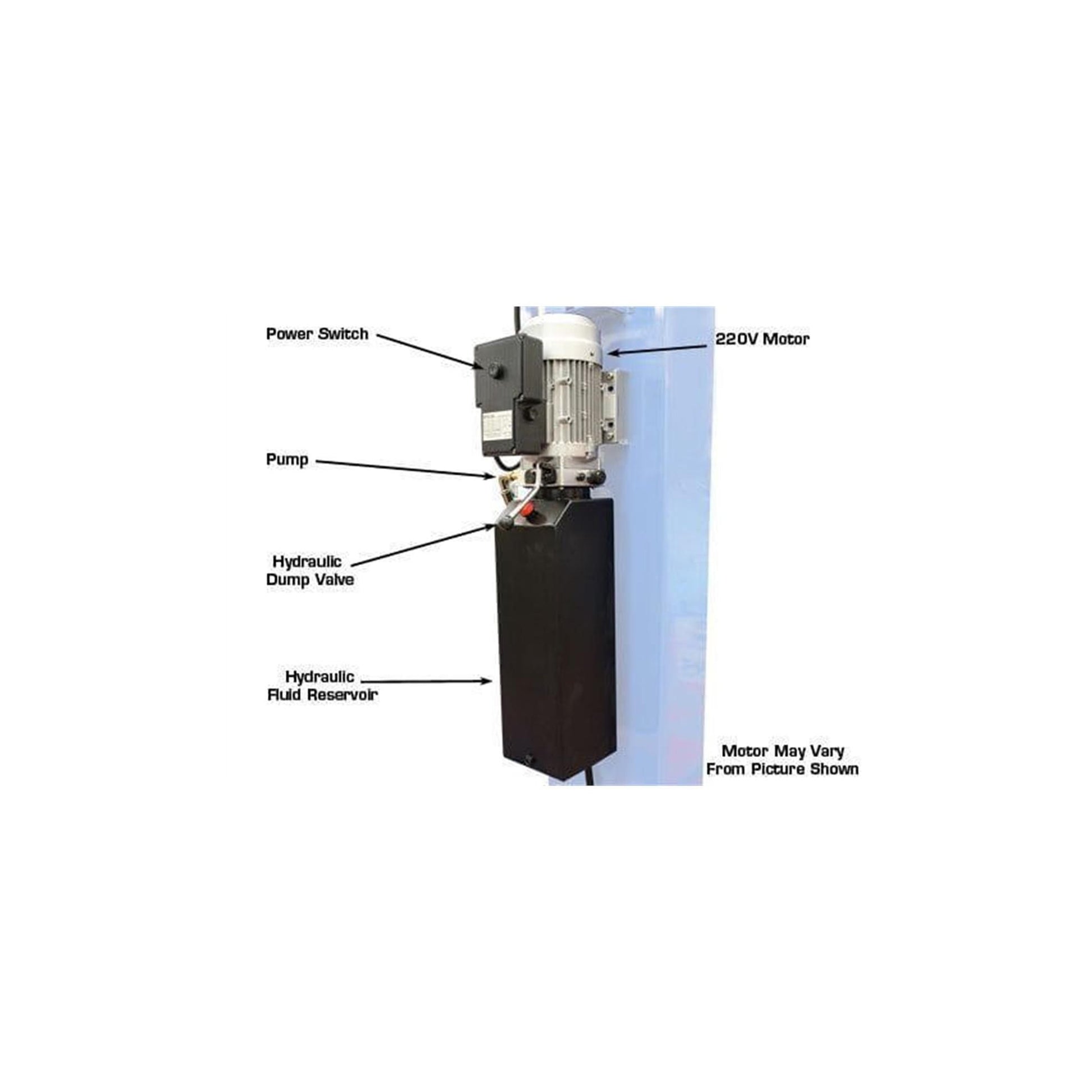

- 220V single-phase commercial power unit.
Ideal Applications
- Commercial automotive repair shops
- Fleet maintenance facilities
- Dealership service departments
- Truck and van service centers
- Heavy-duty maintenance facilities
- Vehicle inspections
- Oil changes
- Brake and suspension service with optional rolling bridge jack
- Passenger cars
- SUVs
- Full-size pickup trucks
- Commercial vans and long-wheelbase vehicles
Specifications
| Brand | Atlas |
| Model | ATTD-414 |
| Lift Capacity | 14,000 lb |
| Lift Type | Commercial Four-Post Vehicle Lift |
| Construction | Heavy-Duty Commercial Grade |
| Finish | Powder Coat |
| Lifting Height | 80 in (6 ft 8 in) |

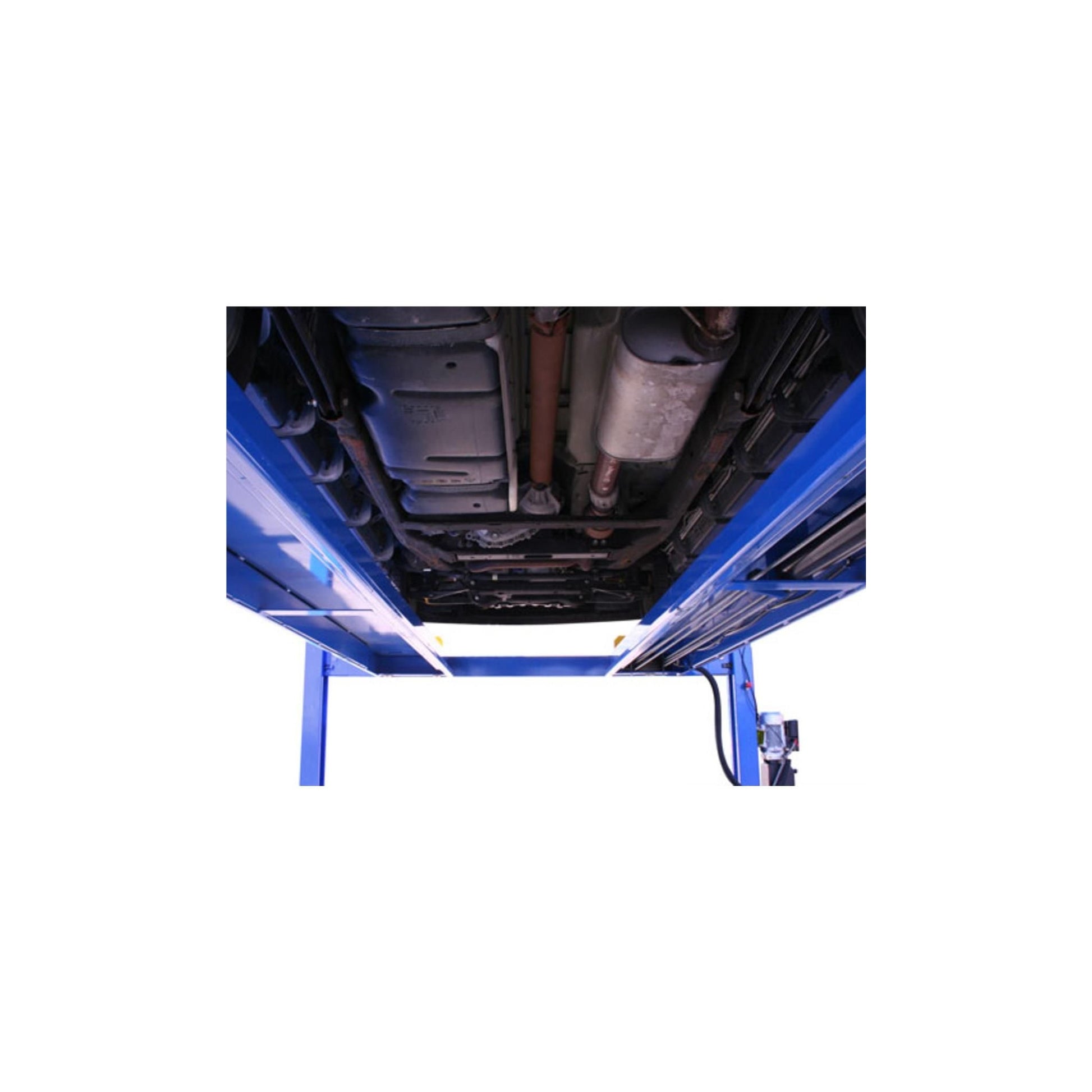

| Clearance Under Runways | 71 1/4 in (5 ft 11 1/4 in) |
| Column Height | 91 1/8 in (7 ft 7 1/8 in) |

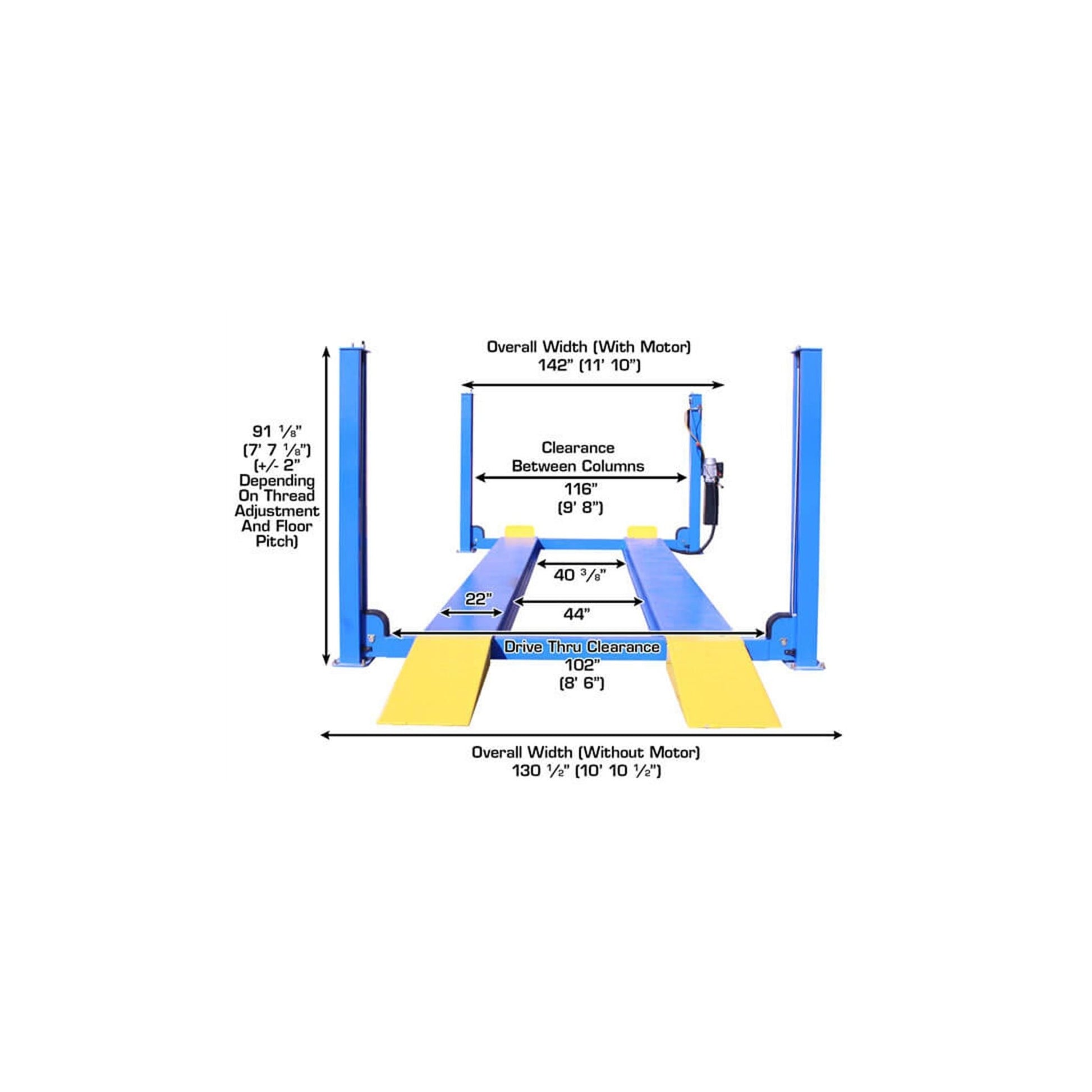

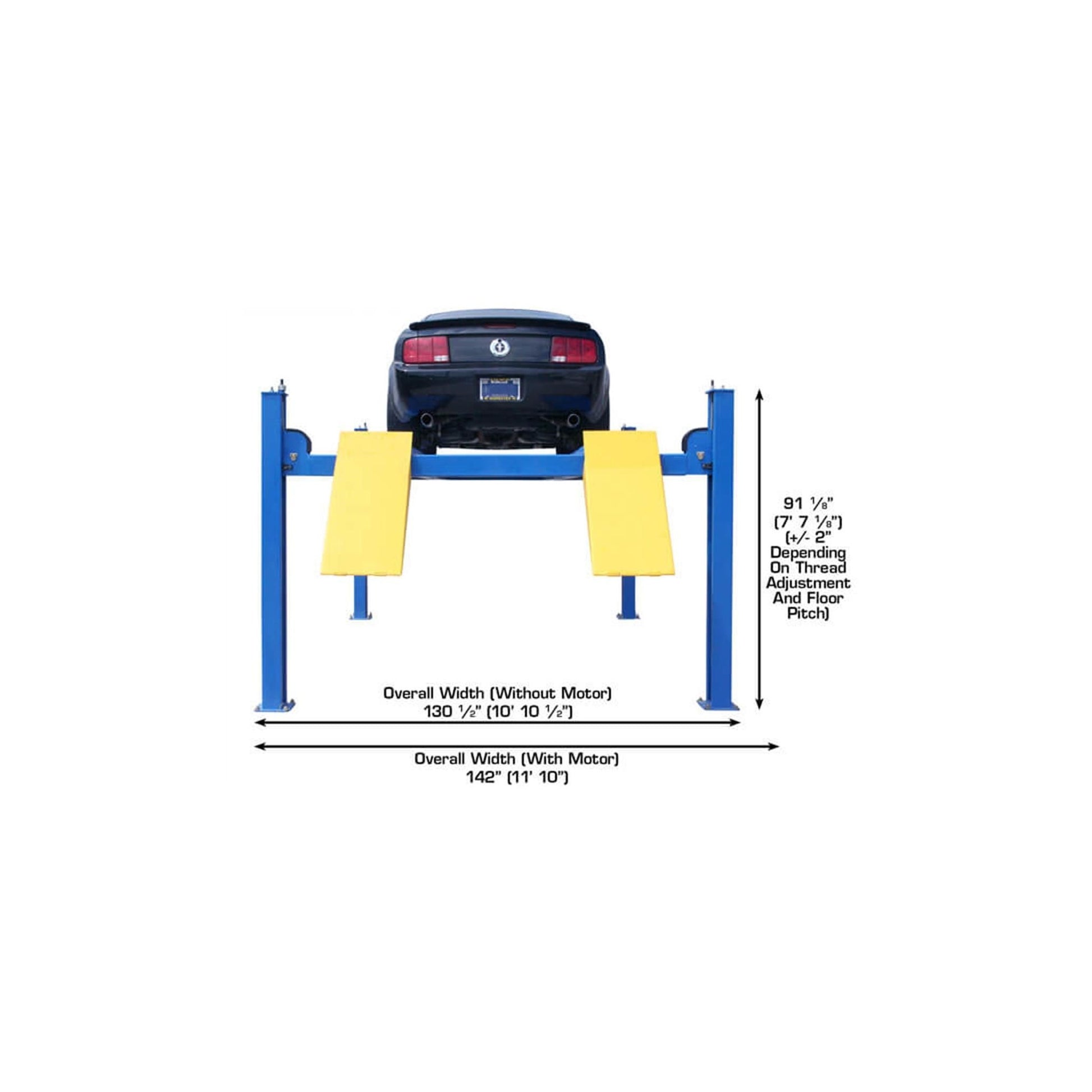

| Overall Width (Without Power Unit) | 130 7/8 in (10 ft 10 7/8 in) |
| Overall Width (With Power Unit) | 138 7/8 in (11 ft 6 7/8 in) |
| Overall Length (With Approach Ramps) | 255 in (21 ft 3 in) |
| Length Between Columns | 197 1/4 in (16 ft 5 1/4 in) |
| Runway Length | 208 5/8 in (17 ft 4 5/8 in) |
| Runway Width | 20 in |
| Runway Thickness | 8 3/4 in |

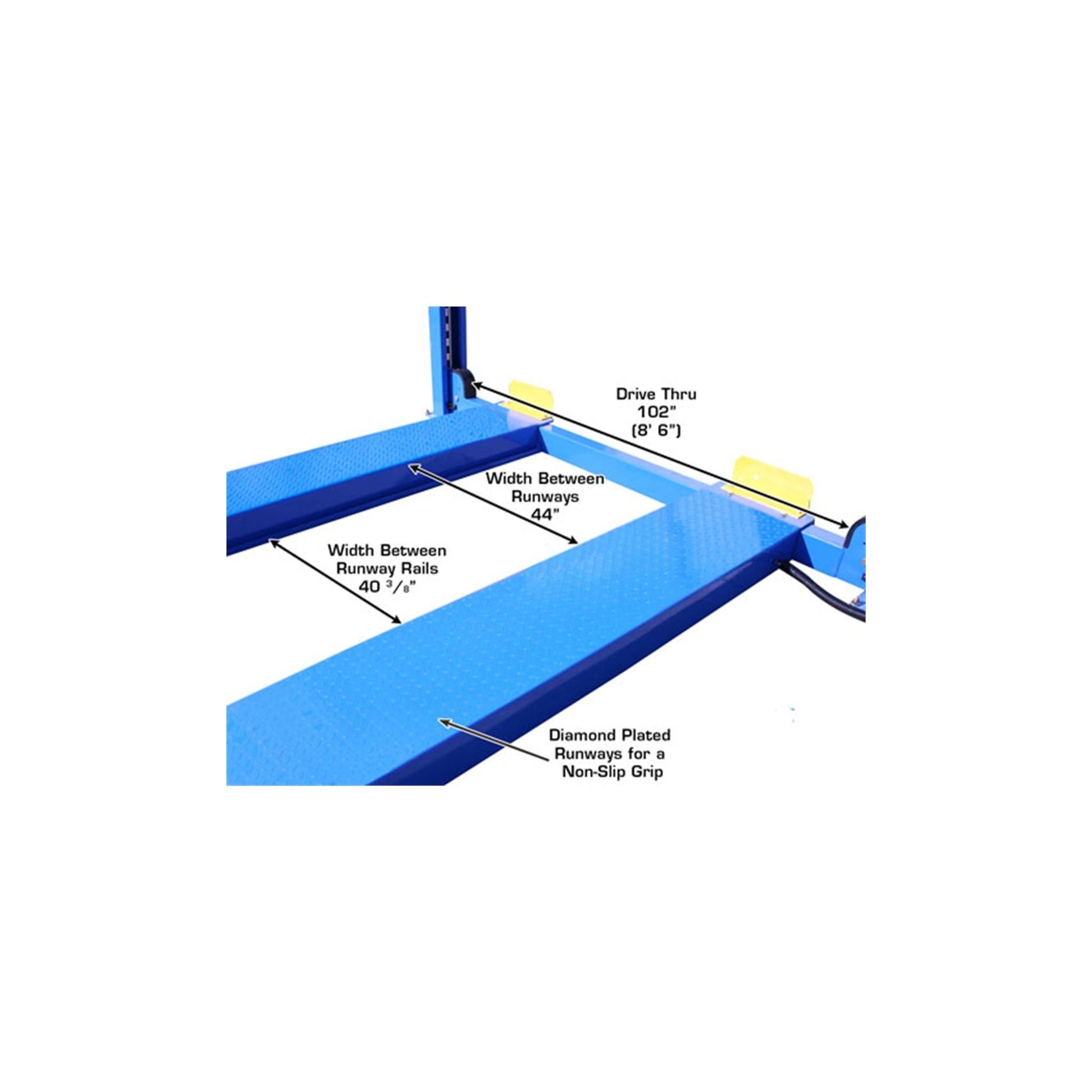

| Width Between Runways | 46 7/8 in (44 3/8 in between rails) |
| Outside Runway to Outside Runway | 86 7/8 in (7 ft 2 7/8 in) |
| Clearance Between Columns | 116 in (9 ft 8 in) |
| Maximum Wheelbase | 197 in (16 ft 5 in) |
| Drive-Through Width | 102 1/8 in (8 ft 6 1/8 in) |
| Safety System | Double-Lock Ladder System |
| Lock Release | Air-Operated Single-Point Release |
| Air Requirement | 85–115 PSI (External Air Supply Required) |
| Bridge Jack Compatibility | Integrated Tracks for Optional Atlas RJ8000BK Rolling Bridge Jack |
| Power Requirements | 220V, Single-Phase, 30 Amp Breaker Recommended |
| Hydraulic Oil Capacity | 3–5 Gallons AW32/AW46 Hydraulic Oil (Not Included) |
| Concrete Requirement | Minimum 6 in Thick, 3,000 PSI Concrete |
| Included Accessories | Steel Approach Ramps, Mounting Hardware |
| Optional Accessories | Rolling Bridge Jack, Drive-Off Ramps, Runway Extensions |

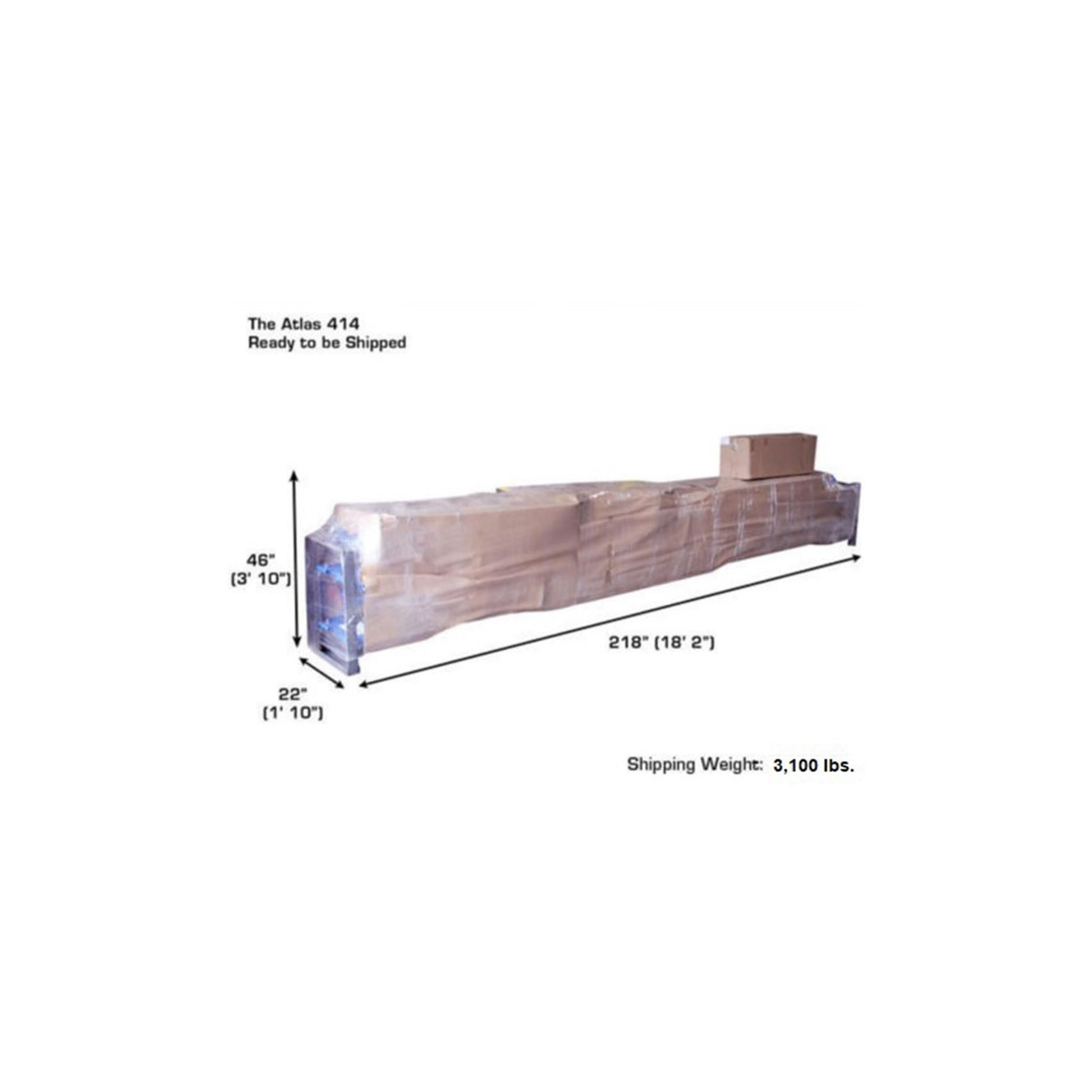

| Shipping Weight | 3,100 lb |
| Warranty | 5-Year Structural / 2-Year Hydraulic (Parts Only) |
```
