Atlas ATEXH-PV12PX 12,000 lb Extra Tall Commercial Two-Post Car Lift

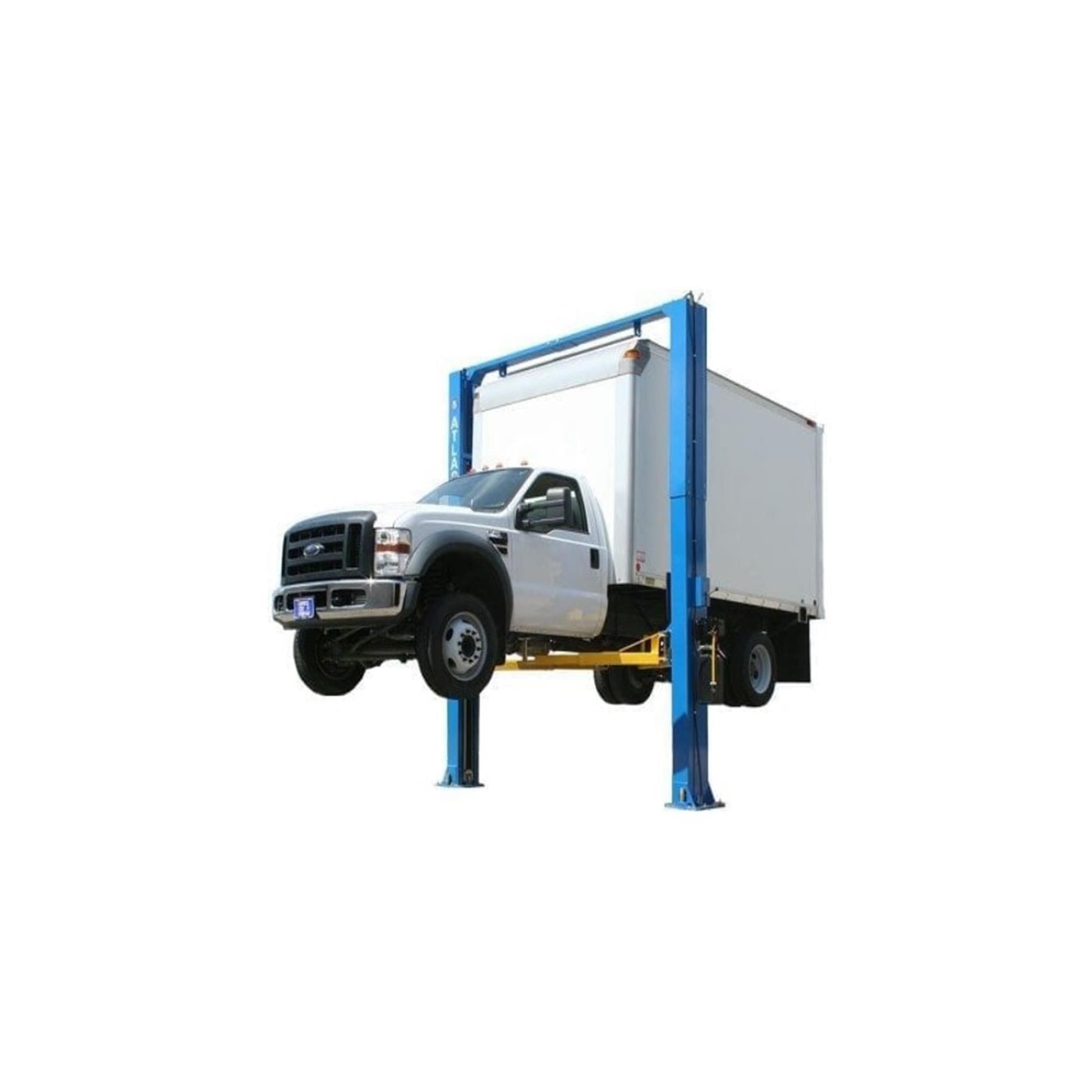

The Atlas ATEXH-PV12PX is a heavy-duty commercial two-post lift with a 12,000 lb lifting capacity, engineered for professional automotive repair shops that regularly service full-size pickup trucks, commercial vans, box trucks, and long wheelbase vehicles. Its extra-tall design and generous drive-through clearance make it an ideal solution for facilities requiring maximum vehicle access and lifting versatility.
Built with direct-drive hydraulic cylinders, heavy-duty symmetric three-stage lifting arms, and multiple adjustable height configurations, the ATEXH-PV12PX offers exceptional flexibility for a wide range of shop layouts. Automatic arm restraints, a single-point lock release, protective carriage door guards, and a padded overhead shut-off bar provide additional safety while helping protect vehicles during service.
The newly upgraded three-stage arm design greatly expands vehicle compatibility by allowing precise positioning on both short and long wheelbase vehicles. Combined with the included 12-piece truck adapter kit and extra-wide column spacing, the Atlas ATEXH-PV12PX delivers professional lifting performance for today's diverse vehicle fleet.
Key Features
- 12,000 lb lifting capacity.
- Commercial-grade overhead two-post lift.
- Three adjustable overhead height configurations.
- Optional low-height installation with optional short cable kit.

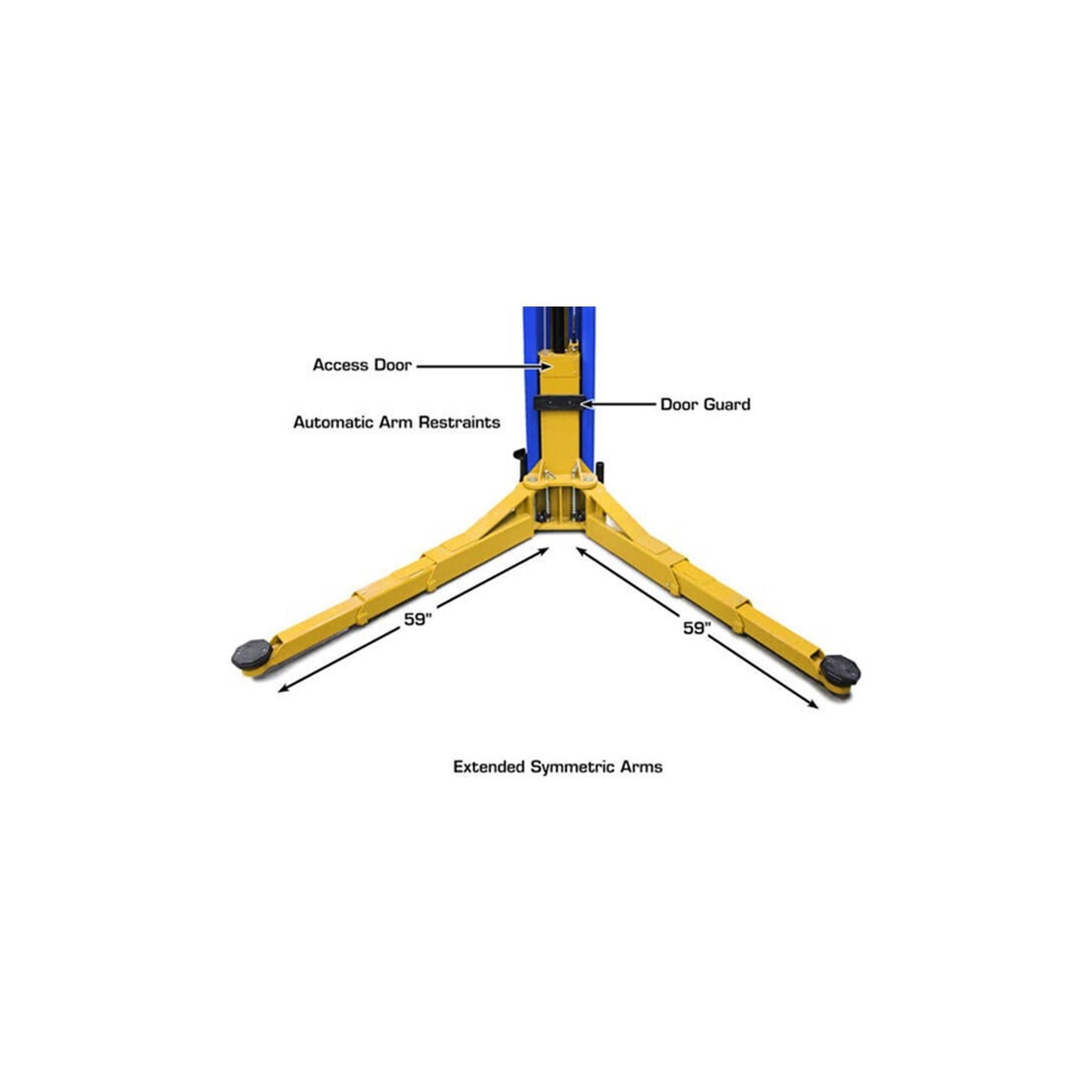

- Heavy-duty 3-stage symmetric lifting arms for maximum vehicle coverage.
- Dual direct-drive hydraulic cylinders.

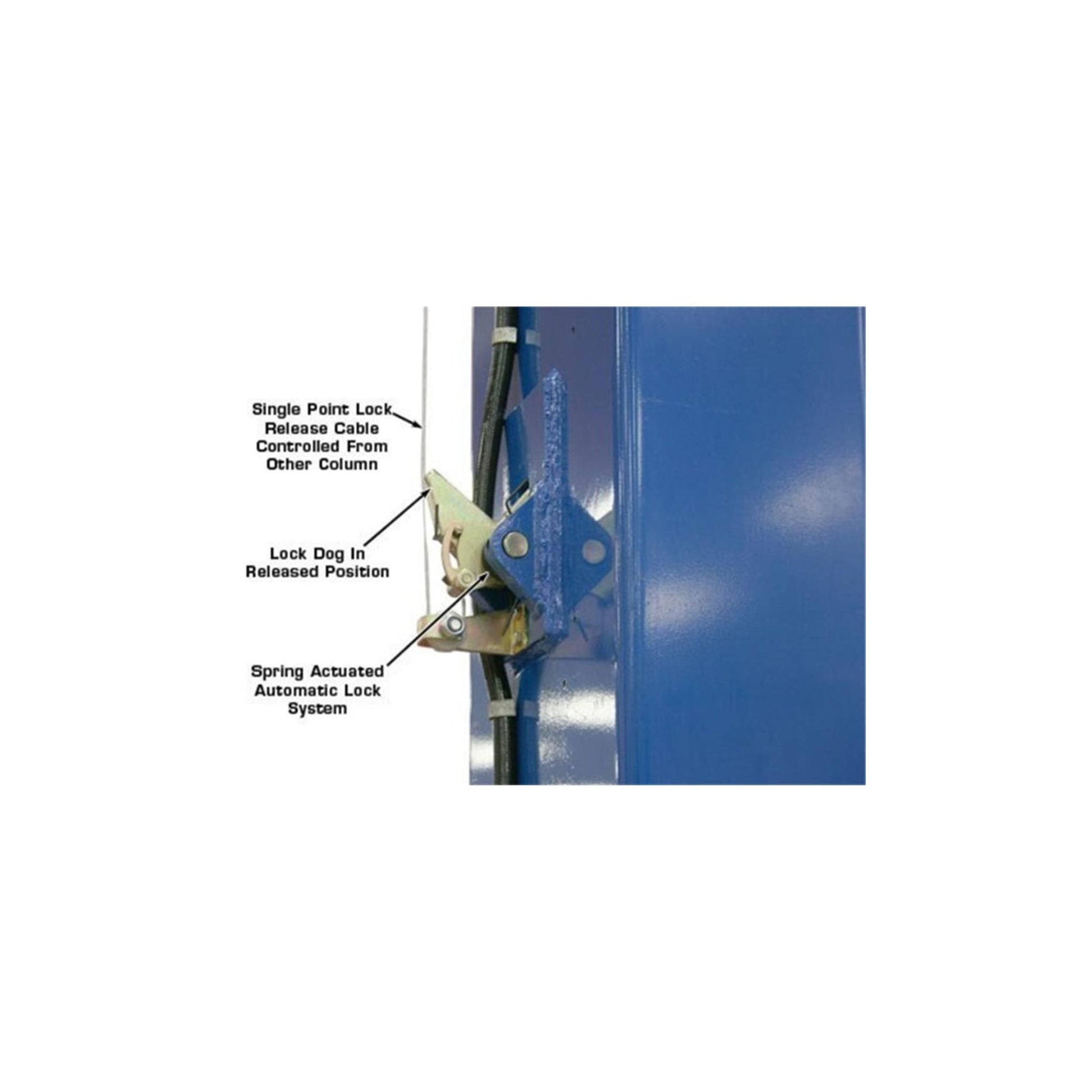

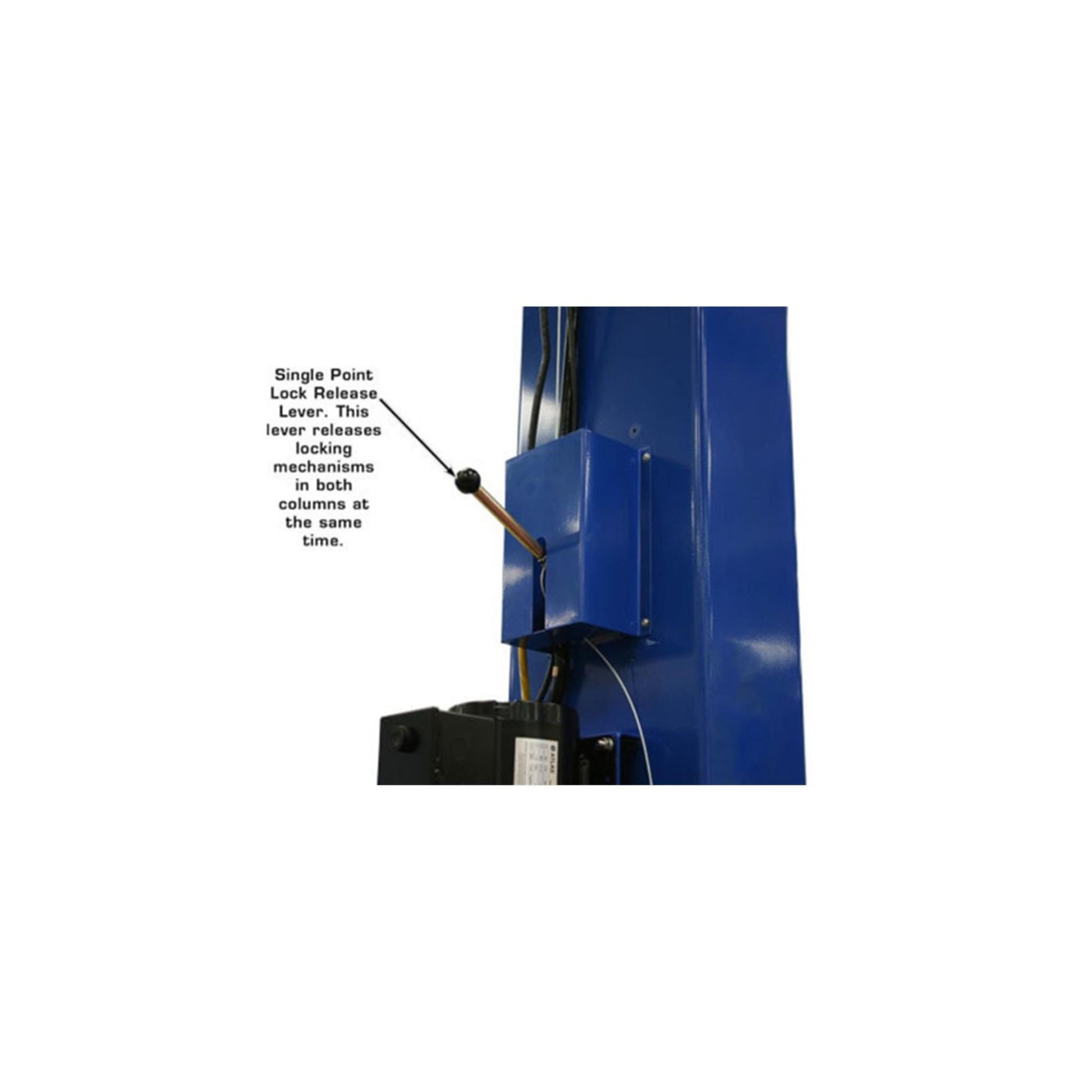

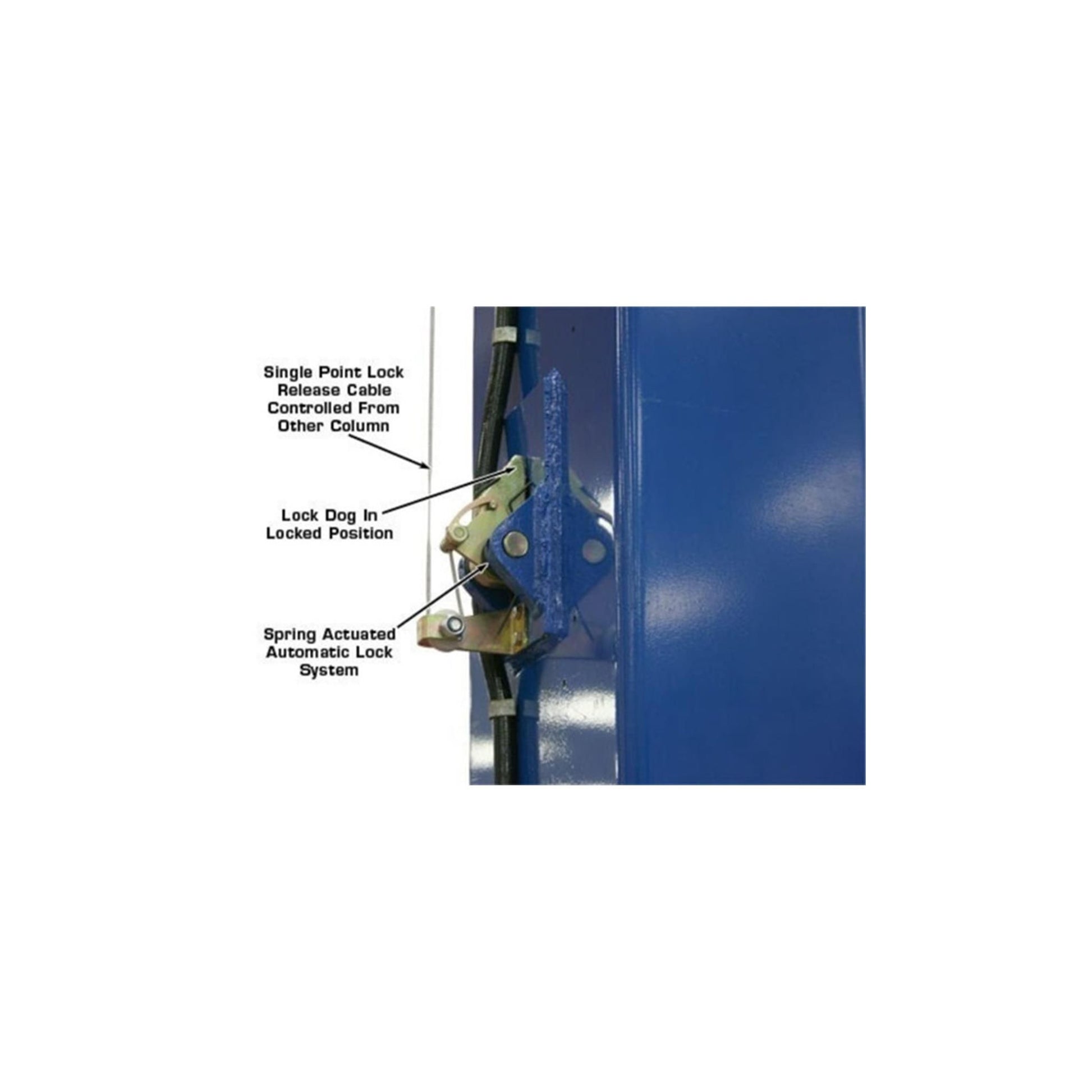

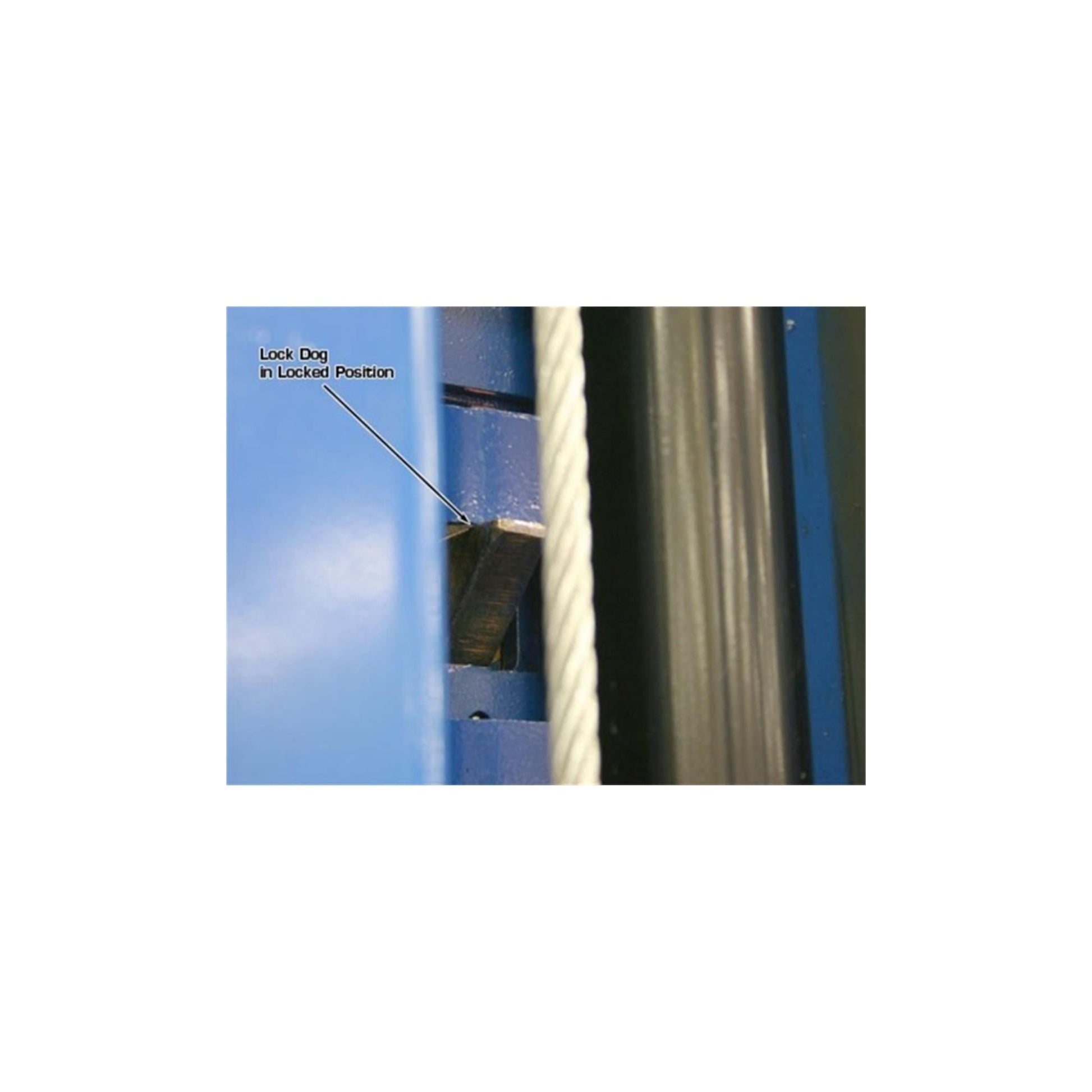

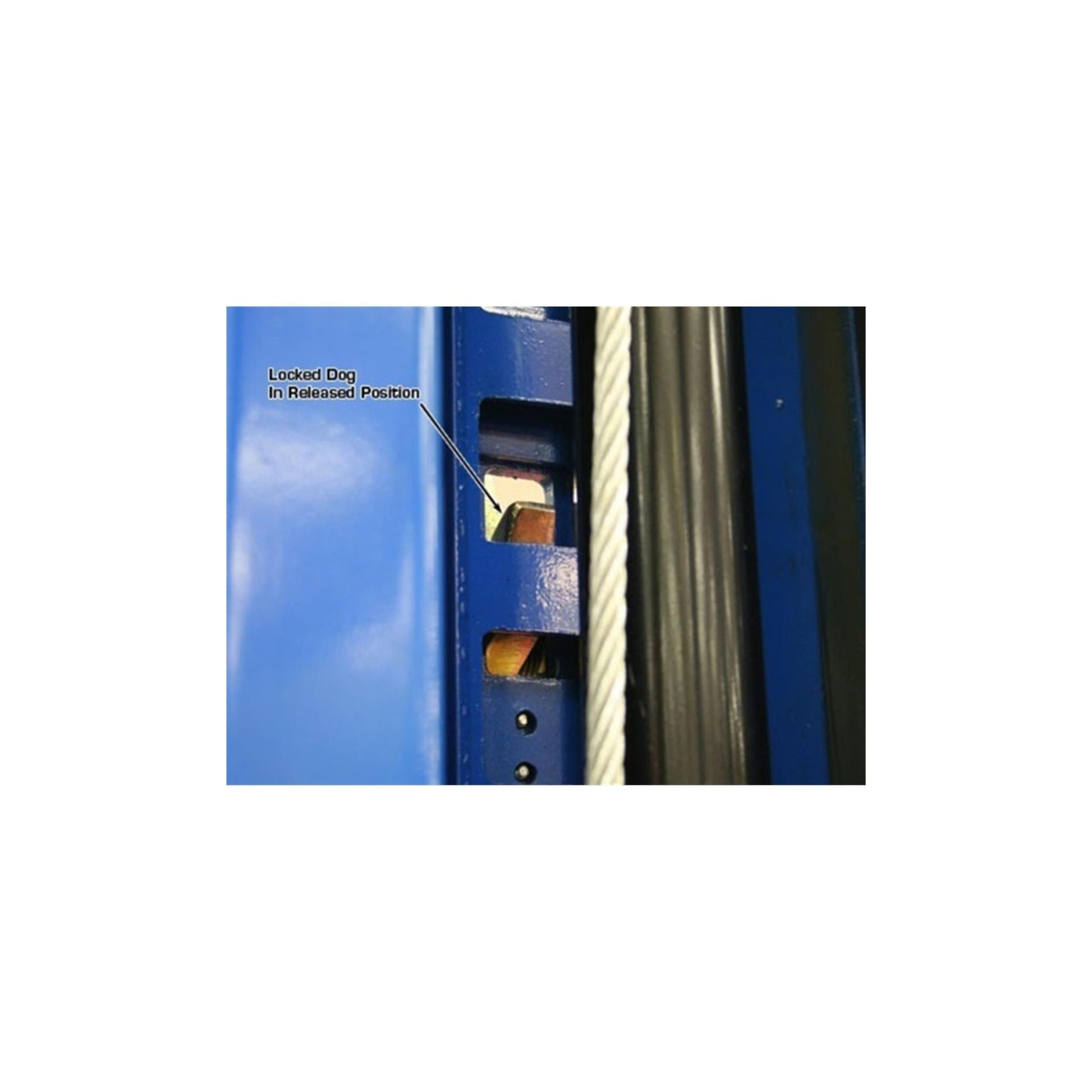

- Single-point lock release system.

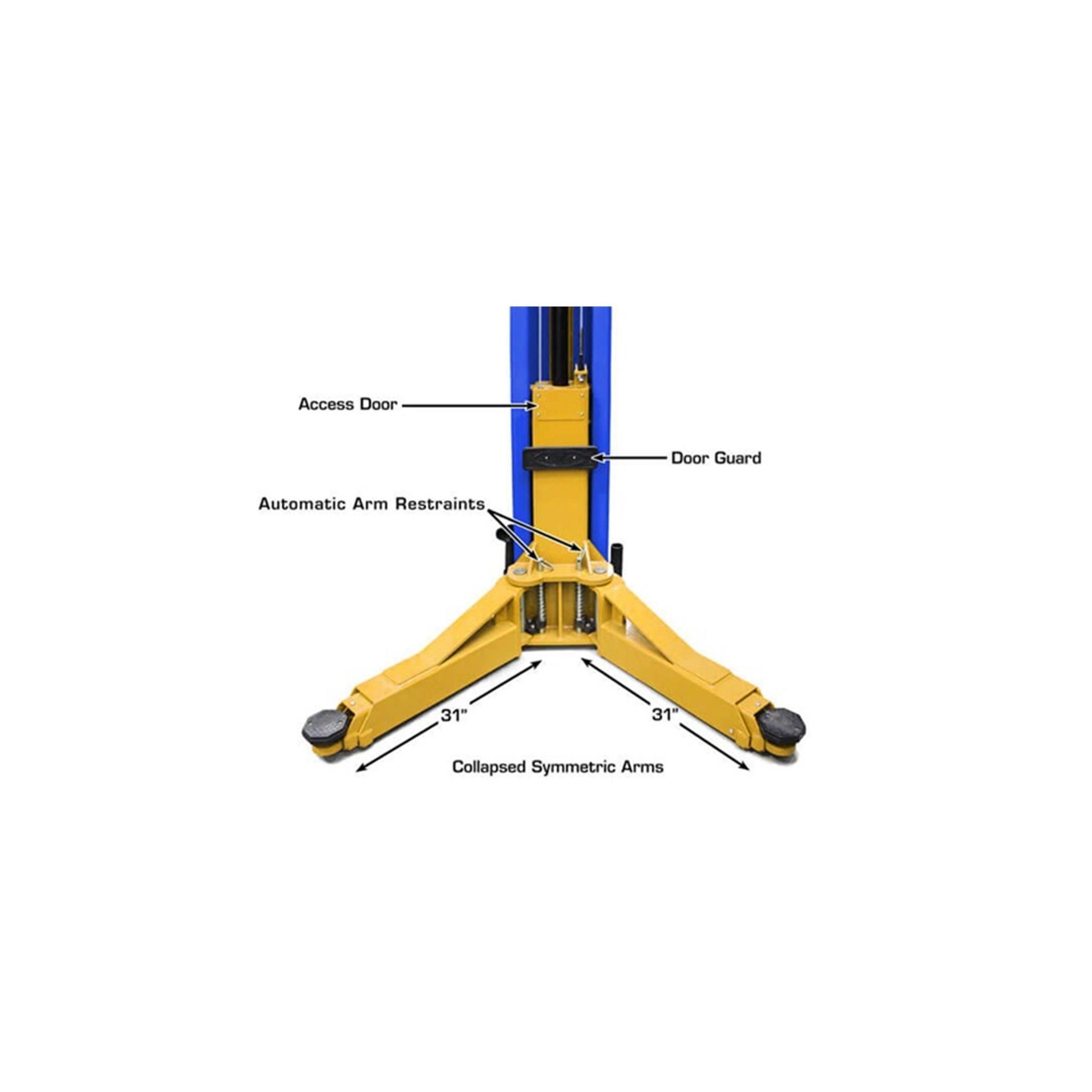

- Automatic arm restraints improve lifting safety.

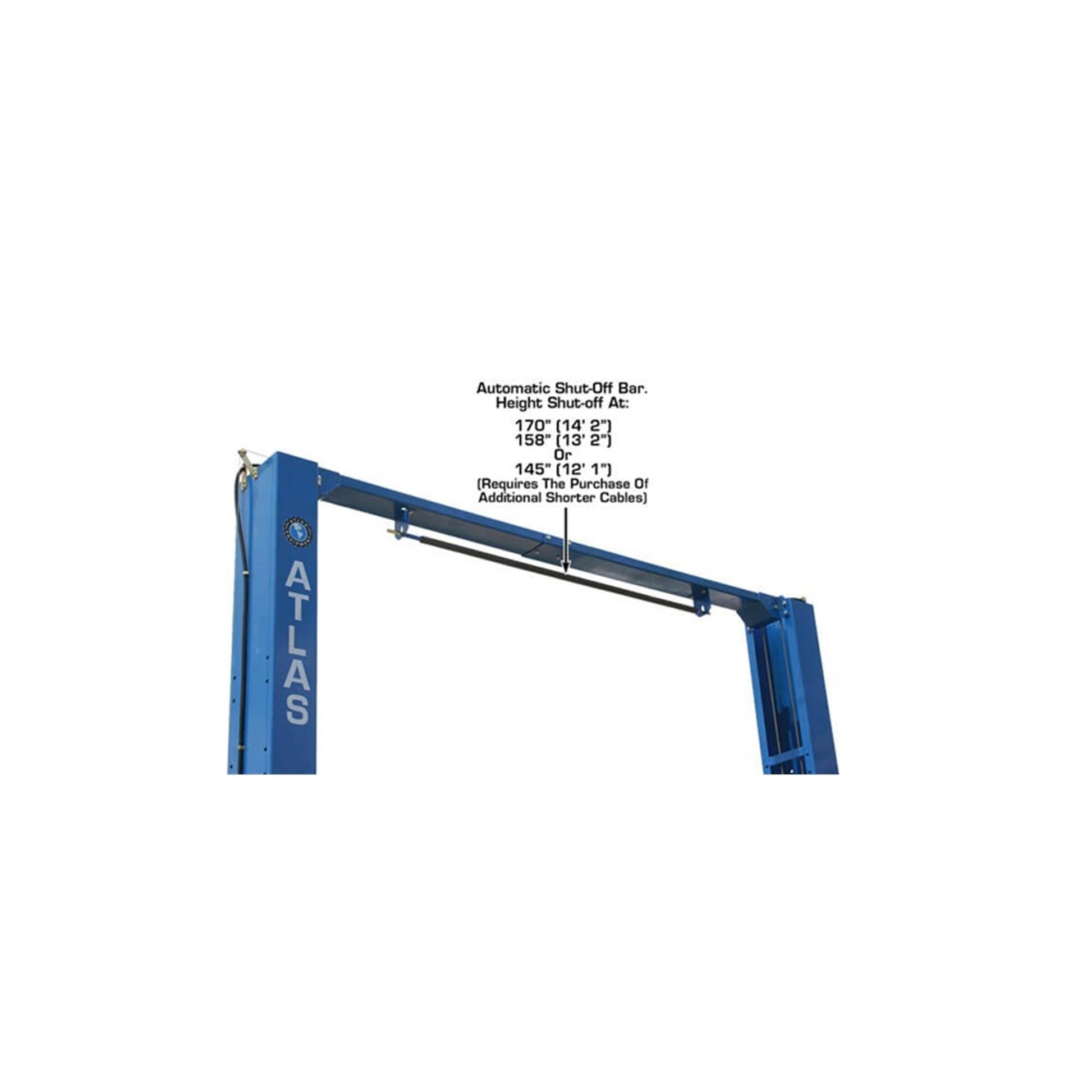

- Padded overhead shut-off bar protects taller vehicles.
- Protective rubber door guards on carriages.
- Durable powder-coated finish.
- Includes a deluxe 12-piece truck adapter set.
- Mounting hardware included.
Ideal Applications
- Commercial automotive repair shops
- Fleet maintenance facilities
- Truck repair shops
- Municipal maintenance garages
- Commercial vehicle service centers
- Brake and suspension repairs
- Engine and transmission service
- Passenger cars
- SUVs
- Full-size pickup trucks
- One-ton dually trucks
- Commercial vans and box trucks
Specifications
| Brand | Atlas |
| Model | ATEXH-PV12PX |
| Lift Capacity | 12,000 lb |
| Lift Type | Commercial Overhead Two-Post Lift |
| Arm Configuration | 3-Stage Symmetric Arms |

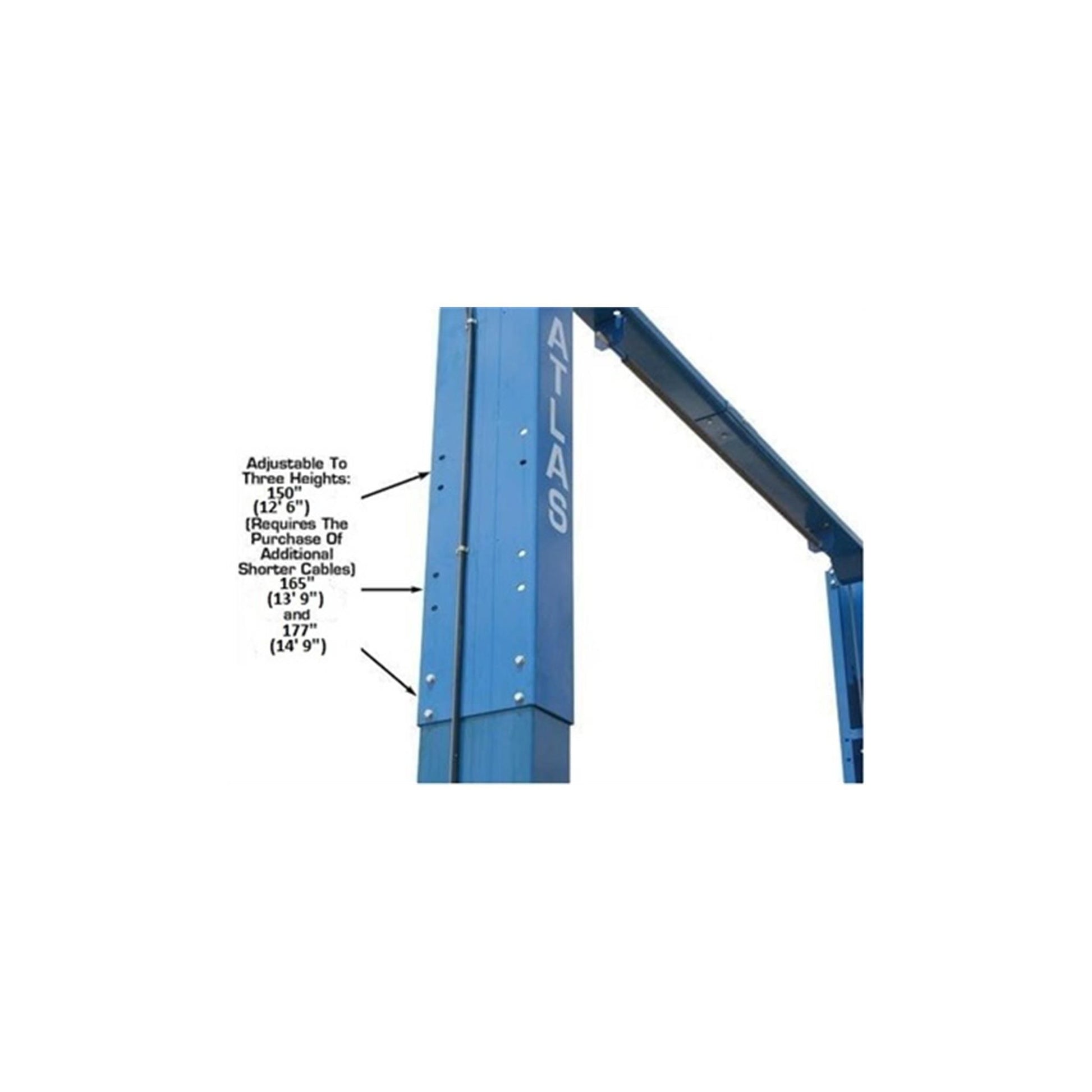

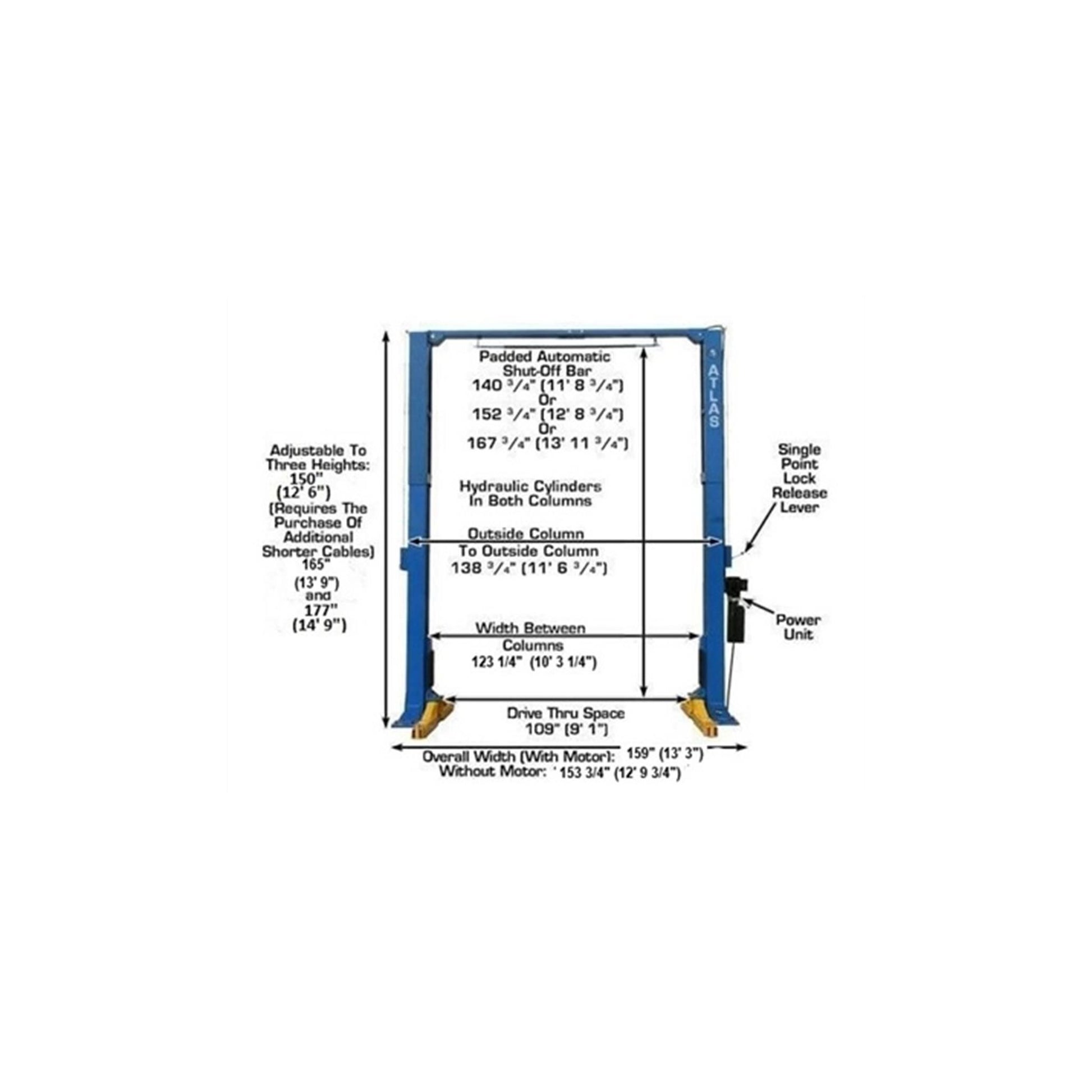

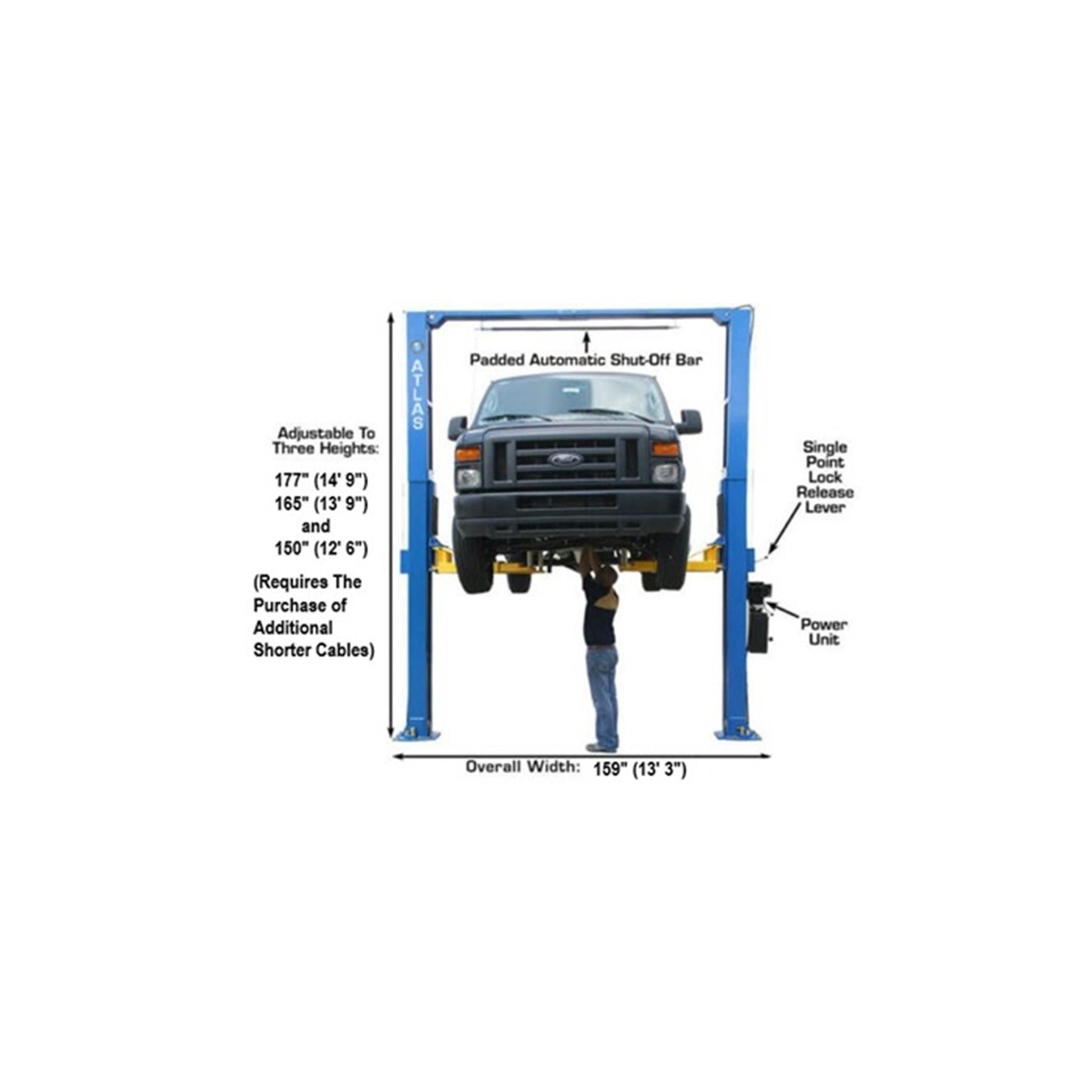

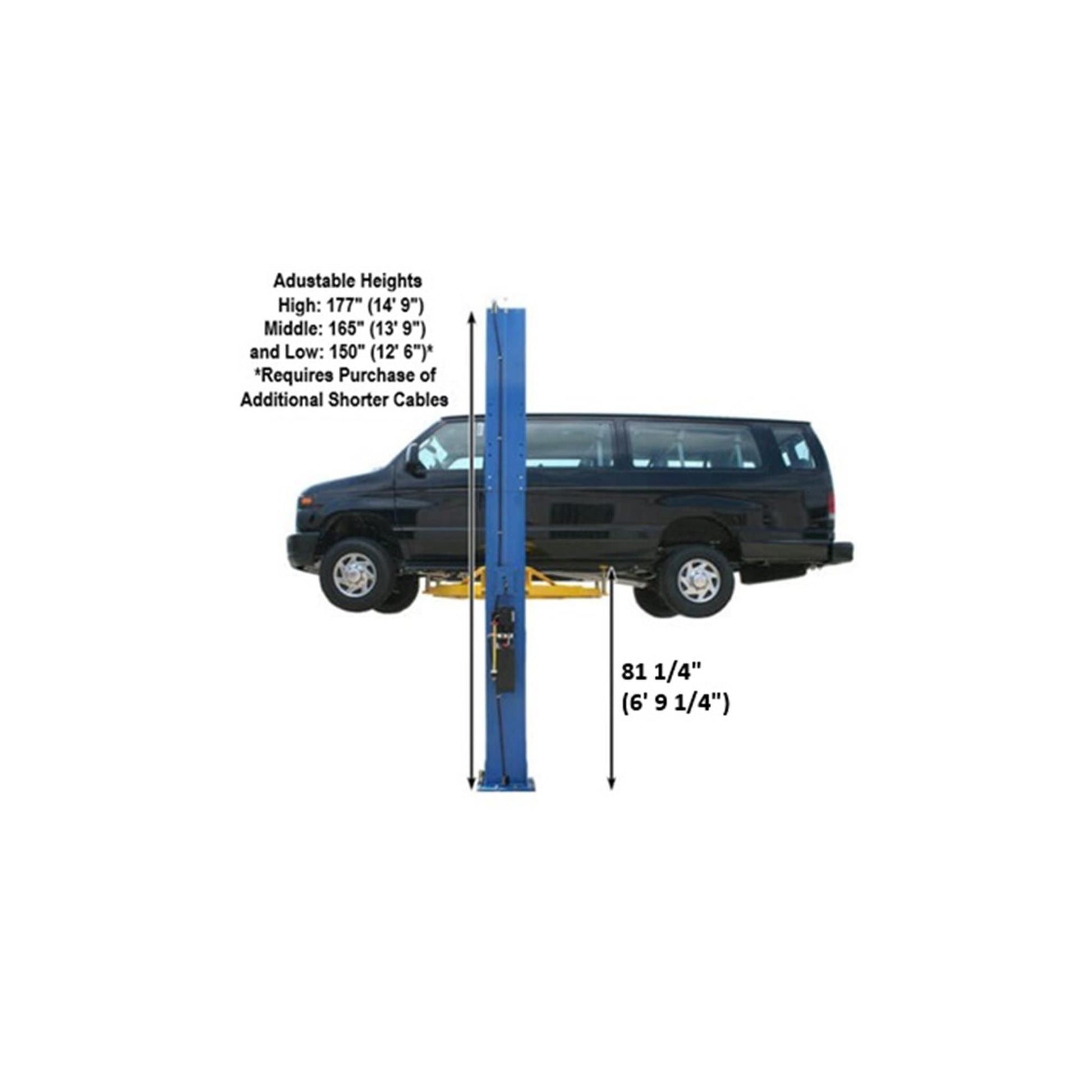

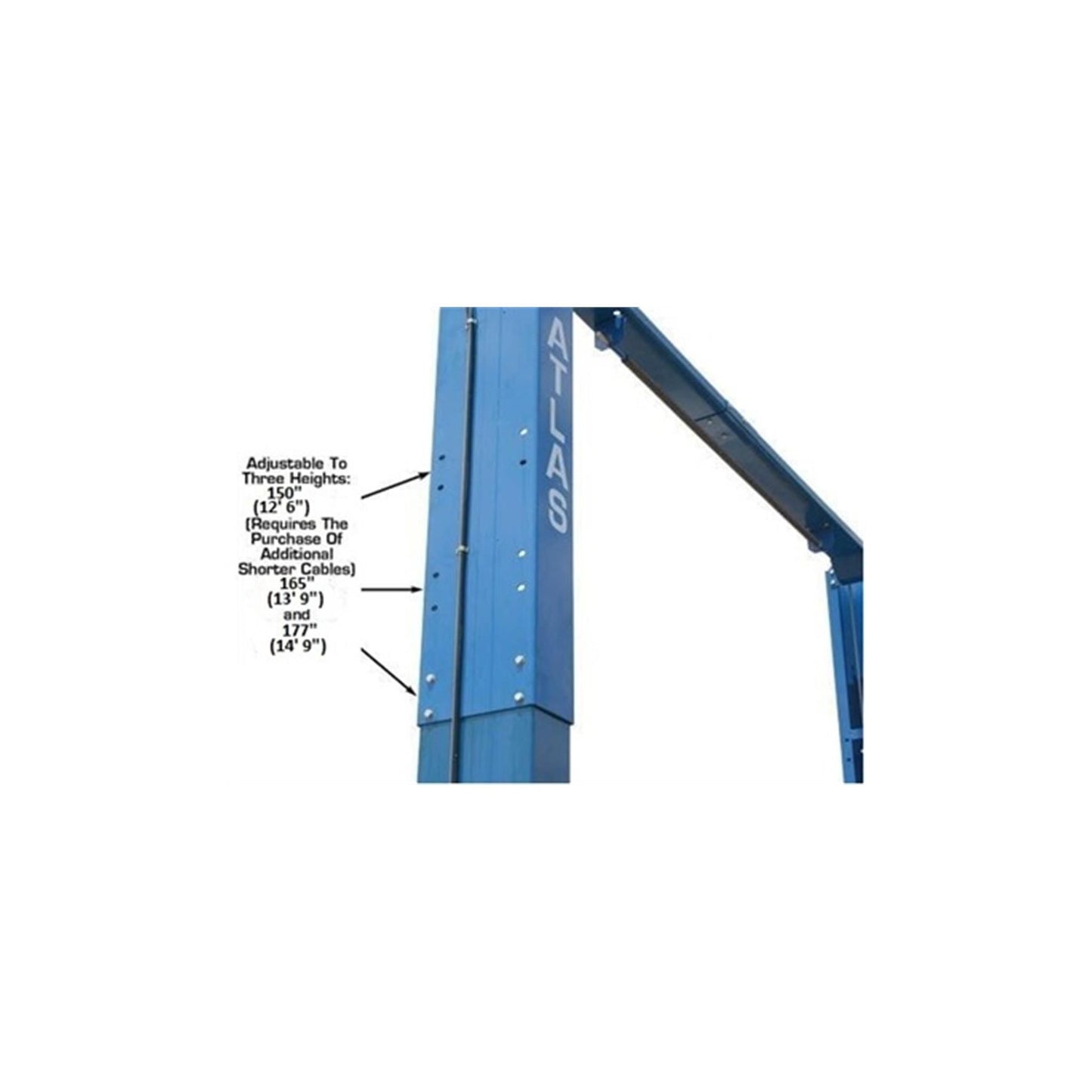

| Overall Height Options | 150 in (12 ft 6 in), 165 in (13 ft 9 in), or 177 in (14 ft 9 in) |
| Low Height Option | 150 in with Optional Short Cable Kit (Sold Separately) |
| Overall Width | 150 3/4 in (12 ft 6 3/4 in) |
| Outside Column Width | 139 1/8 in (11 ft 7 1/8 in) |
| Inside Column Width | 123 1/2 in (10 ft 3 1/2 in) |
| Drive-Through Width | 109 1/2 in (9 ft 1 1/2 in) |
| Maximum Lift Height (Without Adapters) | 72 1/2 in |
| Maximum Lift Height (With Adapters) | 81 1/4 in |
| Minimum Pad Height | 4 3/4 in |

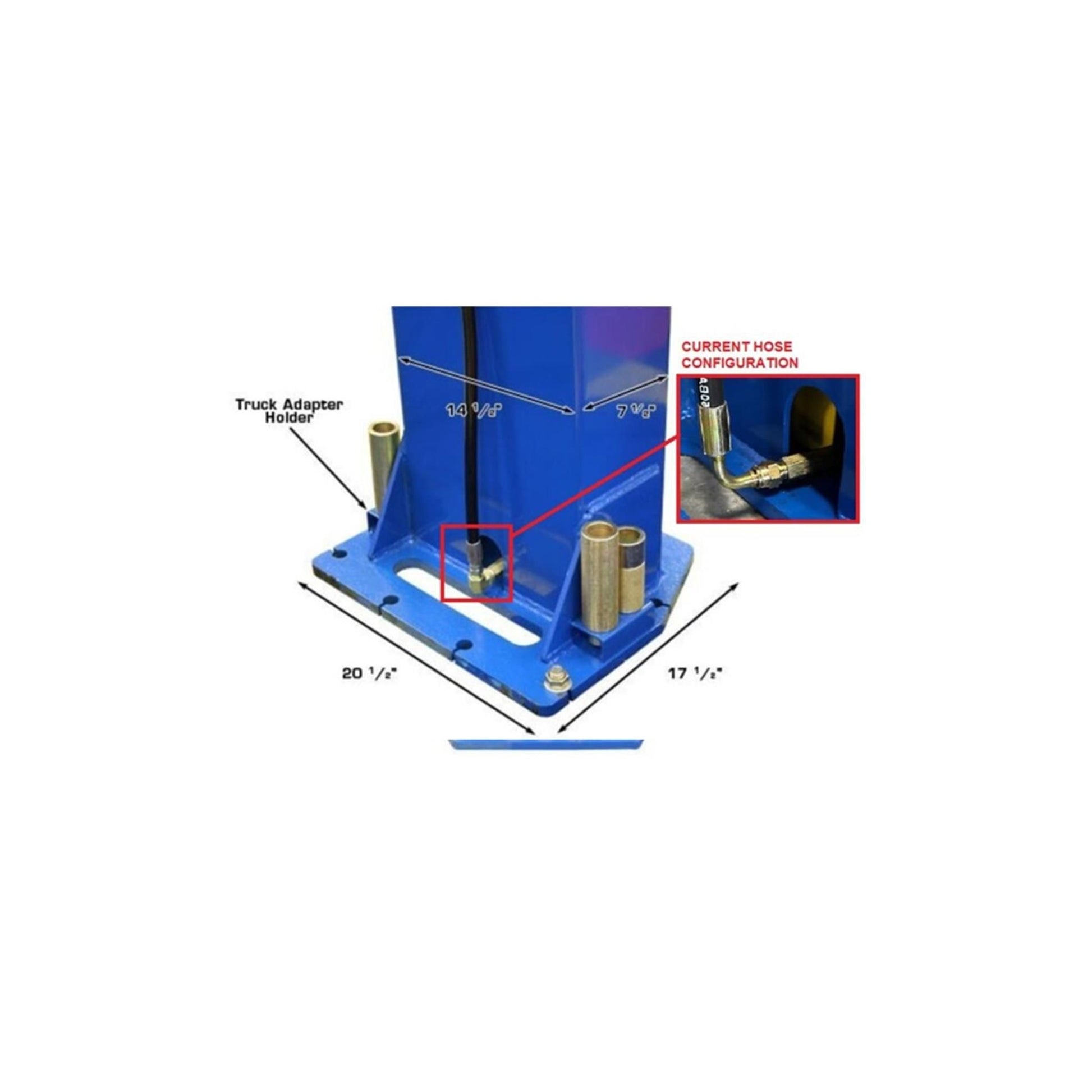

| Column Size | 7 1/2 in × 14 1/2 in |

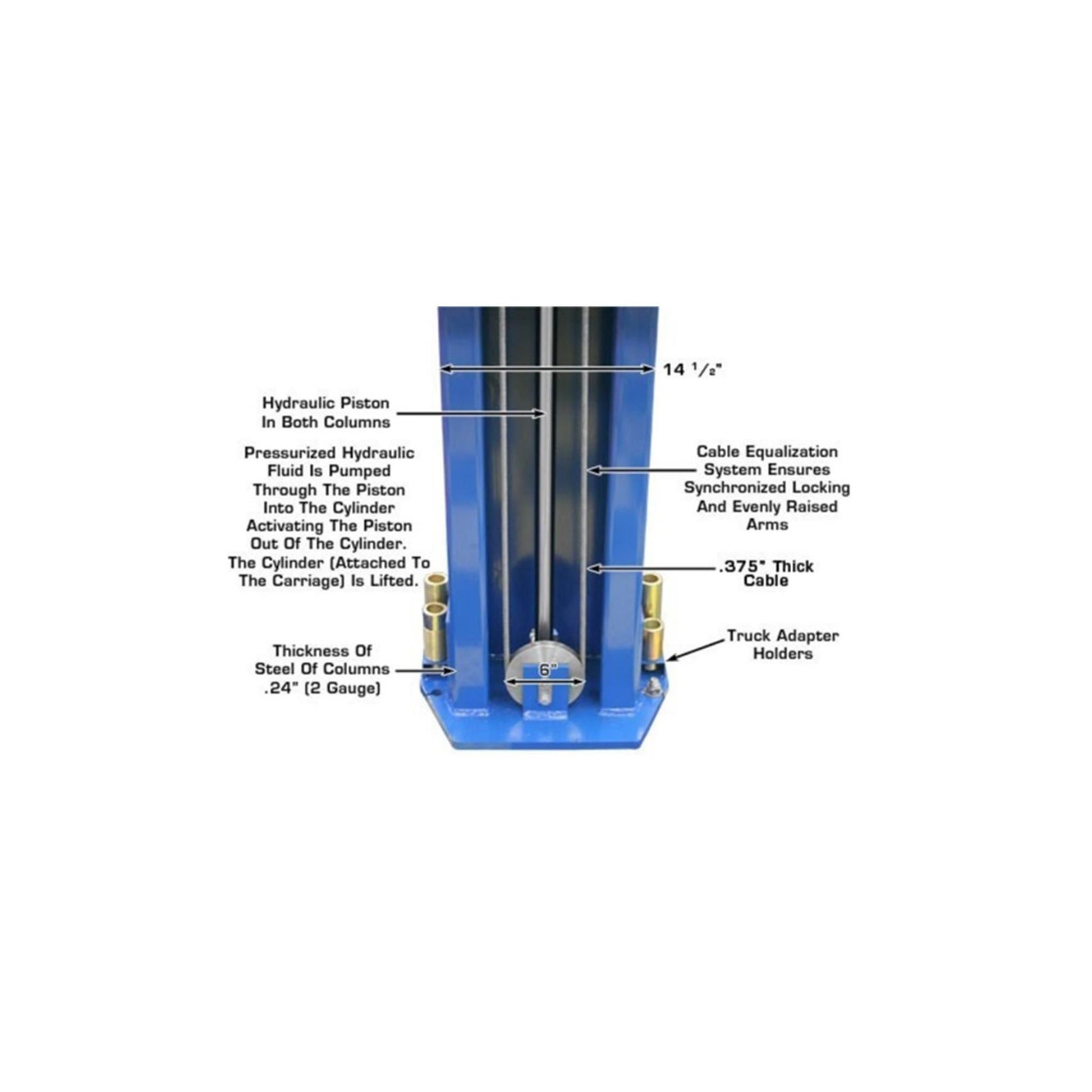

| Hydraulic System | Dual Direct-Drive Hydraulic Cylinders |
| Lock Release | Single-Point Lock Release |
| Power Requirements | 220V, Single-Phase (30 Amp Breaker Recommended) |
| Hydraulic Oil Required | 3–5 Gallons AW32/AW46 (Not Included) |

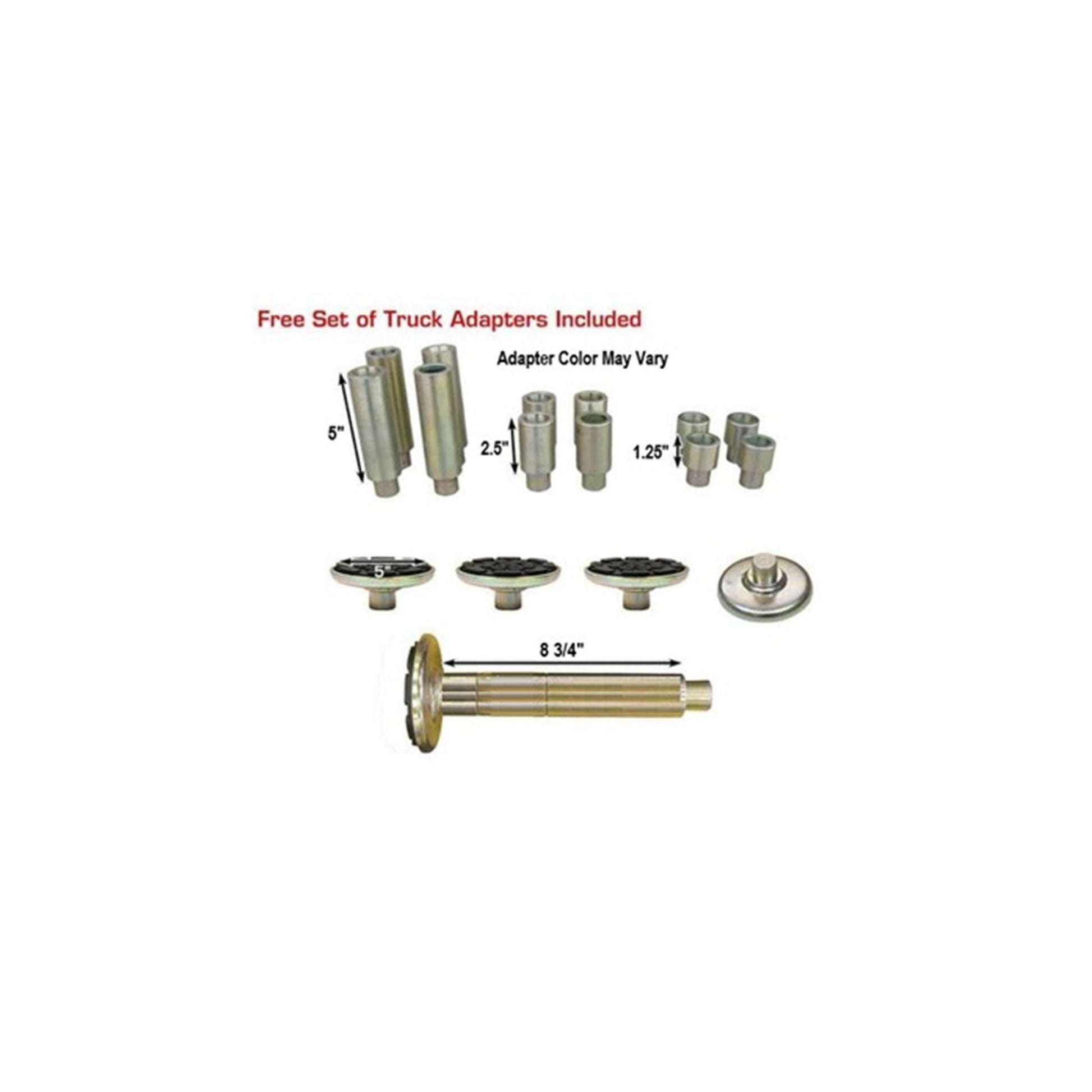

| Adapter Heights | Four 1.25 in, Four 2.5 in, Four 5 in Adapters Included |
| Minimum Concrete Requirement | 4 in Thick, 3,000 PSI |
| Finish | Powder Coat |

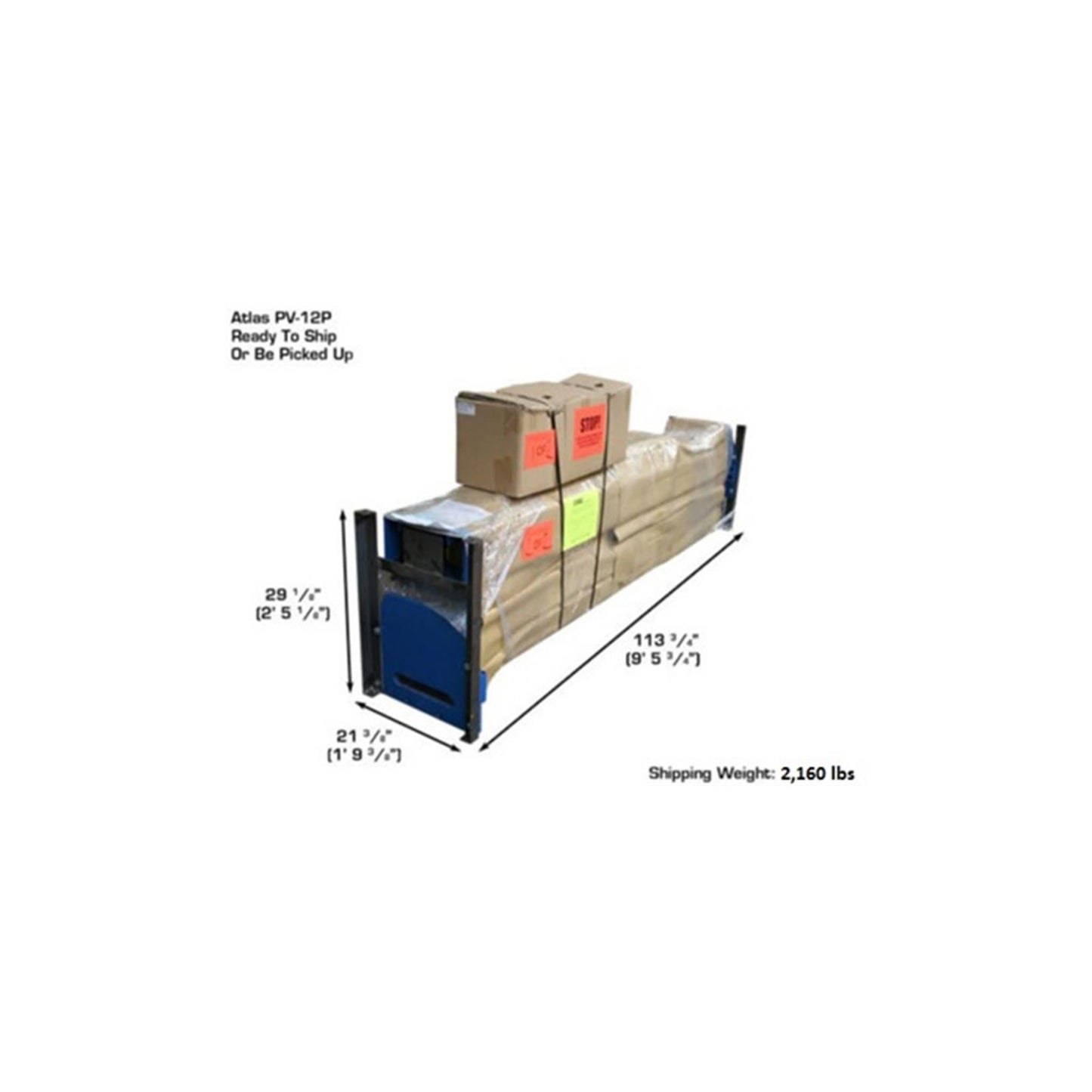

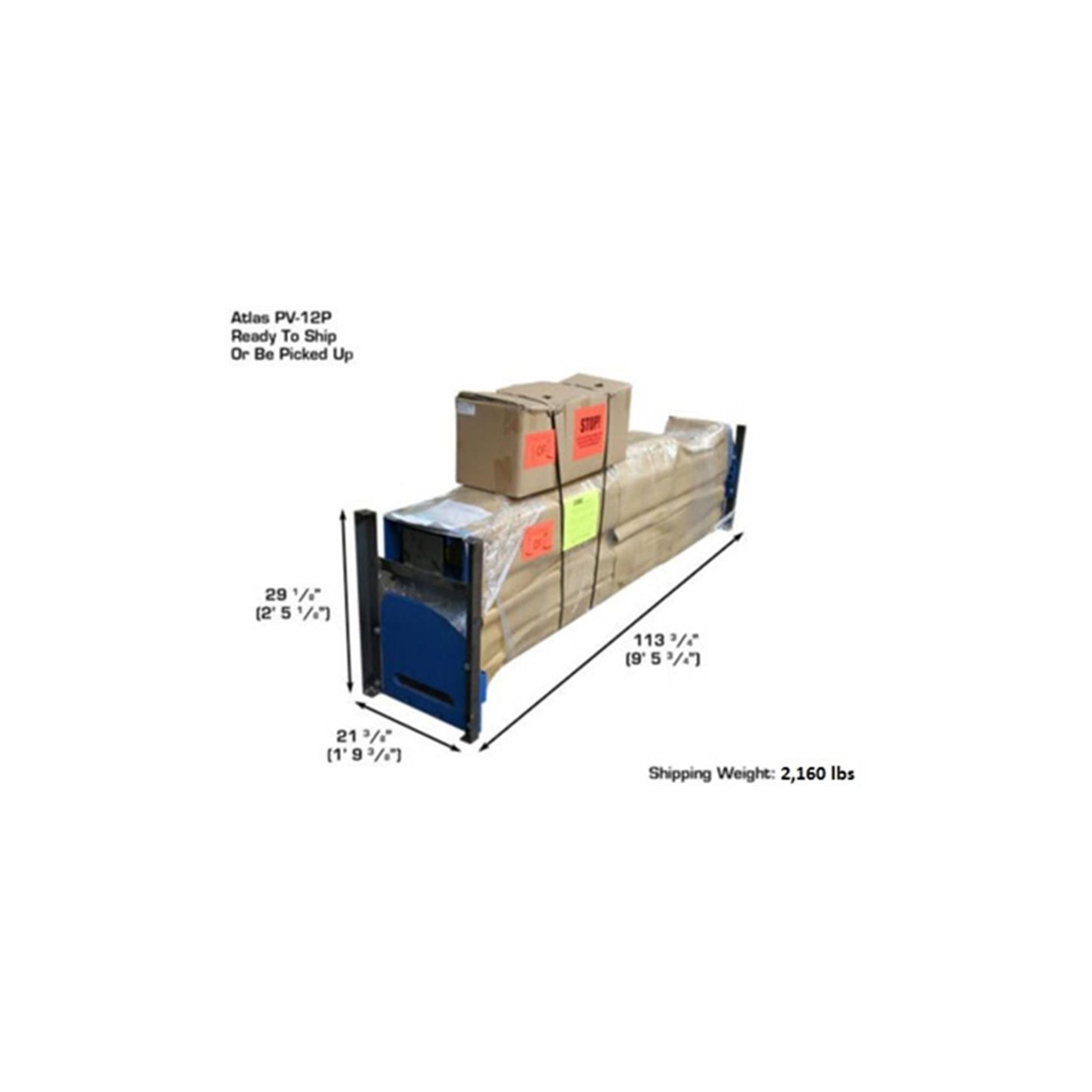

| Shipping Weight | 2,160 lb |
| Warranty | 5-Year Structural / 2-Year Hydraulic / 1-Year Power Unit (Parts Only) |
```
