Atlas Air Force AF9P 80 Gallon Air Compressor | 7.5 HP Plus Package | 2-Stage | 220V Single Phase | 23 CFM

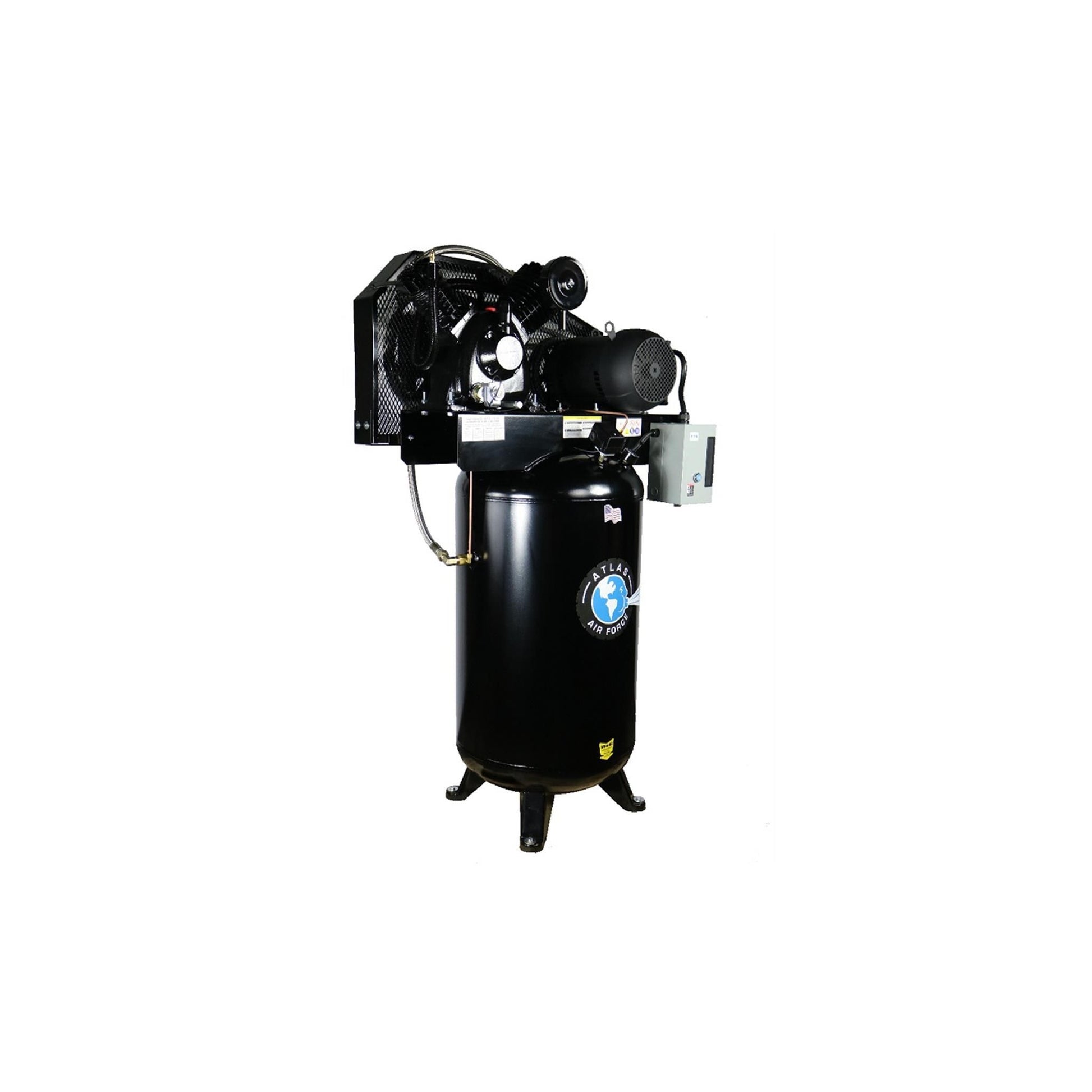

The Atlas Air Force AF9P is a premium commercial-grade two-stage air compressor built for high-demand automotive repair shops, fleet maintenance facilities, fabrication shops, manufacturing plants, and industrial operations that rely on dependable compressed air every day. Powered by a robust 7.5 HP, 1740 RPM industrial motor, a high-output three-cylinder cast iron two-stage pump, and an American-made 80-gallon ASME vertical tank, the AF9P delivers exceptional airflow, quiet operation, and outstanding long-term reliability.
Operating between 145 and 175 PSI, the AF9P delivers an impressive 23 CFM at 90 PSI and 20 CFM at 175 PSI, making it ideal for large multi-bay shops where multiple technicians operate pneumatic equipment simultaneously. Premium commercial components including a magnetic starter, Hubbell industrial pressure switch, EATON starter, vibration isolation pads, finned tank inlet tube, hands-free tank drain extension, compressor oil drain extension, and heavy-duty metal belt guard ensure years of dependable service.
The AF9P is further enhanced by the factory-installed Plus Package, adding an automatic low oil monitor, automatic tank drain, and an air-cooled aftercooler. These upgrades reduce maintenance, extend compressor life, minimize moisture in the air system, and deliver cleaner, higher-quality compressed air for demanding professional environments.
Key Features
- Commercial-grade belt-driven reciprocating air compressor.
- Powerful 7.5 HP, 1740 RPM industrial motor.
- High-output three-cylinder cast iron two-stage compressor pump.
- 80-gallon vertical ASME air tank made in the USA.
- Produces up to 175 PSI operating pressure.
- Delivers 23 CFM at 90 PSI.
- Delivers 20 CFM at 175 PSI.
- Extremely quiet commercial operation.
- Factory-installed magnetic starter increases motor longevity.
- Industrial-grade Hubbell pressure switch.
- Heavy-duty EATON magnetic starter.
- Premium vibration isolation pads included.
- Hands-free tank drain extension.
- Compressor oil drain extension simplifies maintenance.
- Finned tank inlet tube reduces moisture accumulation.
- Heavy-duty metal belt guard.
- Large 3/4-inch NPT air outlet.
- Plus Package includes automatic low oil monitor.
- Plus Package includes automatic tank drain.
- Plus Package includes air-cooled aftercooler for cleaner, drier compressed air.
- Designed for continuous-duty commercial operation.
- Ideal for busy multi-bay automotive and industrial shops.
- 1-Year Parts Only Warranty.
Ideal Applications
- Large automotive repair facilities
- Multi-bay commercial garages
- Fleet maintenance shops
- Fabrication and welding shops
- Industrial manufacturing facilities
- Machine shops
- Heavy-duty service centers
- Auto body repair shops
- Continuous pneumatic tool operation
- Professional compressed air systems

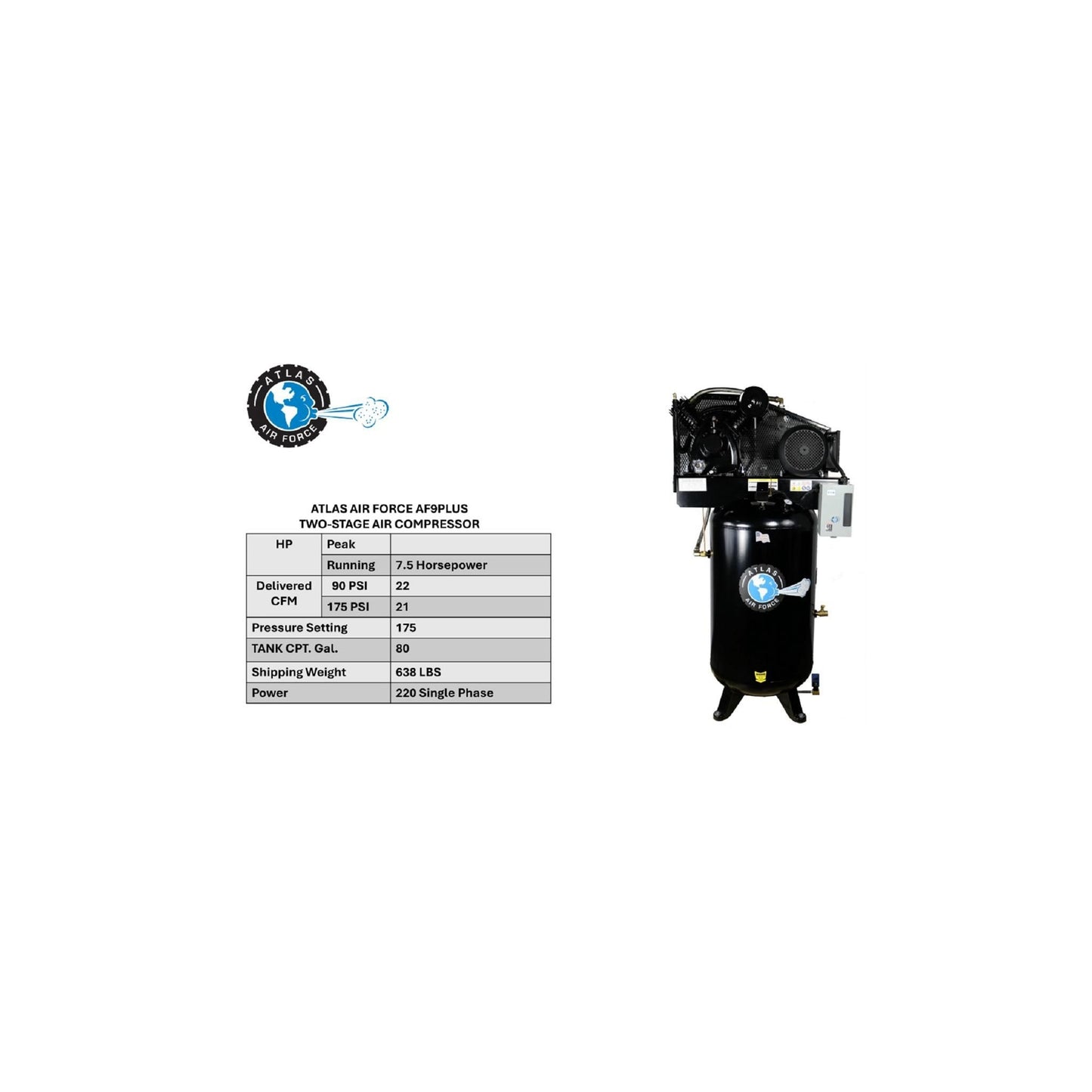

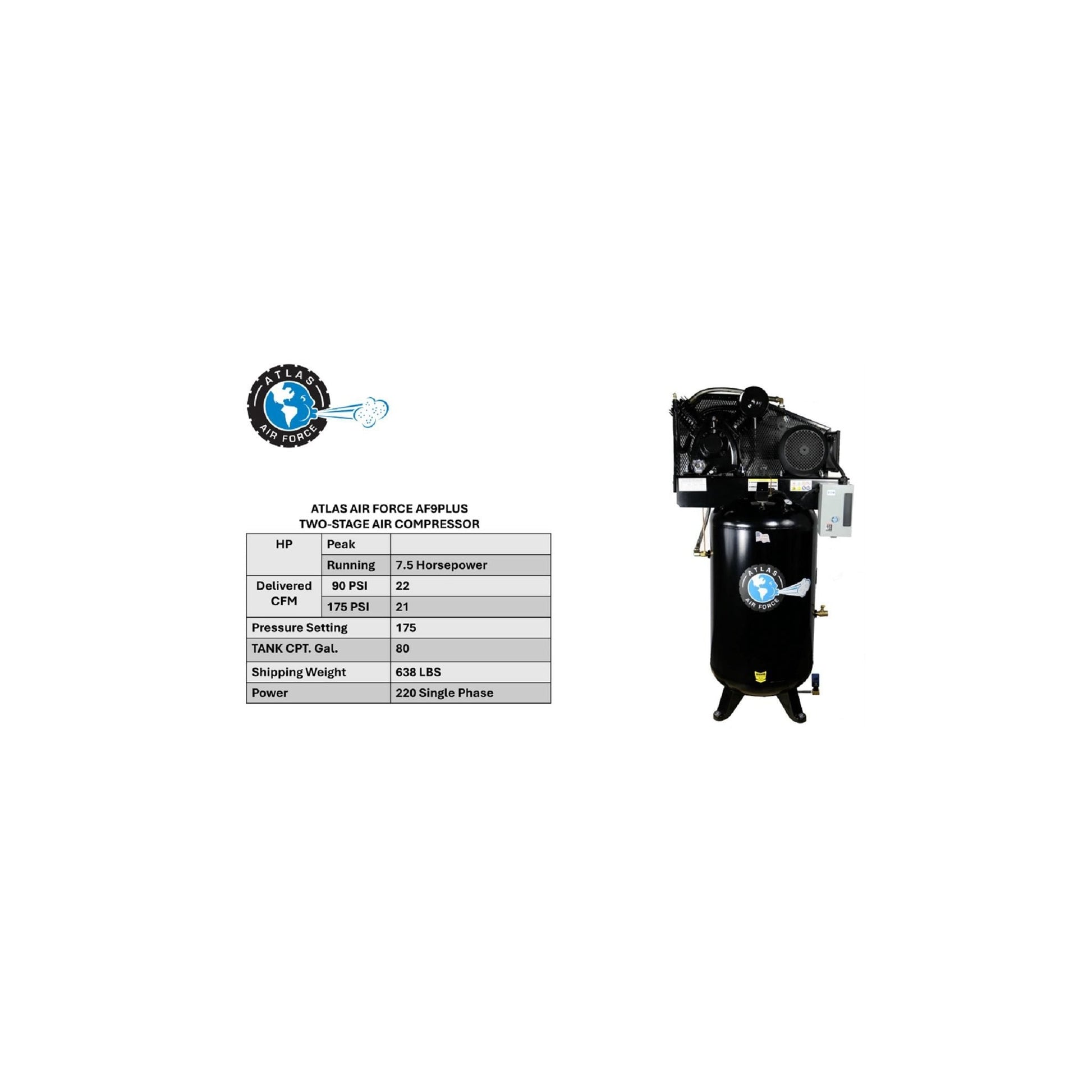

Specifications
| Brand | Atlas Air Force |
| Model | AF9P |
| Compressor Type | Commercial Belt-Driven Vertical Air Compressor |
| Pump Design | Three-Cylinder Cast Iron Two-Stage |
| Motor Output | 7.5 HP, 1740 RPM |
| Tank Capacity | 80 Gallon Vertical ASME Tank (Made in USA) |
| Maximum Pressure | 175 PSI |
| Operating Pressure Range | 145–175 PSI |
| Air Delivery @ 90 PSI | 23 CFM |
| Air Delivery @ 175 PSI | 20 CFM |
| Air Outlet | 3/4" NPT |
| Electrical Requirement | 220 Volt, Single Phase, 40 Amp Breaker Required, 8 Gauge Wire |
| Magnetic Starter | Included |
| Pressure Switch | Industrial-Grade Hubbell |
| Starter | EATON Magnetic Starter |
| Low Oil Monitor | Automatic |
| Automatic Tank Drain | Included |
| Aftercooler | Air-Cooled |

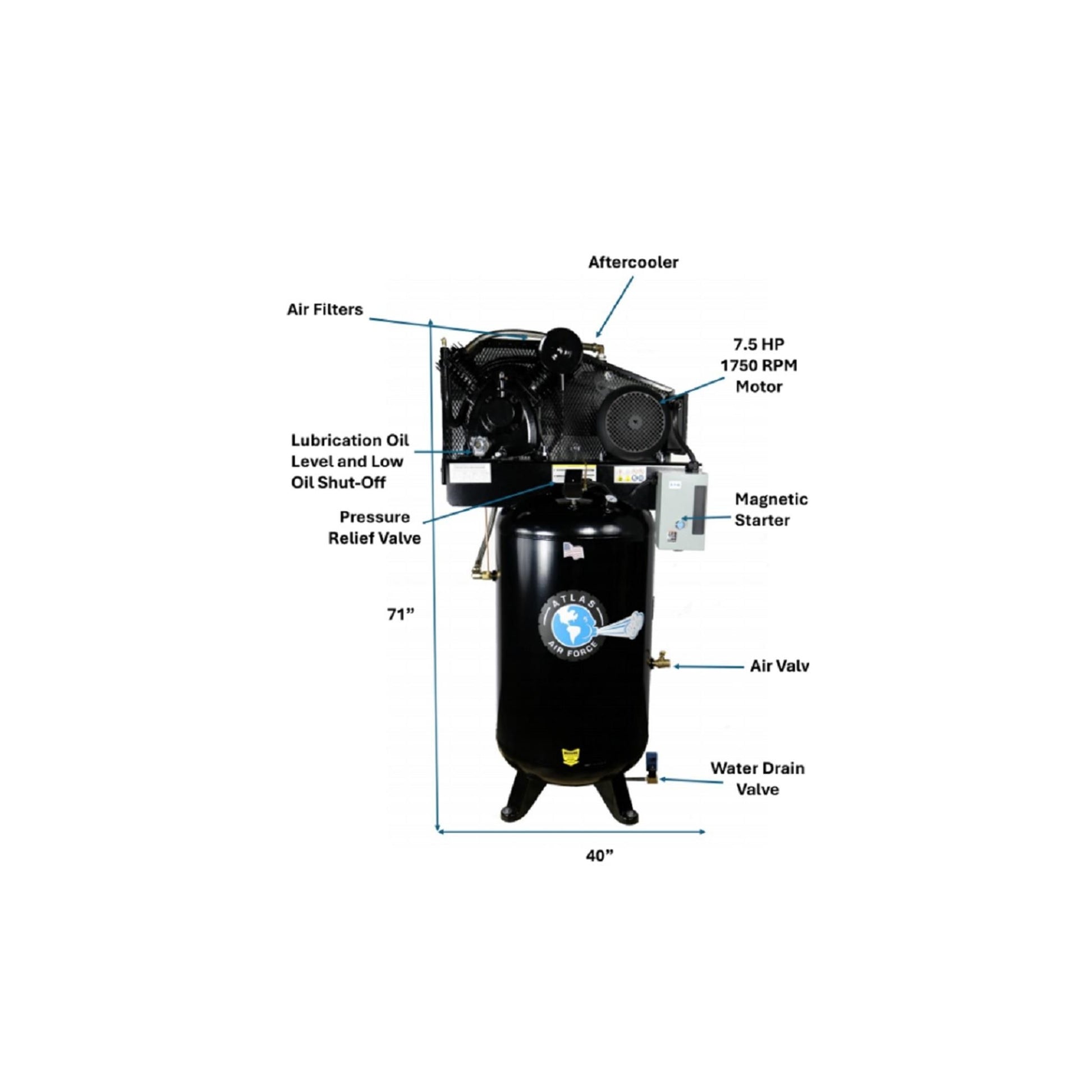

| Overall Dimensions | 40" L × 24" W × 71" H |
| Noise Reduction Features | Low-Speed Pump with Vibration Isolation Pads |
| Moisture Reduction | Finned Tank Inlet Tube & Air-Cooled Aftercooler |
| Maintenance Features | Automatic Tank Drain, Low Oil Monitor & Oil Drain Extension |
| Warranty | 1-Year Parts Only Warranty |
```
