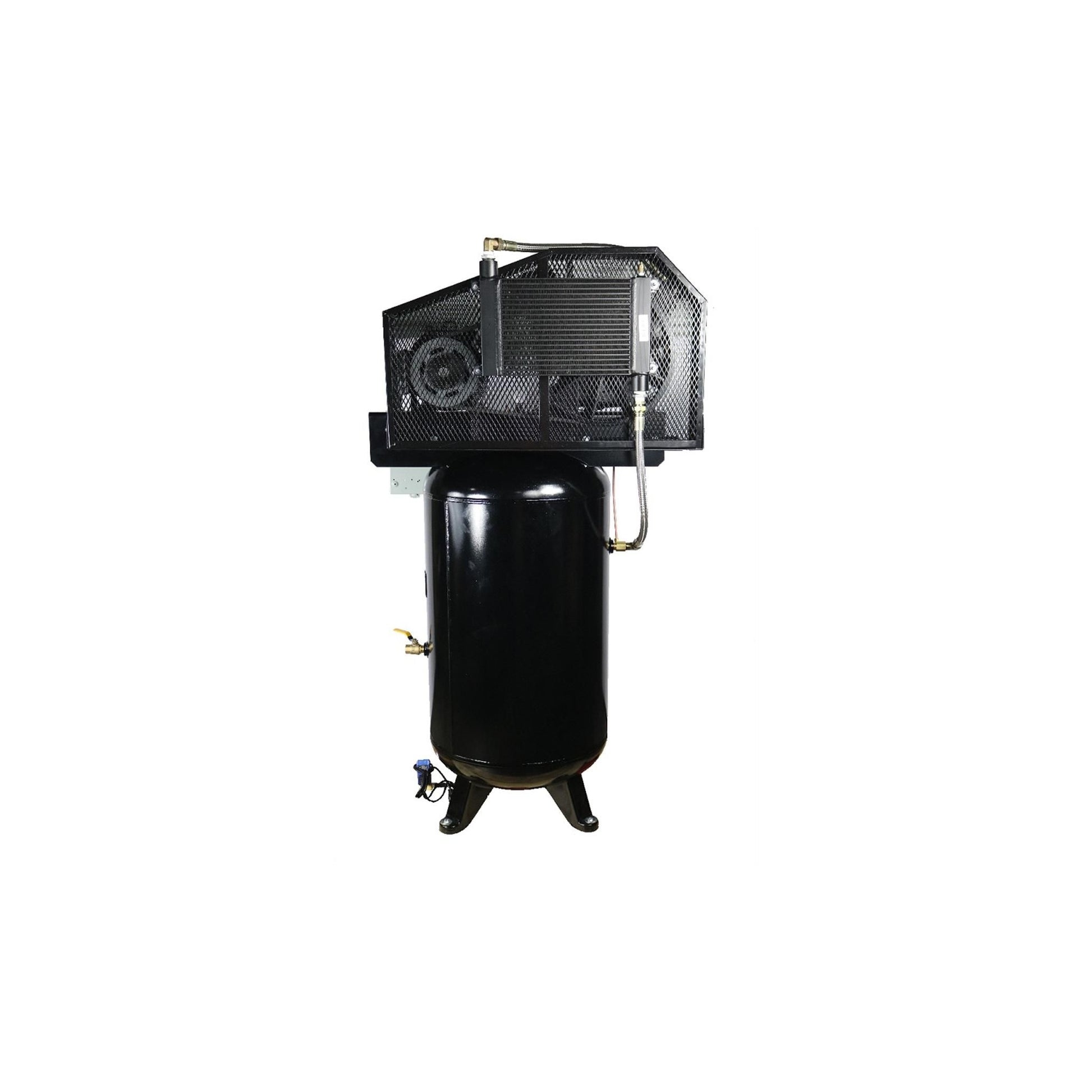

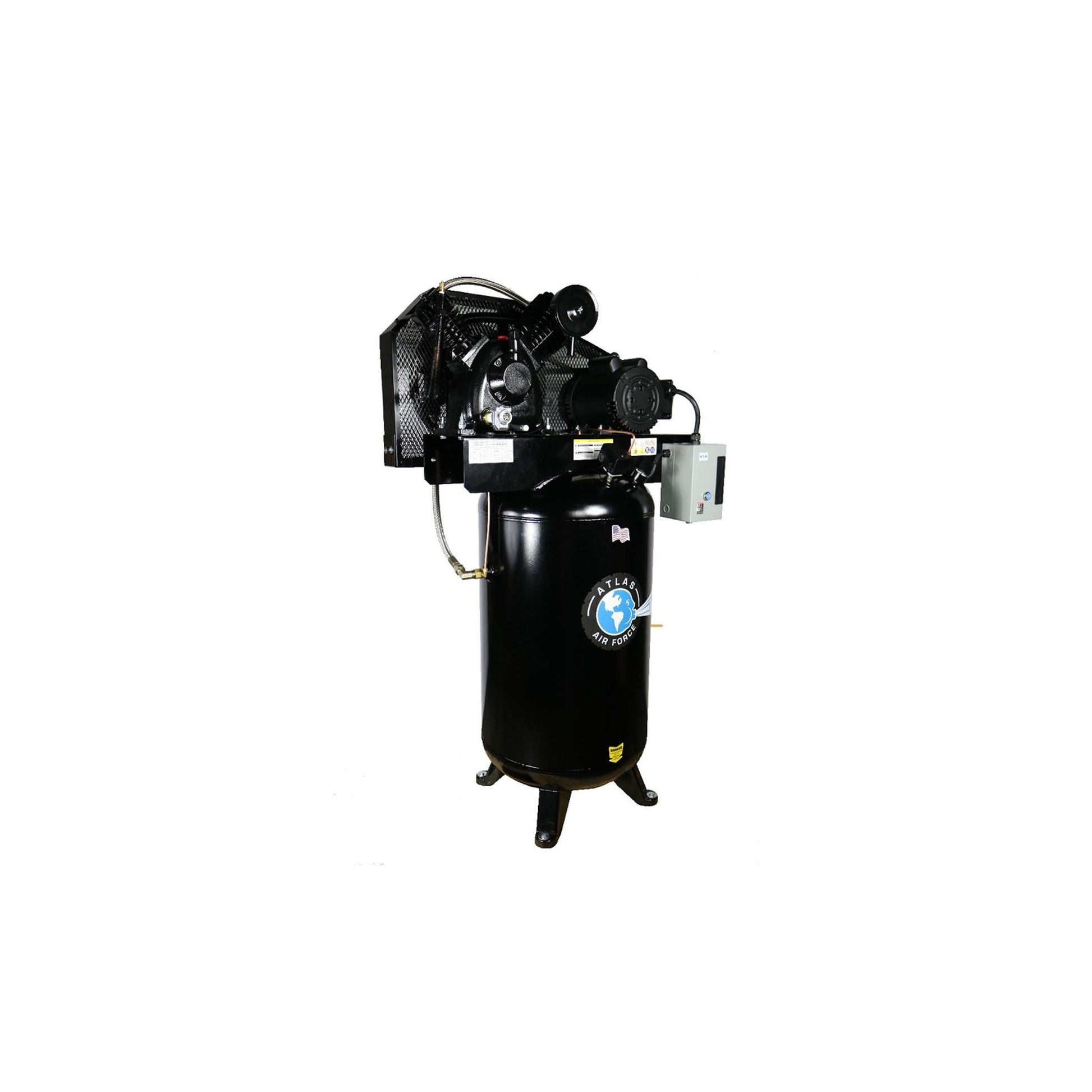

Atlas Air Force AF8P 80 Gallon Air Compressor | 5 HP | Plus Package | 2-Stage | 220V Single Phase | 20 CFM
The Atlas Air Force AF8P is a premium commercial-grade two-stage air compressor designed for automotive repair shops, fabrication facilities, fleet maintenance departments, and industrial service operations that require dependable compressed air every day. Built around a heavy-duty 5 HP motor, a rugged two-cylinder cast iron two-stage pump, and an American-made 80-gallon ASME vertical tank, the AF8P delivers exceptional airflow, quiet performance, and long-term reliability.
Operating between 145 and 175 PSI, the AF8P produces up to 20 CFM at 145 PSI and 19 CFM at 175 PSI, providing ample air for multiple technicians running pneumatic tools simultaneously. Designed for continuous commercial use, this compressor includes premium industrial components such as a magnetic starter, Hubbell pressure switch, EATON starter, vibration isolation pads, finned tank inlet tube, hands-free tank drain extension, compressor oil drain extension, and heavy-duty metal belt guard.
What sets the AF8P apart is the factory-installed Plus Package, which includes an automatic low oil monitor, automatic tank drain, and an air-cooled aftercooler. These premium upgrades help extend compressor life, reduce maintenance requirements, minimize moisture in the air system, and deliver cleaner, higher-quality compressed air for demanding shop environments.
Key Features
- Commercial-grade belt-driven reciprocating air compressor.
- Heavy-duty 5 HP industrial motor.
- Rugged two-cylinder cast iron two-stage compressor pump.
- 80-gallon vertical ASME air tank made in the USA.
- Produces up to 175 PSI operating pressure.
- Delivers 20 CFM at 145 PSI.
- Delivers 19 CFM at 175 PSI.
- Extremely quiet commercial operation.
- Factory-installed magnetic starter extends electrical component life.
- Industrial-grade Hubbell pressure switch.
- Heavy-duty EATON magnetic starter.
- Premium vibration isolation pads included.
- Hands-free tank drain extension.
- Compressor oil drain extension simplifies maintenance.
- Finned tank inlet tube reduces moisture accumulation.
- Heavy-duty metal belt guard.
- Large 3/4-inch NPT air outlet.

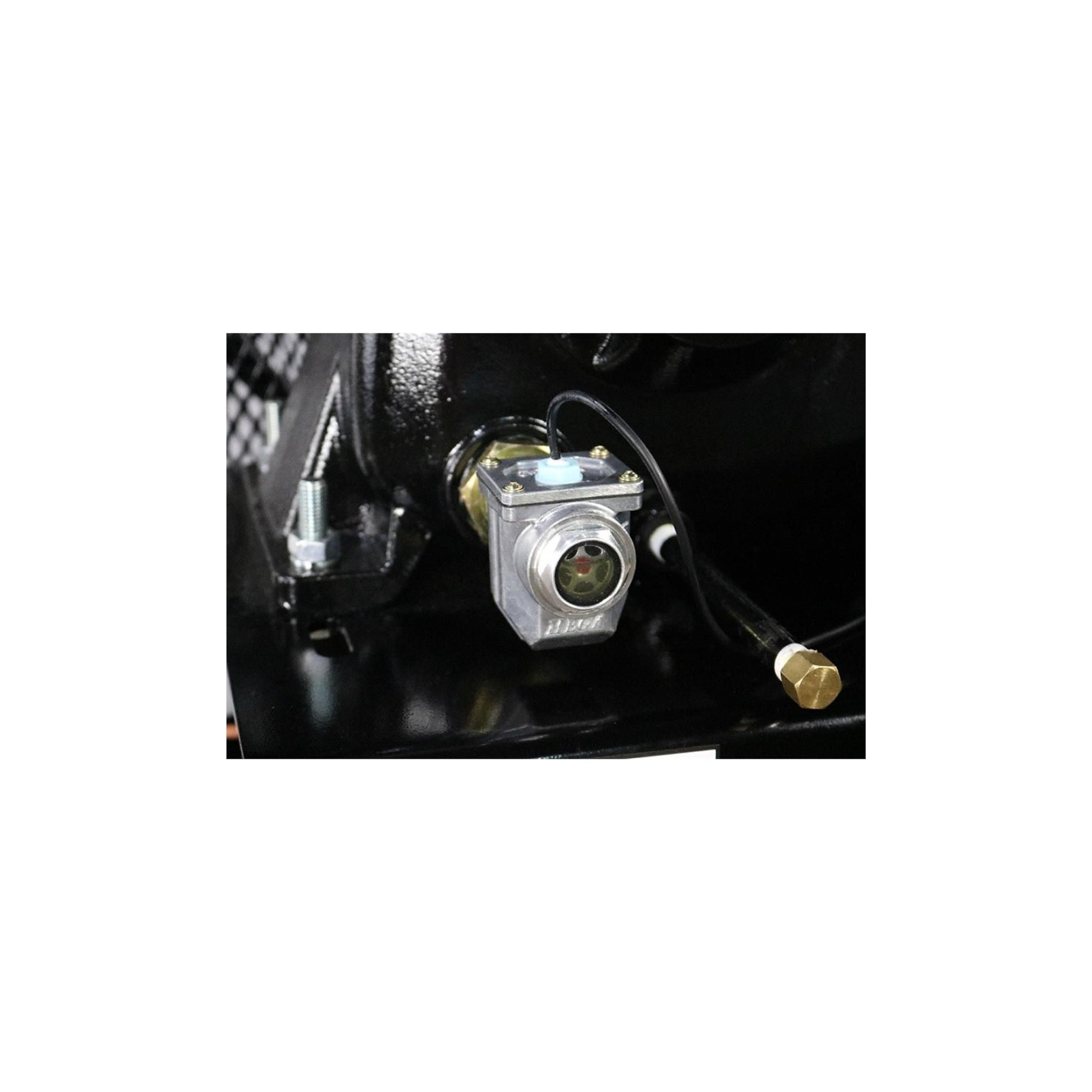

- Plus Package includes automatic low oil monitor.
- Plus Package includes automatic tank drain.
- Plus Package includes air-cooled aftercooler for cleaner, drier compressed air.
- Designed for continuous-duty commercial applications.
- 1-Year Parts Only Warranty.
Ideal Applications
- Automotive repair shops
- 3–4 technician commercial garages
- Fleet maintenance facilities
- Fabrication and welding shops
- Machine shops
- Industrial maintenance departments
- Auto body repair facilities
- Continuous pneumatic tool operation
- Professional compressed air systems
- Growing commercial businesses

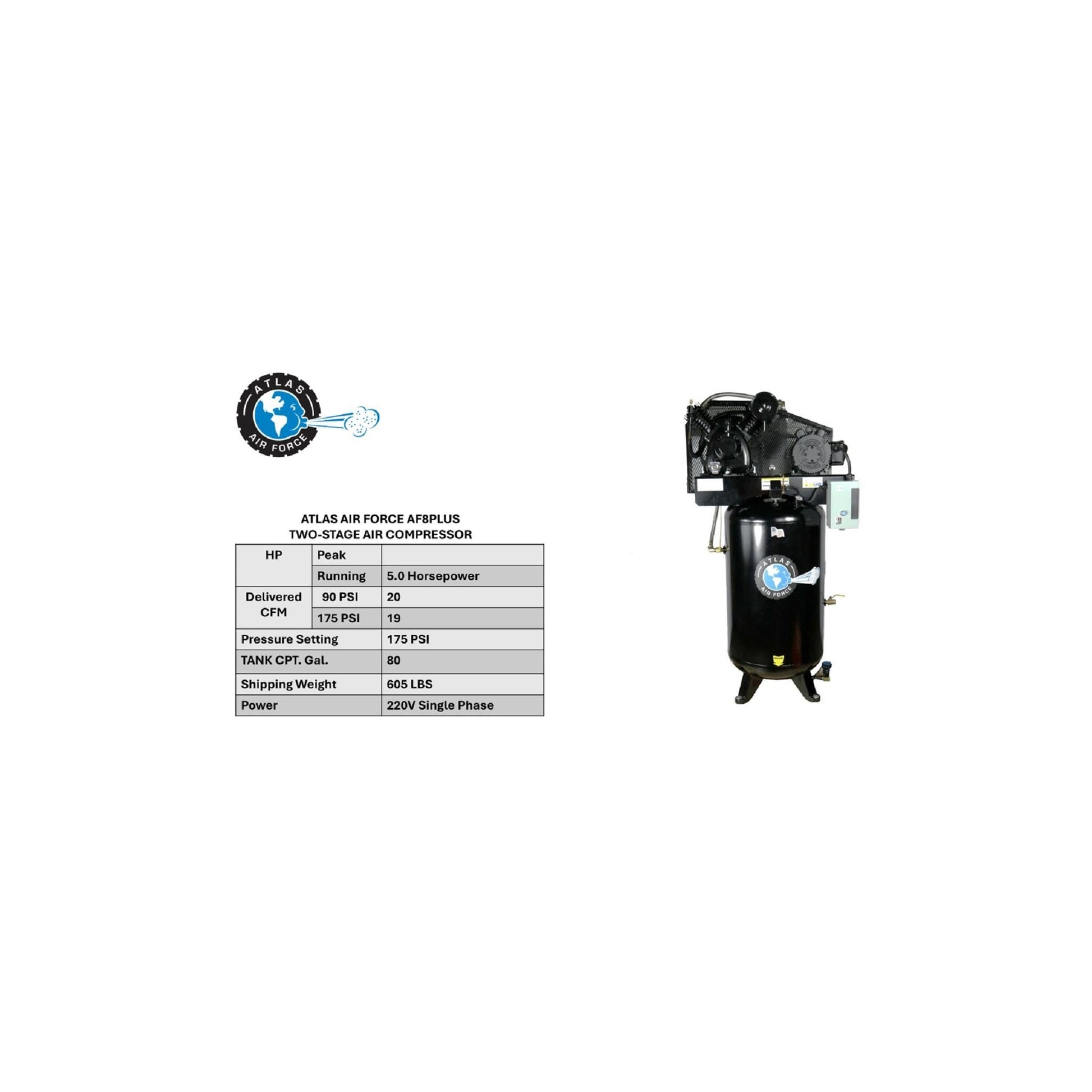

Specifications
| Brand | Atlas Air Force |
| Model | AF8P |
| Compressor Type | Commercial Belt-Driven Vertical Air Compressor |
| Pump Design | Two-Cylinder Cast Iron Two-Stage |
| Motor Output | 5 HP Heavy-Duty Motor |
| Tank Capacity | 80 Gallon Vertical ASME Tank (Made in USA) |
| Maximum Pressure | 175 PSI |
| Operating Pressure Range | 145–175 PSI |
| Air Delivery @ 145 PSI | 20 CFM |
| Air Delivery @ 175 PSI | 19 CFM |
| Air Outlet | 3/4" NPT |
| Electrical Requirement | 220 Volt, Single Phase, 30 Amp Breaker Required, 10 Gauge Wire |
| Magnetic Starter | Included |
| Pressure Switch | Industrial-Grade Hubbell |
| Starter | EATON Magnetic Starter |
| Low Oil Monitor | Automatic |
| Automatic Tank Drain | Included |
| Aftercooler | Air-Cooled |

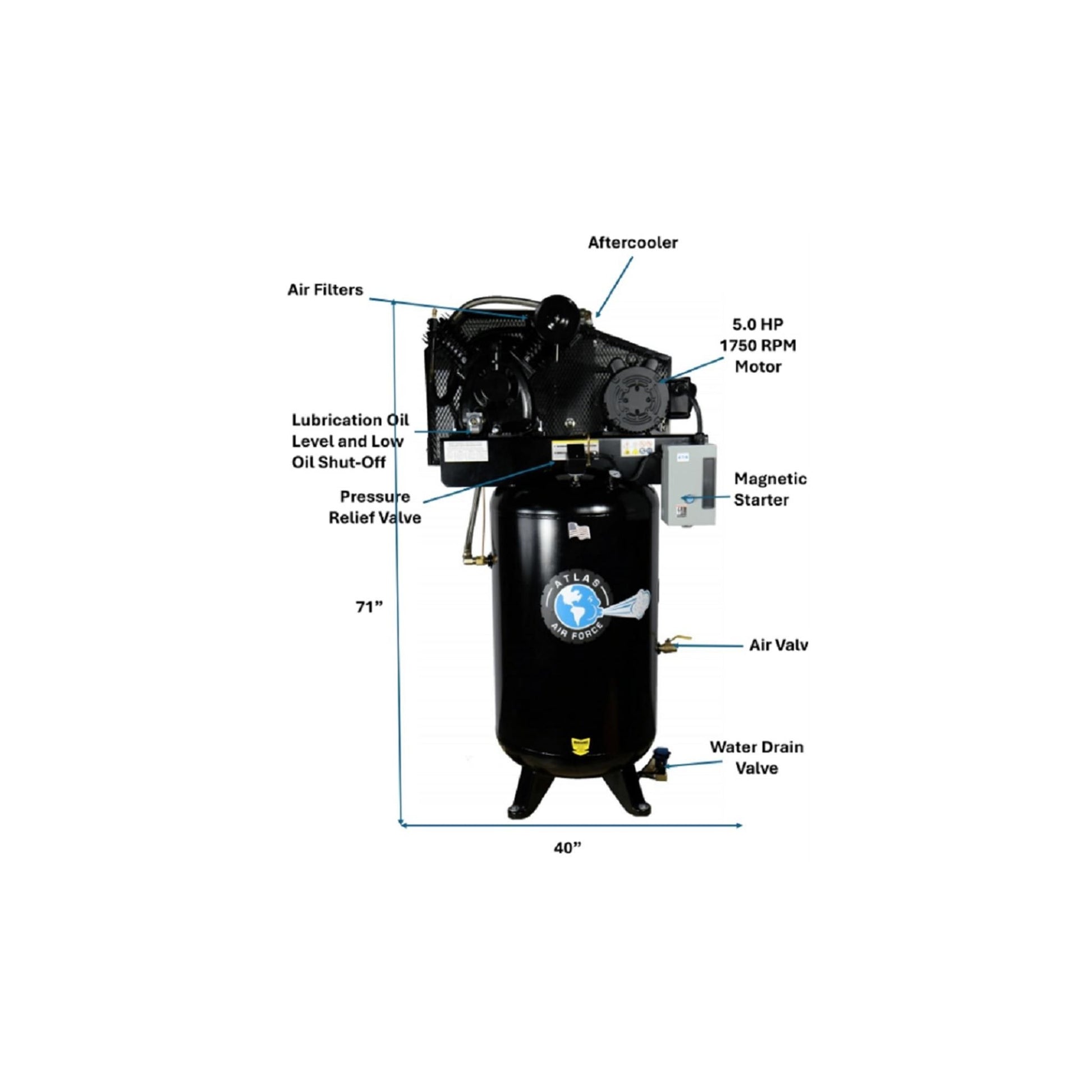

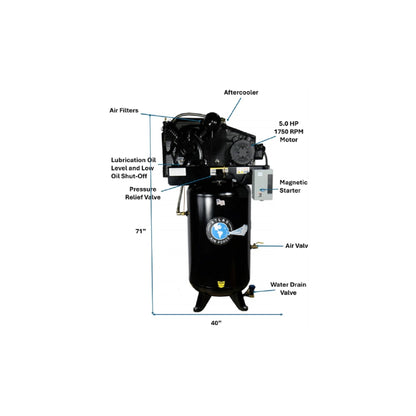

| Overall Dimensions | 40" L × 24" W × 71" H |
| Noise Reduction Features | Low-Speed Pump with Vibration Isolation Pads |
| Moisture Reduction | Finned Tank Inlet Tube & Air-Cooled Aftercooler |
| Maintenance Features | Automatic Tank Drain, Low Oil Monitor & Oil Drain Extension |
| Warranty | 1-Year Parts Only Warranty |
```
