Atlas Air Force AF6 80 Gallon 2-Stage Air Compressor | 5 HP | 220V Single Phase | 175 PSI | 18.5 CFM @ 145 PSI
The Atlas Air Force AF6 is an entry-level commercial-grade two-stage air compressor built for automotive repair shops, fabrication facilities, manufacturing operations, and professional service centers that demand higher air pressure and continuous performance. Powered by a heavy-duty 5 HP motor and a rugged three-cylinder cast iron two-stage compressor pump, the AF6 delivers outstanding airflow while producing operating pressures up to 175 PSI.
Featuring an American-made 80-gallon ASME vertical air tank, the AF6 provides excellent air storage for high-demand pneumatic equipment. The low-RPM motor, combined with two low-pressure cylinders and one high-pressure cylinder, produces 18.5 CFM at 145 PSI and 14.5 CFM at 175 PSI while maintaining exceptionally quiet operation compared to many competing compressors.
The AF6 includes premium features designed for long-term reliability and simplified maintenance, including vibration isolation pads, a finned tank inlet tube that reduces moisture accumulation, a hands-free tank drain extension, and a heavy-duty metal belt guard. It is also the recommended entry-level compressor for operating Atlas sandblast cabinets using medium or medium-fine glass bead media, making it an excellent choice for shops requiring dependable, high-pressure compressed air.
Key Features
- Commercial-grade belt-driven reciprocating air compressor.
- Powerful 5 HP electric motor.
- Heavy-duty three-cylinder cast iron two-stage compressor pump.
- 80-gallon vertical ASME air tank made in the USA.
- Produces up to 175 PSI operating pressure.
- Delivers 18.5 CFM at 145 PSI.
- Delivers 14.5 CFM at 175 PSI.
- Extremely quiet operation.
- Premium vibration isolation pads included.
- Hands-free tank drain extension simplifies maintenance.
- Finned inlet tube minimizes moisture accumulation inside the tank.

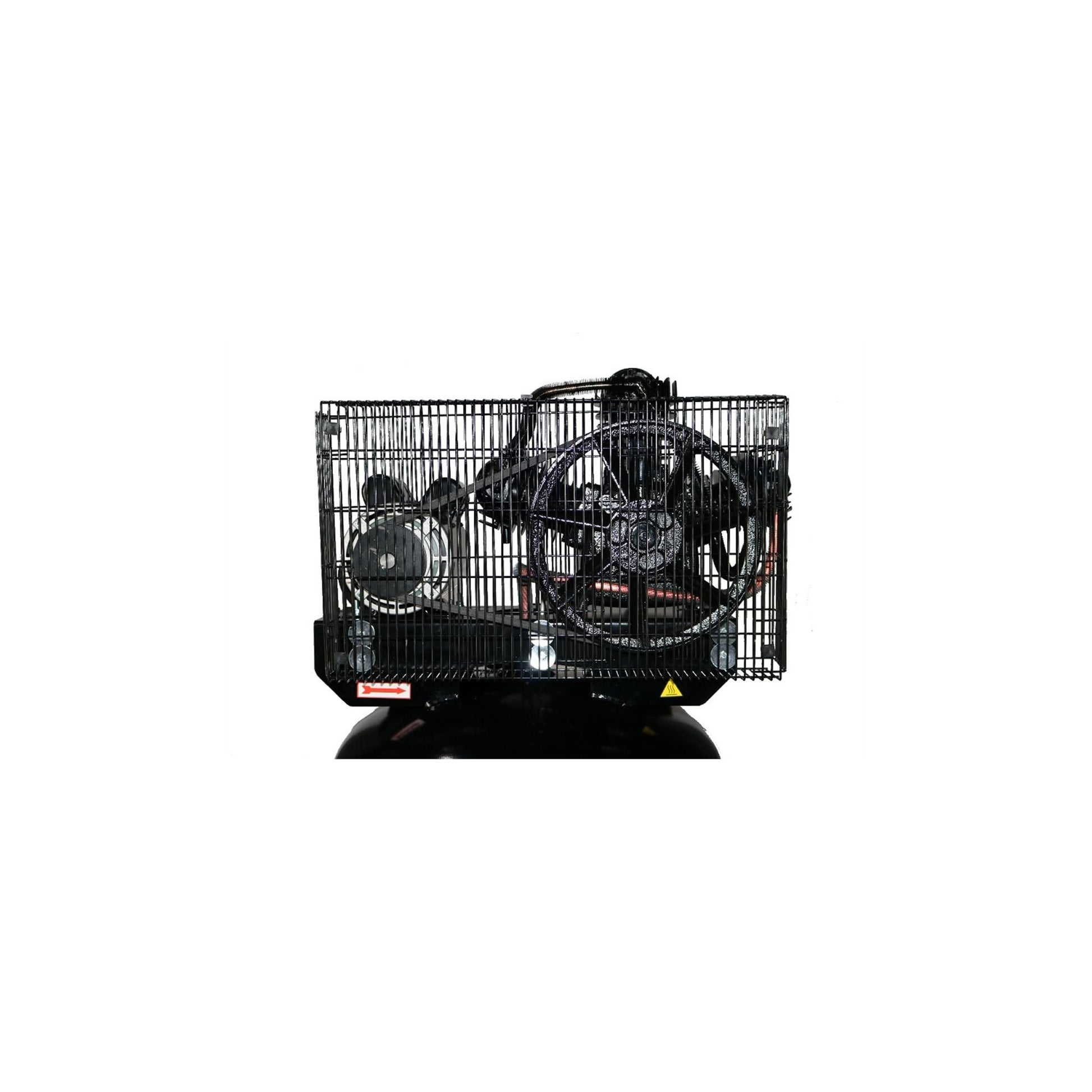

- Heavy-duty metal belt guard for added durability.
- 1/2-inch NPT air outlet with ball valve included.
- Ideal for commercial shops and continuous-duty applications.
- Recommended for Atlas sandblast cabinets using medium or medium-fine glass bead media.
- 1-Year Parts Only Warranty.
Ideal Applications
- Automotive repair facilities
- Commercial garages
- Body shops
- Fabrication shops
- Manufacturing facilities
- Fleet maintenance operations
- Professional sandblasting
- Pneumatic air tools
- Industrial maintenance
- General shop compressed air systems

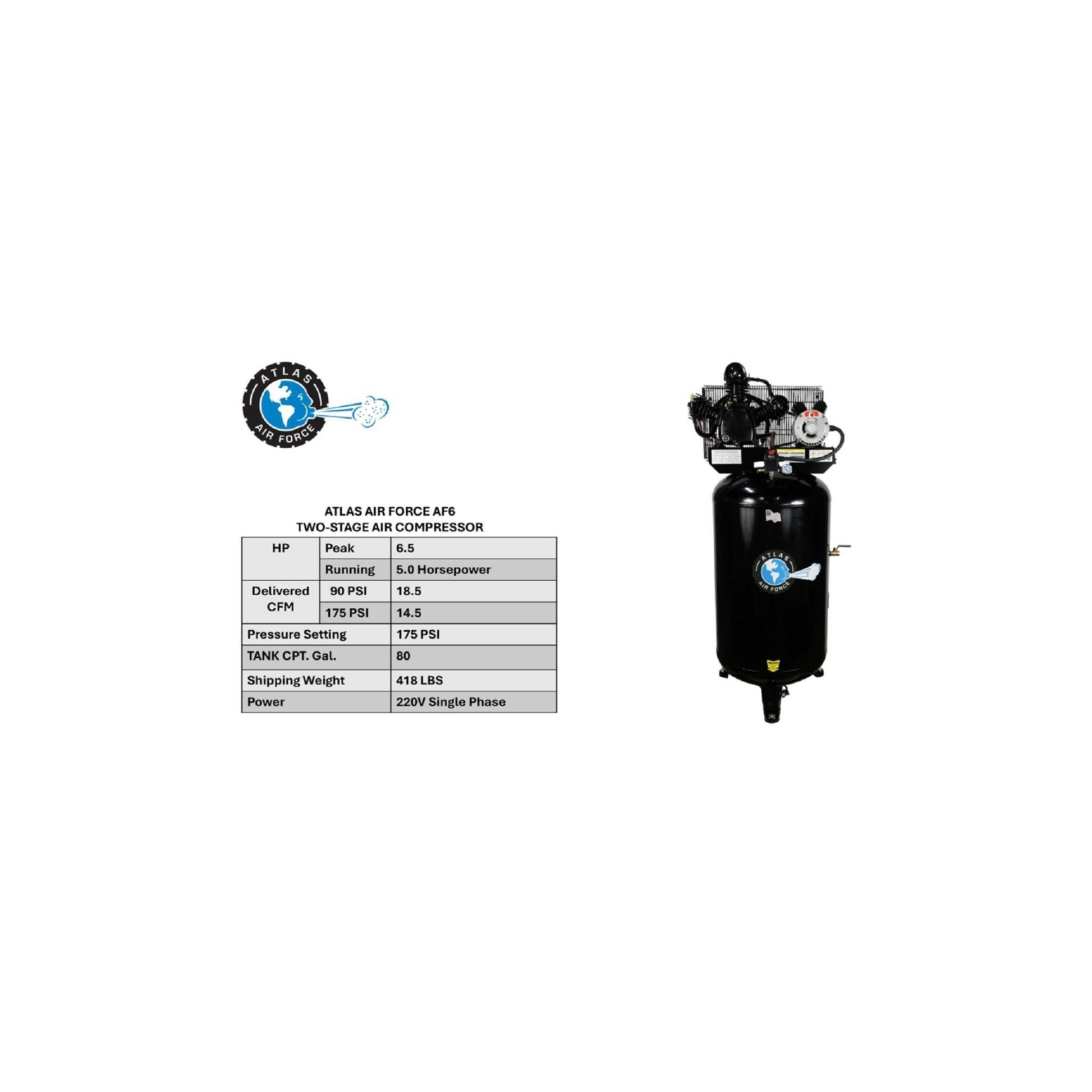

Specifications
| Brand | Atlas Air Force |
| Model | AF6 |
| Compressor Type | Commercial Belt-Driven Vertical Air Compressor |
| Pump Design | Three-Cylinder Cast Iron Two-Stage |
| Motor Output | 5 HP |
| Tank Capacity | 80 Gallon Vertical ASME Tank (Made in USA) |
| Maximum Pressure | 175 PSI |
| Operating Pressure Range | 90–175 PSI |
| Air Delivery @ 145 PSI | 18.5 CFM |
| Air Delivery @ 175 PSI | 14.5 CFM |
| Air Outlet | 1/2" NPT with Ball Valve Included |
| Electrical Requirement | 220 Volt, Single Phase, 30 Amp Breaker, 10 Gauge Wire Required |
| Overall Dimensions | 36" L × 24" W × 69" H |
| Pump Construction | Three-Cylinder Cast Iron Reciprocating Pump |
| Noise Reduction Features | Low RPM Operation with Vibration Isolation Pads |
| Moisture Reduction | Finned Tank Inlet Tube |
| Tank Drain | Hands-Free Drain Extension |
| Shipping Weight | 485 lb. |
| Warranty | 1-Year Parts Only Warranty |
```
