Atlas Air Force AF5 60 Gallon Air Compressor | 5 HP | 220V Single Phase | 18 CFM @ 90 PSI

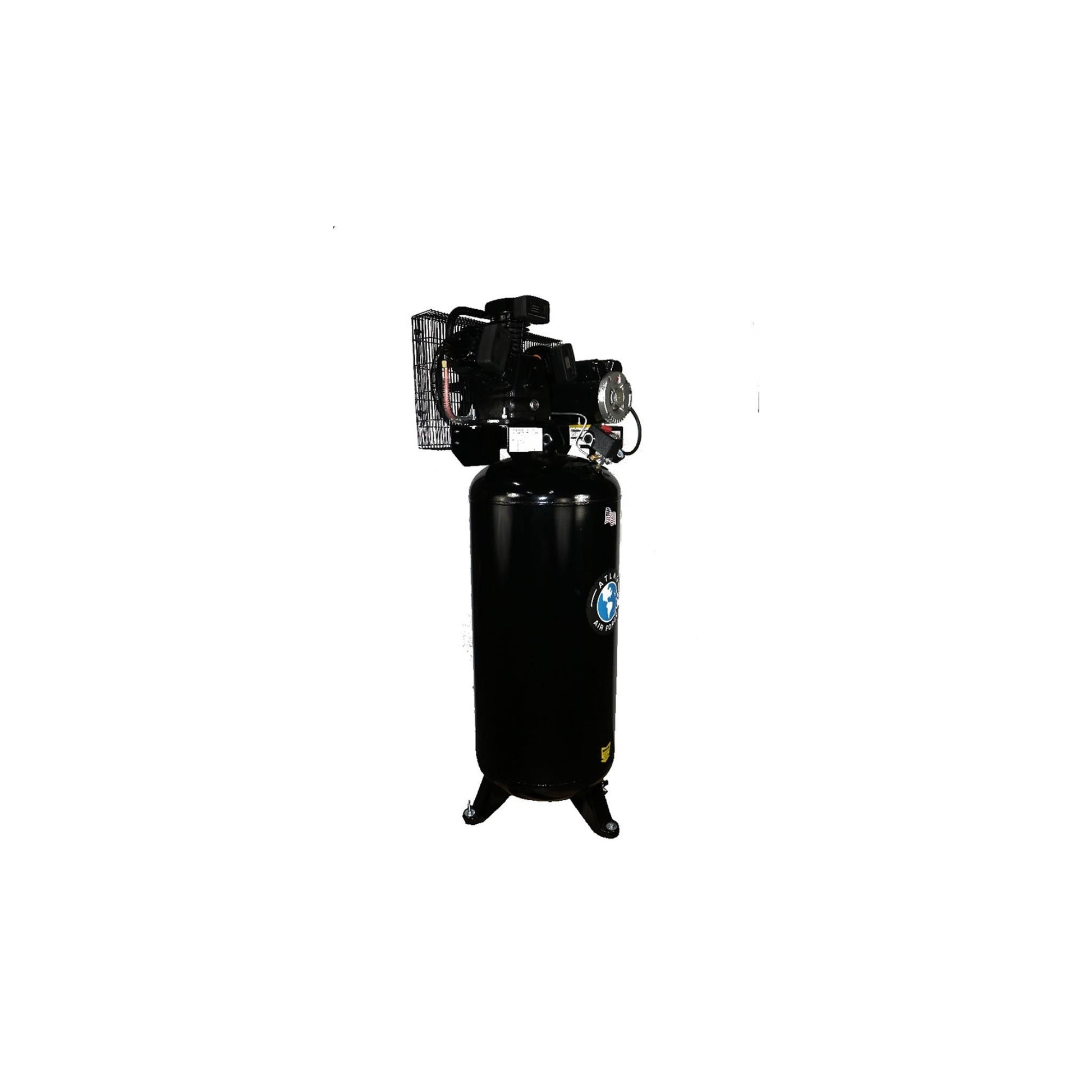

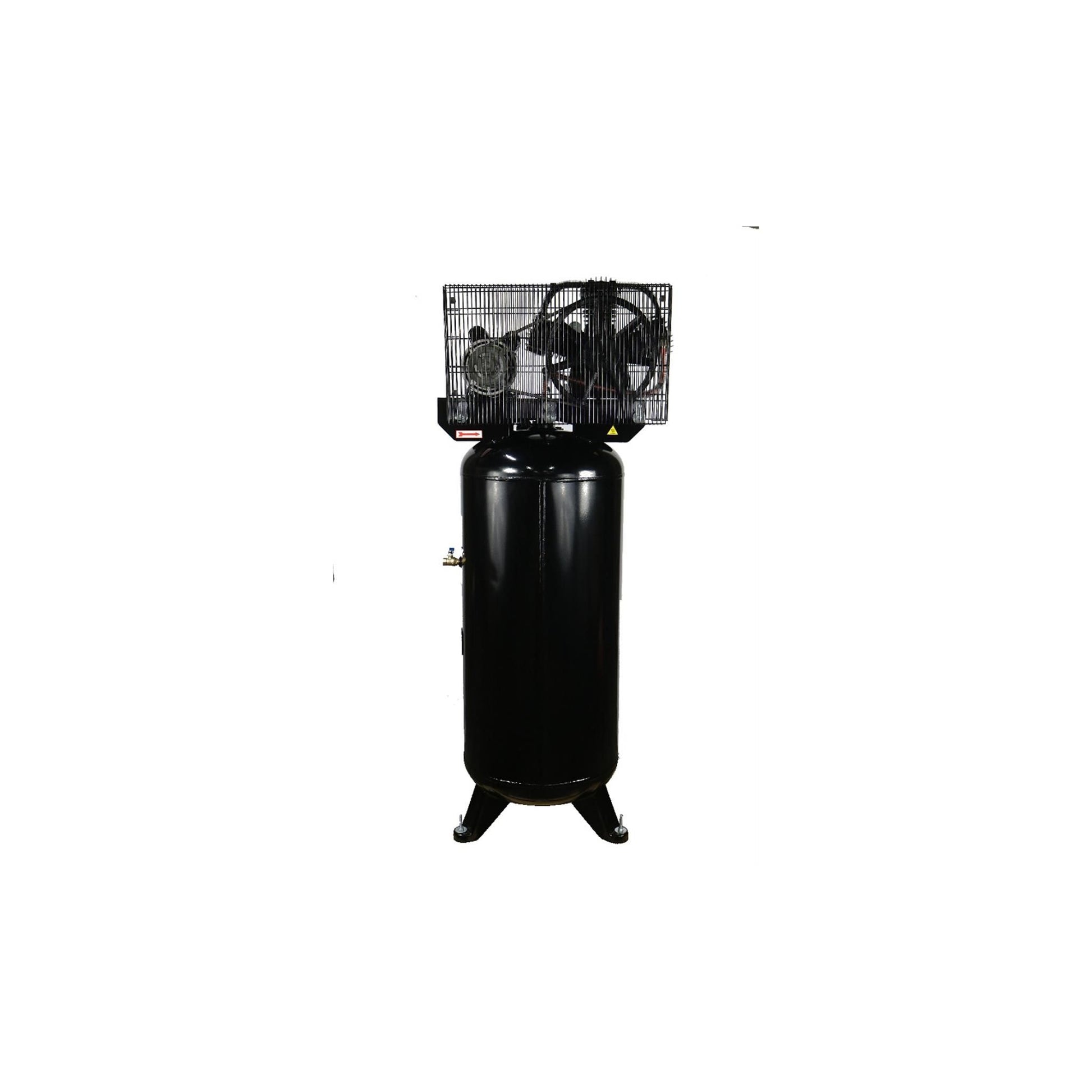

The Atlas Air Force AF5 is a heavy-duty, belt-driven shop air compressor engineered for automotive repair shops, fabrication facilities, farm shops, and serious home garages that require dependable compressed air for demanding applications. Powered by a 5 HP motor and a durable three-cylinder, single-stage cast iron pump, the AF5 delivers up to 18.0 CFM at 90 PSI and 20.0 CFM at 40 PSI for reliable operation of air tools, pneumatic equipment, and light-duty blasting applications.
Built around a rugged 60-gallon vertical ASME tank manufactured in the USA, the AF5 combines high air storage capacity with a compact footprint to maximize shop space. The compressor operates between 90 and 125 PSI and incorporates several premium features including vibration isolation pads, a finned tank inlet tube to reduce moisture buildup, a hands-free tank drain extension, and a heavy-duty metal belt guard for improved durability and quieter operation.
The AF5 is Atlas' most affordable compressor capable of operating the Atlas SBC420 entry-level sandblast cabinet for shorter blasting sessions. For continuous sandblasting applications, Atlas recommends upgrading to the AF6 or a larger compressor. Whether powering impact wrenches, grinders, paint equipment, or shop air systems, the Atlas Air Force AF5 delivers professional-grade performance and long-lasting reliability.
Key Features
- Heavy-duty belt-driven reciprocating air compressor.
- Powerful 5 HP electric motor.
- Oversized three-cylinder cast iron single-stage compressor pump.
- 60-gallon vertical ASME tank made in the USA.
- Produces up to 125 PSI operating pressure.
- Delivers 20.0 CFM at 40 PSI.
- Delivers 18.0 CFM at 90 PSI.
- Quieter operation than many competing compressors.
- Vibration isolation pad set included.

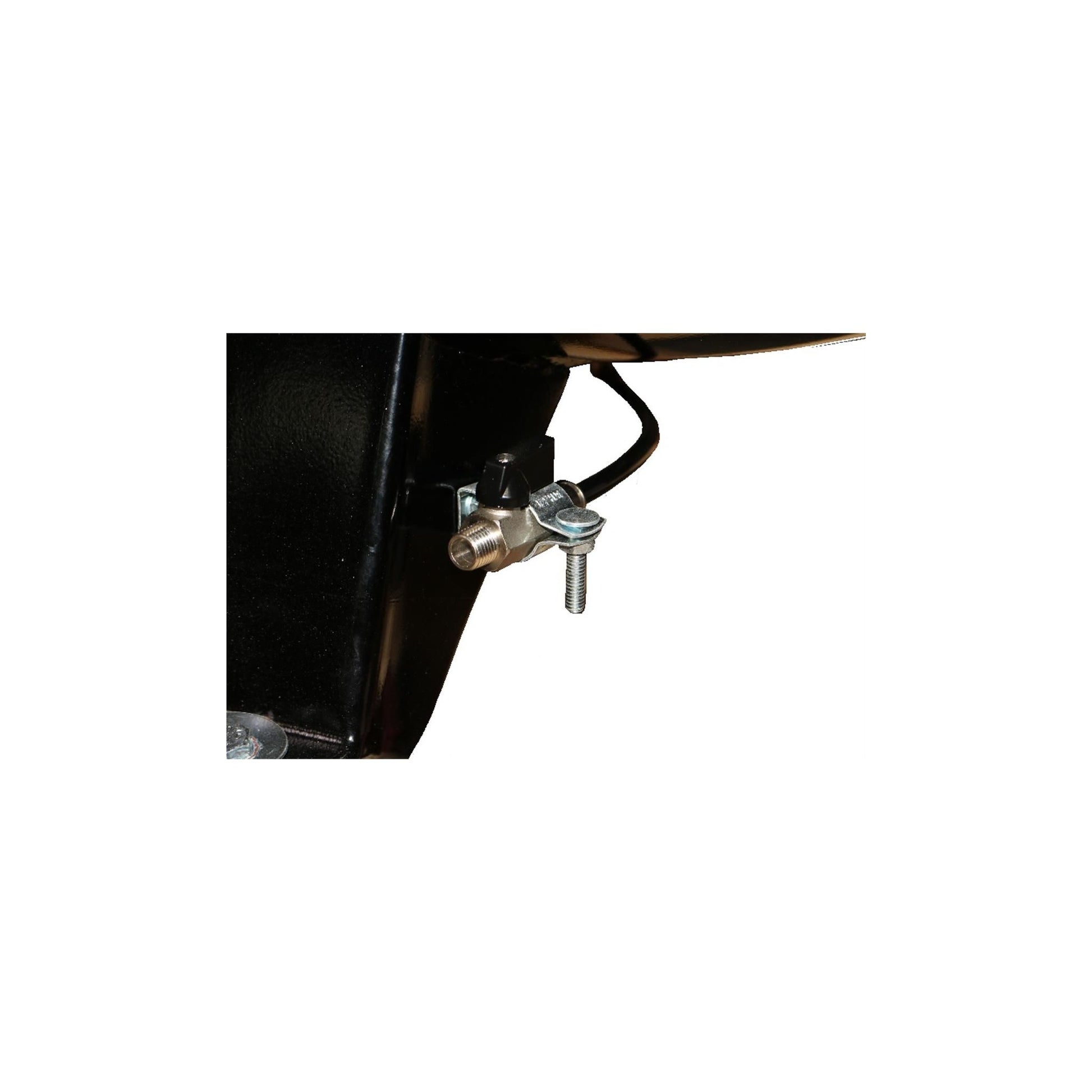

- Hands-free extended tank drain for easy maintenance.
- Finned inlet tube helps reduce moisture accumulation inside the tank.
- Heavy-duty metal belt guard for long service life.

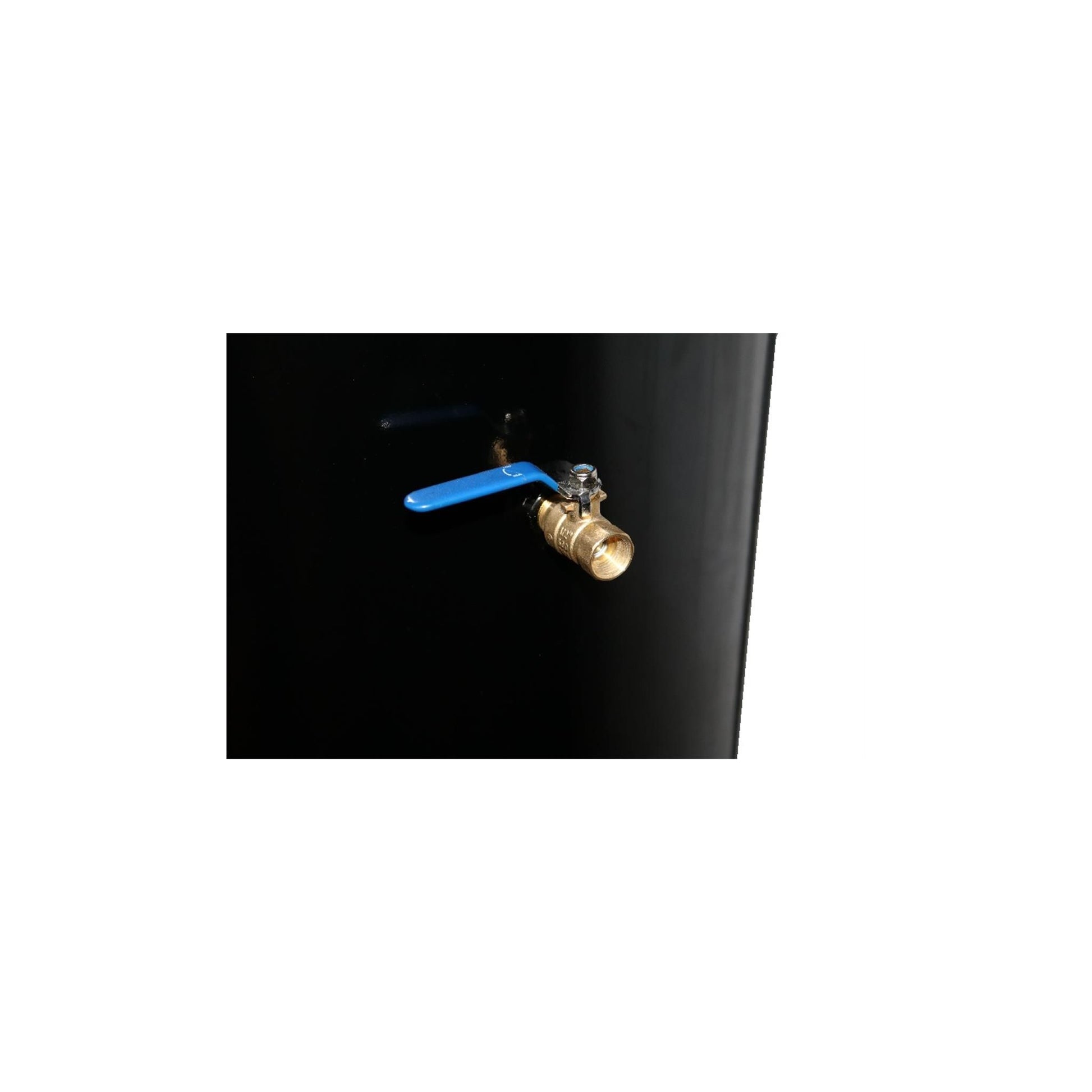

- 1/2-inch NPT air outlet with ball valve included.
- Ideal for automotive shops, fabrication shops, farms, and industrial workspaces.
- Suitable for light-duty sandblasting applications.
- 1-Year Parts Only Warranty.
Ideal Applications
- Automotive repair shops
- Commercial garages
- Fabrication shops
- Farm and ranch maintenance
- Home workshops
- Air impact tools
- Pneumatic grinders
- Spray painting
- Light-duty sandblasting
- General shop compressed air systems

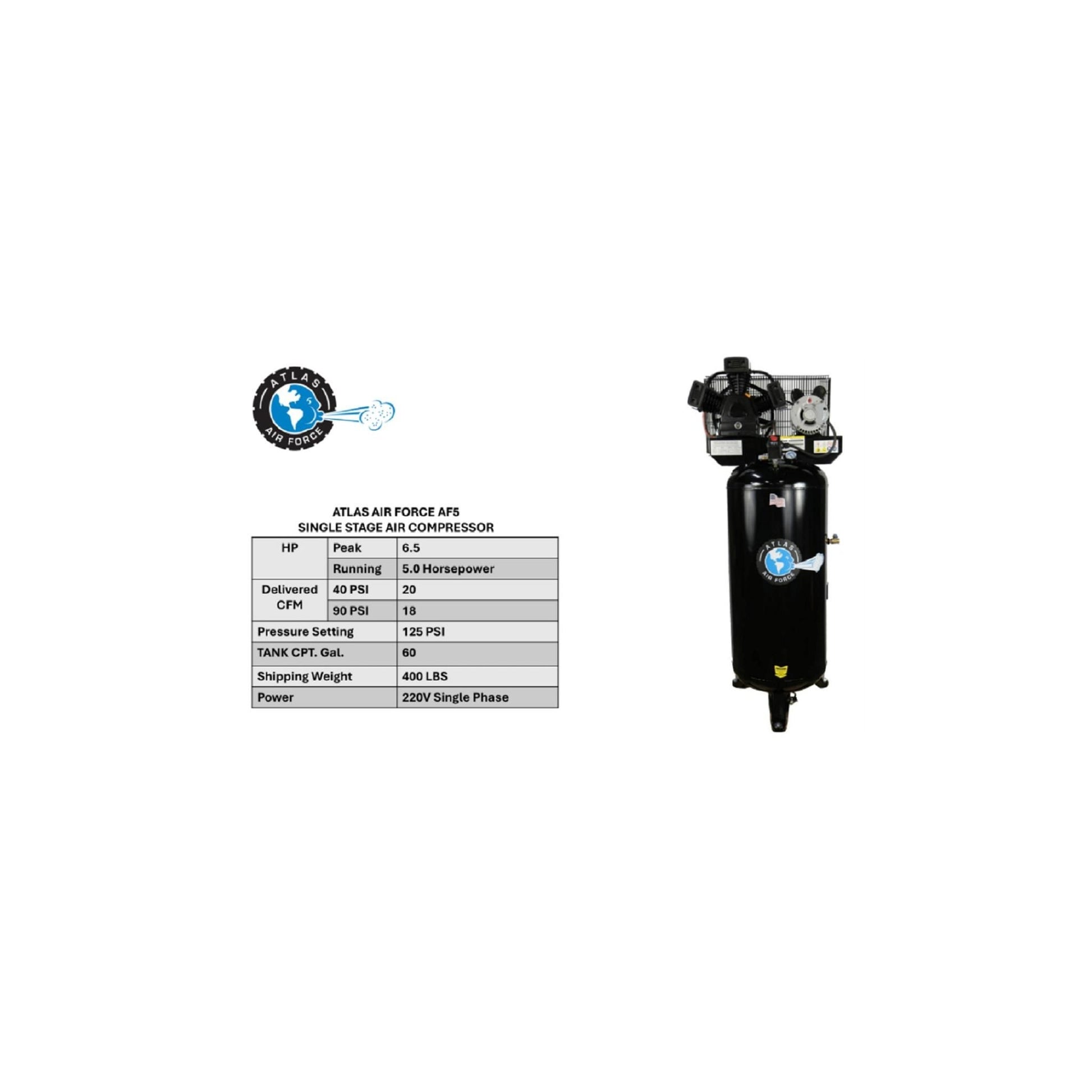

Specifications
| Brand | Atlas Air Force |
| Model | AF5 |
| Compressor Type | Belt-Driven Vertical Air Compressor |
| Pump Design | Three-Cylinder Cast Iron Single-Stage |
| Motor Output | 5 HP |
| Tank Capacity | 60 Gallon Vertical ASME Tank (Made in USA) |
| Maximum Pressure | 125 PSI |
| Operating Pressure Range | 90–125 PSI |
| Air Delivery @ 40 PSI | 20.0 CFM |
| Air Delivery @ 90 PSI | 18.0 CFM |
| Air Outlet | 1/2" NPT with Ball Valve Included |
| Electrical Requirement | 220 Volt, Single Phase, 30 Amp Breaker, 10 Gauge Wire Required |

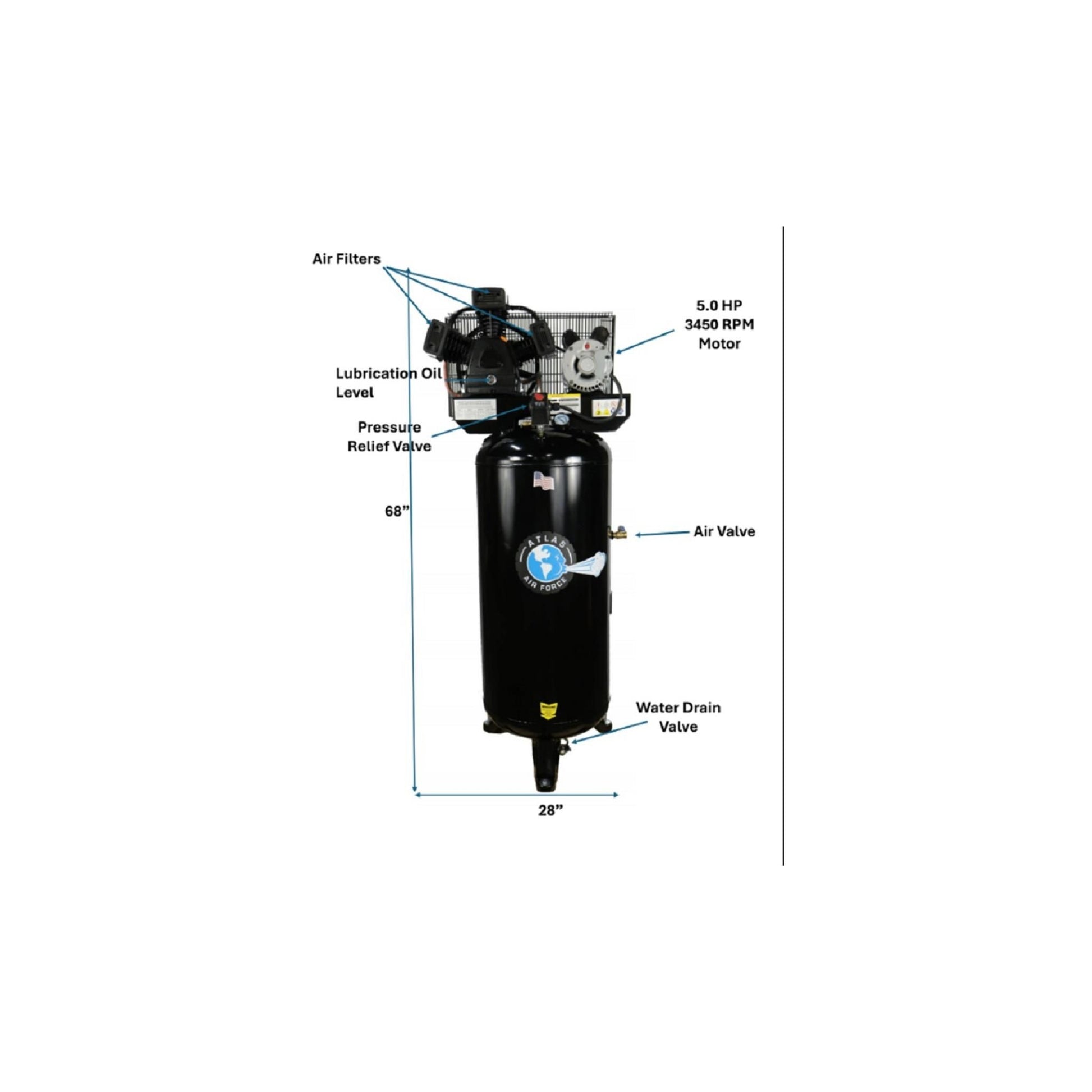

| Overall Dimensions | 28" L × 18" W × 68" H |
| Pump Construction | Three-Cylinder Cast Iron Reciprocating Pump |
| Noise Reduction Features | Vibration Isolation Pads & Heavy-Duty Belt Guard |
| Moisture Reduction | Finned Tank Inlet Tube |
| Tank Drain | Hands-Free Drain Extension |
| Shipping Weight | 400 lb. |
| Warranty | 1-Year Parts Only Warranty |
```
