Atlas 9KBPX 9,000 lb Baseplate Two-Post Car Lift

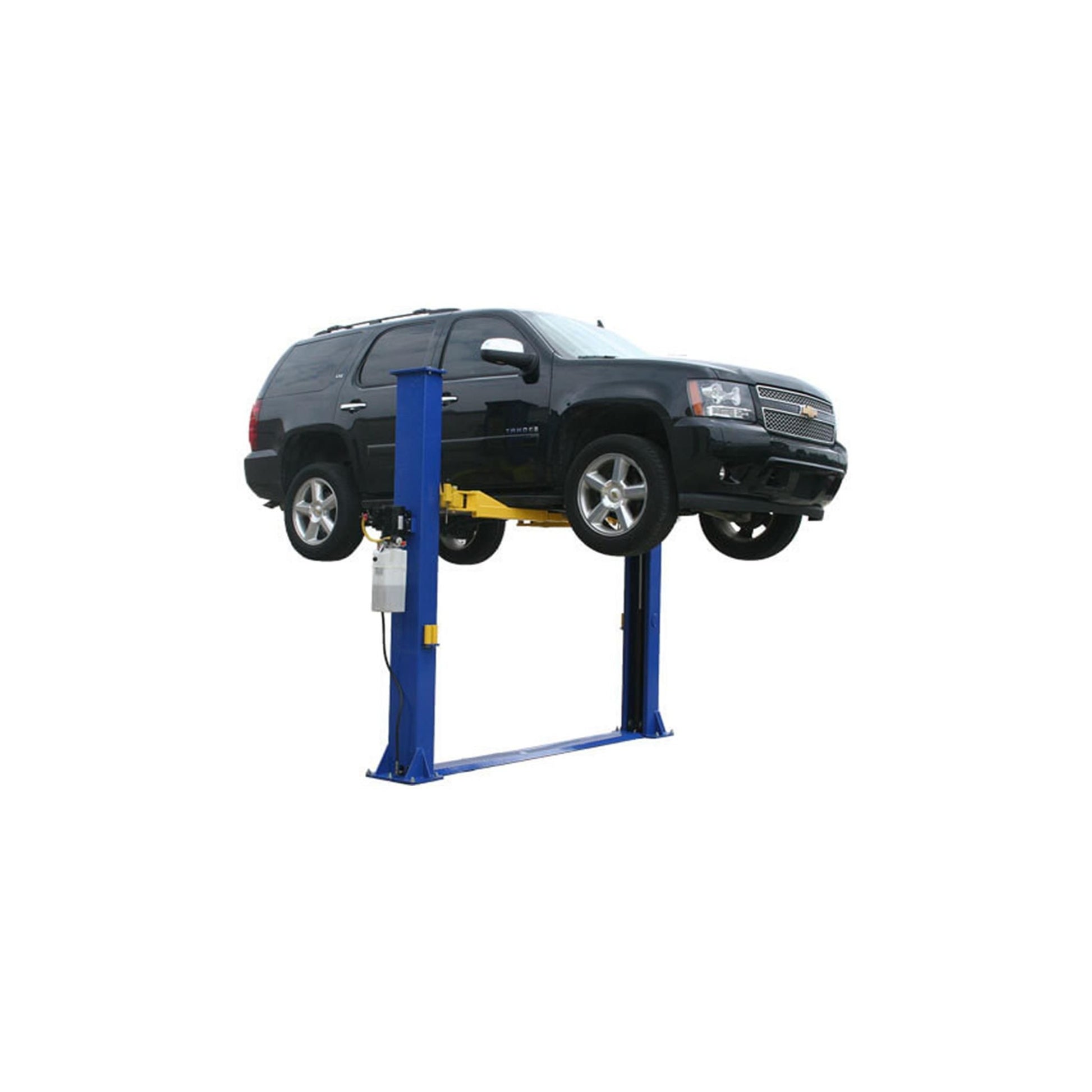

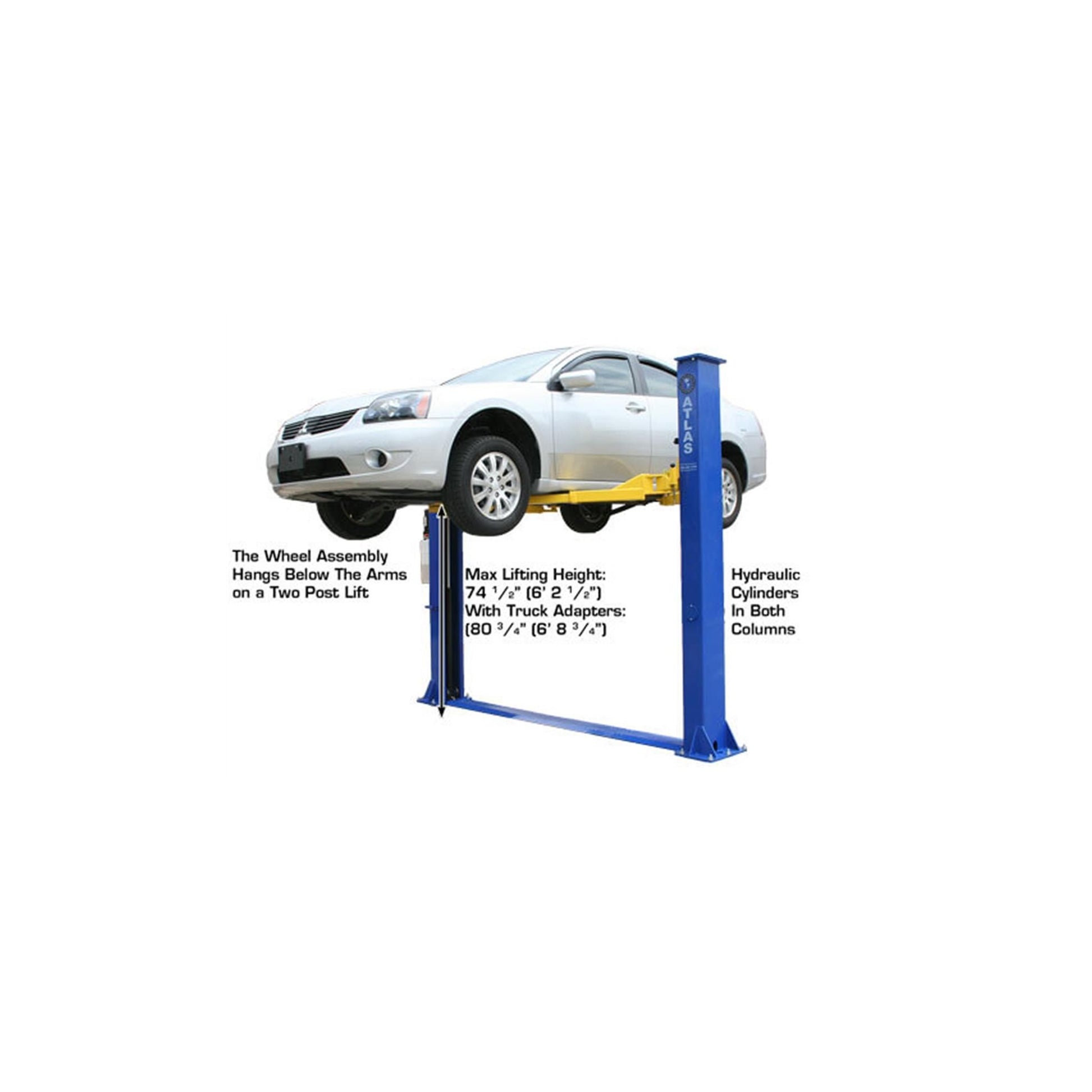

The Atlas 9KBPX is a 9,000 lb capacity baseplate two-post lift designed for home garages and professional repair shops with limited ceiling height. With an overall column height of just 111 1/2 inches, this lift is an excellent choice for garages with ceilings as low as 9 feet 6 inches while still providing the lifting height needed for routine automotive service.
Equipped with dual hydraulic chain-drive cylinders, symmetric lifting arms, and automatic arm restraints, the 9KBPX provides dependable lifting performance for passenger cars, SUVs, and light-duty pickup trucks. The integrated Secondary Lock System (SLS) automatically engages if chain tension is lost, adding an extra level of safety during operation.
Whether you're performing brake repairs, suspension work, tire service, or routine maintenance, the Atlas 9KBPX offers a durable, space-saving solution that combines reliable performance with straightforward operation.
Key Features
- 9,000 lb lifting capacity.
- Baseplate design ideal for low ceiling garages.
- 111 1/2-inch overall column height.

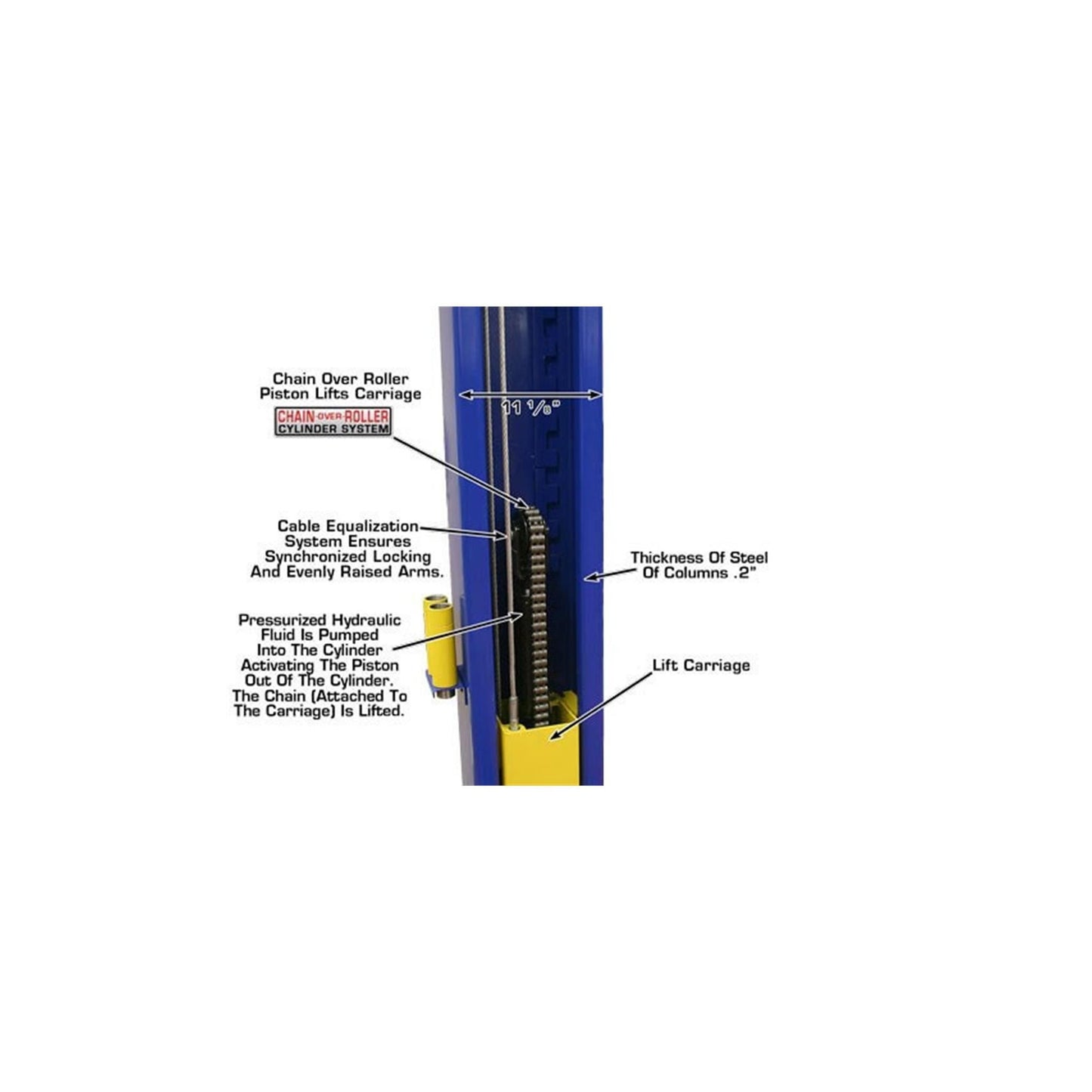

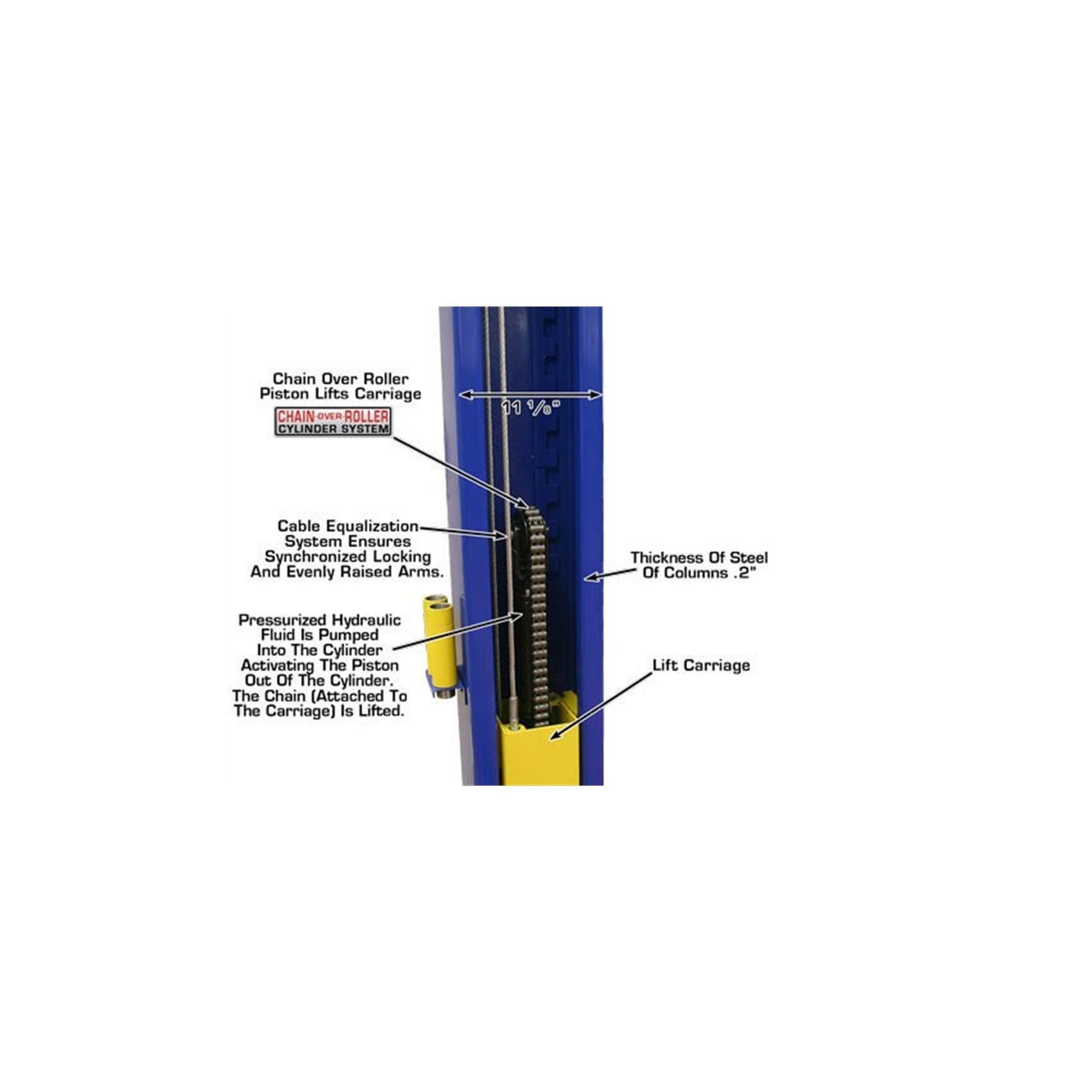

- Dual hydraulic chain-drive lifting cylinders.
- Spring-loaded Secondary Lock System (SLS).

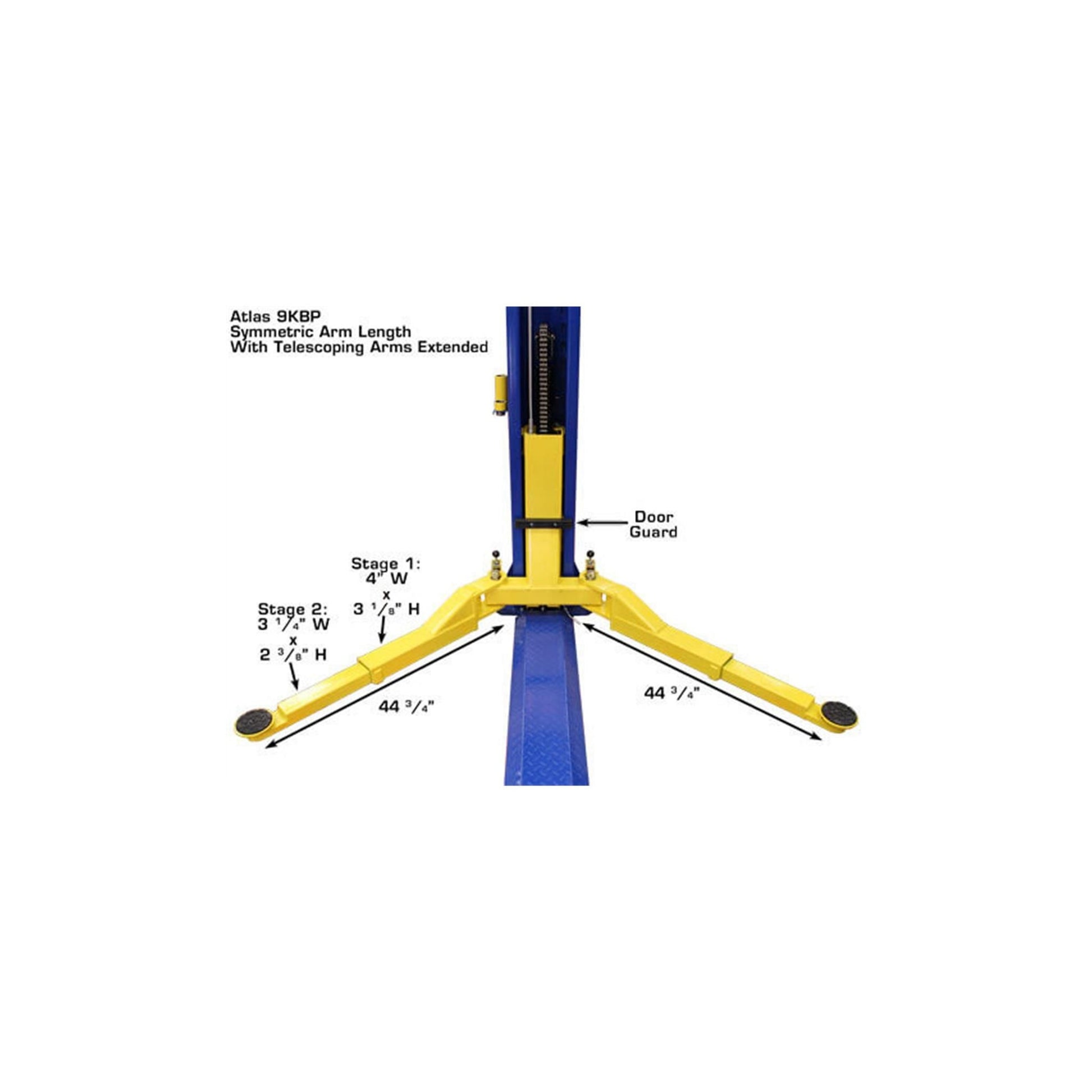

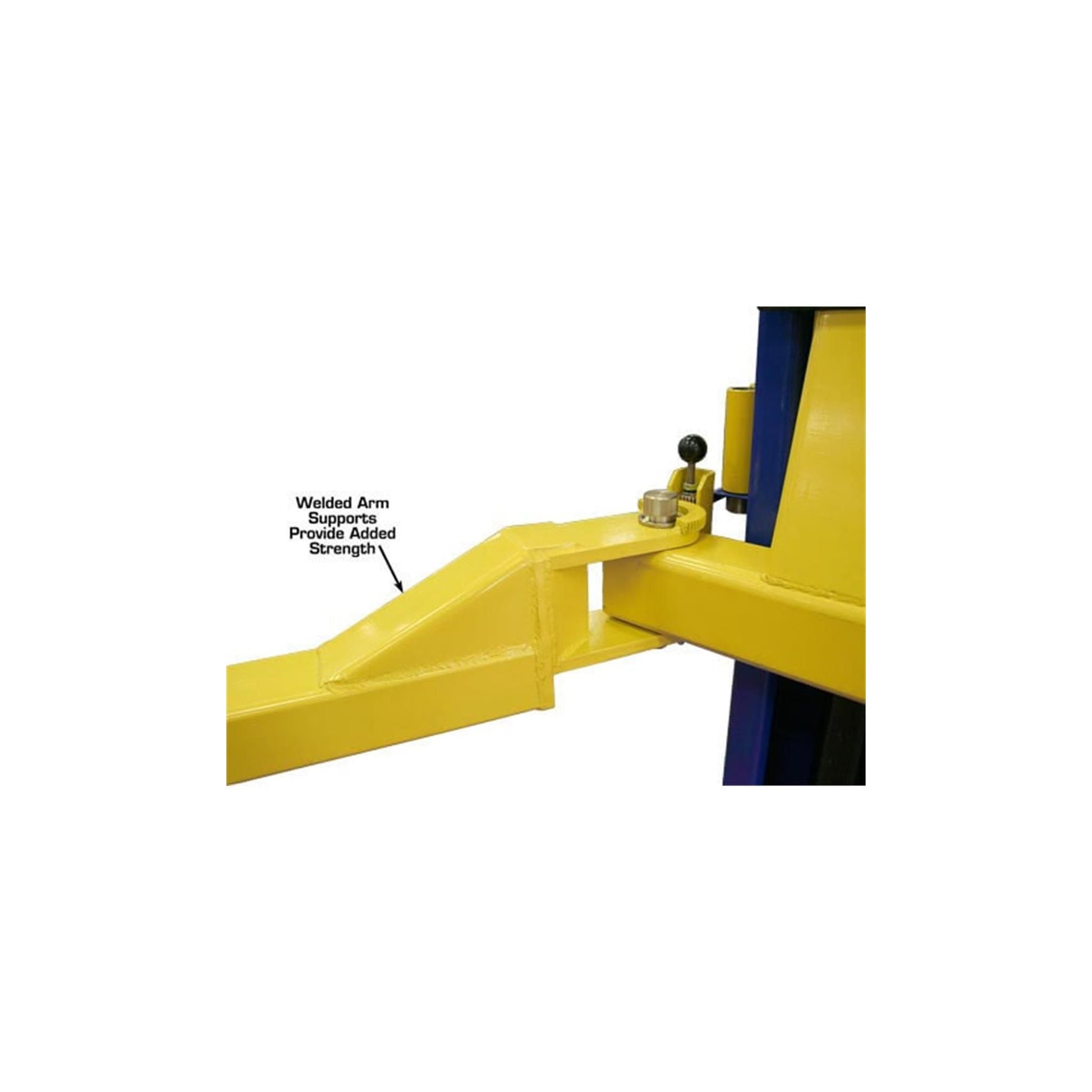

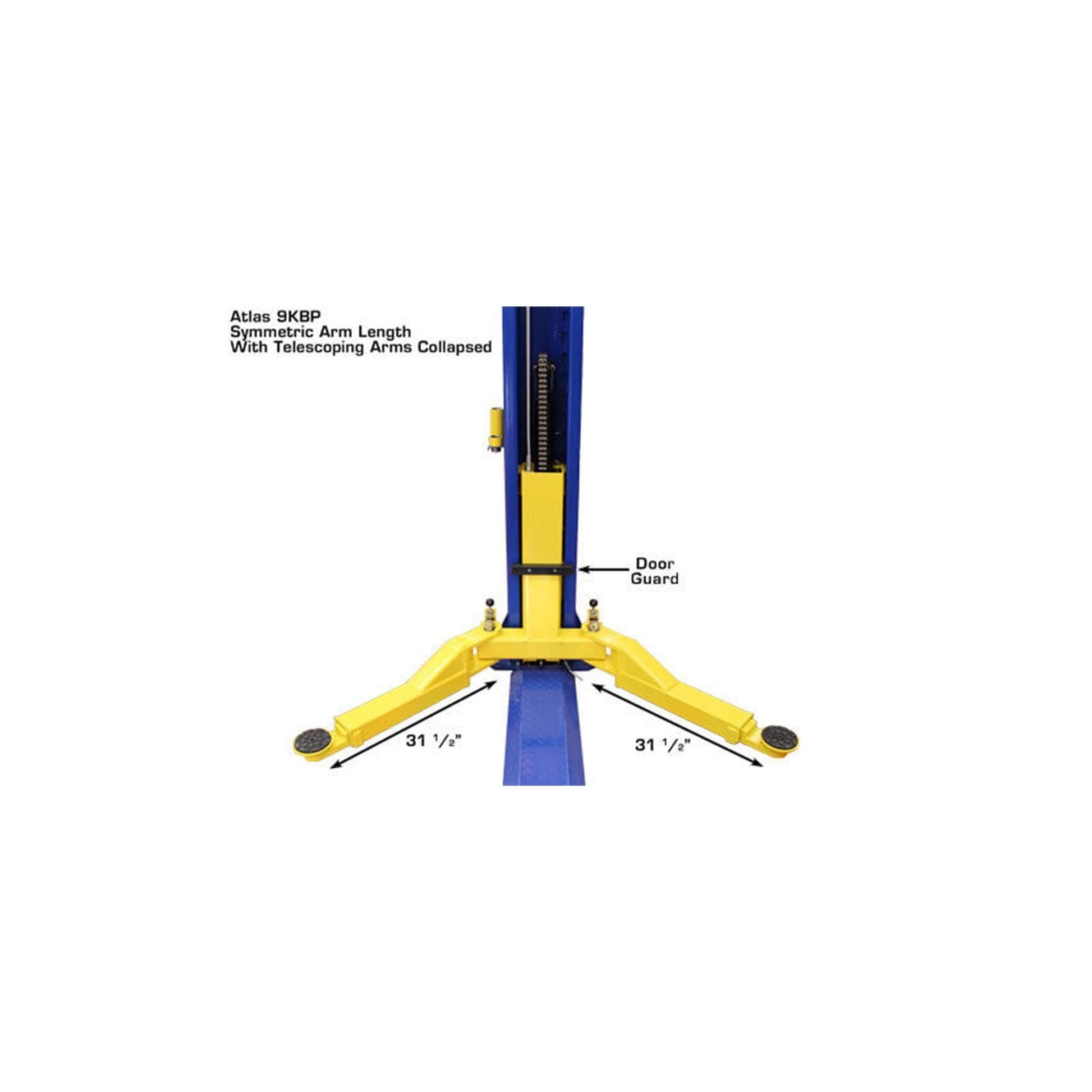

- Symmetric lifting arms.

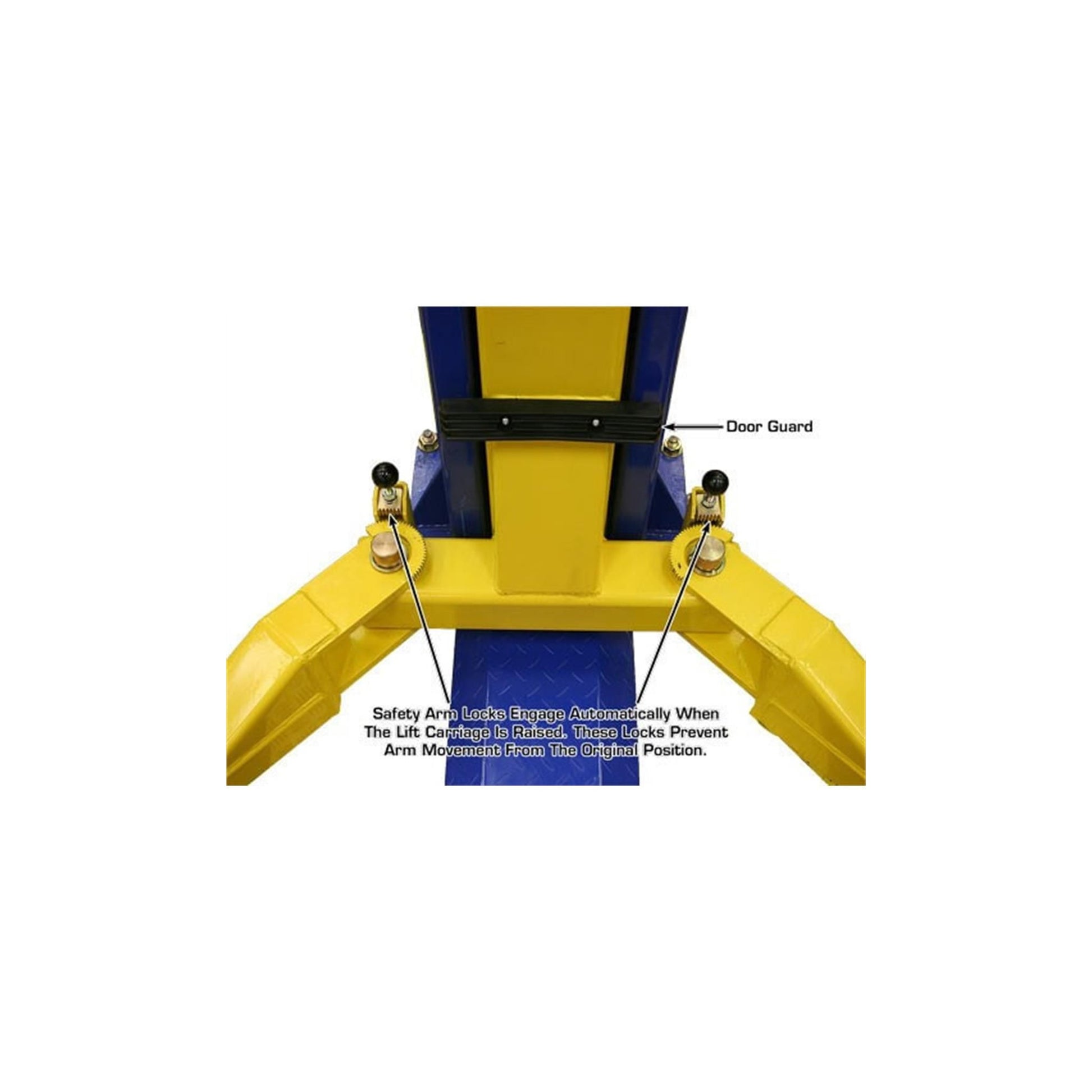

- Automatic arm restraints.
- Dual-point lock release system.

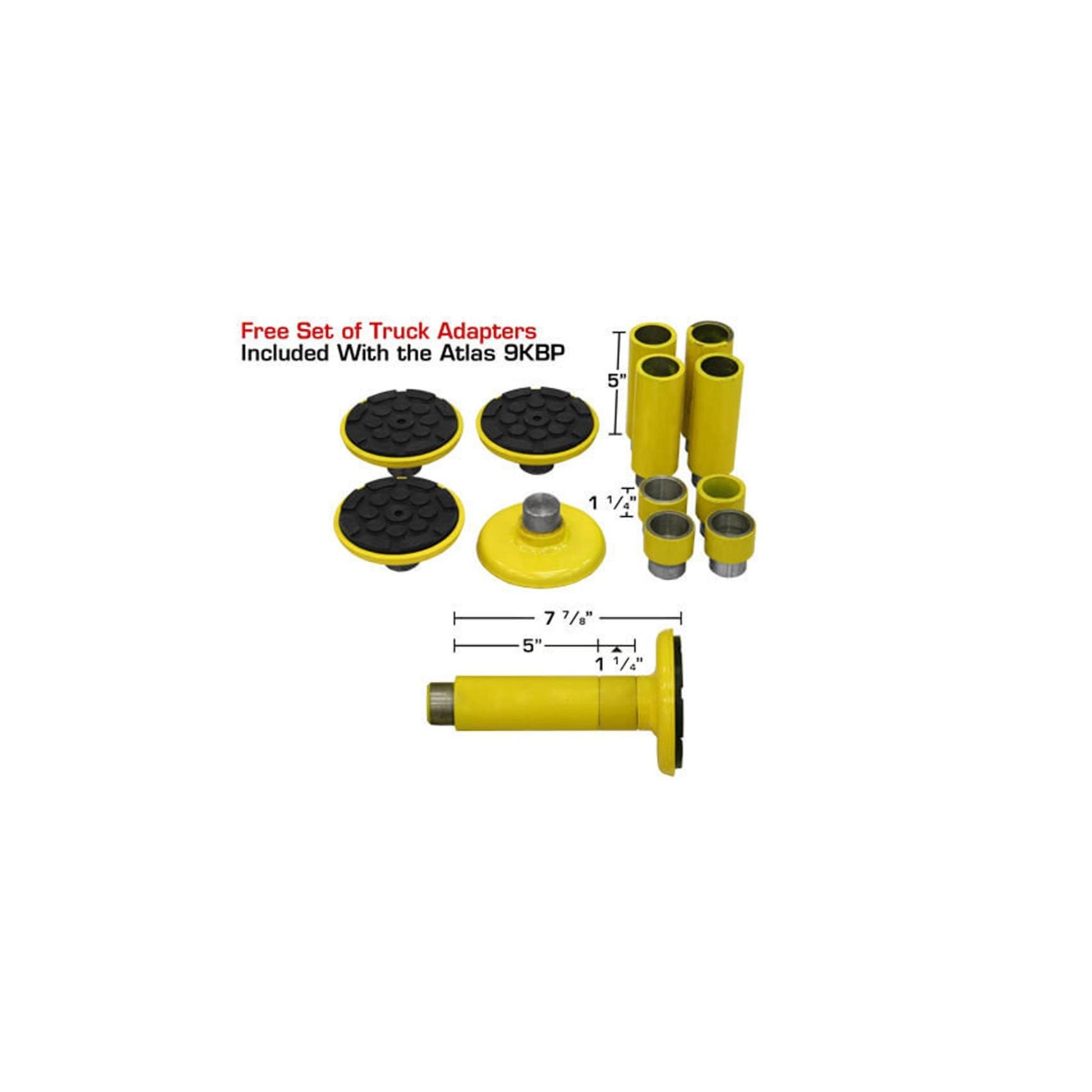

- Includes 8-piece truck adapter set.

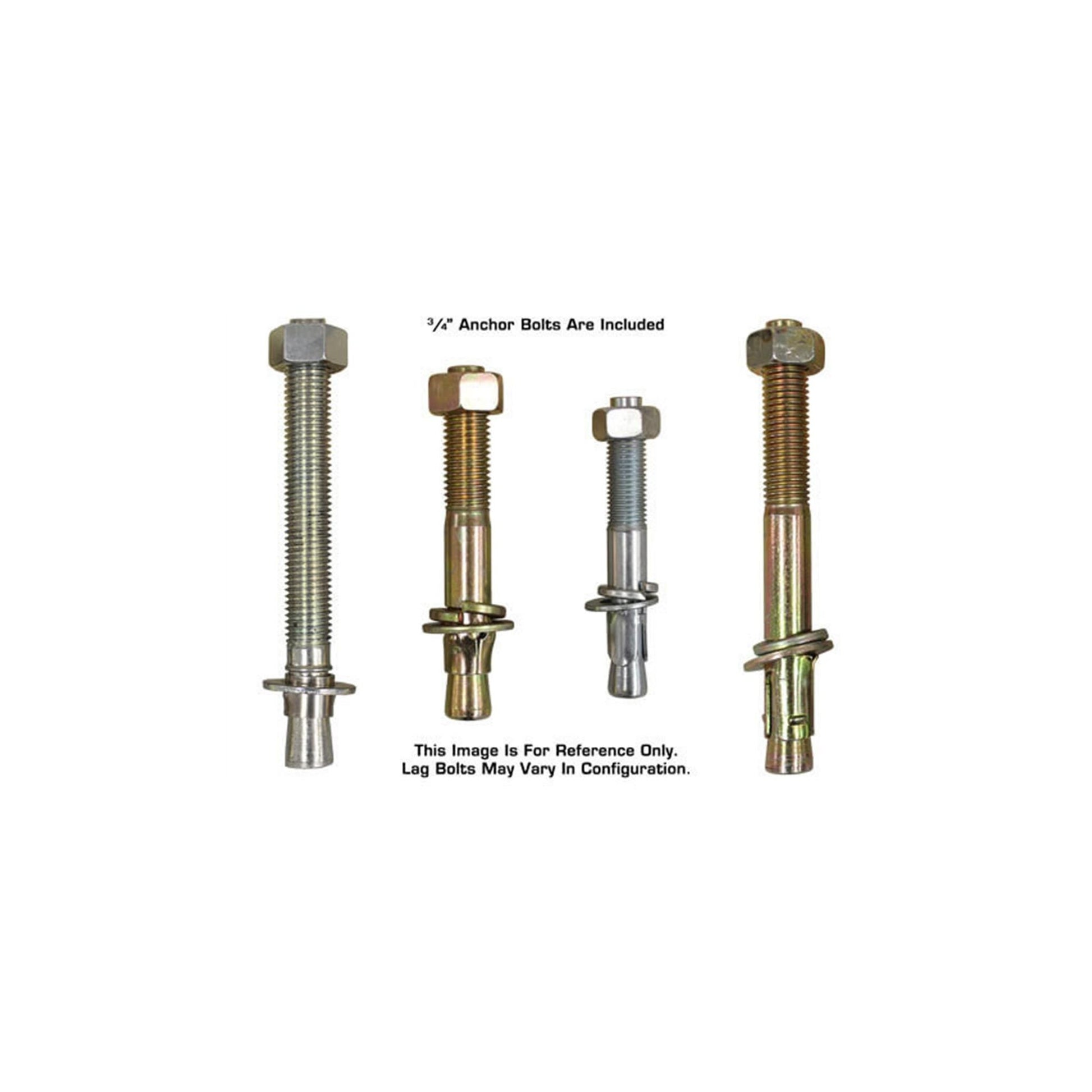

- Installation hardware included.
Ideal Applications
- Home garages
- Automotive repair shops
- Brake service
- Suspension repairs
- Wheel and tire service
- General vehicle maintenance
- Passenger cars
- SUVs
- Light-duty pickup trucks
Specifications
| Brand | Atlas |
| Model | 9KBPX |
| Lift Capacity | 9,000 lb |
| Lift Type | Baseplate Two-Post Lift |
| Arm Configuration | Symmetric |

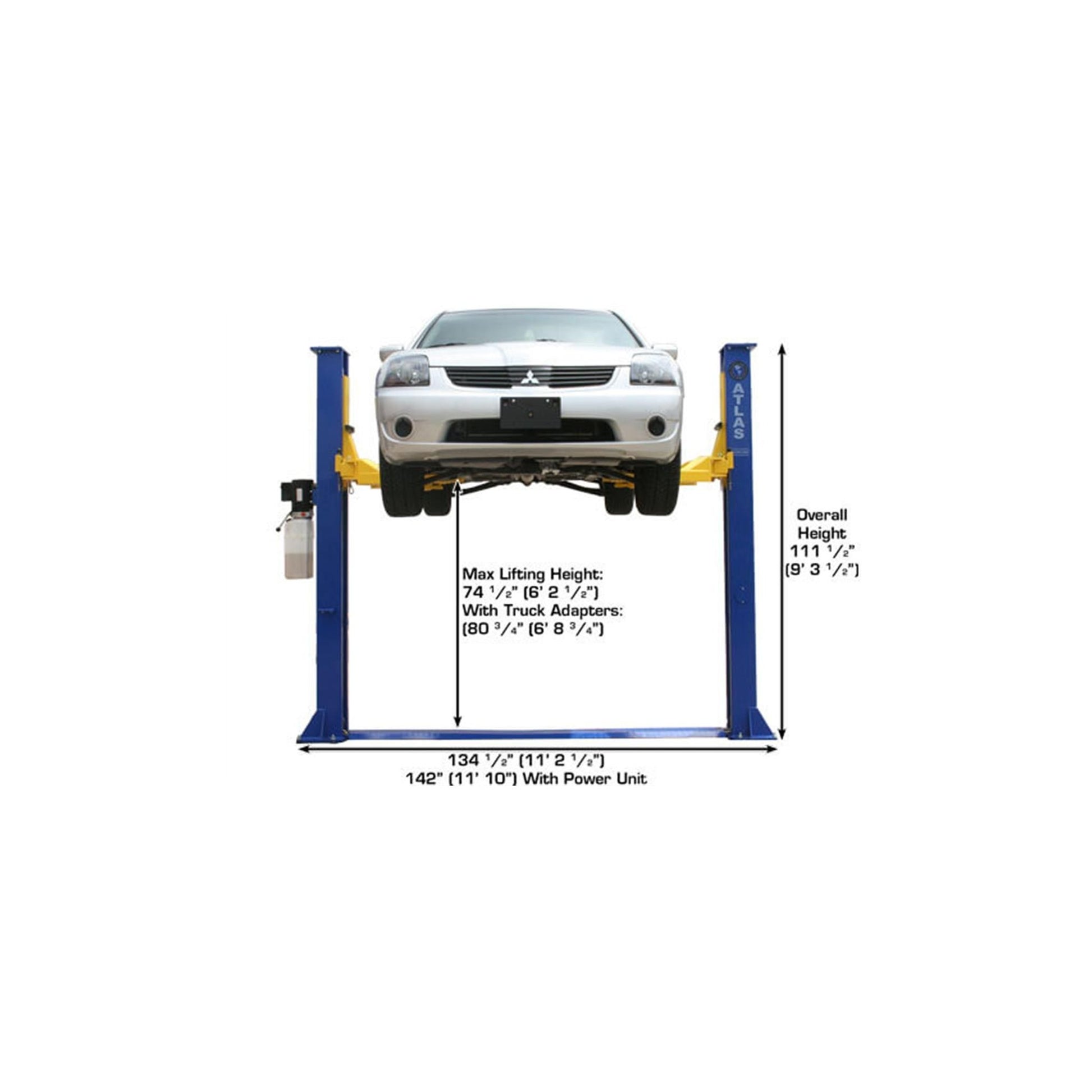

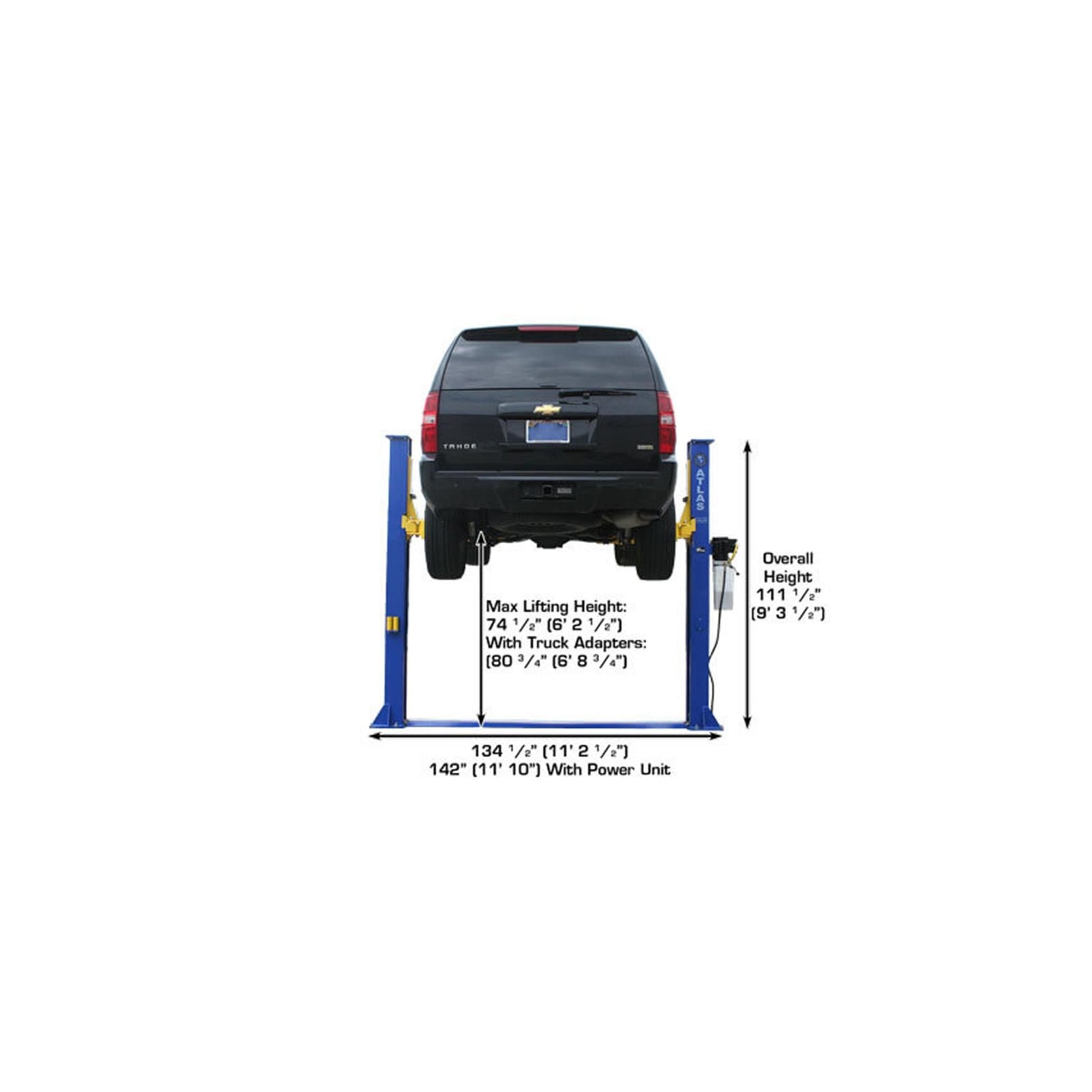

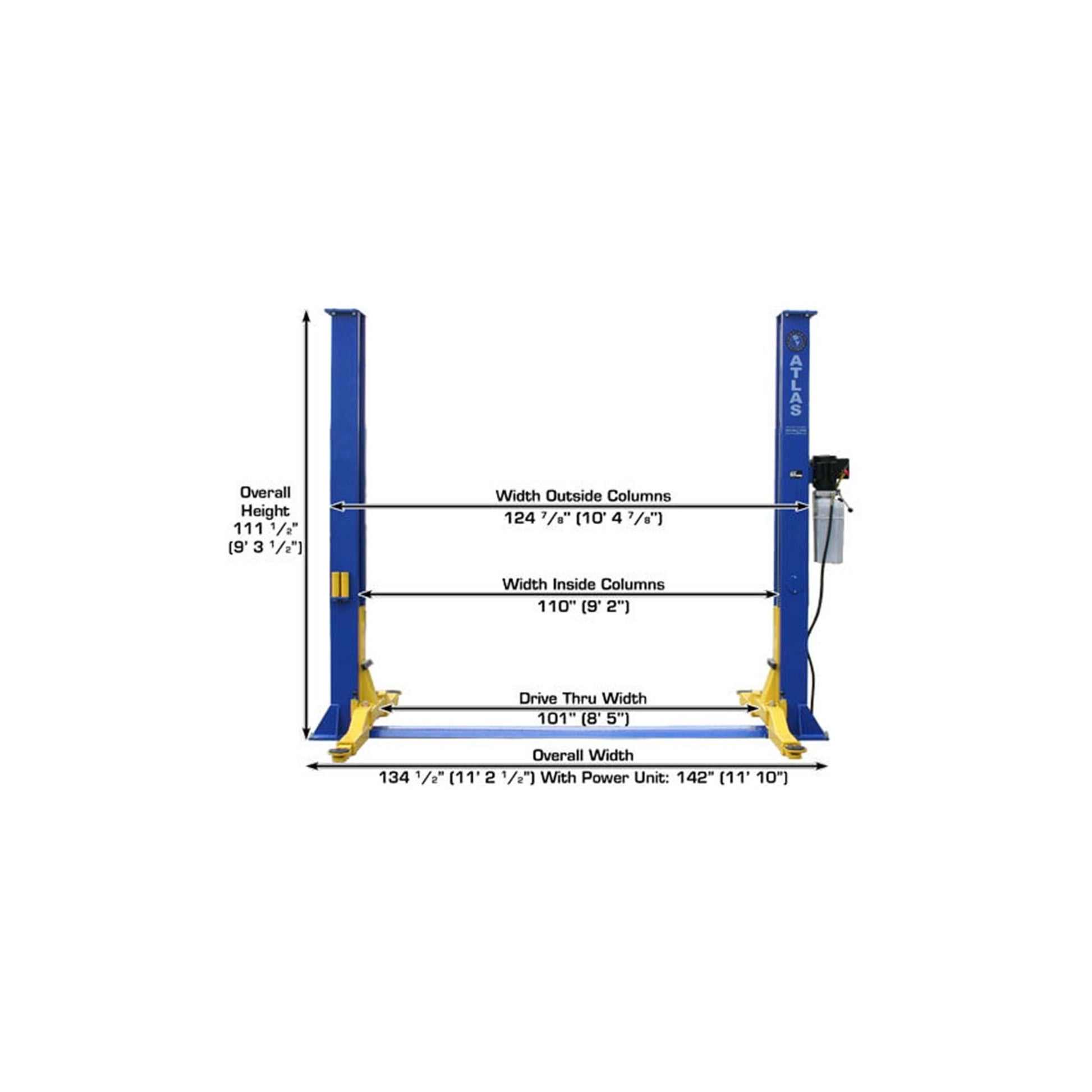

| Overall Height | 111 1/2 in (9 ft 3 1/2 in) |
| Overall Width | 134 1/2 in |
| Outside Column Width | 124 7/8 in |
| Inside Column Width | 110 in |
| Drive-Through Width | 101 in |

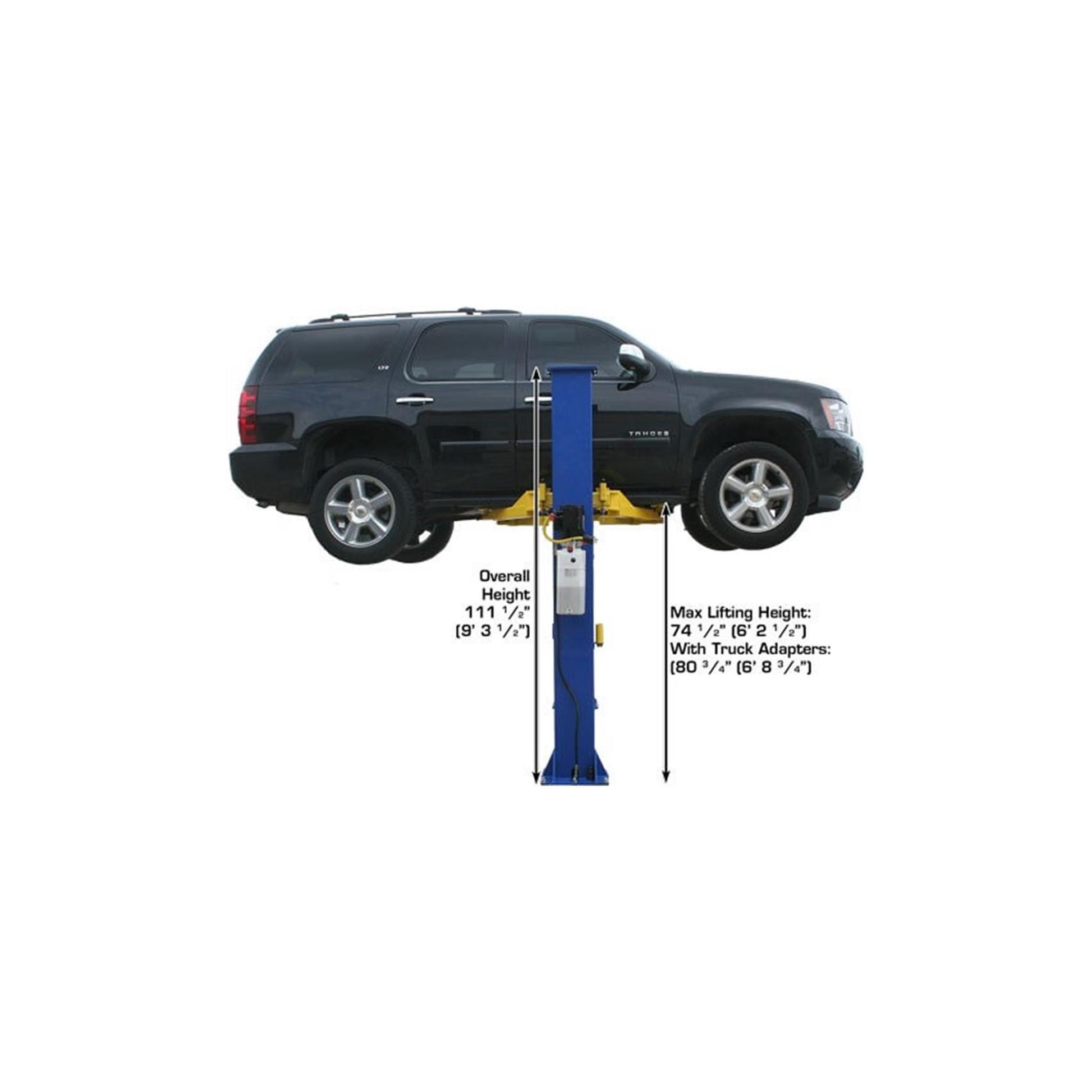

| Maximum Lift Height | 81 in (with adapters) |
| Minimum Pad Height | 4 in |

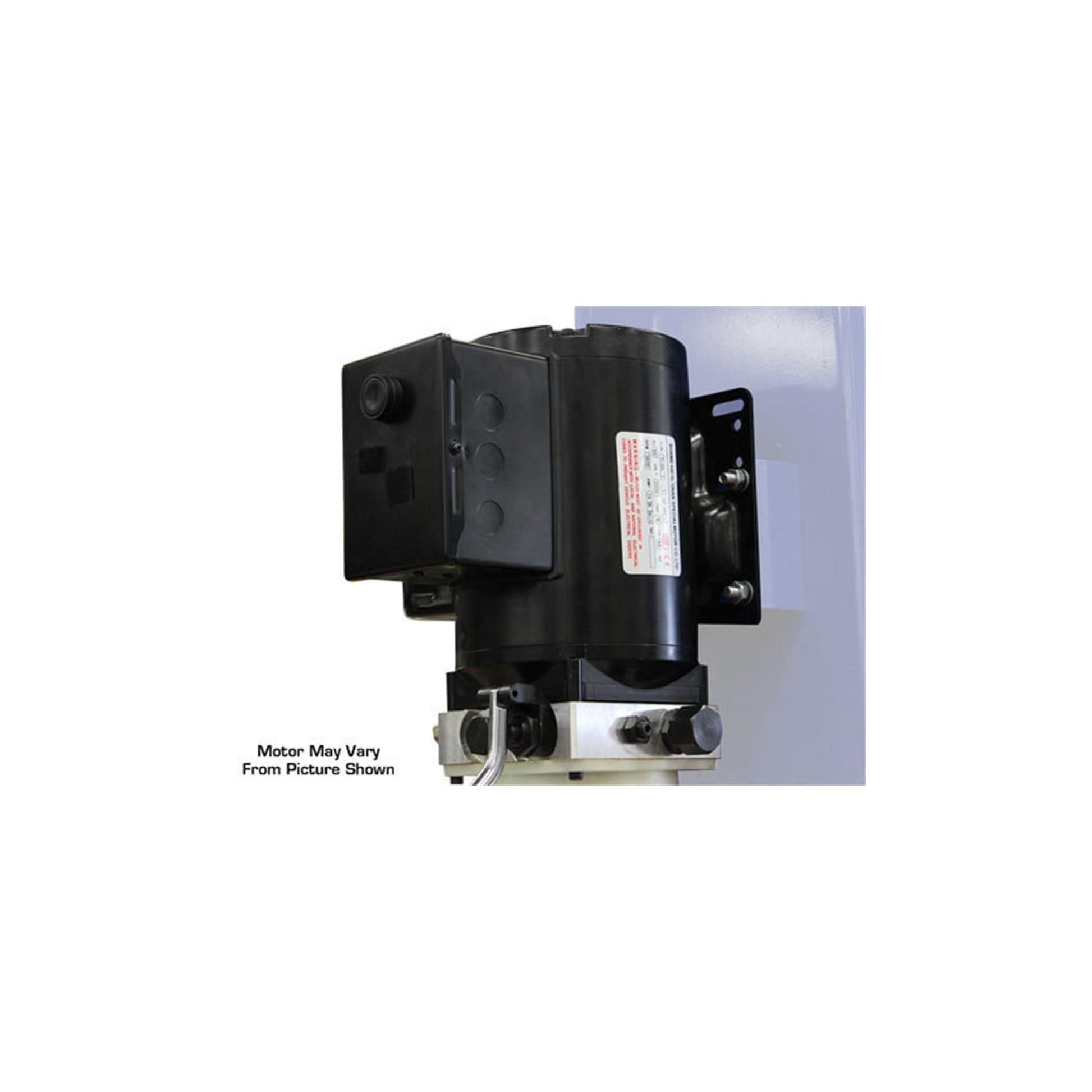

| Power Requirements | 220V, Single-Phase, 30 Amp Breaker Recommended |
| Hydraulic Oil Required | 3-5 Gallons AW32/AW46 (Not Included) |

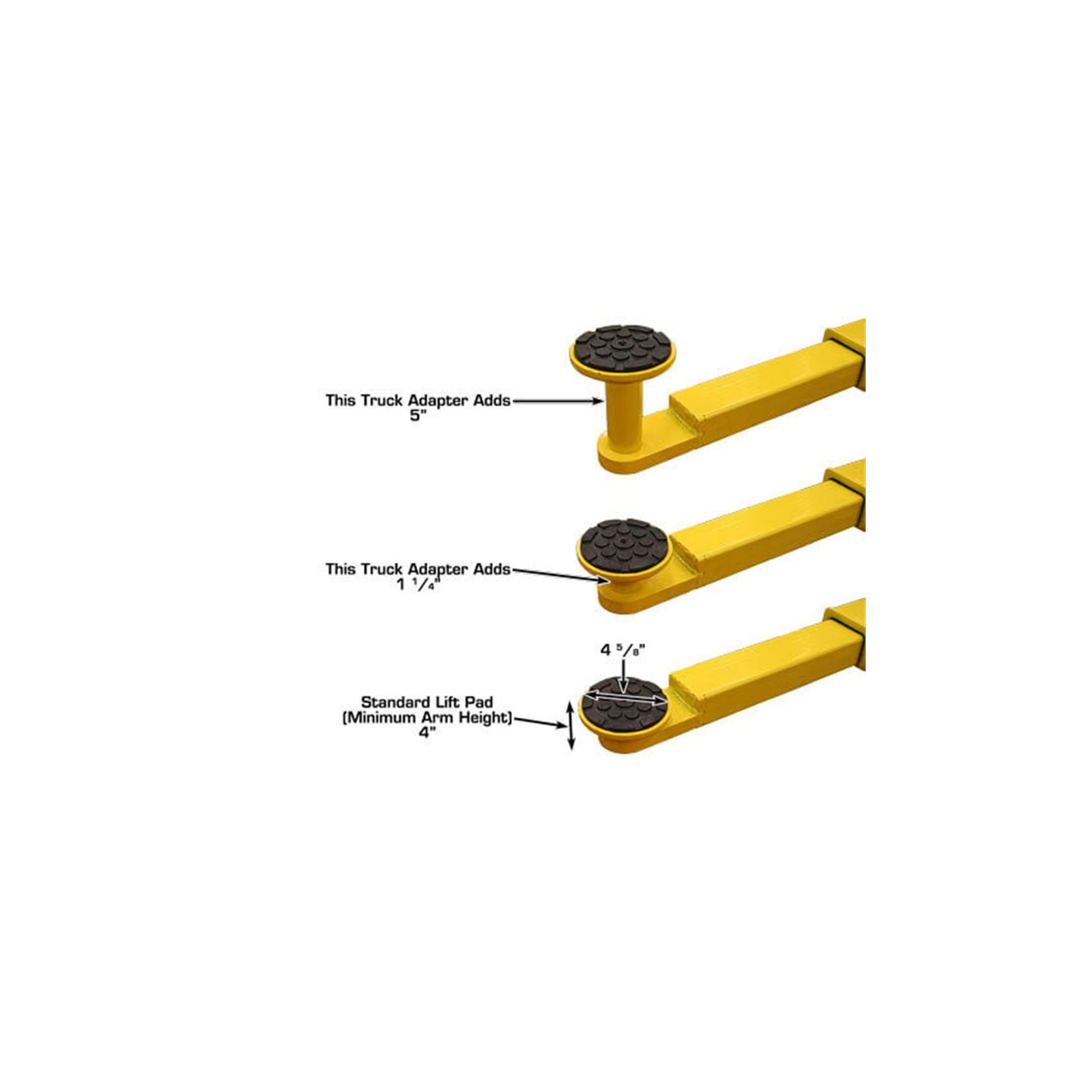

| Adapter Heights | 4 x 1.5 in, 4 x 5 in |
| Concrete Requirement | Minimum 4 in Thick, 3,000 PSI |

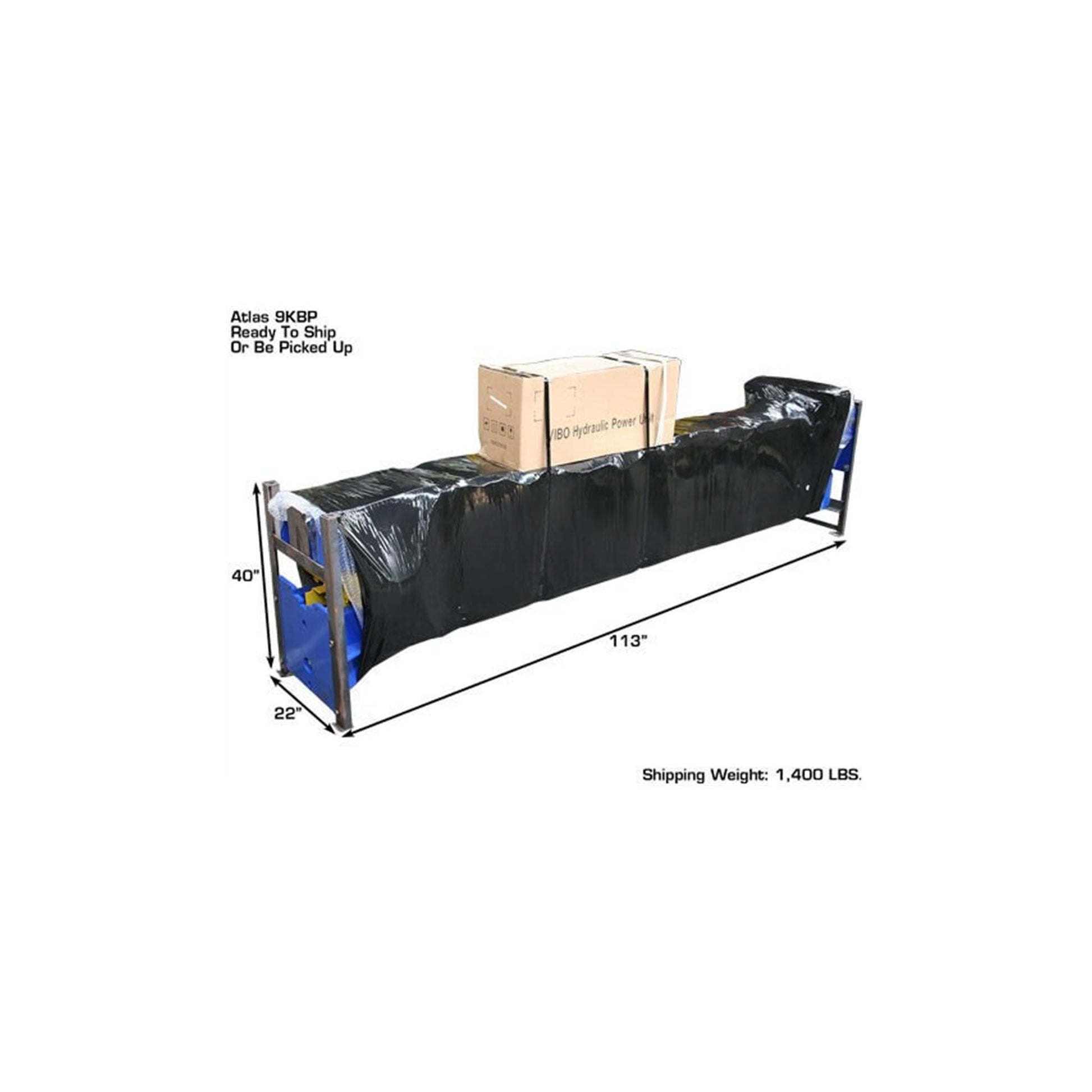

| Shipping Weight | 1,400 lb |
| Warranty | 2-Year Structural, 1-Year Hydraulic (Parts Only) |
```
