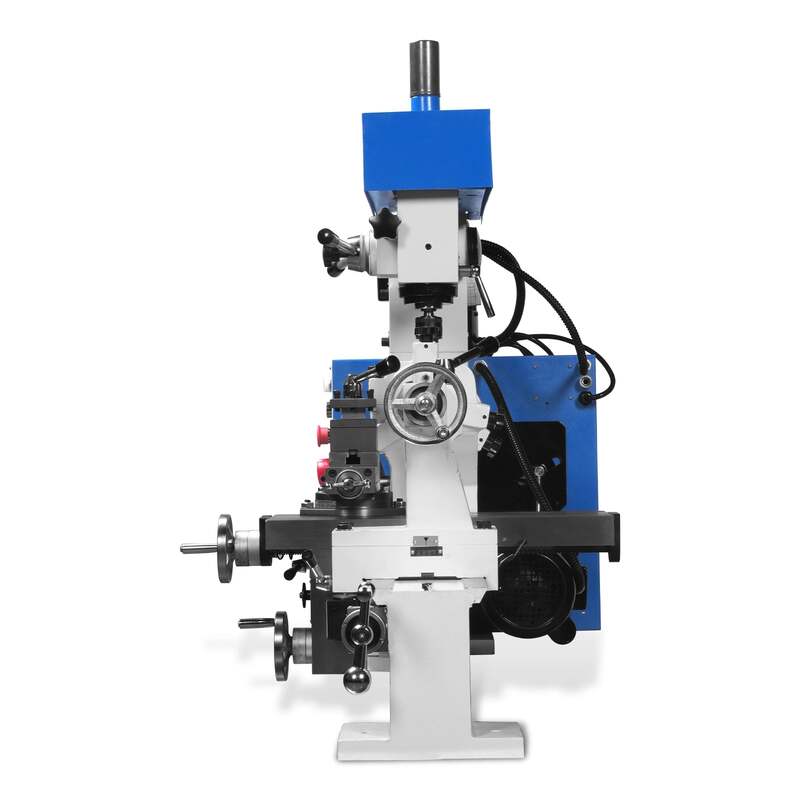

16" x 32" Multi-Function Lathe Milling Drilling Machine – Precision Metalworking Combo Machine (Model CLM1632)
Product Description

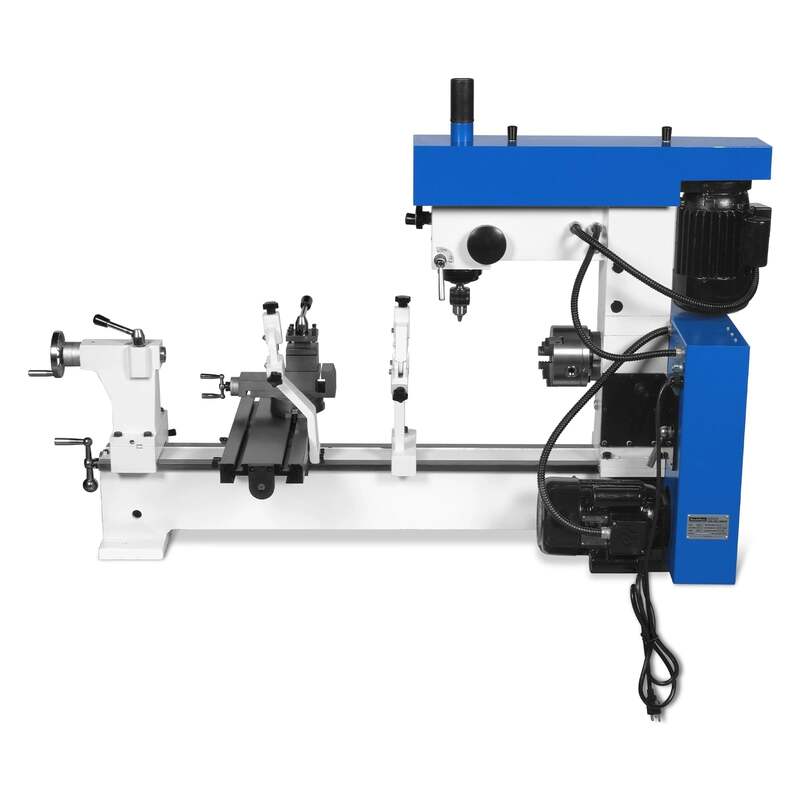

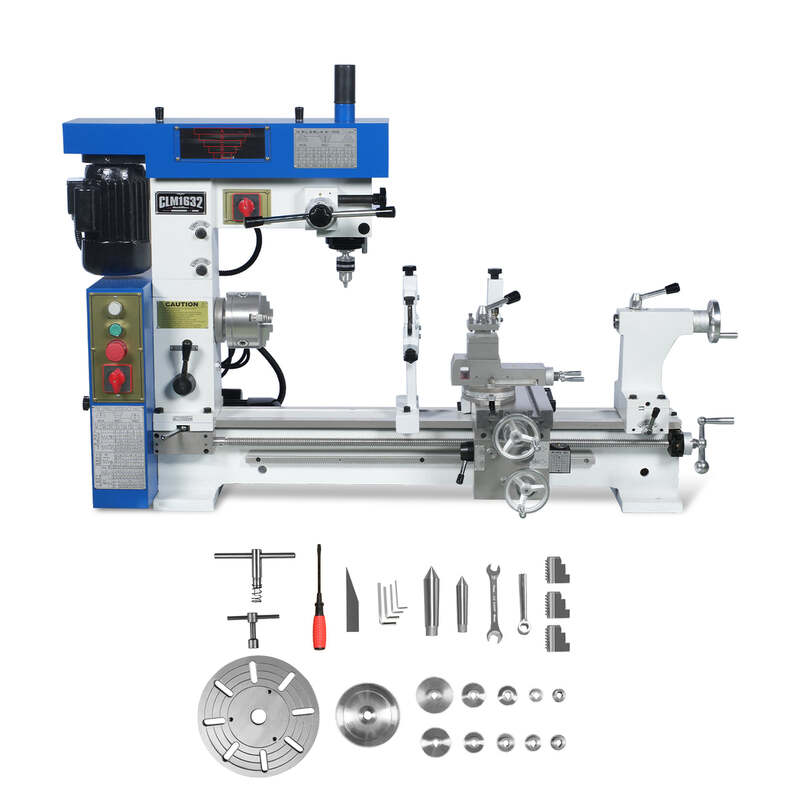

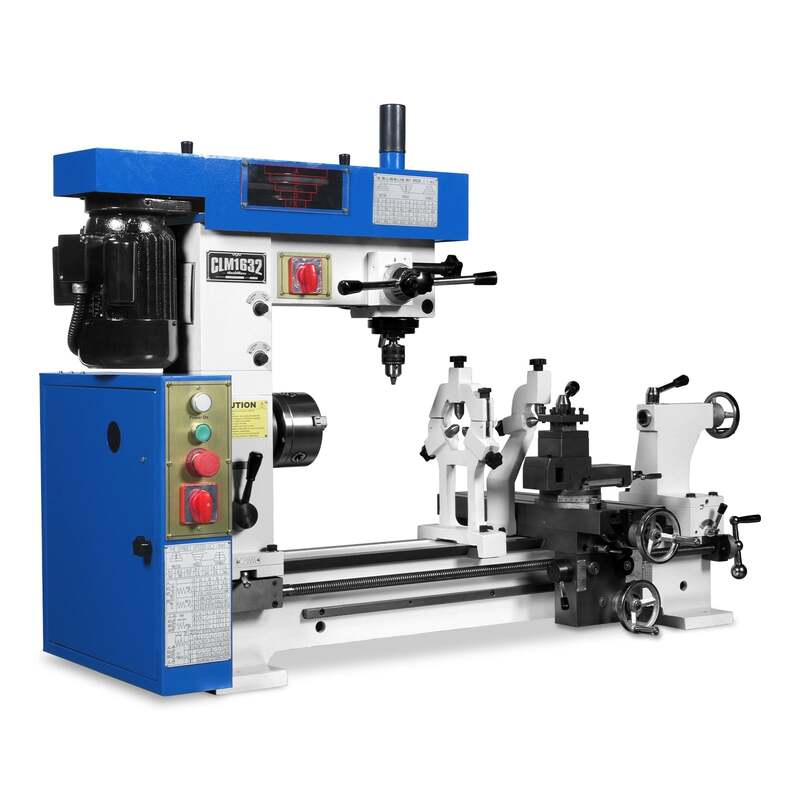

The MechMaxx 16" x 32" Combo Lathe Mill Drill (Model CLM1632) is a versatile multi-function metalworking machine designed for workshops, fabrication shops, repair facilities, and serious DIY machinists. By combining turning, drilling, and milling operations into one compact machine, the CLM1632 provides excellent functionality while saving valuable shop space.

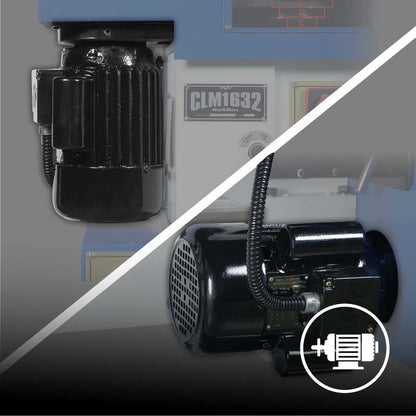

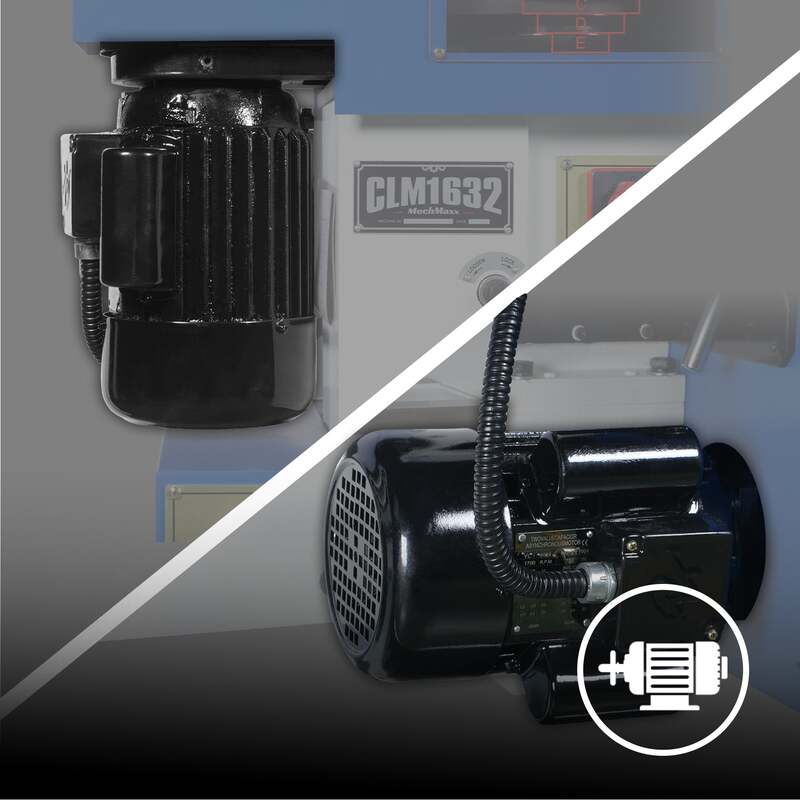

The machine is equipped with two independent 1 HP (750W) motors, one dedicated to lathe operations and the other powering the milling head. This design ensures reliable power delivery for each machining process while allowing quick switching between turning and milling tasks.
With a 16-8/15" swing over bed and 31-1/2" distance between centers, the lathe can handle larger and longer workpieces. The 1-1/10" spindle bore and MT4 spindle taper support a wide range of tooling and material sizes, while the integrated drill/mill head expands the machine’s capabilities for slotting, drilling, and precision milling operations.
Built for Multi-Function Machining
This combination lathe mill drill machine is engineered to provide versatility and precision across a wide range of metalworking applications.
- 3-in-1 machine combining turning, drilling, and milling operations
- Dual 1 HP motors for dedicated lathe and milling power
- Large 16" swing capacity for machining larger components
- 360° swivel milling head for flexible machining angles
- 16 selectable milling spindle speeds for various materials

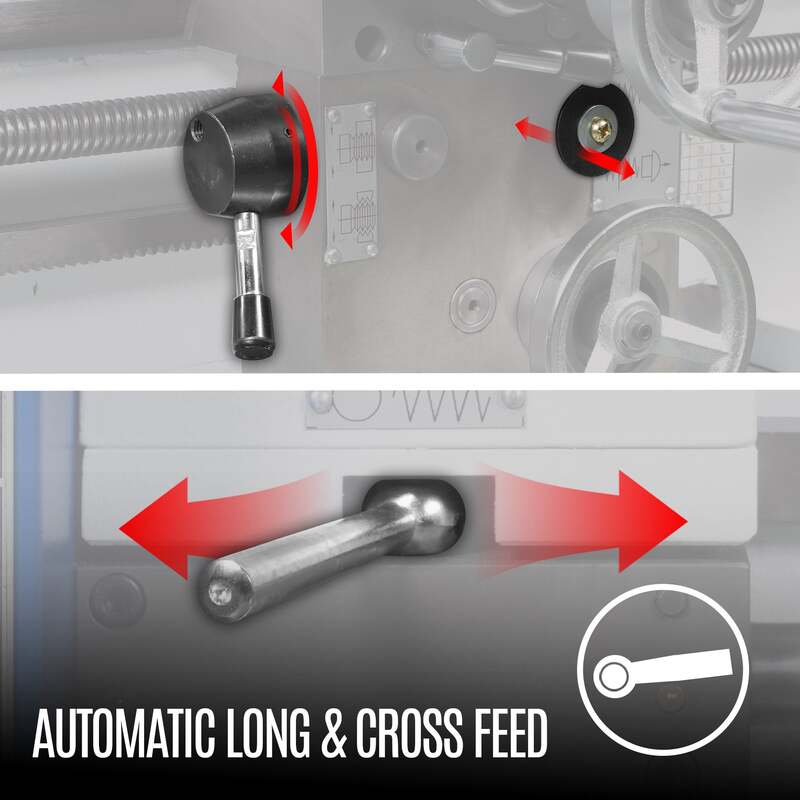

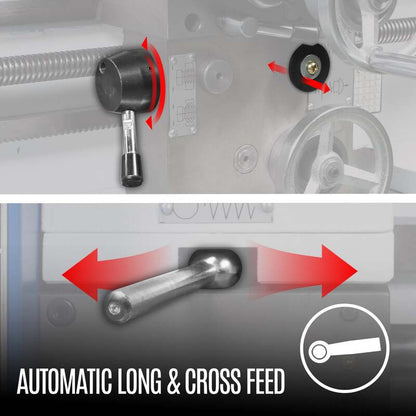

- Automatic feed support for smooth cutting operations
These features allow machinists to perform multiple machining tasks using a single compact machine, improving efficiency in workshops with limited space.
Durable & Reliable Construction
The CLM1632 is built with a rigid cast construction and precision-ground sliding components designed to provide stable cutting performance. Its heavy-duty frame and precision bed ensure long-term durability while maintaining machining accuracy.
- Heavy-duty cast construction for improved rigidity

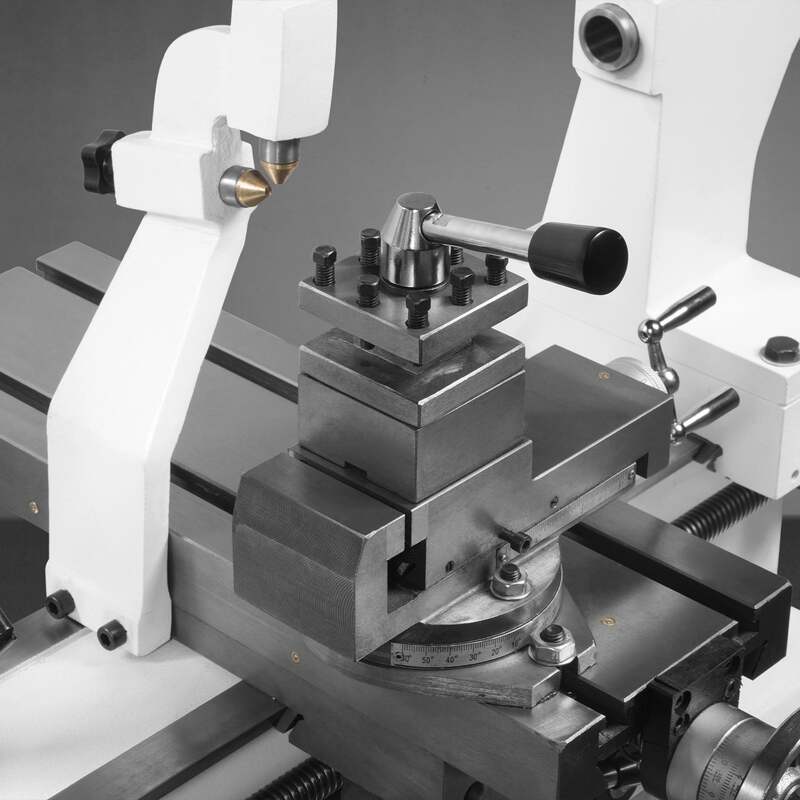

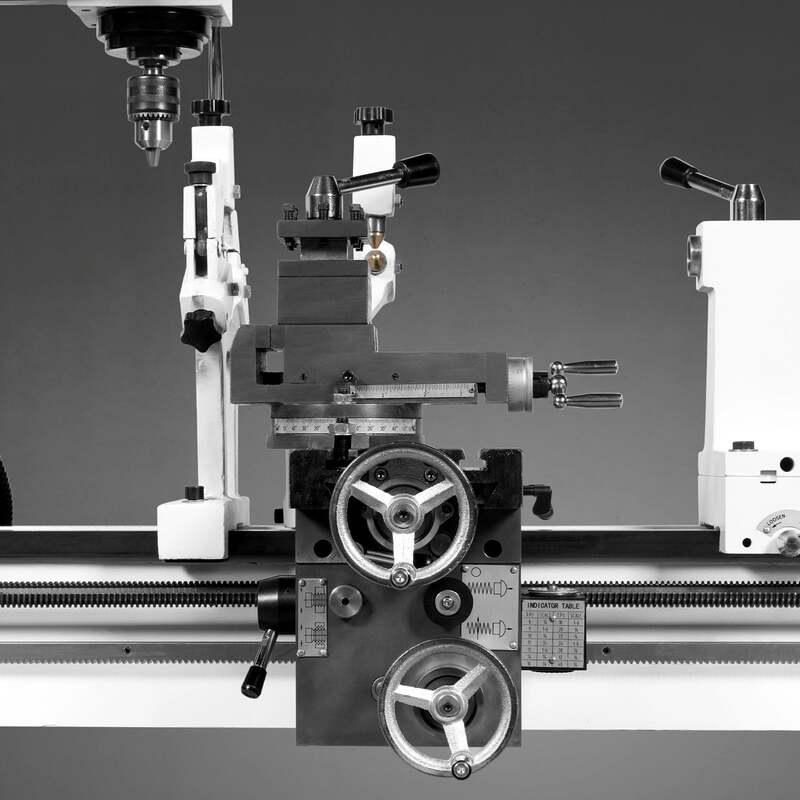

- Precision cross slide and compound slide for accurate machining

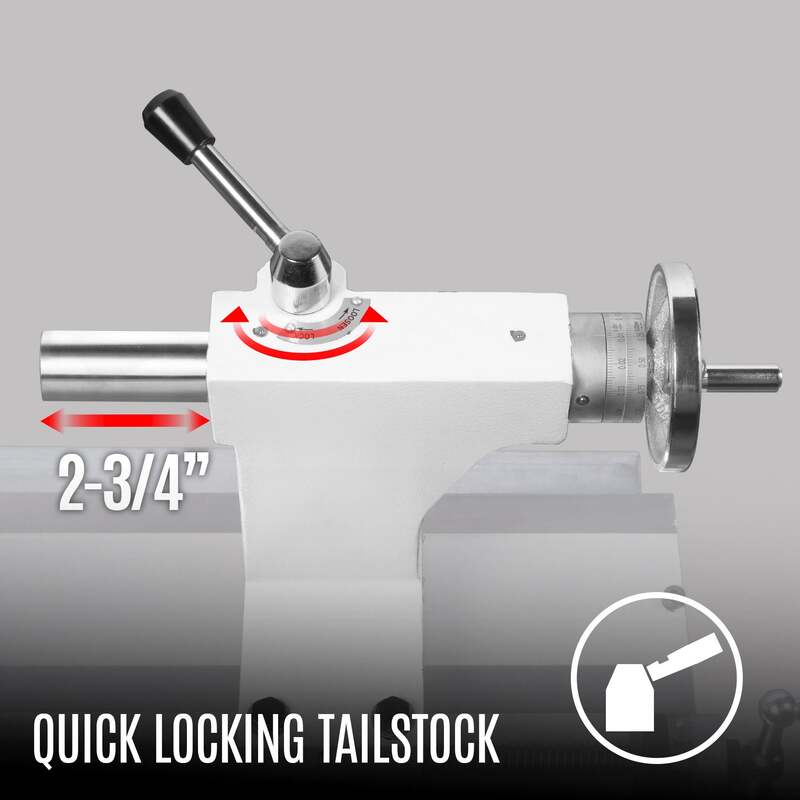

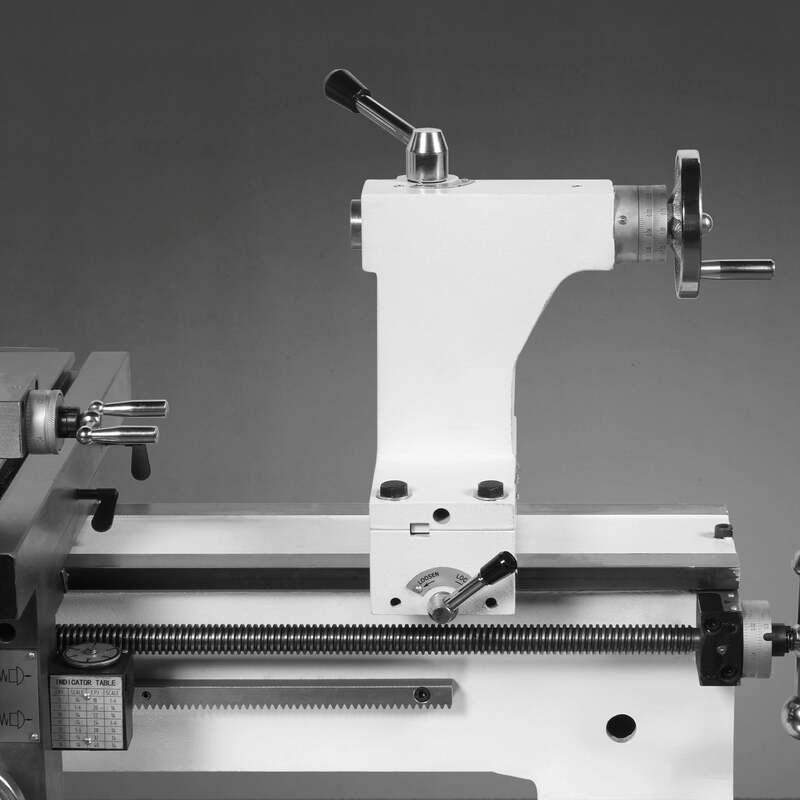

- Quick-lock tailstock with MT3 taper

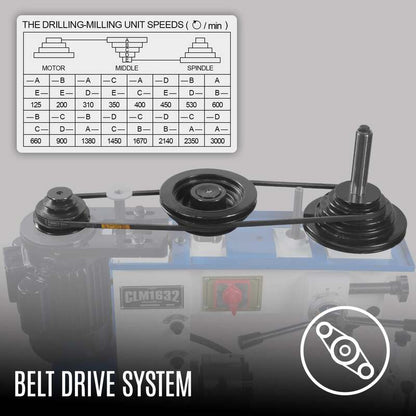

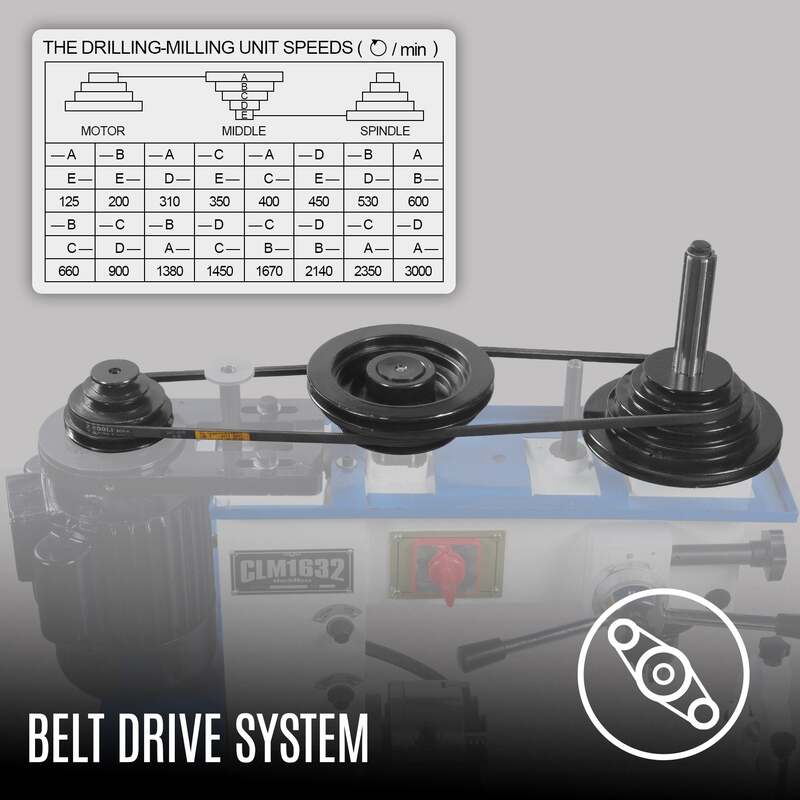

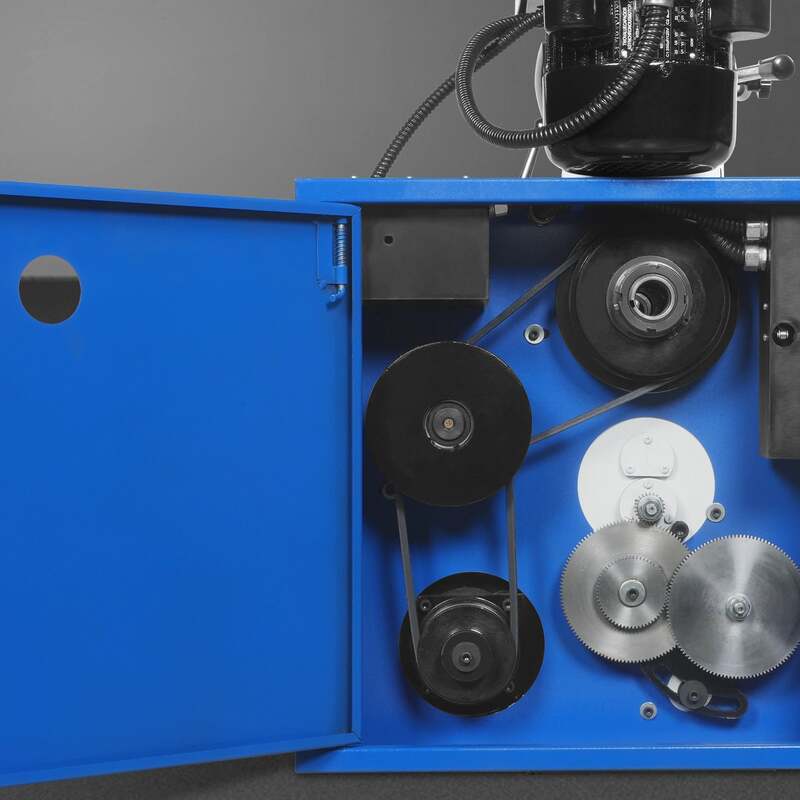

- Belt-driven milling head for smooth operation
- Compact footprint ideal for workshops and garage machining
This robust design ensures dependable performance for DIY machinists, small fabrication shops, and professional metalworking applications.
Technical Specifications
- Lathe Motor: 1 HP (750W), 110V, Single Phase
- Swing Over Bed: 16-8/15" (420 mm)
- Swing Over Cross Slide: 11-1/2"
- Distance Between Centers: 31-1/2" (800 mm)
- Spindle Bore: 1-1/10" (28 mm)
- Spindle Taper: MT4
- Tailstock Taper: MT3
- Carriage Travel: 29-1/8" (740 mm)
- Cross Slide Travel: 7-7/8" (200 mm)
- Compound Slide Travel: 3" (76 mm)
- Lathe Spindle Speed Range: 160 – 1360 RPM
- Number of Lathe Speeds: 7
- Threading Range: 4 – 120 TPI / 0.2 – 6 mm

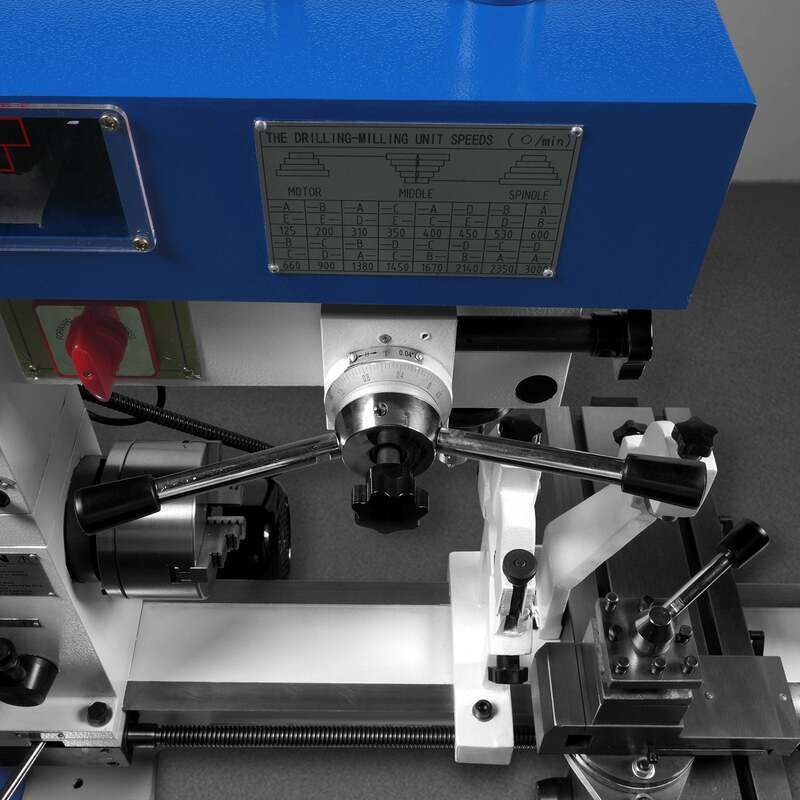

- Milling Spindle Speeds: 120 – 3000 RPM (16 steps)
- Drilling Capacity: 7/8" (22 mm)
- End Milling Capacity: 1-1/8" (28 mm)
- Face Milling Capacity: 3-5/32" (80 mm)
- Head Swivel: 360°
- Machine Dimensions: 57" × 23" × 45"
- Shipping Weight: 653 lbs
